基于多普勒域补偿的车载雷达距离角度联合成像算法

李毅 夏伟杰 周建江 楚咏焱

李毅, 夏伟杰, 周建江, 等. 基于多普勒域补偿的车载雷达距离角度联合成像算法[J]. 雷达学报, 2023, 12(5): 971–985. doi: 10.12000/JR23097
引用本文: 李毅, 夏伟杰, 周建江, 等. 基于多普勒域补偿的车载雷达距离角度联合成像算法[J]. 雷达学报, 2023, 12(5): 971–985. doi: 10.12000/JR23097
LI Yi, XIA Weijie, ZHOU Jianjiang, et al. A range-angle joint imaging algorithm for automotive radar systems based on Doppler domain compensation[J]. Journal of Radars, 2023, 12(5): 971–985. doi: 10.12000/JR23097
Citation: LI Yi, XIA Weijie, ZHOU Jianjiang, et al. A range-angle joint imaging algorithm for automotive radar systems based on Doppler domain compensation[J]. Journal of Radars, 2023, 12(5): 971–985. doi: 10.12000/JR23097

基于多普勒域补偿的车载雷达距离角度联合成像算法

doi: 10.12000/JR23097
基金项目: 江苏省科技成果转化专项基金(BA2021079)
详细信息
    作者简介:

    李 毅,博士生,主要研究方向为4D毫米波高分辨成像技术

    夏伟杰,博士,教授,主要研究方向为毫米波雷达信号处理、SAR特征建模与仿真等

    周建江,博士,教授,博士生导师,主要研究方向为隐身技术、雷达目标特性分析与特征控制等

    楚咏焱,硕士,南京楚航科技有限公司CEO,主要研究方向为毫米波雷达工业化应用

    通讯作者:

    夏伟杰 nuaaxwj@nuaa.edu.cn

  • 责任主编:陈洪猛 Corresponding Editor: CHEN Hongmeng
  • 中图分类号: TN95

A Range-angle Joint Imaging Algorithm for Automotive Radar Systems Based on Doppler Domain Compensation

Funds: Special Funds for Transformation of Scientific and Technological Achievements in Jiangsu Province, China (BA2021079)
More Information
  • 摘要: 高性能、高分辨率单快拍前视成像技术是赋能车载雷达发展的关键,但距离/多普勒走动问题会限制相干积分的实施,同时系统分辨率也往往受限于硬件参数难以提高。根据车载毫米波雷达时分多输入多输出(TDM-MIMO)的前视成像体制,该文提出多普勒域补偿和点对点回波校正方法,完成多域信号解耦合,同时完成距离多普勒走动校正和多普勒解模糊。由于有限阵元数及强噪声干扰限制了传统单维度距离角度成像准确性,因此,该文提出一种基于改进贝叶斯匹配追踪方法(IBMP)的多域联合估计算法。该方法基于伯努利-高斯(BG)模型,在最大后验(MAP)准则约束下迭代更新估计参数和支撑域,实现了多维联合信号的高精度重构。仿真和实测结果表明该文方法能够有效解决距离走动问题,并提高雷达前视成像的角度分辨率,具有较强噪声鲁棒性。

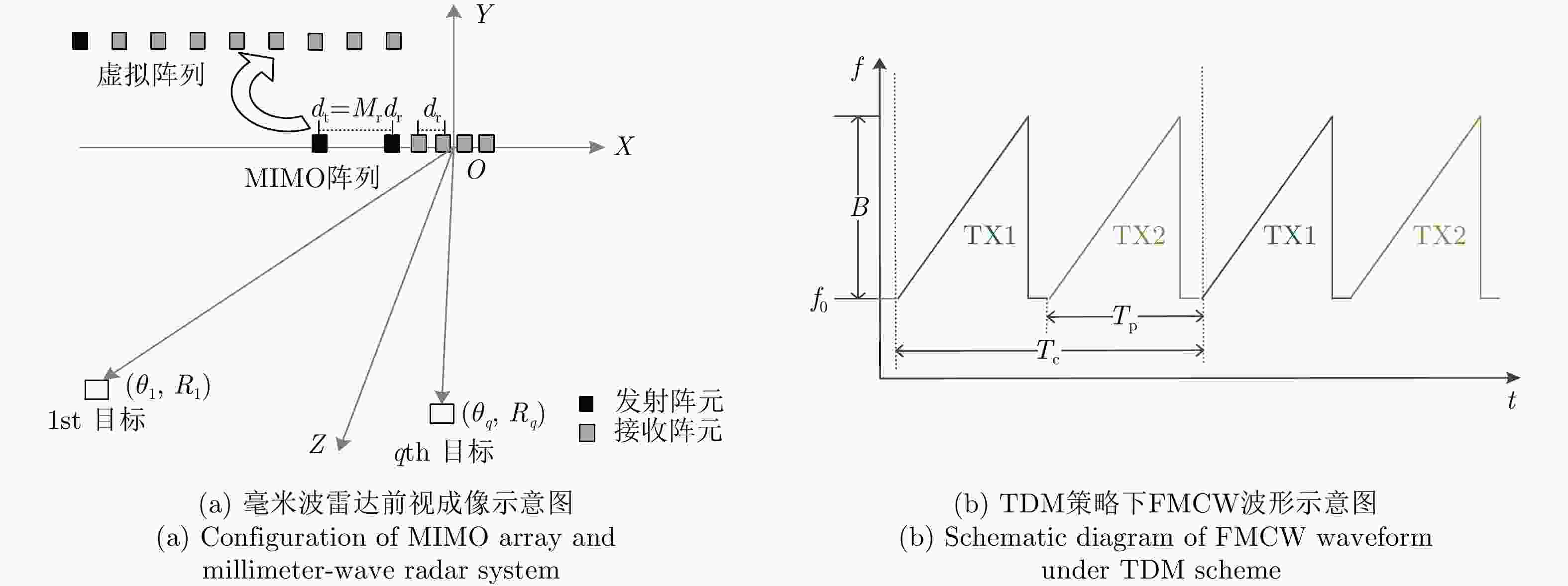

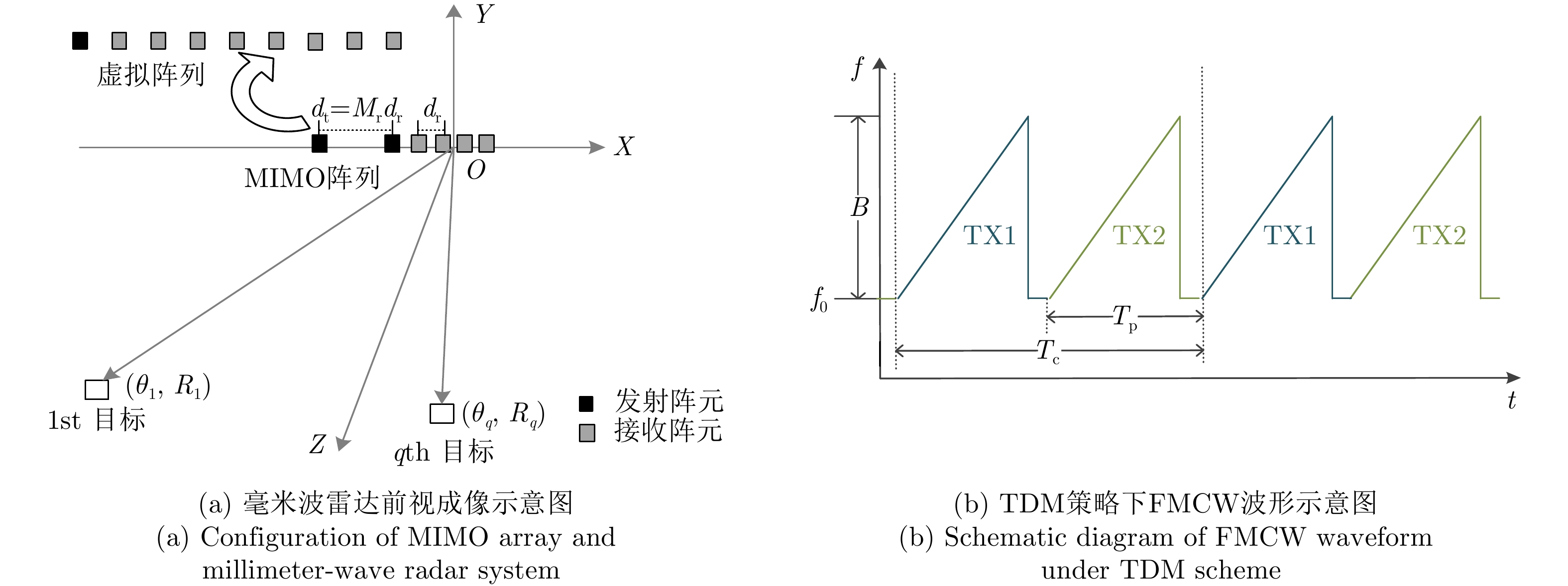

  • 图  1  系统配置示意图

    Figure  1.  System configuration diagram

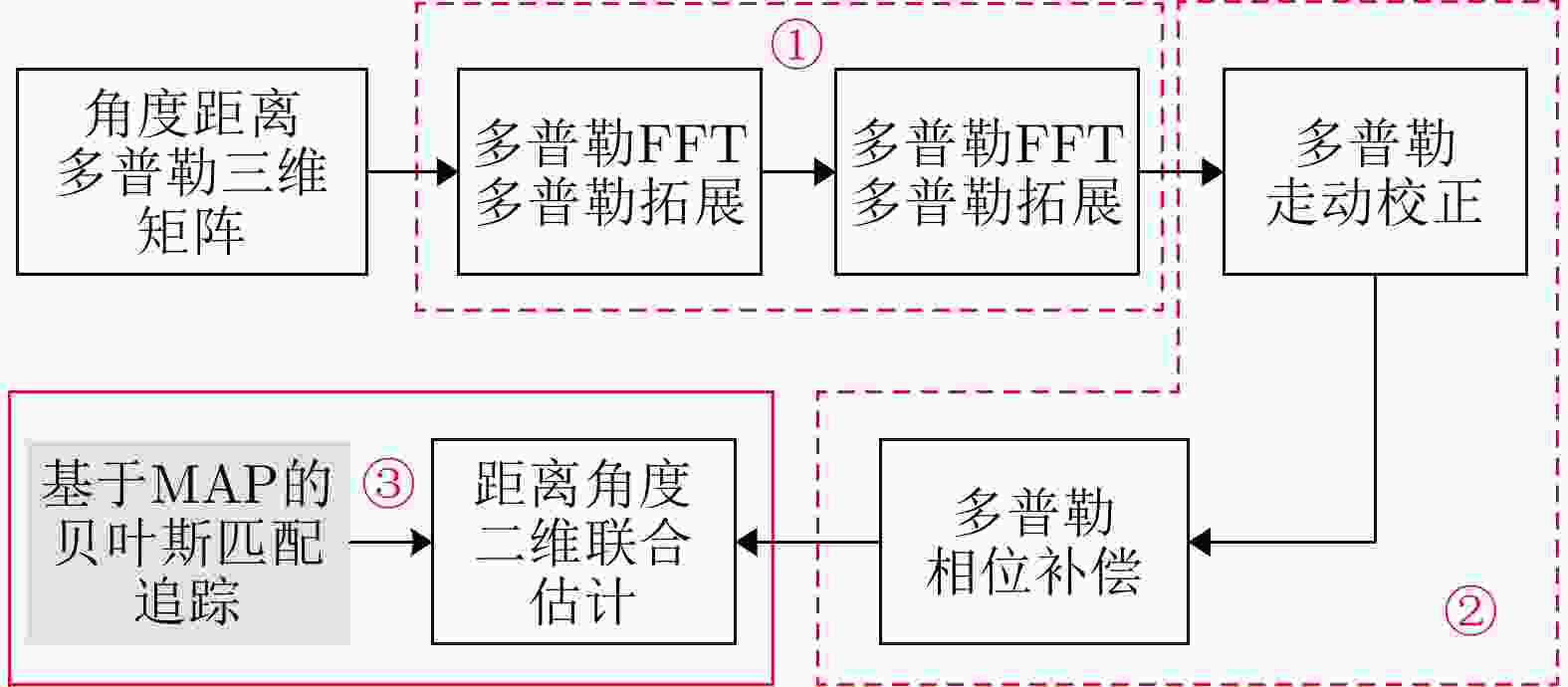

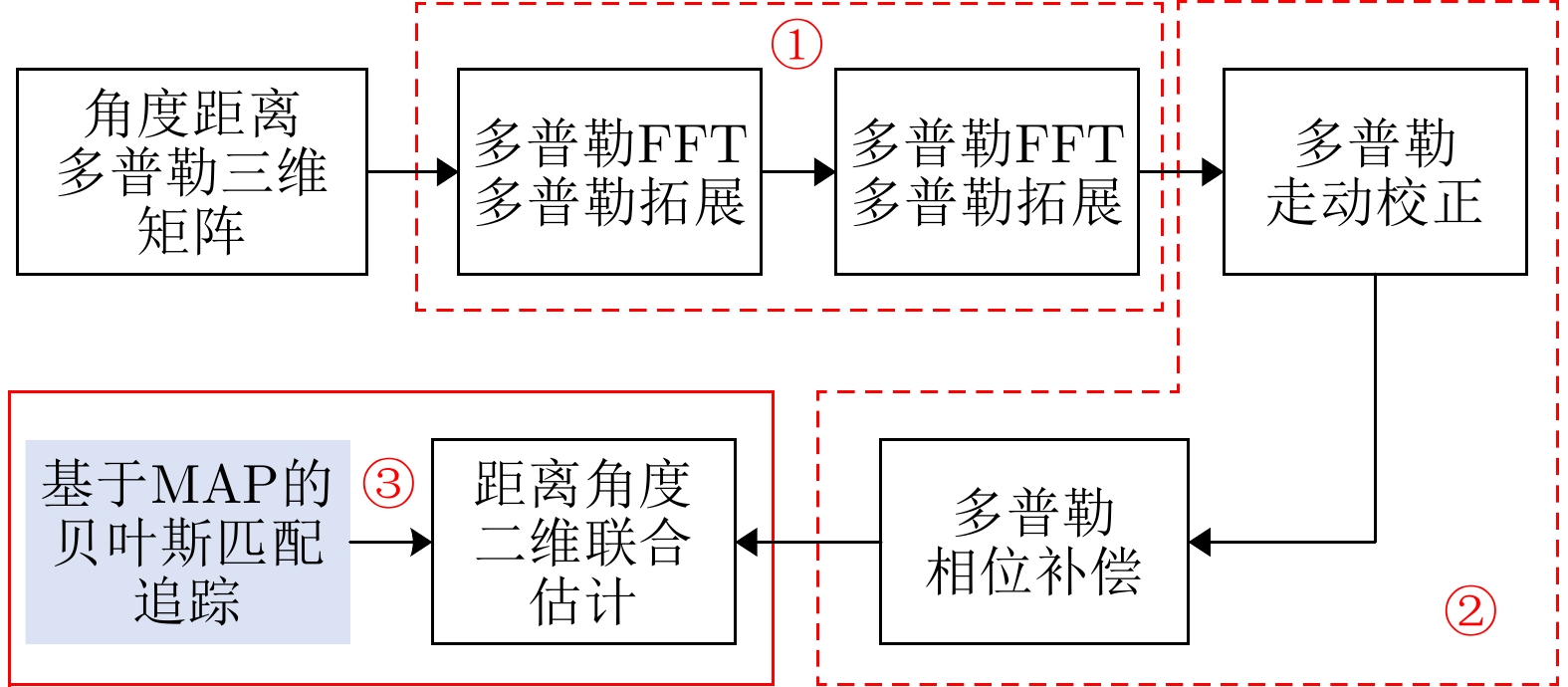

    图  2  基于多普勒补偿的多维联合估计算法流程图

    Figure  2.  The flowchart of joint estimation algorithm based on Doppler compensation

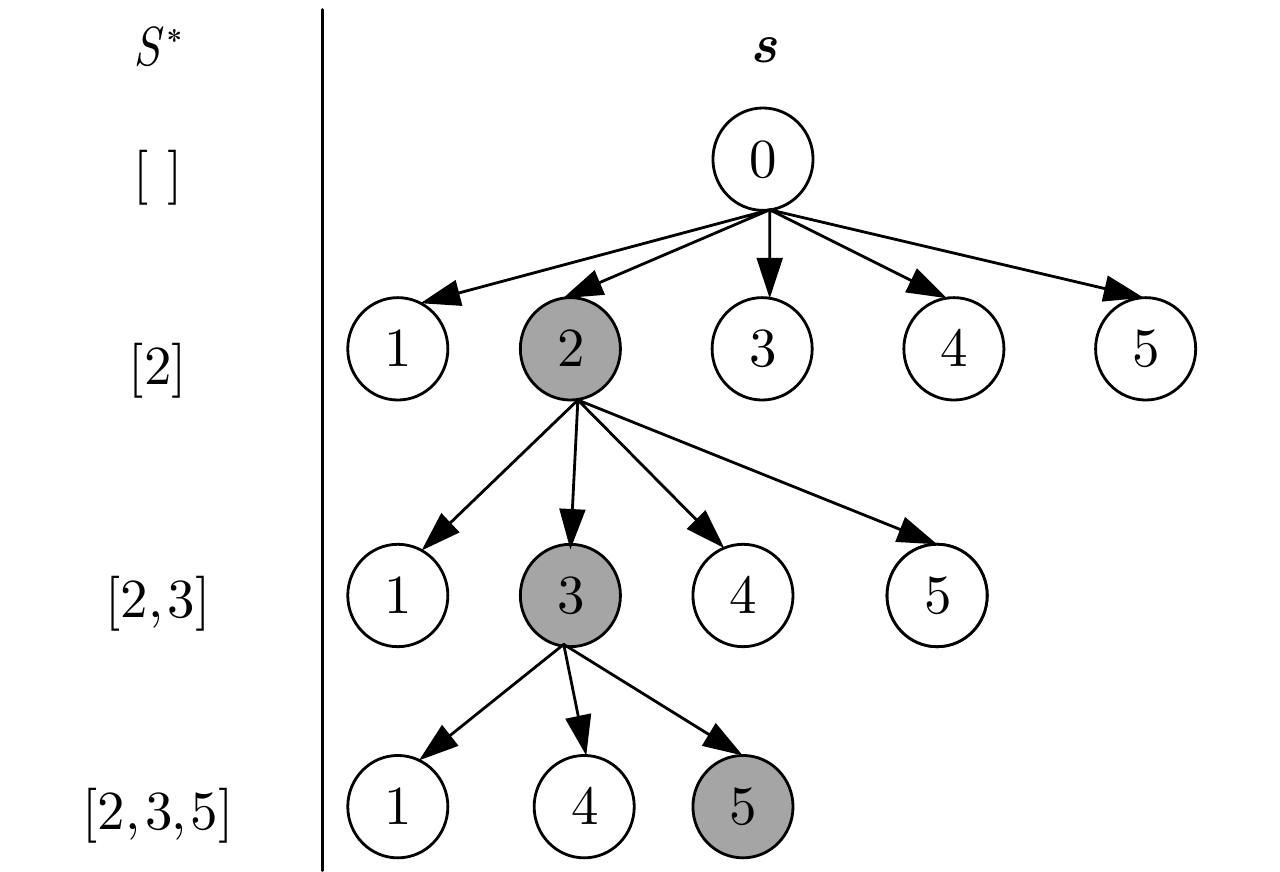

    图  3  基于树结构的搜索策略

    Figure  3.  Tree-search-based search strategy

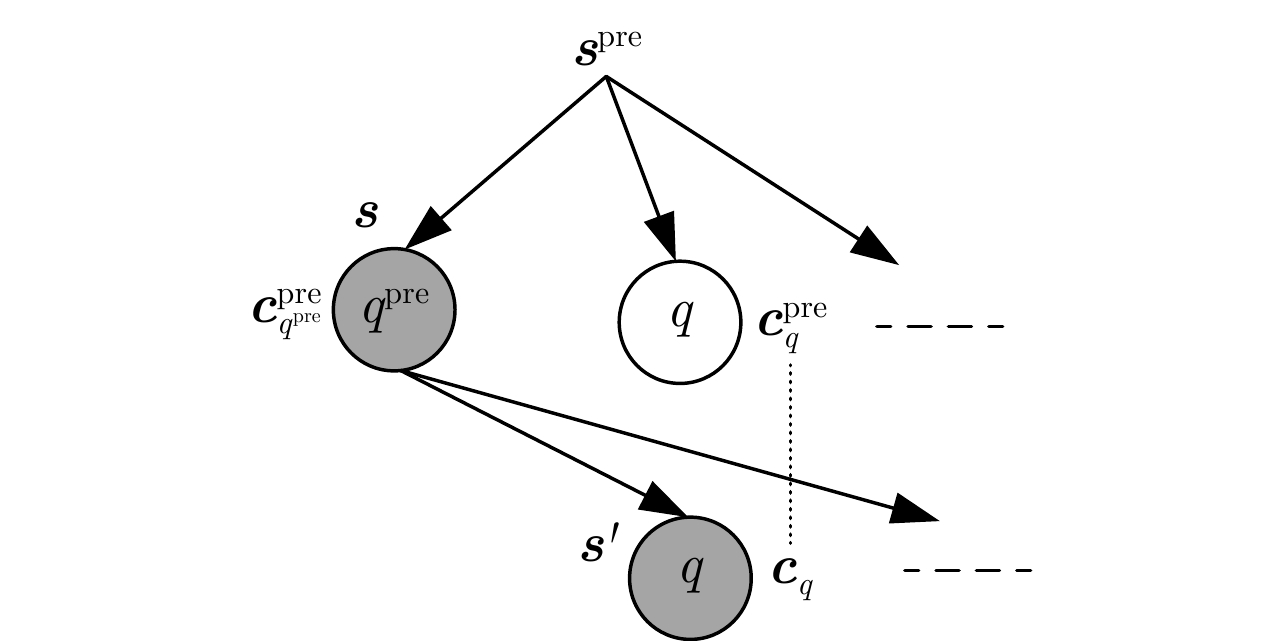

    图  4  ${{\boldsymbol{c}}}_q$的迭代更新示意图

    Figure  4.  The iterative process of calculating $ {{\boldsymbol{c}}}_q $

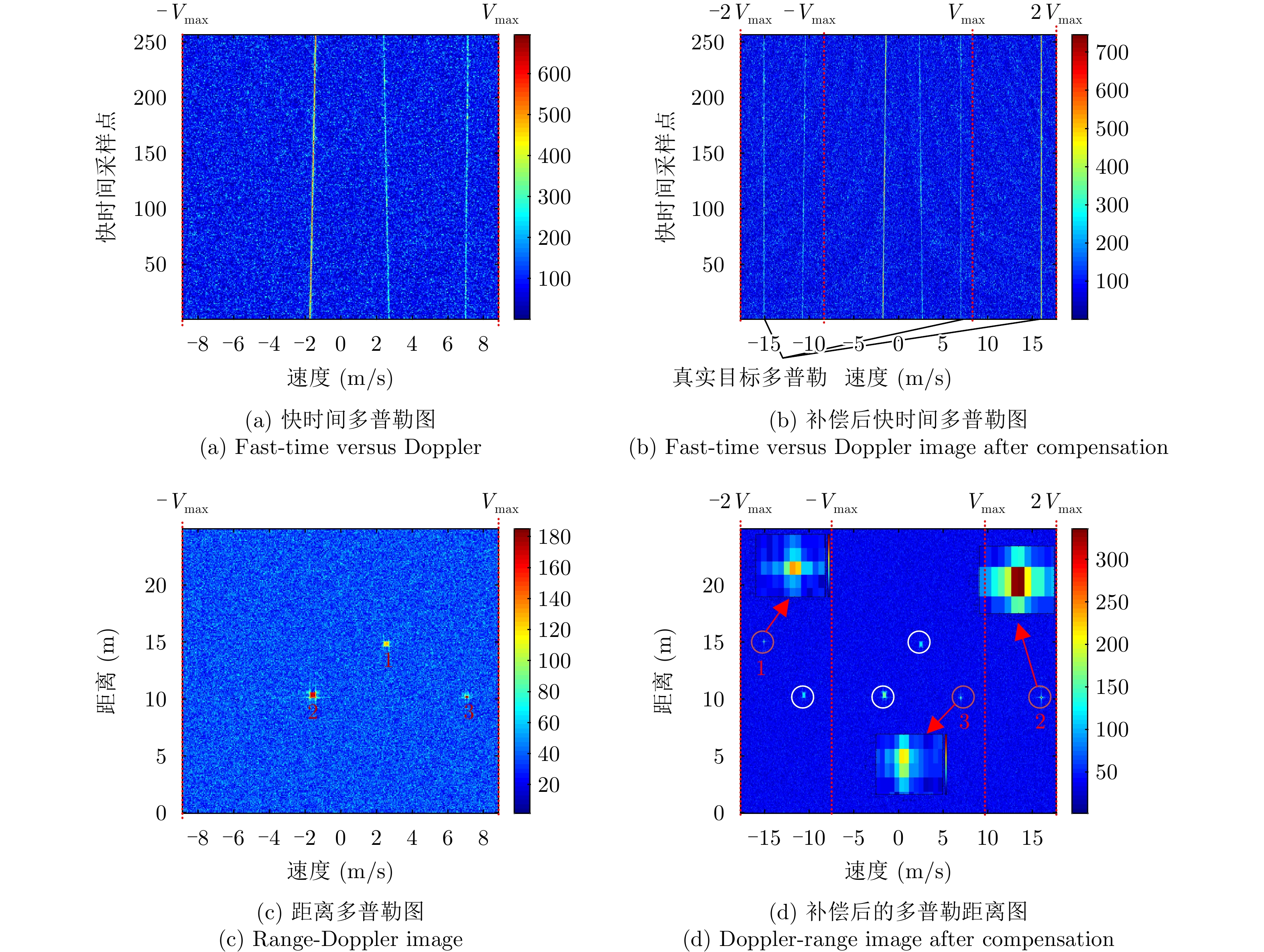

    图  5  点目标仿真

    Figure  5.  Point target simulation

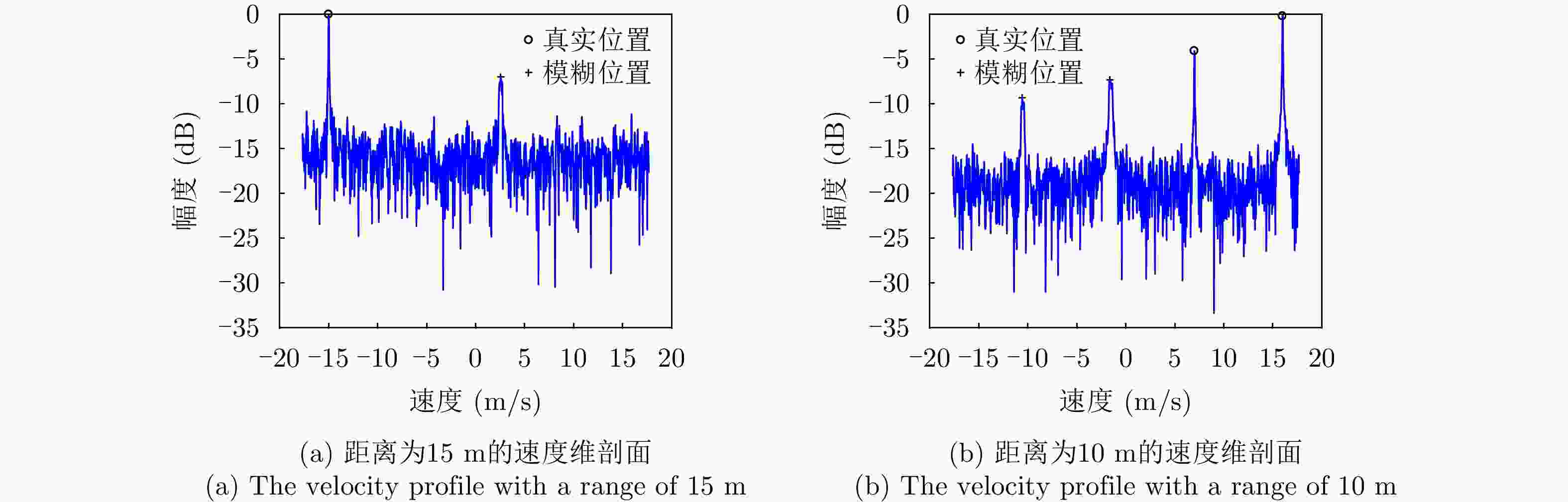

    图  6  仿真目标速度维剖面

    Figure  6.  The velocity profiles of simulation target

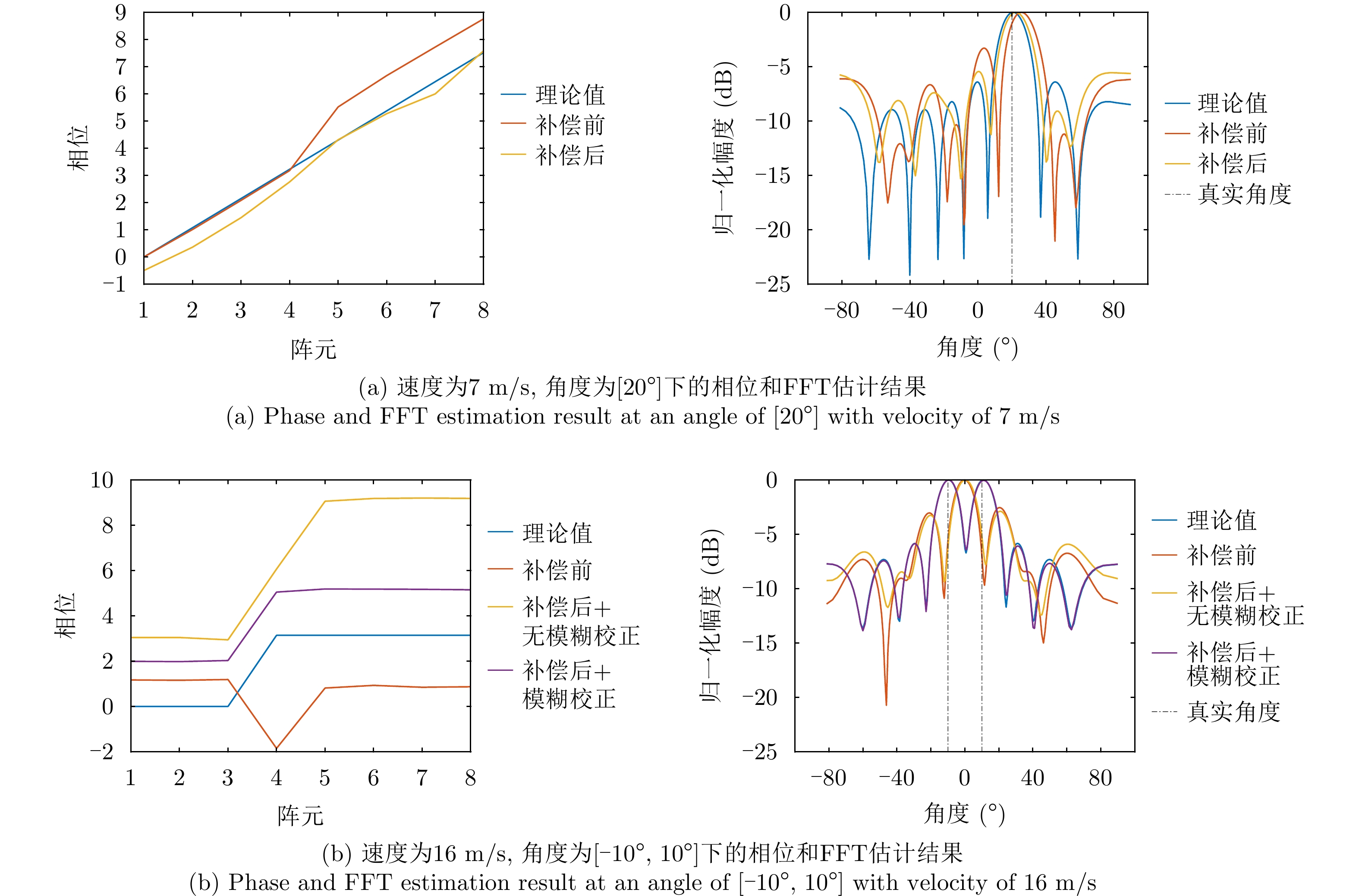

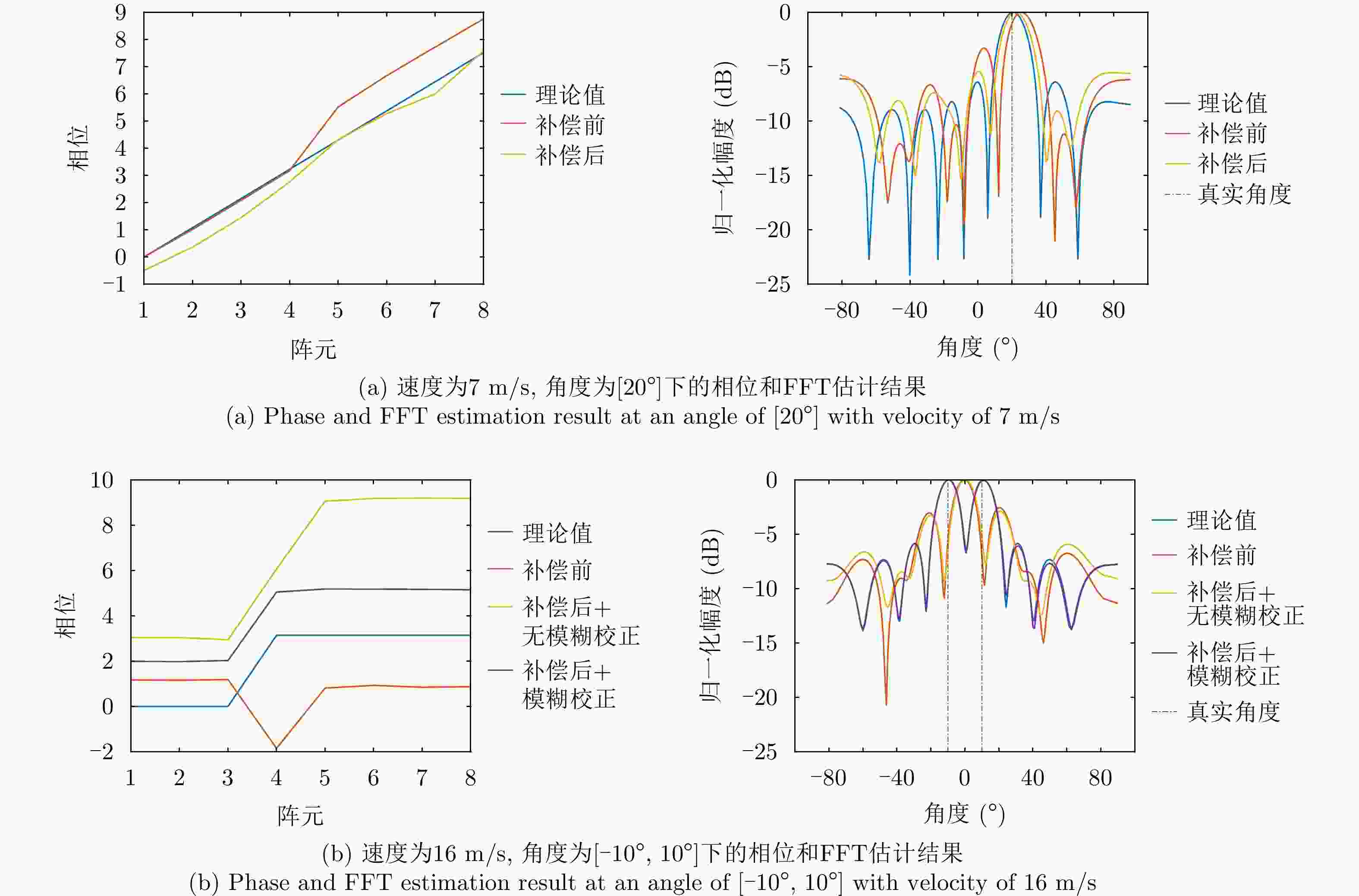

    图  7  多普勒通道补偿影响

    Figure  7.  Doppler channel compensation effect

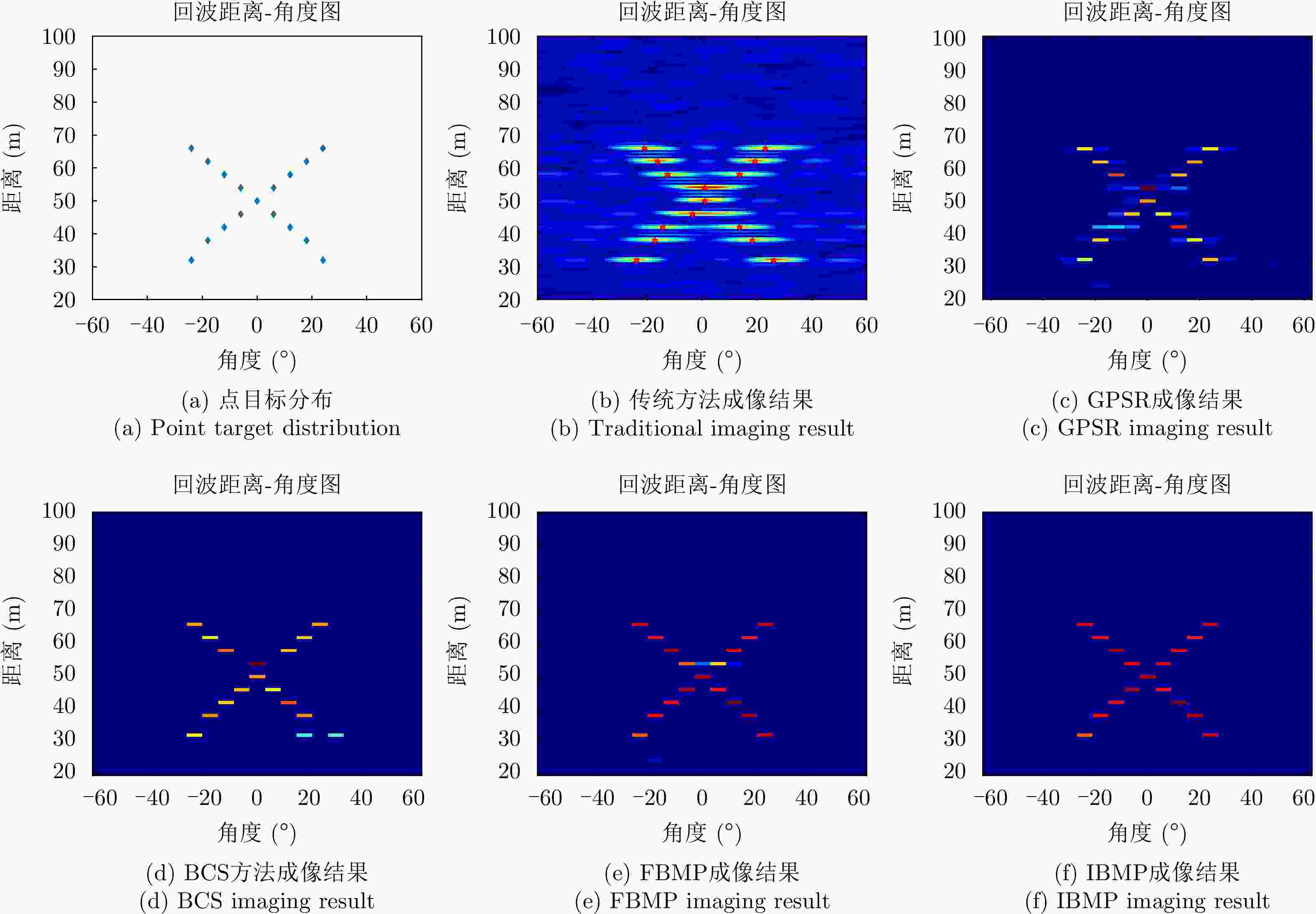

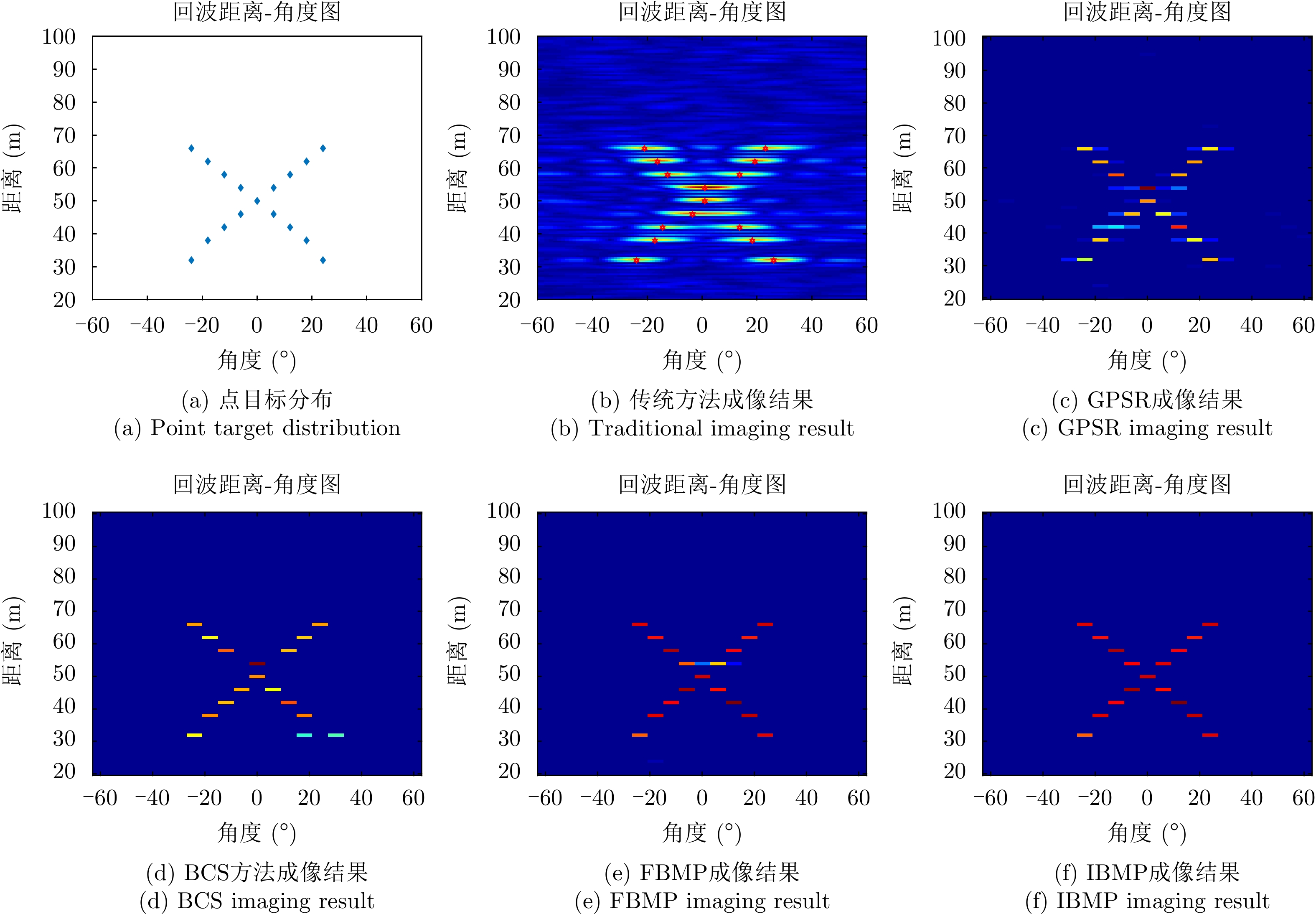

    图  8  距离角度仿真点目标分布以及成像结果对比

    Figure  8.  Range-angle simulation point target distribution and comparison of imaging results

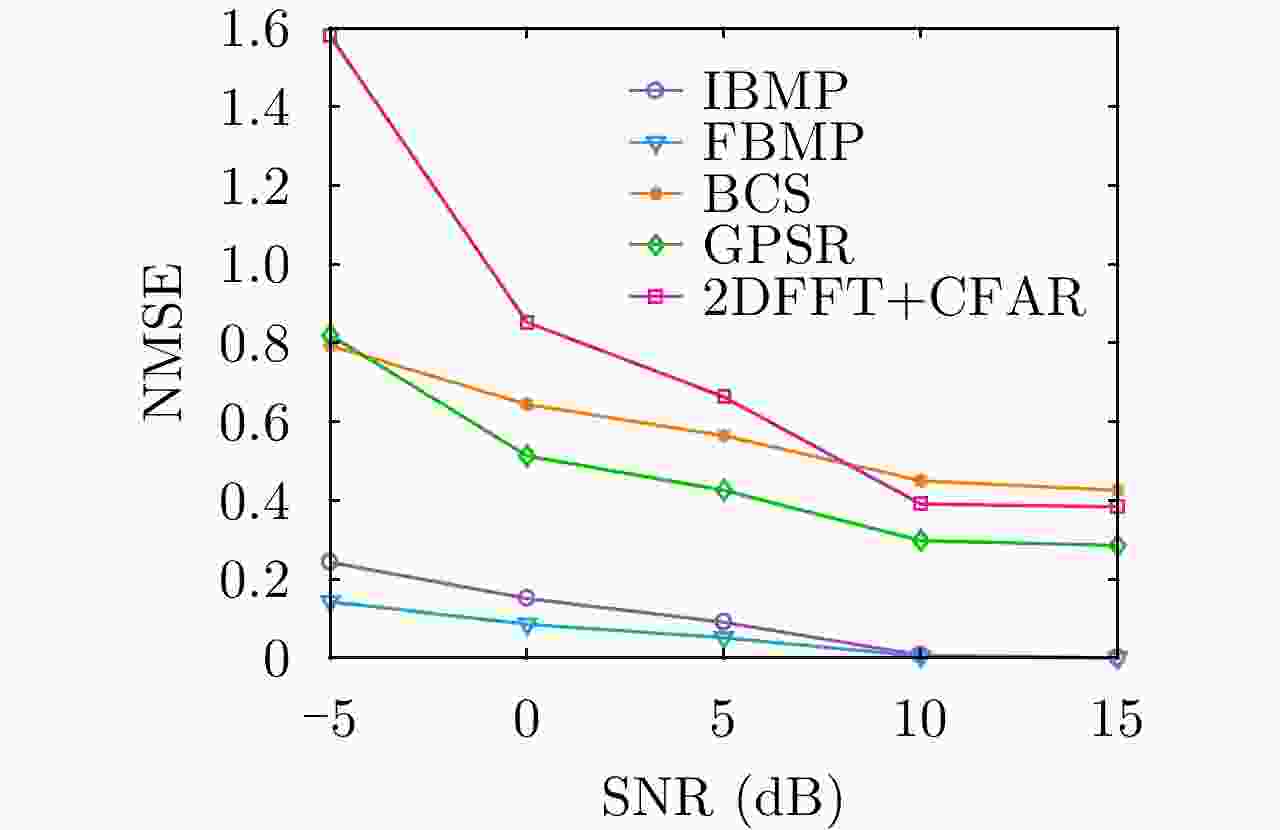

    图  9  距离角度估计的NMSE对比

    Figure  9.  NMSE comparison of range-angle estimation

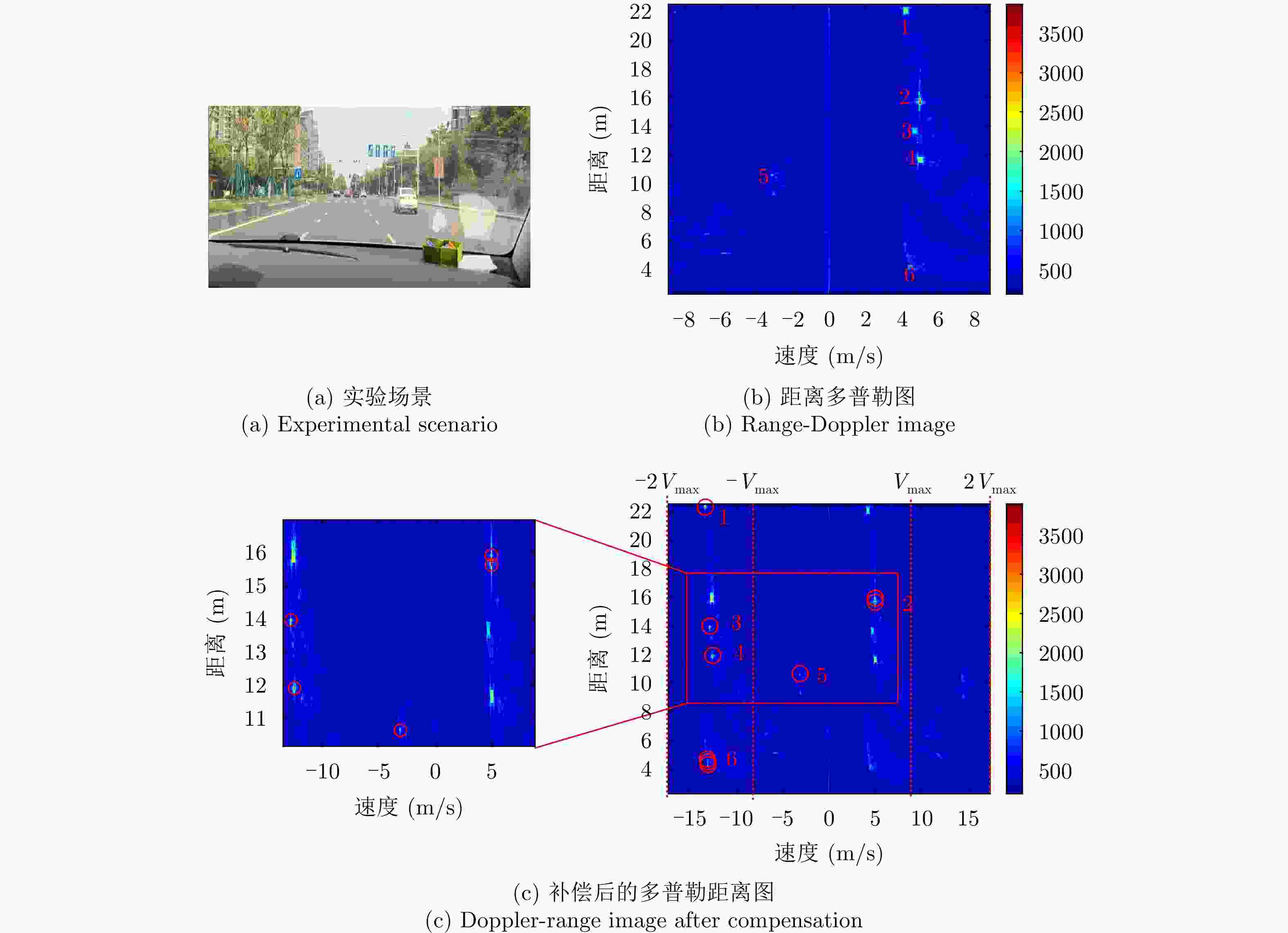

    图  10  多普勒走动、多普勒模糊实测目标成像结果对比

    Figure  10.  Comparison of imaging results of measured targets under Doppler walking and Doppler ambiguity

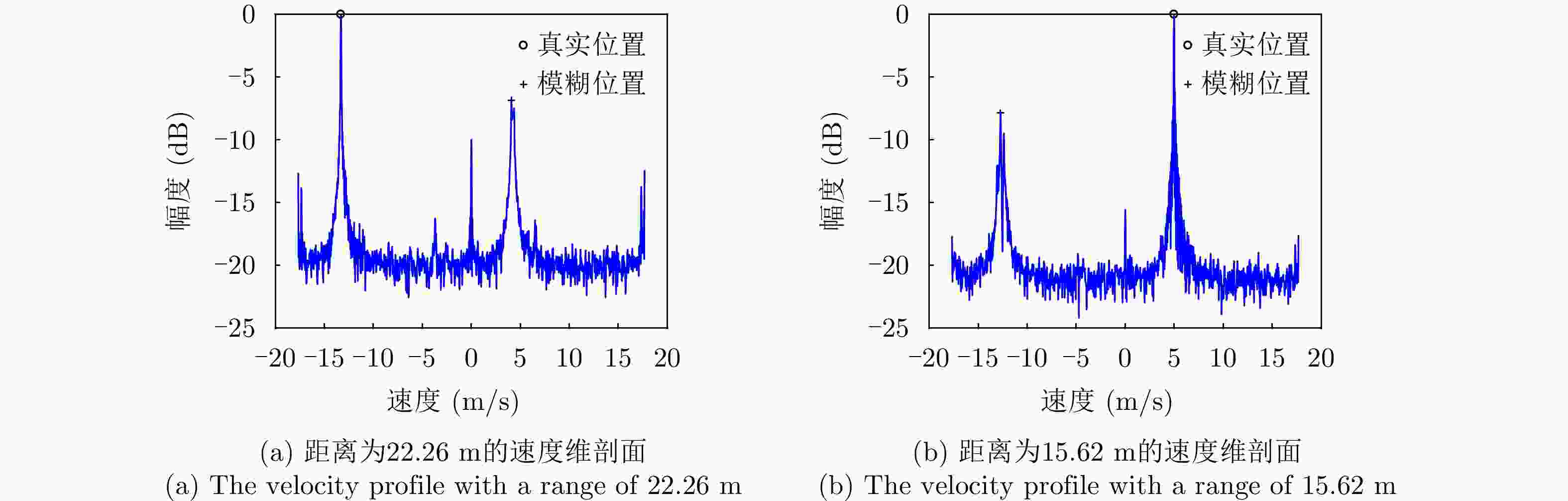

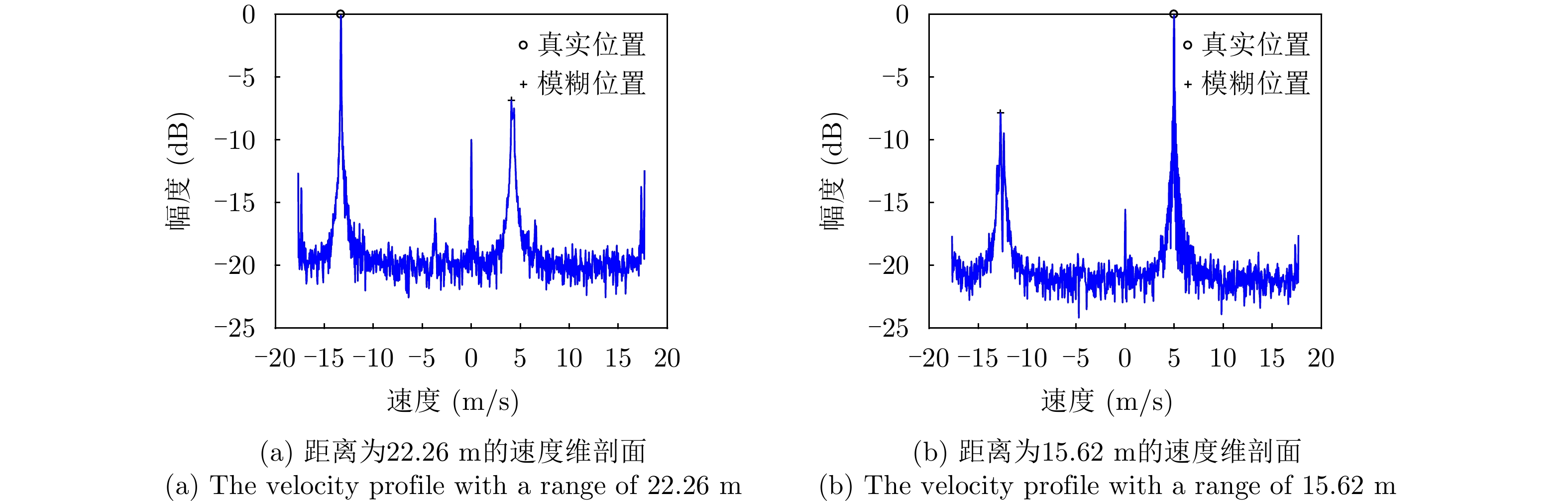

    图  11  实测目标速度维剖面

    Figure  11.  The velocity profiles of measured target

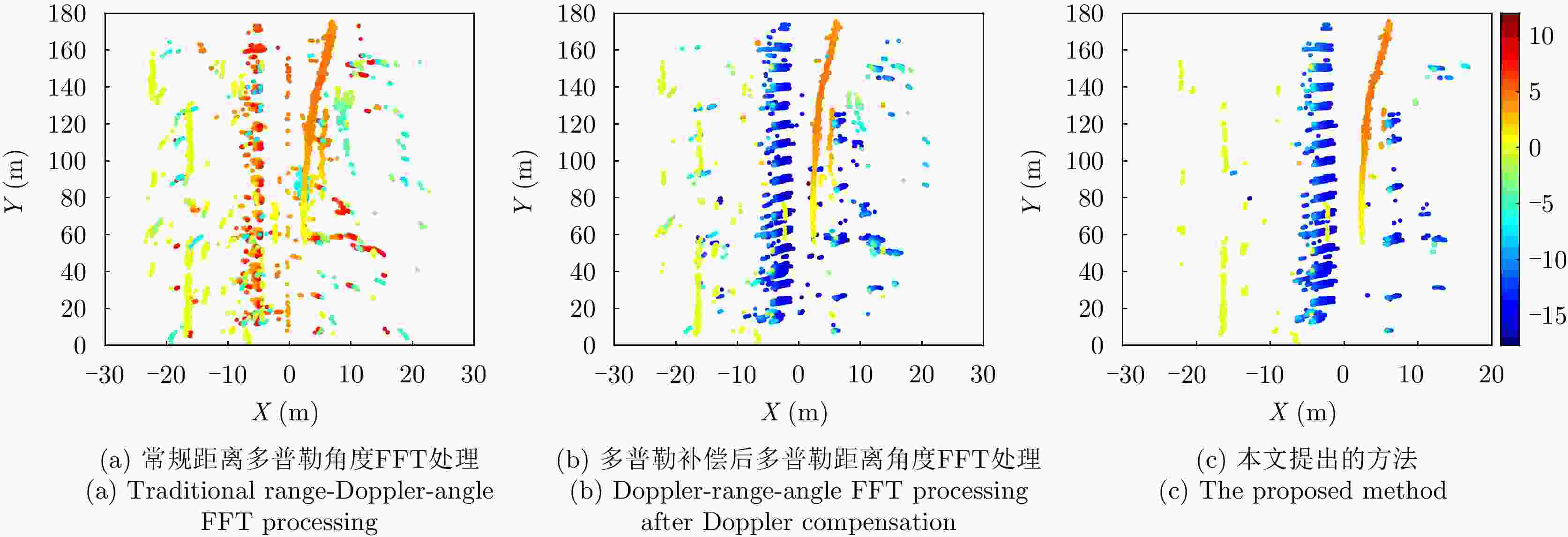

    图  12  400帧实测数据点云成像结果对比(颜色表示速度)

    Figure  12.  Comparison of point cloud imaging results from 400 frames of measured data (the color indicates the velocity of the target)

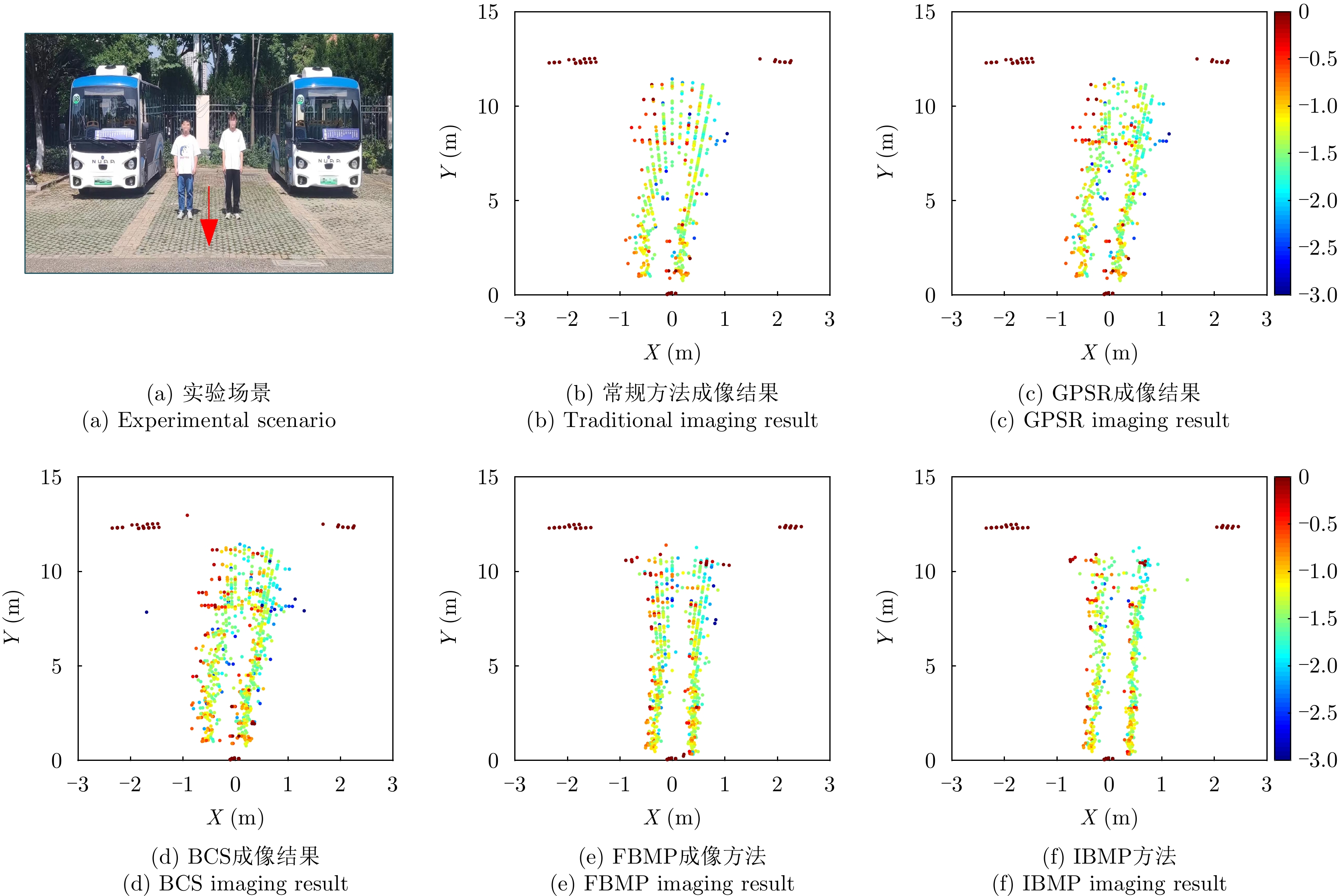

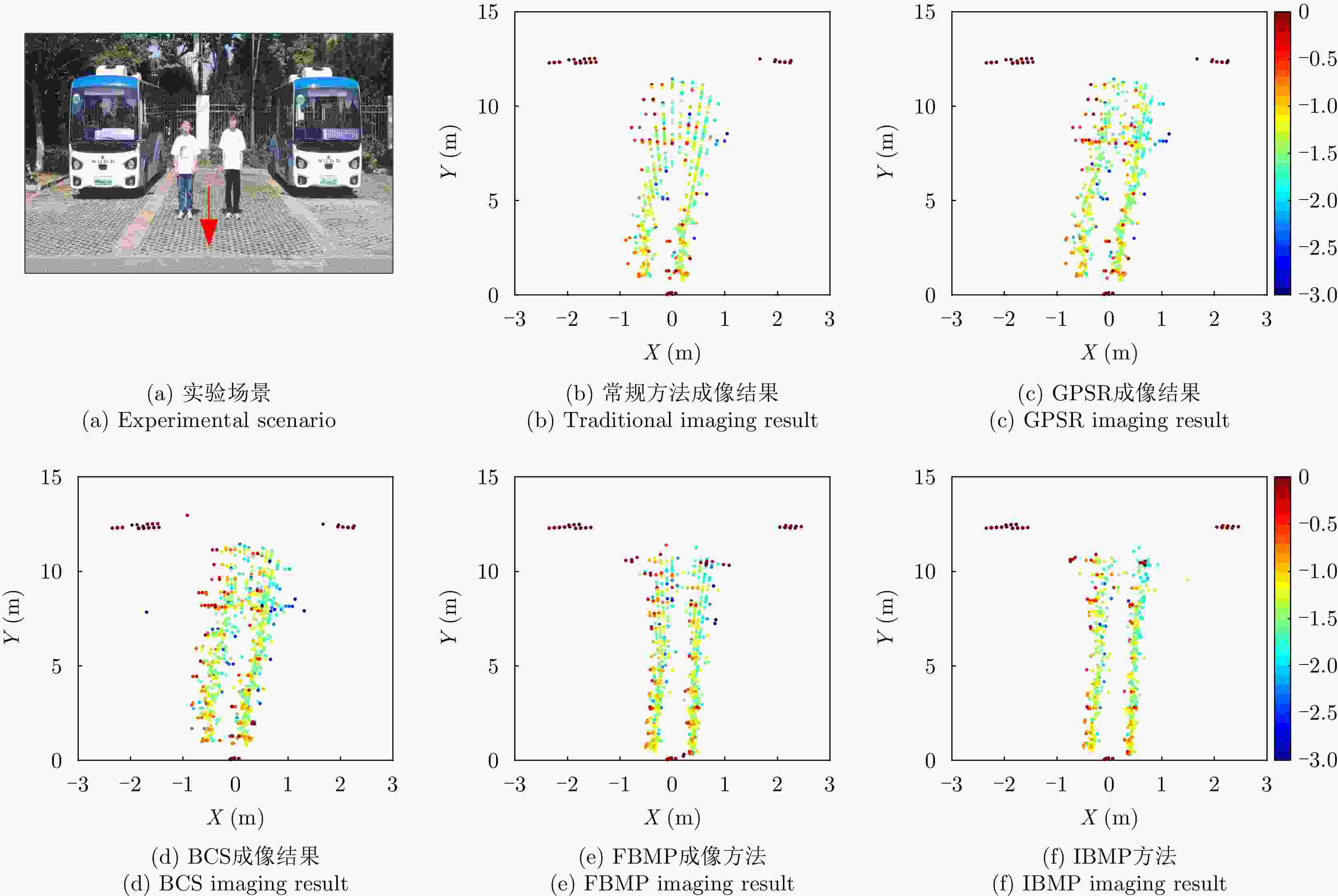

    图  13  实测成像结果对比(颜色表示速度)

    Figure  13.  Measured imaging results comparison (the color indicates the velocity of the target)

    1  基于MAP的贝叶斯匹配追踪方法

    1.   The Bayesian Matching Pursuit (BMP) based on MAP

     初始化:
     $\partial \left( {\mathbf{0} } \right) = \left( { - M{\text{In} }\;\pi - M{\text{In} } \;{\sigma ^2} - \dfrac{1}{ { {\sigma ^2} } }\left\| { {\boldsymbol{Y} } } \right\|_2^2} \right) + Q{\text{In} }\left( {1 - {p_1} } \right)$
     ${ { {\boldsymbol{c} } }_q} = \dfrac{ { { { {\boldsymbol{a} } }_q} } }{ { {\sigma ^2} } },{\beta _q} = \sigma _1^2{\left( {1 + \sigma _1^2{ {\boldsymbol{a} } }_q^{\text{H} }{ { {\boldsymbol{c} } }_q} } \right)^{ - 1} }$
     ${\partial _q} = \partial \left( {\mathbf{0} } \right) + {\text{In} }\dfrac{ { {\beta _q} } }{ { \sigma _1^2} } + {\beta _q}\left\| {\left( { { { {\boldsymbol{Y} } }^{\text{H} } }{ { {\boldsymbol{c} } }_q} } \right)} \right\|_2^2 + {\text{In} }\left( {\dfrac{ { {p_1} } }{ {1 - {p_1} } } } \right)$
     $\varOmega = [\;],\;{ { {\boldsymbol{s} } }^{\left( 0 \right)} } = {\mathbf{0} }$
     更新迭代过程:
     ${q^*} = {{{\rm{max}}\_{\rm{index}}} }\left( { {\partial _q} } \right)$
     $\varOmega = \varOmega \cup {q^*},{ { {\boldsymbol{s} } }^{\left( { {d} } \right)} } = { { {\boldsymbol{s} } }^{\left( { { {d} } - 1} \right)} } + \delta \left[ { {q^*} } \right],{\partial ^{\left( d \right)} } = {\partial _{ {q^*} } }$
     ${ { {\boldsymbol{c} } }_q} = { { {\boldsymbol{c} } }_q} - {\beta _{ {q^*} } }{ { {\boldsymbol{c} } }_{ {q^*} } }({ {\boldsymbol{c} } }_{ {q} })^{\text{H} }{ { {\boldsymbol{a} } }_q}$
     ${\beta _q} = \sigma _1^2{\left( {1 + \sigma _1^2({ {\boldsymbol{a} } }_q)^{ {\rm{H} } }{ { {\boldsymbol{c} } }_q} } \right)^{ - 1} }$
     ${\partial _q} = {\partial ^{\left( d \right)} } + {\rm{In} }\dfrac{ { {\beta _q} } }{ {\sigma _\Delta ^2} } + {\beta _q}\left\| { { { {\boldsymbol{Y} } }^{\text{H} } }{ { {\boldsymbol{c} } }_q} } \right\|_2^2 + {\text{In} }\left( {\dfrac{ { {p_1} } }{ {1 - {p_1} } } } \right)$
     输出:
     ${\hat { {\boldsymbol{x} } }_{ {\text{map} } } } = \sigma _1^2 \displaystyle\sum\limits_{i \in \varOmega } { {\delta _i}{ {\left( { {\boldsymbol{c} }_i^{} } \right)}^{\text{H} } }{ {\boldsymbol{Y} } } }$
    下载: 导出CSV

    表  1  仿真实验雷达参数

    Table  1.   Radar parameters for simulation experiment

    雷达参数数值
    载频(GHz)77
    带宽(MHz)1500
    MIMO天线配置2T × 4R
    脉冲宽度(μs)55
    脉冲采样点数K256
    脉冲个数L256
    角度分辨率(°)15.7
    距离分辨率(m)0.1
    最大不模糊速度(m/s)8.85
    下载: 导出CSV

    表  2  AWR1642雷达关键参数

    Table  2.   Radar parameters of AWR1642

    雷达参数
    载频(GHz)77
    带宽(MHz)1500
    MIMO天线配置2T × 4R
    脉冲宽度(μs)160
    脉冲采样点数K128
    脉冲个数L15.7
    角度分辨率(°)0.1
    距离分辨率(m)0.095
    下载: 导出CSV
  • [1] BILIK I, LONGMAN O, VILLEVAL S, et al. The rise of radar for autonomous vehicles: Signal processing solutions and future research directions[J]. IEEE Signal Processing Magazine, 2019, 36(5): 20–31. doi: 10.1109/MSP.2019.2926573
    [2] MUTSCHLER M A, SCHARF P A, RIPPL P, et al. River surface analysis and characterization using FMCW radar[J]. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing, 2022, 15: 2493–2502. doi: 10.1109/JSTARS.2022.3157469
    [3] MERCURI M, LORATO I R, LIU Y H, et al. Vital-sign monitoring and spatial tracking of multiple people using a contactless radar-based sensor[J]. Nature Electronics, 2019, 2(6): 252–262. doi: 10.1038/s41928-019-0258-6
    [4] XIA Weijie, LI Yi, and DONG Shiqi. Radar-based high-accuracy cardiac activity sensing[J]. IEEE Transactions on Instrumentation and Measurement, 2021, 70: 4003213. doi: 10.1109/TIM.2021.3050827
    [5] SUN Hongbo, BRIGUI F, and LESTURGIE M. Analysis and comparison of MIMO radar waveforms[C]. 2014 International Radar Conference, Lille, France, 2014: 1–6.
    [6] RICHARDS M A. Fundamentals of Radar Signal Processing[M]. Dallas, USA: Tata McGraw-Hill Education, 2005.
    [7] PERRY R P, DIPIETRO R C, and FANTE R L. SAR imaging of moving targets[J]. IEEE Transactions on Aerospace and Electronic Systems, 1999, 35(1): 188–200. doi: 10.1109/7.745691
    [8] HUANG Penghui, LIAO Guisheng, YANG Zhiwei, et al. Ground maneuvering target imaging and high-order motion parameter estimation based on second-order Keystone and generalized Hough-HAF transform[J]. IEEE Transactions on Geoscience and Remote Sensing, 2017, 55(1): 320–335. doi: 10.1109/TGRS.2016.2606436
    [9] LONGMAN O and BILIK I. Spectral Radon-Fourier transform for automotive radar applications[J]. IEEE Transactions on Aerospace and Electronic Systems, 2021, 57(2): 1046–1056. doi: 10.1109/TAES.2020.3038245
    [10] XIONG Kai, ZHAO Guanghui, and SHI Guangming. Radar high-speed target coherent detection method based on modified radon inverse Fourier transform[J]. IEEE Transactions on Aerospace and Electronic Systems, 2023, 59(2): 950–962. doi: 10.1109/TAES.2022.3193090
    [11] ROBERTS W, STOICA P, LI Jian, et al. Iterative adaptive approaches to MIMO radar imaging[J]. IEEE Journal of Selected Topics in Signal Processing, 2010, 4(1): 5–20. doi: 10.1109/JSTSP.2009.2038964
    [12] KIM S, OH D, and LEE J. Joint DFT-ESPRIT estimation for TOA and DOA in vehicle FMCW radars[J]. IEEE Antennas and Wireless Propagation Letters, 2015, 14: 1710–1713. doi: 10.1109/LAWP.2015.2420579
    [13] FANG W H and FANG L D. Joint angle and range estimation with signal clustering in FMCW radar[J]. IEEE Sensors Journal, 2020, 20(4): 1882–1892. doi: 10.1109/JSEN.2019.2949367
    [14] 杨建宇. 雷达对地成像技术多向演化趋势与规律分析[J]. 雷达学报, 2019, 8(6): 669–692. doi: 10.12000/JR19099

    YANG Jianyu. Multi-directional evolution trend and law analysis of radar ground imaging technology[J]. Journal of Radars, 2019, 8(6): 669–692. doi: 10.12000/JR19099
    [15] 钟金荣, 文贡坚. 基于块稀疏贝叶斯学习的雷达目标压缩感知[J]. 雷达学报, 2016, 5(1): 99–108. doi: 10.12000/JR15056

    ZHONG Jinrong and WEN Gongjian. Compressive sensing for radar target signal recovery based on block sparse Bayesian learning[J]. Journal of Radars, 2016, 5(1): 99–108. doi: 10.12000/JR15056
    [16] ANITORI L, OTTEN M, and HOOGEBOOM P. Compressive sensing for high resolution radar imaging[C]. 2010 Asia-Pacific Microwave Conference, Yokohama, Japan, 2010: 1809–1812.
    [17] WU Yang, ZHANG Yin, ZHANG Yongchao, et al. Outline reconstruction for radar forward-looking imaging based on total variation functional deconvloution methodxs[C]. IGARSS 2018–2018 IEEE International Geoscience and Remote Sensing Symposium, Valencia, Spain, 2018: 7267–7270.
    [18] 唐军奎, 刘峥, 冉磊, 等. 基于稀疏和低秩先验的雷达前视超分辨成像方法[J]. 雷达学报, 2023, 12(2): 332–342. doi: 10.12000/JR22199

    TANG Junkui, LIU Zheng, RAN Lei, et al. Radar forward-looking super-resolution imaging method based on sparse and low-rank priors[J]. Journal of Radars, 2023, 12(2): 332–342. doi: 10.12000/JR22199
    [19] SHU Zhaowei, ZONG Zhulin, HUANG Libing, et al. Forward-looking radar super-resolution imaging combined TSVD with L1 norm constraint[C]. IGARSS 2019–2019 IEEE International Geoscience and Remote Sensing Symposium, Yokohama, Japan, 2019: 2559–2562.
    [20] JI Shihao, XUE Ya, and CARIN L. Bayesian compressive sensing[J]. IEEE Transactions on Signal Processing, 2008, 56(6): 2346–2356. doi: 10.1109/TSP.2007.914345
    [21] XU Yanqin, SONG Yuan, WEI Shunjun, et al. A fast 2D super-resolution imaging method via Bayesian compressive sensing for mmWave automotive radar[C]. 2023 IEEE Radar Conference (RadarConf23), San Antonio, USA, 2023: 1–6.
    [22] SCHNITER P, POTTER L C, and ZINIEL J. Fast Bayesian matching pursuit[C]. 2008 Information Theory and Applications Workshop, San Diego, USA, 2008: 326–333.
    [23] YOU You, ZHANG Chuan, and ZHANG Li. Bayesian matching pursuit based estimation of off-grid channel for millimeter wave massive MIMO system[J]. IEEE Transactions on Vehicular Technology, 2022, 71(11): 11603–11614. doi: 10.1109/TVT.2022.3169721
    [24] FIGUEIREDO M A T, NOWAK R D, and WRIGHT S J. Gradient projection for sparse reconstruction: Application to compressed sensing and other inverse problems[J]. IEEE Journal of Selected Topics in Signal Processing, 2007, 1(4): 586–597. doi: 10.1109/JSTSP.2007.910281
    [25] MU Huilin, ZHANG Yun, JIANG Yicheng, et al. STAP-based GMTI for multichannel SAR with sparse sampling[C]. 2017 IEEE Radar Conference (RadarConf), Seattle, USA, 2017: 1483–1487.
