Target Parameter and Time-frequency Bias Estimation Method Based on Multiepoch Observations for Distributed MIMO Radar
-
摘要: 该文针对分布式多输入多输出雷达系统中存在的时频同步误差问题，提出了一种基于多时刻测量数据的目标参数与系统时频偏差联合估计方法，突破了传统方法基于单时刻观测与依赖直达波数据的局限，实现了无须直达波的多时刻测量数据融合的高精度参数联合估计。该文采用“闭式解”和“迭代优化”两步策略结合方法，首先利用两阶段加权最小二乘框架构建闭式解，仅使用首尾两个时刻的观测数据获得目标位置、速度及辅助变量的初始估计，该方法显式地对误差项中的二阶分量进行了建模并优化了加权矩阵的构建，有效提高了算法在高误差水平条件下的精确性和鲁棒性；其次，以该闭式解作为初始值，基于多时刻测量数据构建最大似然-最大后验概率目标函数，采用信赖域迭代优化方法进一步优化估计结果，并且实现了时频偏差参数的估计校正。仿真实验表明，所提方法在多种实验误差水平和几何配置下均展现了优于对比方法的性能优势，显著提升了目标定位、测速及时频偏差估计的精度与鲁棒性，具有重要的理论价值与实际应用前景。Abstract: This study addresses time-frequency synchronization errors in distributed Multiple-Input Multiple-Output (MIMO) radar systems and proposes a joint estimation method for target parameters and system time-frequency biases based on multi-epoch measurement data. The method overcomes the limitations of traditional approaches that rely on single-epoch observations and direct-path signals, enabling high-accuracy joint parameter estimation through multi-epoch data fusion without requiring direct-path information. The proposed method adopts a two-step strategy that combines a closed-form solution with iterative optimization. First, a closed-form solution is derived within a two-stage weighted least-squares framework using only the first- and last-epoch observations to obtain initial estimates of the target position, velocity, and auxiliary variables. This stage explicitly models second-order error terms and optimizes the construction of the weighting matrix, significantly improving accuracy and robustness under high-error conditions. Second, using the closed-form estimates as initialization, a maximum likelihood–maximum a posteriori objective function is formulated based on the full multi-epoch measurement data, and a trust-region iterative optimization method is applied to refine the estimates and recover the time-frequency bias parameters. Simulation results show that the proposed method outperforms existing approaches across various error levels and geometric configurations, significantly enhancing the accuracy and robustness of target localization, velocity estimation, and time–frequency bias estimation. These results demonstrate strong theoretical significance and promising practical application potential.
-

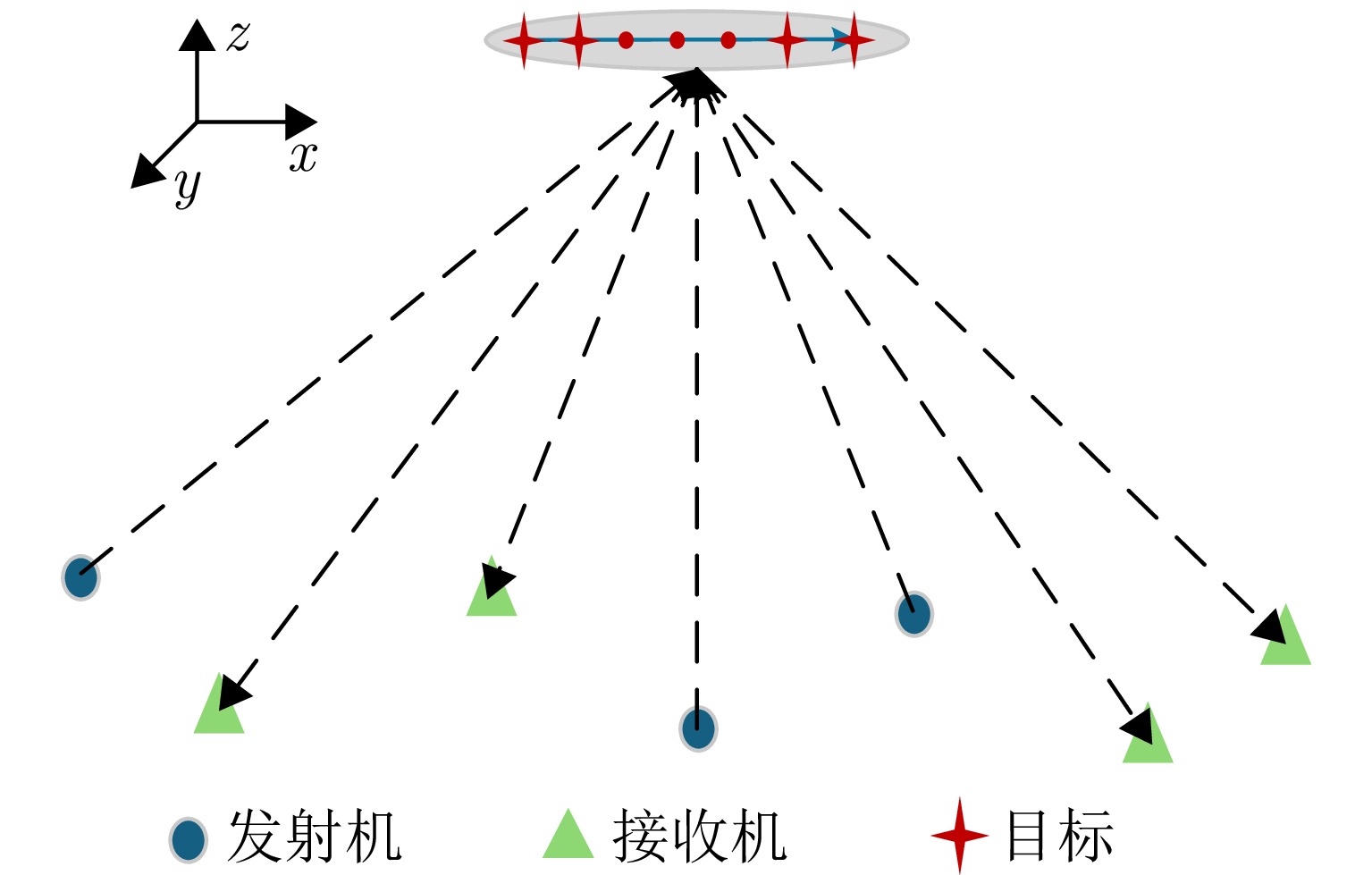

图 1 分布式MIMO雷达多时刻移动目标定位场景示意图
Figure 1. Schematic diagram of a distributed MIMO radar multi-time moving target localization scenario

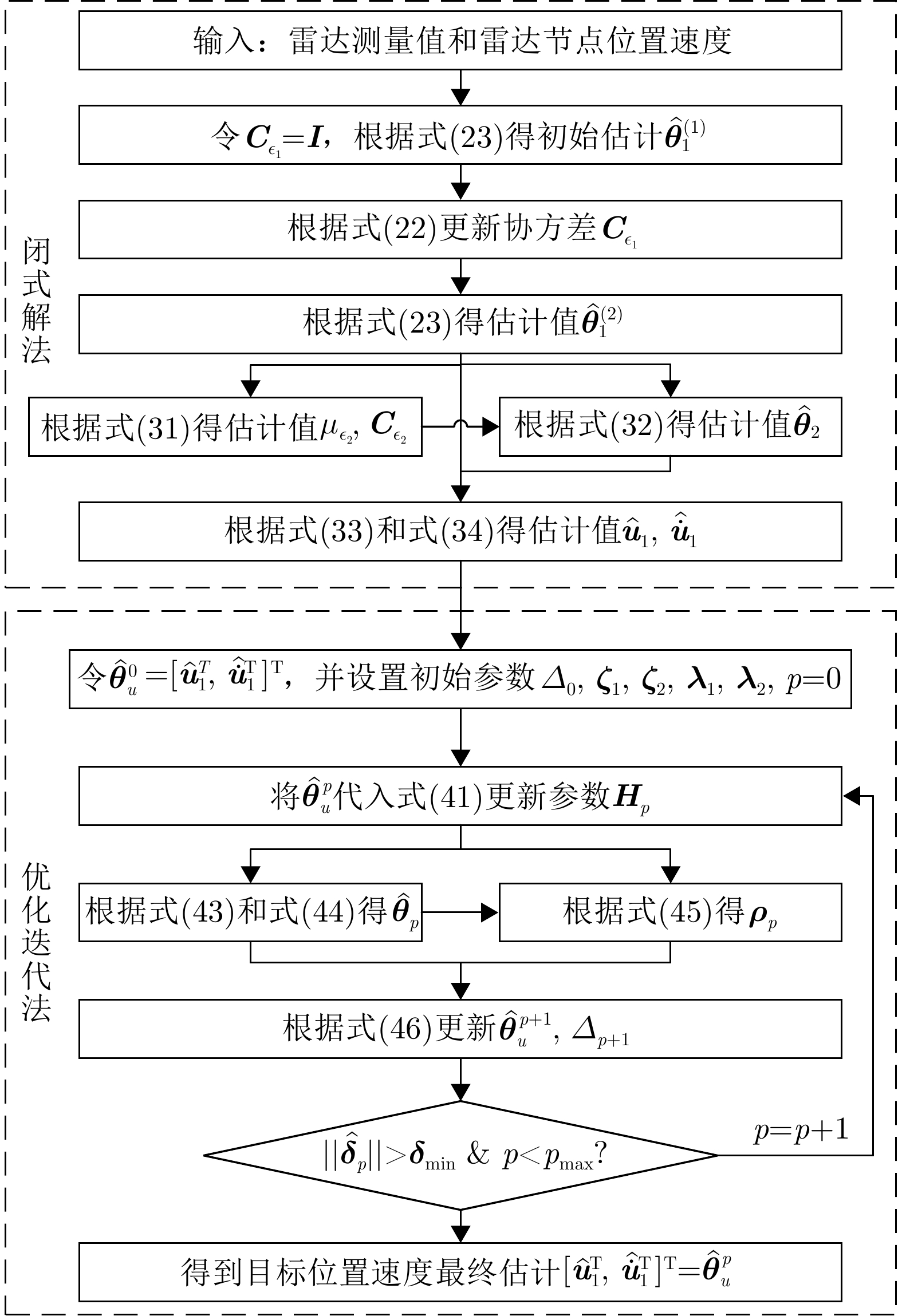

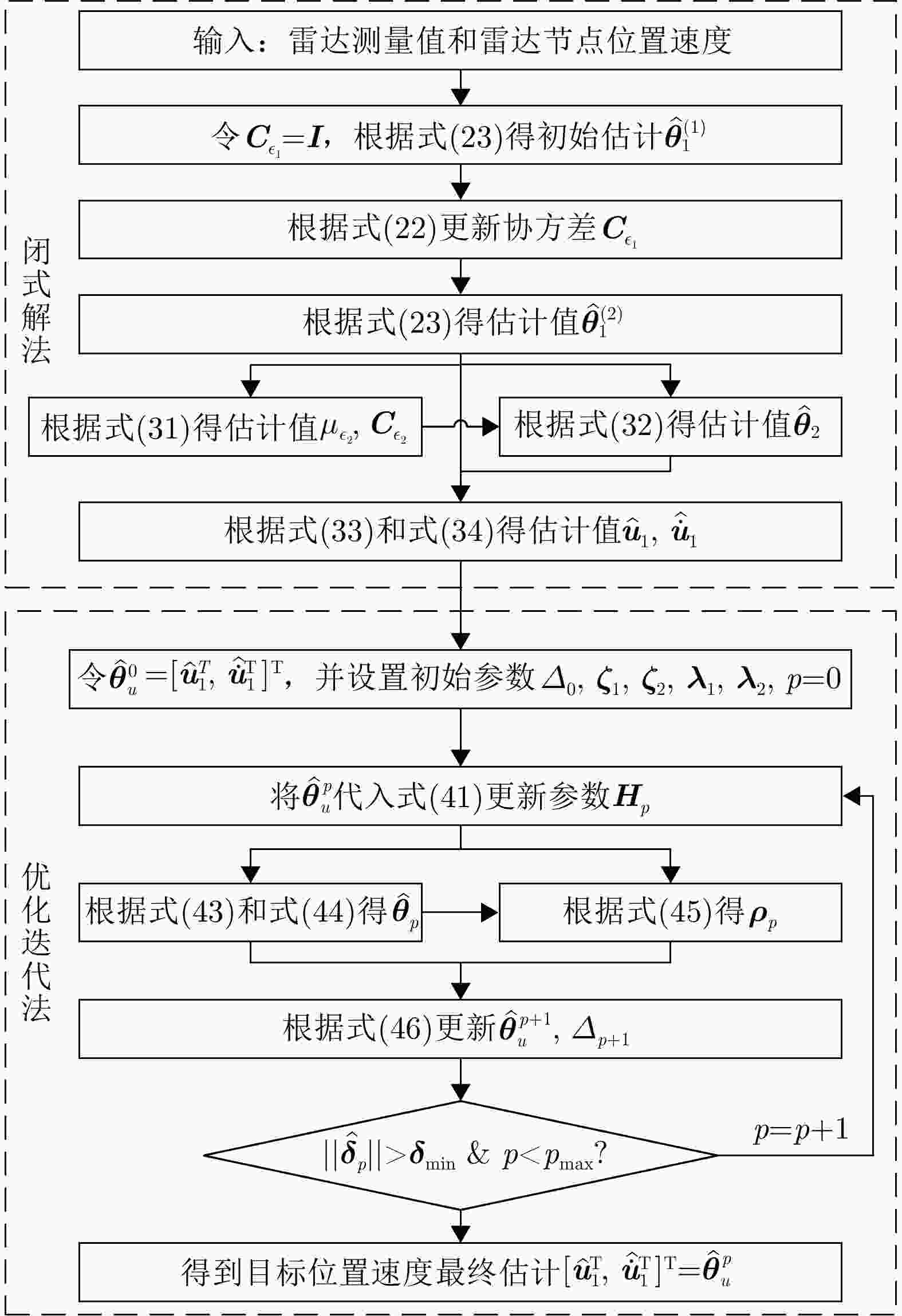

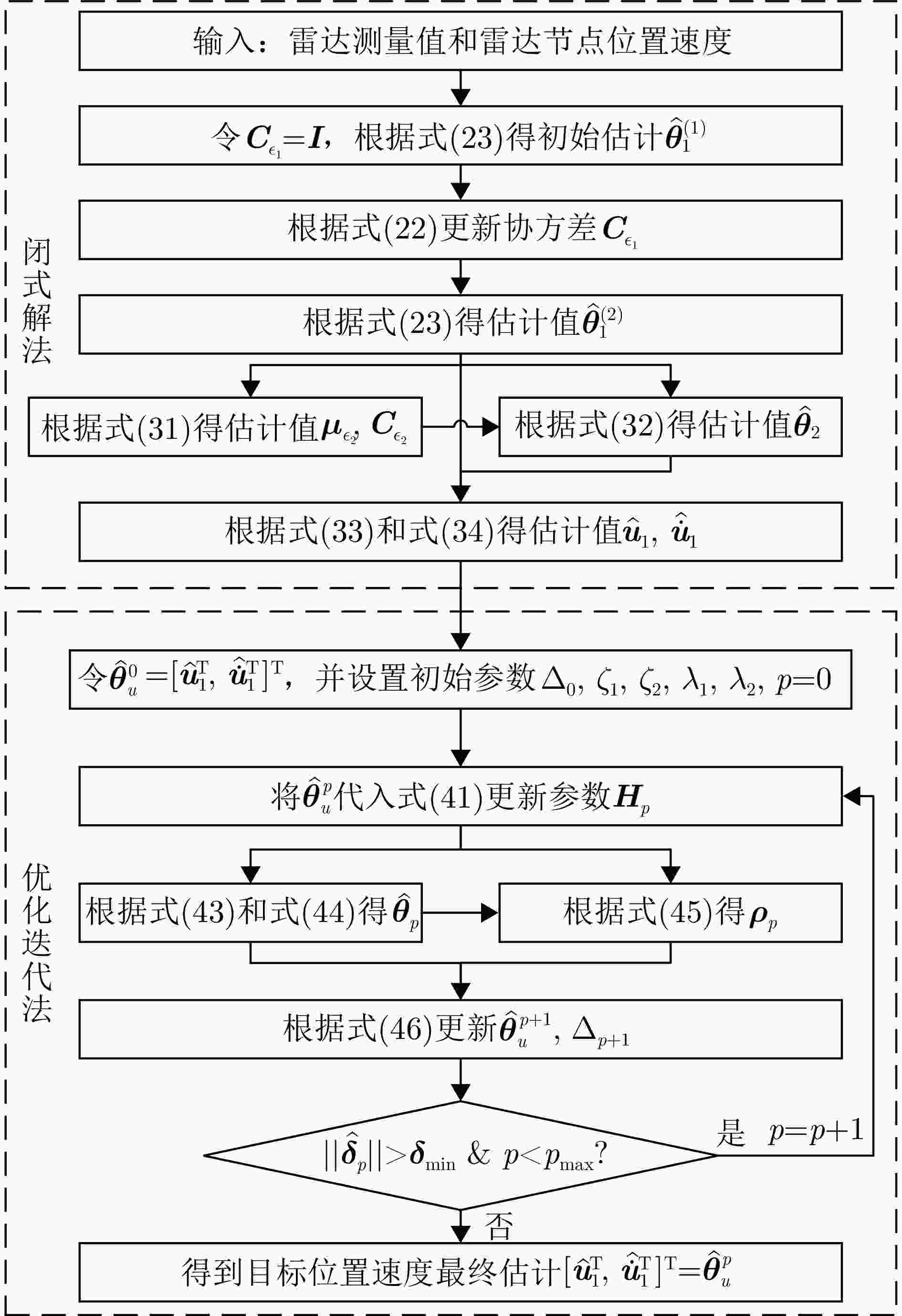

图 2 两步策略组合的参数估计方法流程图
Figure 2. Flowchart of the parameter estimation method using a two-step strategy

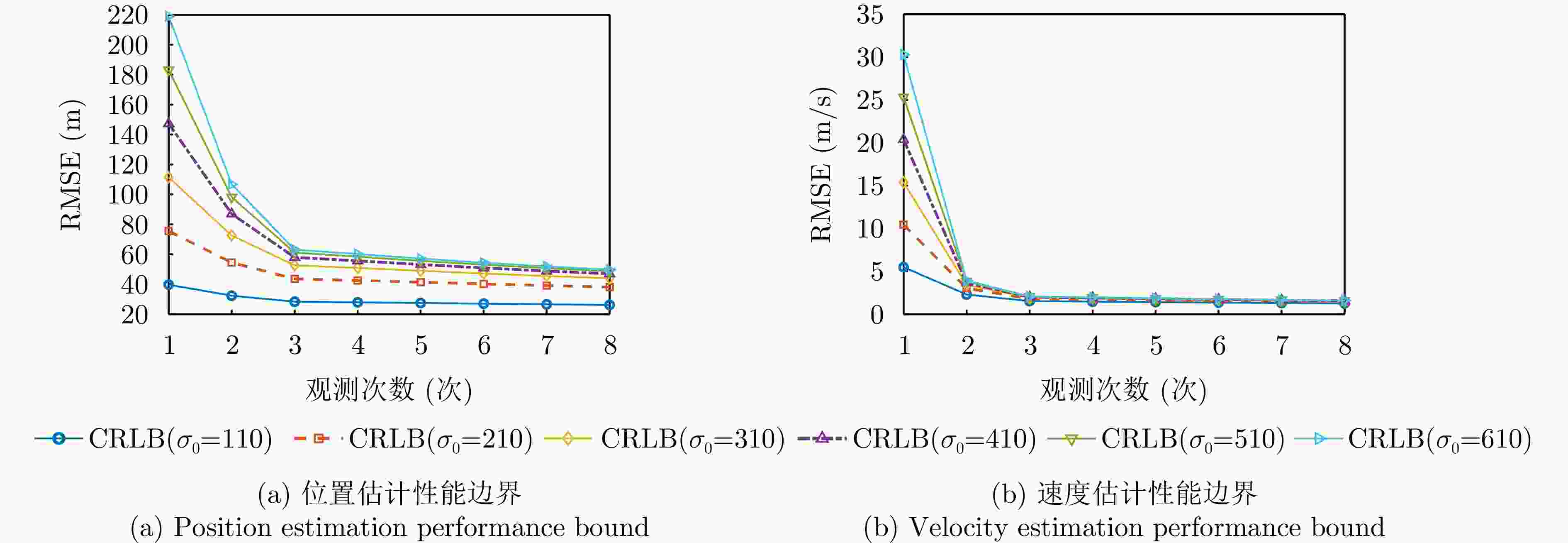

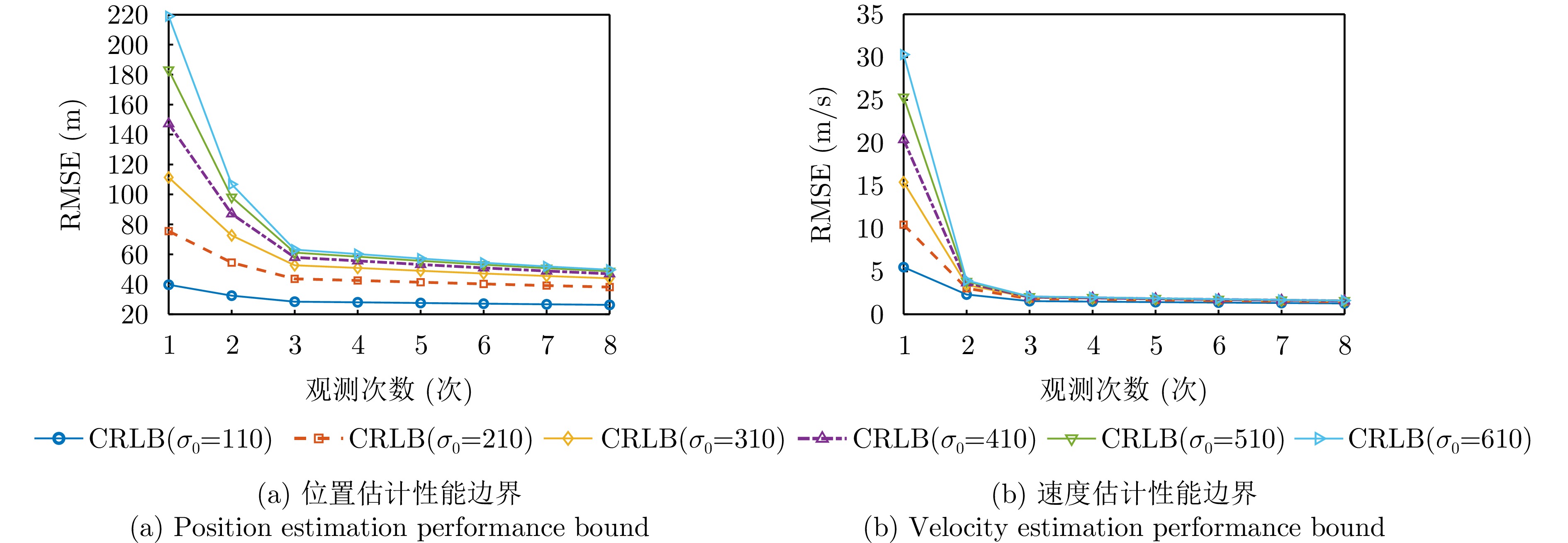

图 3 目标参数估计性能边界与观测次数的关系图
Figure 3. Graph of target parameter estimation performance bound versus number of observations

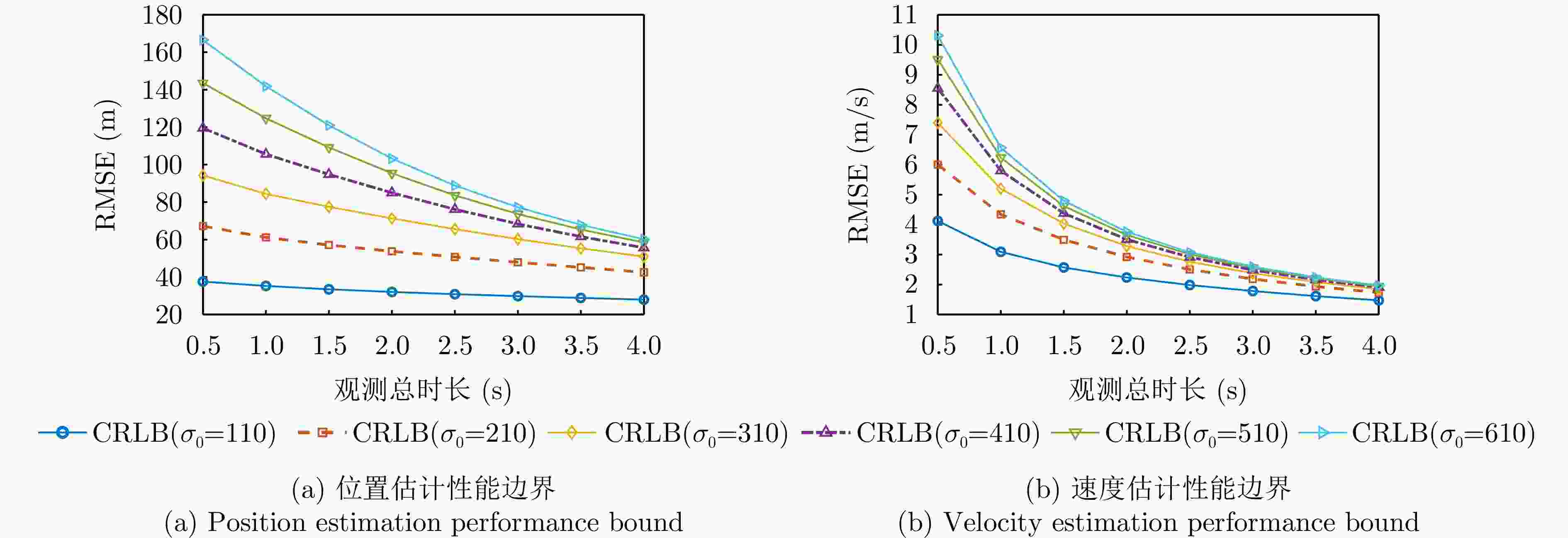

图 4 目标参数估计性能边界与观测总时长的关系图
Figure 4. Graph of target parameter estimation performance bound versus total observation duration

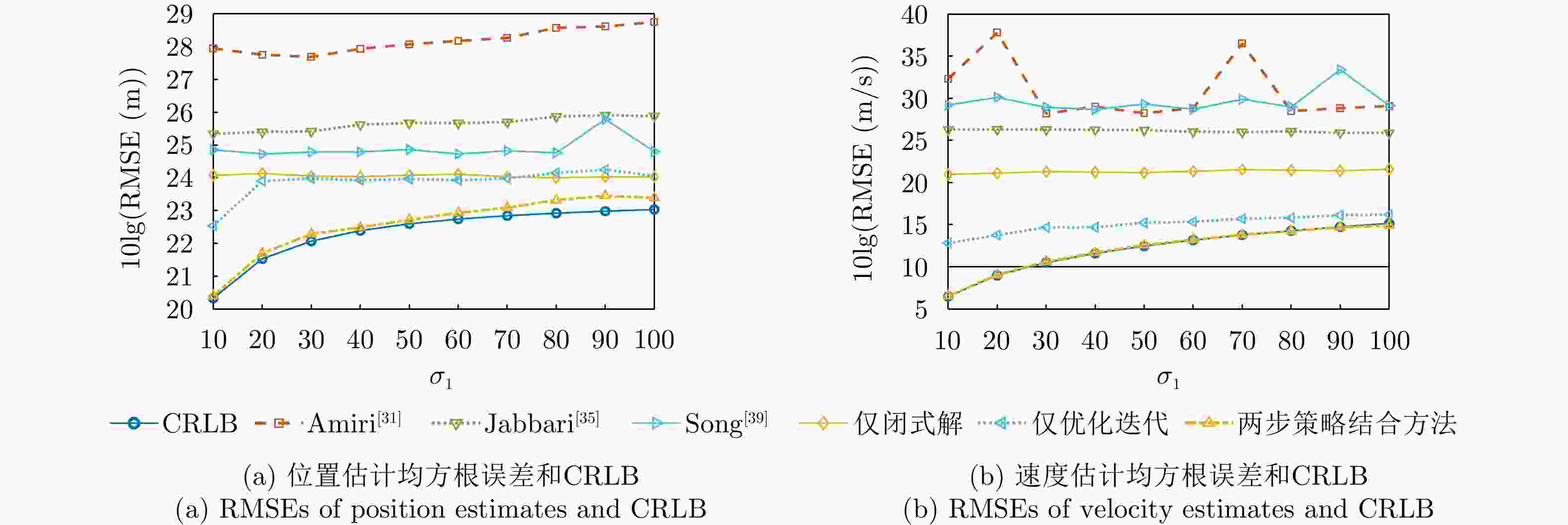

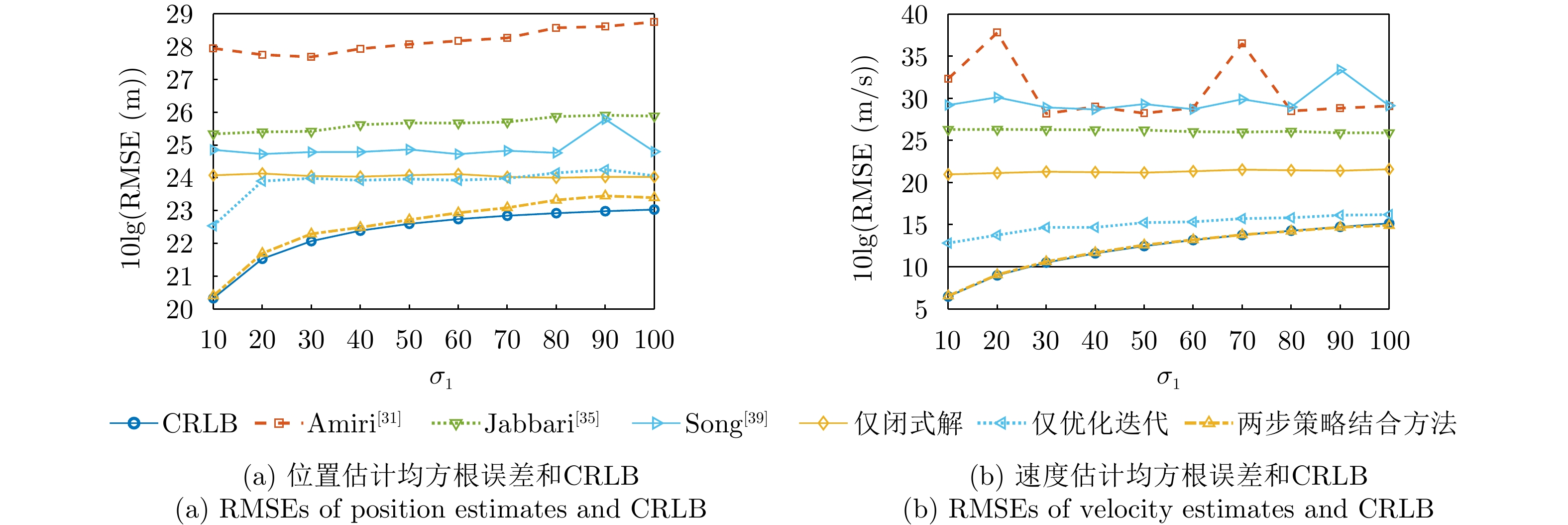

图 5 目标参数估计误差与测量误差水平的关系图
Figure 5. Graph of target parameter estimation error versus measurement error level

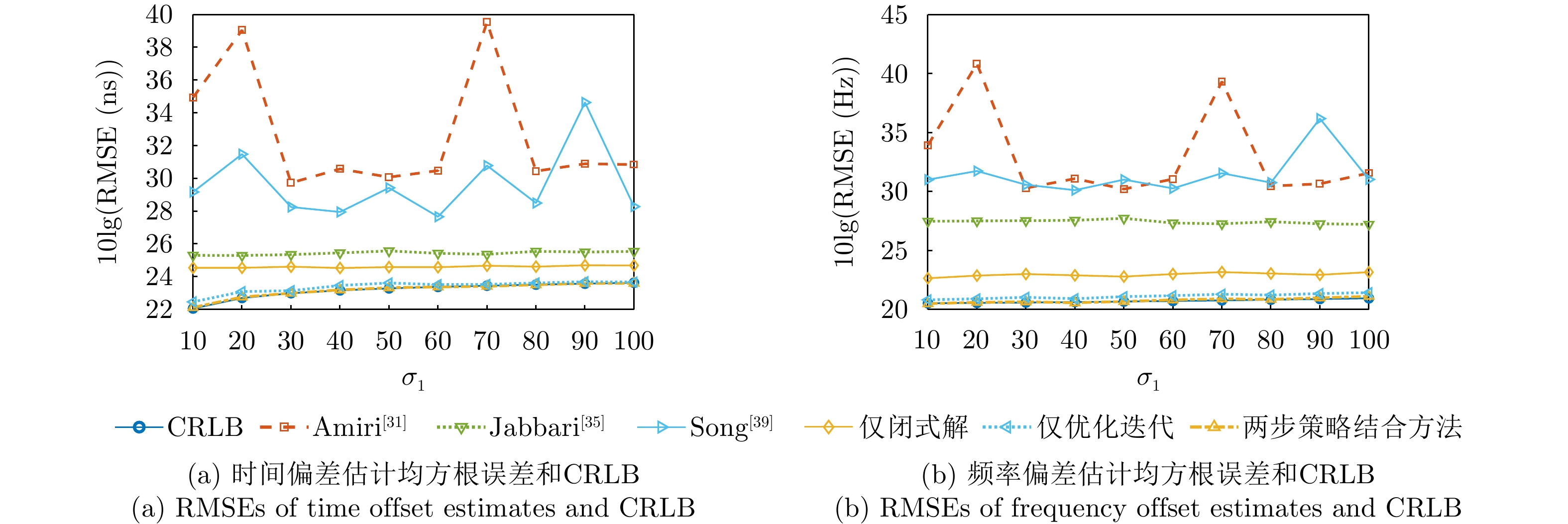

图 6 时频参数估计误差与测量误差水平的关系图
Figure 6. Graph of time-frequency parameter estimation error versus measurement error level

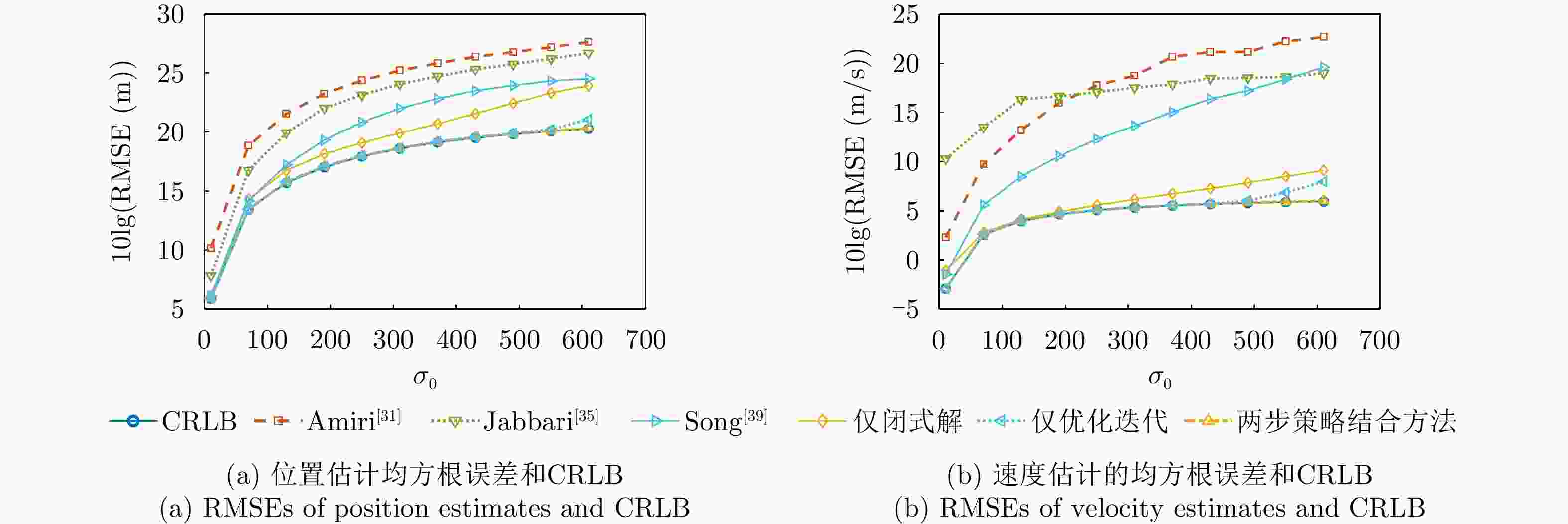

图 7 目标参数估计误差与时频同步误差水平的关系图
Figure 7. Graph of target parameter estimation error versus time-frequency synchronization error level

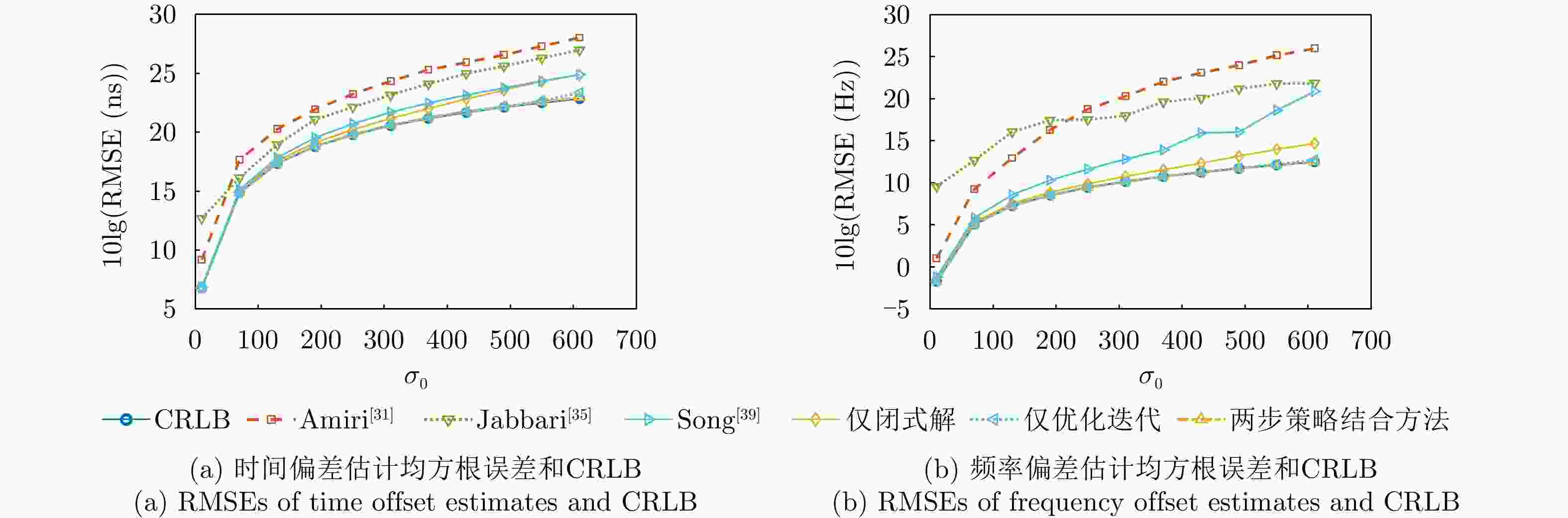

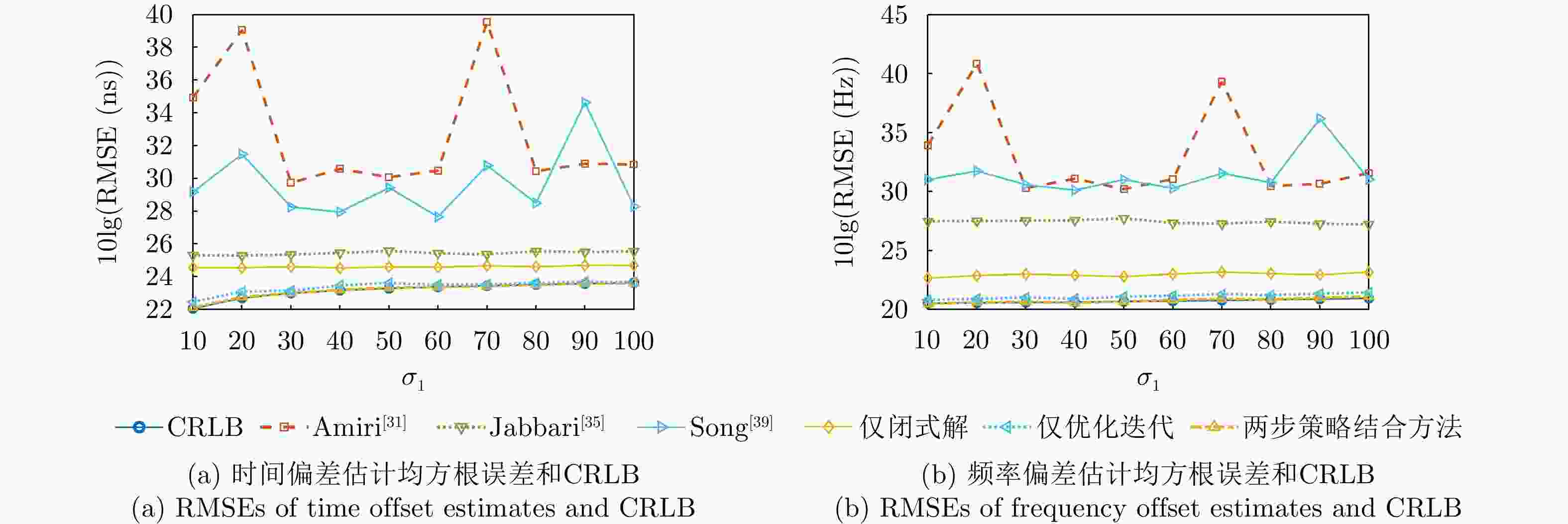

图 8 时频参数估计误差与时频同步误差水平的关系图
Figure 8. Graph of time-frequency parameter estimation error versus time-frequency synchronization error level

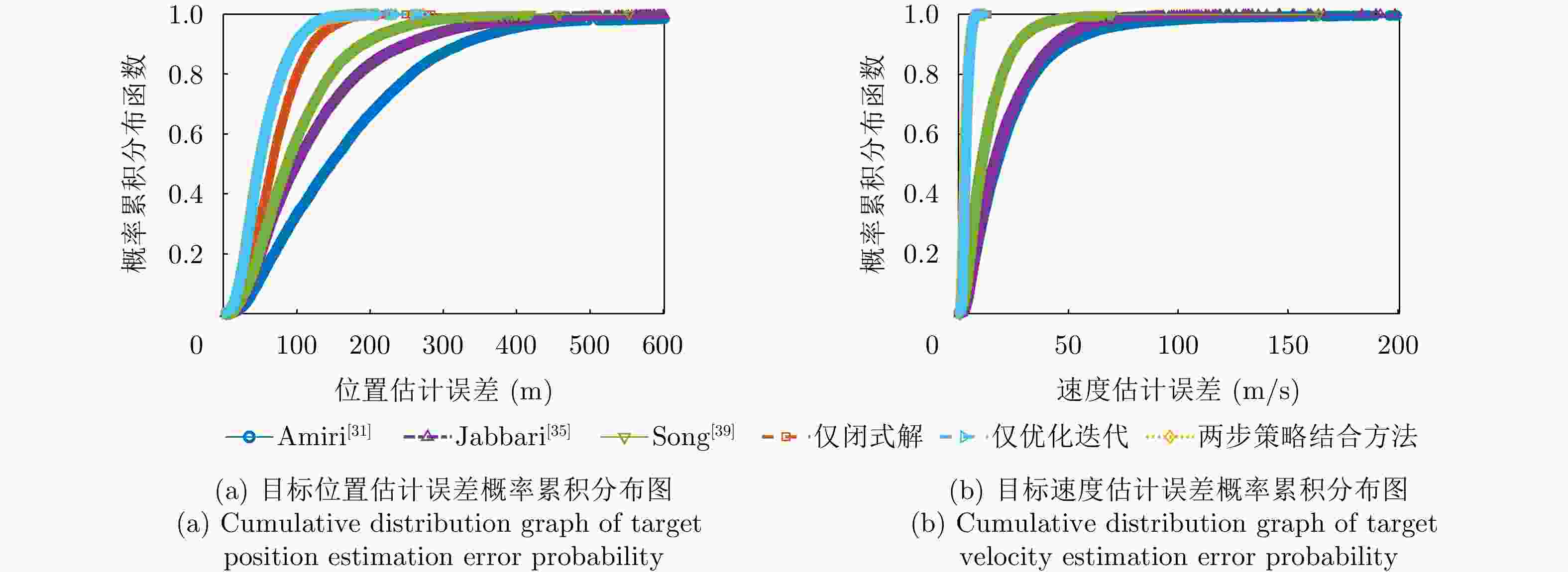

图 9 目标参数估计误差概率累积分布图
Figure 9. Cumulative distribution graph of target parameter estimation error probability

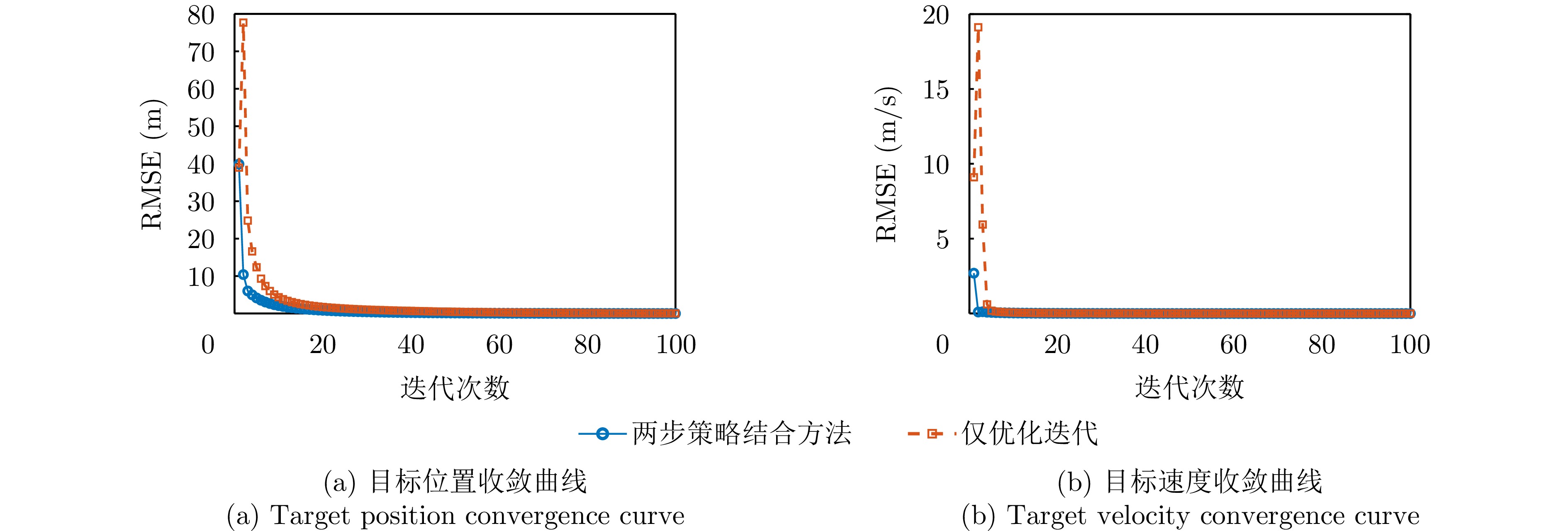

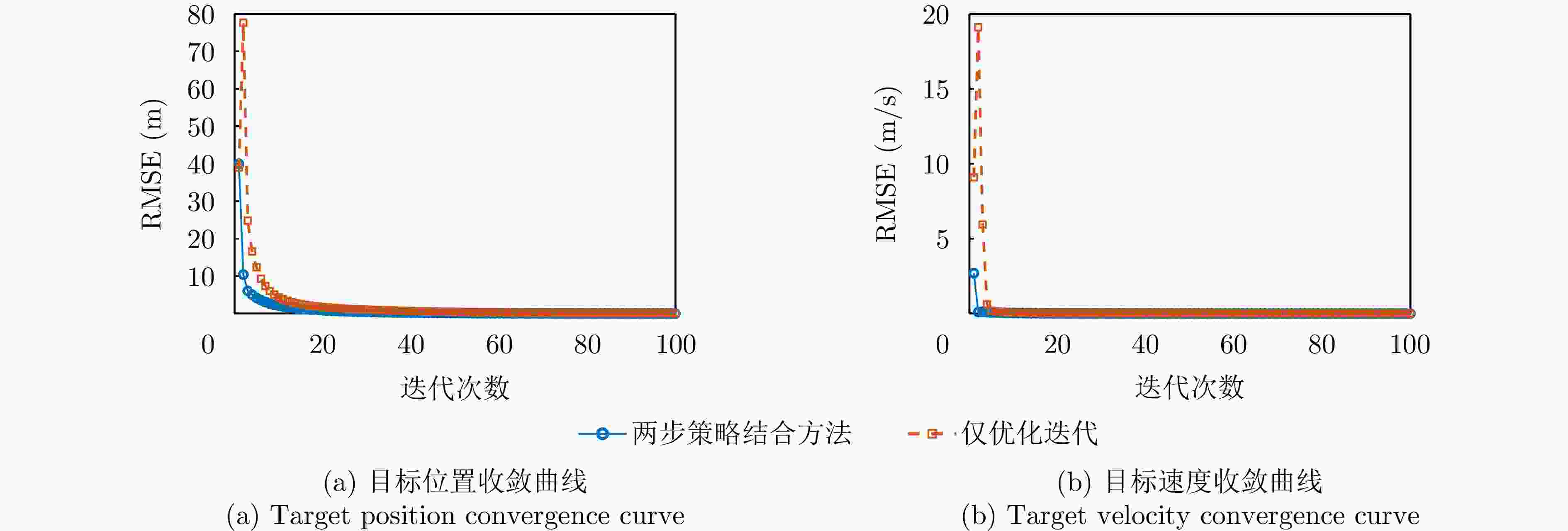

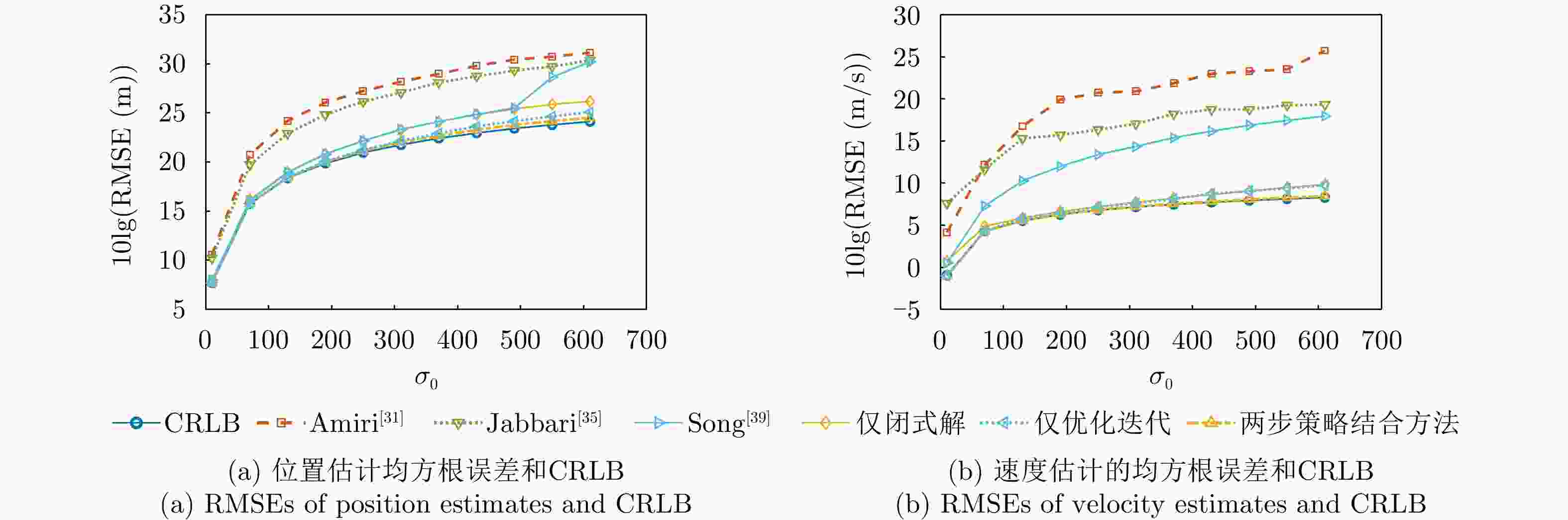

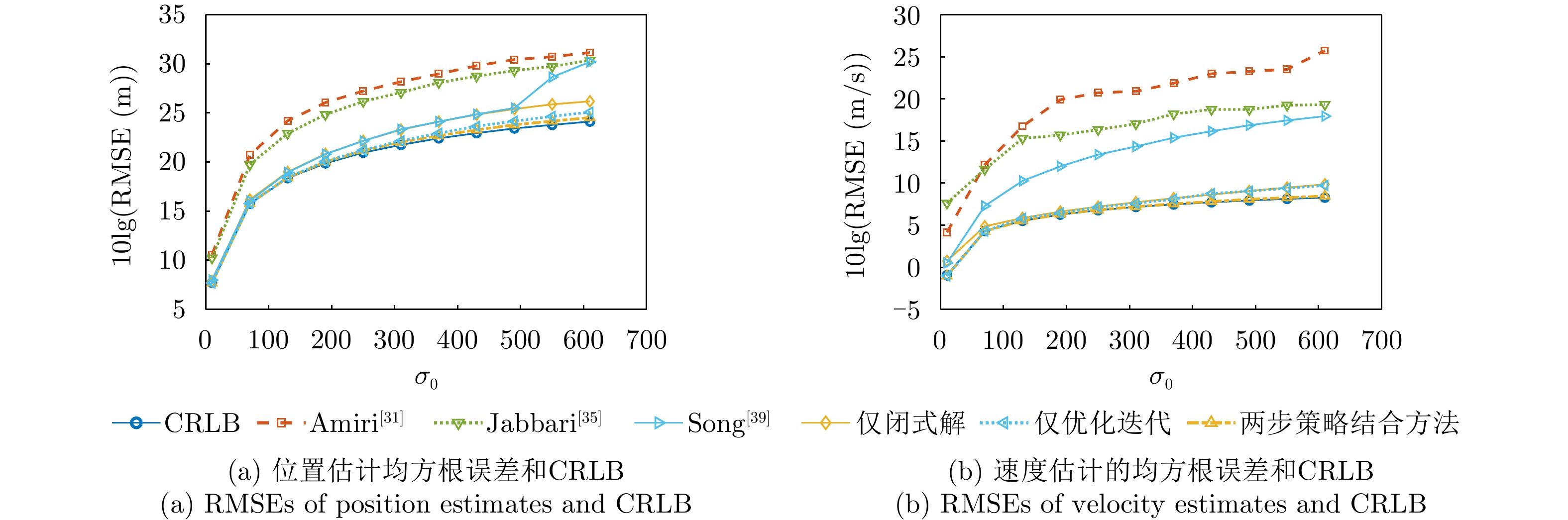

图 11 雷达节点几何分布条件下目标参数估计误差
Figure 11. Target parameter estimation error under geometric distribution of radar nodes

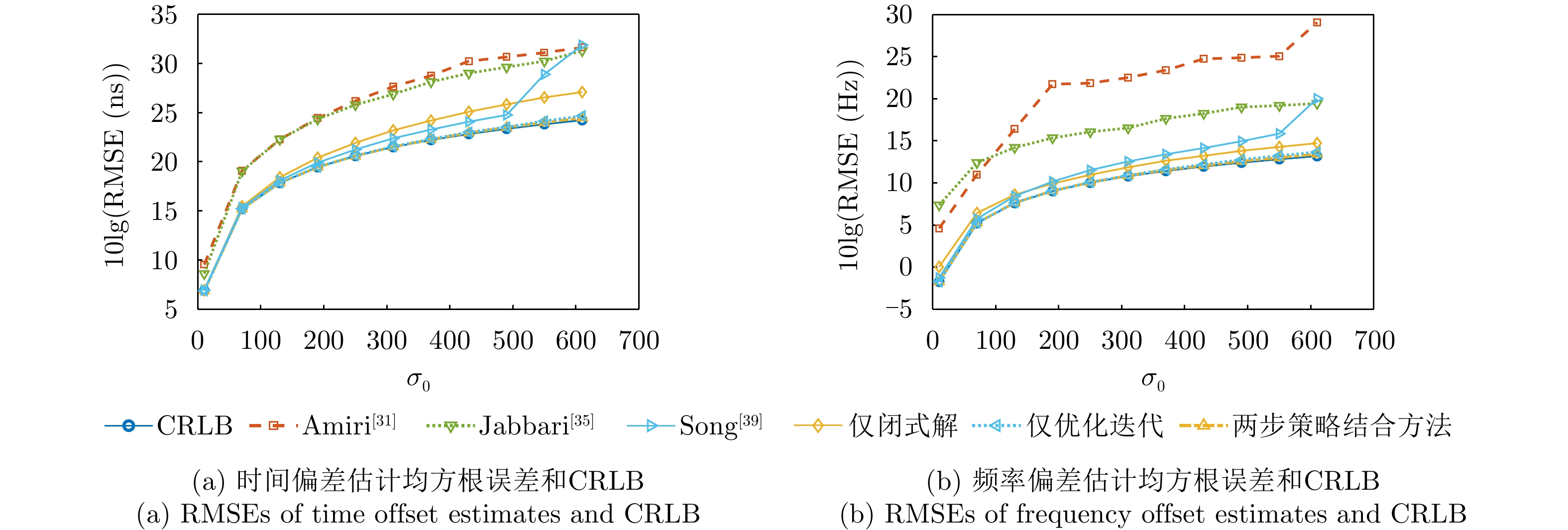

图 12 雷达节点几何分布条件下时频参数估计误差
Figure 12. Time-frequency parameter estimation error under geometric distribution of radar nodes
1 闭式解算法流程
1. Procedure of closed-form solution
输入：$ {r}_{1},{\dot{r}}_{1},{r}_{K},{\dot{r}}_{K},\boldsymbol{t},{\dot{\boldsymbol{t}}},\boldsymbol{s},{\dot{\boldsymbol{s}}},{T}_{s},K,{\boldsymbol{Q}}_{\eta },{\boldsymbol{Q}}_{\gamma } $ 输出：$ {{\hat{\boldsymbol{u}}}}_{1},{{\hat{\dot{\boldsymbol{u}} }}}_{1} $ 1：令$ {\boldsymbol{C}}_{{{\epsilon }_{1}}}=\boldsymbol{I} $，根据式(23)计算目标位置速度的初始估计
$ \hat{\boldsymbol{\theta }}_{1}^{(1)} $。2：根据式(22)更新初始估计协方差$ {\boldsymbol{C}}_{{{\epsilon }_{1}}} $。 3：根据式(23)得到加权最小二乘估计$ \hat{\boldsymbol{\theta }}_{1}^{(2)} $ 4：将$ {\hat{\boldsymbol{\theta }}}_{1}{}^{(2)} $代入式(31)得到$ {\boldsymbol{u}}_{{{\epsilon }_{2}}} $和$ {\boldsymbol{C}}_{{{\epsilon }_{2}}} $。 5：根据式(32)得到$ {\hat{\boldsymbol{\theta }}}_{2} $。 6：根据式(33)和式(34)得到目标位置速度的估计$ {{\hat{\boldsymbol{u}}}}_{1},{{\hat{\dot{\boldsymbol{u}} }}}_{1} $。
下载: 导出CSV
2 迭代优化算法流程
2. Procedure of iterative optimization
输入：$ r,\dot{r},\boldsymbol{t},{\dot{\boldsymbol{t}}},\boldsymbol{s},{\dot{\boldsymbol{s}}},{T}_{s},K,{\boldsymbol{Q}}_{\boldsymbol{\eta }},{\boldsymbol{Q}}_{\boldsymbol{\gamma }},\hat{\boldsymbol{\theta }}_{\boldsymbol{u}}^{0} $ 输出：$ {{\hat{\boldsymbol{u}}}}_{1},{{\hat{\dot{\boldsymbol{u}} }}}_{1} $ 步骤1：设置初始$ {\varDelta }_{0},{\zeta }_{1},{\zeta }_{2},{\lambda }_{1},{\lambda }_{2},p=0 $。 步骤2：将目标位置速度估计$ \hat{\boldsymbol{\theta }}_{\boldsymbol{u}}^{p} $代入式(41)更新参数$ {\boldsymbol{H}}_{p} $。 步骤3：根据式(43)和式(44)求解并更新$ {\hat{\boldsymbol{\delta }}}_{p} $。 步骤4：根据式(45)求解$ {\rho }_{p} $，并通过式(46)得到$ \hat{\boldsymbol{\theta }}_{\boldsymbol{u}}^{p+1},{\varDelta }_{p+1} $。 步骤5：根据式(47)判断是否收敛，收敛则执行6，否则令
$ p=p+1 $并重复执行步骤2—步骤4。步骤6：返回目标位置速度最终估计$ {[{{\hat{\boldsymbol{u}}}_{1}^{\rm T}},{{\hat{\dot{\boldsymbol{u}} }}_{1}^{\rm T}}]}^{\rm T}=\hat{\boldsymbol{\theta }}_{\boldsymbol{u}}^{p} $。
下载: 导出CSV
表 1 发射机和接收机位置速度表
Table 1. Positions and velocities of transmitters and receivers
节点 $ x_{i,0}^{t} $(m) $ y_{i,0}^{t} $(m) $ z_{i,0}^{t} $(m) $ \dot{x}_{i,0}^{t} $(m/s) $ \dot{y}_{i,0}^{t} $(m/s) $ \dot{z}_{i,0}^{t}$(m/s) $ {T}_{1} $ 0 0 200 0 20 10 $ {T}_{2} $ $ {R}_{0}\cos (\text{π} /3)/2 $ $ -{R}_{0} $ 350 –20 –40 40 $ {T}_{3} $ $ {R}_{0} $ $ -{R}_{0}\cos (\text{π} /6) $ 600 40 10 –20 $ {T}_{4} $ $ {R}_{0}\cos (\text{π} /4) $ $ {R}_{0}/2 $ 50 –40 –20 –10 $ {T}_{5} $ $ -{R}_{0} $ $ -{R}_{0}\cos (\text{π}/4) $ 50 30 –10 30 $ {T}_{6} $ $ -{R}_{0}\cos (\text{π} /6) $ $ -{R}_{0}/2 $ 350 50 –30 0 $ {T}_{7} $ $ {R}_{0}/2 $ $ {R}_{0}\cos (\text{π} /3) $ 200 –10 0 –30 $ {T}_{8} $ $ -{R}_{0}/2 $ $ {R}_{0} $ 600 10 40 20 $ {S}_{1} $ $ -{R}_{0} $ $ -{R}_{0}/2 $ 600 –20 20 –20 $ {S}_{2} $ $ -{R}_{0}\cos (\text{π} /3) $ 0 400 0 –30 30 $ {S}_{3} $ $ {R}_{0}/2 $ $ -{R}_{0} $ 350 30 20 20 $ {S}_{4} $ $ -{R}_{0}/2 $ $ {R}_{0}/2 $ 50 10 0 40 $ {S}_{5} $ $ {R}_{0}\cos (\text{π} /6) $ $ {R}_{0}\cos (\text{π}/4) $ 600 –10 –10 –30 $ {S}_{6} $ 0 $ -{R}_{0}\cos (\text{π} /3) $ 400 40 20 –10 $ {S}_{7} $ $ -{R}_{0}\cos (\text{π} /4) $ $ {R}_{0}\cos (\text{π} /6) $ 50 30 –30 10 $ {S}_{8} $ $ {R}_{0} $ $ {R}_{0} $ 350 –40 10 0
下载: 导出CSV
表 2 雷达节点与目标位置速度参数设置
Table 2. Radar node and target position and velocity parameter settings
节点类型 边界类型 位置$ x,y $ (m) 位置z(m) 速度$ \dot{x},\dot{y},\dot{z} $(m/s) 雷达节点 下边界 $ -{R}_{0} $ 0 –20 上边界 $ {R}_{0} $ 500 20 目标 下边界 $ -{R}_{0} $ 500 –20 上边界 $ {R}_{0} $ 1000 20
下载: 导出CSV
-
