Diagnosis of Sleep Apnea Hypopnea Syndrome Using Fusion of Micro-motion Signals from Millimeter-wave Radar and Pulse Wave Data
-
摘要: 睡眠呼吸暂停低通气综合征(SAHS)是一种常见的慢性睡眠呼吸障碍疾病，严重影响患者的睡眠质量和身体健康。该文提出了一种基于多源信号融合的睡眠呼吸暂停与低通气检测框架，通过融合毫米波雷达微动信号与光电容积脉搏波描记法(PPG)的脉搏波数据，实现高可靠的轻接触式睡眠呼吸暂停低通气综合征的诊断，以解决传统医学上依赖多导睡眠图(PSG)进行睡眠监测时舒适度差、成本高等缺点。研究中，为兼顾睡眠呼吸异常事件检测的准确率和鲁棒性，该文提出了一种雷达、脉搏波数据预处理算法得到信号中的时频信息和人工特征，并设计了用于将两类信号融合的深度神经网络，以实现对睡眠呼吸暂停和低通气事件的精准识别，从而估算呼吸暂停低通气指数(AHI)，用于对患者的睡眠呼吸异常严重程度进行定量评估。基于上海交通大学医学院附属第六人民医院临床试验数据集的实验结果表明，该文所提方案估算的AHI与金标准PSG的相关系数达到了0.93，一致性良好，有潜力普及成为家用睡眠呼吸监护的工具，并起到睡眠呼吸暂停低通气综合征初步筛查的作用。Abstract: Sleep Apnea Hypopnea Syndrome (SAHS) is a common chronic sleep-related breathing disorder that affects individuals’ sleep quality and physical health. This article presents a sleep apnea and hypopnea detection framework based on multisource signal fusion. Integrating millimeter-wave radar micro-motion signals and pulse wave signals achieves a highly reliable and light-contact diagnosis of SAHS, addressing the drawbacks of traditional medical methods that rely on PolySomnoGraphy (PSG) for sleep monitoring, such as poor comfort and high costs. This study used a radar and pulse wave data preprocessing algorithm to extract time-frequency information and artificial features from the signals, balancing the accuracy and robustness of sleep-breathing abnormality event detection Additionally, a deep neural network was designed to fuse the two types of signals for precise identification of sleep apnea and hypopnea events, and to estimate the Apnea Hypopnea Index (AHI) for quantitative assessment of sleep-breathing abnormality severity. Experimental results of a clinical trial dataset at Shanghai Jiao Tong University Affiliated Sixth People’s Hospital demonstrated that the AHI estimated by the proposed approach correlates with the gold standard PSG with a coefficient of 0.93, indicating good consistency. This approach is a promiseing tool for home sleep-breathing monitoring and preliminary diagnosis of SAHS.
-

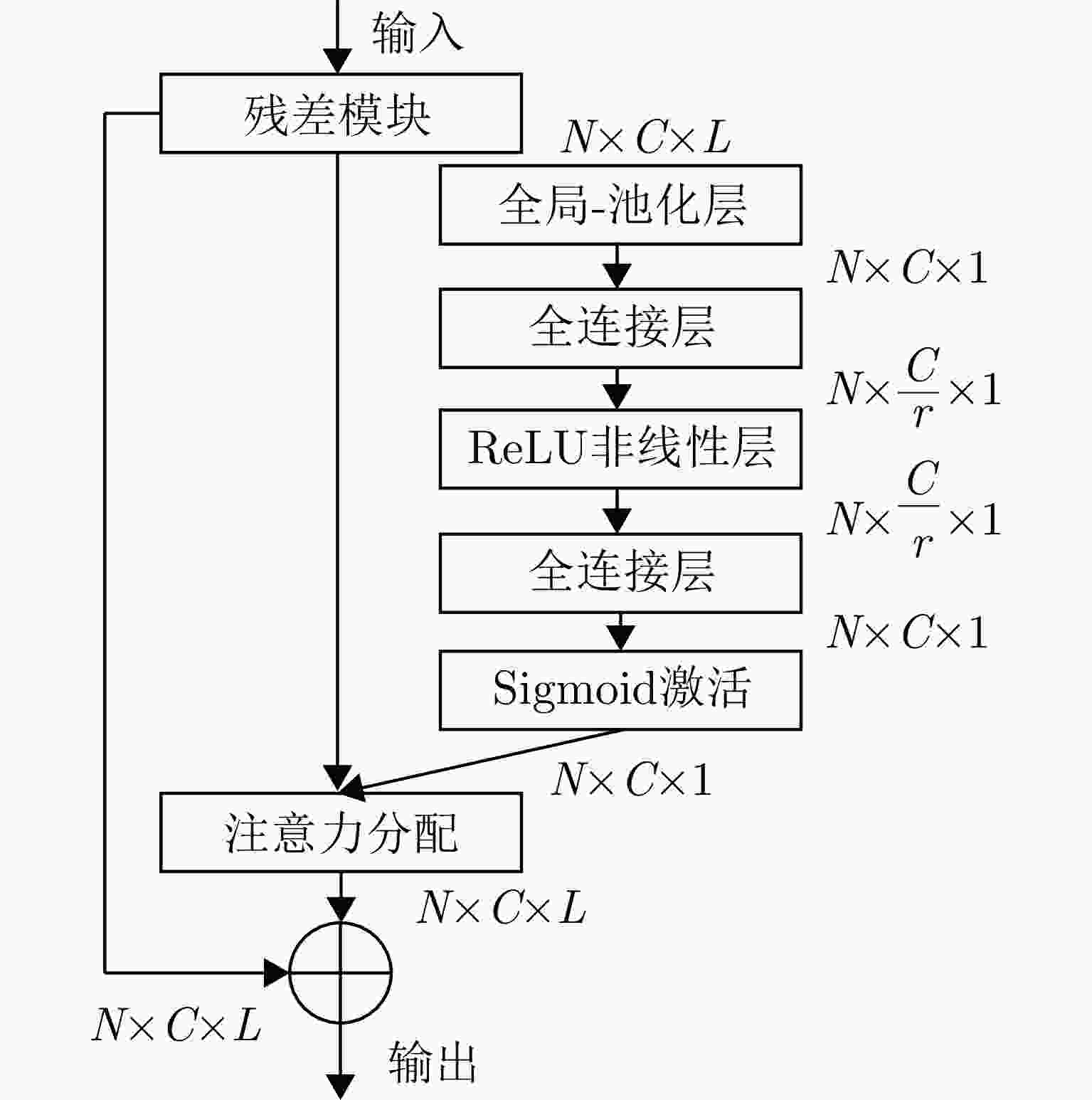

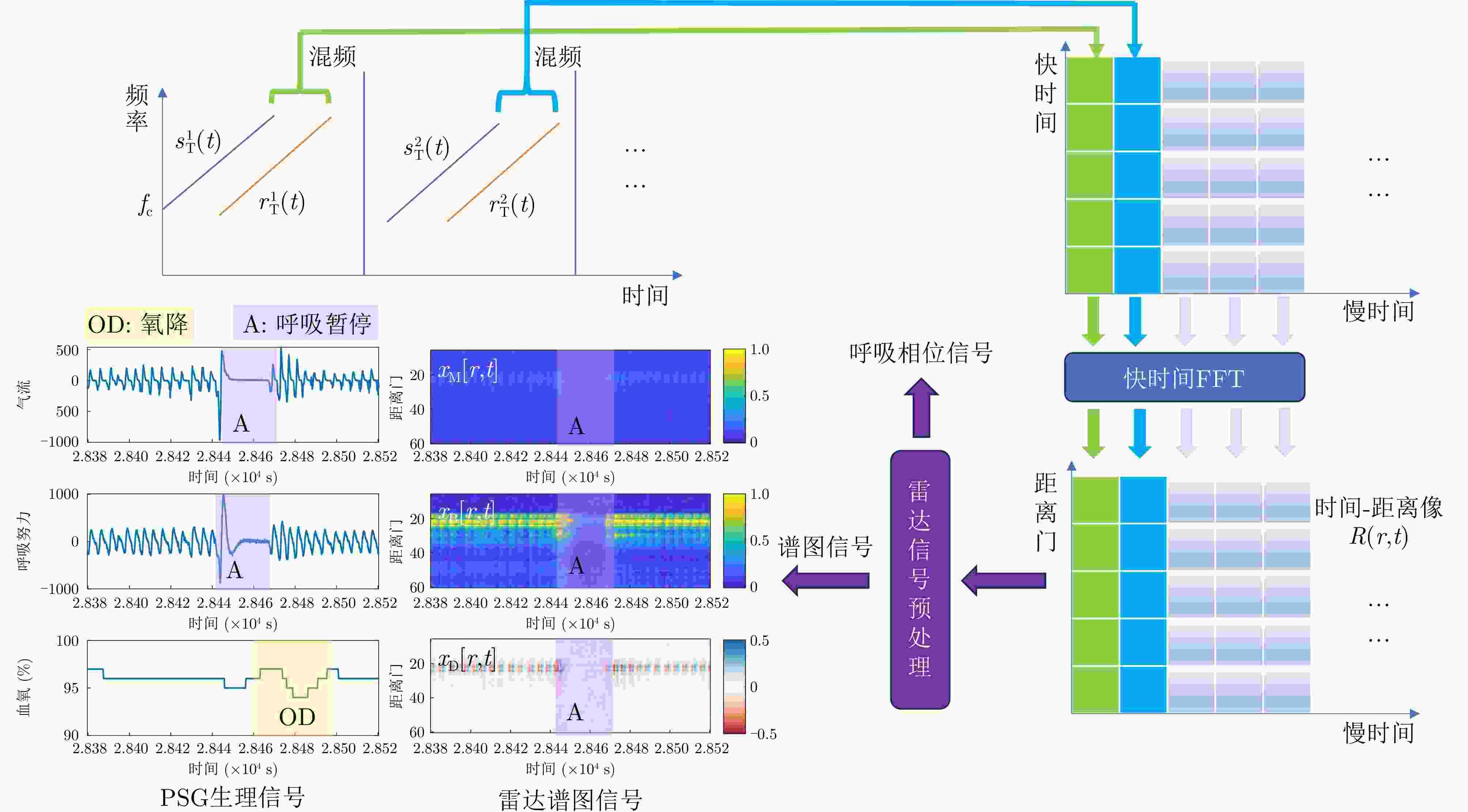

图 7 二维谱图信号特征提取和融合模块
Figure 7. Module for signal feature extraction and fusion in 2D spectrogram

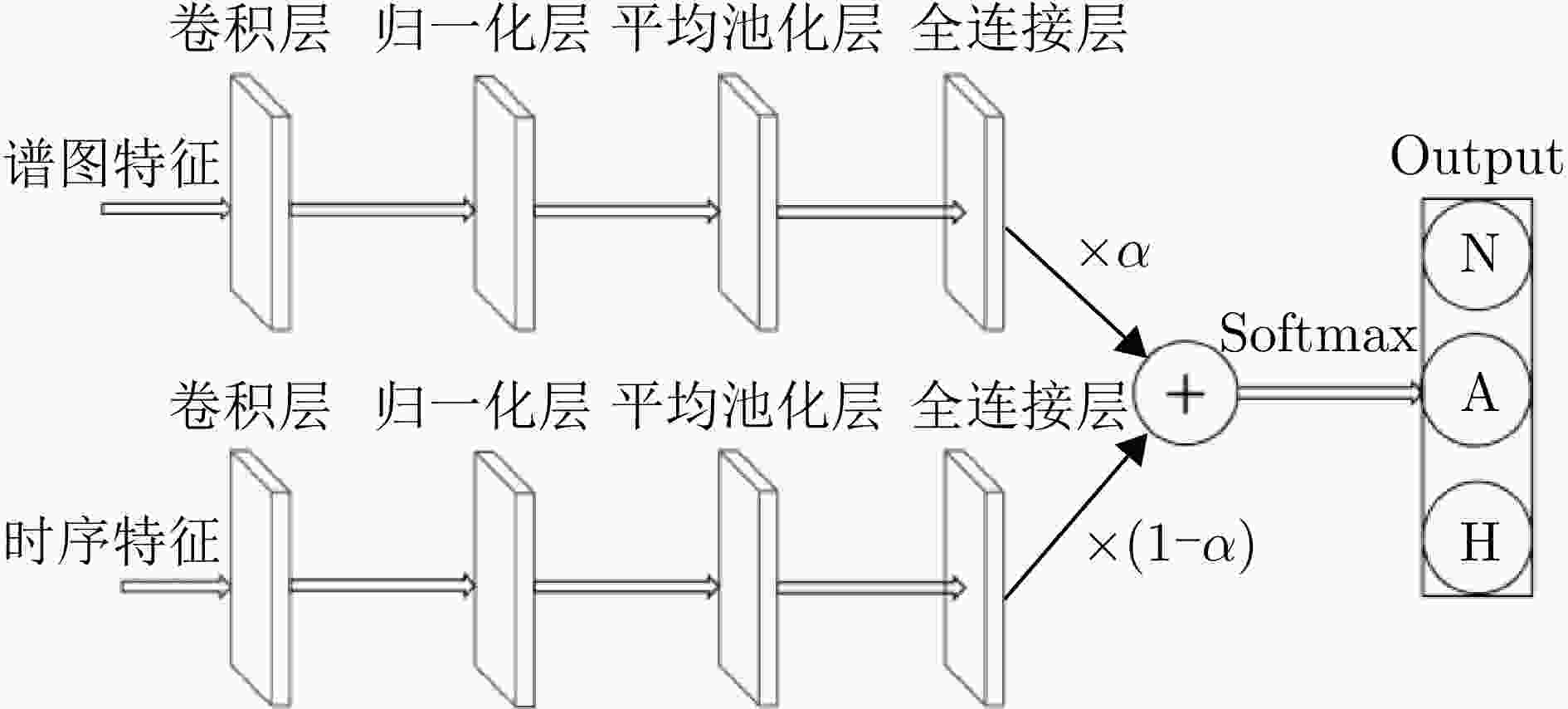

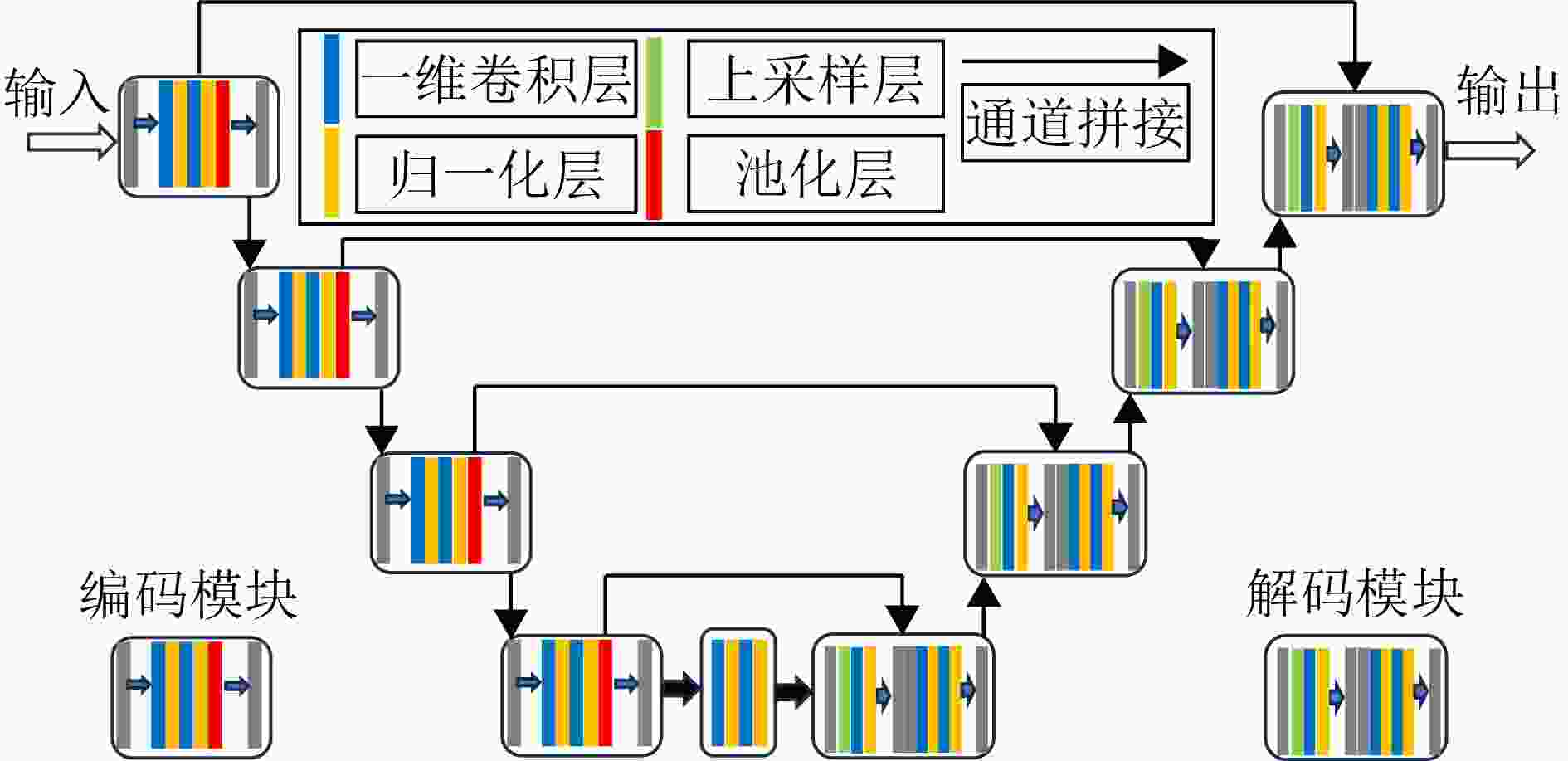

图 10 一维时序信号特征提取和融合模块
Figure 10. Module for feature extraction and fusion of 1D temporal signals

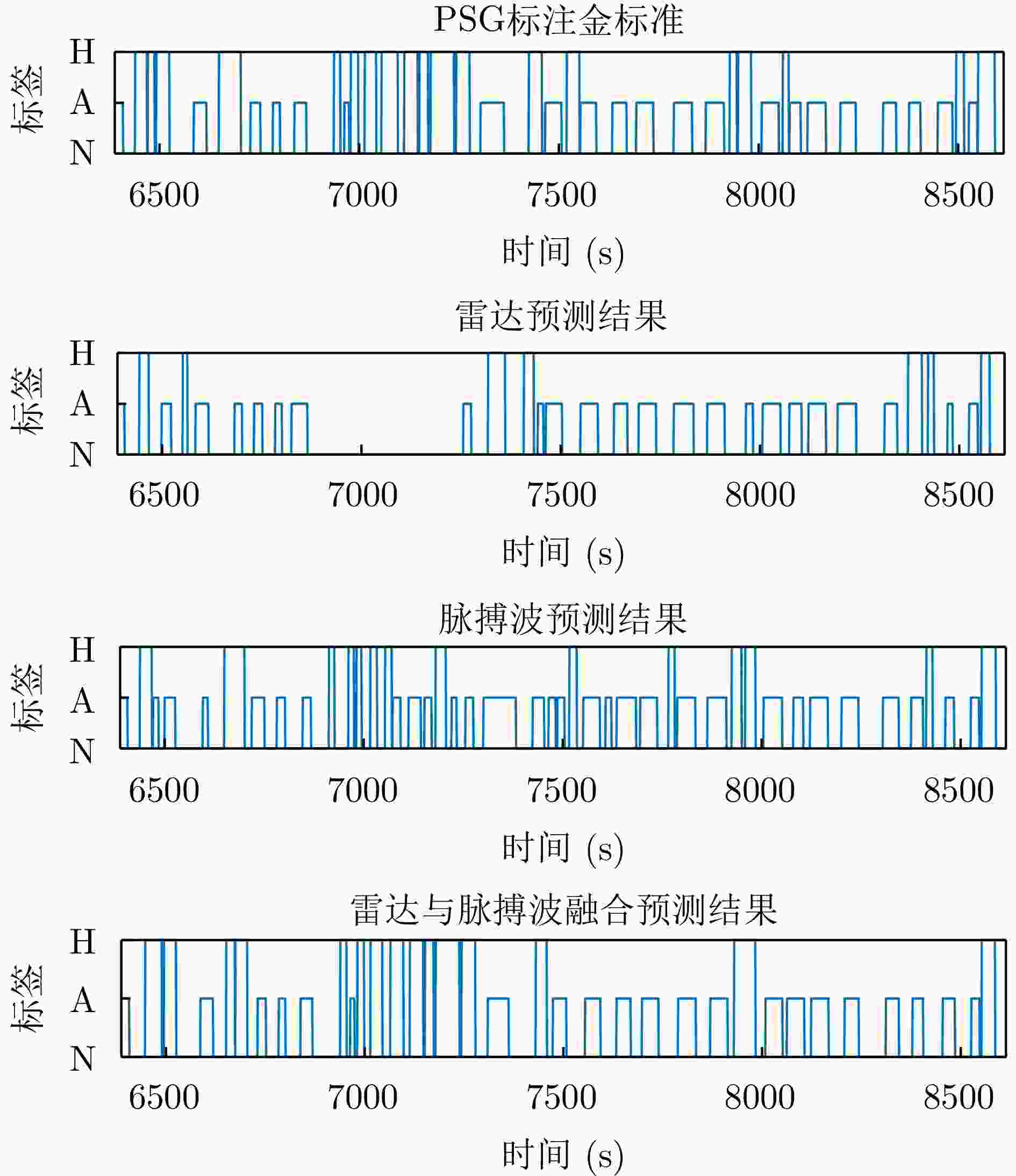

图 12 不同传感器实验预测结果对比
Figure 12. Comparison of experimental prediction results from different sensors

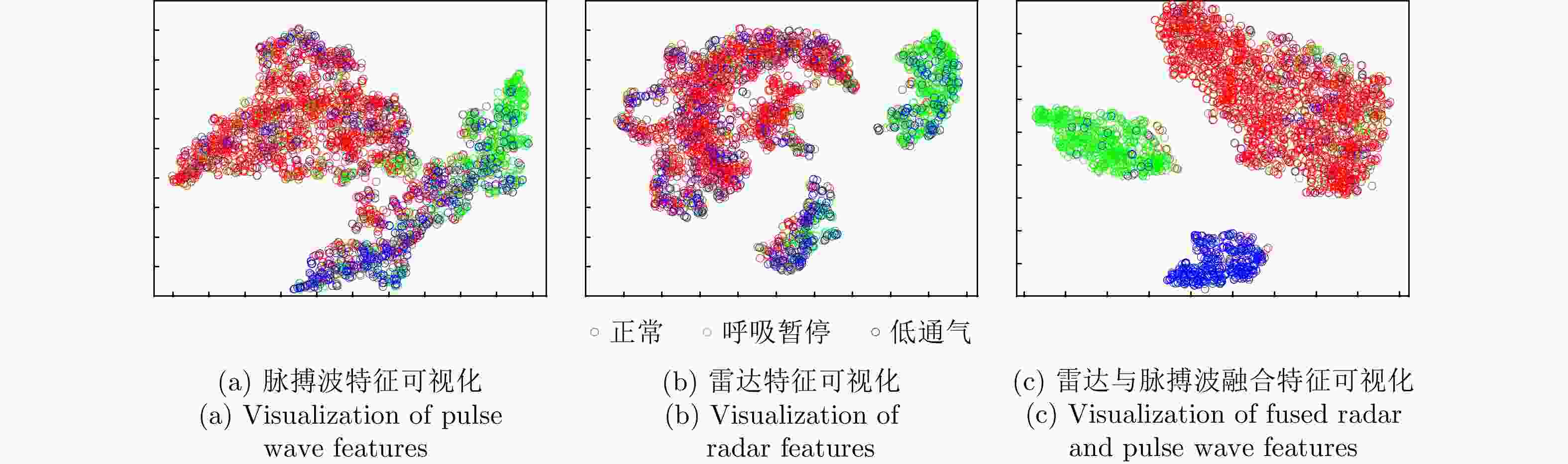

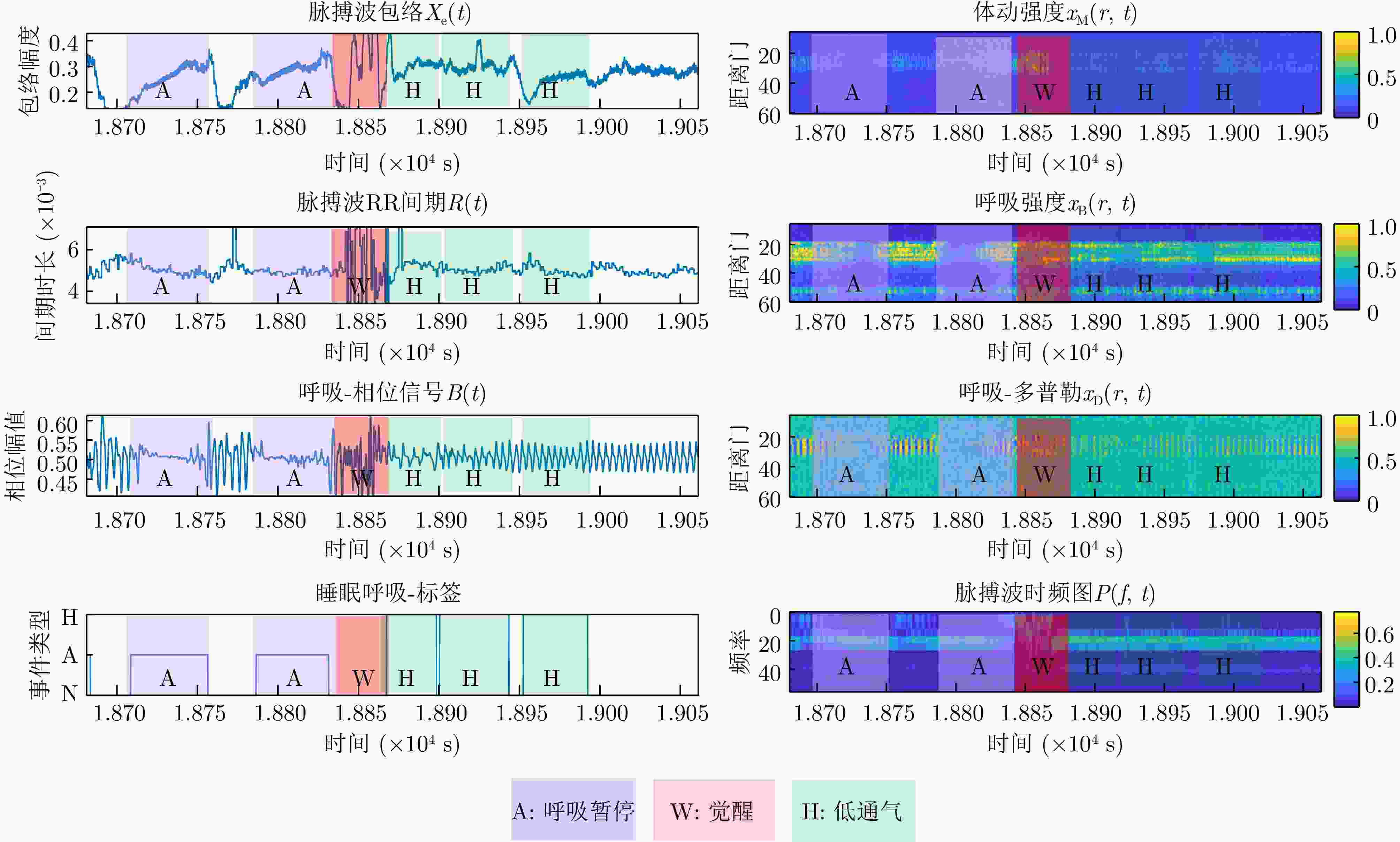

图 13 雷达与脉搏波特征图对比(Normal：正常；Apnea：呼吸暂停；Hypopnea：低通气)
Figure 13. Comparison of radar and pulse wave feature maps (N: Normal; A: Apnea; H: Hypopnea)

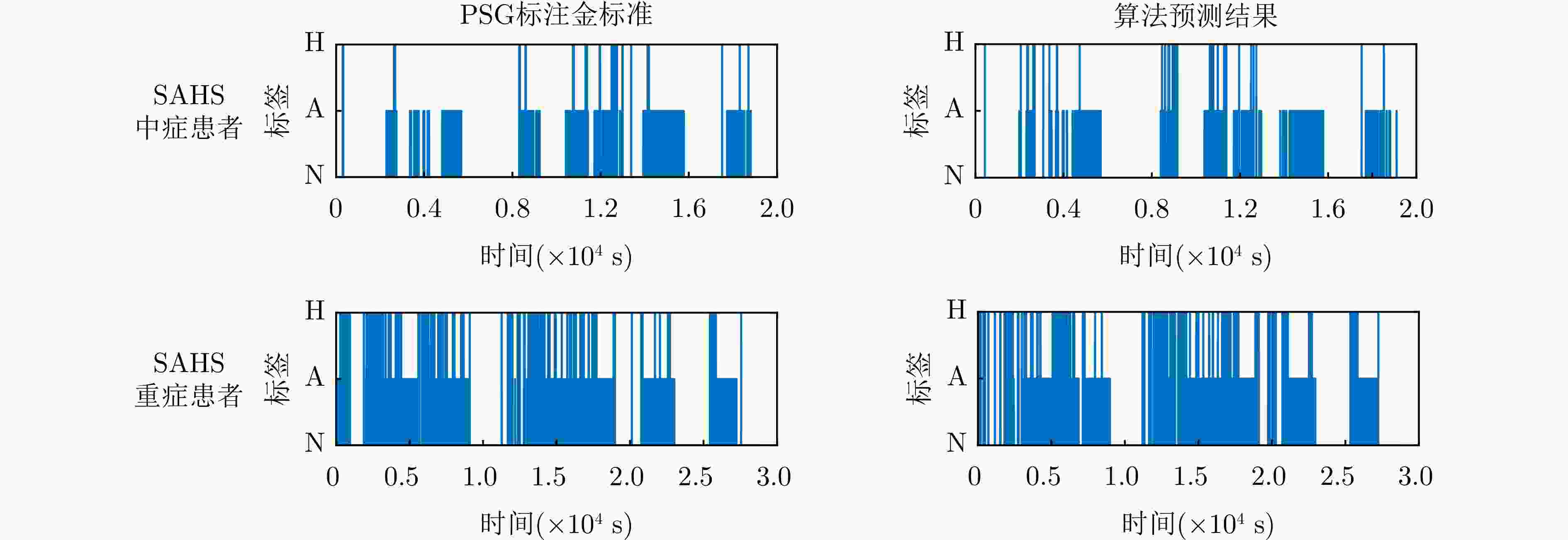

图 14 PSG标注与预测结果对比(N表示正常；A表示呼吸暂停；H表示低通气)
Figure 14. Comparison of PSG annotations and predicted results (N: Normal; A: Apnea; H: Hypopnea)

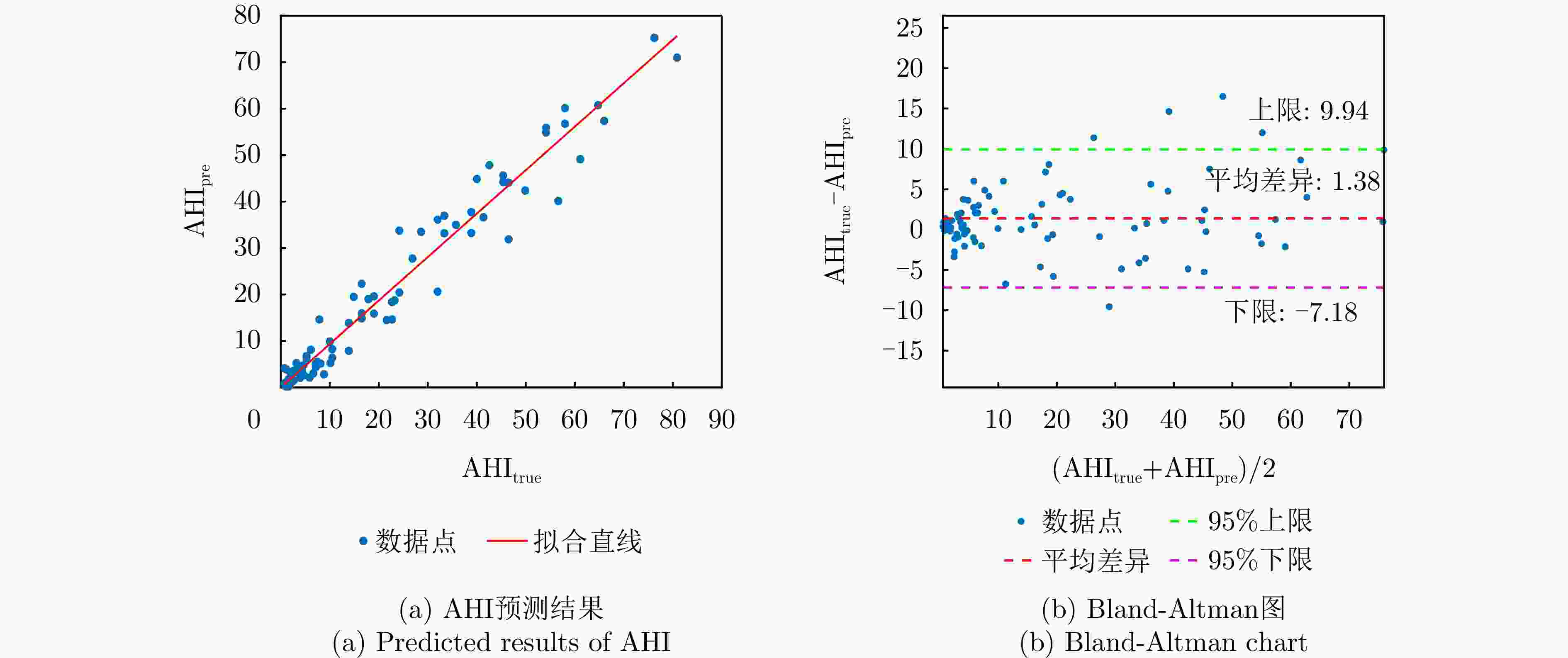

图 15 基于雷达和脉搏波融合检测的AHI与PSG参考值的对比
Figure 15. Comparison of AHI between radar-PPG signal fusion and reference values from PSG

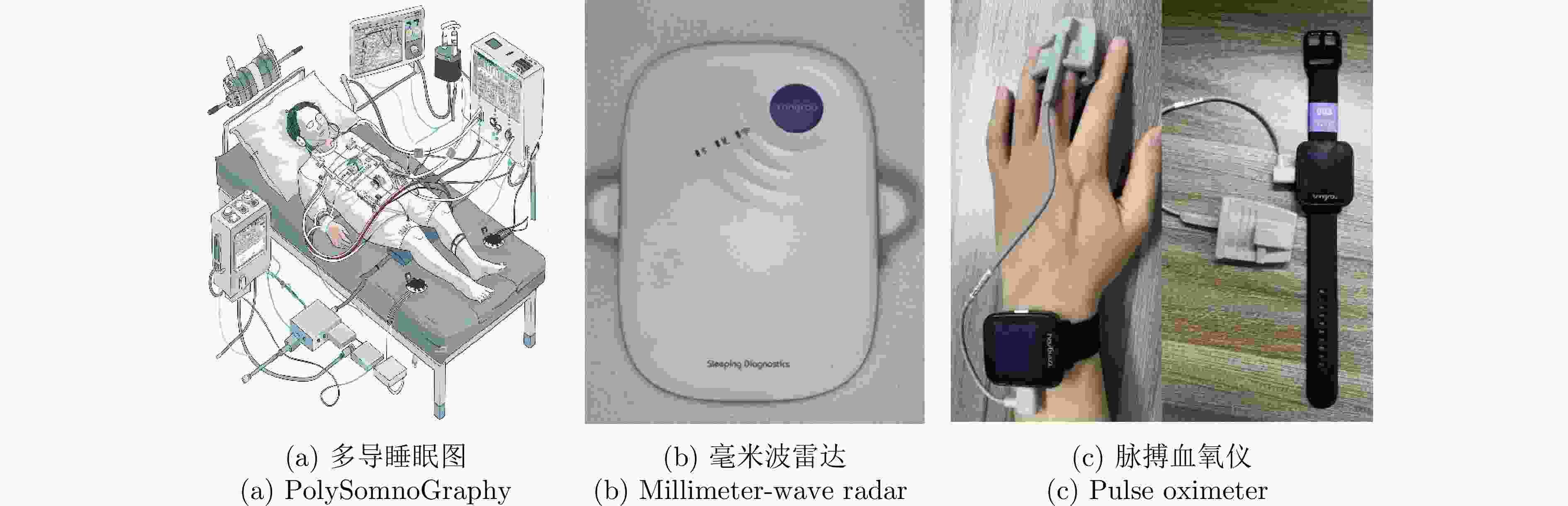

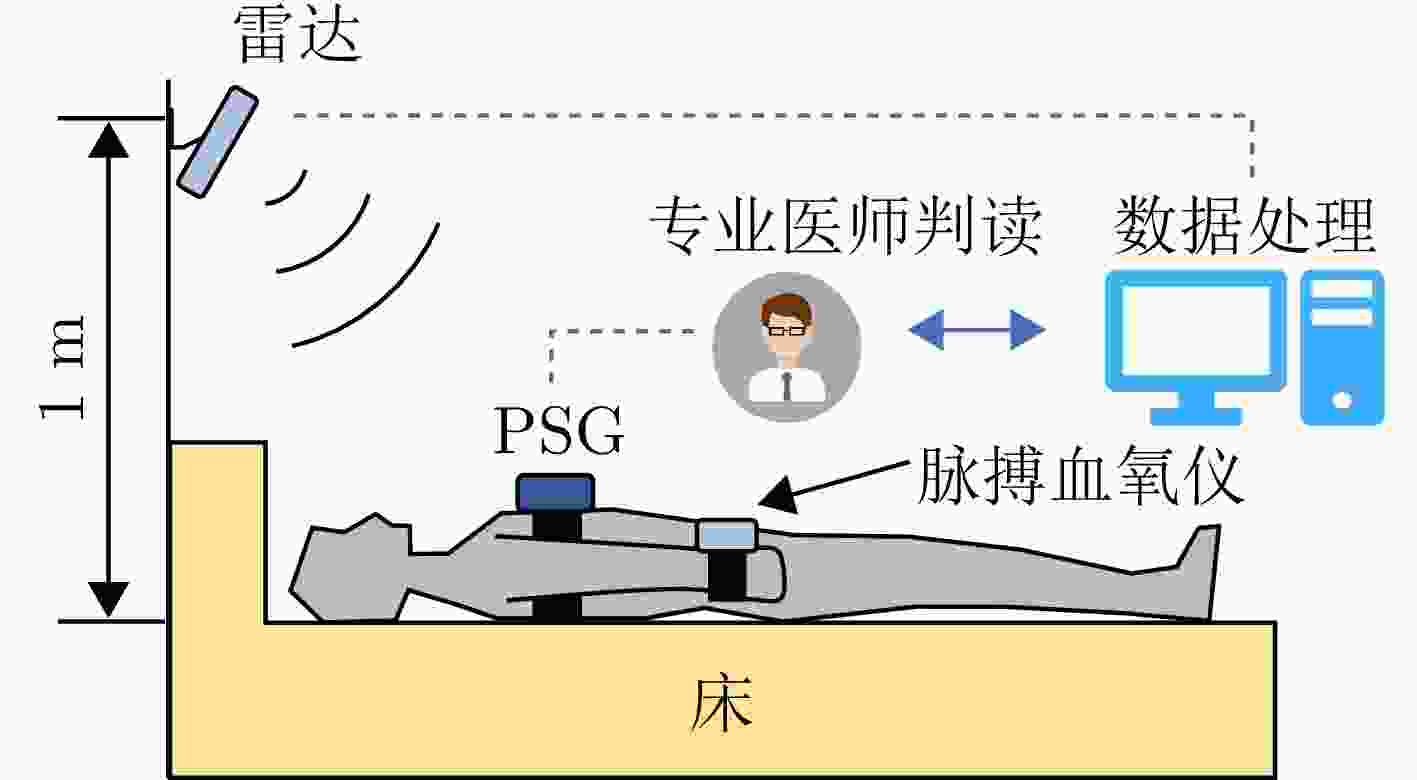

表 1 FMCW雷达基本参数
Table 1. Basic parameters of FMCW radar
起始频率$ {f_{\text{c}}} $ $ 60{\text{ GHz}} $ 线性调频带宽B $ {\text{3 GHz}} $ 扫频周期T $ {\text{2 ms}} $ 快时间实际采样点数N $ 256 $ 快时间采样频率$ {f_{\text{s}}} $ $ 1000{\text{ kHz}} $ 距离分辨率$ \vartriangle R $ $ {\text{5 cm}} $
下载: 导出CSV
表 2 脉搏血氧仪基本参数
Table 2. Basic parameters of the pulse oximeter
红光波长 $ 660 \pm {\text{3 nm}} $ 红外光波长 $ {\text{905}} \pm {\text{10 nm}} $ 红光辐射功率 $ {\text{3}}{\text{.2}} \times 1{{\text{0}}^{{\text{ - 3}}}}{\text{ W}} $ 红外光辐射功率 $ {\text{2}}{\text{.4}} \times 1{{\text{0}}^{{\text{ - 3}}}}{\text{ W}} $ 采样频率 $ {\text{128 Hz}} $
下载: 导出CSV

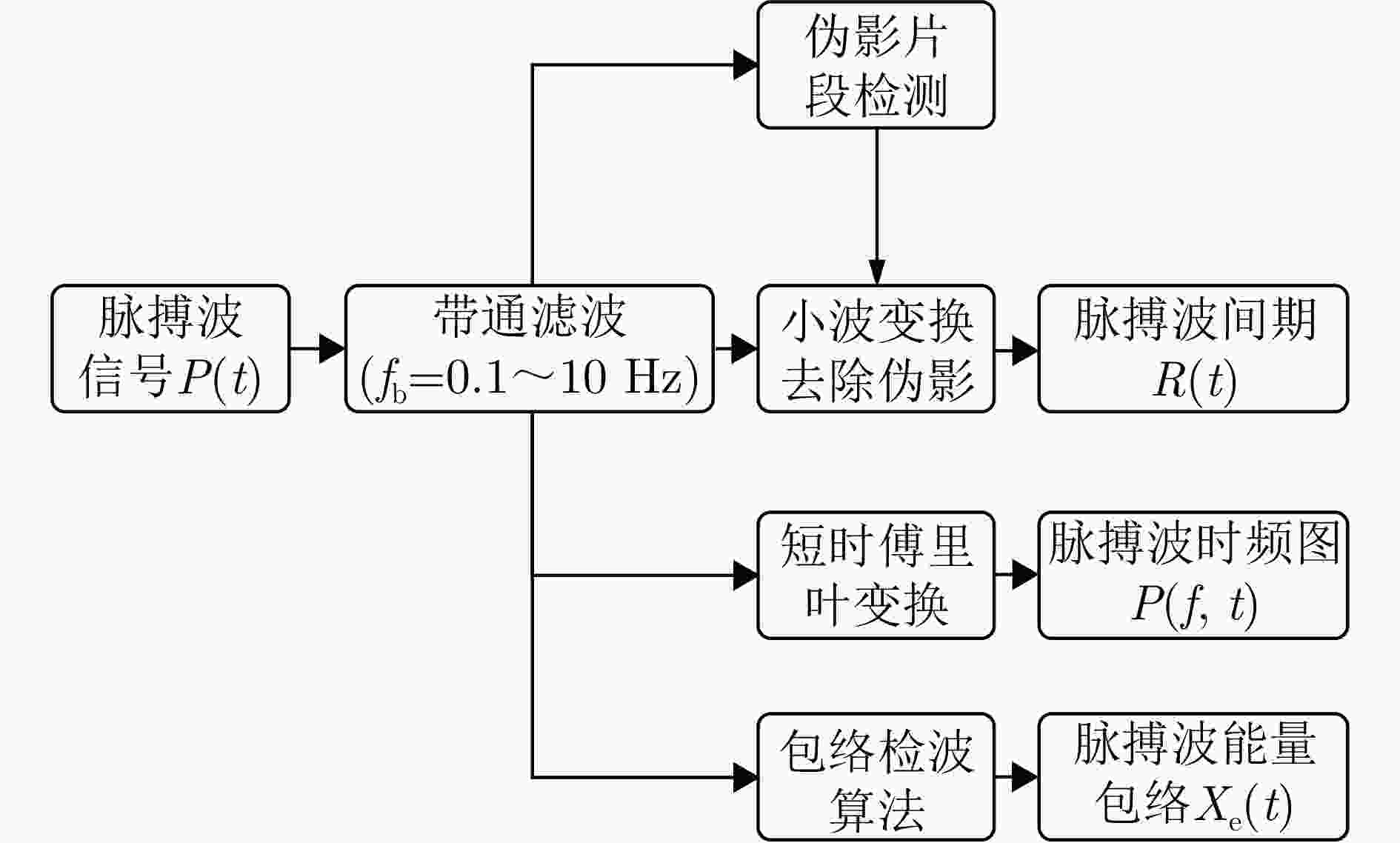

1 脉搏波间期提取算法
1. Pulse wave interval extraction algorithm
输入：脉搏波滤波信号$ {P_{\text{B}}}(t) $ 输出：脉搏波间期$ R(t) $ 1.将信号取平方，得到对应点的能量信号$ {P_{\text{w}}}(t) $ 2.以脉搏波收缩波的平均持续时间$ {T_1} $为滑窗长度，对信号进行平滑以凸显收缩波，得到信号$ {x_{{\text{peak}}}}(t) $。 3.以脉搏波的平均持续时间$ {T_2} $为滑窗长度，对信号进行平滑以压缩舒张波，得到信号$ {x_{{\text{beat}}}}(t) $。 4.利用信号$ {x_{{\text{beat}}}}(t) $与能量信号$ {P_{\text{w}}}(t) $加权求和得各个时刻阈值$ {x_{{\text{thr}}}}(t) $。 5.比较信号$ {x_{{\text{peak}}}}(t) $和阈值$ {x_{{\text{thr}}}}(t) $,定位收缩波。 6.寻找收缩波时间段内的最大的极值点作为收缩波的峰值点，从而确定脉搏间期$ R(t) $。
下载: 导出CSV

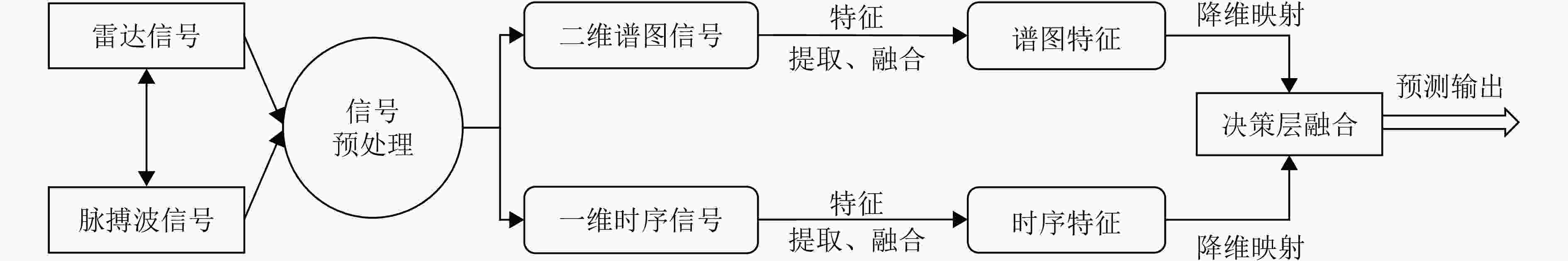

表 3 预处理输出及物理含义
Table 3. Preprocessing outputs and their physical significance
信号维度 信号特征名称及物理含义
二维
谱图信号雷达信号体动强度$ {x_{\text{M}}}(r,t) $：表示受试者肢体运动、翻身等体动的强度 雷达信号呼吸强度$ {x_{\text{B}}}(r,t) $：表示受试者呼吸运动的强度 雷达信号呼吸多普勒$ {x_{\text{D}}}(r,t) $：表示受试者呼吸伴随的胸腹等部位微动 脉搏波信号的时频图$ P(f,t) $：表征受试者脉搏波的时频特征 一维
时序信号雷达呼吸-相位信号$ B(t) $：表示受试者胸腹位移 脉搏波间期$ R(t) $：表征人体脉率，反映受试者心率快慢 脉搏波能量包络$ {X_{\text{e}}}(t) $：表征脉搏波振动幅度，一定程度反映了血氧的高低
下载: 导出CSV
表 4 时序信号与谱图信号对比实验
Table 4. Comparison experiment between time-domain signals and spectrogram signals
N A H pre rec F1 pre rec F1 pre rec F1 时序信号 0.859 0.975 0.913 0.863 0.508 0.639 0.616 0.361 0.455 谱图信号 0.928 0.945 0.936 0.731 0.848 0.785 0.558 0.586 0.572 时序信号+谱图信号 0.961 0.934 0.947 0.751 0.895 0.817 0.627 0.650 0.638
下载: 导出CSV
表 5 雷达与脉搏波对比实验
Table 5. Comparison experiment between radar signals and pulse wave signals
N A H pre rec F1 pre rec F1 pre rec F1 PPG 0.834 0.971 0.897 0.816 0.681 0.742 0.652 0.462 0.541 Radar 0.909 0.902 0.906 0.714 0.826 0.766 0.506 0.549 0.527 PPG+Radar 0.961 0.934 0.947 0.751 0.895 0.817 0.627 0.650 0.638
下载: 导出CSV
表 6 现有研究结果性能比较
Table 6. Comparative performance with existing research findings
方法 数据集
人数传感器 呼吸
监测仪Bland-
Altman线性
拟合系数RKang,2020
(CFAR)94
(23,24,14,33)6.5～8.0 GHz
UWBPSG –2.8
(–21.7,+16.1)0.96 Kwon,2022
(CNN+LSTM)36
(6,9,8,11)6.5～8.0 GHz
UWBPSG –2.0
(–14.6,+10.7)0.97 Hayano,2020
(ACAT)41
(11,8,16,6)PPG PSG –
–0.81 本文方法
(雷达+脉搏波)86
(27,19,14,26)60～63 GHz FMCW
+PPGPSG 1.38
(–7.18,+9.94)0.93
下载: 导出CSV

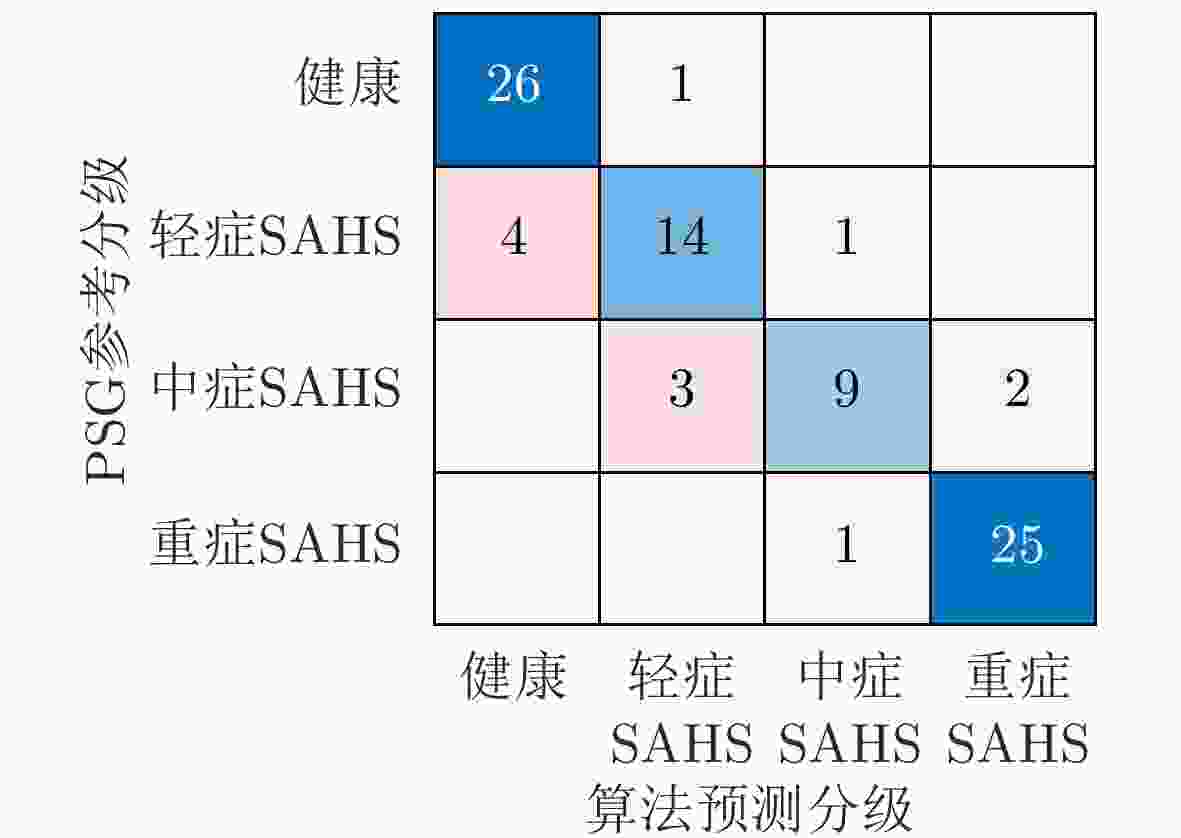

表 7 对照实验结果
Table 7. The results of control experiment
传感器 组内相关系数 诊断阈值(次/h) 敏感度(%) 特异度(%) 准确率(%) Kappa系数
PPG
0.895 74.07 89.83 84.88 0.6455 15 89.13 90.00 89.53 0.7901 30 95.00 80.77 90.69 0.7746
Radar
0.935 66.67 89.83 82.56 0.5825 15 91.30 92.50 91.86 0.8367 30 95.00 88.46 93.02 0.8346 Radar
+
PPG
0.985 96.29 93.22 94.19 0.8690 15 97.83 92.50 95.35 0.9062 30 96.67 96.15 96.51 0.9182
下载: 导出CSV
-
