基于双网络协同的多通道雷达前视成像方法

周卓洁; 李悦丽; 刘可; 朱巧鹏; 肖志飞; 代大海

doi:10.12000/JR25121

基于双网络协同的多通道雷达前视成像方法

DOI: 10.12000/JR25121 CSTR: 32380.14.JR25121

国防科技大学电子科学学院长沙 410073

基金项目: 国家部委基金

详细信息

作者简介:
周卓洁，硕士生，研究方向为雷达智能感知与处理

李悦丽，博士，教授，研究方向为机载雷达合成孔径成像、前视成像以及射频干扰抑制技术

刘　可，硕士，研究方向为雷达智能感知与处理

朱巧鹏，硕士生，研究方向为MIMO雷达前视成像技术

肖志飞，硕士生，研究方向为雷达智能感知与处理

代大海，博士，教授，主要研究方向为极化雷达成像、雷达信号处理与目标识别以及合成孔径雷达对抗

通讯作者:
李悦丽 liyueli4uwb@nudt.edu.cn

责任主编：陈洪猛 Corresponding Editor: CHEN Hongmeng
中图分类号: TN957.52
计量
- 文章访问数:
- HTML全文浏览量:
- PDF下载量:
- 被引次数: 0
出版历程
- 收稿日期: 2025-07-04
- 修回日期: 2025-10-26

Multichannel Radar Forward-looking Imaging Method Based on Dual-network Cooperation

College of Electronic Science and Technology, National University of Defense Technology, Changsha 410073, China

Funds: The National Ministries Foundation

More Information

Corresponding author: LI Yueli, liyueli4uwb@nudt.edu.cn

摘要

摘要: 针对雷达正前视方向多普勒梯度消失导致多目标分辨困难以及前视图像模糊的问题，该文提出一种基于双网络协同的多通道雷达前视成像方法，构建了一个分层级联的端到端处理框架：首先，设计轻量化目标数量估计网络(NEN)，基于回波协方差矩阵特征预测主瓣内目标数量；其次，根据目标数量动态选择预训练的角度估计网络(AEN)模型，实现高精度的目标方位角估计；最后，将目标数量与角度估计值作为先验信息，结合迭代自适应算法完成目标强度估计和二维投影成像。仿真和实测实验结果表明：相比于传统超分辨算法，所提方法在正前视区域能够更有效实现对强弱点目标参数的同时估计和精确重构，在目标数量估计上的准确率达到86.75%，角度估计均方根误差在双目标场景下低于0.2°，有效提高了前视成像质量。
- 多通道雷达 /
- 多目标分辨 /
- 前视成像 /
- 双网络协同 /
- 参数估计
Abstract: The challenge of distinguishing multiple targets and mitigating image blurry caused by Doppler gradient disappearance in the forward-looking direction of moving platforms is addressed through a multichannel radar forward-looking imaging method based on dual-network collaboration. The proposed method establishes a hierarchical, cascaded, end-to-end processing framework. First, a target number estimation network predicts the number of targets within the main lobe by analyzing the characteristics of the echo covariance matrix. Then, according to the estimated target count, a pretrained angle estimation network model is dynamically selected to determine the azimuth angles of the targets. Finally, target intensity estimation and two-dimensional projection imaging are performed in combination with an improved iterative adaptive algorithm. Simulation and experimental results demonstrate that, compared with conventional super-resolution algorithms, the proposed method achieves more effective simultaneous estimation and accurate reconstruction of parameters for both strong and weak targets in the forward-looking region. Specifically, it attains 86.75% accuracy in target number estimation, while the root mean square error of angle estimation remains below 0.2° in two-target scenarios, significantly enhancing the quality of forward-looking imaging.
- Multi-channel radar /
- Distinguish multiple targets /
- Forward-looking imaging /
- Dual-network collaboration /
- Parameter estimation

HTML全文

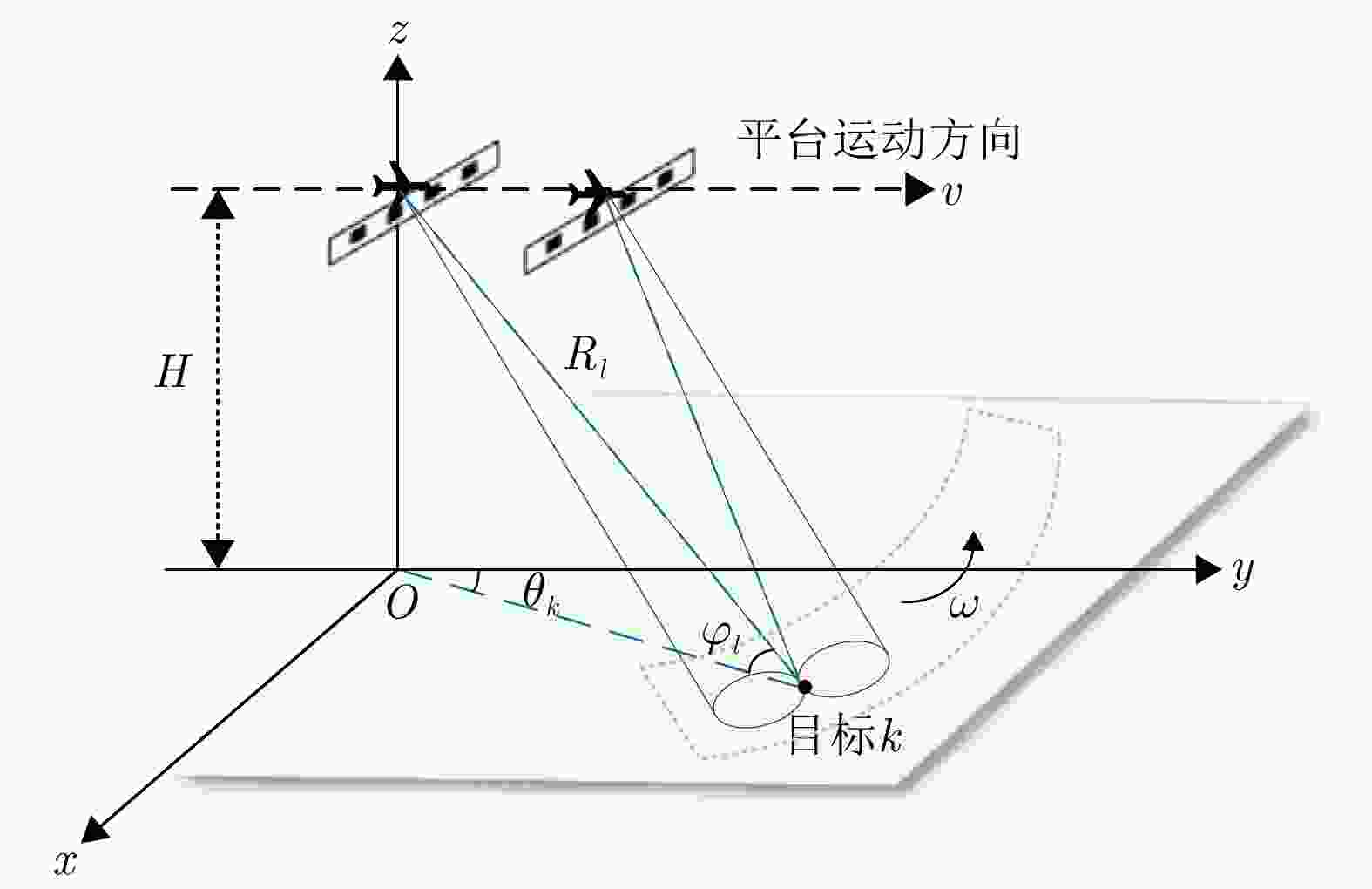

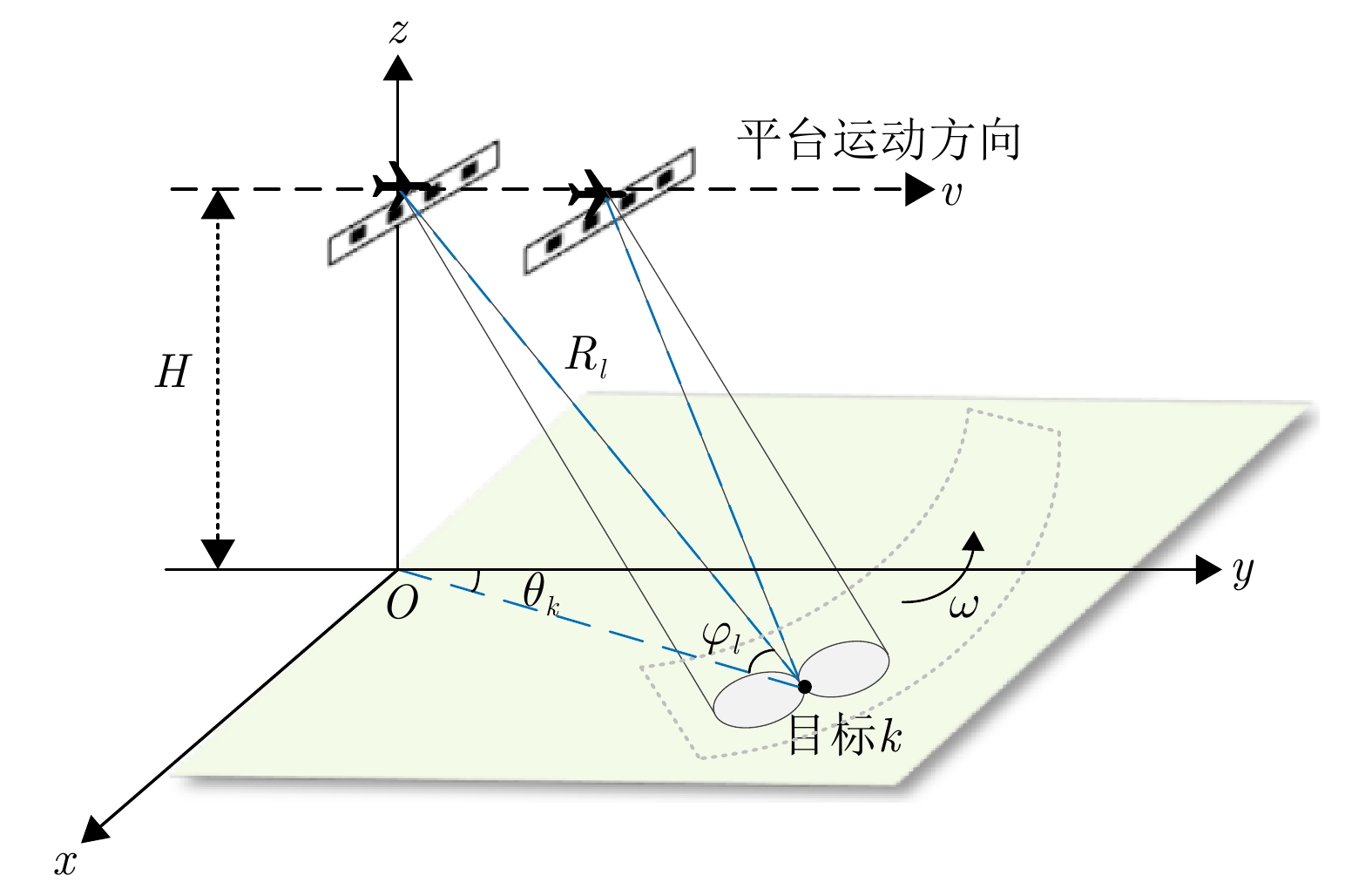

图 1 空载平台多通道雷达前视成像几何示意图

Figure 1. Airborne multi-channel radar forward-looking imaging geometry

下载: 全尺寸图片幻灯片

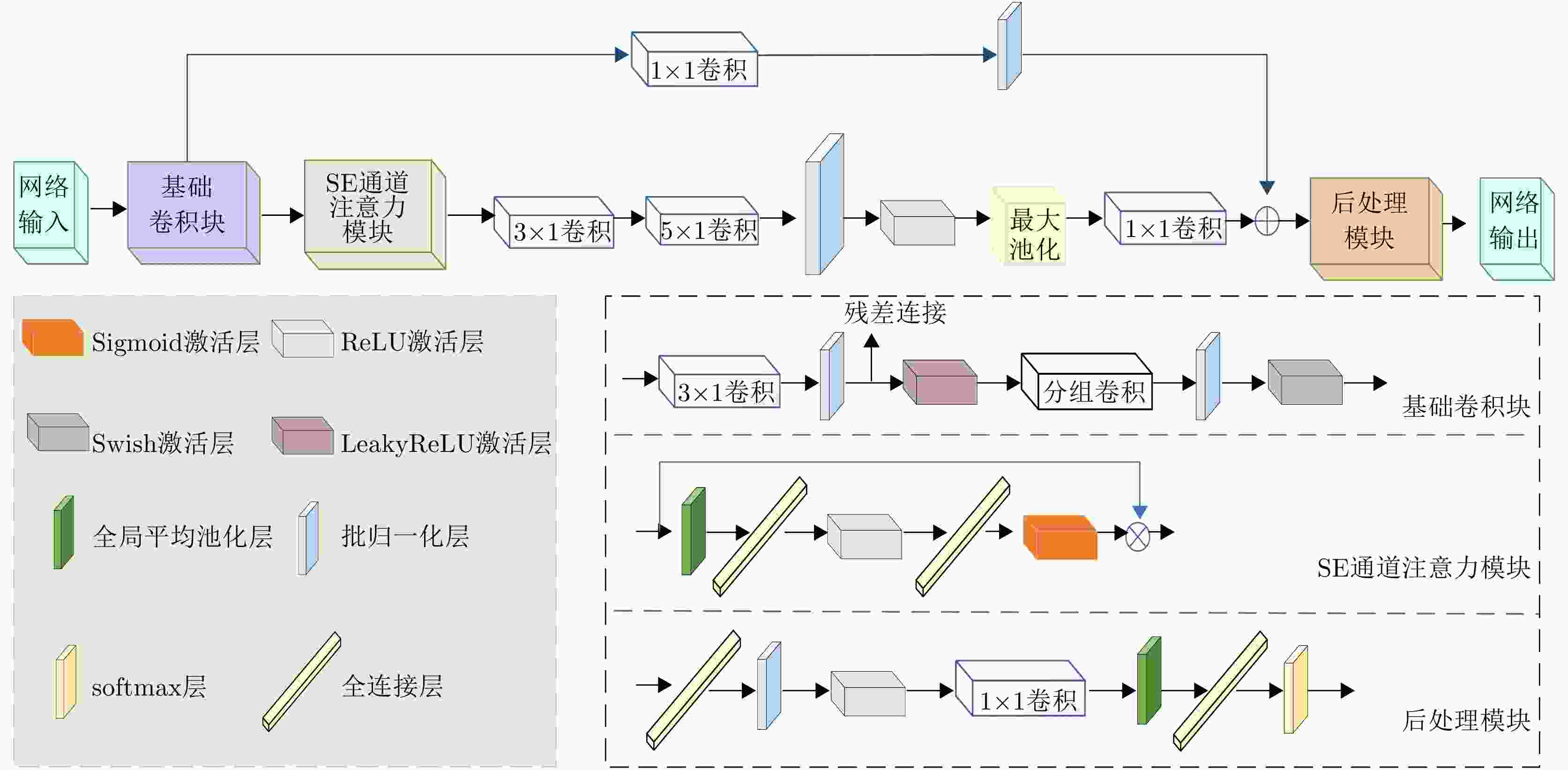

图 2 NEN网络结构

Figure 2. Network structure of NEN

下载: 全尺寸图片幻灯片

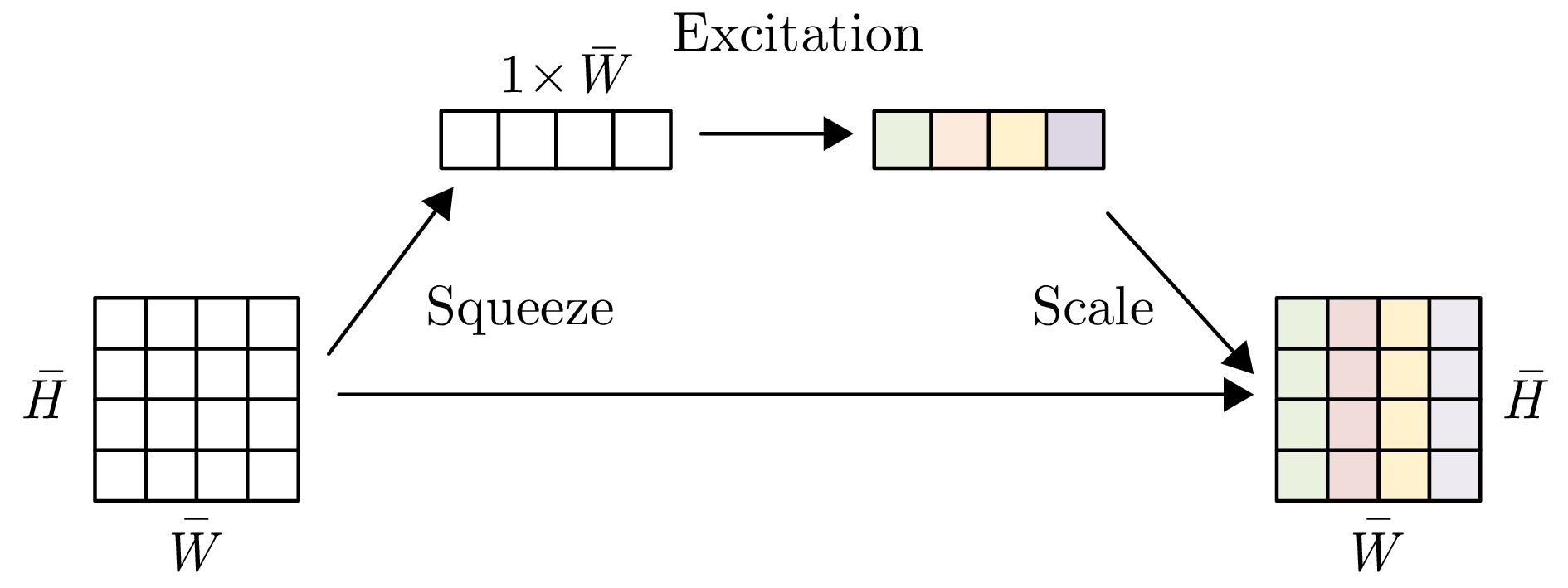

图 3 一维SE网络结构

Figure 3. Network structure of 1D SE

下载: 全尺寸图片幻灯片

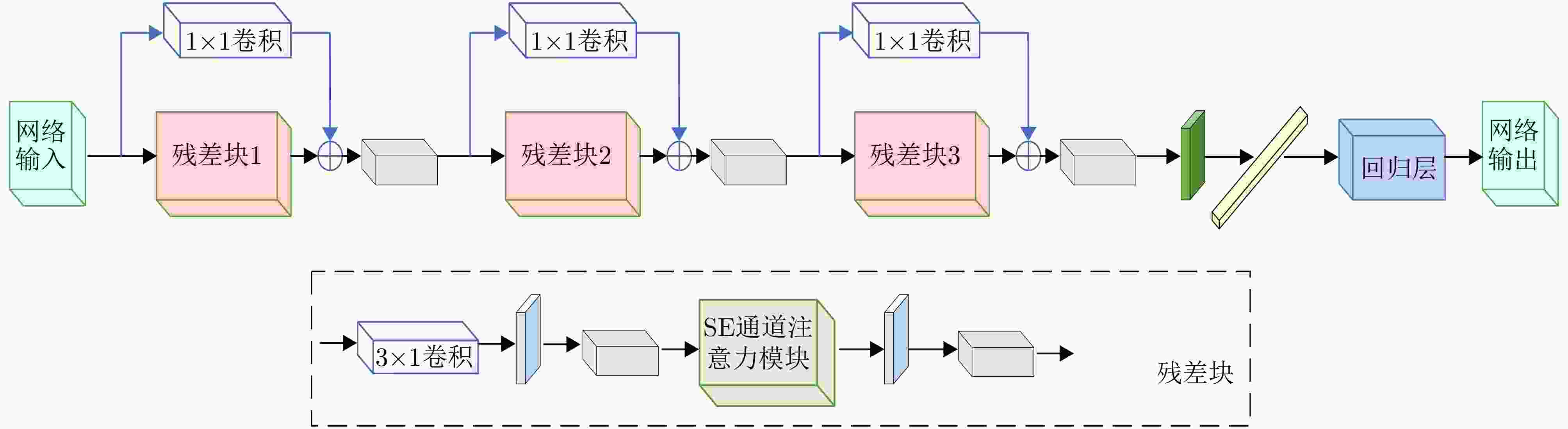

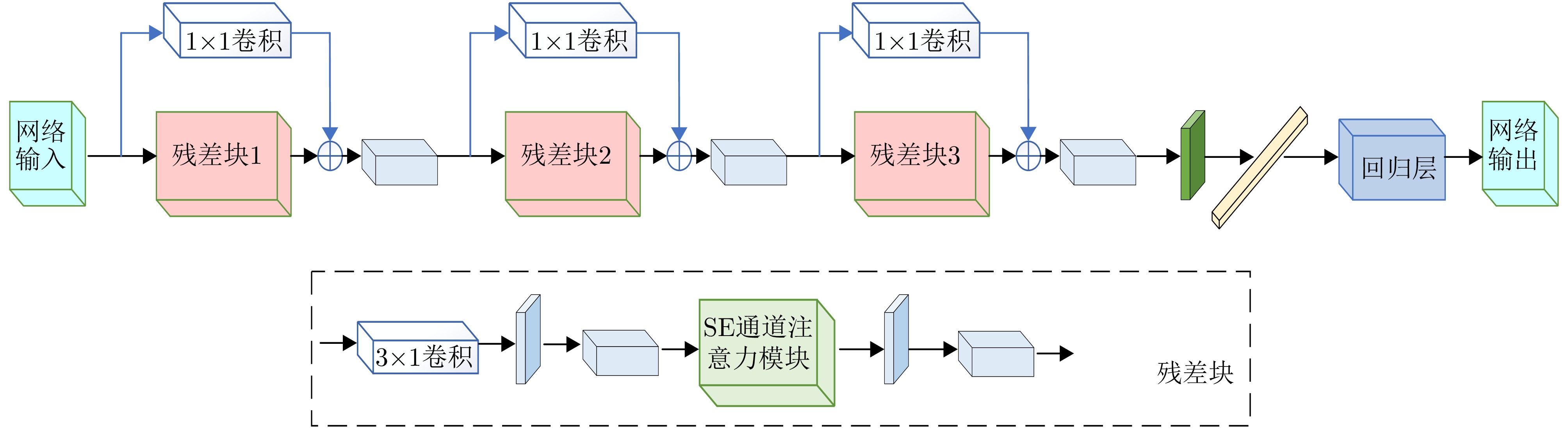

图 4 AEN网络结构

Figure 4. Network structure of AEN

下载: 全尺寸图片幻灯片

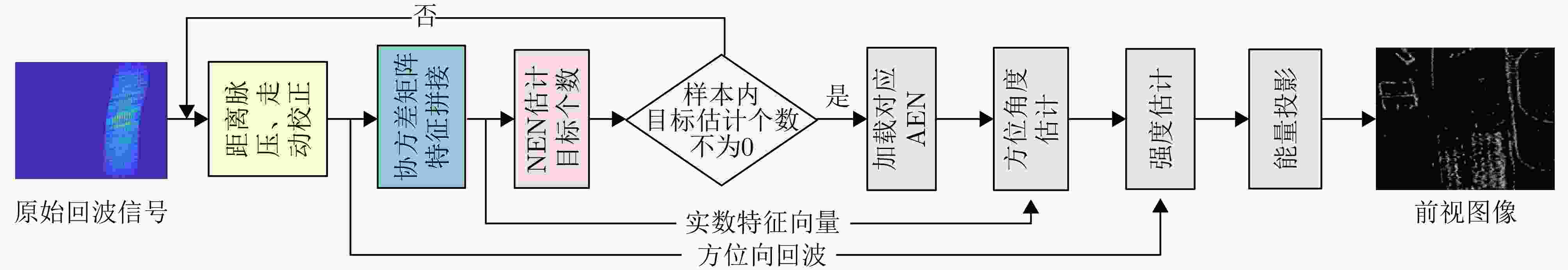

图 5 NEN-AEN级联网络成像算法流程

Figure 5. The imaging procedure of the NEN-AEN cascaded networks

下载: 全尺寸图片幻灯片

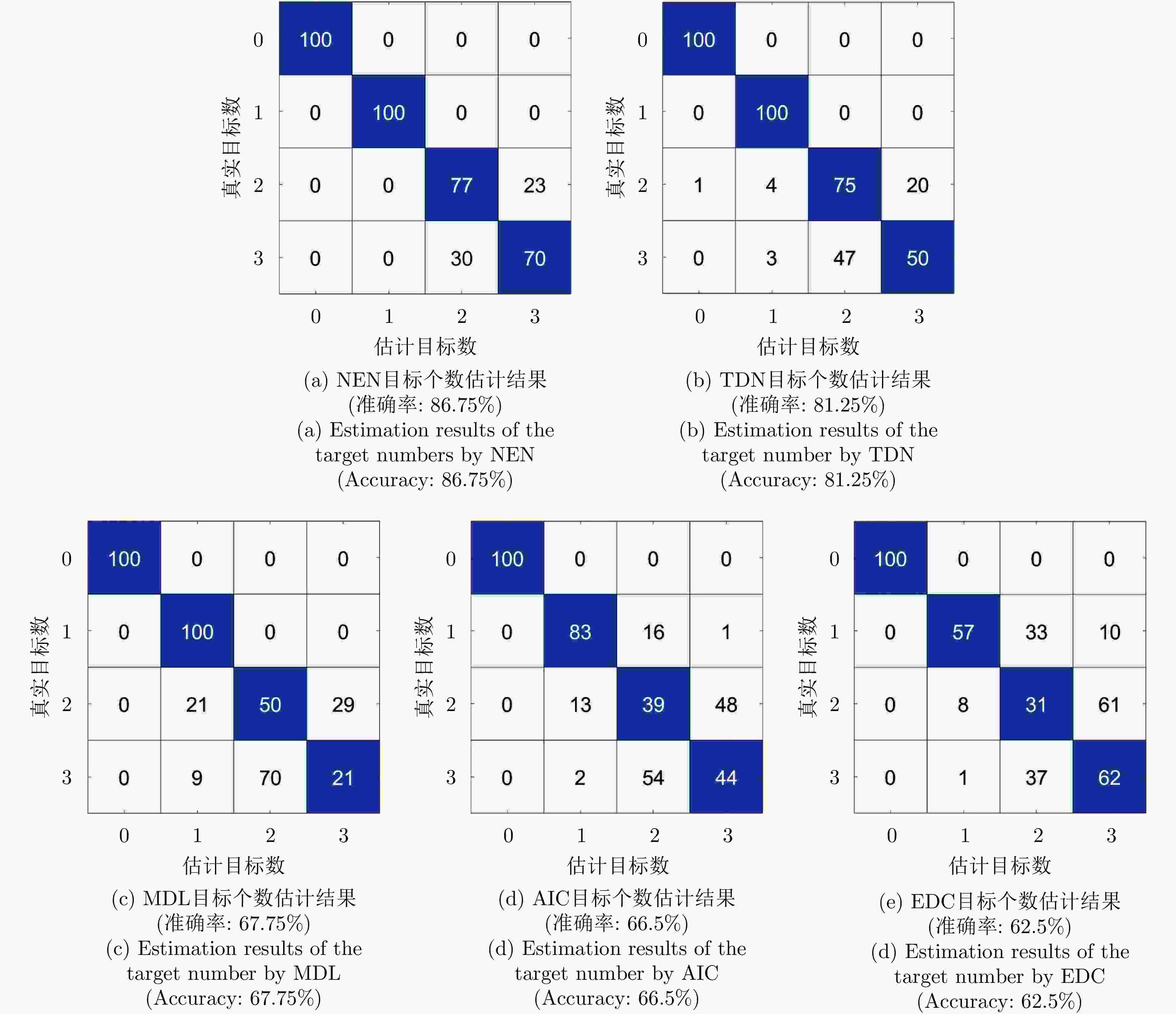

图 6 不同方法目标个数估计性能对比

Figure 6. Performance comparison of target number estimation by different methods

下载: 全尺寸图片幻灯片

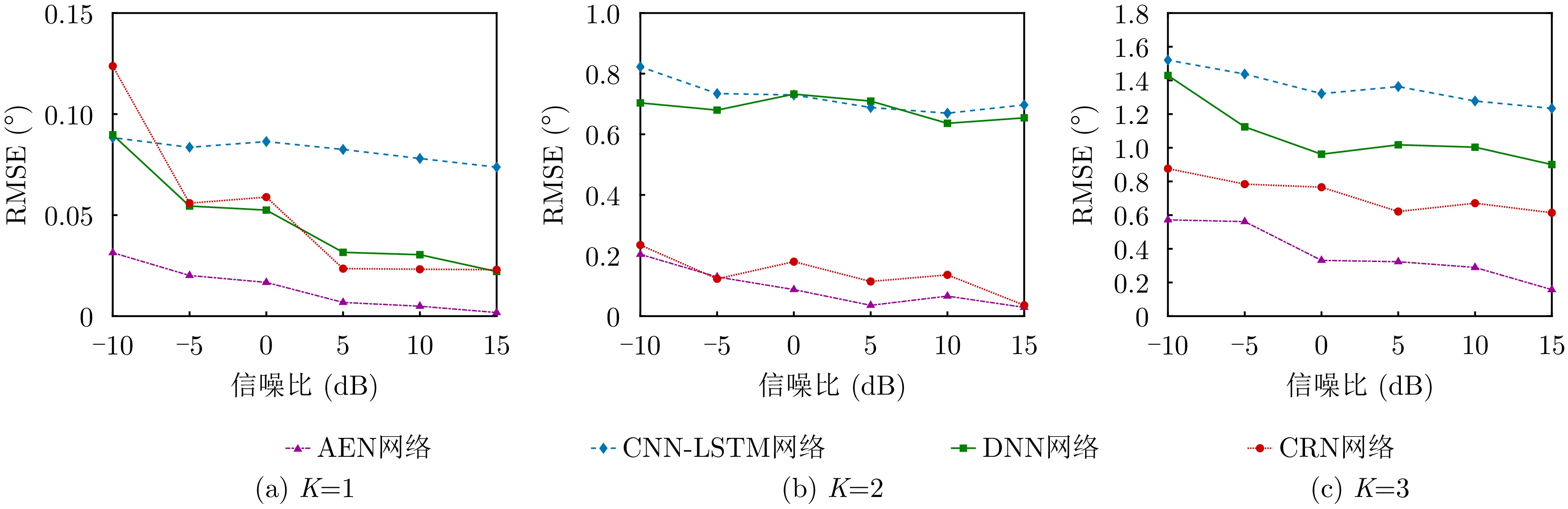

图 7 不同目标个数角度估计RMSE随信噪比变化曲线

Figure 7. The variation curves of RMSE with signal-to-noise ratio estimated from different angles of the number of targets

下载: 全尺寸图片幻灯片

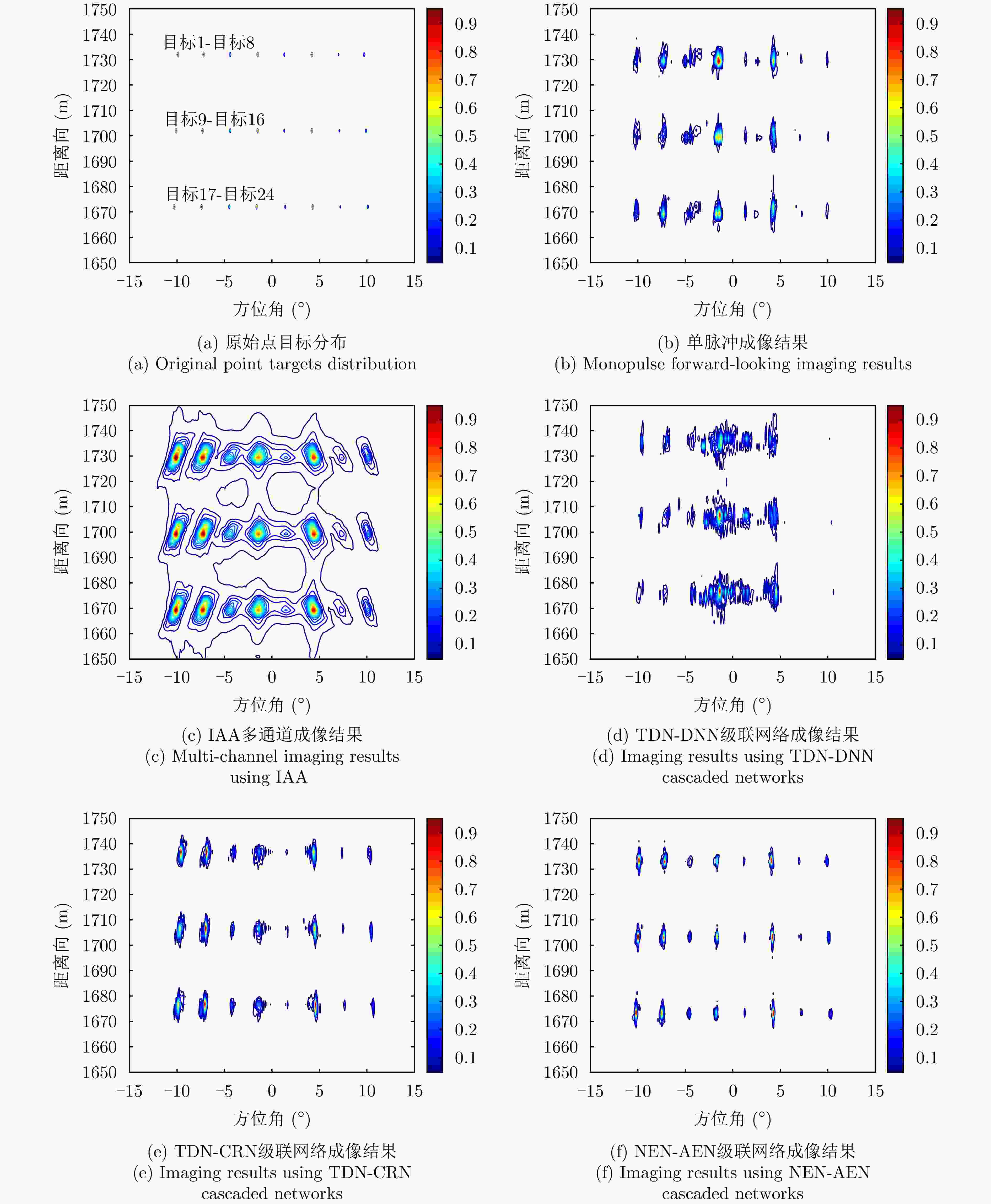

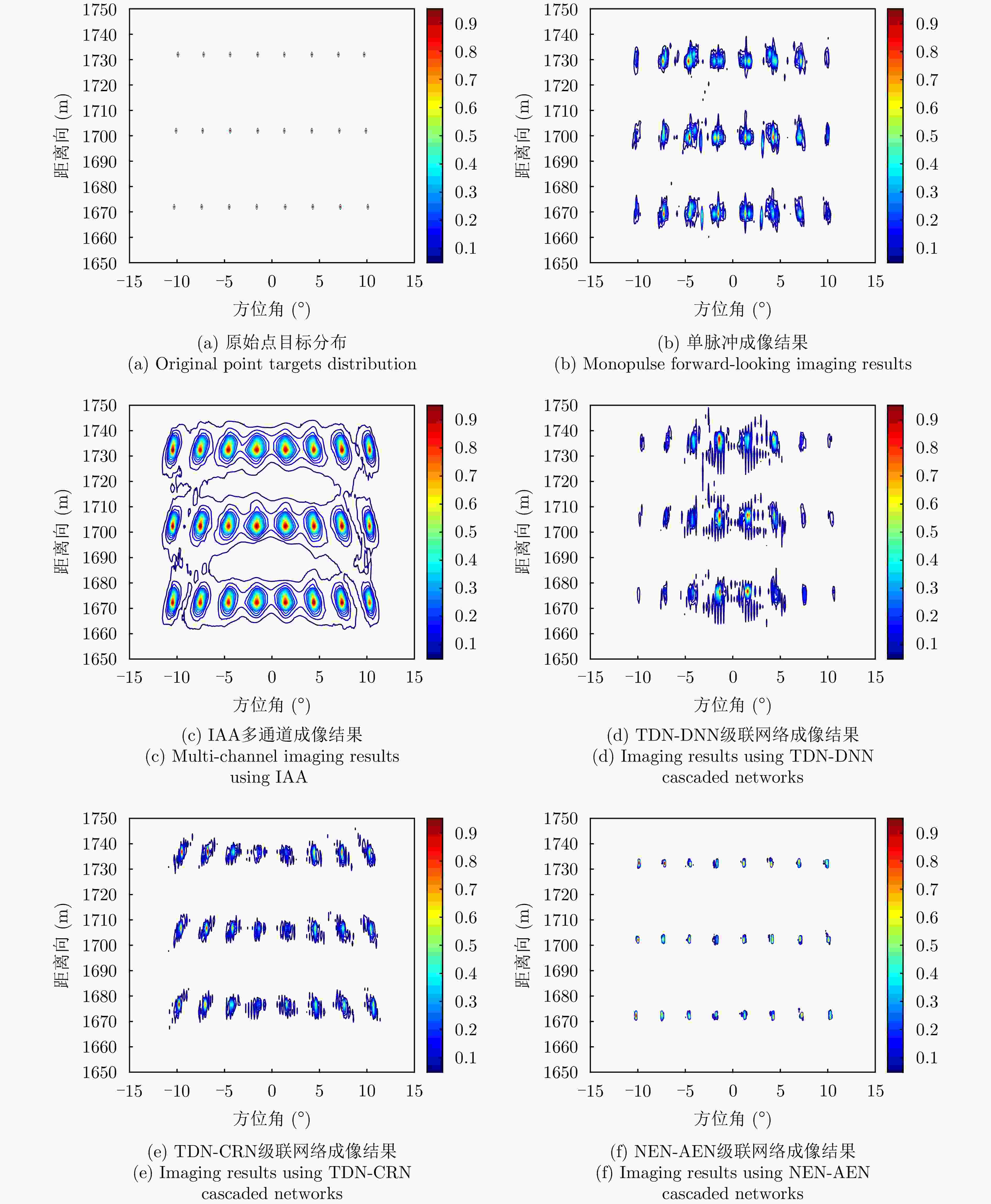

图 8 相同功率的点阵目标前视成像效果对比

Figure 8. Comparison of forward looking imaging performance of lattice targets with the same power distribution

下载: 全尺寸图片幻灯片

图 9 不同功率分布点阵目标前视成像效果对比

Figure 9. Comparison of forward looking imaging performance of lattice targets with different power distribution

下载: 全尺寸图片幻灯片

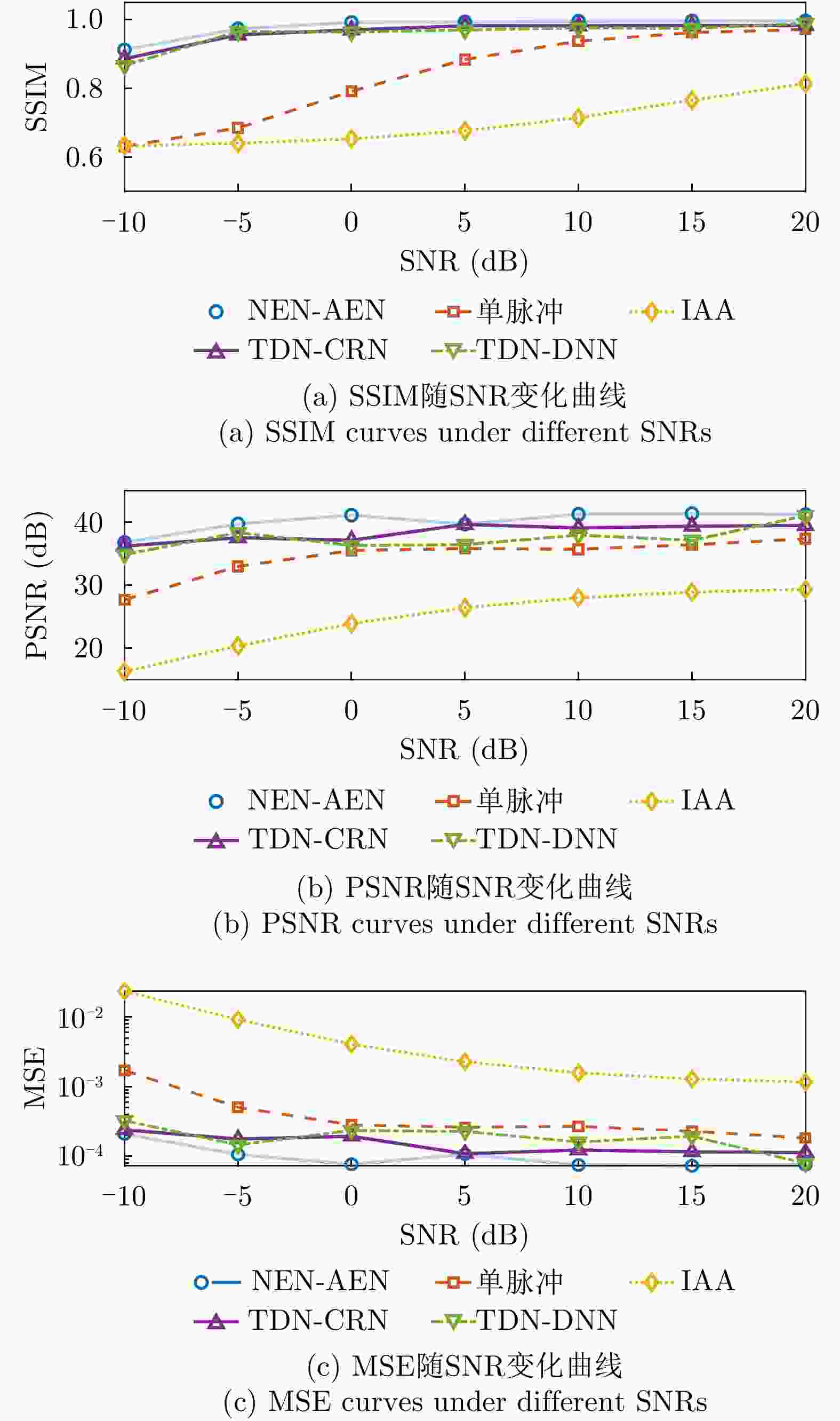

图 10 不同信噪比条件下SSIM, PSNR和MSE指标结果

Figure 10. The results of SSIM, PSNR and MSE metrics varying with SNR

下载: 全尺寸图片幻灯片

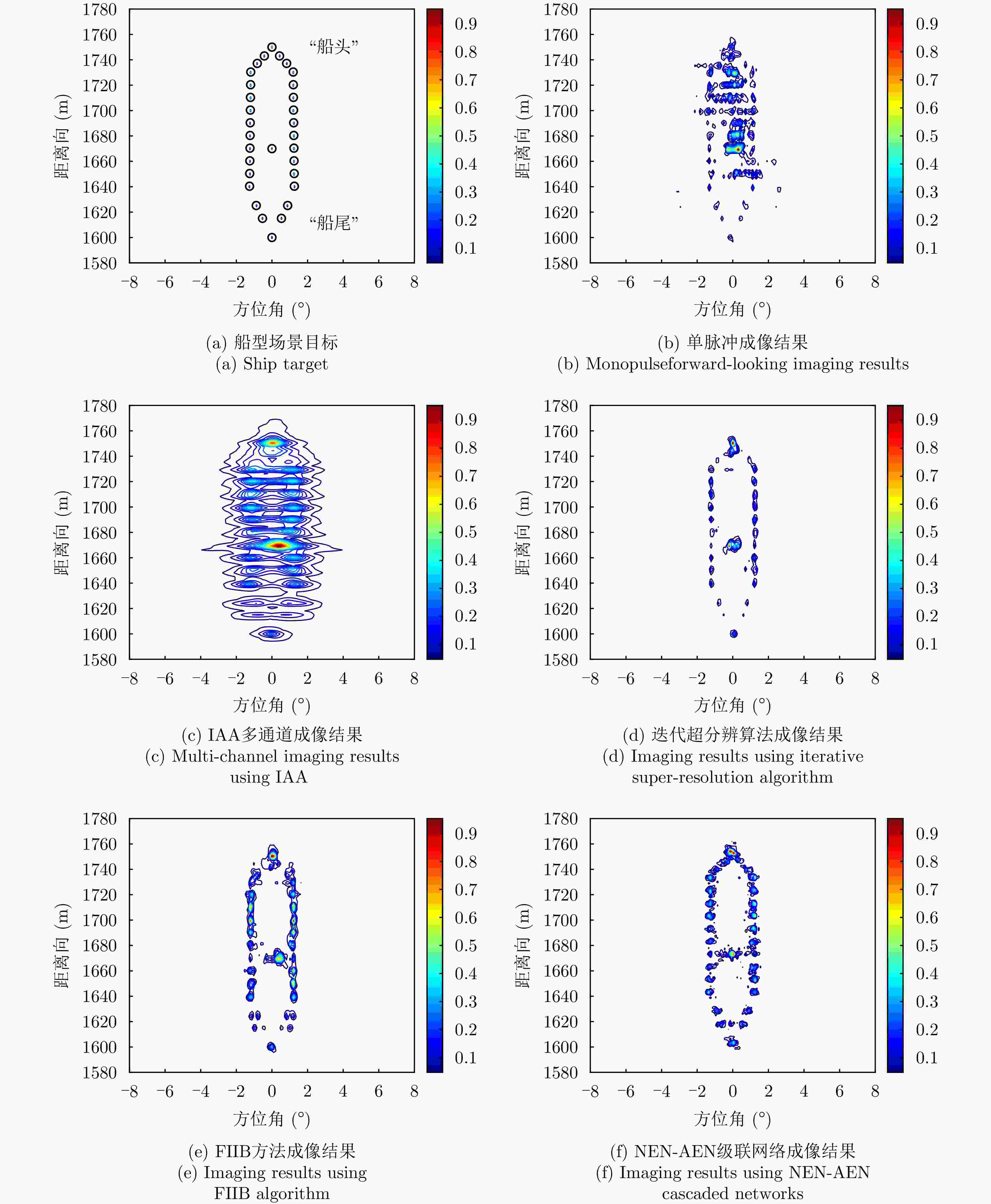

图 11 仿真场景前视成像效果对比

Figure 11. Comparison of experimental results in forward looking imaging

下载: 全尺寸图片幻灯片

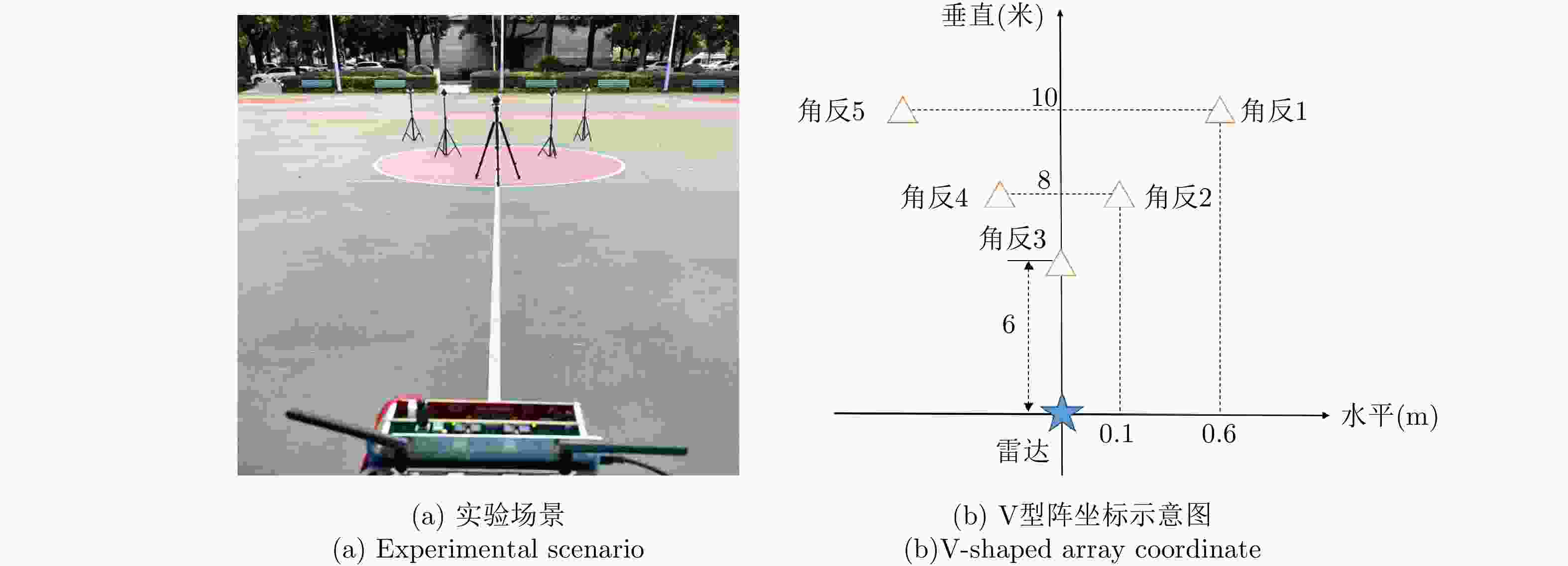

图 12 实验场景和V型阵坐标示意图

Figure 12. The experimental scenario and V-shaped array coordinates

下载: 全尺寸图片幻灯片

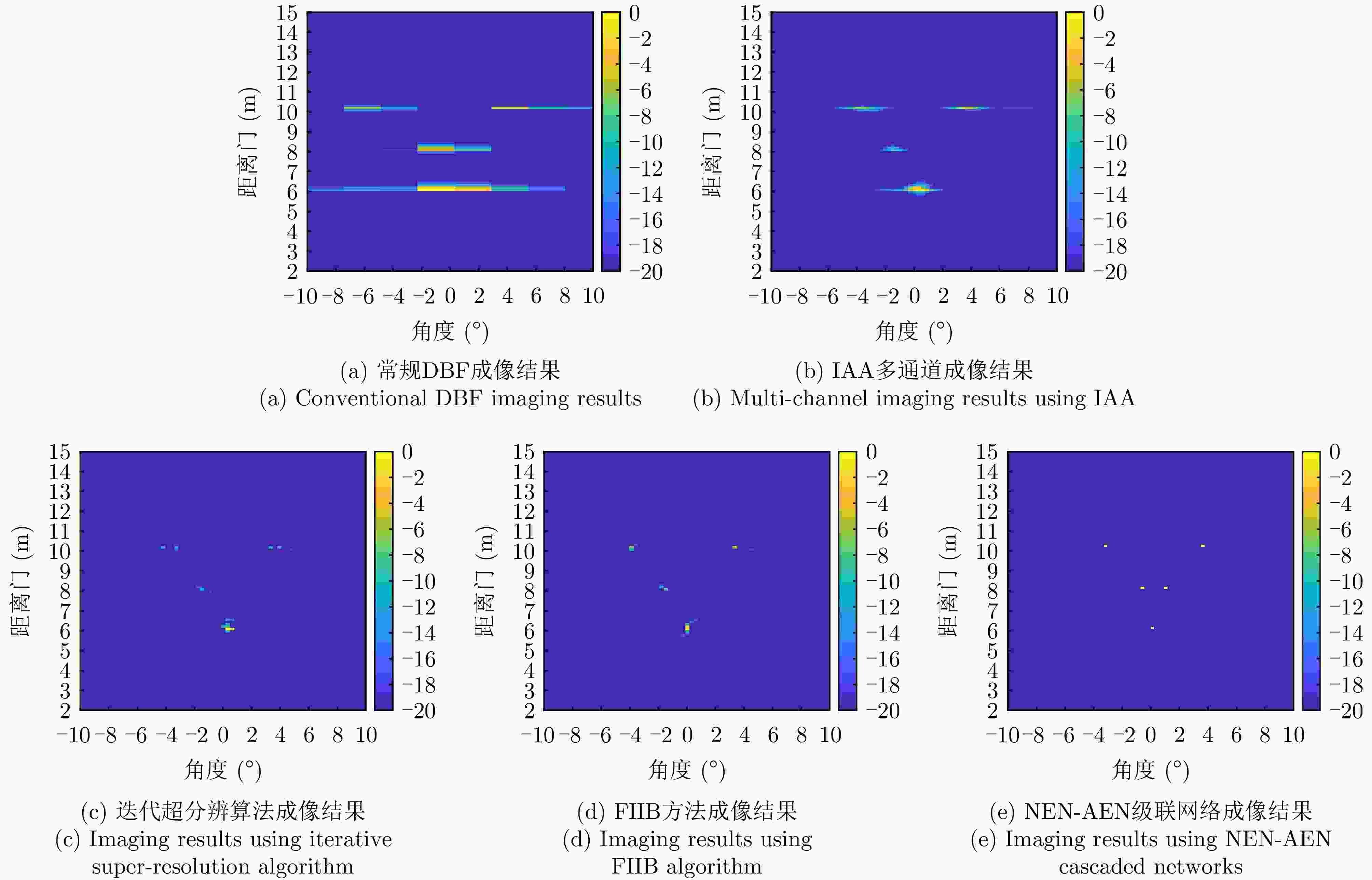

图 13 实测场景前视成像效果对比

Figure 13. Comparison of experimental results in forward looking imaging

下载: 全尺寸图片幻灯片

表 1 前视扫描成像实验仿真参数

Table 1. Simulation parameters of the forward-looking scanning radar

参数	数值	参数	数值
通道数	4	信号脉宽	1 μs
通道相位中心间隔/波长	2	脉冲重复频率PRF	2000 Hz
雷达中心频率	18 GHz	方位向主瓣宽度	5°
平台飞行速度	100 m/s	波束扫描范围	–15°～15°
信号带宽	50 MHz	天线扫描速度	30 °/s
波位脉冲数	32	脉压后信噪比	20 dB

下载: 导出CSV

表 2 AEN对比试验点目标设置仿真参数

Table 2. Simulation parameters for point targets in the AEN comparison experiment

目标个数	方位角(°)	散射强度(dB)
K=1	–0.5	10
K=2	[–0.5, 1.5]	[5, 15]
K=3	[–1.5, 0.5, 2.0]	[1, 10, 19]

下载: 导出CSV

表 3 V型阵成像场景仿真定量评估结果

Table 3. Quantitative evaluation results of V-shaped array imaging scene simulation

方法	强度RMSE	角度RMSE
IAA算法	0.534	0.354
迭代超分辨算法	0.548	0.264
FIIB算法	0.471	0.318
NEN-AEN级联网络	0.105	0.212

下载: 导出CSV
