MMRGait-1.0：多视角多穿着条件下的雷达时频谱图步态识别数据集

杜兰; 陈晓阳; 石钰; 薛世鲲; 解蒙

doi:10.12000/JR22227

MMRGait-1.0：多视角多穿着条件下的雷达时频谱图步态识别数据集

DOI: 10.12000/JR22227

西安电子科技大学雷达信号处理国家重点实验室西安 710071

基金项目: 国家自然科学基金(U21B2039)

详细信息

作者简介:
杜　兰，博士，教授，主要研究方向为雷达目标识别、雷达信号处理、机器学习等

陈晓阳，硕士生，主要研究方向为雷达信号处理、雷达步态识别

石　钰，博士生，主要研究方向为雷达目标检测与识别、多源信息跨域学习

薛世鲲，硕士生，主要研究方向为雷达步态识别、动作识别等

解　蒙，硕士生，主要研究方向为雷达信号处理、雷达目标跟踪

通讯作者:
杜兰 dulan@mail.xidian.edu.cn

责任主编：金添 Corresponding Editor: JIN Tian
中图分类号: TN957
计量
- 文章访问数: 2394
- HTML全文浏览量: 1345
- PDF下载量: 411
- 被引次数: 0
出版历程
- 收稿日期: 2022-11-24
- 修回日期: 2023-02-10
- 网络出版日期: 2023-03-06
- 刊出日期: 2023-08-28

MMRGait-1.0: A Radar Time-frequency Spectrogram Dataset for Gait Recognition under Multi-view and Multi-wearing Conditions

National Laboratory of Radar Signal Processing, Xidian University, Xi’an 710071, China

Funds: The National Natural Science Foundation of China (U21B2039)

More Information

Corresponding author: DU Lan, dulan@mail.xidian.edu.cn

摘要

摘要: 步态识别作为一种生物识别技术，在实际生活中通常被认为是一项检索任务。然而，受限于现有雷达步态识别数据集的规模，目前的研究主要针对分类任务且局限于单一行走视角和相同穿着条件，这限制了基于雷达的步态识别在实际场景中的应用。该文公开了一个多视角多穿着条件下的雷达步态识别数据集，该数据集使用毫米波雷达采集了121位受试者在多种穿着条件下沿不同视角行走的时频谱图数据，每位受试者共采集8个视角，每个视角采集10组，其中6组为正常穿着，2组为穿大衣，2组为挎包。同时，该文提出一种基于检索任务的雷达步态识别方法，并在公布数据集上进行了实验，实验结果可以作为基准性能指标，方便更多学者在此数据集上开展进一步研究。
- 毫米波雷达 /
- 步态识别 /
- 检索任务 /
- 多视角多穿着条件 /
- 公开数据集
Abstract: As a biometric technology, gait recognition is usually considered a retrieval task in real life. However, because of the small scale of the existing radar gait recognition dataset, the current studies mainly focus on classification tasks and only consider the situation of a single walking view and the same wearing condition, limiting the practical application of radar-based gait recognition. This paper provides a radar gait recognition dataset under multi-view and multi-wearing conditions; the dataset uses millimeter-wave radar as a sensor to collect the time-frequency spectrogram data of 121 subjects walking along views under multiple wearing conditions. Eight views were collected for each subject, and ten sets were collected for each view. Six of the ten sets are dressed normally, two are dressed in coats, and the last two are carrying bags. Meanwhile, this paper proposes a method for radar gait recognition based on retrieval tasks. Experiments are conducted on this dataset, and the experimental results can be used as a benchmark to facilitate further research by related scholars on this dataset.
- Millimeter-wave radar /
- Gait recognition /
- Retrieval task /
- Multi-view and multi-wearing conditions /
- Public dataset

HTML全文

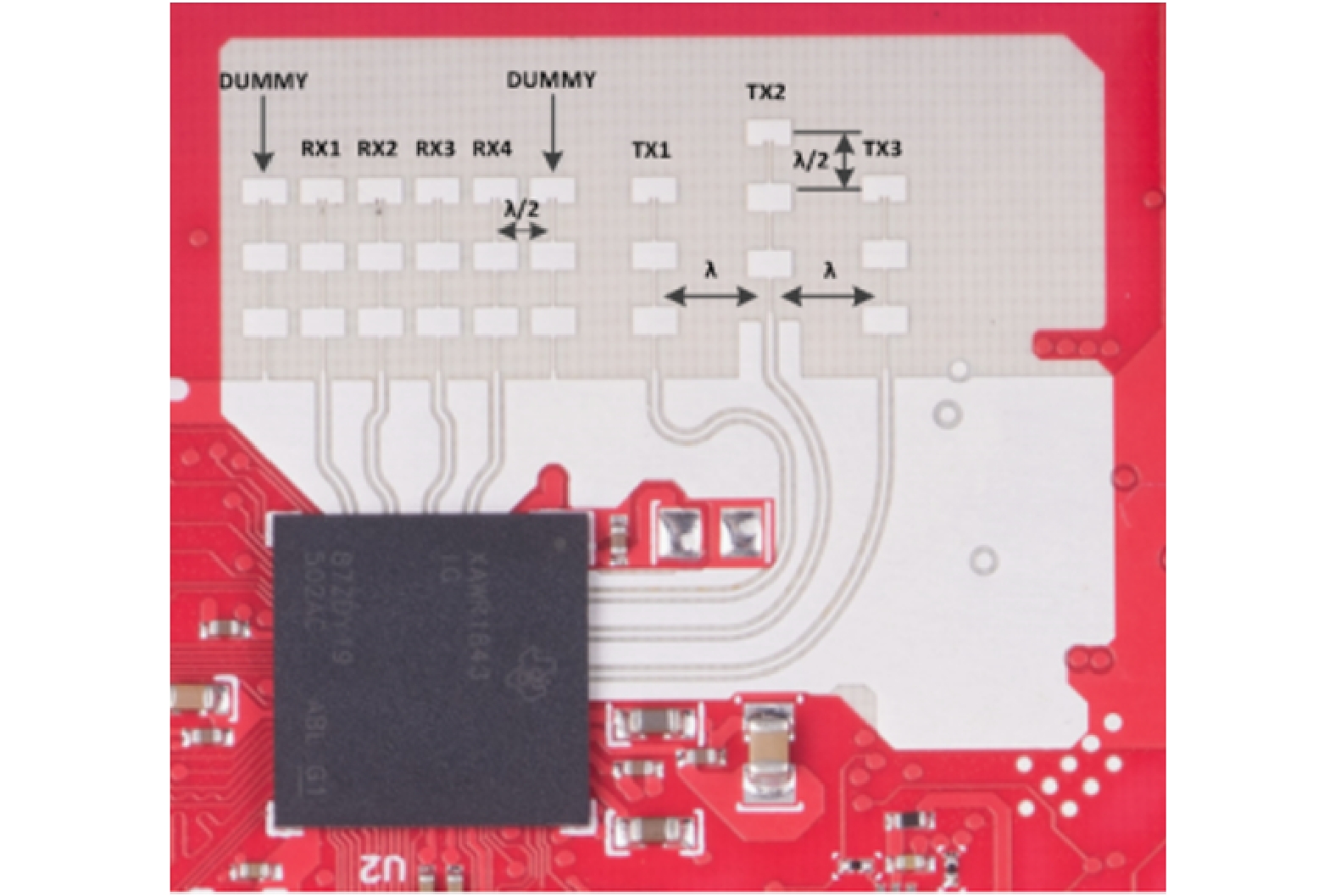

图 1 毫米波雷达天线阵列分布图

Figure 1. Antenna array distribution of millimeter-wave radar

下载: 全尺寸图片幻灯片

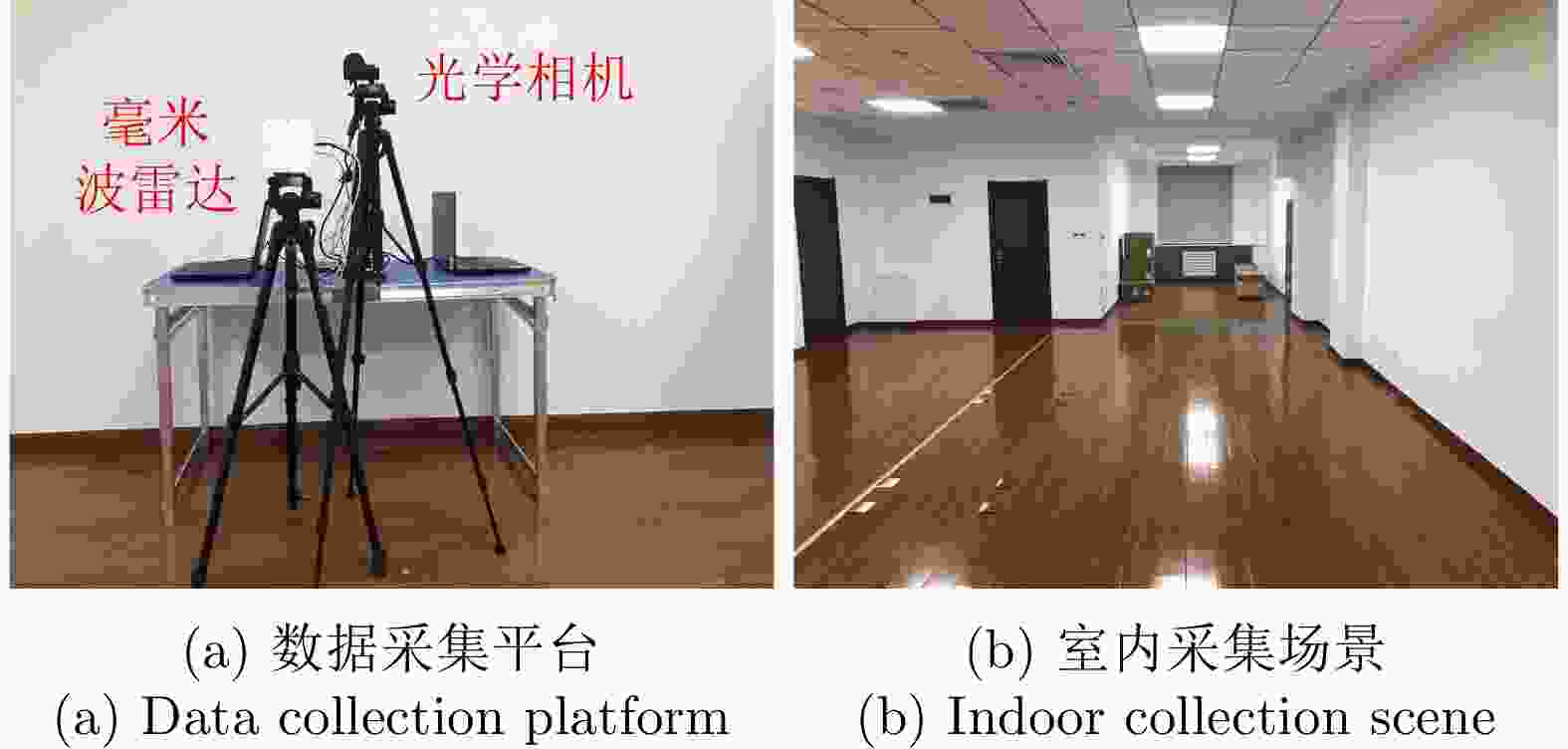

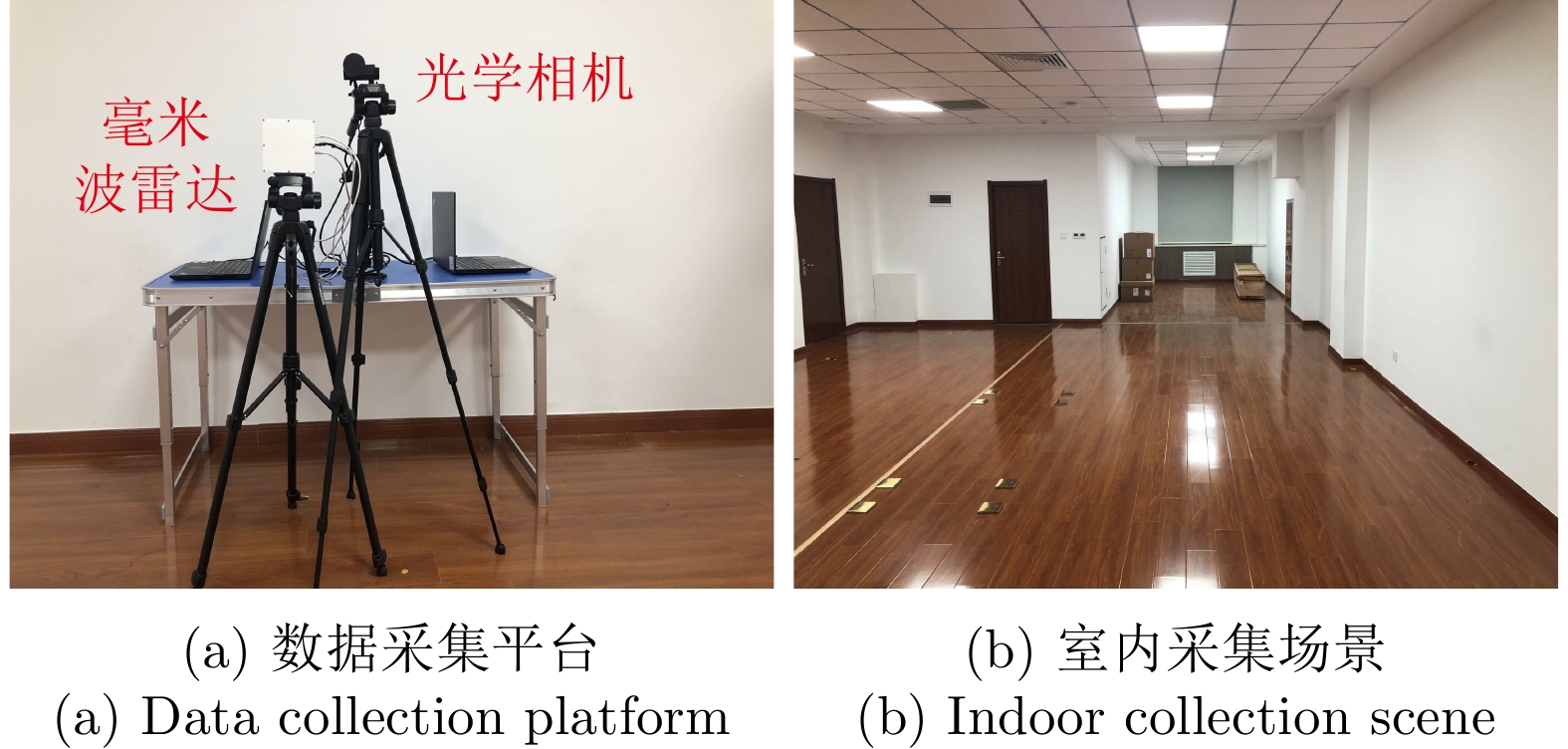

图 2 数据采集平台和室内采集场景

Figure 2. Data collection platform and indoor collection scene

下载: 全尺寸图片幻灯片

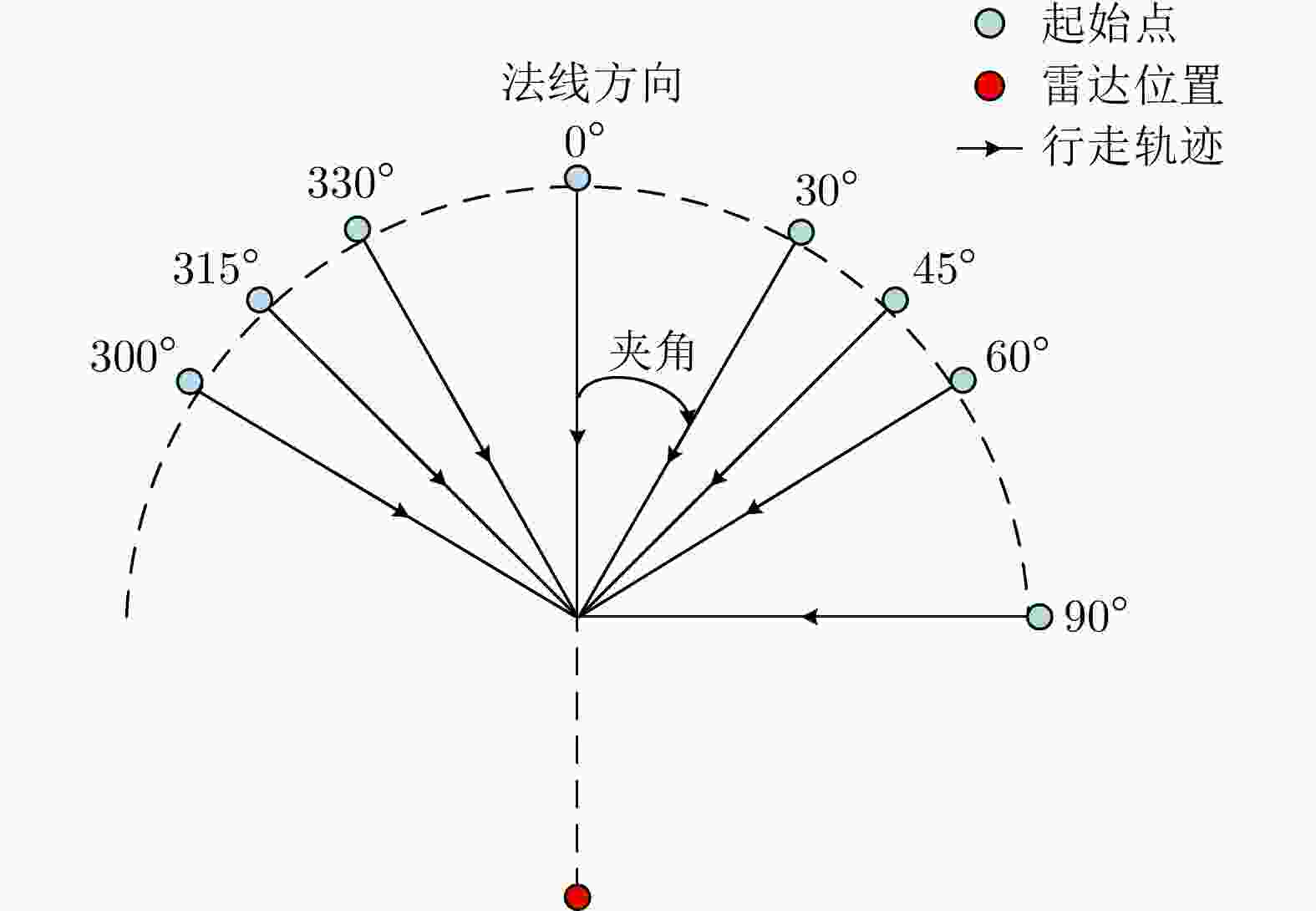

图 3 行走视角示意图

Figure 3. The view of walking

下载: 全尺寸图片幻灯片

图 4 3种穿着条件示例

Figure 4. Examples of three wearing conditions

下载: 全尺寸图片幻灯片

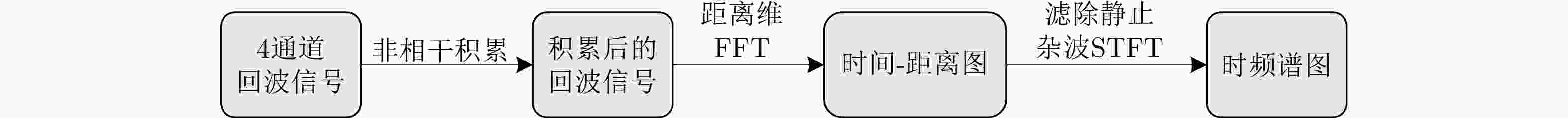

图 5 信号处理流程

Figure 5. Signal processing flow

下载: 全尺寸图片幻灯片

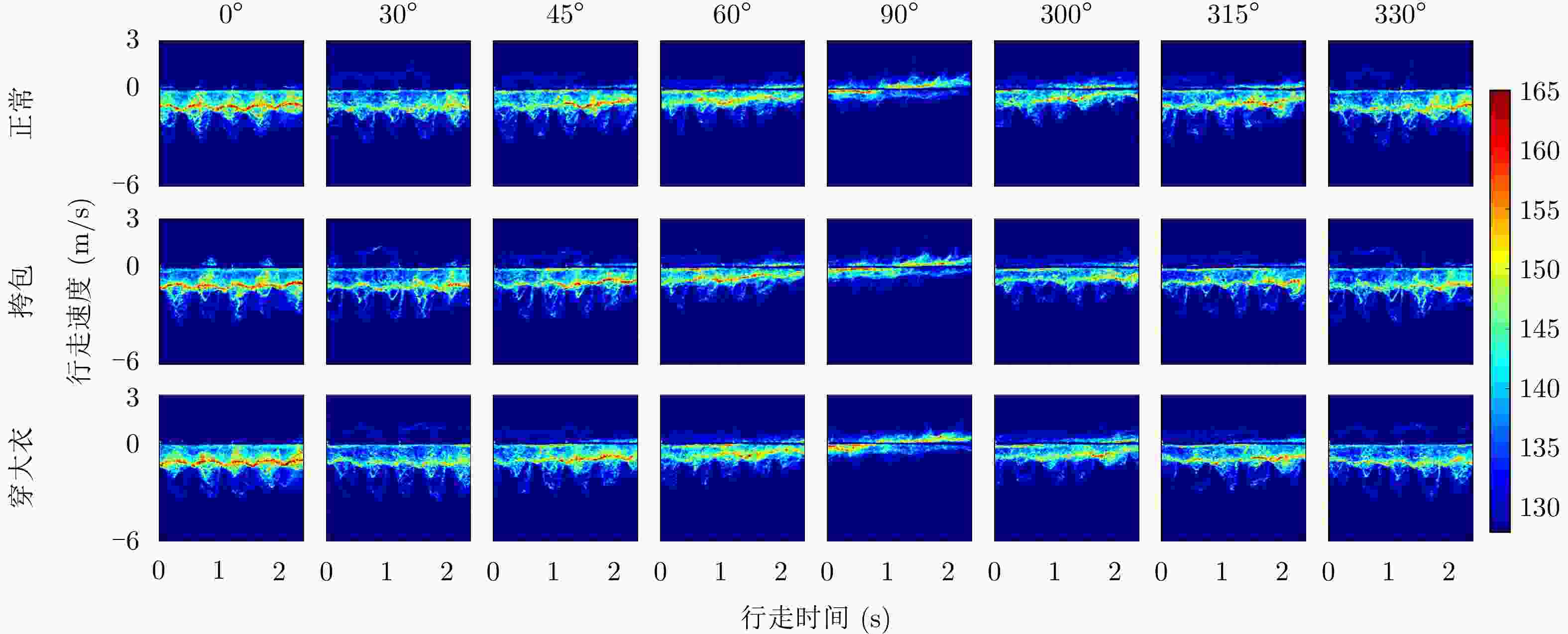

图 6 8种行走视角、3种穿着条件下的时频谱图

Figure 6. Time-frequency spectrograms for eight walking views and three wearing conditions

下载: 全尺寸图片幻灯片

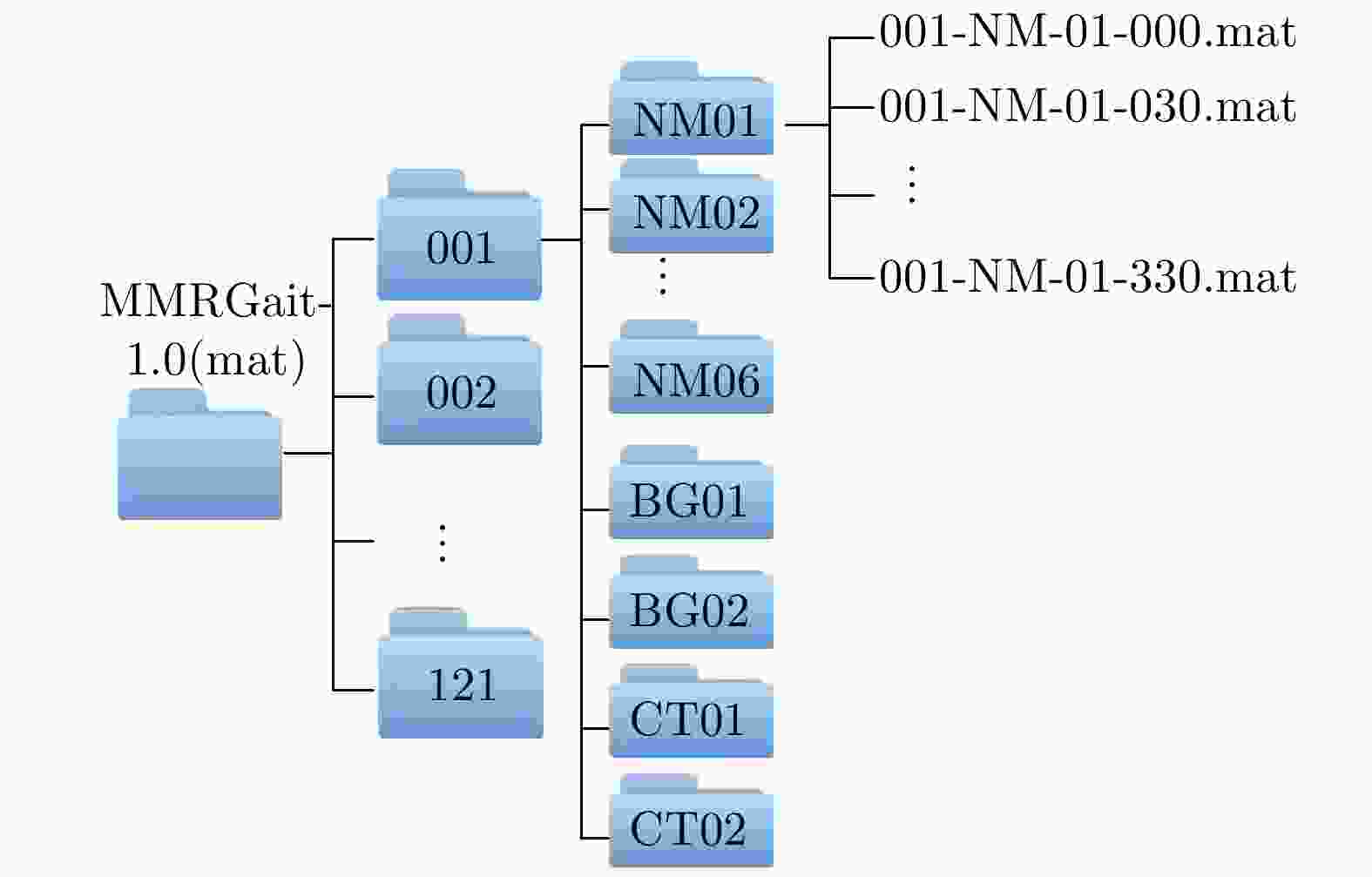

图 7 具体数据集结构示意图

Figure 7. Structure of the dataset

下载: 全尺寸图片幻灯片

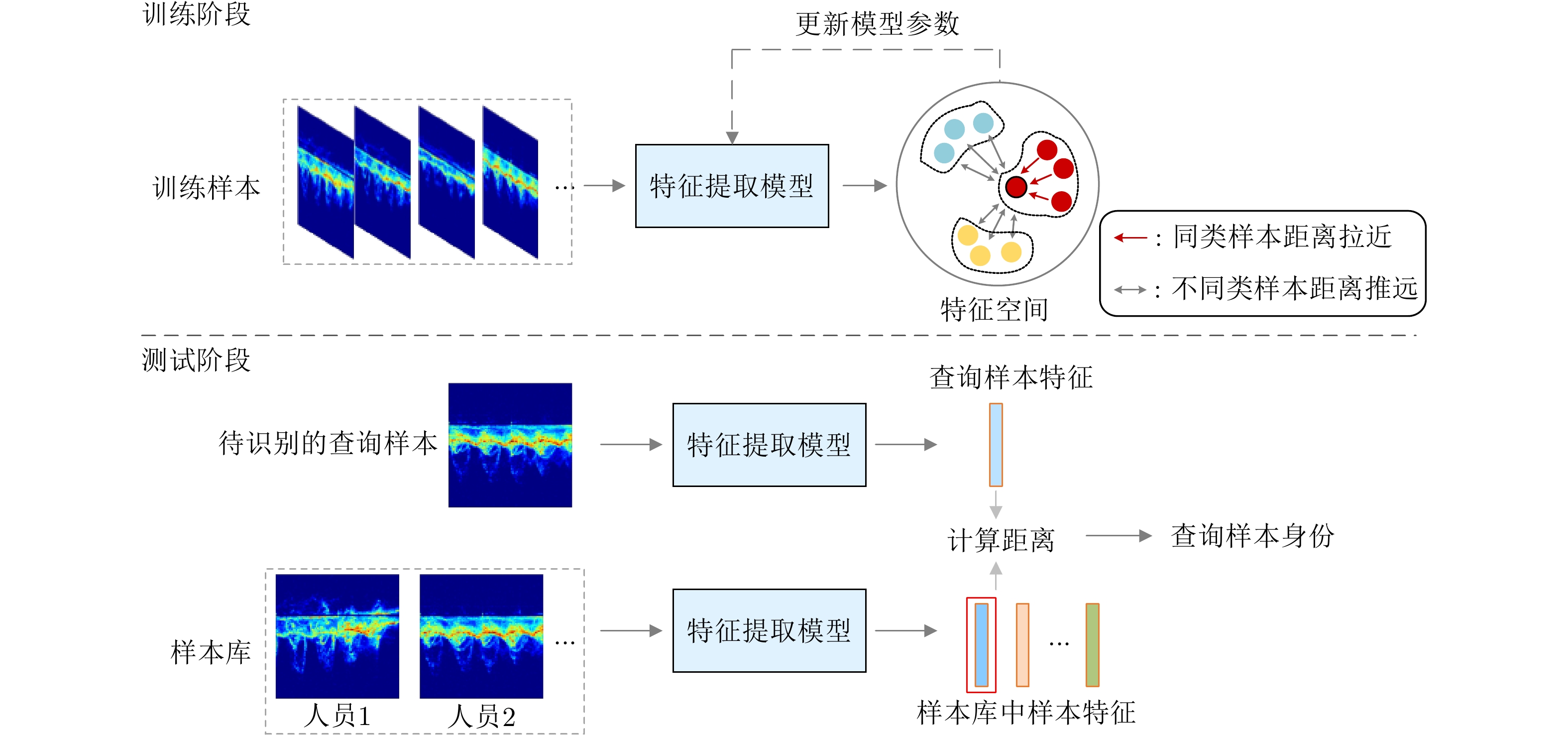

图 8 基于检索任务的雷达步态识别流程图

Figure 8. Flow chart of radar gait recognition based on retrieval task

下载: 全尺寸图片幻灯片

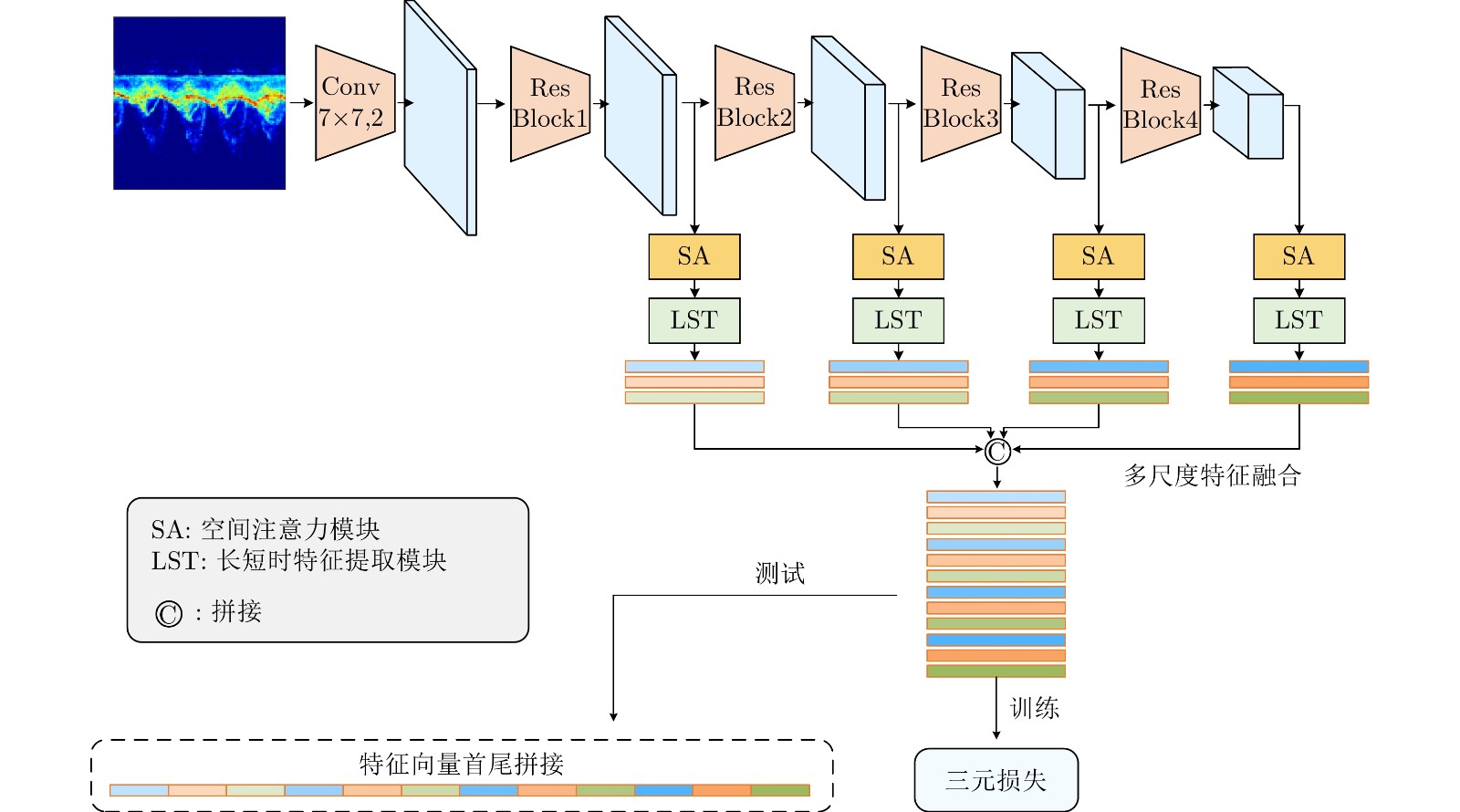

图 9 基于检索任务的特征提取网络模型结构框图

Figure 9. Framework for feature extraction network model based on retrieval task

下载: 全尺寸图片幻灯片

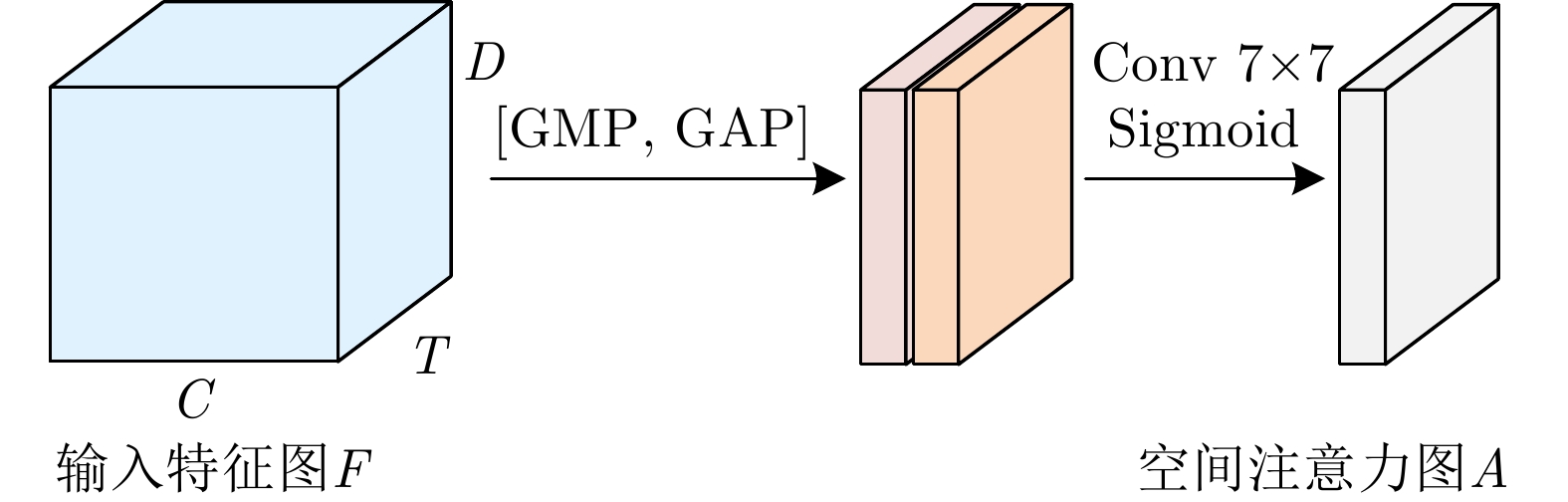

图 10 空间注意力图计算流程

Figure 10. Spatial attention map calculation process

下载: 全尺寸图片幻灯片

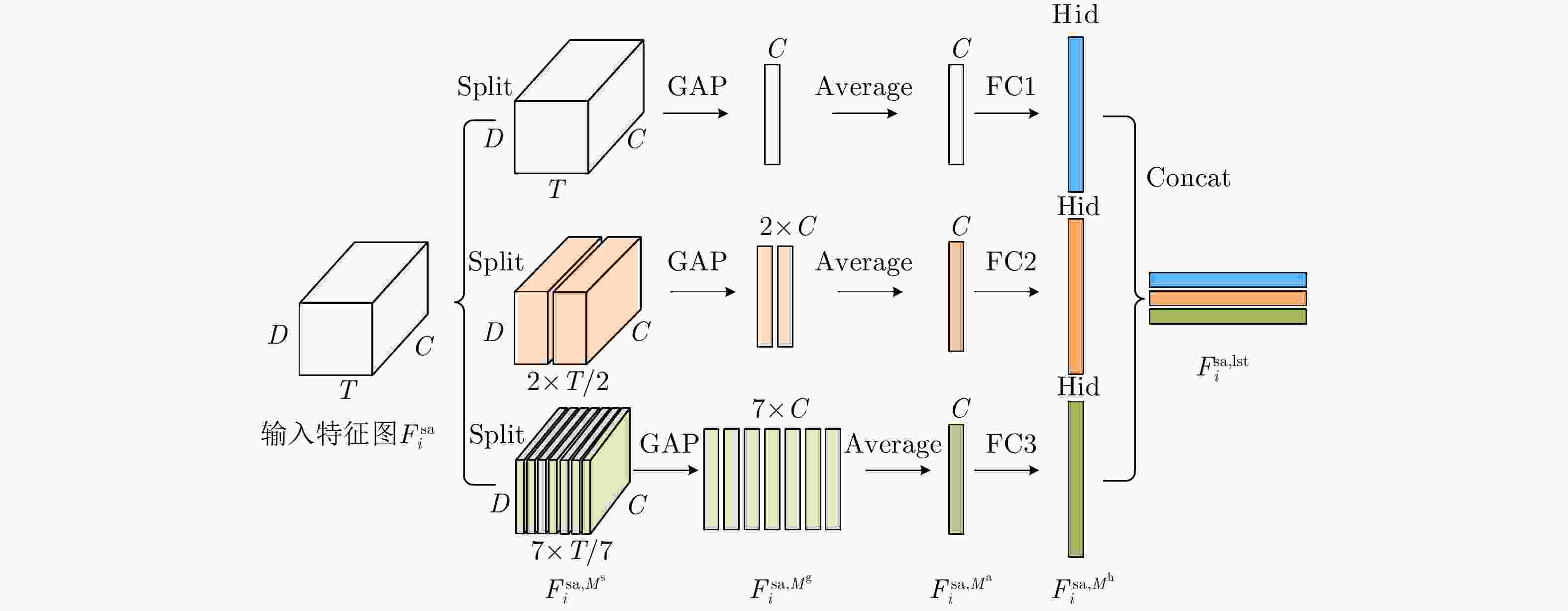

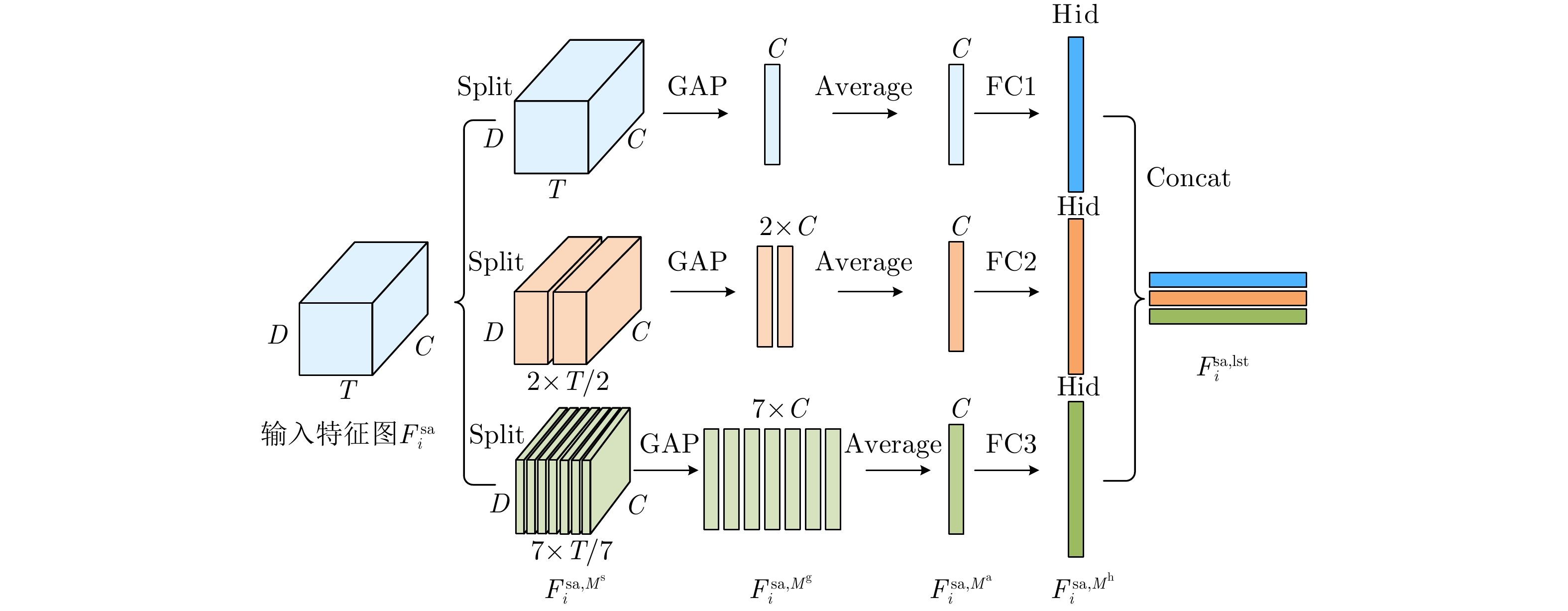

图 11 长短时特征提取模块计算流程

Figure 11. Long-short time feature extraction module calculation process

下载: 全尺寸图片幻灯片

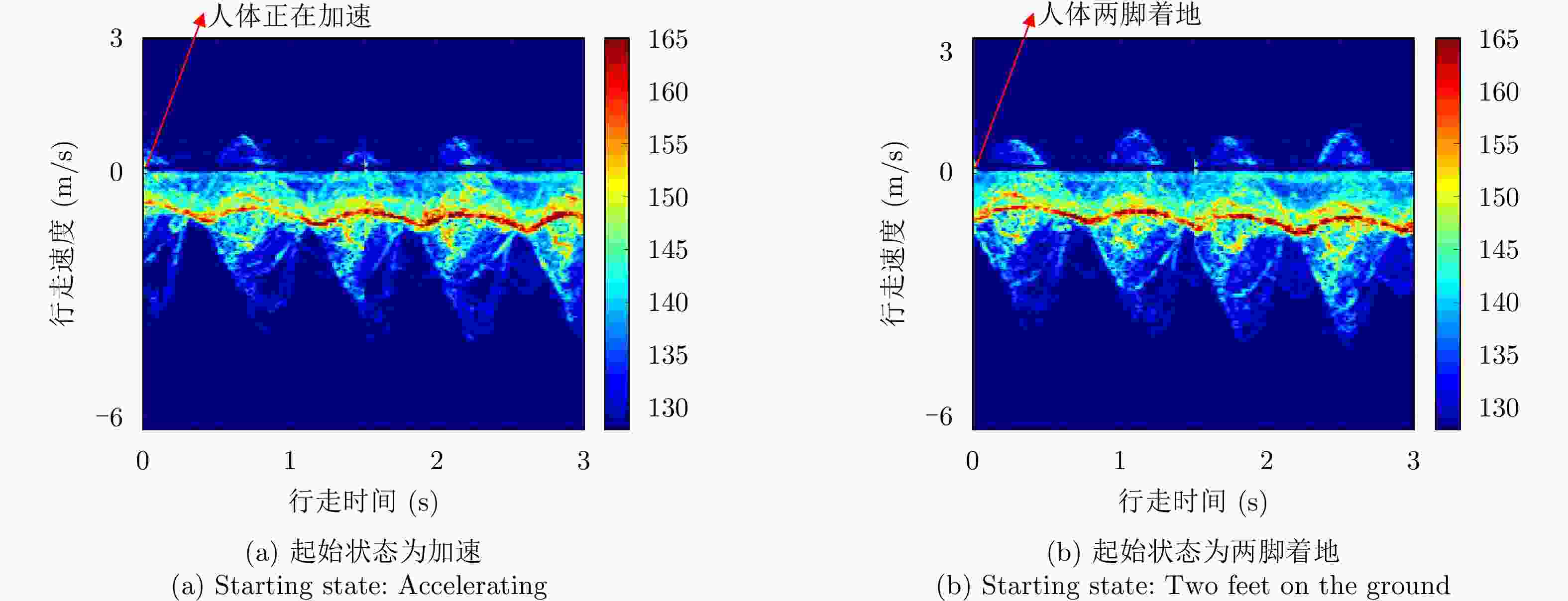

图 12 同一人不同起始状态下行走的两组时频谱图数据

Figure 12. Two sets of time-spectrogram data of walking in different starting states

下载: 全尺寸图片幻灯片

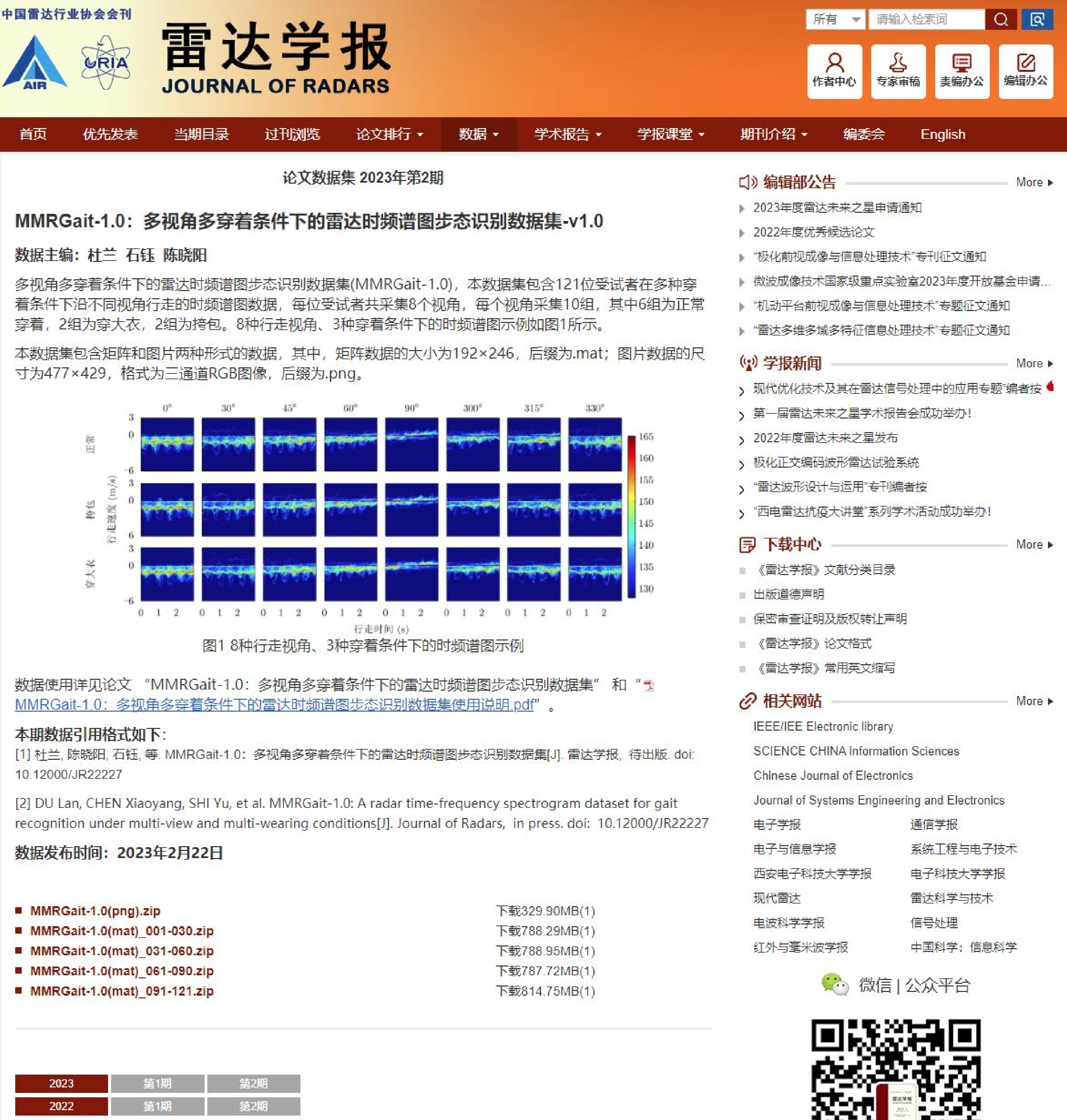

1 MMRGait-1.0：多视角多穿着条件下的雷达时频谱图步态识别数据集发布网页

1. Release webpage of MMRGait-1.0: A radar time-frequency spectrogram dataset for gait recognition under multi-view and multi-wearing conditions dataset

下载: 全尺寸图片幻灯片

表 1 雷达发射波形参数配置

Table 1. Parameter configurations of the radar transmitting waveform

参数	数值
起始频率(GHz)	77
Chirp重复周期(μs)	78.125
调频斜率(MHz/μs)	9.753
调频时长(μs)	60
ADC采样时间(μs)	40.96
ADC采样点数	512
帧内Chirp数	255
帧周期(ms)	19.922
连续发射帧数	60
连续发射时长(s)	1.195
空闲时长(s)	0.005

下载: 导出CSV

表 2 不同步态识别方法在多视角条件下的识别准确度(%)

Table 2. Recognition accuracy of different gait recognition methods in multi-view conditions (%)

查询样本	方法	0º	30º	45º	60º	90º	300º	315º	330º	平均值
NM05-06	方法1	40.70	39.53	37.21	38.37	37.21	38.37	36.05	34.88	37.79
	方法2	32.39	39.53	53.49	46.51	44.19	43.02	47.67	55.81	45.35
	方法3	48.84	60.47	60.47	66.28	55.81	58.14	63.95	53.49	58.43
	方法4	73.26	76.74	75.58	74.42	62.79	75.58	69.77	73.26	72.68
	方法5	61.63	56.98	55.81	58.14	46.51	60.47	62.79	64.71	58.38
	本文方法	91.86	94.19	96.51	94.19	91.86	98.84	91.86	96.51	94.48
BG01-02	方法1	20.93	29.07	29.07	23.26	32.56	38.82	39.53	30.23	30.43
	方法2	36.05	36.05	43.02	44.19	39.53	47.06	43.02	32.56	40.19
	方法3	41.86	34.88	46.51	37.21	39.53	49.31	53.49	44.19	43.39
	方法4	46.51	54.65	63.95	51.16	43.02	60.00	60.47	59.30	54.88
	方法5	52.33	41.86	48.84	53.49	43.02	50.00	47.67	45.35	47.82
	本文方法	80.23	75.58	77.91	83.72	80.23	83.72	84.88	83.72	81.25
CT01-02	方法1	27.91	33.72	36.05	27.91	34.88	33.72	27.91	39.53	32.70
	方法2	33.72	32.56	32.56	45.35	36.05	36.05	34.88	34.88	35.76
	方法3	37.21	32.56	54.65	44.19	34.88	45.35	45.35	41.86	42.01
	方法4	45.35	47.67	55.81	61.63	45.35	47.67	60.47	51.16	51.89
	方法5	44.19	41.86	56.98	43.02	34.88	52.33	50.00	50.00	46.66
	本文方法	74.42	76.74	83.72	84.88	80.23	76.74	82.56	74.42	79.21

下载: 导出CSV

表 3 不同步态识别方法在跨视角条件下的识别准确度(%)

Table 3. Recognition accuracy of different gait recognition methods in cross-view conditions (%)

查询样本	方法	0º	30º	45º	60º	90º	300º	315º	330º	平均值
NM05-06	方法1	27.91	26.41	30.40	28.41	22.92	26.91	28.90	32.72	28.07
	方法2	29.57	31.56	40.03	34.22	32.39	32.39	36.05	39.20	34.43
	方法3	32.56	35.72	39.89	34.55	28.74	40.70	37.38	34.39	35.49
	方法4	32.39	43.85	46.35	39.04	27.24	39.04	43.85	45.68	39.68
	方法5	35.22	33.72	39.37	41.69	24.25	36.71	39.37	39.50	36.23
	本文方法	50.66	64.95	68.11	64.62	50.17	63.62	70.10	66.78	62.38
BG01-02	方法1	24.09	24.25	23.75	23.42	21.10	26.55	26.74	24.09	24.25
	方法2	29.90	28.57	35.21	31.56	28.41	36.47	38.54	31.39	32.51
	方法3	33.22	23.59	31.39	28.24	24.09	33.61	39.04	32.23	30.68
	方法4	30.07	35.55	36.88	34.55	21.93	36.30	37.87	36.71	33.73
	方法5	41.53	36.88	39.04	33.72	28.24	33.39	39.37	35.71	35.98
	本文方法	52.84	54.98	61.79	57.64	41.36	60.46	66.11	56.48	56.46
CT01-02	方法1	22.42	26.58	26.41	21.93	24.59	23.26	21.76	26.08	24.13
	方法2	26.25	25.42	30.73	31.06	25.58	29.24	31.06	26.91	28.28
	方法3	26.41	28.07	33.39	29.73	21.10	26.91	34.55	31.40	28.95
	方法4	24.92	34.05	37.51	35.38	19.77	30.73	36.55	32.56	31.44
	方法5	31.06	36.71	41.53	34.22	23.75	32.89	36.71	35.38	34.03
	本文方法	50.50	56.15	61.79	57.97	43.86	52.66	57.64	54.15	54.34

下载: 导出CSV

表 4 不同步态识别方法的模型复杂度

Table 4. Model complexity of different gait recognition methods

方法	计算量FLOPs (G)	参数量(M)
方法1	13.68	40.47
方法2	2.98	9.96
方法3	0.14	0.90
方法4	2.35	0.72
方法5	2.26	4.33
本文方法	14.01	21.29

下载: 导出CSV

表 5 消融实验识别准确度(%)

Table 5. Recognition accuracy of ablation studies (%)

方法	NM	BG	CT	平均值
Base+HPM	66.28	53.64	55.67	58.53
Base+LST	80.96	65.99	64.24	70.40
Base+LST+MSF	90.70	76.60	75.44	80.91
Base+LST+MSF+SA	94.48	81.25	79.21	84.98

下载: 导出CSV
