Through-Wall Radar Target Localization Method Based on Dual-Stream Temporal Spatial Feature Extraction and DETR
-

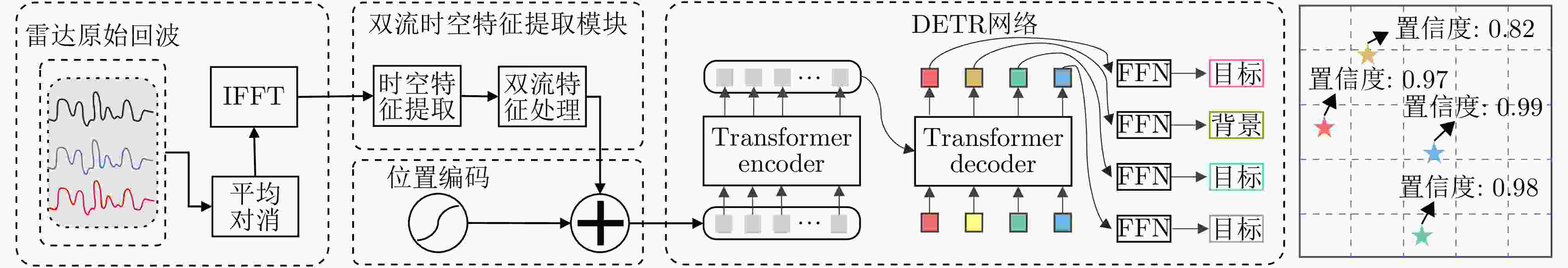

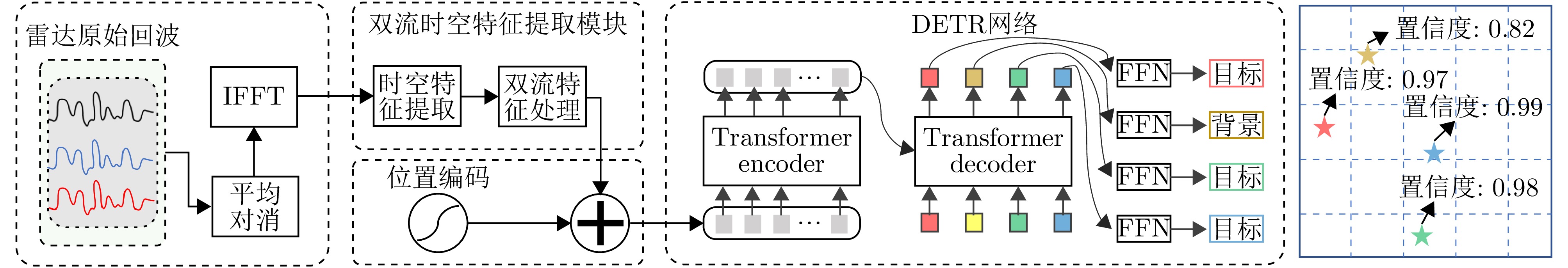

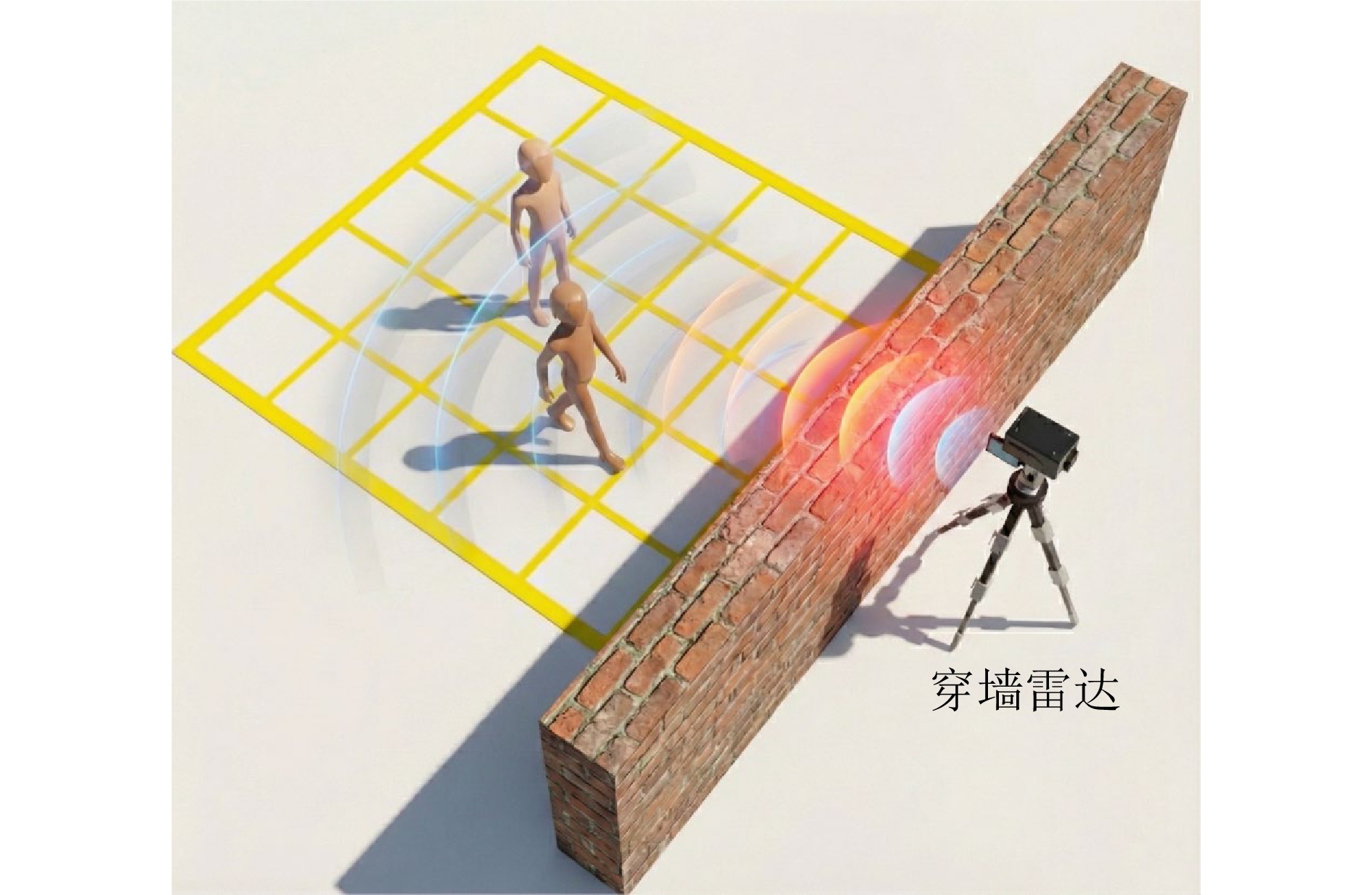

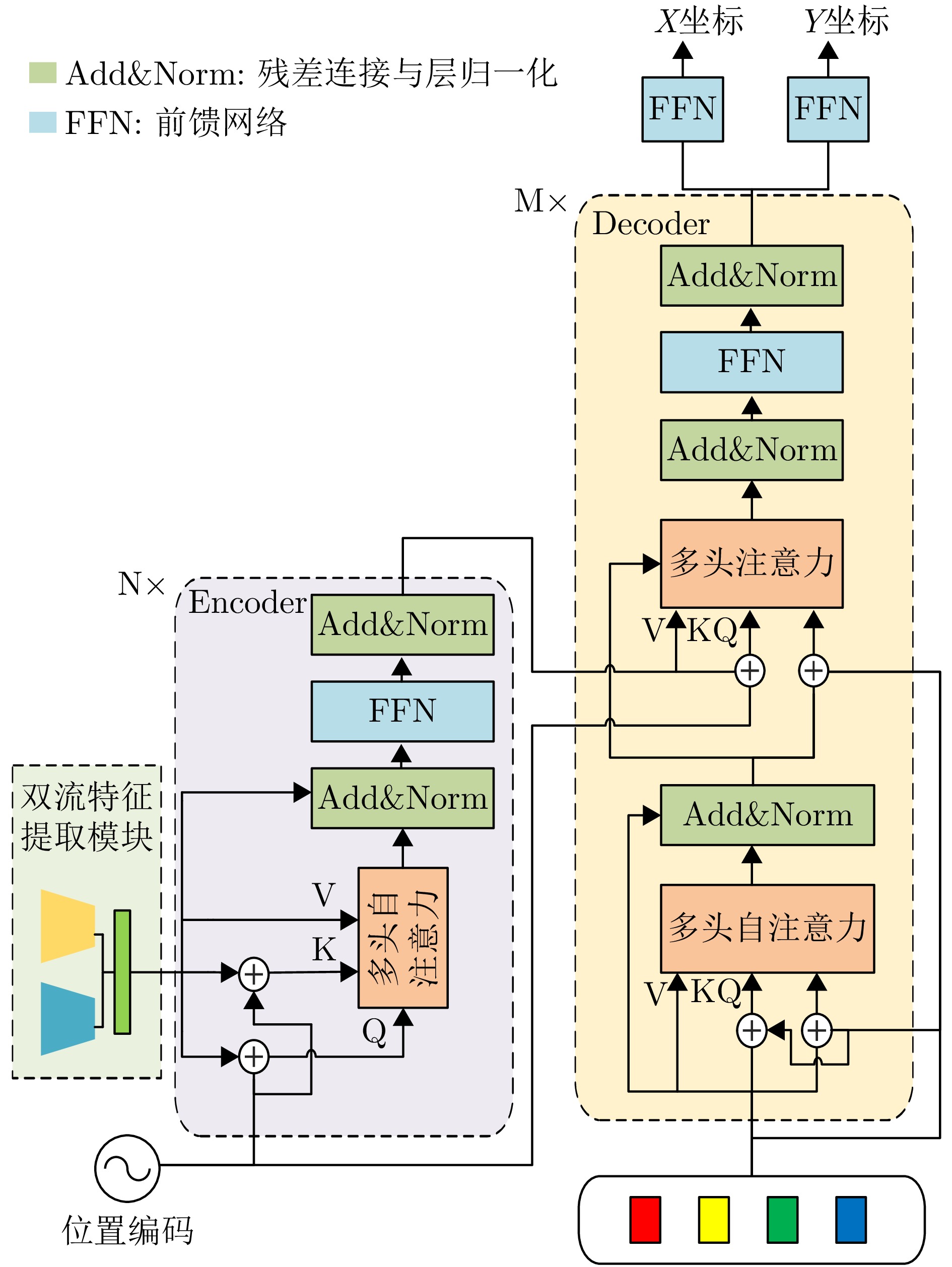

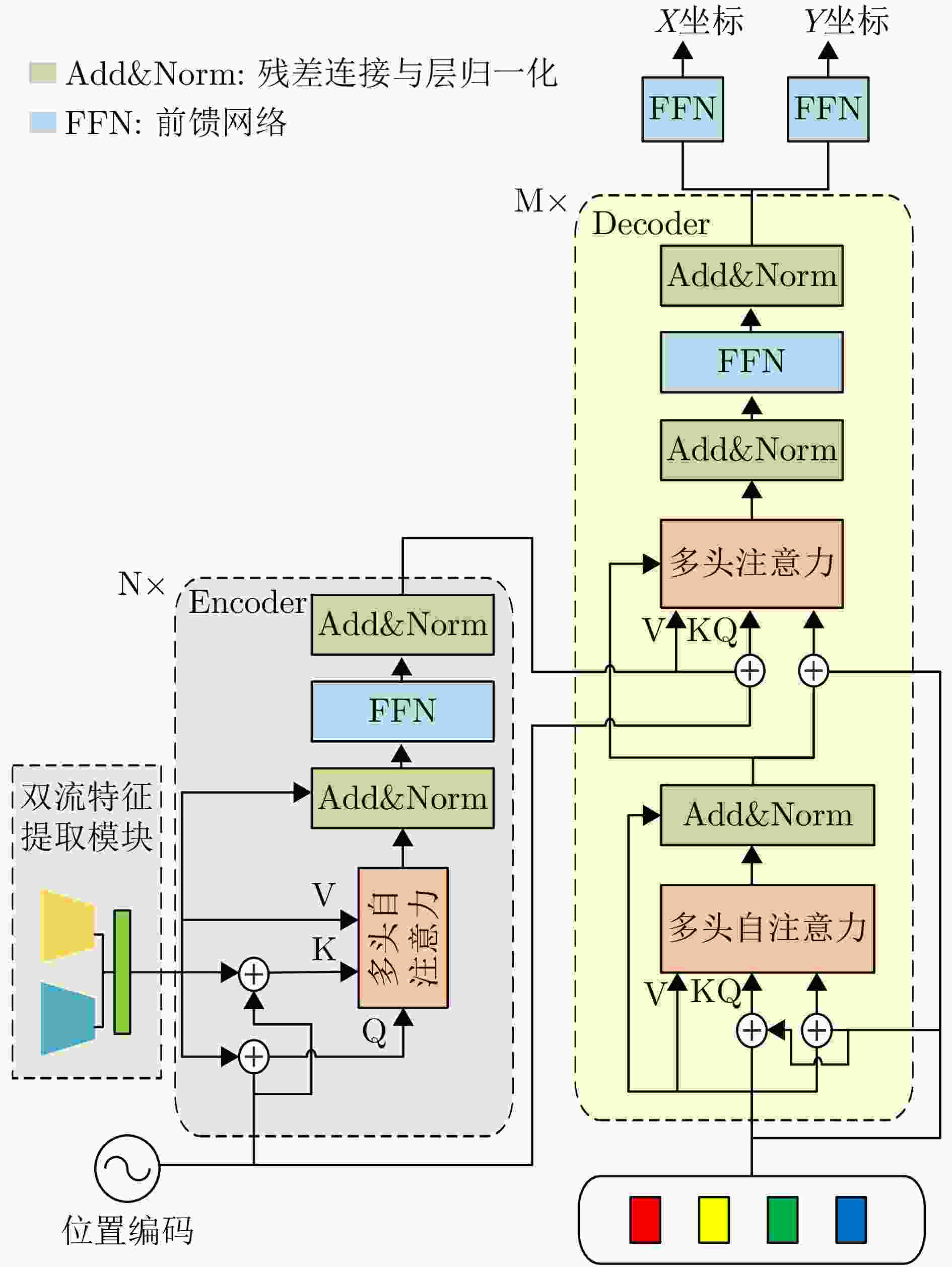

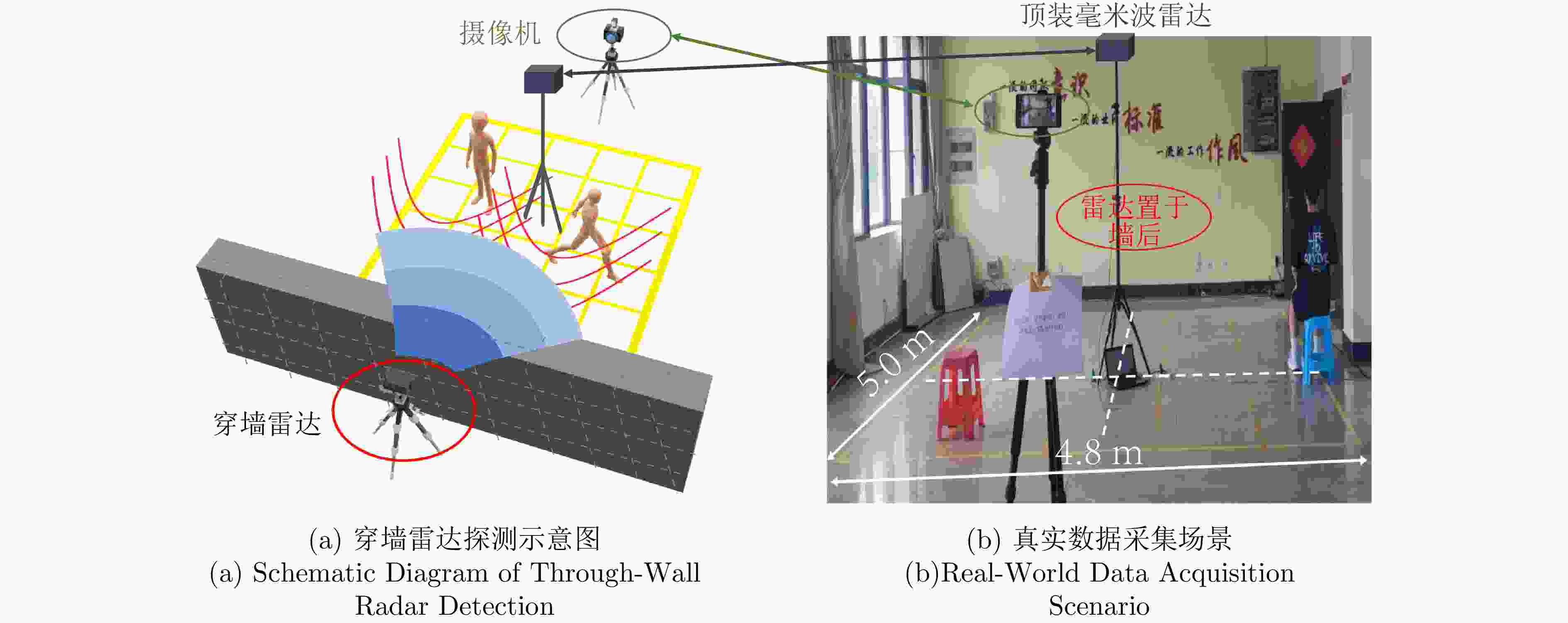

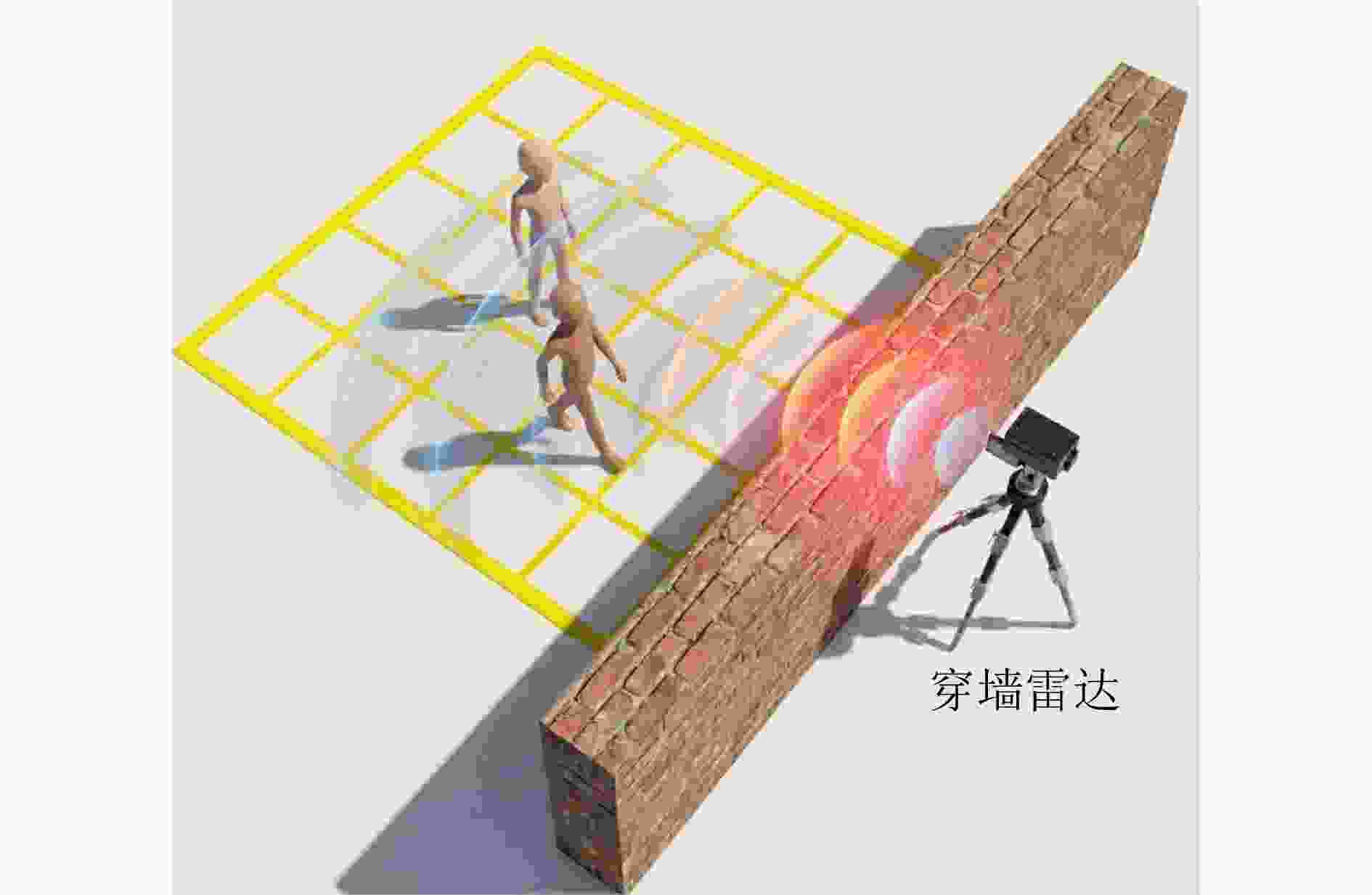

摘要: 穿墙人体目标定位在目标感知及救援等领域具有广泛的应用前景。然而超宽带穿墙雷达系统受到墙体杂波干扰导致目标回波特征模糊，传统方法难以在复杂环境下实现稳定的检测与高精度的定位。尽管基于深度学习的目标定位方法在复杂环境下表现出更优异的性能，但现有方案常依赖于分布式雷达布局，导致系统部署困难、算法实现复杂度高。为解决上述挑战，本研究基于单视角小孔径2发4收超宽带穿墙雷达，提出一种双流时空(DSTS)特征提取与DEtection TRansformer的深度学习网络结构以实现对墙后人体目标位置的确定。该网络以复数距离像作为输入，对其进行时空特征提取并从中构建双流分支：相位域分支提取目标空间角度信息，而幅度域分支反映目标径向距离，从而充分挖掘回波中的目标距离与方位特征。随后，双流分支分别经过多尺度降采样，并引入通道注意力机制进行加权融合，以得到低维特征。最终，将所得低维特征加入位置编码，输入DETR网络中，利用其集合预测特性得到可靠目标定位结果。在实测数据上验证表明，所提方法在多目标且准确定位阈值设为0.7 m时平均精度可达0.79，性能优于四种现有方案。Abstract: Through-wall human target localization has broad application prospects in fields such as target perception and rescue. However, ultra-wideband through-wall radar systems suffer from wall clutter interference, which distorts target echo features and complicates the ability of traditional methods to achieve stable detection and high-precision localization in complex environments. Although deep learning-based localization methods have shown superior performance in these environments, they often rely on distributed radar layouts, leading to difficulties in system deployment and increased algorithm complexity. To address these challenges, this study introduces a deep learning network framework that utilizes a single-view small-aperture dual-transmitter quad-receiver ultra-wideband through-wall radar. This framework combines dual-stream temporal spatial (DSTS) feature extraction with a detection transformer (DETR) to accurately locate human targets behind walls. The network processes complex-range images as input, extracts spatiotemporal features, and constructs dual streams. The phase branch captures the target’s spatial angular information, and the amplitude branch reflects the target’s radial distance, thereby fully exploiting the distance and azimuth features in the echoes. The dual streams then undergo multi-scale downsampling, and a channel attention mechanism is employed for weighted fusion, yielding low-dimensional features. These features are then enhanced with positional encoding and fed into the DETR network, which utilizes its set-prediction capabilities to deliver reliable target localization results. Validation on measured data demonstrates that the proposed method achieves an average precision of 0.79, with a threshold for accurate multi-object localization set at 0.7 m, thus outperforming several existing solutions.
-

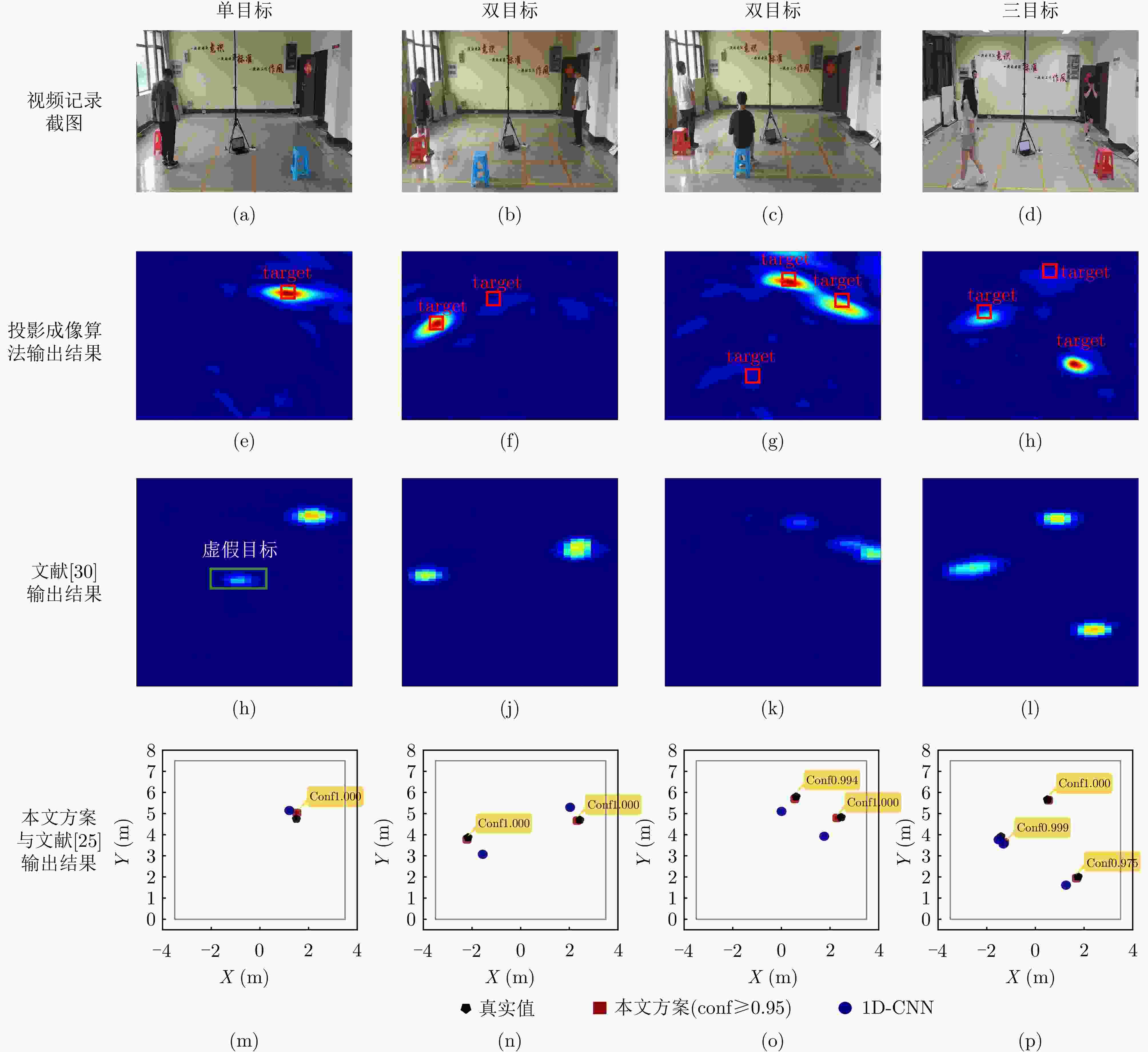

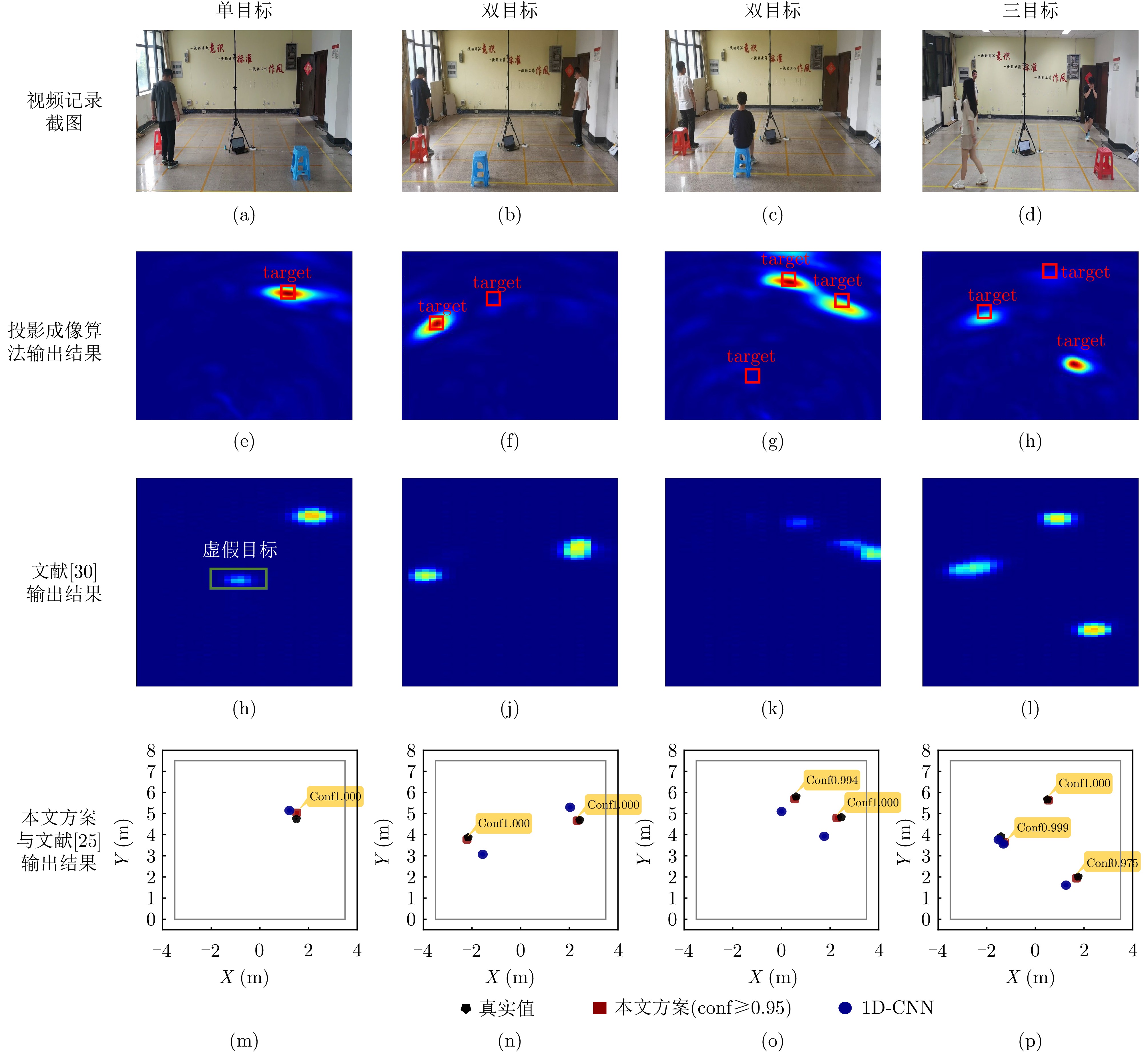

图 6 所提方案定位结果对比图：第一排为视频记录截图；第二排为对应样本的成像算法输出结果；第三排为文献[30]输出结果；第四排为本文所提方案与文献[25]输出结果
Figure 6. Comparison of localization results of the proposed method. The first row shows video-recorded screenshots; the second row presents the imaging algorithm outputs of the corresponding samples; the third row presents the outputs of[30]; and the fourth row presents the outputs of the proposed method and the literature[25]

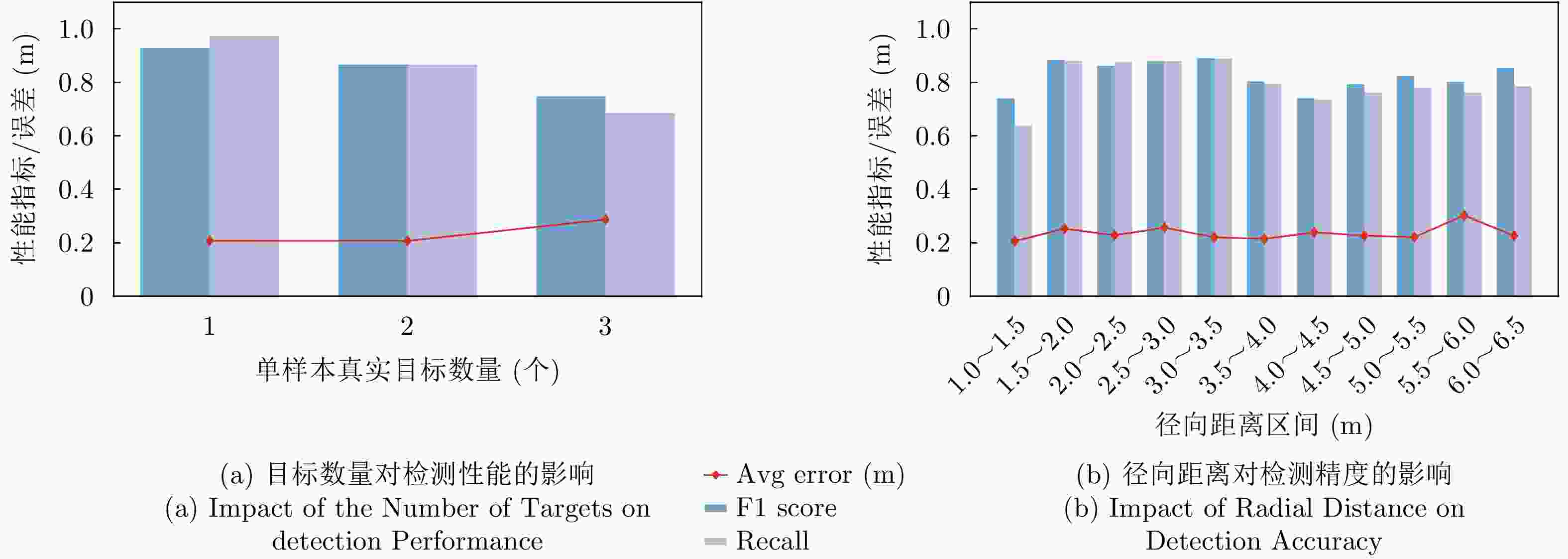

图 7 0.7 m阈值下不同目标数目及不同径向距离下模型性能变化统计
Figure 7. Statistics of model performance changes under different numbers of targets and various radial distances under 0.7 m threshold

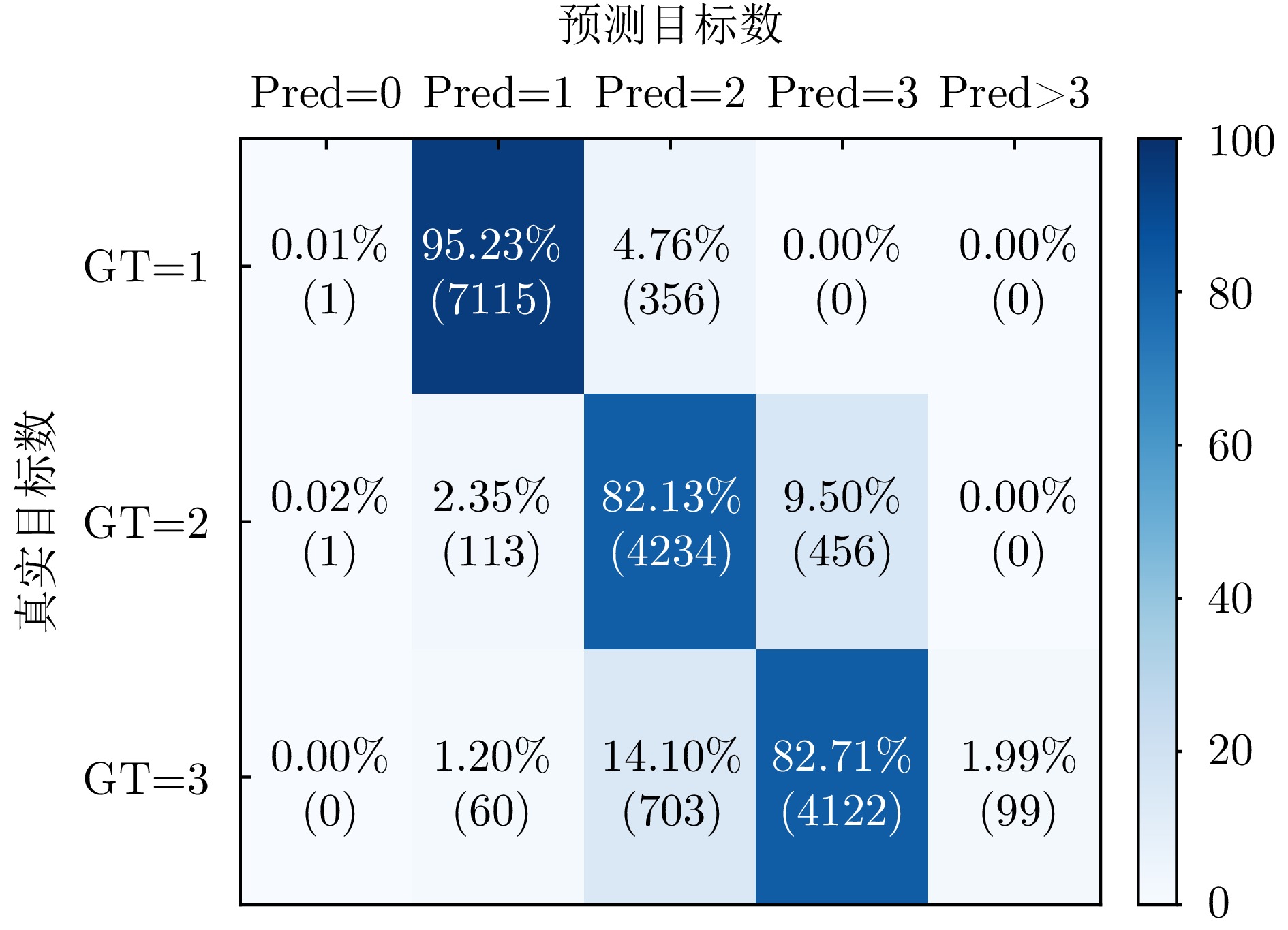

图 8 多目标情形下真实目标数目与预测目标数
Figure 8. Statistics of predicted target numbers versus ground-truth target numbers in multi-target cases.

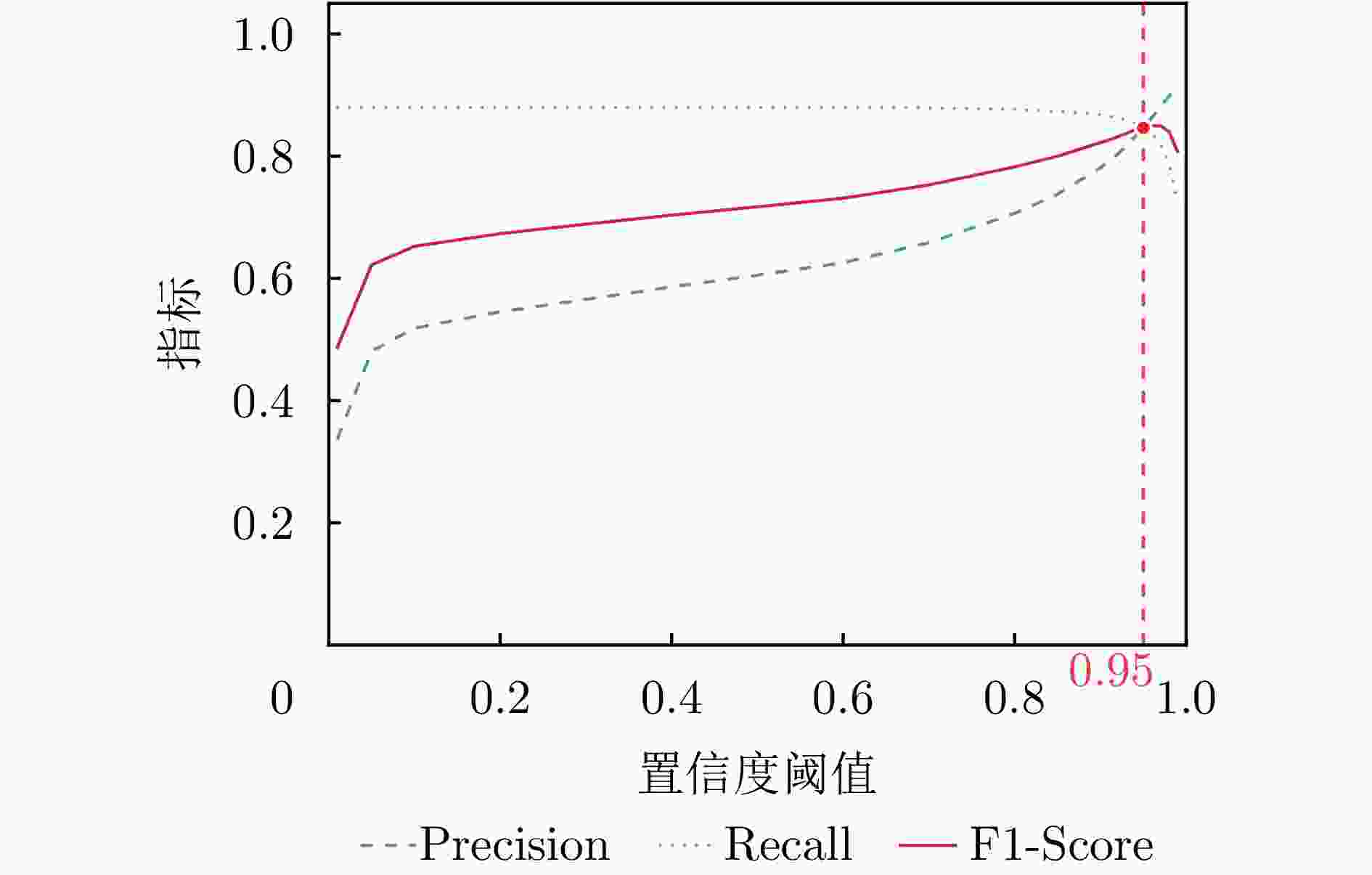

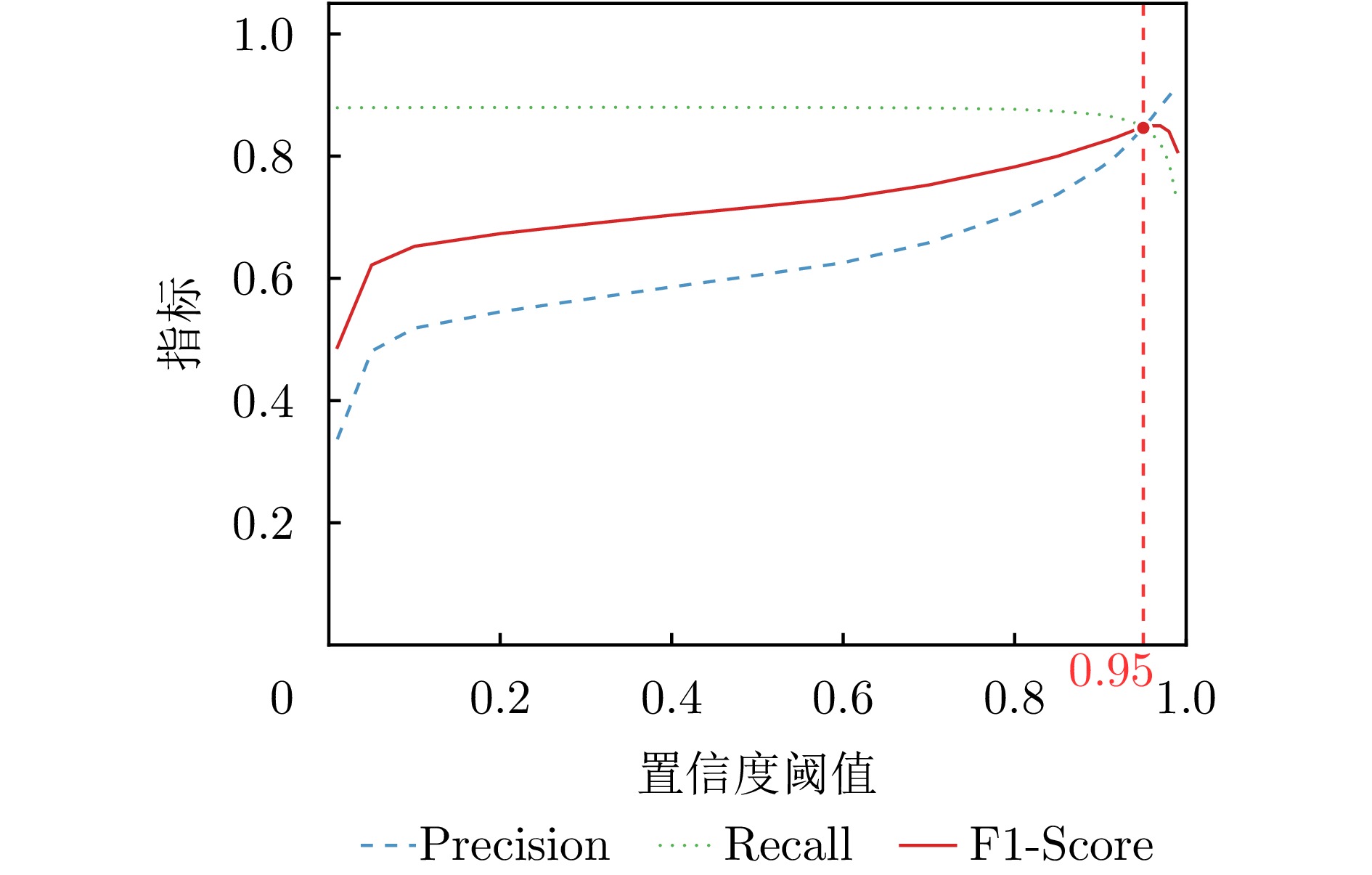

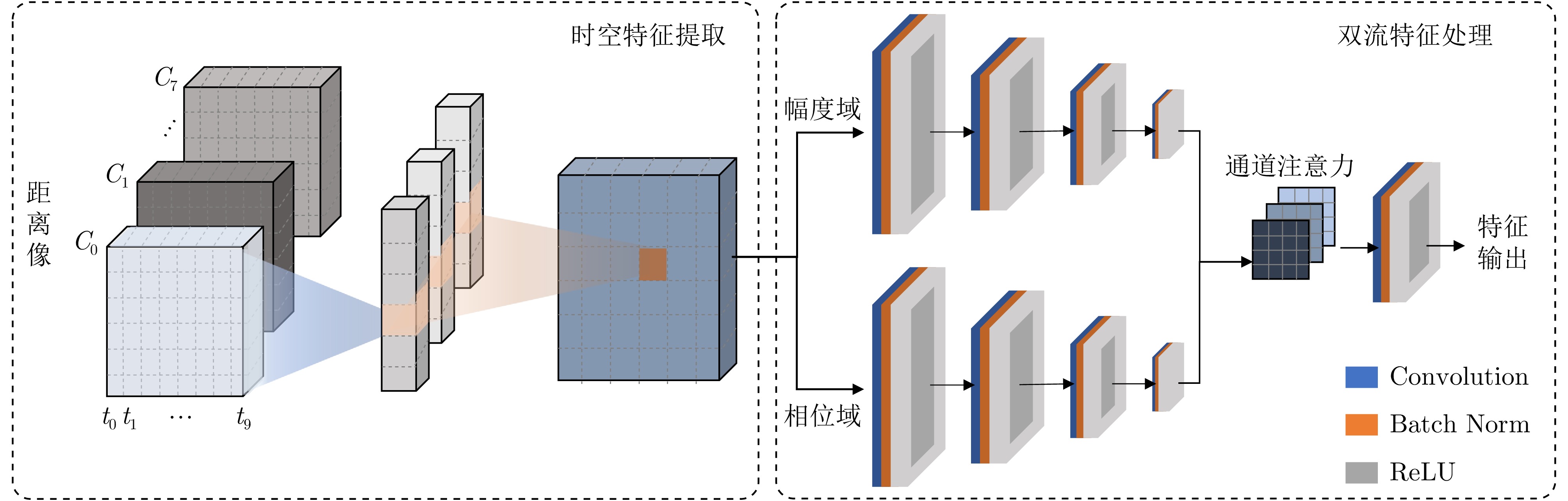

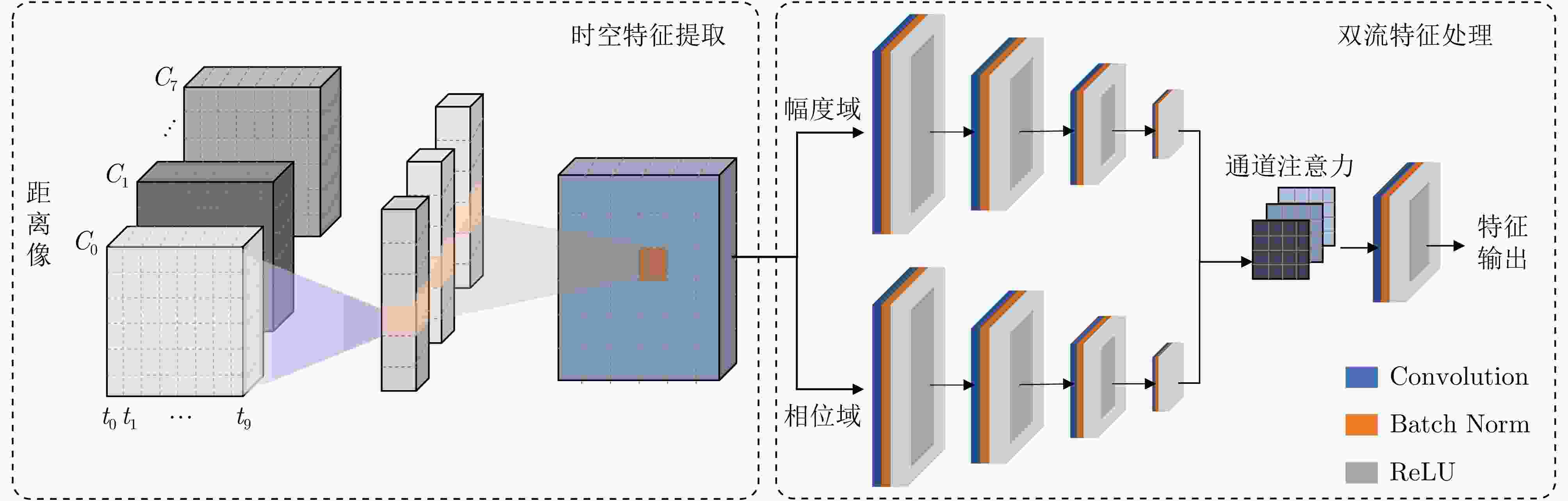

表 1 DSTS特征提取模块网络结构参数详情
Table 1. Details of the network structure parameters of the DSTS feature extraction module
模块阶段 操作层 参数配置
(k:kernel,s:stride,p:padding)输出尺寸$ C\times H\times W $ 输入 复数雷达距离像 - $ 8\times 89\times 10 $ 时空特征提取 ST-Conv (实部) $ k=3\times 10,s=1,p=(1,0) $ $ 89\times 89\times 1 $ ST-Conv (虚部) 维度重塑 维度变换(Reshape) $ \text{Squeeze}(3)\rightarrow \text{Unsqueeze}(1) $ $ 1\times 89\times 89 $ 幅/相特征映射 2DCNN(幅度域分支) $ k=3\times 10,s=1,p=1 $ $ 8\times 89\times 89 $ 2D CNN (相位域分支) 双流特征处理 2D CNN $ {C}_{in}=8,{C}_{out}=16,k=3\times 3,s=2,p=1 $ $ 16\times 45\times 45 $ 2D CNN $ {C}_{in}=16,{C}_{out}=32,k=3\times 3,s=2,p=1 $ $ 32\times 23\times 23 $ 2D CNN $ {C}_{in}=32,{C}_{out}=64,k=3\times 3,s=2,p=1 $ $ 64\times 12\times 12 $ 2D CNN $ {C}_{in}=64,{C}_{out}=128,k=3\times 3,s=2,p=1 $ $ 128\times 6\times 6 $ 特征融合 通道注意力融合 Concat + SEAttention + Conv $ 128\times 6\times 6 $
下载: 导出CSV
表 2 实验评估结果对比
Table 2. Comparison of Experimental Evaluation Results
模型配置 目标情形 阈值=0.7 m 阈值=0.5 m GFLOPS Err(m) F1 AP R Err(m) F1 AP R 文献[25]所提方案 单目标 0.37 0.75 0.76 0.81 0.30 0.63 0.62 0.68 0.24 多目标 0.41 0.46 0.44 0.49 0.44 0.43 0.41 0.47 成像[38]+CA-CFAR 单目标 0.35 - - 0.78 0.31 - - 0.63 - 多目标 0.39 - - 0.75 0.32 - - 0.61 成像[38]+YOLOv8 单目标 0.21 0.85 0.86 0.84 0.20 0.83 0.85 0.81 8.20 多目标 0.24 0.69 0.72 0.68 0.21 0.65 0.67 0.62 文献[30]所提方案 单目标 0.22 0.86 0.72 0.87 0.19 0.82 0.72 0.82 0.15 多目标 0.24 0.72 0.73 0.74 0.21 0.66 0.61 0.67 本文方案 单目标 0.29 0.93 0.95 0.97 0.19 0.88 0.87 0.92 12.16 多目标 0.23 0.85 0.79 0.86 0.20 0.77 0.67 0.76
下载: 导出CSV
表 3 消融实验结果补充表注
Table 3. Ablation study results
组件配置 目标
情形阈值=0.7m 阈值=0.5m DSTS DETR Err(m) F1 AP R Err(m) F1 AP R - - 单目标 0.47 0.72 0.76 0.81 0.39 0.65 0.69 0.76 多目标 0.53 0.41 0.41 0.45 0.42 0.39 0.38 0.42 - √ 单目标 0.42 0.81 0.82 0.89 0.35 0.68 0.63 0.71 多目标 0.47 0.61 0.59 0.67 0.45 0.54 0.51 0.60 √ - 单目标 0.38 0.78 0.82 0.83 0.29 0.65 0.70 0.73 多目标 0.50 0.39 0.39 0.43 0.48 0.36 0.37 0.43 √ √ 单目标 0.20 0.93 0.95 0.97 0.19 0.88 0.87 0.92 多目标 0.23 0.85 0.79 0.86 0.20 0.77 0.67 0.76
下载: 导出CSV
表 4 双流特征处理消融实验结果补充表注
Table 4. Ablation study results of dual-stream features processing
组件配置 目标
情形阈值=0.7m 阈值=0.5m 幅度域分支 相位域分支 Err(m) F1 AP R Err(m) F1 AP R - - 单目标 0.24 0.79 0.88 0.90 0.22 0.74 0.70 0.86 多目标 0.27 0.78 0.71 0.79 0.23 0.69 0.57 0.69 √ - 单目标 0.23 0.81 0.88 0.91 0.20 0.73 0.73 0.87 多目标 0.25 0.76 0.75 0.81 0.24 0.71 0.61 0.72 - √ 单目标 0.22 0.84 0.90 0.91 0.23 0.78 0.81 0.87 多目标 0.26 0.79 0.74 0.81 0.24 0.71 0.60 0.71 √ √ 单目标 0.20 0.93 0.95 0.97 0.19 0.88 0.87 0.92 多目标 0.23 0.85 0.79 0.86 0.20 0.77 0.67 0.76
下载: 导出CSV
表 5 Encoder 层数与查询数量消融实验结果补充表注
Table 5. Ablation study results on the number of encoder layers and query numbers.
Encoder
层数查询
数量阈值=0.7m 阈值=0.5m AP R AP R 3层 100 0.62 0.72 0.41 0.53 50 0.71 0.78 0.55 0.68 4层 100 0.63 0.71 0.54 0.67 50 0.79 0.86 0.67 0.76 5层 100 0.44 0.52 0.31 0.42 50 0.72 0.78 0.56 0.67 6层 100 0.43 0.53 0.32 0.47 50 0.73 0.79 0.54 0.66
下载: 导出CSV
-
