Photonic-Aided Doppler-Robust ISAC System Based on Multi-Slope Division Multiplexing
-
摘要: 针对当前光子辅助通感一体(ISAC)系统难以适用于低信噪比、高动态场景的问题，该文提出一种基于多斜率复用的多普勒鲁棒通感一体系统。通过复用多个不同调频斜率的LFM子载波，设计了多斜率复用频移键控线性调频(SDM-FSK-LFM)波形，并结合串行干扰消除技术，在获得高扩频增益的同时倍增通信速率。设计并验证了基于光频梳本振的光子辅助ISAC收发机，实现高频段ISAC信号的产生与光域去斜处理。实验成功产生了Ku频段、带宽1.536 GHz的十载波SDM-FSK-LFM信号。在目标探测方面，实现了分辨率0.05 m的测距，分辨率超过信号带宽限制；在通信方面，实现了95.86 Mbps的背靠背通信速率，7个子载波在0 dB信噪比下误码率(BER)低于10–4，5个子载波在200 kHz多普勒频移下BER低于10–5。本系统具有良好的抗噪能力和多普勒鲁棒性，为高动态场景下的多用户ISAC应用提供了可行解决方案。Abstract: Current photonic-assisted integrated sensing and communication (ISAC) systems face significant challenges under low signal-to-noise ratio (SNR) and high-dynamic conditions, such as those in low Earth orbit satellite networks. To address these issues, this study proposes a novel photonic-assisted Doppler-robust ISAC system based on multislope division multiplexing. A slope division multiplexed frequency shift keying–linear frequency modulation (SDM–FSK–LFM) waveform is designed by multiplexing LFM subcarriers with distinct chirp rates. This design is combined with successive interference cancellation to achieve high spreading gain while substantially increasing the communication data rate. A photonic-assisted ISAC transceiver utilizing an optical frequency comb local oscillator is developed for high-frequency signal generation and optical-domain dechirping processing. Experimental results show successful generation of a 10-subcarrier SDM–FSK–LFM signal in the Ku-band with an instantaneous bandwidth of 1.536 GHz. In sensing, the system achieved a superresolution ranging accuracy of 0.05 m. In communication, a back-to-back data rate of 95.86 Mbps was realized, with seven subcarriers maintaining a bit error rate (BER) <10−4 at 0 dB SNR and five subcarriers sustaining a BER <10−5 under a Doppler shift of 200 kHz.
-

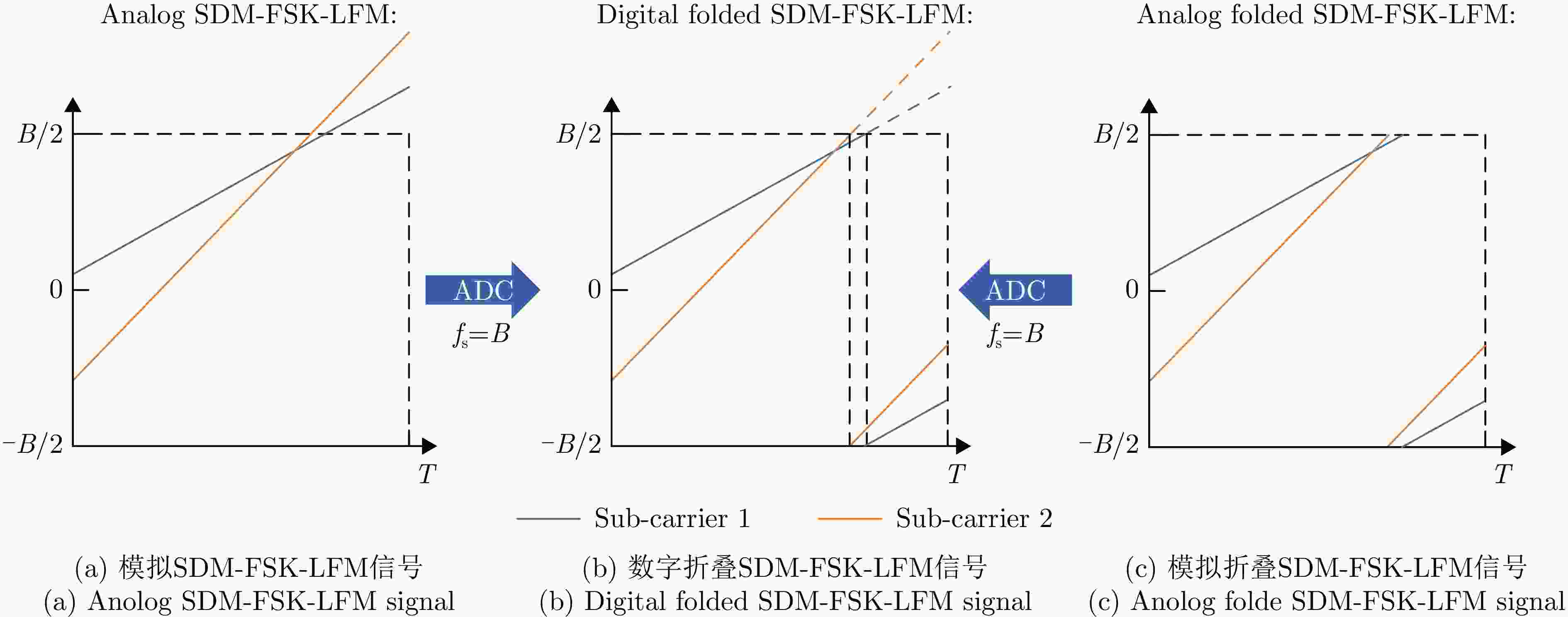

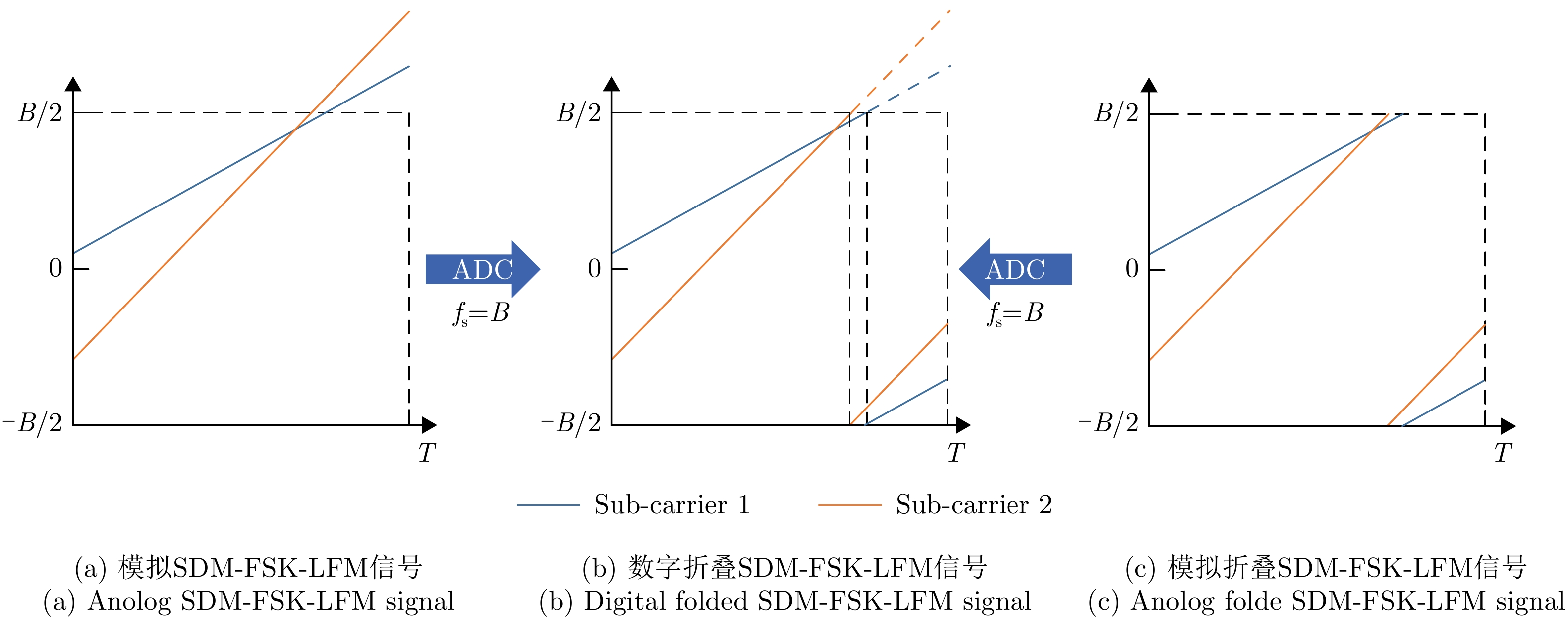

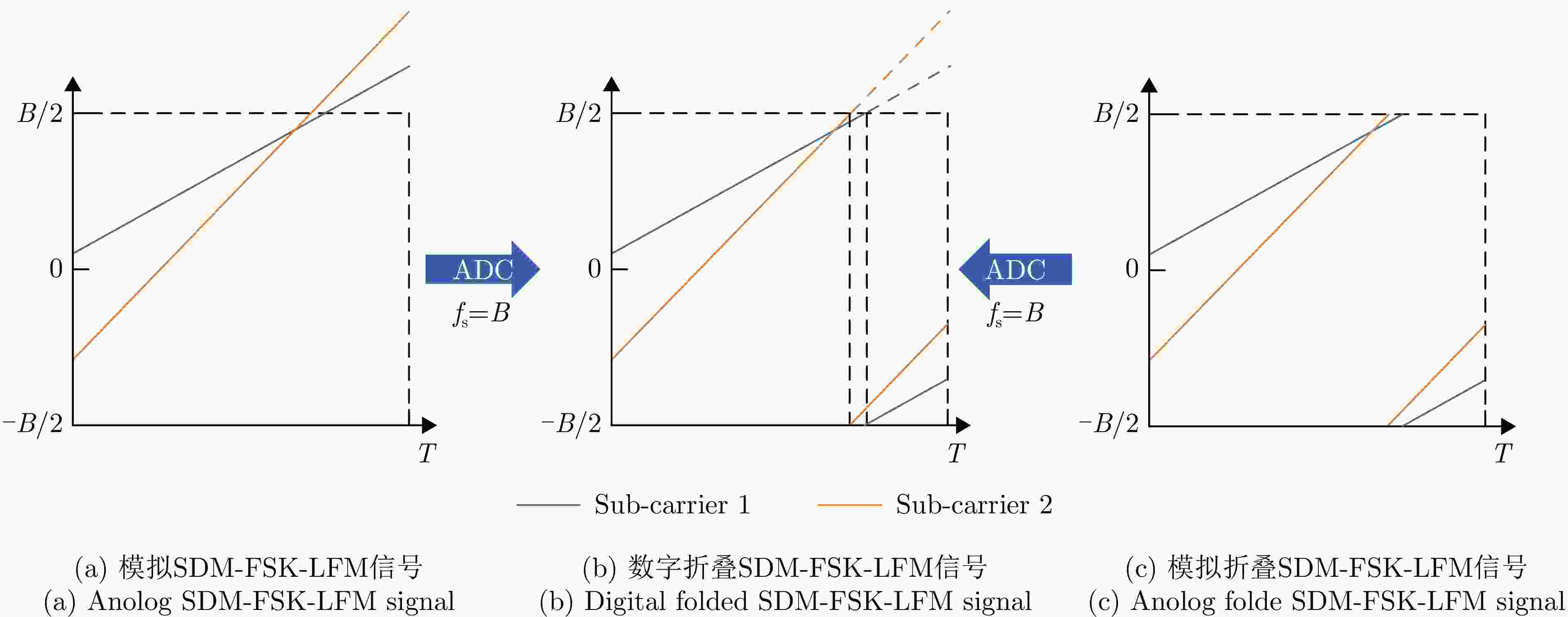

图 1 SDM-FSK-LFM信号频谱折叠流程时频示意图
Figure 1. The schematic diagram of the time-frequency features of the analog SDM-FSK-LFM waveform, digital folded SDM-FSK-LFM waveform and analog folded SDM-FSK-LFM

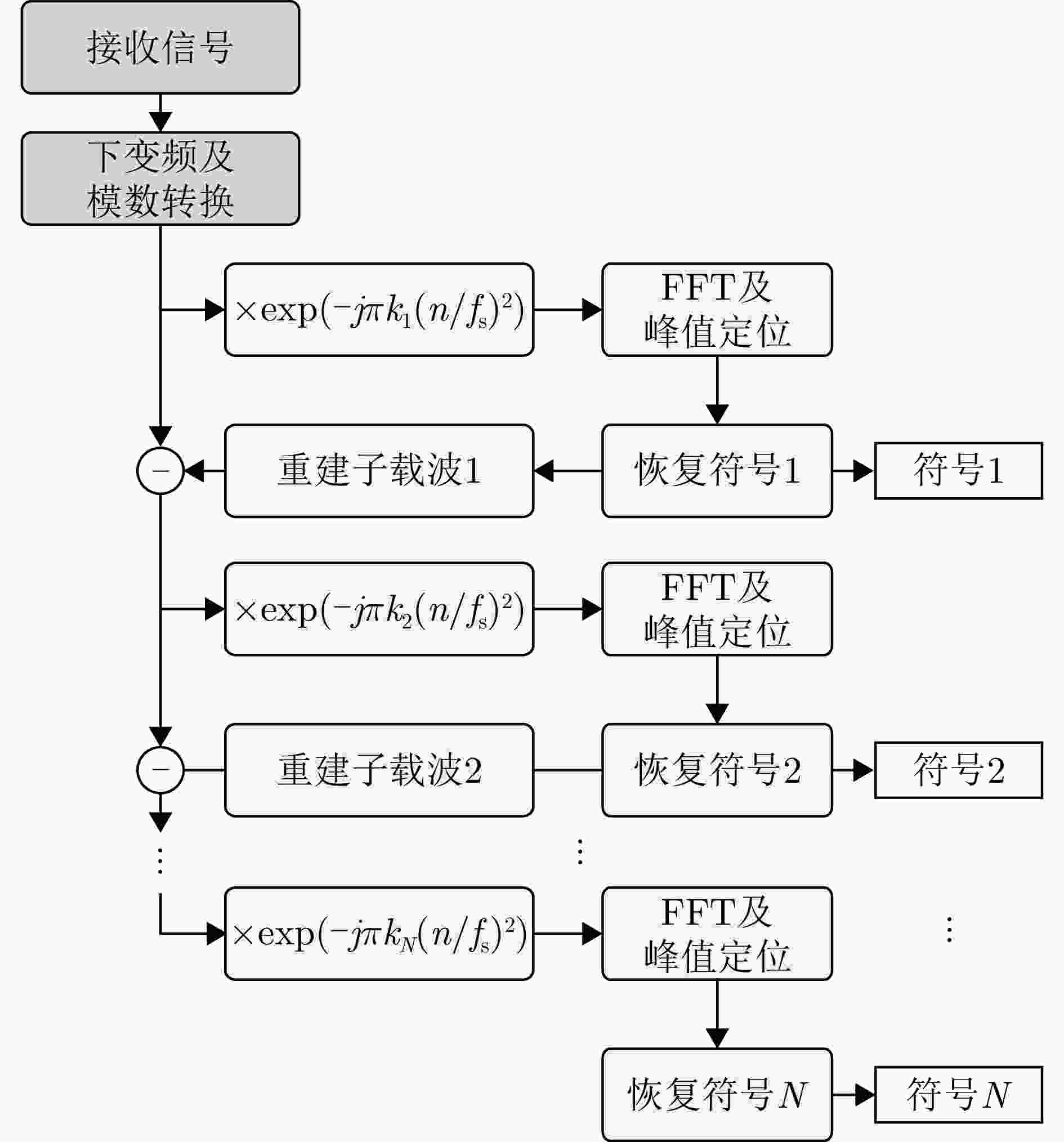

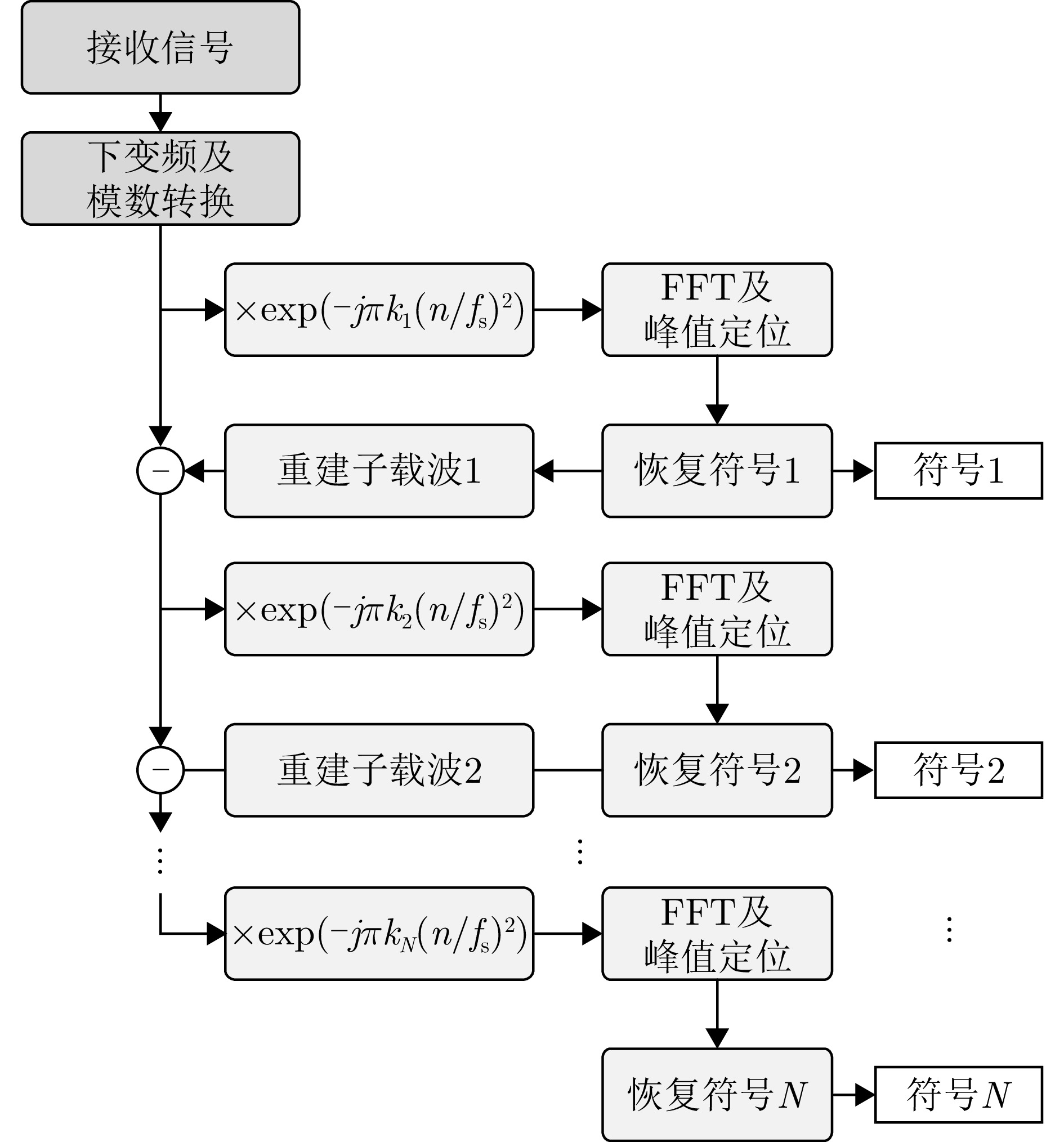

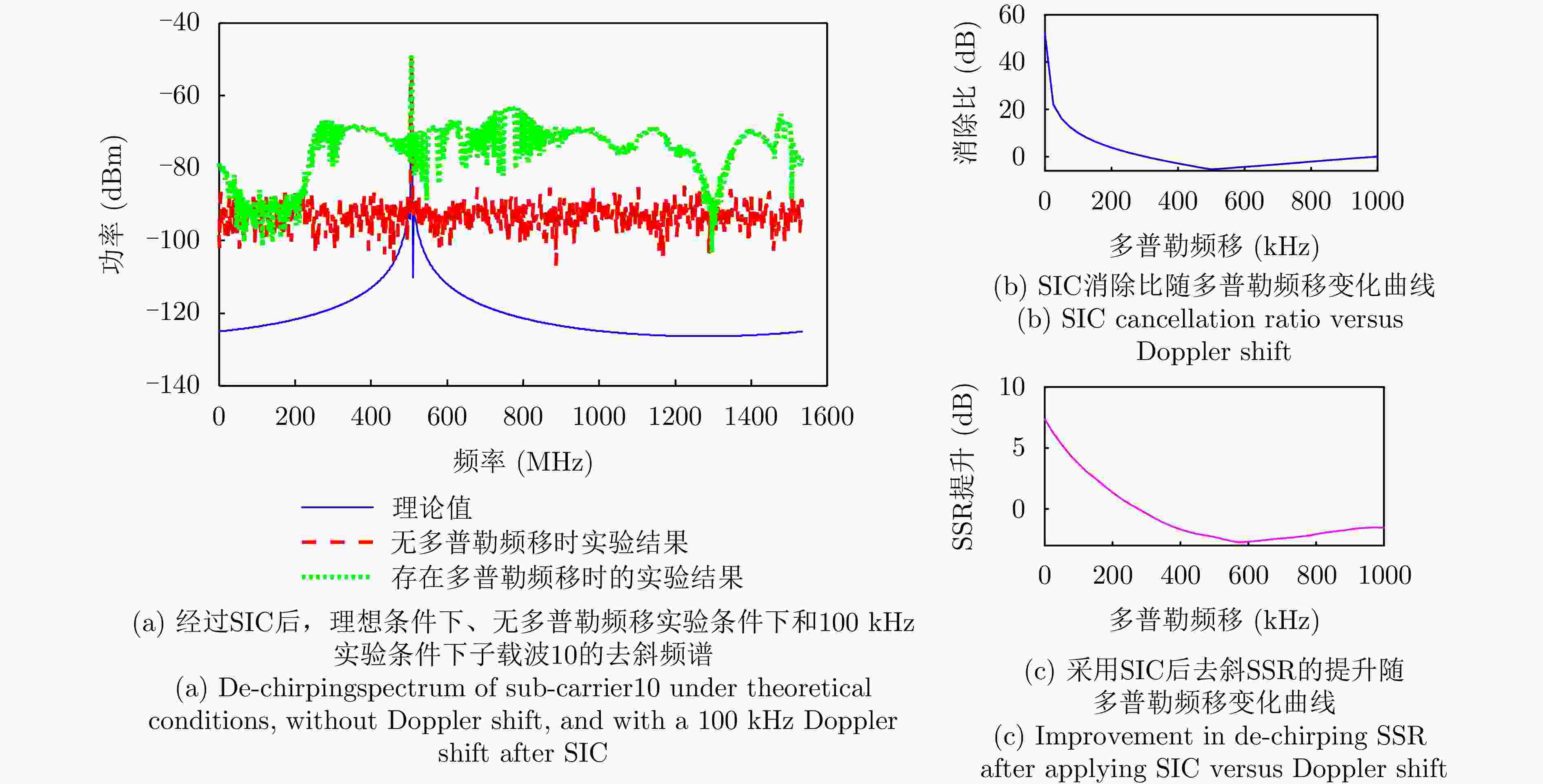

图 2 基于串行干扰消除的通信解调方法示意图
Figure 2. The schematic diagram of the successive interference cancellation method for communication demodulation

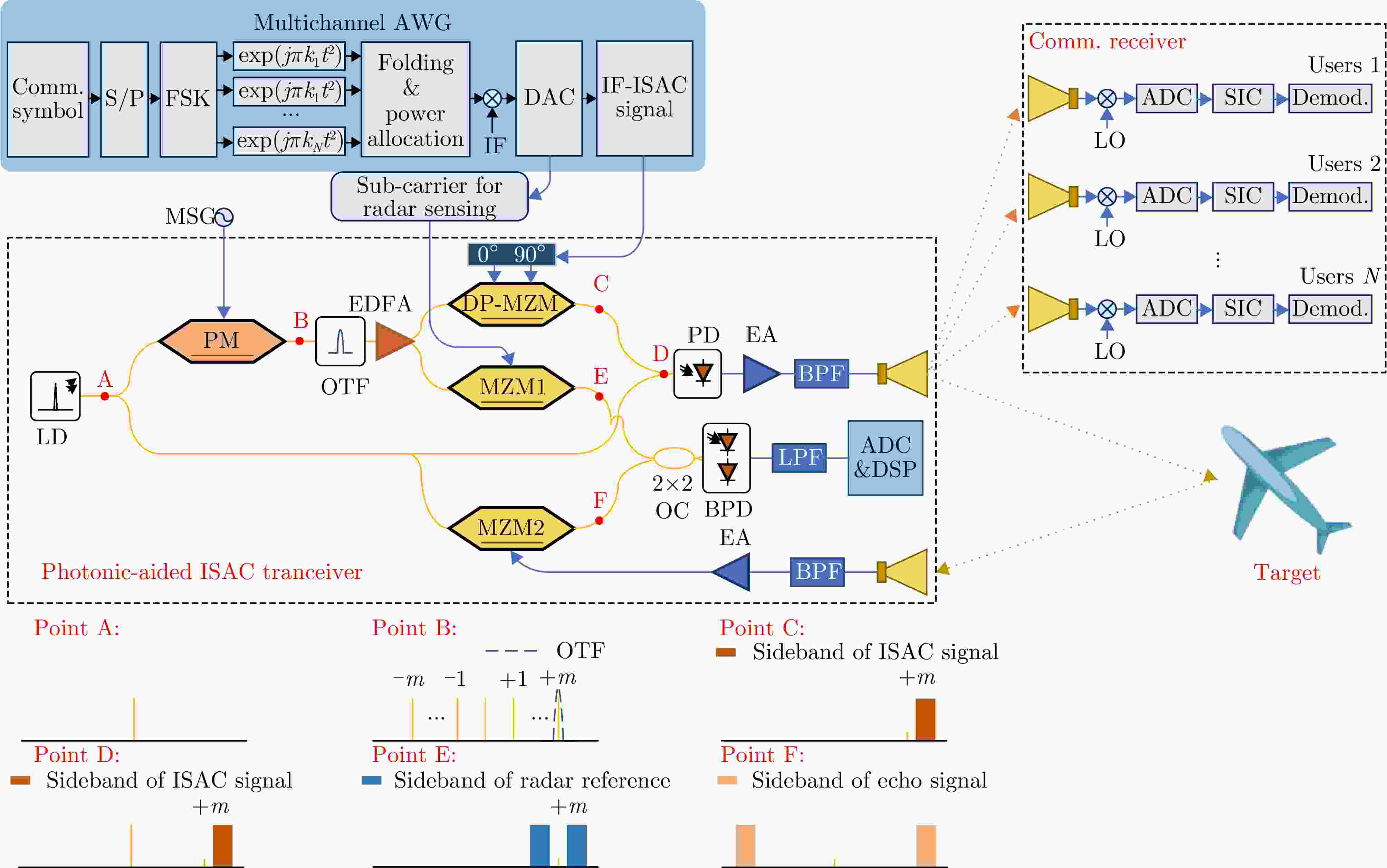

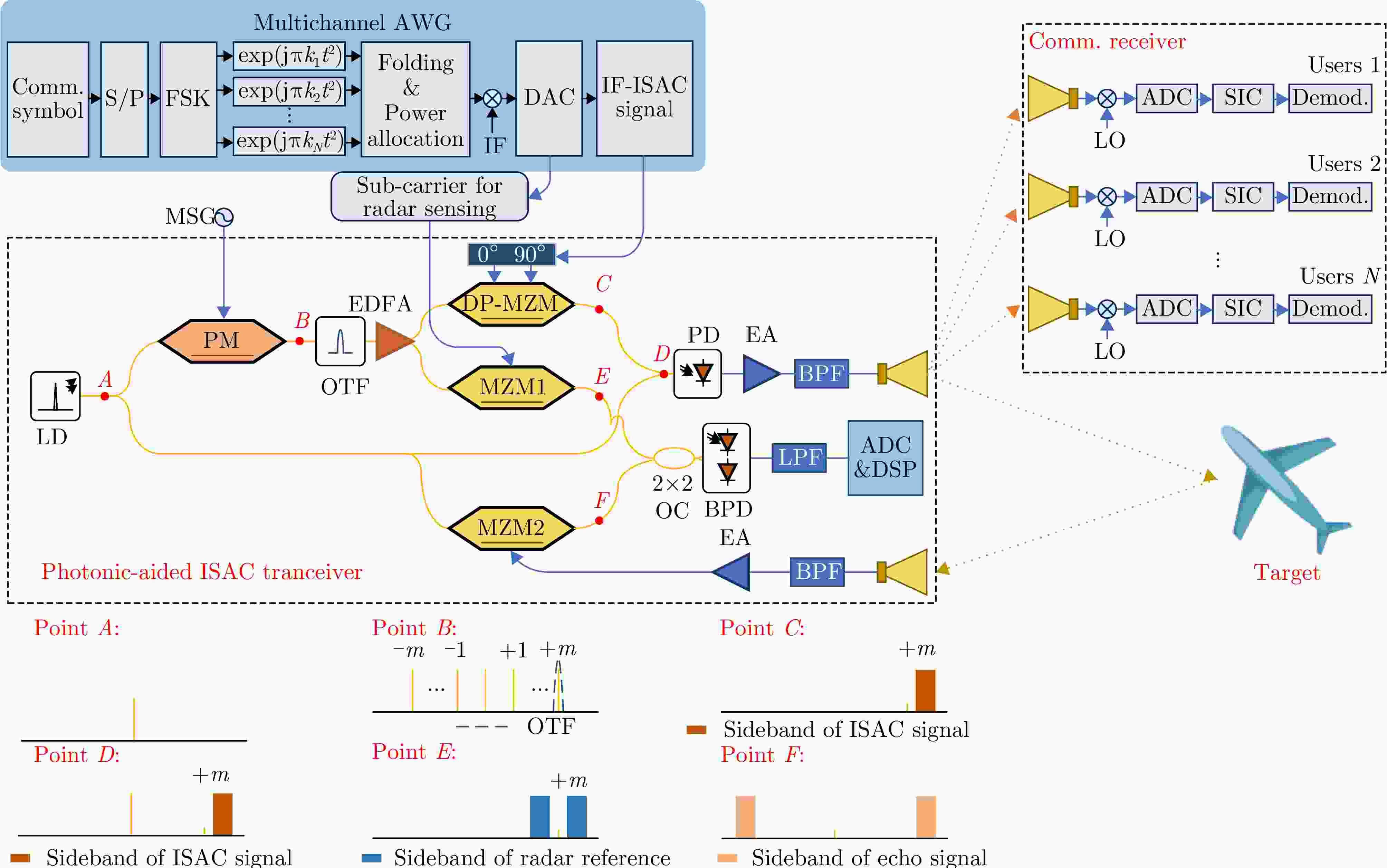

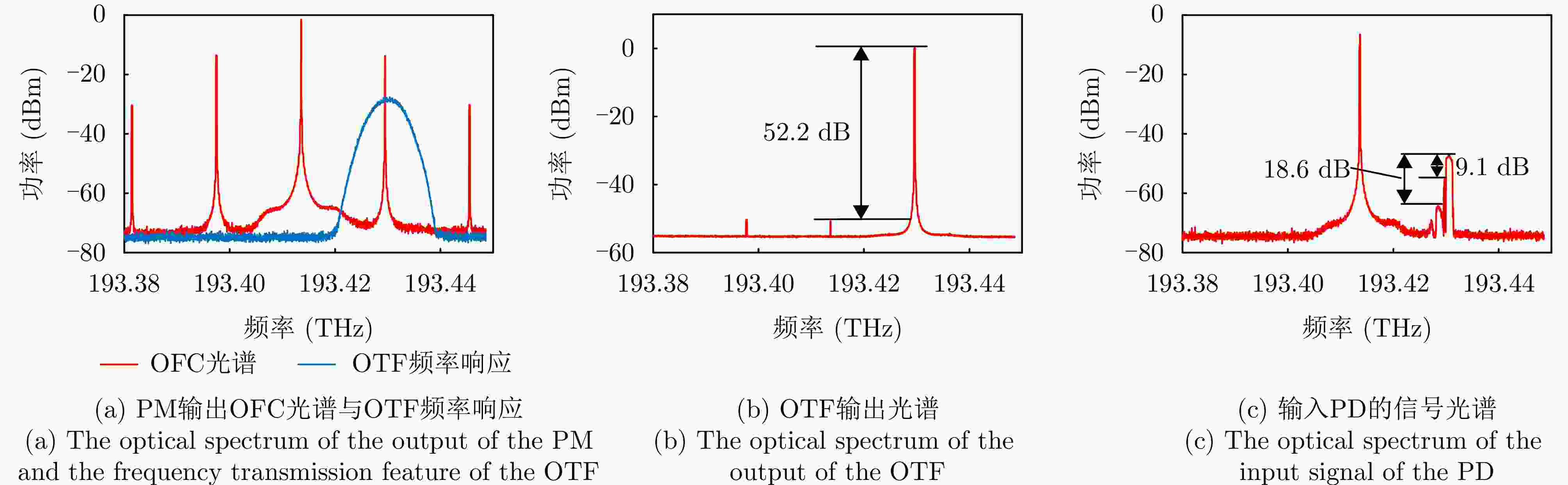

图 3 光子辅助ISAC系统示意图
Figure 3. The schematic diagram of the proposed photonic-aided ISAC system

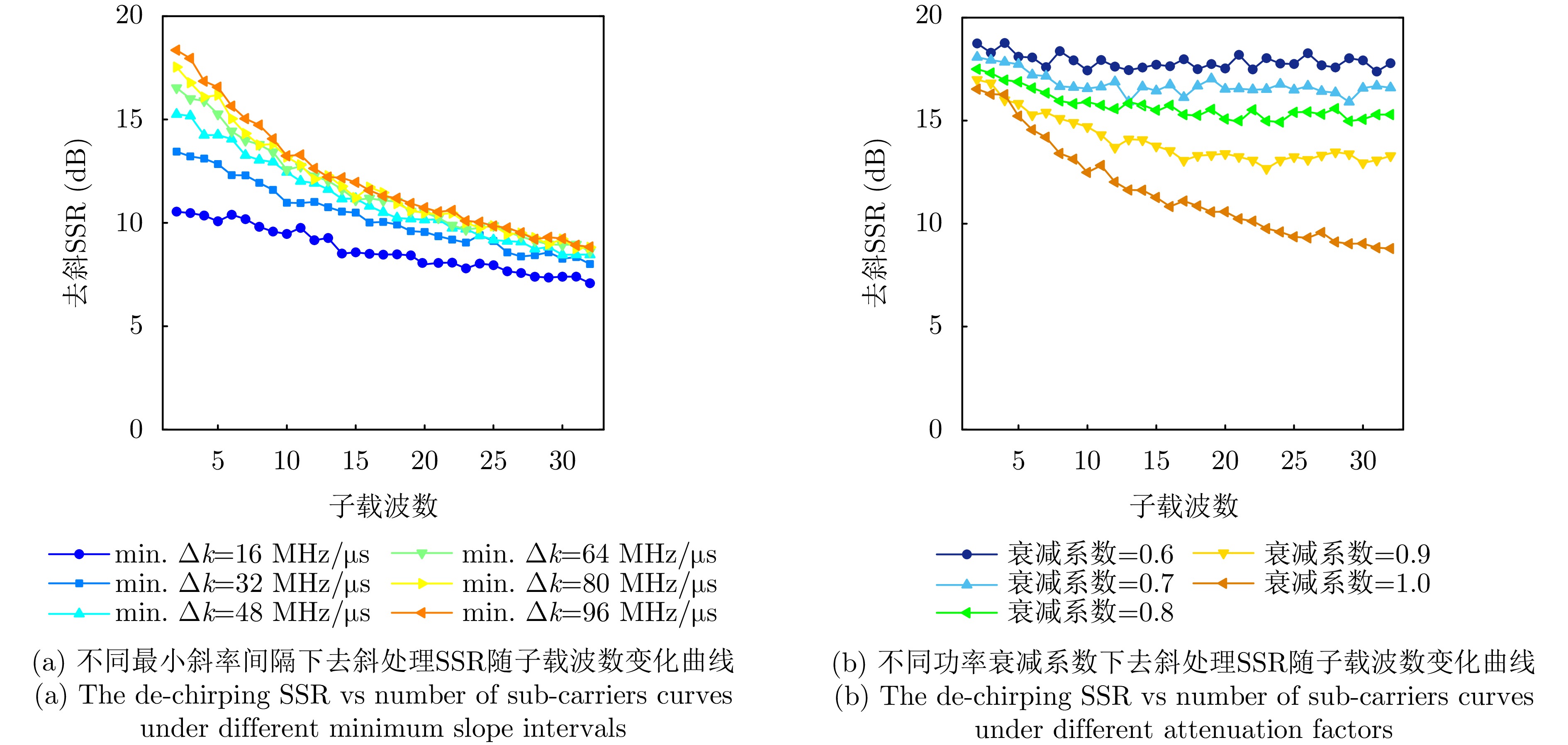

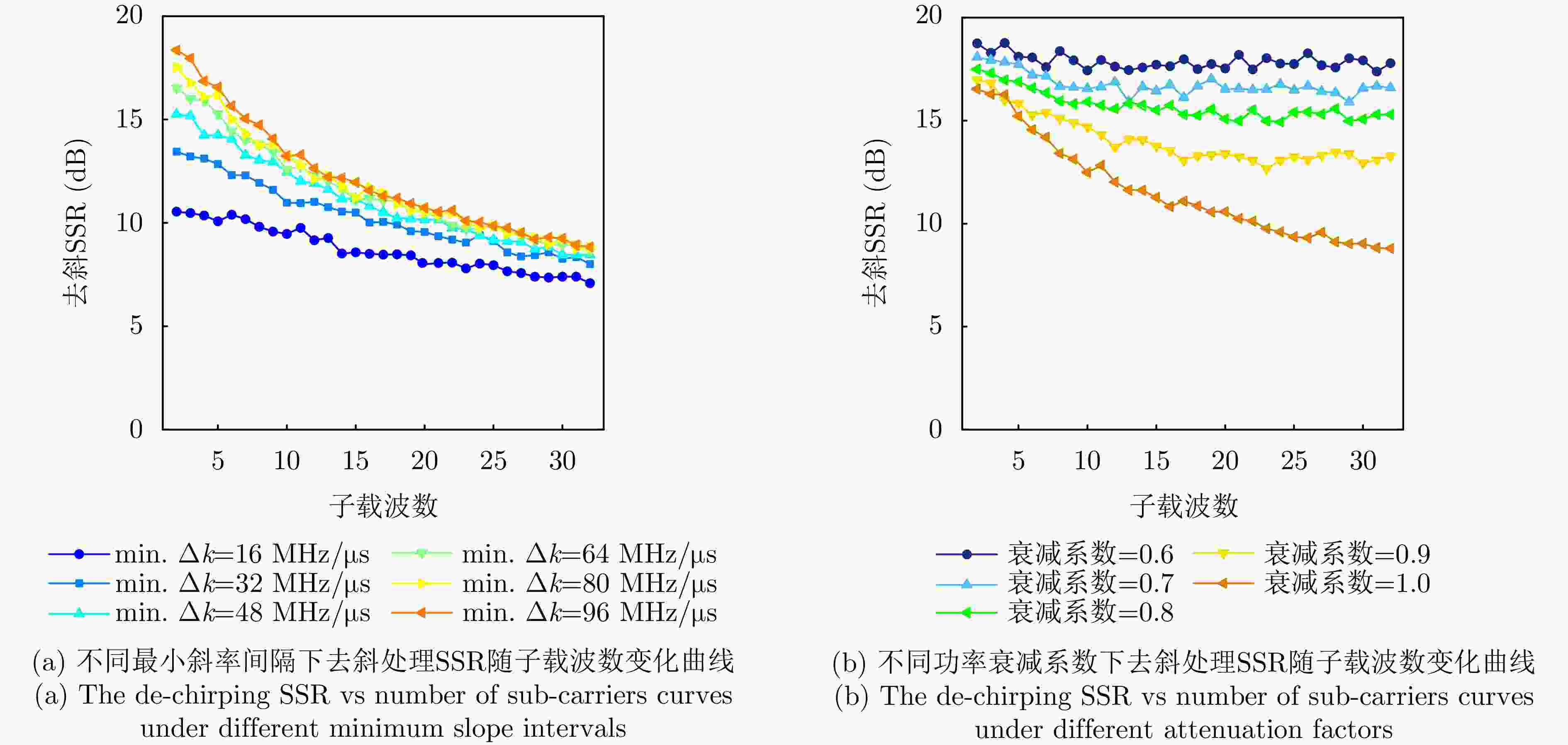

图 4 SDM-FSK-LFM信号去斜性能仿真
Figure 4. Simulation of the de-chirping performance of the SDM-FSK-LFM signal

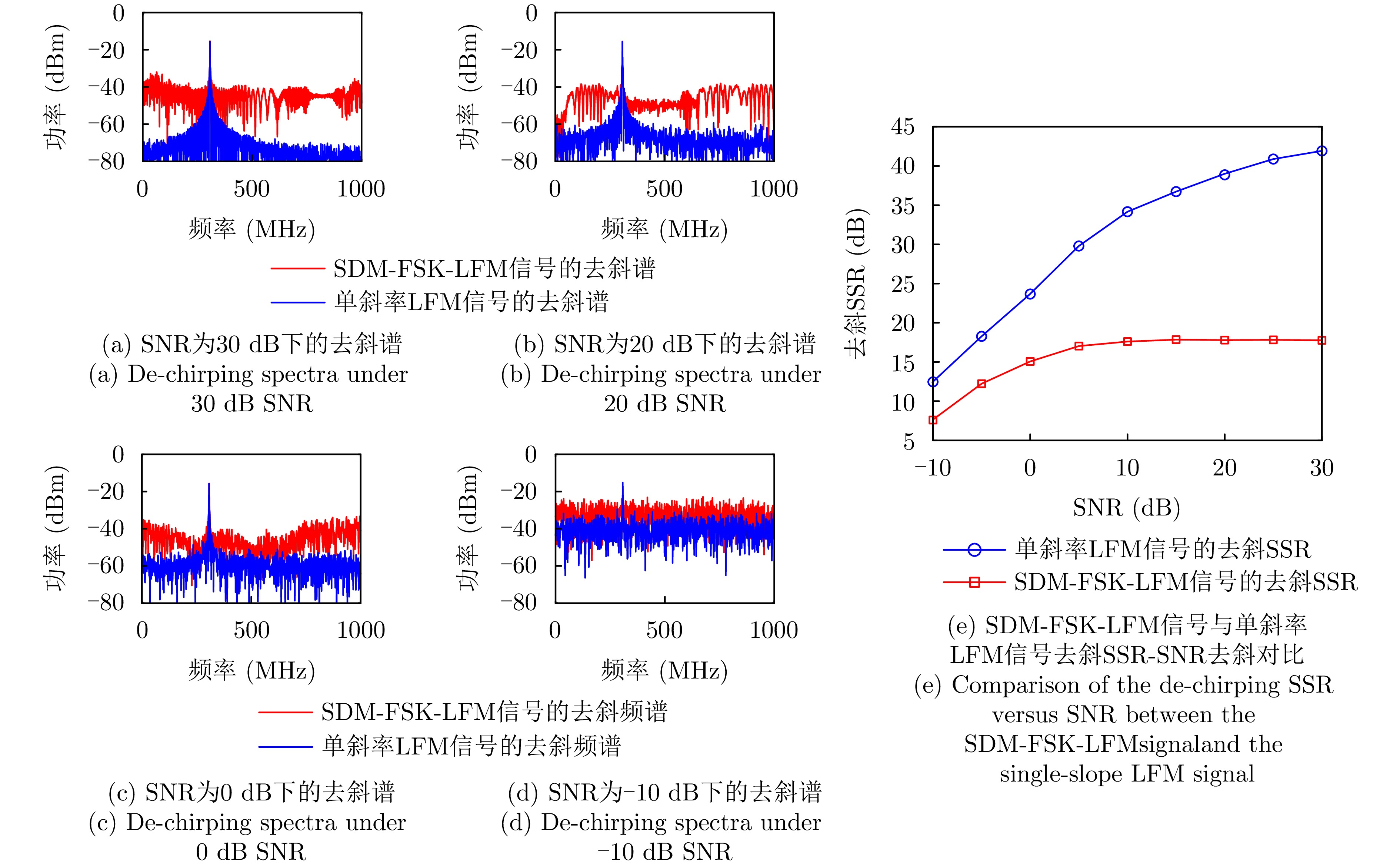

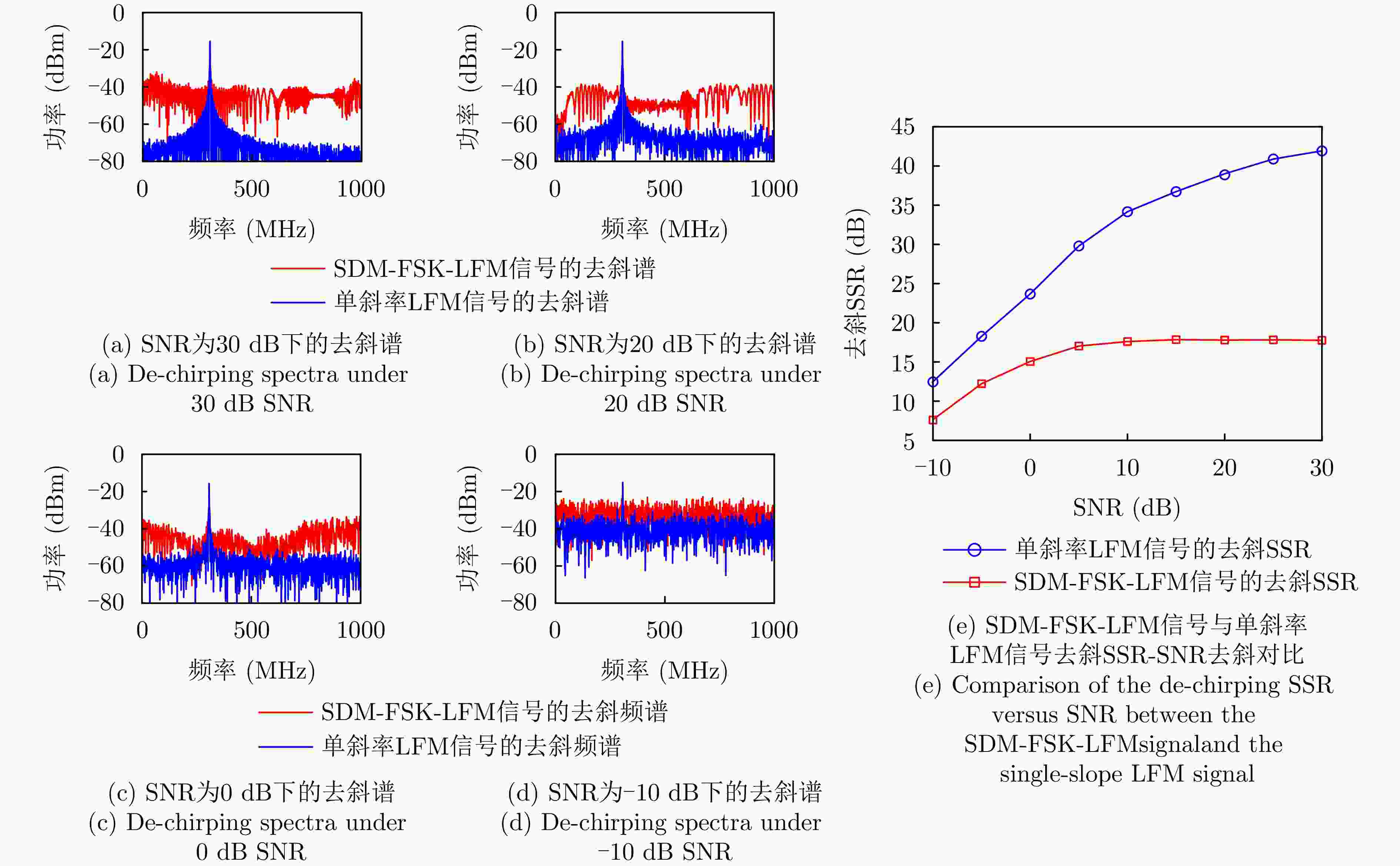

图 5 SDM-FSK-LFM信号与单斜率LFM信号去斜性能对比
Figure 5. Comparison of the de-chirping performance between the SDM-FSK-LFM waveform and the single-slope LFM waveform

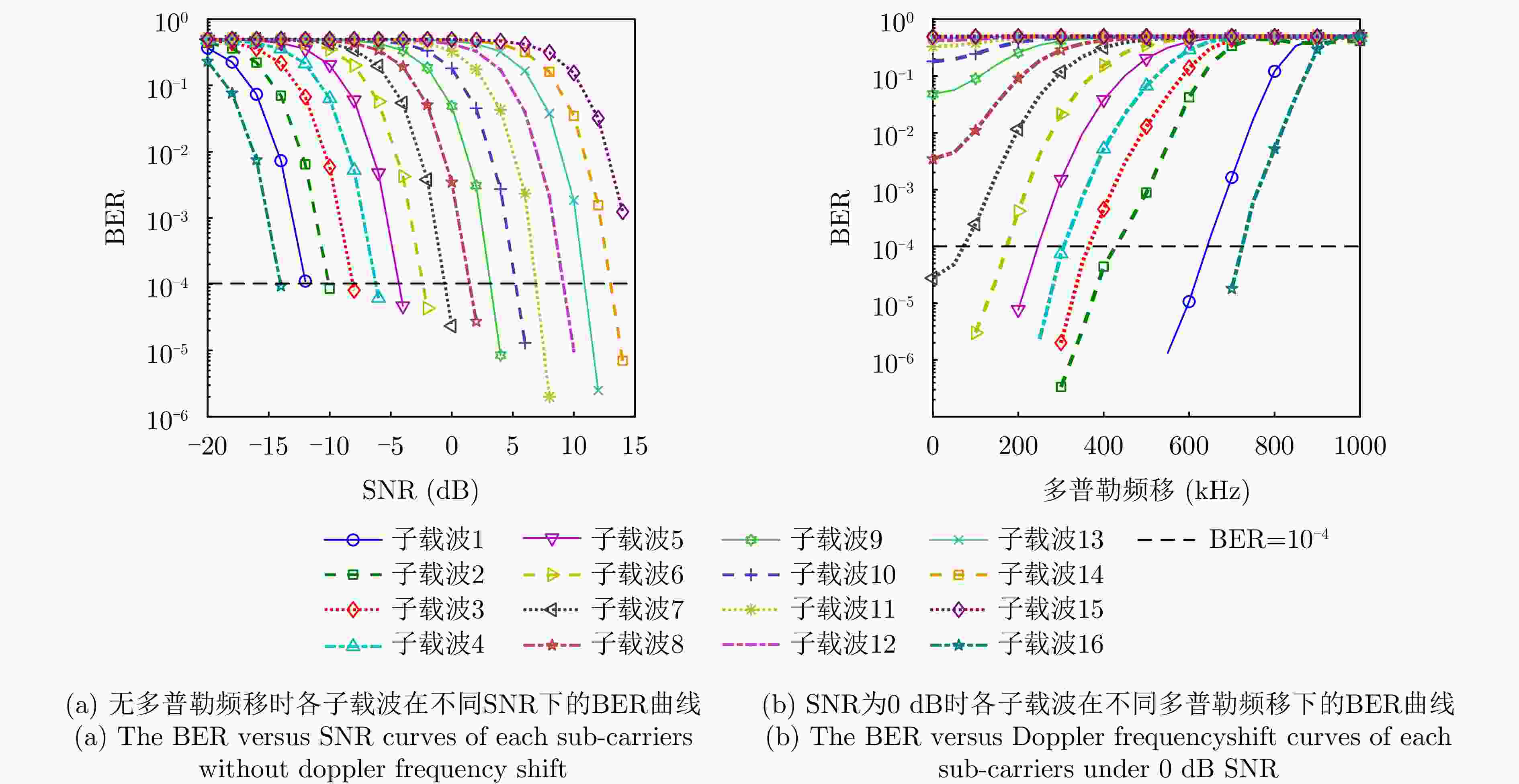

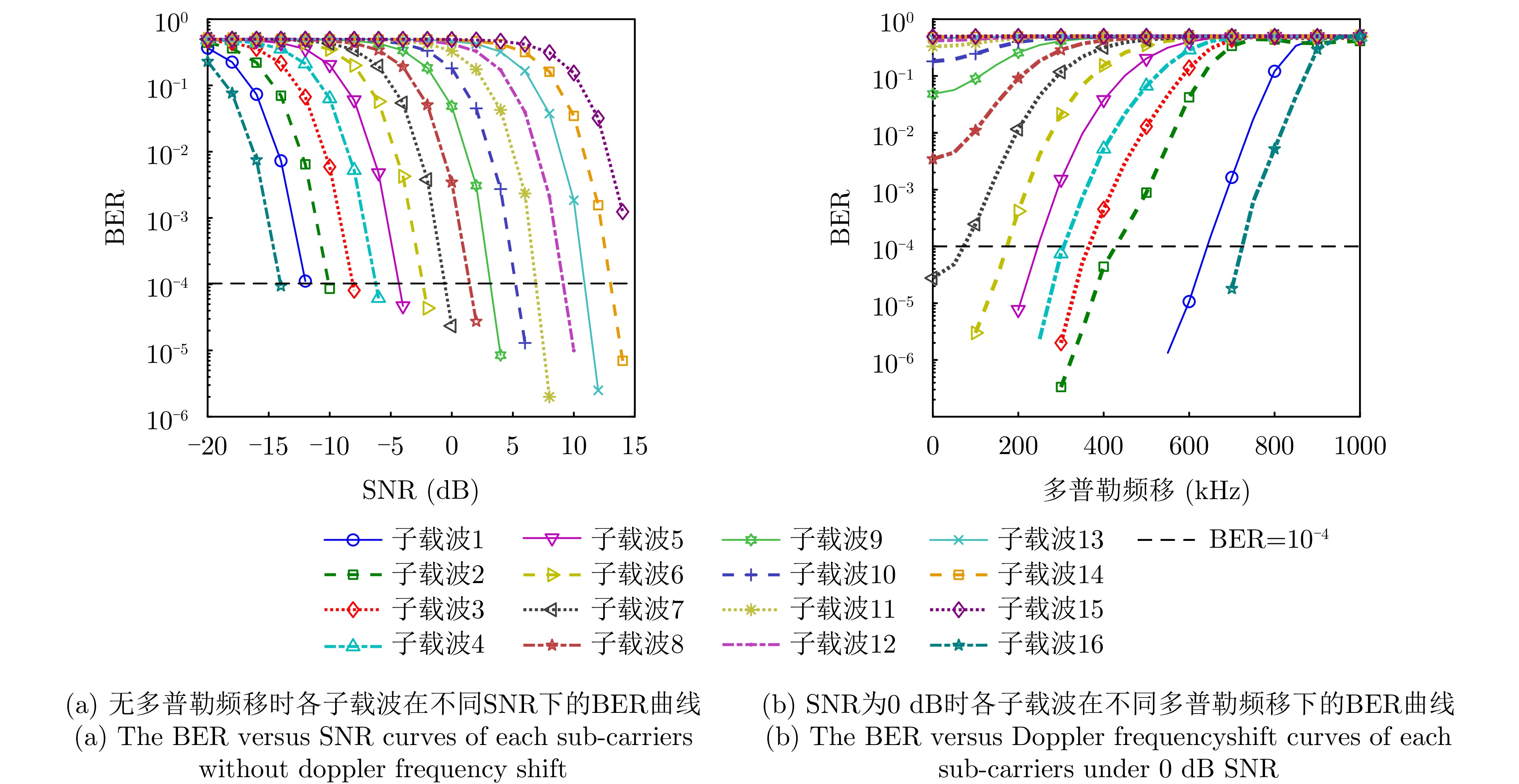

图 6 SDM-FSK-LFM信号通信BER仿真
Figure 6. Simulation results of the BER of the SDM-FSK-LFM signal

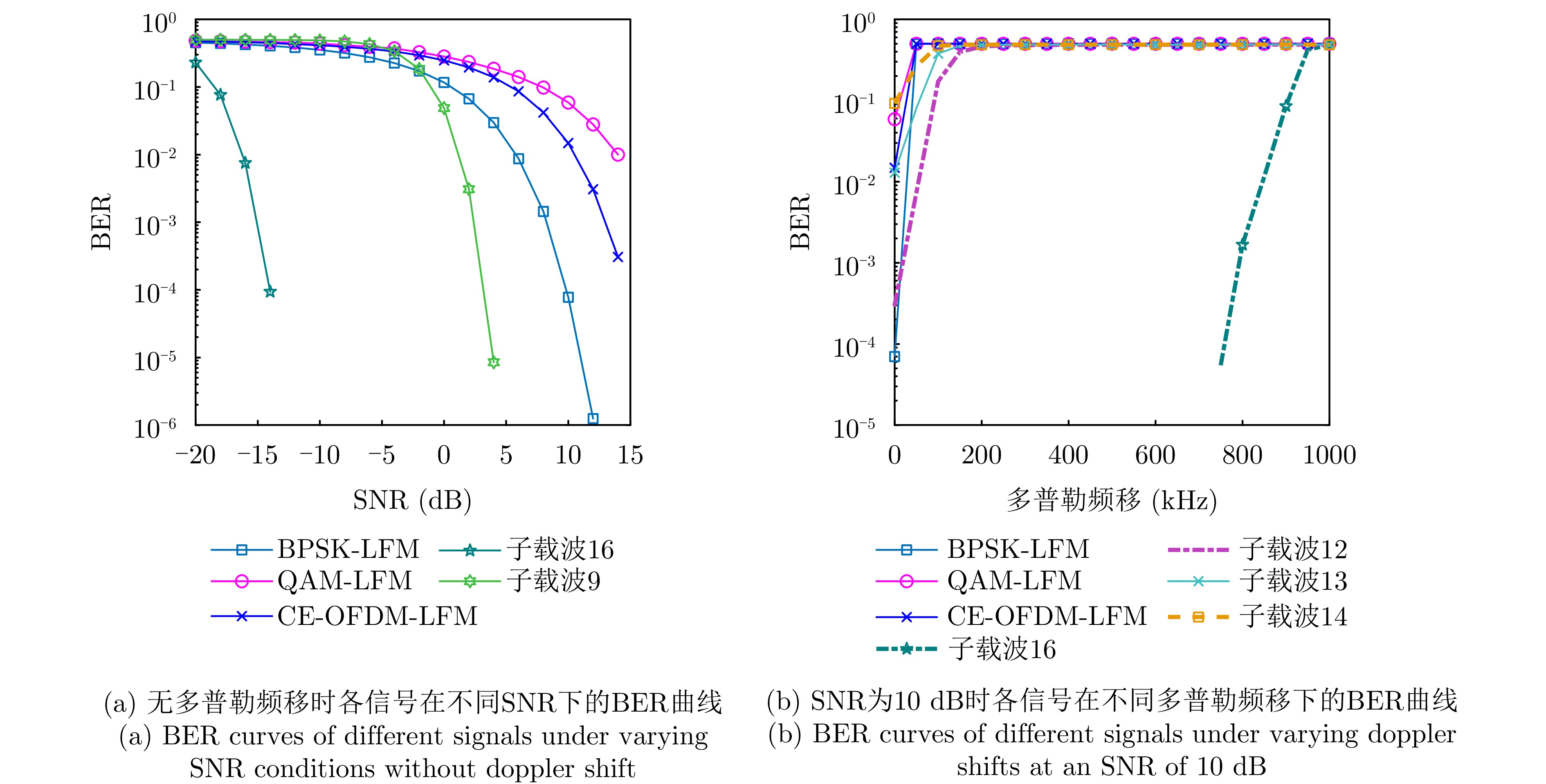

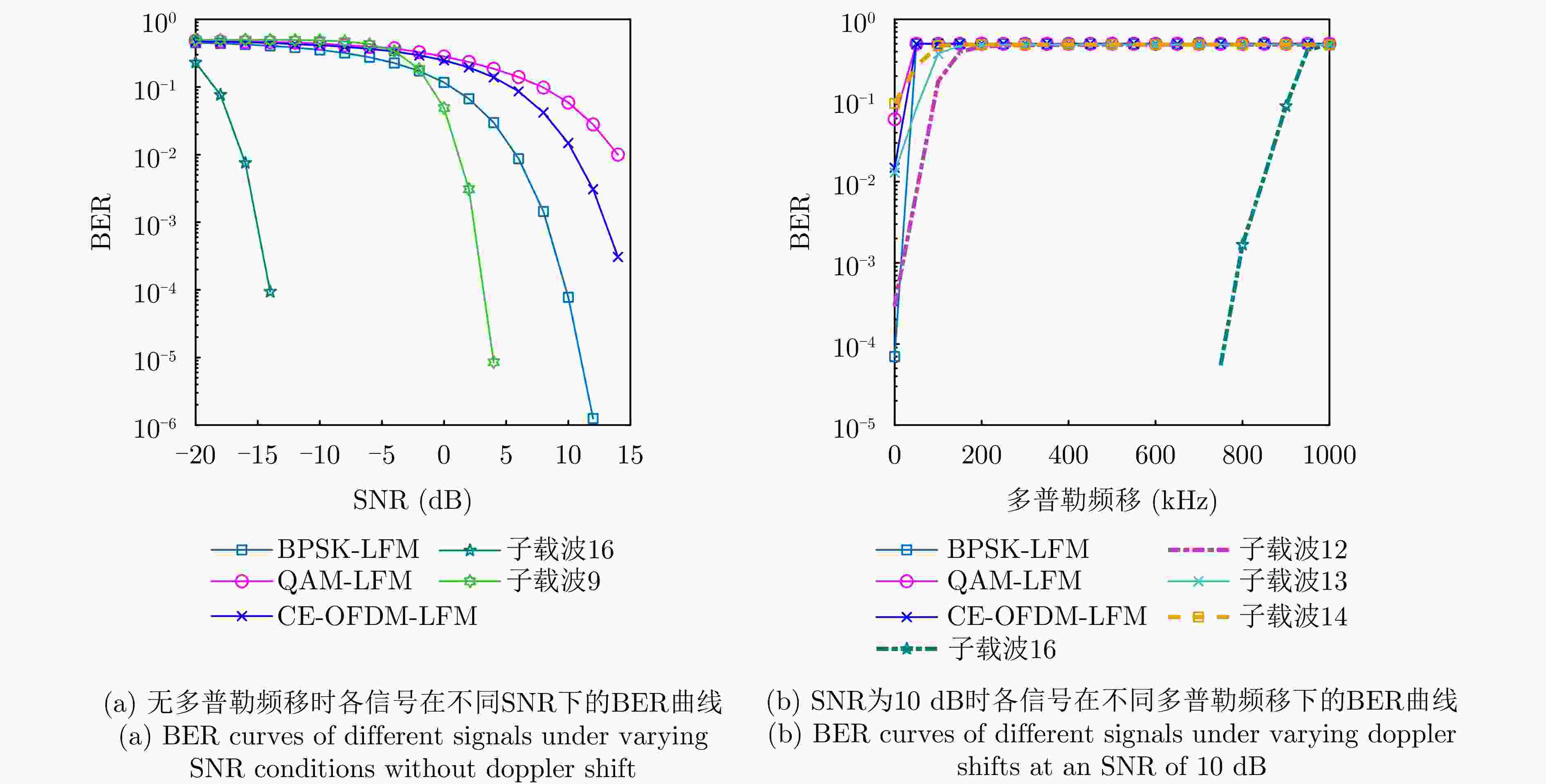

图 7 SDM-FSK-LFM信号与典型感知中心通感一体信号单载波BER仿真性能比较
Figure 7. Comparison of the single sub-carrier BER simulation performance between the SDM-FSK-LFM signals and the typical sensing-centric ISAC signals

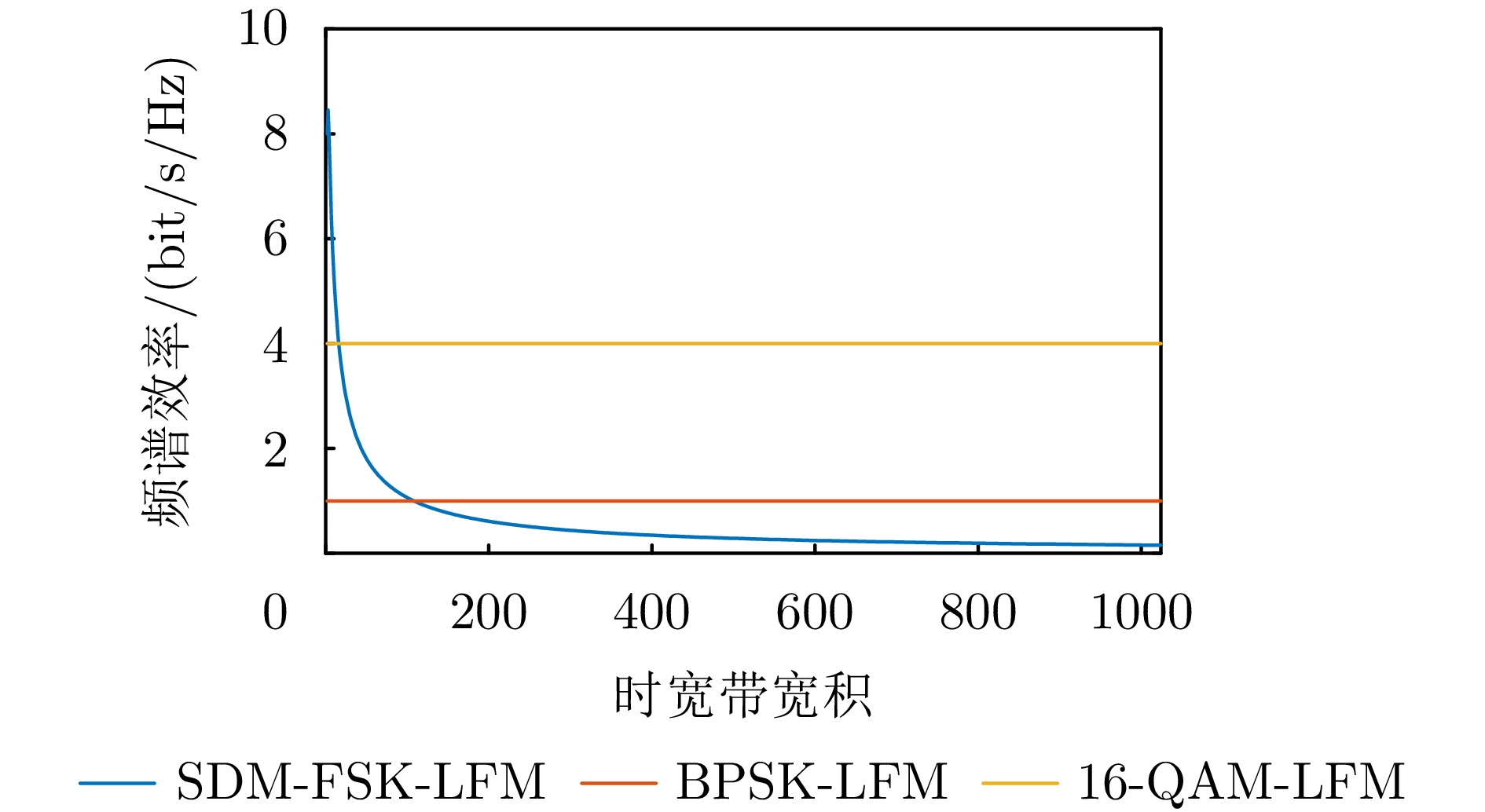

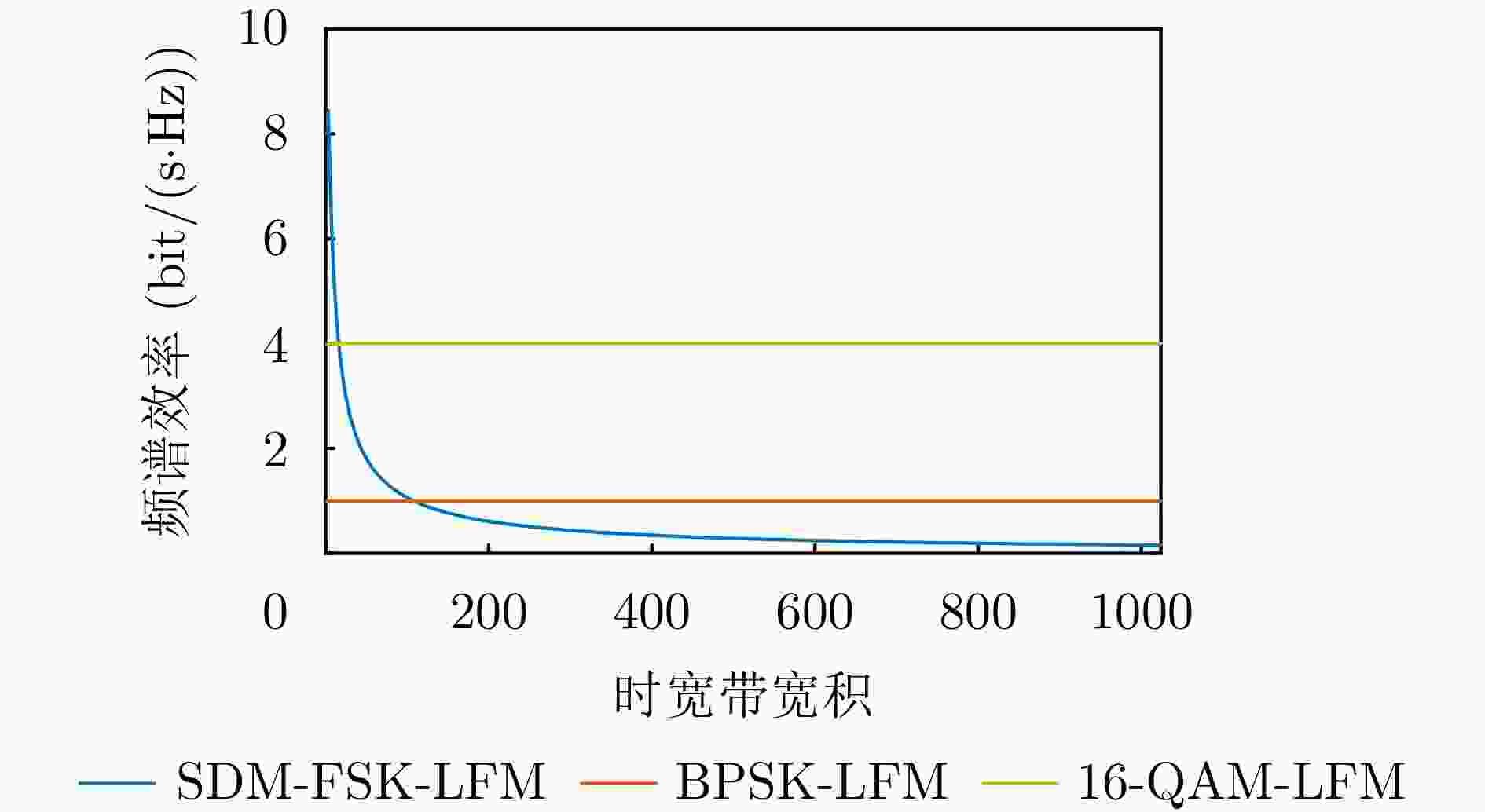

图 8 SDM-FSK-LFM信号极限频谱效率随时宽带宽积变化曲线及与典型信号的对比
Figure 8. Comparison of maximum spectrum efficiency of the SDM-FSK-LFM signals and the typical signals

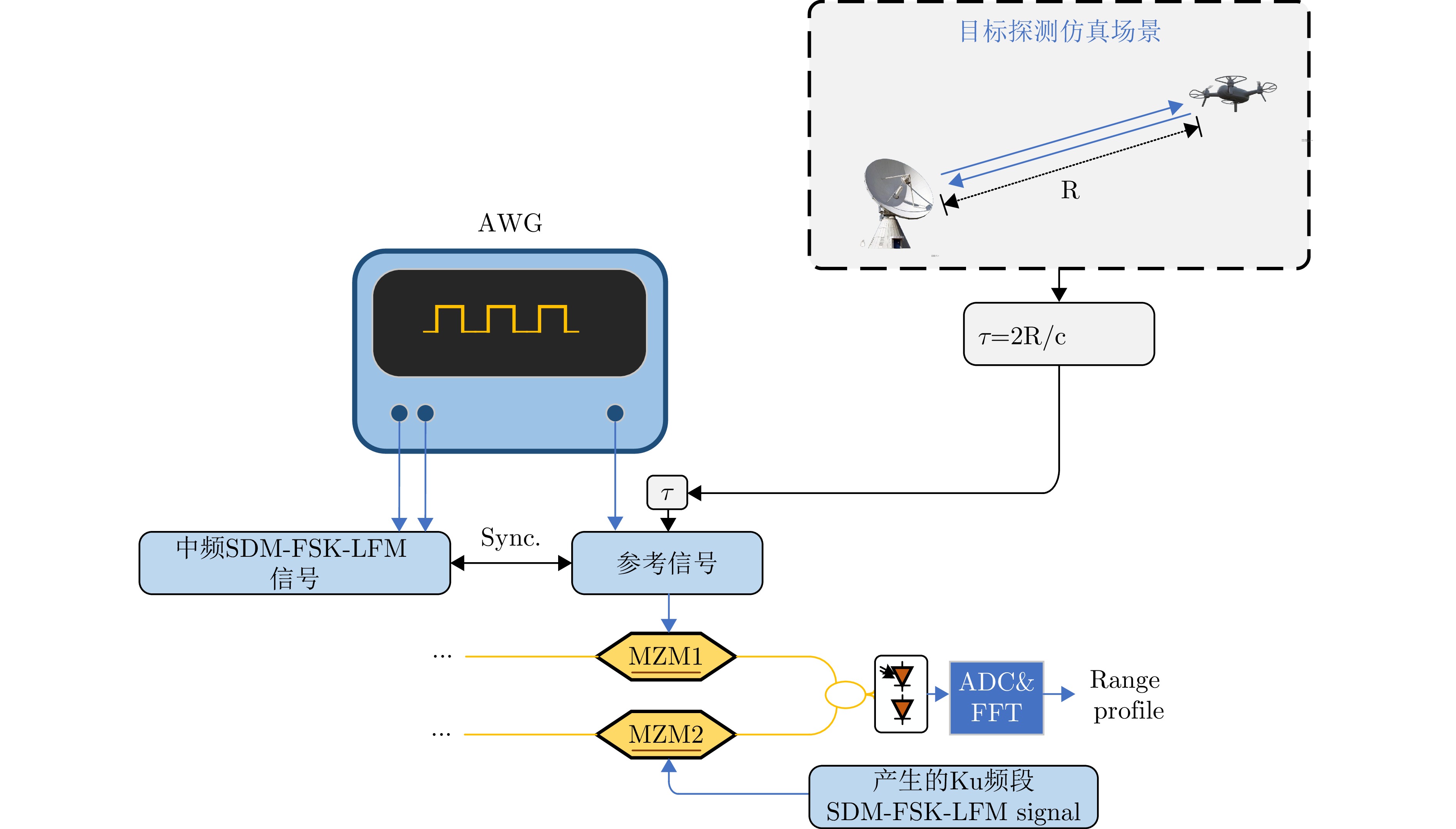

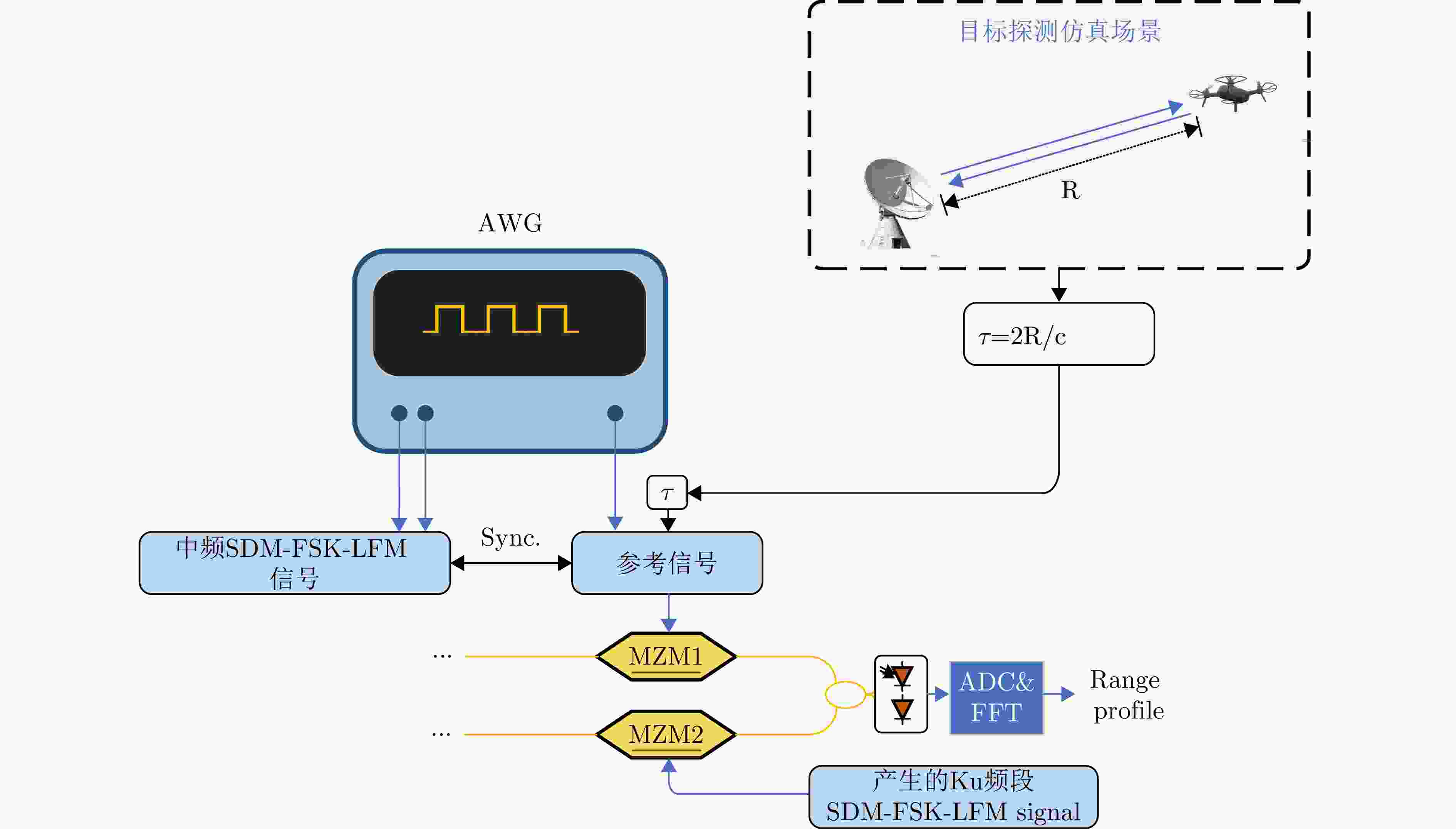

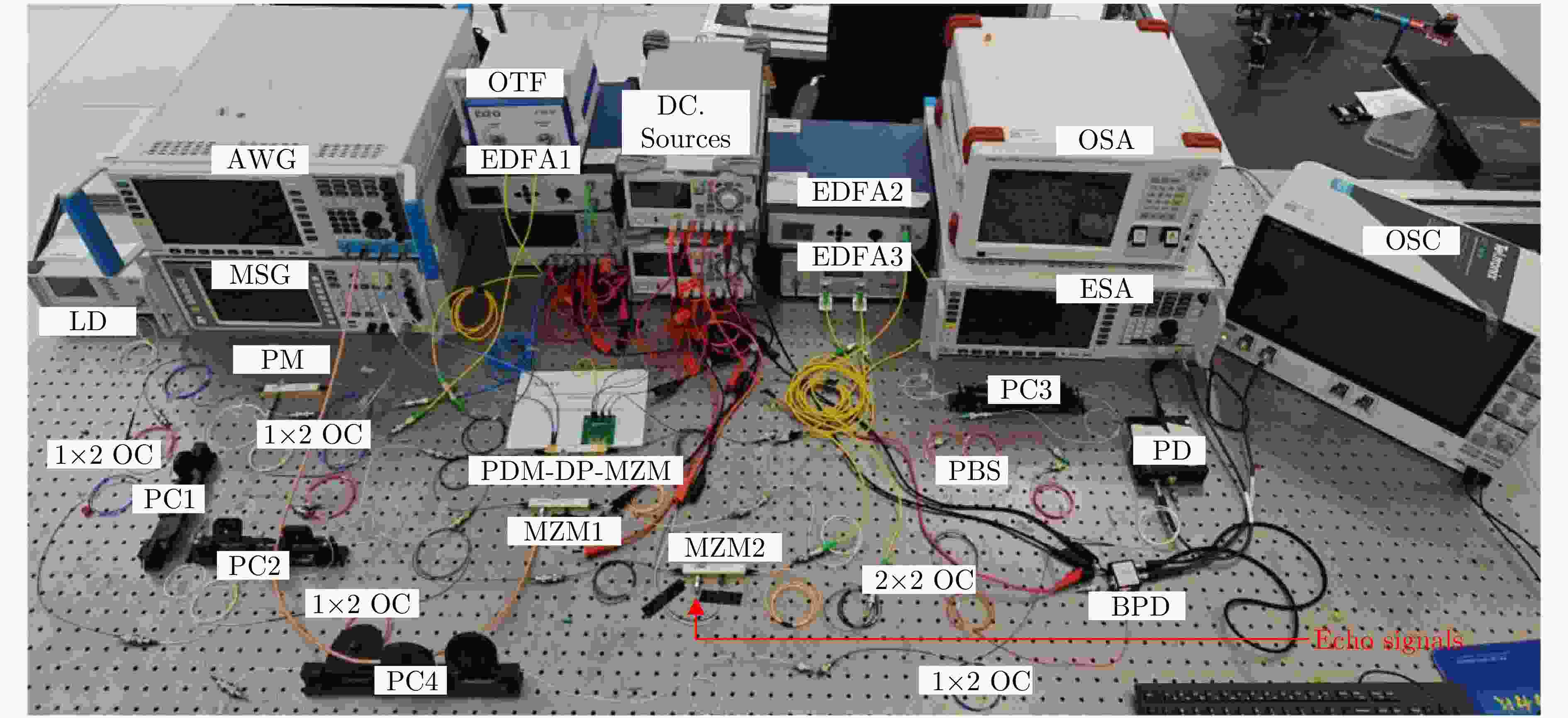

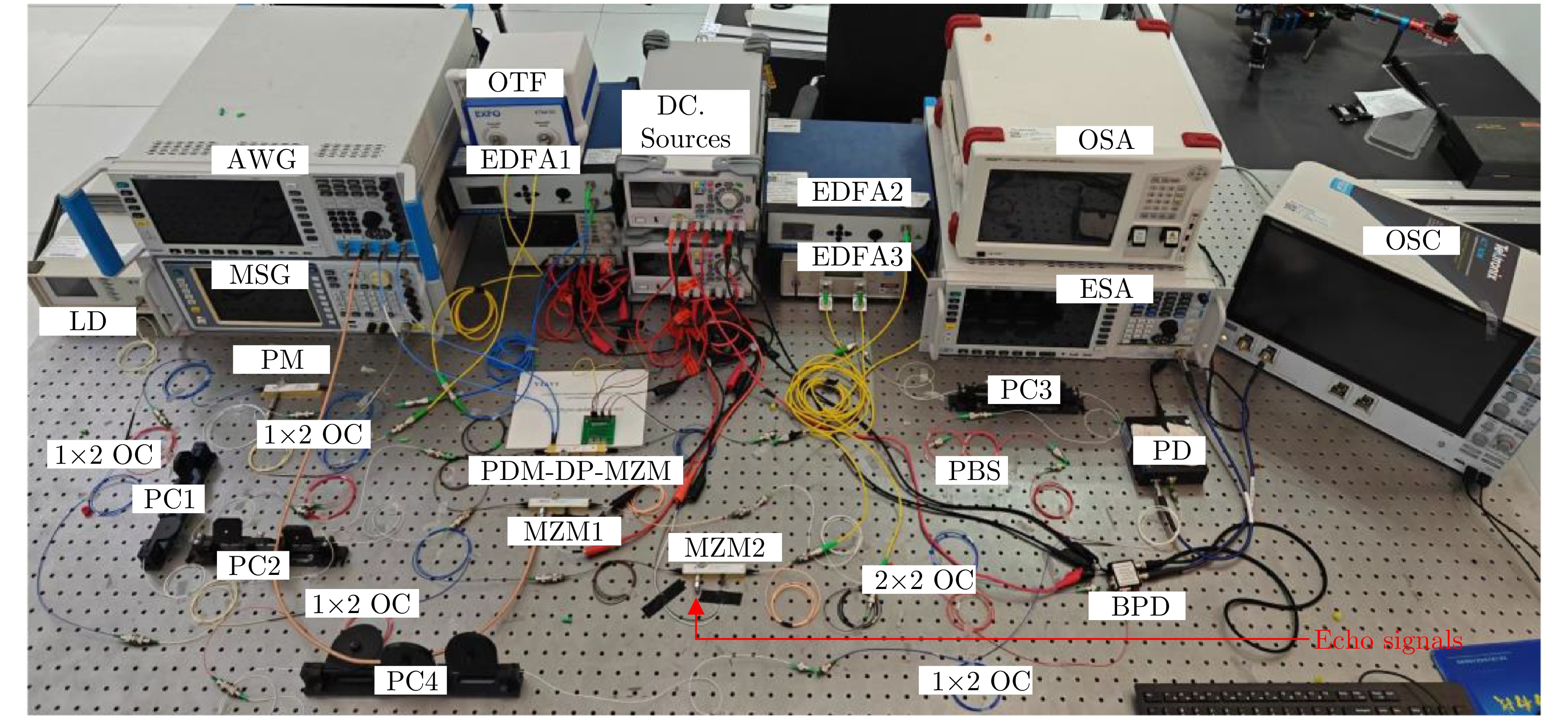

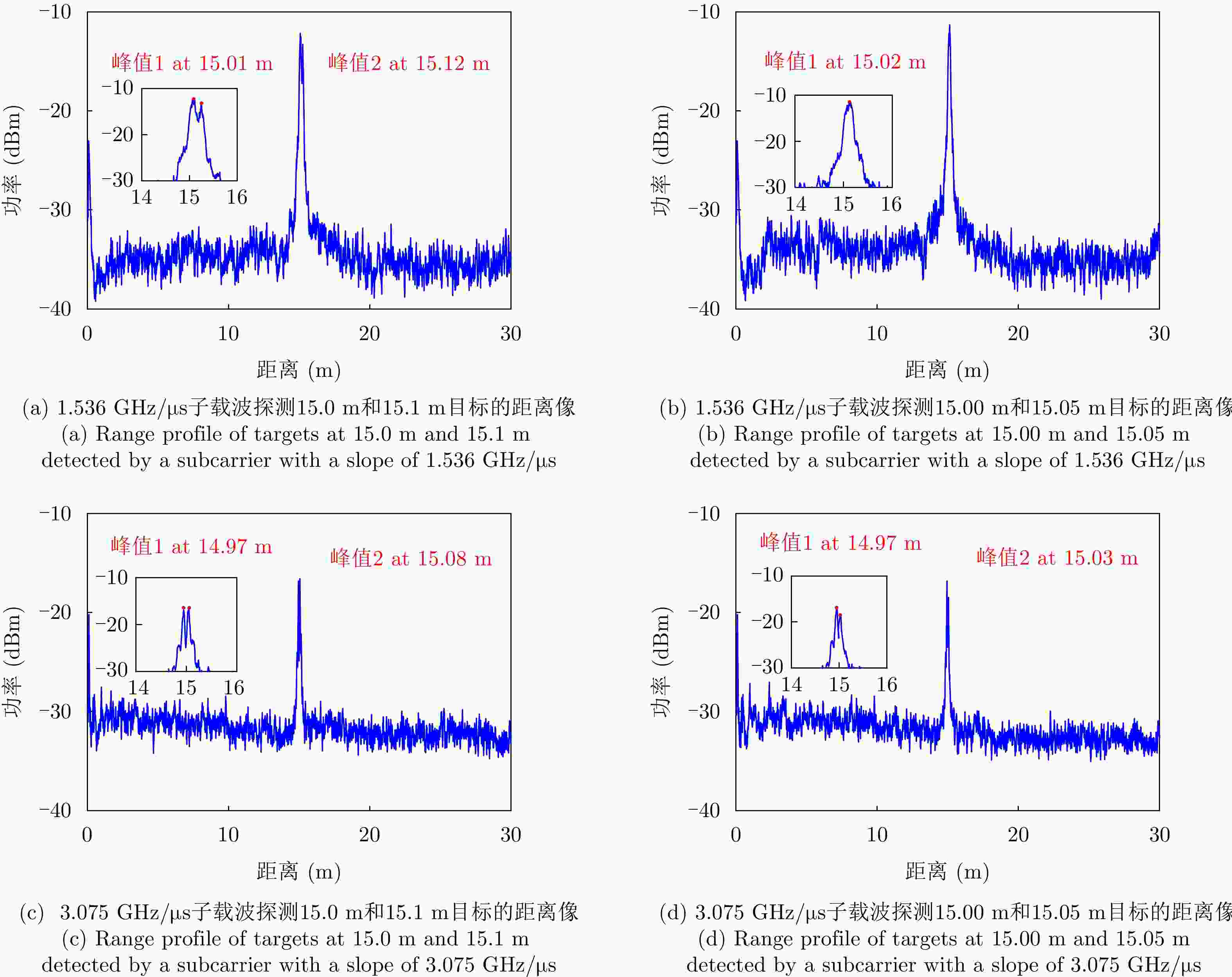

图 12 目标探测半实物实验示意图
Figure 12. The configuration of the semi-hardware experiment for target detection
表 1 仿真参数设置
Table 1. Simulation parameters configuration
参数 取值 脉宽(μs) 1 脉冲重复频率(MHz) 1 采样率(Gsa/s) 2.048 FSK阶数 1024 起始频率(MHz) 0，2，...，2046
下载: 导出CSV
-
[1] WYMEERSCH H, SECO-GRANADOS G, DESTINO G, et al. 5G mmWave positioning for vehicular networks[J]. IEEE Wireless Communications, 2017, 24(6): 80–86. doi: 10.1109/MWC.2017.1600374. [2] TAN Bo, CHEN Qingchao, CHETTY K, et al. Exploiting WiFi channel state information for residential healthcare informatics[J]. IEEE Communications Magazine, 2018, 56(5): 130–137. doi: 10.1109/MCOM.2018.1700064. [3] SAAD W, BENNIS M, and CHEN Mingzhe. A vision of 6G wireless systems: Applications, trends, technologies, and open research problems[J]. IEEE Network, 2020, 34(3): 134–142. doi: 10.1109/MNET.001.1900287. [4] LIU Fan, MASOUROS C, PETROPULU A P, et al. Joint radar and communication design: Applications, state-of-the-art, and the road ahead[J]. IEEE Transactions on Communications, 2020, 68(6): 3834–3862. doi: 10.1109/TCOMM.2020.2973976. [5] LIU Fan, CUI Yuanhao, MASOUROS C, et al. Integrated sensing and communications: Toward dual-functional wireless networks for 6G and beyond[J]. IEEE Journal on Selected Areas in Communications, 2022, 40(6): 1728–1767. doi: 10.1109/JSAC.2022.3156632. [6] MRÓZ P, OTAROLA A, PRINCE T A, et al. Impact of the SpaceX Starlink satellites on the Zwicky transient facility survey observations[J]. The Astrophysical Journal Letters, 2022, 924(2): L30. doi: 10.3847/2041-8213/ac470a. [7] YIN Longfei, LIU Ziang, SHANKAR M R B, et al. Integrated sensing and communications enabled low Earth orbit satellite systems[J]. IEEE Network, 2024, 38(6): 252–258. doi: 10.1109/MNET.2024.3371172. [8] 王佳奇, 池嘉诚, 贺绍飞, 等. 巨型低轨星座发展现状及启示[J]. 中国航天, 2024(6): 39–45. doi: 10.3969/j.issn.1002-7742.2024.06.006.WANG Jiaqi, SHEN Jiacheng, HE Shaofei, et al. Development status and implications of giant low earth orbit constellations[J]. Aerospace China, 2024(6): 39–45. doi: 10.3969/j.issn.1002-7742.2024.06.006. [9] 李轩, 周逸潇, 赵尚弘, 等. 基于线性调频的雷达通信一体化波形研究进展[J]. 激光与光电子学进展, 2023, 60(5): 0500003. doi: 10.3788/LOP213152.LI Xuan, ZHOU Yixiao, ZHAO Shanghong, et al. Research progress of integrated radar-communication waveform based on linear frequency modulation[J]. Laser & Optoelectronics Progress, 2023, 60(5): 0500003. doi: 10.3788/LOP213152. [10] PAN Shilong and ZHANG Yamei. Microwave photonic radars[J]. Journal of Lightwave Technology, 2020, 38(19): 5450–5484. doi: 10.1109/JLT.2020.2993166. [11] WANG Yanyi, DING Junjie, WANG Mingxu, et al. W-band simultaneous vector signal generation and radar detection based on photonic frequency quadrupling[J]. Optics Letters, 2022, 47(3): 537–540. doi: 10.1364/OL.447876. [12] WANG Yanyi, LIU Jiaxuan, DING Junjie, et al. Joint communication and radar sensing functions system based on photonics at the W-band[J]. Optics Express, 2022, 30(8): 13404–13415. doi: 10.1364/OE.449153. [13] Jia Shi, WANG Shiwei, LIU Kexin, et al. A unified system with integrated generation of high-speed communication and high-resolution sensing signals based on THz photonics[J]. Journal of Lightwave Technology, 2018, 36(19): 4549–4556. doi: 10.1109/JLT.2018.2863684. [14] WANG Yanyi, LI Weiping, DING Junjie, et al. Integrated high-resolution radar and long-distance communication based-on photonic in terahertz band[J]. Journal of Lightwave Technology, 2022, 40(9): 2731–2738. doi: 10.1109/JLT.2022.3143849. [15] HASSANIEN A, AMIN M G, ZHANG Y D, et al. Signaling strategies for dual-function radar communications: An overview[J]. IEEE Aerospace and Electronic Systems Magazine, 2016, 31(10): 36–45. doi: 10.1109/MAES.2016.150225. [16] XUE Zhujun, LI Shangyuan, LI Jiading, et al. OFDM radar and communication joint system using opto-electronic oscillator with phase noise degradation analysis and mitigation[J]. Journal of Lightwave Technology, 2022, 40(13): 4101–4109. doi: 10.1109/JLT.2022.3156573. [17] LIU Yunkun, DENG Anyi, HUA Shiyu, et al. Photonic ADC-based scheme for joint wireless communication and radar by adopting a broadband OFDM shared signal[J]. Optics Letters, 2022, 47(20): 5421–5424. doi: 10.1364/OL.473975. [18] LIU Fengwei, LI Peixuan, ZHONG Ningyuan, et al. Millimeter-wave over fiber integrated sensing and communication system using self-coherent OFDM[J]. Optics Express, 2024, 32(9): 15493–15506. doi: 10.1364/OE.513686. [19] YAN Hengxin, LI Xinying, PAN Xiaolong, et al. W-band photonic-aided mm-wave ISAC system enabled by a shared OFDM signal waveform and a two-stage carrier frequency recovery algorithm[J]. Optics Letters, 2024, 49(18): 5280–5283. doi: 10.1364/OL.537847. [20] NIE Haijiang, ZHANG Fangzheng, YANG Yue, et al. Photonics-based integrated communication and radar system[C]. 2019 International Topical Meeting on Microwave Photonics, Ottawa, Canada, 2019: 1–4. doi: 10.1109/MWP.2019.8892218. [21] WANG Shi, LIANG Dingding, and CHEN Yang. Photonics-assisted joint communication-radar system based on a QPSK-sliced linearly frequency-modulated signal[J]. Applied Optics, 2022, 61(16): 4752–4760. doi: 10.1364/AO.456287. [22] LEI Mingzheng, HUA Bingchang, CAI Yuancheng, et al. Photonics-aided integrated sensing and communications in mmW bands based on a DC-offset QPSK-encoded LFMCW[J]. Optics Express, 2022, 30(24): 43088–43103. doi: 10.1364/OE.474055. [23] LYU Zhidong, ZHANG Lu, ZHANG Hongqi, et al. Radar-centric photonic terahertz integrated sensing and communication system based on LFM-PSK waveform[J]. IEEE Transactions on Microwave Theory and Techniques, 2023, 71(11): 5019–5027. doi: 10.1109/TMTT.2023.3267546. [24] Lyu Zhidong, ZHANG Lu, ZHANG Hongqi, et al. Multi-channel photonic THz-ISAC system based on integrated LFM-QAM waveform[J]. Journal of Lightwave Technology, 2024, 42(11): 3981–3988. doi: 10.1109/JLT.2024.3392282. [25] BAI Wenlin, LI Peixuan, ZOU Xihua, et al. Millimeter-wave joint radar and communication system based on photonic frequency-multiplying constant envelope LFM-OFDM[J]. Optics Express, 2022, 30(15): 26407–26425. doi: 10.1364/OE.461508. [26] ROUZEGAR H and GHANBARISABAGH M. Estimation of Doppler curve for LEO satellites[J]. Wireless Personal Communications, 2019, 108(4): 2195–2212. doi: 10.1007/s11277-019-06517-5. [27] 段相龙, 刘留, 苏昭阳, 等. 基于补偿和预测的低轨卫星频率同步方法[J]. 天地一体化信息网络, 2025, 6(2): 76–86. doi: 10.11959/j.issn.1000-0801.2025020.DUAN Xianglong, LIU Liu, SU Zhaoyang, et al. Frequency tracking and synchronization strategy for low earth orbit satellites based on compensation and prediction[J]. Space-Integrated-Ground Information Networks, 2025, 6(2): 76–86. doi: 10.11959/j.issn.1000-0801.2025020. [28] 林玉洁, 杨若琳, 杨凯. 低轨卫星高动态多普勒频移补偿方法[J]. 信号处理, 2025, 41(8): 1413–1423. doi: 10.12466/xhcl.2025.08.010.LIN Yujie, YANG Ruolin, and YANG Kai. Doppler shift compensation methods for high-dynamic low-earth-orbit satellites[J]. Journal of Signal Processing, 2025, 41(8): 1413–1423. doi: 10.12466/xhcl.2025.08.010. [29] WU Tingwei, QU Dexin, and ZHANG Gengxin. Research on LoRa adaptability in the LEO satellites Internet of Things[C]. 2019 15th International Wireless Communications & Mobile Computing Conference, Tangier, Morocco, 2019: 131–135. doi: 10.1109/IWCMC.2019.8766462. [30] ROY A, NEMADE H B, and BHATTACHARJEE R. Symmetry chirp modulation waveform design for LEO satellite IoT communication[J]. IEEE Communications Letters, 2019, 23(10): 1836–1839. doi: 10.1109/LCOMM.2019.2933211. [31] FERRÉ G and BEN TEMIM M A. A dual waveform differential chirp spread spectrum transceiver for LEO satellite communications[C]. ICC 2021 - IEEE International Conference on Communications, Montreal, Canada, 2021: 1–6. doi: 10.1109/ICC42927.2021.9500934. [32] ZHOU Yixiao, LI Xuan, ZHAO Shanghong, et al. Photonic-aided Doppler-robust ISAC system based on index modulation and chirp multiplexing[J]. Optics Express, 2025, 33(17): 35059–35081. doi: 10.1364/OE.564416. [33] 中华人民共和国工业和信息化部. YD/T 2473-2013 卫星通信地球站设备 高功率放大器技术要求[S]. 北京: 人民邮电出版社, 2013: 6–7.Ministry of Industry and Information Technology of the People’s Republic of China. YD/T 2473-2013 High power amplifier for satellite communication earth station equipment technical requirement[S]. Beijing: Posts & Telecom Press, 2013: 6–7. -
