Near-Field Scattering Characteristics of Metallic Plate Targets by Multi-Mode Vortex Electromagnetic Waves
-
摘要: 携带相互正交的轨道角动量(OAM)的多模态涡旋电磁波由于其特殊的幅相特性在通信及雷达领域受到了广泛的关注研究。该文研究了金属目标在近场条件下的多模态涡旋波散射特性。首先，基于环形孔径辐射理论，构建多模态涡旋波入射场模型，利用物理光学法(PO)推导了理想导体圆板的近场散射场。其次定量分析了目标纵向距离、横向位移、几何特征及模态组合参数(起始模态、模态间隔、模态数量)对散射特性的调控规律，并计算了多模态近场涡旋雷达散射截面(NORCS)。研究结果表明相比平面波入射，多模态波束相干叠加后携带了更丰富的空间特征信息。目标对高阶模态能量的截获效率随传播距离增加显著下降；目标的横向位移会引发显著的模态谱串扰，但利用空间位置互补性，通过散射场的矢量叠加可实现目标原始散射特征的有效重构；目标几何形状在尺寸与主瓣相当时会对散射场产生精细调制，随着目标尺寸增大几何形状对散射场的调制作用逐渐减弱。理论计算与仿真结果吻合良好，主模态纯度偏差小于
0.0207 ，散射场幅度分布的均方根误差为0.054，验证了理论的准确性。该研究揭示了多模态涡旋波与目标的相互作用机理，可为未来多模态涡旋雷达系统的目标识别与成像设计提供理论支撑。Abstract: Multimode vortex electromagnetic waves, which carry mutually orthogonal orbital angular momentum (OAM), have attracted extensive research interest in communications and radar systems due to their unique amplitude and phase characteristics. This study investigates the near-field scattering characteristics of metallic plate targets under the incidence of multimode vortex electromagnetic waves. First, an incidence model for multimode vortex waves is constructed based on annular aperture radiation theory, and the near-field scattering field of a perfect electric conductor circular plate is derived using the physical optics method. Subsequently, the effects of target longitudinal distance, transverse displacement, geometric features, and mode combination parameters (initial mode, mode interval, and number of modes) on the scattering characteristics are quantitatively analyzed, and the multimode near-field OAM radar cross section is calculated. The research results demonstrate that compared to plane wave incidence, the coherent superposition of multimode beams provides richer spatial feature information. The target’s efficiency in intercepting high-order mode energy significantly decreases with increasing propagation distance. Although the transverse displacement of the target induces substantial mode spectrum crosstalk, the original scattering features can be effectively reconstructed through vector superposition of scattering fields at symmetrical positions by exploiting spatial complementarity. Furthermore, the geometric shape of the target produces fine modulation on the scattering field when its size is comparable to that of the main lobe, and this modulation effect gradually diminishes as the target size increases. The theoretical calculations closely align with the simulation results, showing a main mode purity deviation of less than0.0207 and a root mean square error of 0.054 in the scattering field amplitude distribution, thus verifying the accuracy of the theory. This study reveals the interaction mechanism between multimode vortex waves and targets, providing theoretical support for target recognition and imaging system design in future multimode vortex radar systems. -

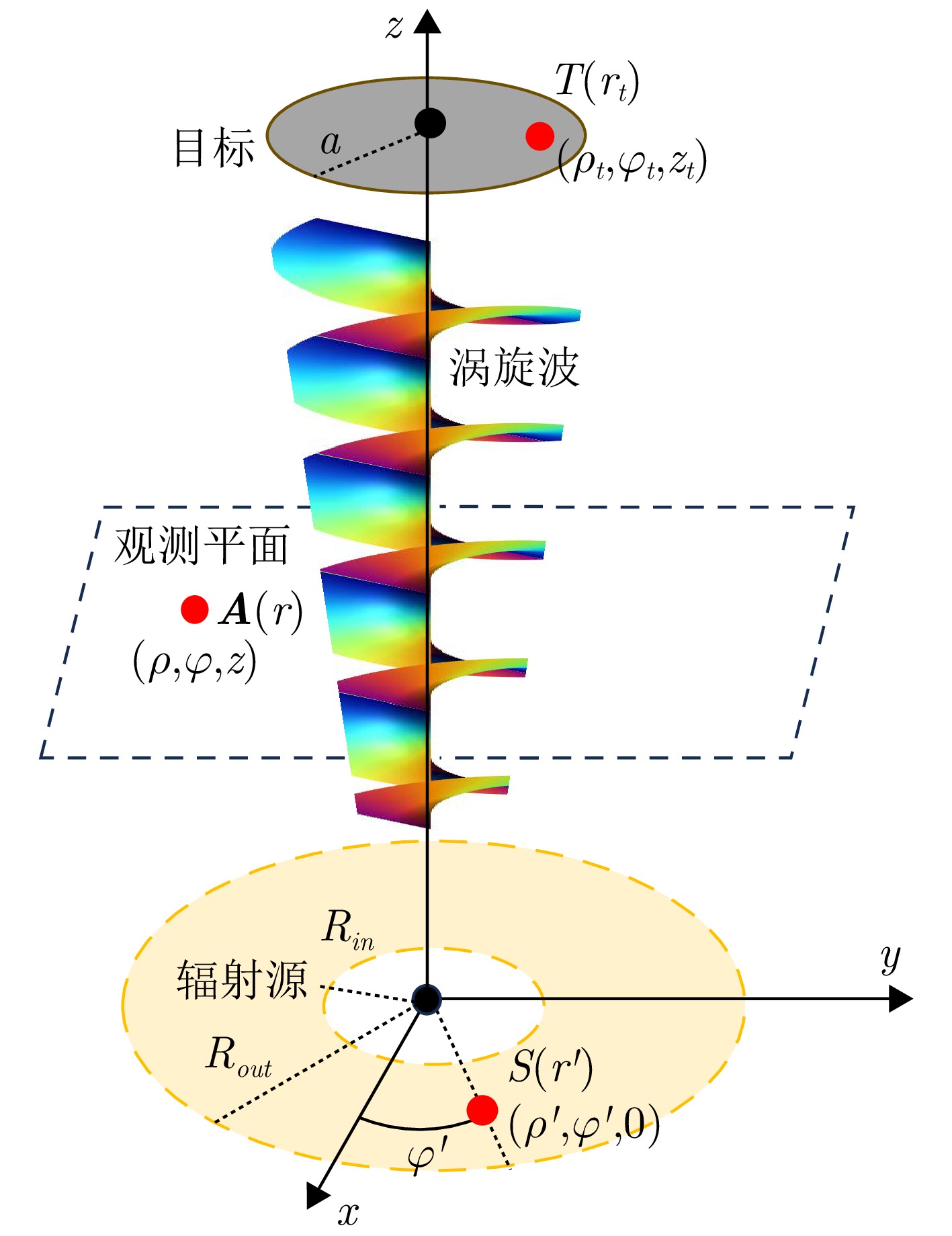

图 1 多模态涡旋波辐射模型示意图
Figure 1. Schematic diagram of multi-mode vortex electromagnetic waves radiation model

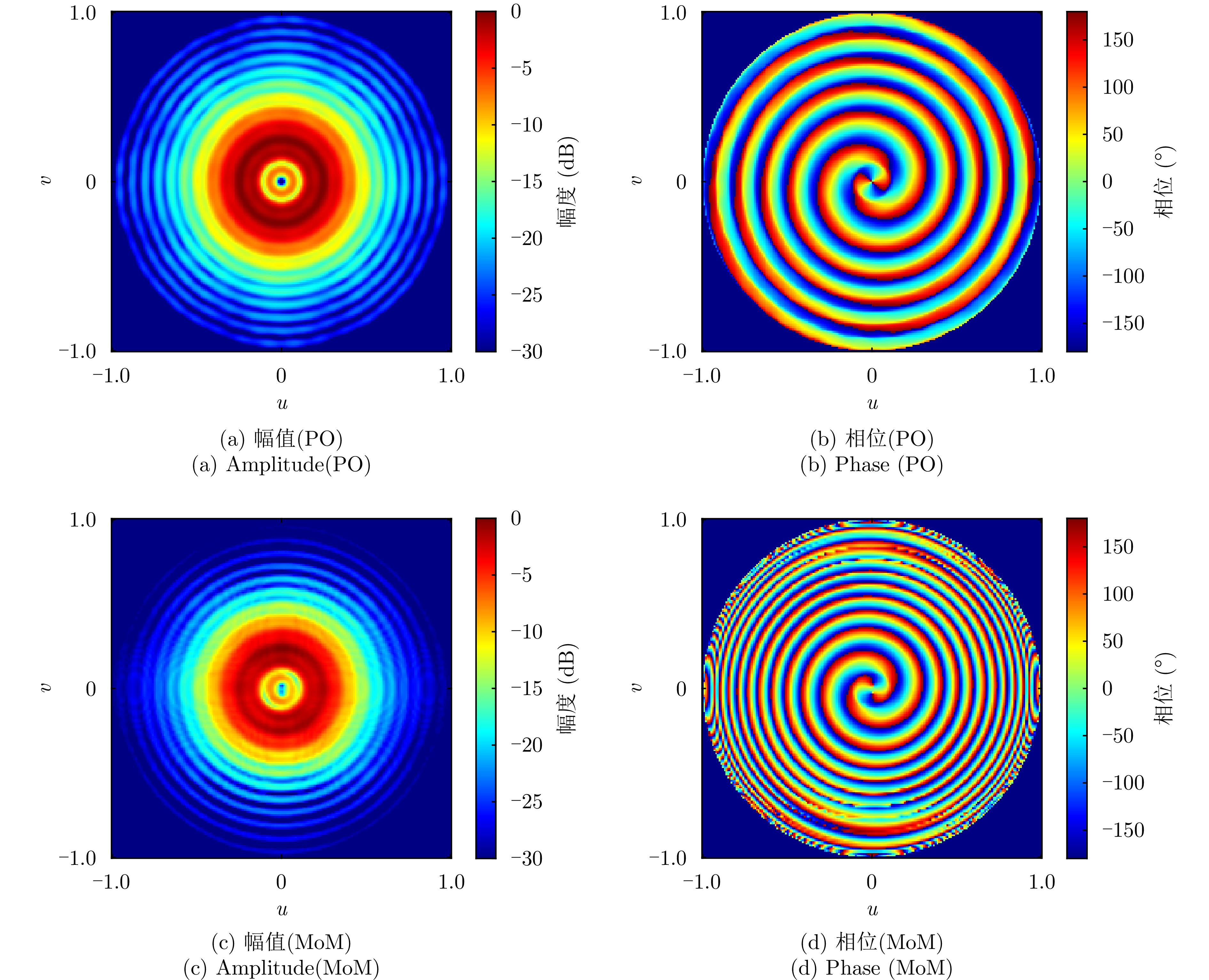

图 2 物理光学法与矩量法计算得到的理想导体圆板散射场对比验证
Figure 2. Validation of the scattered fields from a perfectly conducting circular plate calculated by the PO method and the MoM

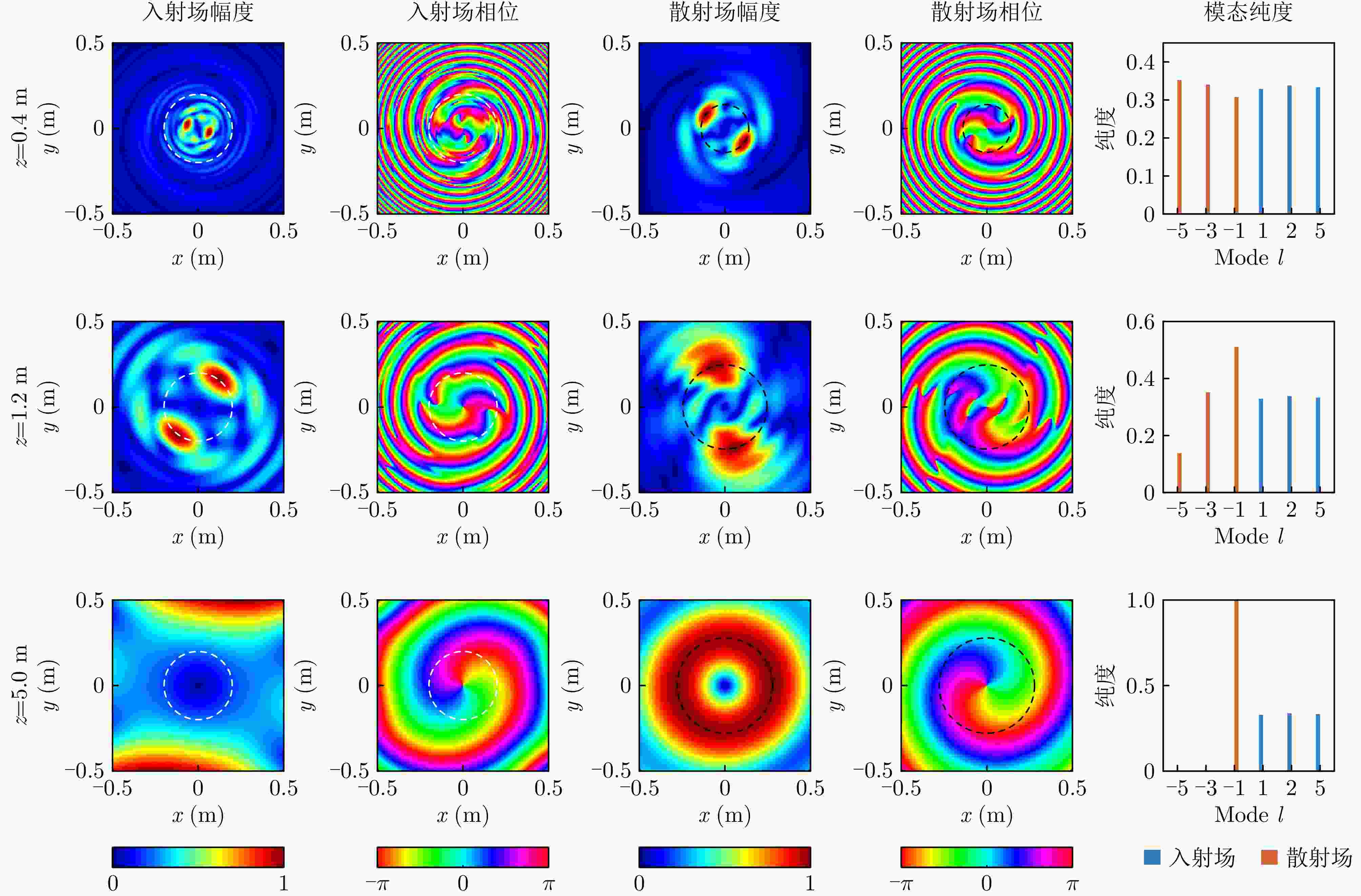

图 3 不同纵向距离下多模态涡旋波入射场与散射场的幅相分布及模态纯度特性
Figure 3. Amplitude-phase distributions and mode purity characteristics of the incident and scattered fields for multi-mode vortex waves at different longitudinal distances.
图 4 不同横向位移下多模态涡旋波入射场与散射场的幅相分布及模态纯度
Figure 4. Amplitude-phase distributions and mode purity reconstruction characteristics of incident and scattered fields for multi-mode vortex waves under different lateral displacements.
图 5 目标几何特征对近场散射的影响
Figure 5. Comparison of target geometric features on near-field scattering characteristics.
图 6 不同模态组合散射场幅度分布图
Figure 6. Amplitude distribution of scattering fields from different mode combinations
图 7 不同模态组合散射场纯度谱
Figure 7. Purity spectrum of the scattered field from different mode combinations
表 1 多模态涡旋波辐射源参数设置
Table 1. Parameters of the multi-mode vortex wave radiation source
涡旋波模态 $ R_{\mathrm{in}} $(mm) $ R_{\text {out }} $(mm) 发散角(°) 1 11 64 10.00 3 104 126 9.82 5 169 186 9.78
下载: 导出CSV
-
[1] ALLEN L, BEIJERSBERGEN M W, SPREEUW R J C, et al. Orbital angular momentum of light and the transformation of Laguerre-Gaussian laser modes[J]. Physical Review A, 1992, 45(11): 8185–8189. doi: 10.1103/PhysRevA.45.8185. [2] LI Nan, ZHENG Shilie, YANG Hang, et al. A broadband dual-polarized reflective metasurface for THz OAM communication[J]. IEEE Transactions on Microwave Theory and Techniques, 2024, 72(2): 1302–1311. doi: 10.1109/TMTT.2023.3300193. [3] YANG Hang, ZHENG Shilie, ZHANG Hongqi, et al. Metasurface-based high-speed photonic THz OAM communication system[J]. Journal of Lightwave Technology, 2024, 42(15): 5080–5087. doi: 10.1109/JLT.2024.3384477. [4] ZHAO Yufei, MA Xiaoyan, GUAN Yongliang, et al. Near-orthogonal overlay communications in LoS channel enabled by novel OAM beams without central energy voids: An experimental study[J]. IEEE Internet of Things Journal, 2024, 11(24): 39697–39708. doi: 10.1109/JIOT.2024.3449975. [5] WANG Jianqiu, LIU Kang, WANG Yu, et al. A novel forward-looking target reconstruction method with electromagnetic vortex interferometry[J]. IEEE Transactions on Microwave Theory and Techniques, 2023, 71(12): 5428–5444. doi: 10.1109/TMTT.2023.3278947. [6] TAN Zhengkuan, LIU Kang, LIU Hongyan, et al. Object location estimation method with radar transmitting vortex electromagnetic wave[J]. IEEE Transactions on Antennas and Propagation, 2025, 73(12): 10748–10756. doi: 10.1109/TAP.2025.3611297. [7] LIU Kang, LIU Hongyan, LI Shuangxun, et al. Three-dimensional object imaging with vortex wave tomography[J]. Optics Express, 2025, 33(10): 20798–20806. doi: 10.1364/OE.563860. [8] LI Zhixiang, RUAN Yaping, CHEN Peng, et al. Liquid crystal devices for vector vortex beams manipulation and quantum information applications [Invited][J]. Chinese Optics Letters, 2021, 19(11): 112601. doi: 10.3788/COL202119.112601. [9] LIU Kang, GAO Yue, LI Xiang, et al. Target scattering characteristics for OAM-based radar[J]. AIP Advances, 2018, 8(2): 025002. doi: 10.1063/1.5018833. [10] ASIF M, ARFAN M, KHALEEL N, et al. Scattering from a perfect electromagnetic conductor (PEMC) sphere using Gaussian vortex beam[J]. Optical and Quantum Electronics, 2024, 56(9): 1474. doi: 10.1007/s11082-024-07379-3. [11] ZHANG Xiaoxiao, SU Xiang, WU Zhensen, et al. Analysis of electromagnetic scattering from typical targets for orbital-angular-momentum waves: Theoretical model[J]. IET Microwaves, Antennas & Propagation, 2022, 16(11): 699–708. doi: 10.1049/mia2.12284. [12] LIU Kang, LIU Hongyan, SHA W E I, et al. Backward scattering of electrically large standard objects illuminated by OAM beams[J]. IEEE Antennas and Wireless Propagation Letters, 2020, 19(7): 1167–1171. doi: 10.1109/LAWP.2020.2993687. [13] SUN Minghao, LIU Songhua, GUO Lixin, et al. Scattering characteristics of electrically large arbitrarily shaped targets illuminated by an off-axis vortex electromagnetic beam[J]. Journal of Applied Physics, 2023, 133(12): 124905. doi: 10.1063/5.0136564. [14] TANG Bo, BAO Jian, and SHENG Xinqing. Orbital-angular-momentum-carrying wave scattering by the chaff clouds[J]. IET Radar, Sonar & Navigation, 2018, 12(6): 649–653. doi: 10.1049/iet-rsn.2017.0502. [15] 王建秋, 刘康, 王煜, 等. 涡旋电磁波雷达成像分辨力研究[J]. 雷达学报, 2021, 10(5): 680–690. doi: 10.12000/JR21054.WANG Jianqiu, LIU Kang, WANG Yu, et al. Resolution analysis of vortex electromagnetic radar imaging[J]. Journal of Radars, 2021, 10(5): 680–690. doi: 10.12000/JR21054. [16] 陈鑫淼, 李海英, 吴涛, 等. 金属目标对贝塞尔涡旋波束的近场电磁散射特性[J]. 物理学报, 2023, 72(10): 100302. doi: 10.7498/aps.72.20222192.CHEN Xinmiao, LI Haiying, WU Tao, et al. Near-field electromagnetic scattering of Bessel vortex beam by metal target[J]. Acta Physica Sinica, 2023, 72(10): 100302. doi: 10.7498/aps.72.20222192. [17] ZHANG Xianmin, ZHENG Shilie, XIONG Xiaowen, et al. Structured beamforming based on orbital angular momentum mode-group[J]. Journal of Lightwave Technology, 2023, 41(7): 1997–2006. doi: 10.1109/JLT.2022.3215211. [18] WANG Zhixia, ZHANG Shilie, XIONG Xiaowen, et al. Structure radio beam construction in azimuthal domain[J]. IEEE Access, 2020, 8: 9395–9402. doi: 10.1109/ACCESS.2020.2964833. [19] YANG Lingjun, SUN Sheng, and SHA W E I. Manipulation of orbital angular momentum spectrum using shape-tailored metasurfaces[J]. Advanced Optical Materials, 2021, 9(2): 2001711. doi: 10.1002/adom.202001711. [20] WANG Yelong, QI Feng, LIU Yang, et al. Enhanced vortex phase imaging for millimeter-wave focal plane system[J]. IEEE Transactions on Microwave Theory and Techniques, 2025, 73(10): 7289–7300. doi: 10.1109/TMTT.2025.3576938. [21] 林存坤, 张小宽, 吴盛源. 目标近场RCS对引战配合特性的影响研究[C]. 2015年全国微波毫米波会议论文集, 合肥, 2015: 356–359.LIN Cunkun, ZHANG Xiaokuan, and WU Shengyuan. Research on influence of target near-field RCS on fuze warhead matching specific[C]. 2015 National Conference on Microwave and Millimeter Wave, Hefei, China, 2015: 356–359. [22] 张颖, 刘伟, 时卫莉, 等. 基于天线方向图与近场SBR的海面舰船复合散射研究[J]. 电波科学学报, 2022, 37(1): 1–7. doi: 10.12265/j.cjors.2020170.ZHANG Ying, LIU Wei, SHI Weili, et al. Composite scattering from sea and ship based on antenna pattern and near field SBR[J]. Chinese Journal of Radio Science, 2022, 37(1): 1–7. doi: 10.12265/j.cjors.2020170. [23] ZHAO Yufei, GUAN Yongliang, CHEN Dong, et al. Exploring RCS diversity with novel OAM beams without energy void: An experimental study[J]. IEEE Transactions on Vehicular Technology, 2025, 74(5): 8321–8326. doi: 10.1109/TVT.2024.3522296. [24] MALLIKHARJUNA REDDY Y and RATNA KUMARI U V. 3D printable PLA spiral phase plate with horn feed for OAM beam generation for 6G communication[J]. International Journal of Information Technology, 2024, 16(4): 2123–2128. doi: 10.1007/s41870-024-01764-7. [25] ZHAO Wanglong, YU Shixing, and KOU Na. Stable divergence angle control of OAM vortex beams with different modes[J]. Physics Letters A, 2025, 541: 130428. doi: 10.1016/j.physleta.2025.130428. [26] WANG Cicheng, YANG Yuejie, WANG Yang, et al. Wideband dual-mode vortex wave metasurface based on distance inversion method[J]. IEEE Transactions on Antennas and Propagation, 2024, 72(12): 9401–9410. doi: 10.1109/TAP.2024.3470229. [27] 黄培康, 殷红成, 许小剑. 雷达目标特性[M]. 北京: 电子工业出版社, 2005: 9–62.HUANG Peikang, YIN Hongcheng, and XU Xiaojian. Radar Target Characteristics[M]. Beijing: Publishing House of Electronics Industry, 2005: 9–62. [28] STRATTON J A and CHU L J. Diffraction theory of electromagnetic waves[J]. Physical Review, 1939, 56(1): 99–107. doi: 10.1103/PhysRev.56.99. [29] YAO E, FRANKE-ARNOLD S, COURTIAL J, et al. Fourier relationship between angular position and optical orbital angular momentum[J]. Optics Express, 2006, 14(20): 9071–9076. doi: 10.1364/OE.14.009071. [30] 孟祥帅. 基于人工电磁超表面涡旋电磁波产生及目标近场散射[D]. [博士论文], 西安电子科技大学, 2019: 145–175. doi: 10.27389/d.cnki.gxadu.2019.003154.MENG Xiangshuai. Electromagnetic vortex wave generation and target near-field scattering based on artificial electromagnetic metasurface[D]. [Ph.D. dissertation], Xidian University, 2019: 145–175. doi: 10.27389/d.cnki.gxadu.2019.003154. -
