Knowledge Transfer Method for Vision–Language Models for Processing Synthetic Aperture Radar Images
-
摘要: 基于海量图文数据预训练的大规模视觉语言模型(VLM)在自然图像领域表现出色,但将其迁移至合成孔径雷达(SAR)图像领域面临两大挑战:一是SAR图像高质量文本标注成本高昂,限制了SAR图文配对数据集的构建;二是SAR图像与光学自然图像在视觉特性上存在显著差异,增加了跨域知识迁移难度。针对上述问题,该文提出一种面向SAR图像的视觉语言大模型知识迁移方法。首先,利用配对的SAR与光学遥感图像,借助生成式视觉语言大模型为光学遥感图像自动生成文本描述,从而以较低成本间接构建了SAR图文配对数据集。其次,设计了两阶段迁移策略,将自然图像领域向SAR图像领域的大跨度迁移进行拆解,降低单次迁移难度。最后,在SAR图像零样本场景分类、检索以及目标识别任务上进行实验验证,实验结果表明所提方法能够有效实现视觉语言大模型向SAR图像领域的知识迁移。
-
关键词:
- 视觉语言模型(VLM) /
- 合成孔径雷达(SAR) /
- 知识迁移 /
- 自动文本生成 /
- 两阶段迁移策略

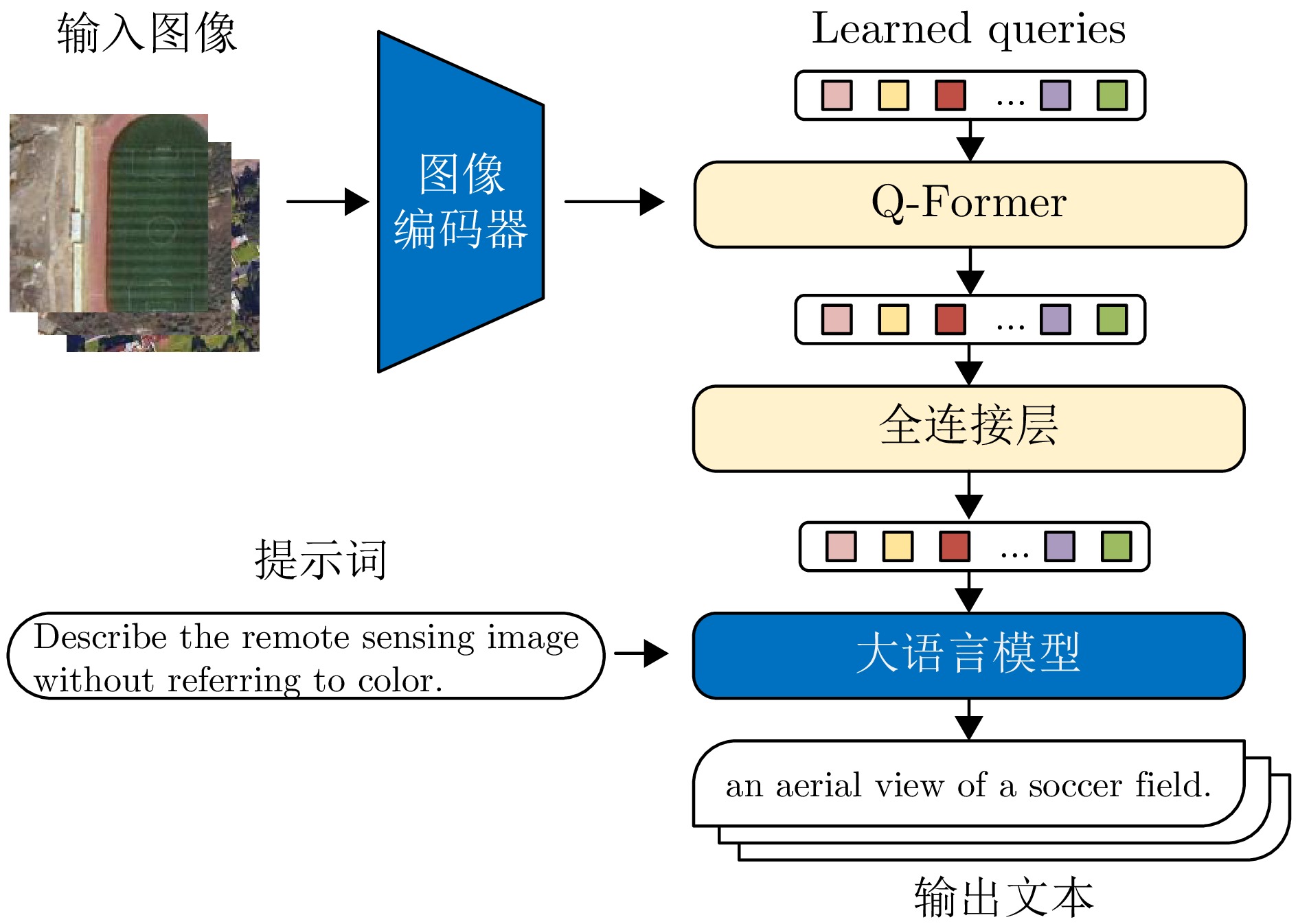

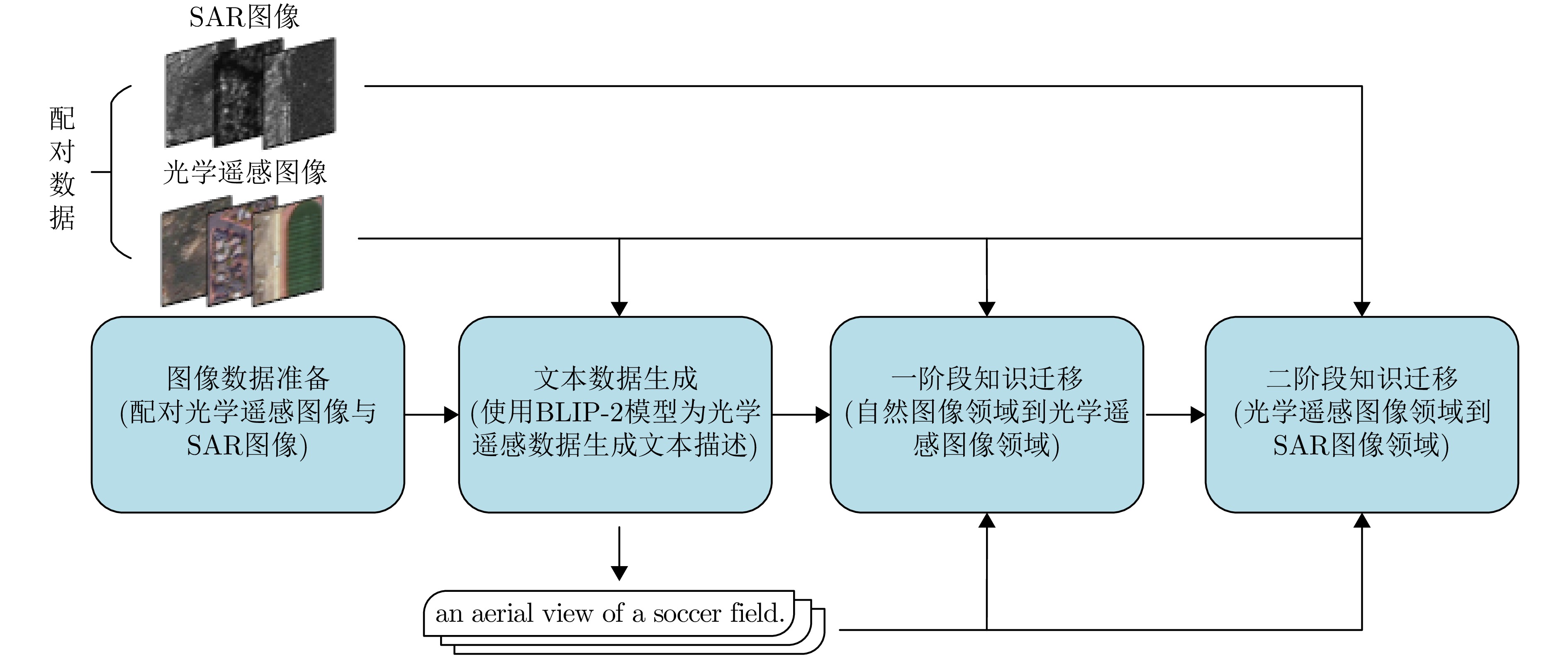

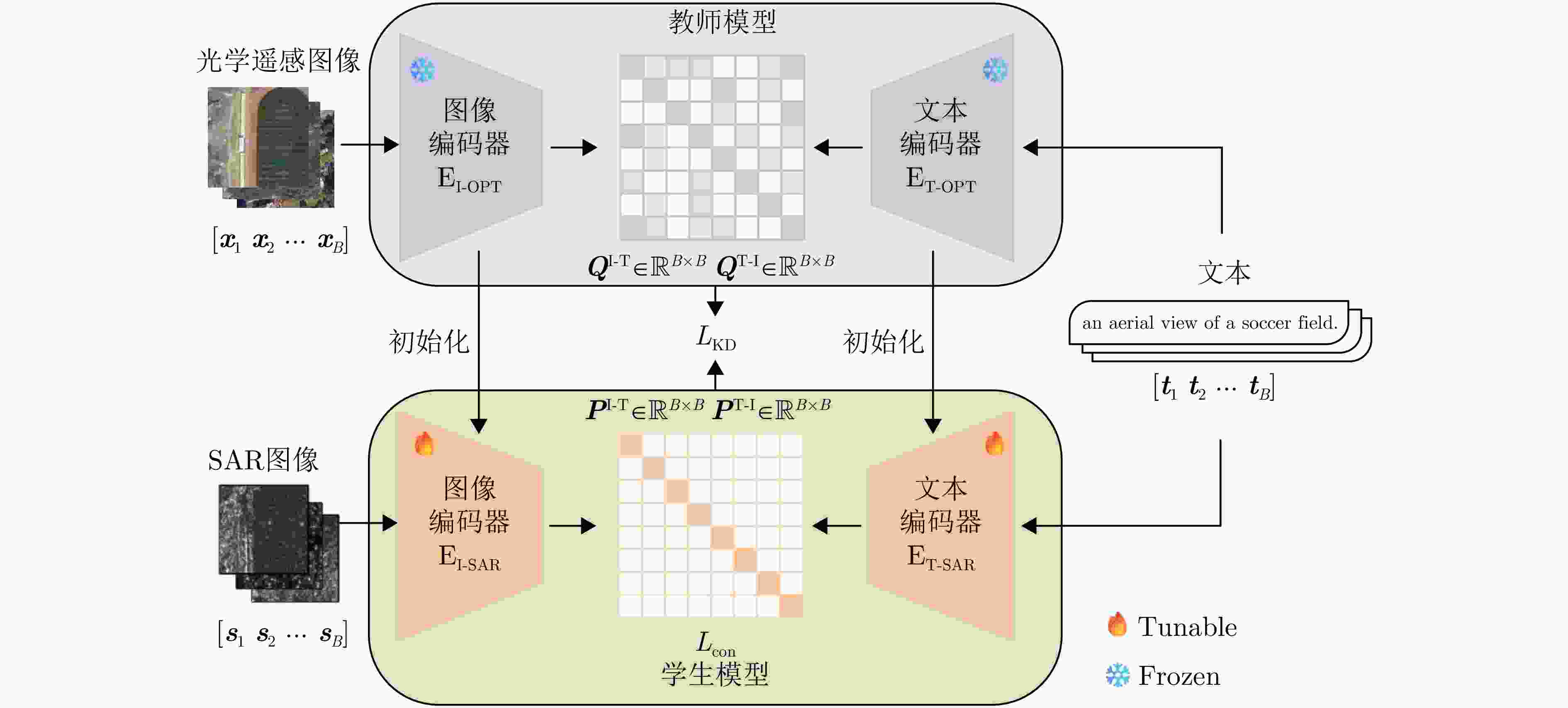

Abstract: A large-scale vision–language model (VLM) pre-trained on massive image–text datasets performs well when processing natural images. However, there are two major challenges in applying it to synthetic aperture radar (SAR) images: (1) the high cost of high-quality text annotation limits the construction of SAR image–text paired datasets, and (2) the considerable differences in visual characteristics between SAR images and optical natural images increase the difficulty of cross-domain knowledge transfer. To address these problems, this study developed a knowledge transfer method for VLM tailored to SAR images. First, this study leveraged paired SAR and optical remote sensing images and employed a generative VLM to automatically produce textual descriptions of the optical images, thereby indirectly constructing a low-cost SAR–text paired dataset. Second, a two-stage transfer strategy was designed to address the large domain discrepancy between natural and SAR images, reducing the difficulty of each transfer stage. Finally, experimental validation was conducted through the zero-shot scene classification, image retrieval, and object recognition of SAR images. The results demonstrated that the proposed method enables effective knowledge transfer from a large-scale VLM to the SAR image domain. -
表 1 用于知识迁移的QXS-SAROPT数据集和WHU-OPT-SAR数据集的具体信息
Table 1. The detailed information of QXS-SAROPT dataset and WHU-OPT-SAR dataset used for knowledge transfer
数据集名称 图像模态 图像尺寸(像素) 空间分辨率(m) 图像数量 获取平台 波段 QXS-SAROPT 光学遥感图像 $ 256\times 256 $ 1 20000 Google Earth - SAR图像 $ 256\times 256 $ 1 20000 Ganfen-3 C WHU-OPT-SAR 光学遥感图像 $ 5556\times 3704 $ 5 100 Gaofen-1 - SAR图像 $ 5556\times 3704 $ 5 100 Gaofen-3 C 表 2 用于实验验证的MRSSC数据集、SARBuD1.0数据集和MSTAR数据集的具体信息

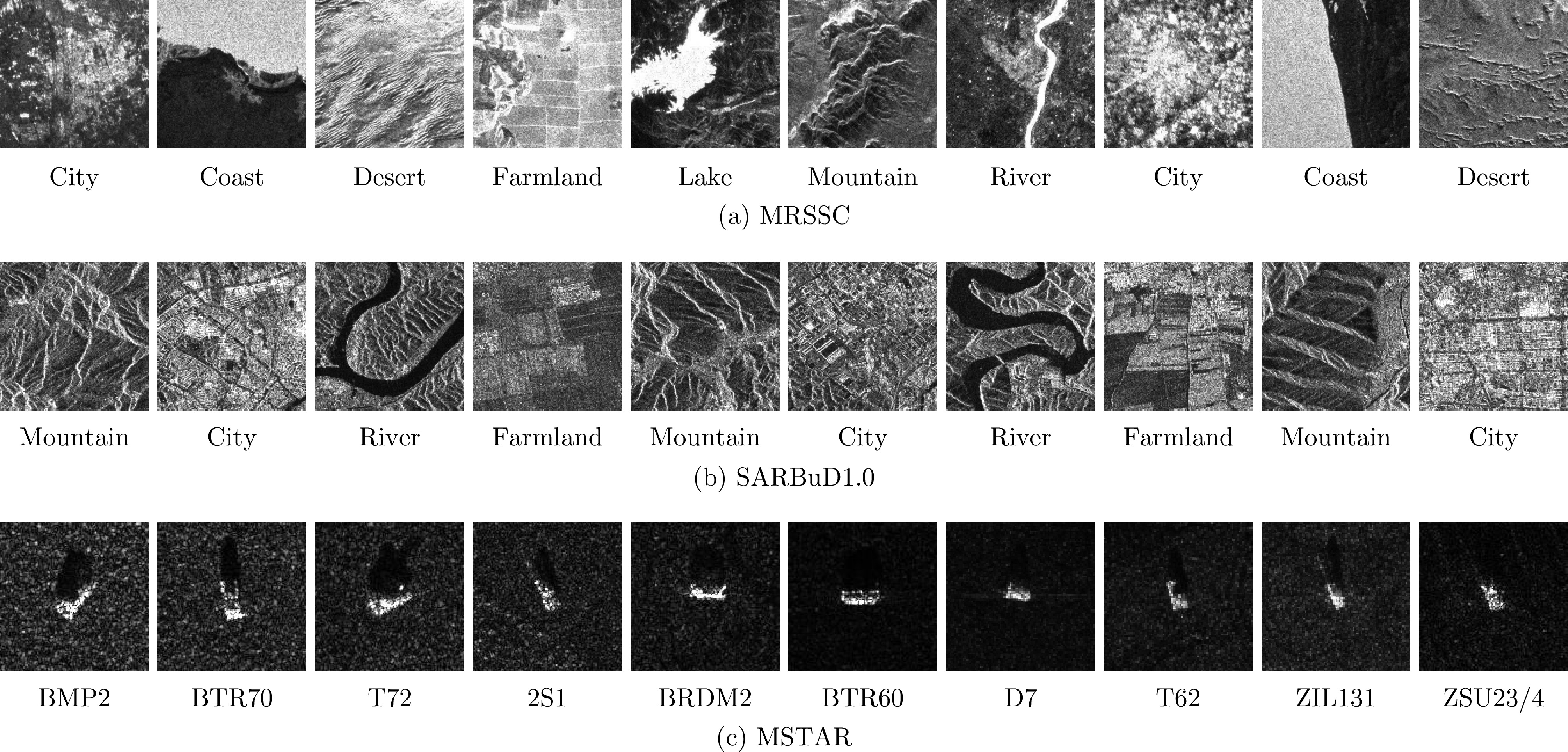

Table 2. The detailed information of MRSSC dataset, SARBuD1.0 dataset and MSTAR dataset used for experimental verification
数据集名称 图像模态 图像尺寸(像素) 空间分辨率(m) 类别数量 图像数量 获取平台 波段 MRSSC SAR图像 $ 256\times 256 $ 40 7 5199 Tiangong-2 Ku SARBuD1.0 SAR图像 $ 256\times 256 $ 10 4 1150 Gaofen-3 C MSTAR SAR图像 $ 128\times 128 $ 0.3 10 2425 - X 表 3 SAR图像零样本场景分类实验结果
Table 3. Experimental results of zero-shot scene classification for SAR images
模型 零样本场景分类PCC MRSSC(SAR) SARBuD1.0(SAR) CLIP 36.66% 49.62% CLIP-Finetune 71.35% 76.48% RemoteCLIP 61.16% 74.56% GeoRSCLIP 64.95% 72.38% 两阶段知识迁移后的CLIP模型 75.80% 82.60% 注:表内加粗数值表示最优结果。 表 4 SAR图像检索实验结果

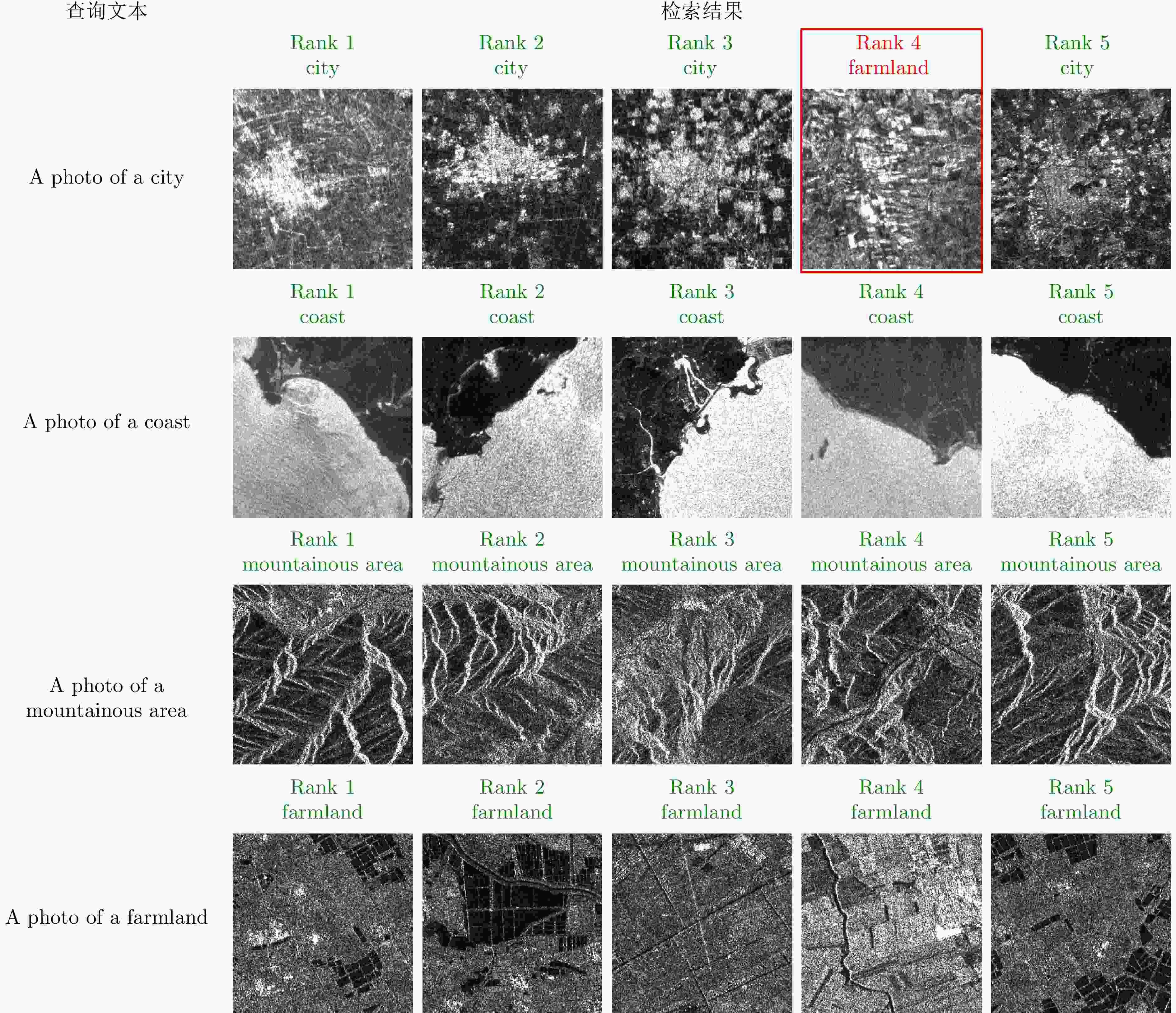

Table 4. Experimental results of SAR image retrieval
模型 MRSSC SARBuD1.0 mAP mAP@5 mAP@10 mAP mAP@5 mAP@10 CLIP 40.22% 56.33% 53.00% 40.33% 29.33% 29.53% CLIP-Finetune 61.41% 66.19% 67.89% 75.84% 77.50% 78.15% RemoteCLIP 56.69% 70.29% 65.22% 74.78% 76.25% 78.51% GeoRSCLIP 64.57% 67.48% 65.18% 75.49% 77.50% 74.00% 两阶段知识迁移后的CLIP模型 67.88% 93.71% 86.75% 81.39% 94.00% 89.38% 注:表内加粗数值表示最优结果。 表 5 SAR目标识别实验结果
Table 5. Experimental results of SAR target recognition
模型 目标识别PCC 10%训练
样本30%训练
样本100%训练
样本CLIP-Adapter 78.42% 87.84% 93.86% Tip-Adapter 75.13% 82.80% 87.30% SAR-JEPA 81.23% 94.88% 96.45% CLIP 83.75% 94.30% 98.80% CLIP-Finetune 88.49% 95.63% 99.18% RemoteCLIP 88.29% 95.84% 99.22% GeoRSCLIP 88.70% 96.16% 99.46% 两阶段知识迁移后的CLIP模型 90.39% 96.78% 99.59% 注:表内加粗数值表示最优结果。 表 6 批尺寸对CLIP模型迁移效果的影响
Table 6. Effects of batch size on CLIP model knowledge transfer performance
批尺寸 PCC 32 73.7% 64 75.2% 128 75.8% 256 73.3% 注:表内加粗数值表示最优结果。 表 7 权重$ \lambda $对CLIP模型迁移效果的影响
Table 7. Effects of weighting coefficient $ \lambda $ on CLIP model knowledge transfer performance
权重$ \lambda $ PCC 0 69.2% 0.5 74.8% 1.0 75.3% 1.5 75.4% 2.0 75.6% 2.5 75.8% 3.0 74.6% 注:表内加粗数值表示最优结果。 表 8 两阶段知识迁移策略的消融实验结果
Table 8. Ablation study results of the two-stage knowledge transfer
一阶段知识迁移 二阶段知识迁移 PCC 36.66% √ 48.48% √ 72.31% √ √ 75.80% 注:表内加粗数值表示最优结果。 表 9 软标签蒸馏策略的消融实验结果
Table 9. Ablation study results of the soft-label distillation
PCC $ {L}_{\mathrm{con}} $ 69.21% $ {L}_{\mathrm{con}}+\lambda \cdot {L}_{\mathrm{KD}} $ 75.80% 注:表内加粗数值表示最优结果。 -
