An Active Jammer-based Adversarial Attack Method Against SAR Automatic Target Recognition
-
摘要: 合理利用SAR对抗样本可以使得特定目标在智能探测技术下实现遥感隐身，从而避免被敌方探测或识别。数字域的SAR对抗方法仅在图像域进行攻击，缺乏物理可实现性，现有物理域对抗方法通过在目标周围布置角反射器、超表面，借助电磁计算模拟对抗样本，但由于散射估计精度低，实际保护效能受限。为解决上述问题，该文将SAR有源干扰技术与对抗攻击方法相结合，提出了基于有源干扰机的SAR智能识别对抗方法，在信号域扰动目标回波信号以生成对抗样本。首先，选择基于余弦幅度加权的多相位分段调制干扰技术，通过扰动分量的设计，实现对抗扰动信号的参数化控制；然后，基于SAR成像链路，将有源干扰机生成的对抗扰动信号与目标的回波信号融合，经成像处理得到具有物理意义的SAR对抗样本；最后，引入差分进化算法，动态调整多相位分段调制干扰的能量分布与空间覆盖范围等参数，进而优化SAR对抗样本，在干扰强度较小的情况下取得最佳攻击成功率。实验结果表明，所提方法在MSTAR数据集上实现平均90.88%的攻击成功率，并对5种SAR ATR模型具有较强的可转移性，其中最高可达75.57%。该方法实现了更具物理可实现性的对抗样本生成，为遥感探测中特定目标的安全防护开辟新的解决思路，并为真实场景下有源干扰信号的应用提供智能化指导。Abstract: The effective utilization of Synthetic Aperture Radar (SAR) adversarial examples enables specific targets to achieve remote sensing stealth against intelligent detection systems, thereby evading detection and recognition by adversaries. Digital domain SAR adversarial methods, which operate exclusively in the image domain, produce adversarial images that are not physically realizable and therefore cannot generated by real SAR imaging systems. Existing physical domain approaches typically involve deploying corner reflectors or electromagnetic metasurfaces around targets and simulating adversarial examples using via computational electromagnetics. However, the limited accuracy of scattering estimation often constrains the practical protective efficacy of these methods. To overcome these limitations, this paper proposes an active jammer-based adversarial attack method that integrates SAR active jamming technology with adversarial attack methods to generate adversarial examples by perturbing the target’s echo signals in the signal domain. First, a multiple-phase sectionalized modulation jamming method based on cosine amplitude weighting is selected, enabling parameterized control of the adversarial jamming signal through the design of perturbation components. Next, the adversarial jamming signal generated by the active jammer is fused with the target’s echo signal according to the principles and actual processes of SAR imaging and is then subjected to imaging processing to produce physically realizable SAR adversarial examples. Finally, the differential evolution algorithm is employed to dynamically adjust parameters, such as the energy distribution and jamming range of the adversarial jamming signal, thereby optimizing the SAR adversarial examples to achieve optimal attack success rates even with minimal interference intensity. Experimental results on the MSTAR dataset, a widely used benchmark in the field of SAR Automatic Target Recognition (ATR), show that the proposed method achieves an average fooling rate of 90.88% and demonstrates superior transferability across five different SAR ATR models, with the highest transfer fooling rate reaching 75.57%. Overall, the proposed method generates more physically realizable adversarial examples compared with existing digital domain methods, effectively protecting specific targets in remote sensing detection and providing guidance for the practical application of active jamming signals in real-world scenarios.
-

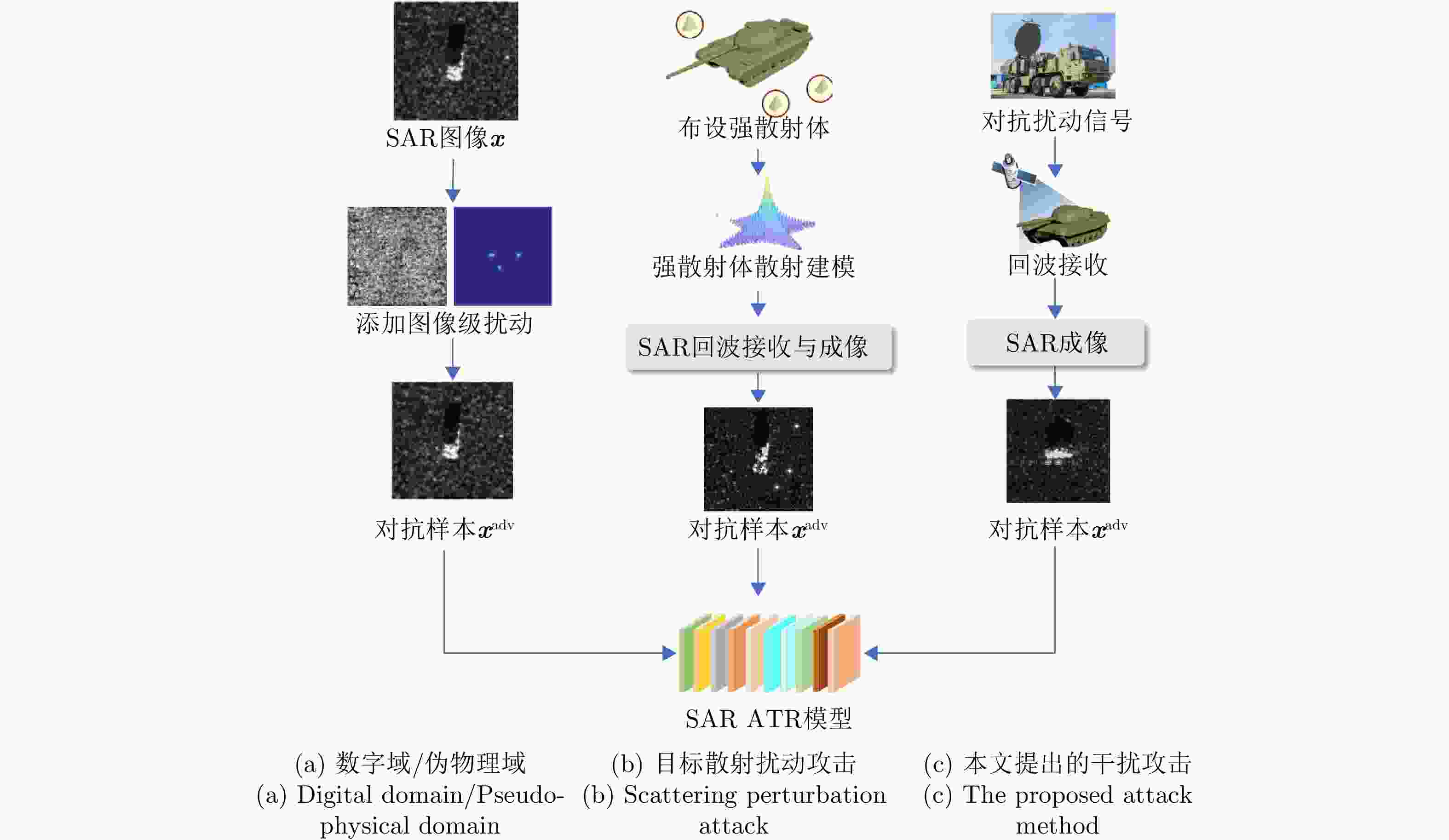

图 1 不同的SAR图像对抗攻击方法攻击流程
Figure 1. Attack flows of different SAR adversarial attack methods

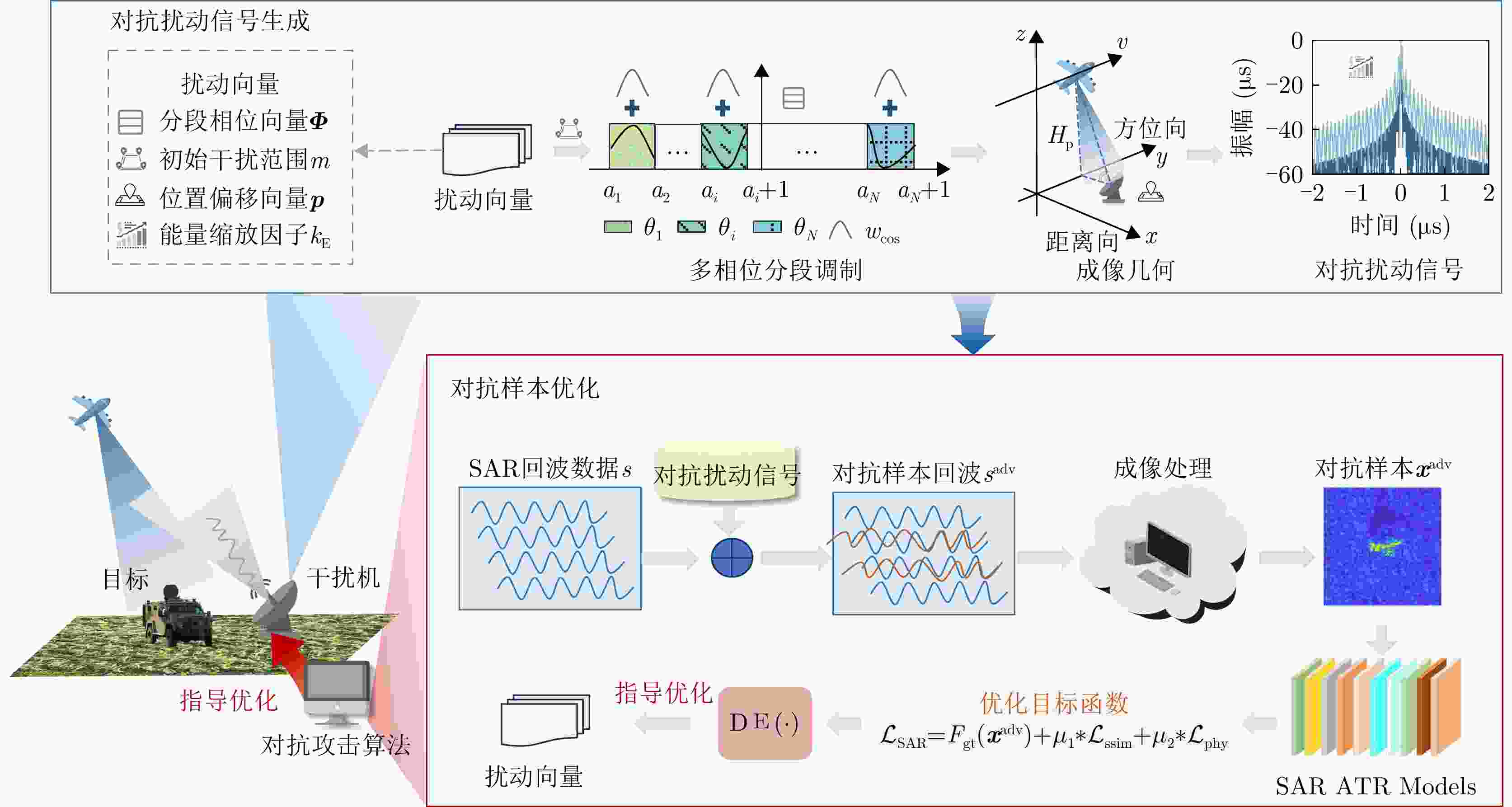

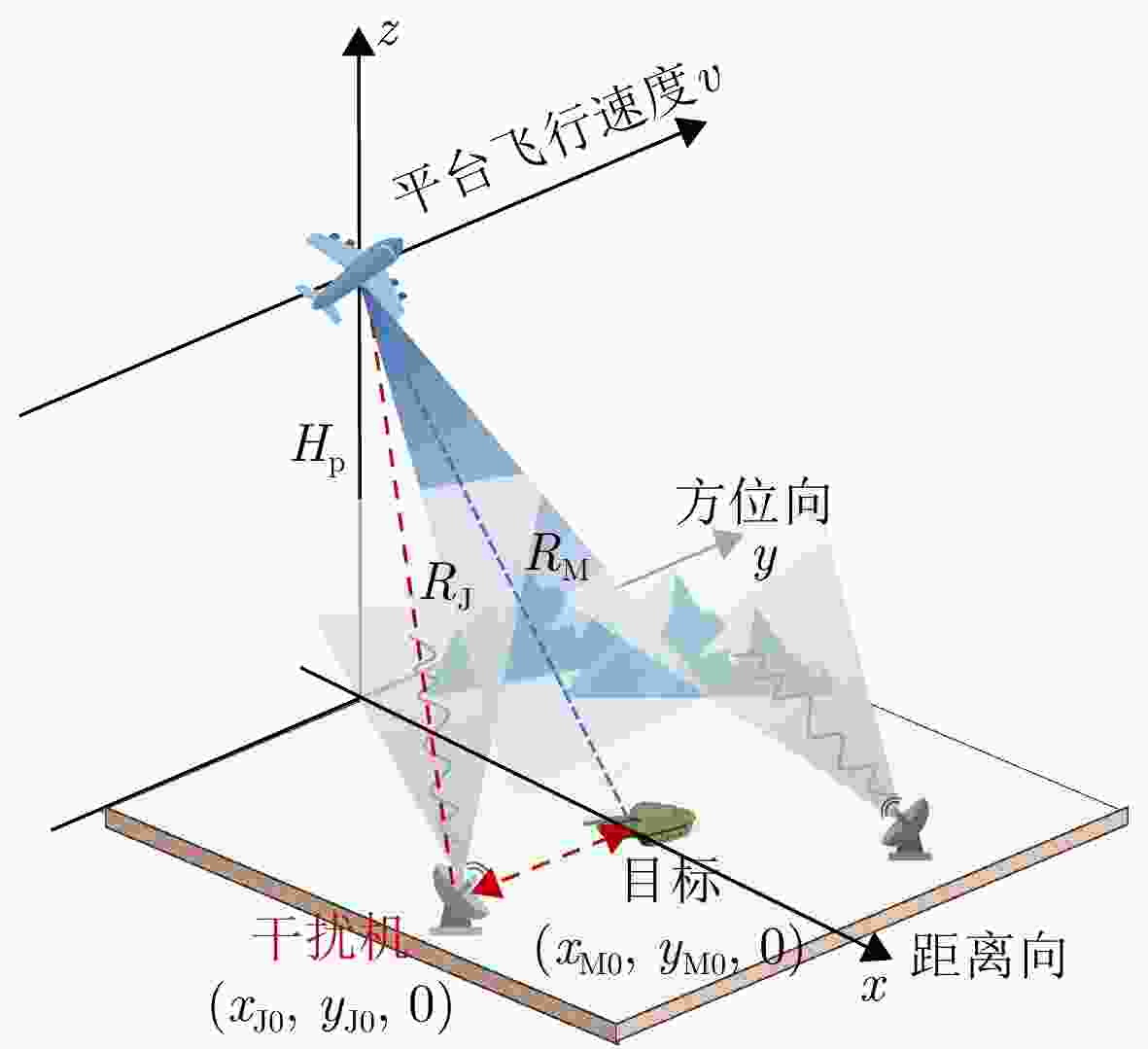

图 3 SAR系统及有源干扰机的工作原理与几何关系示意图
Figure 3. Schematic of the working principle and geometric relationship for SAR system and active jammer

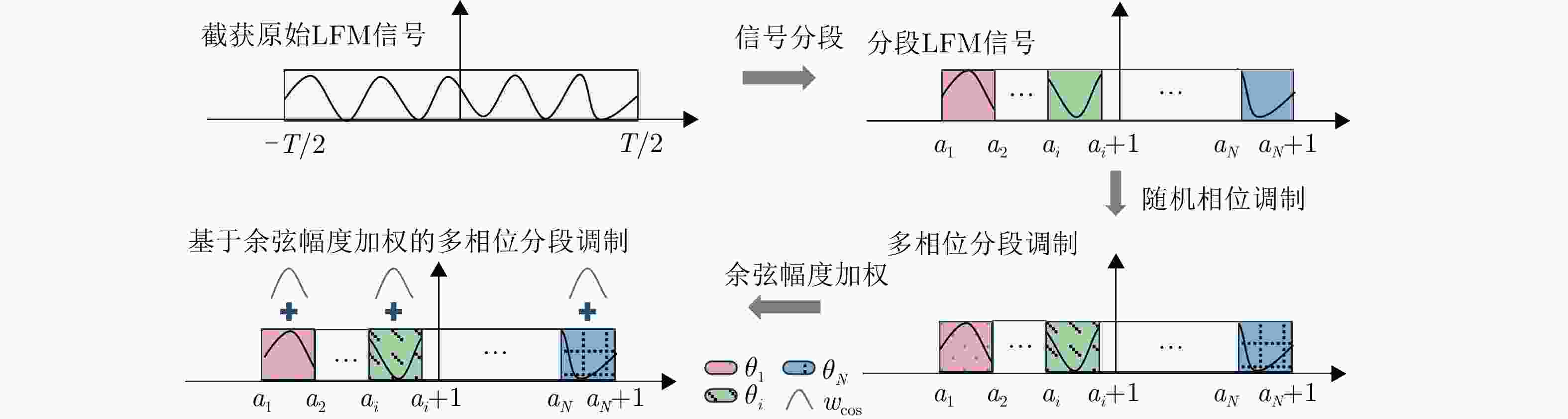

图 4 基于余弦幅度加权的多相位分段调制扰动信号生成示意图
Figure 4. Schematic of the generation of a multiple phase sectionalized modulation jamming signal based on cosine amplitude weighting

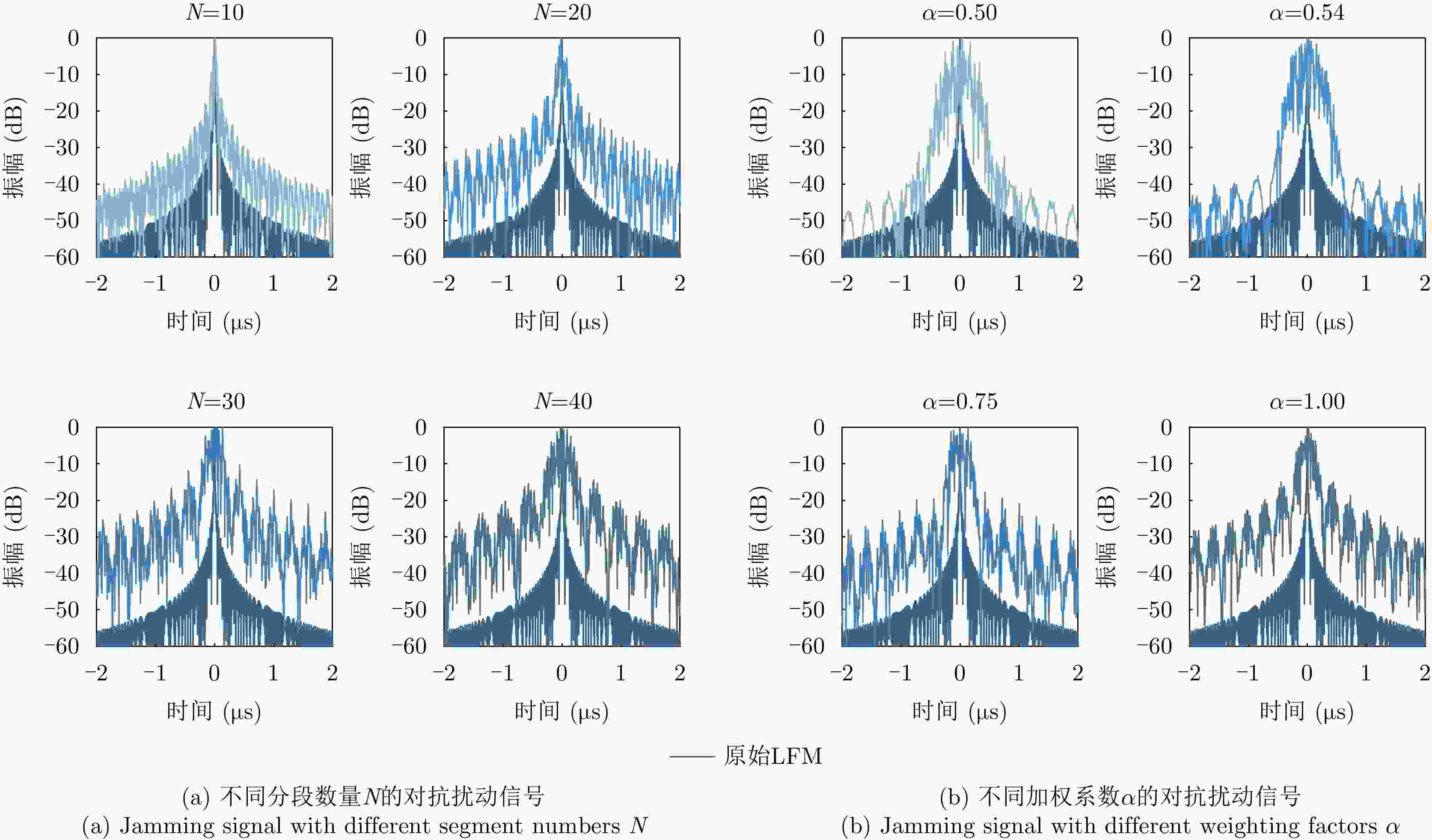

图 5 不同参数下扰动信号仿真结果
Figure 5. Simulation results of the jamming signal under different parameters

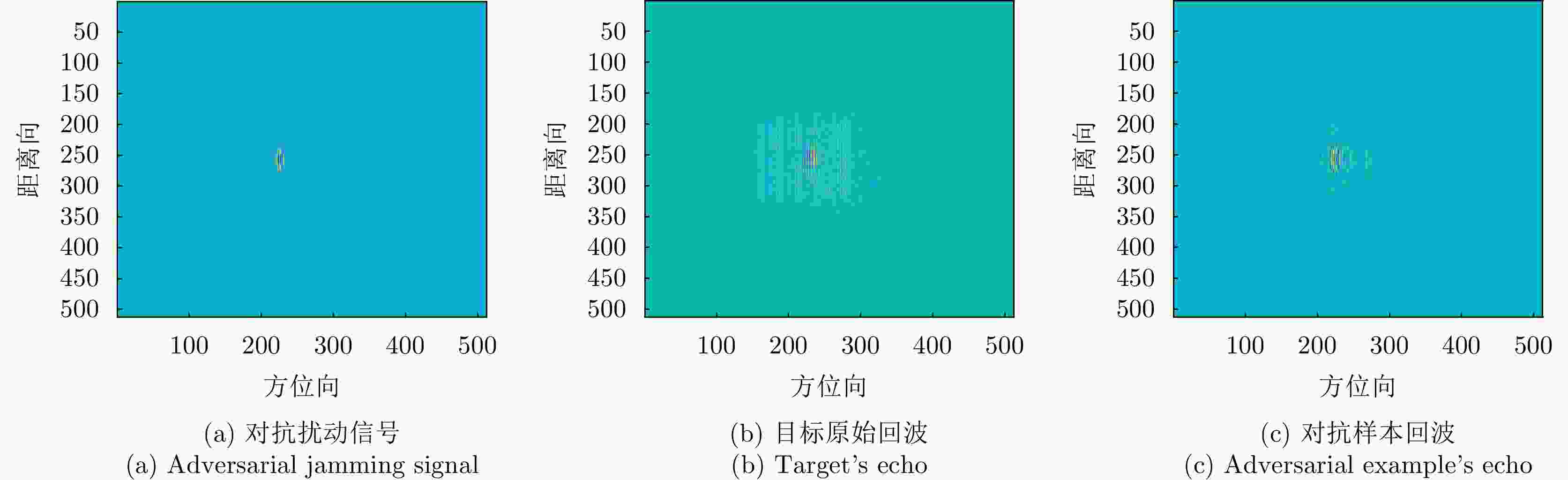

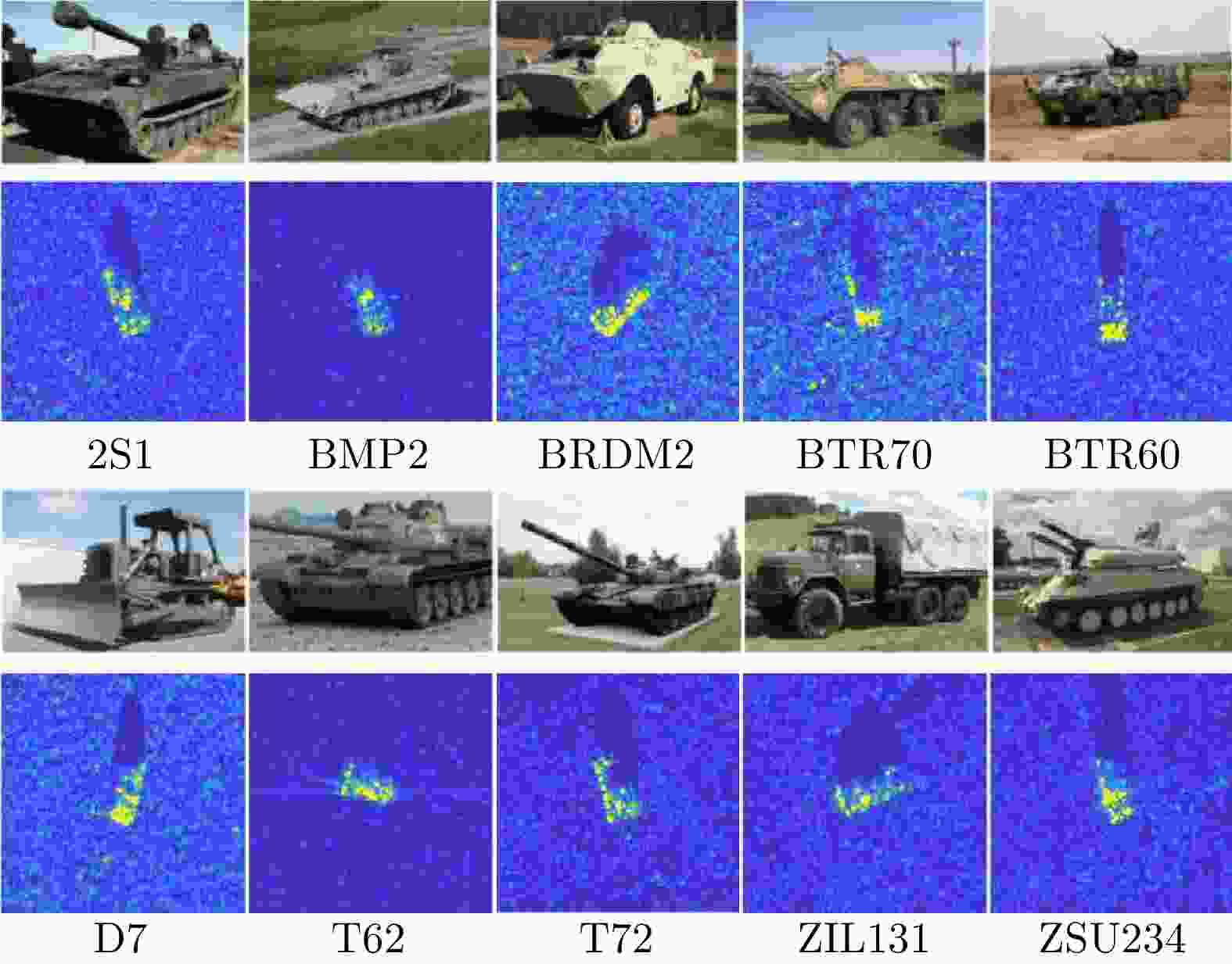

图 7 MSTAR 10类别图像的光学—SAR对照图
Figure 7. Optical vs. SAR comparison of ten ground vehicle target types in the MSTAR dataset

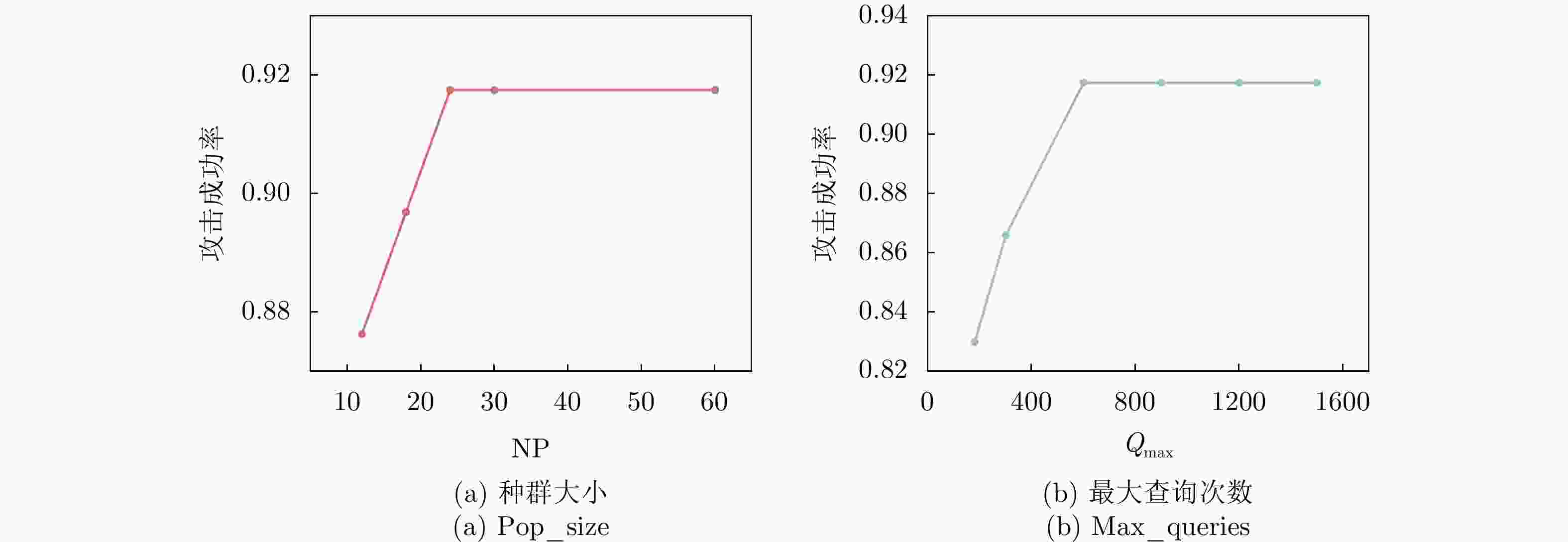

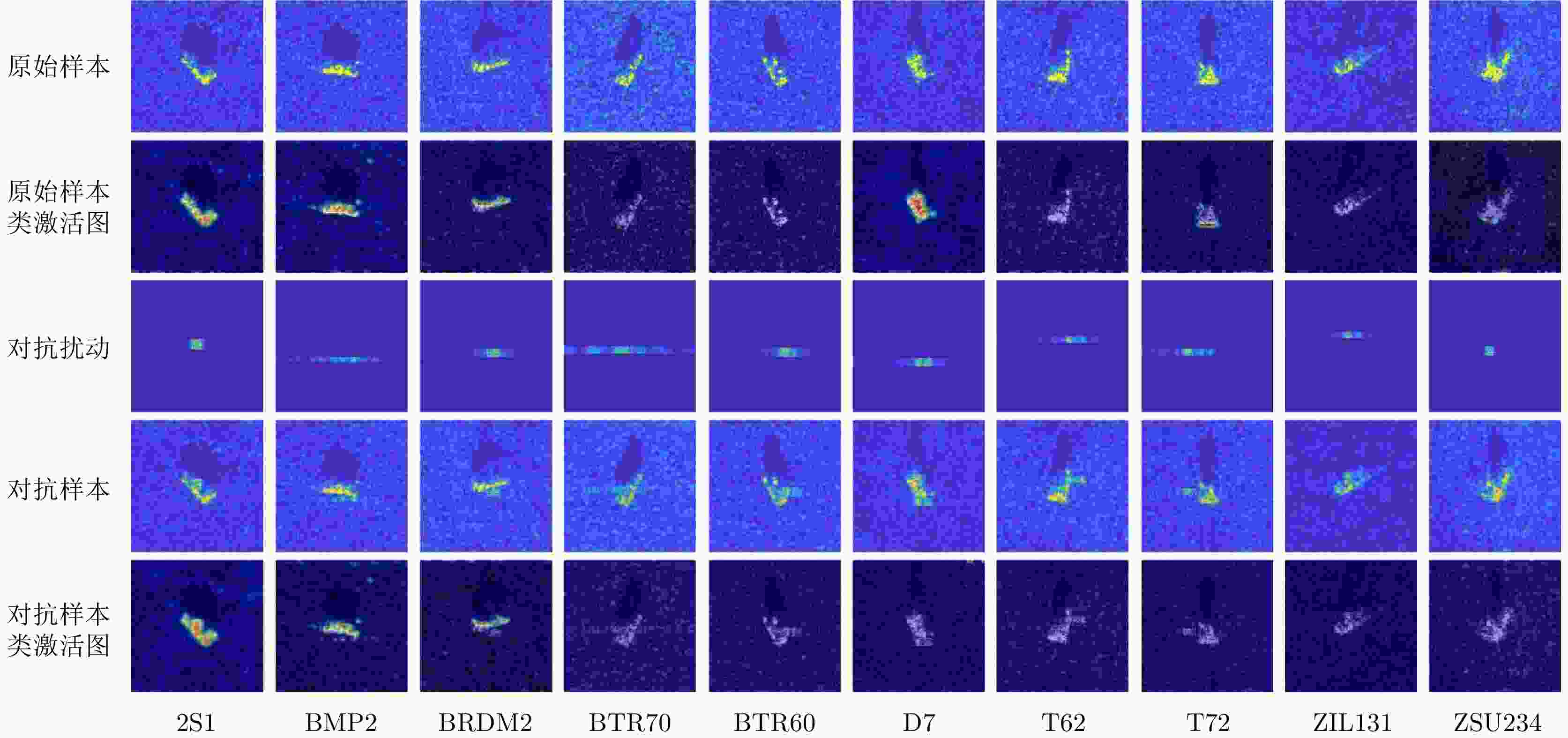

图 9 生成的SAR对抗样本及Grad-CAM可视化分析
Figure 9. Generated SAR adversarial examples and Grad-CAM visualization analysis

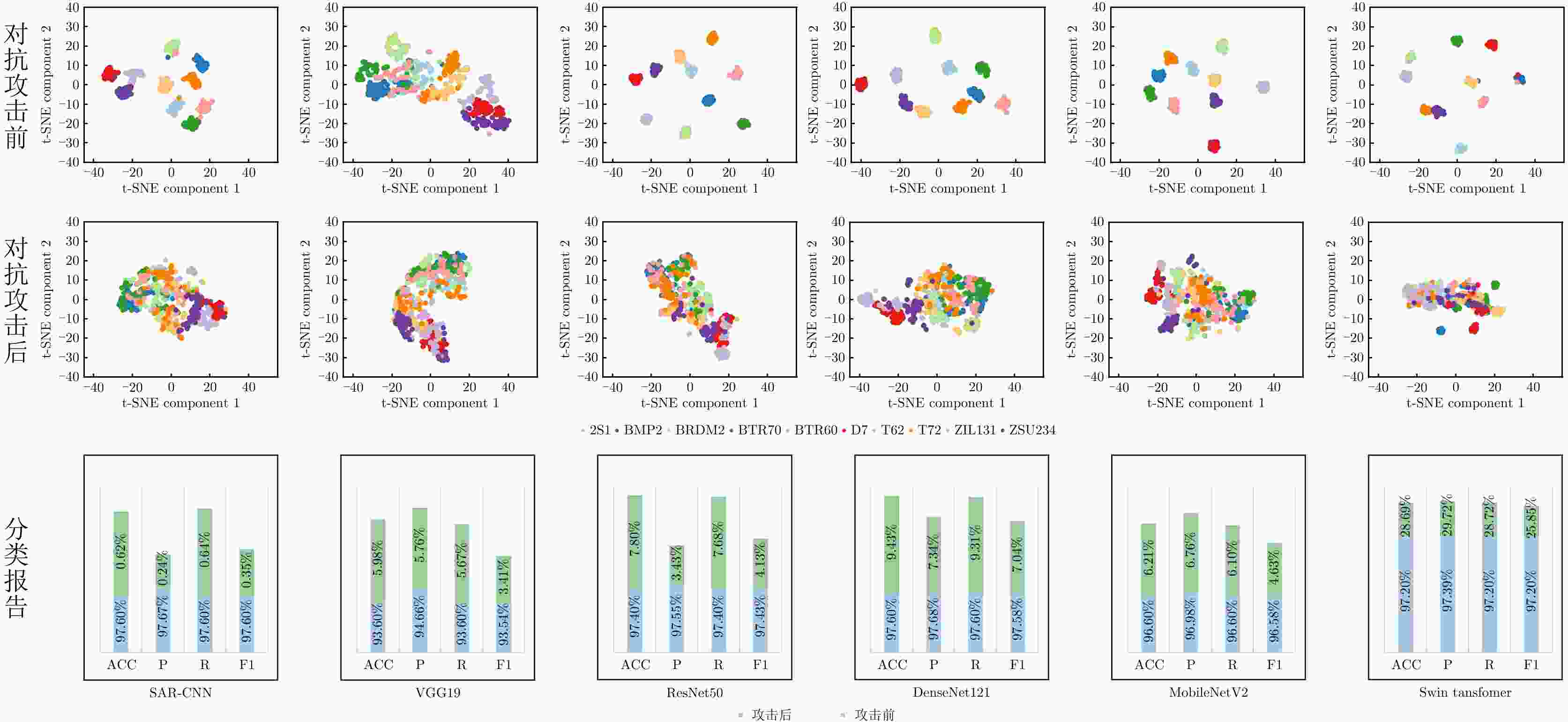

图 10 本文方法对不同SAR识别网络的攻击效果
Figure 10. Attack results of the proposed method on different SAR ATR models

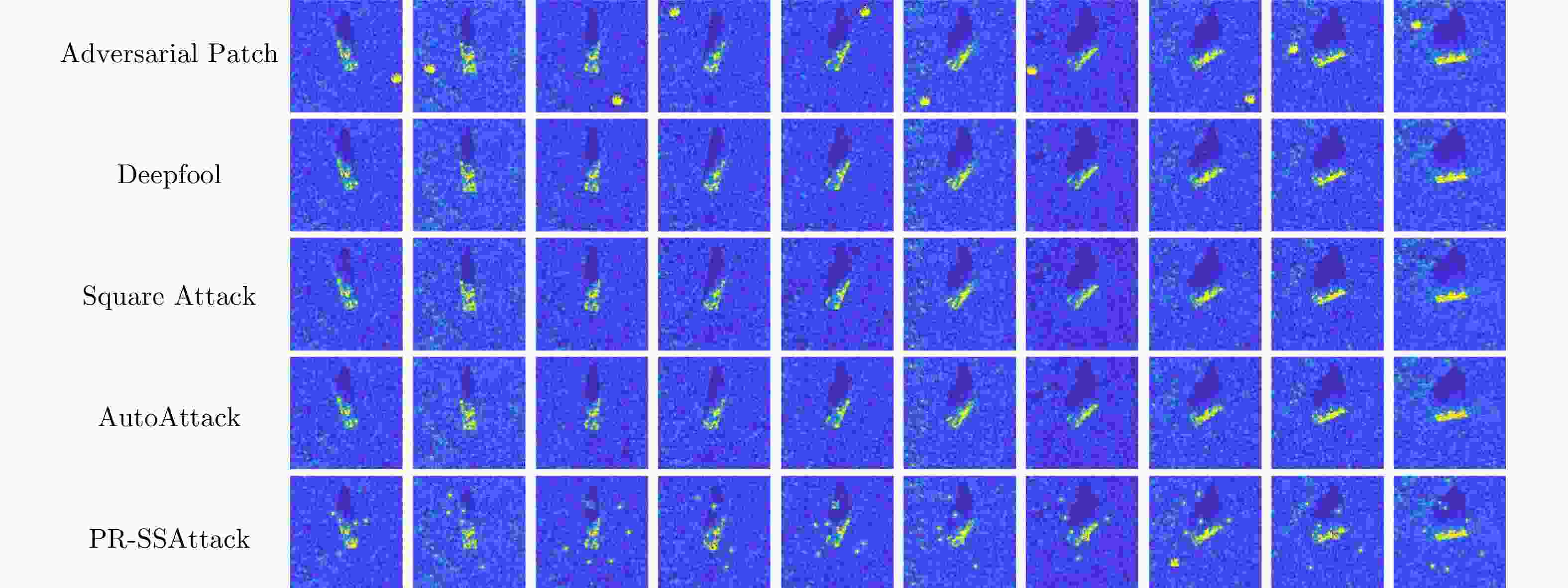

图 11 不同对抗攻击方法生成的对抗样本
Figure 11. Adversarial samples generated by different adversarial attack methods

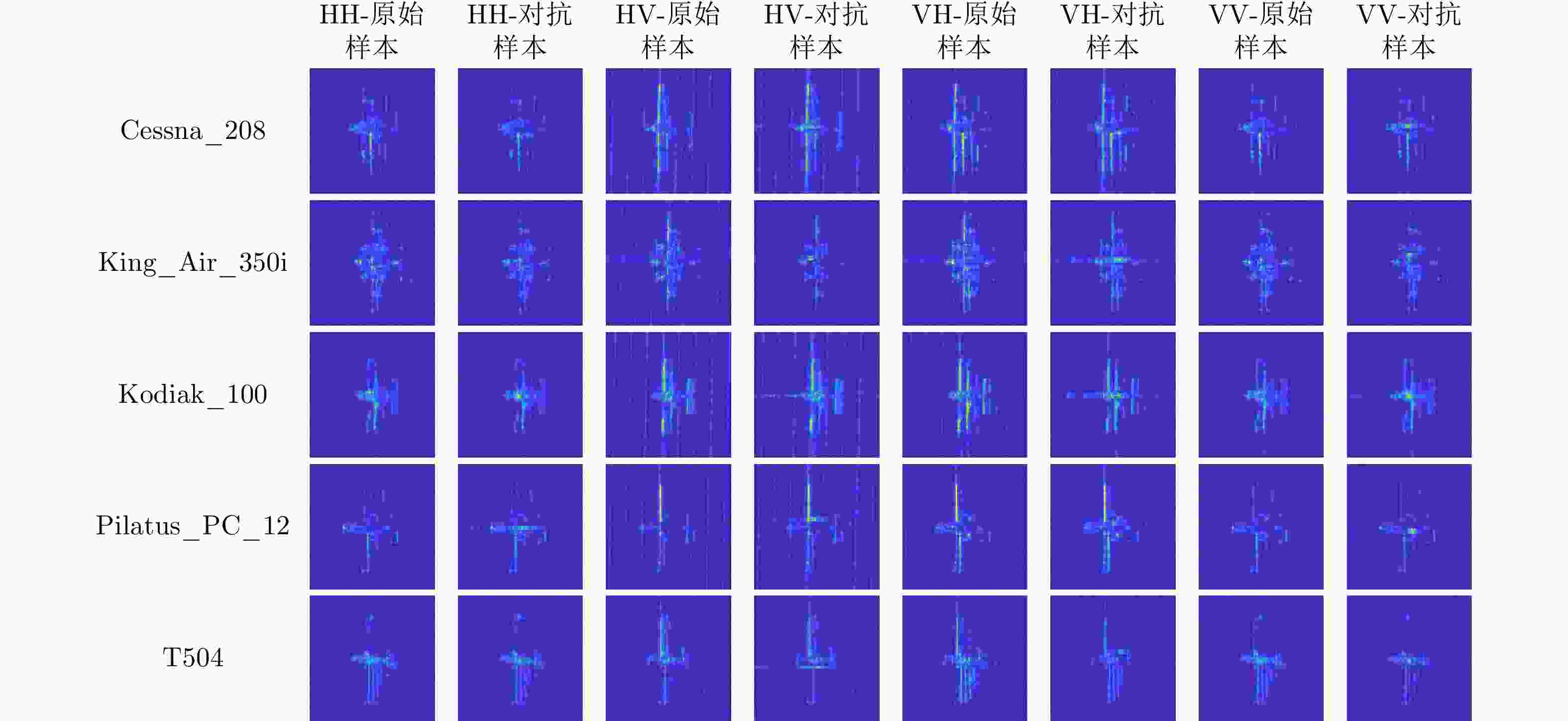

图 12 不同极化下的目标原始样本和对抗样本
Figure 12. Original and adversarial samples of targets under different polarizations

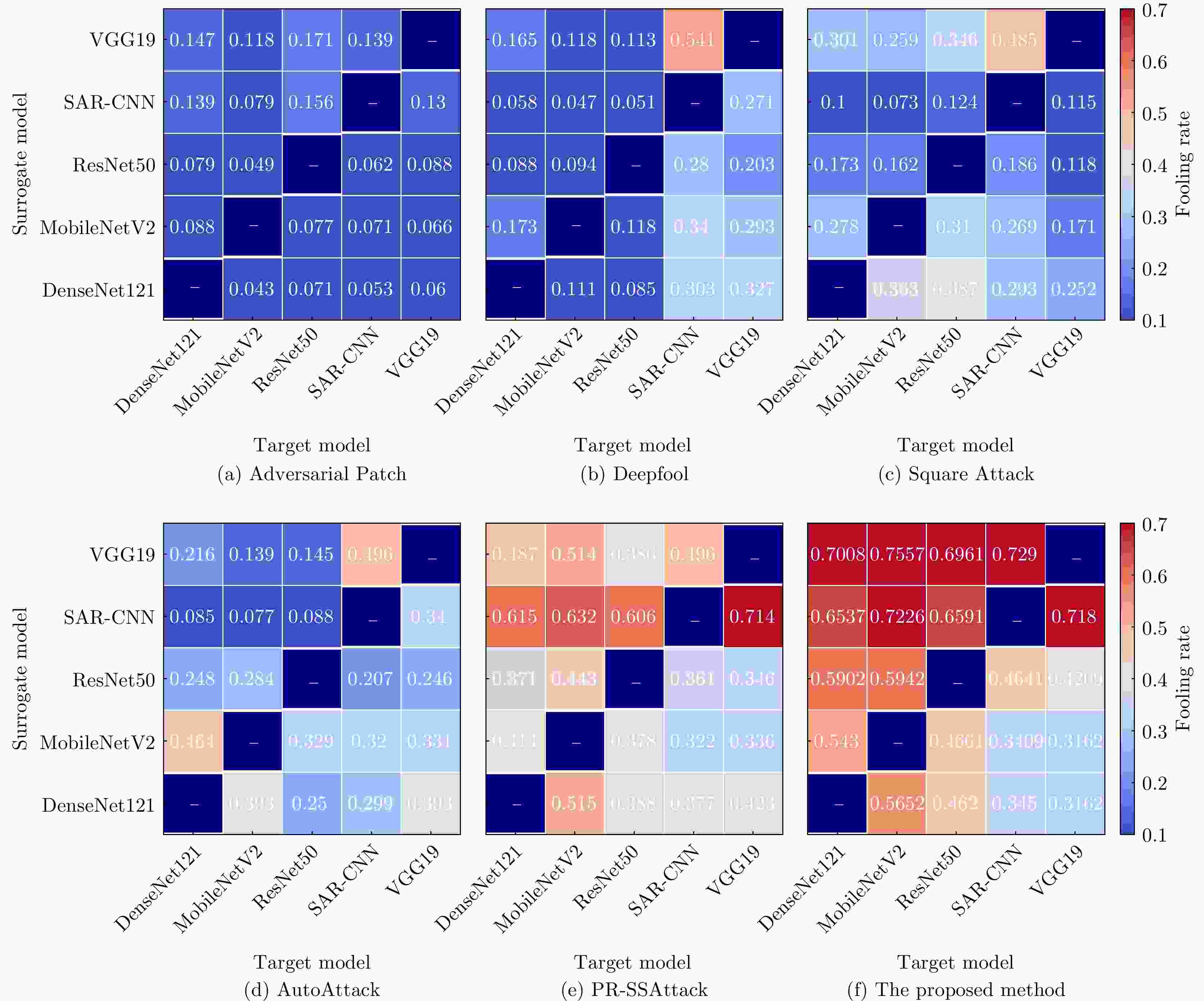

图 13 不同对抗攻击方法生成的对抗样本的迁移攻击性能
Figure 13. Transferability of adversarial examples generated by different attack methods

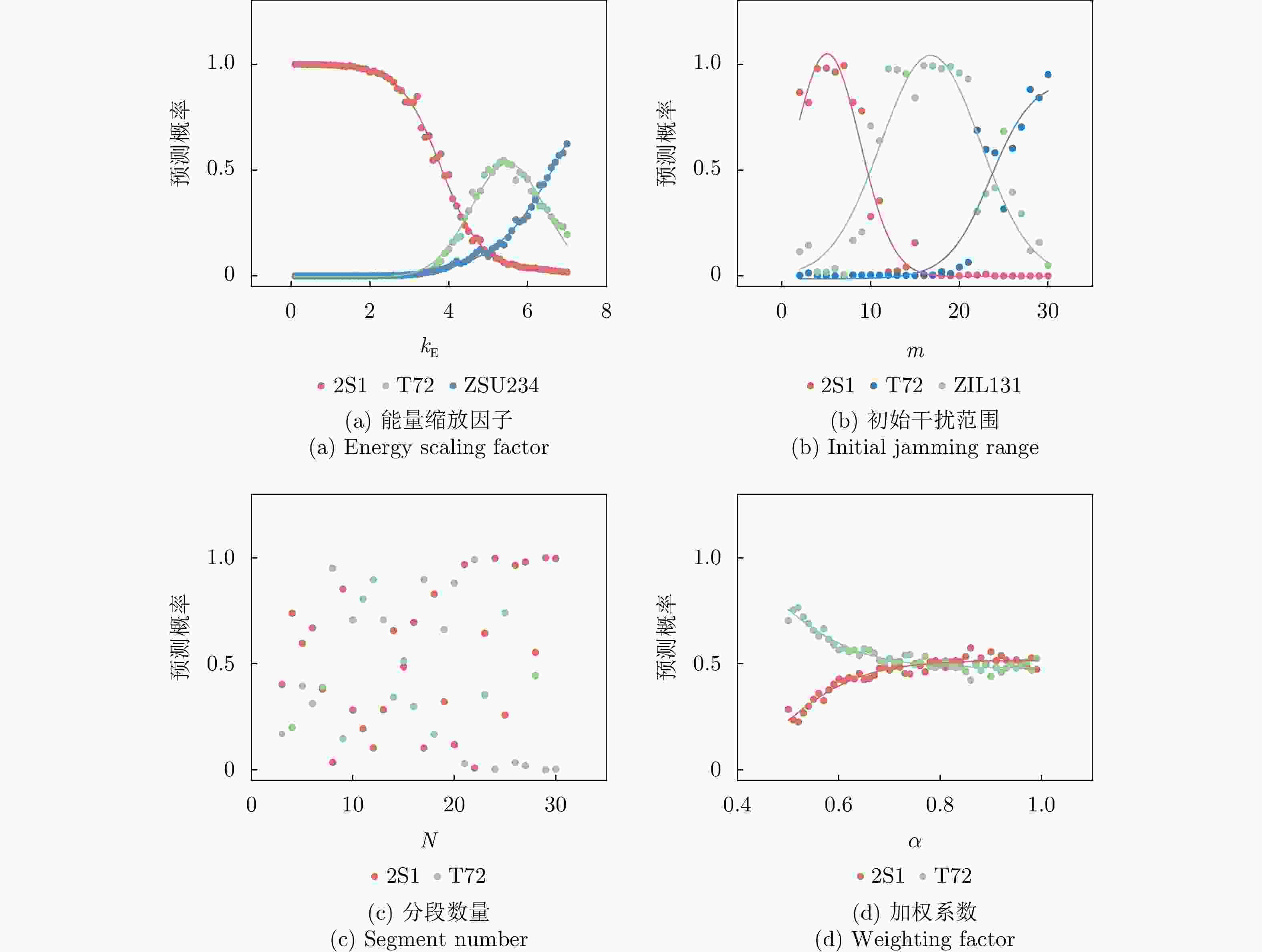

图 14 不同扰动参数下的各类别预测概率变化曲线
Figure 14. Curves of prediction probability variations for individual classes under different parameters

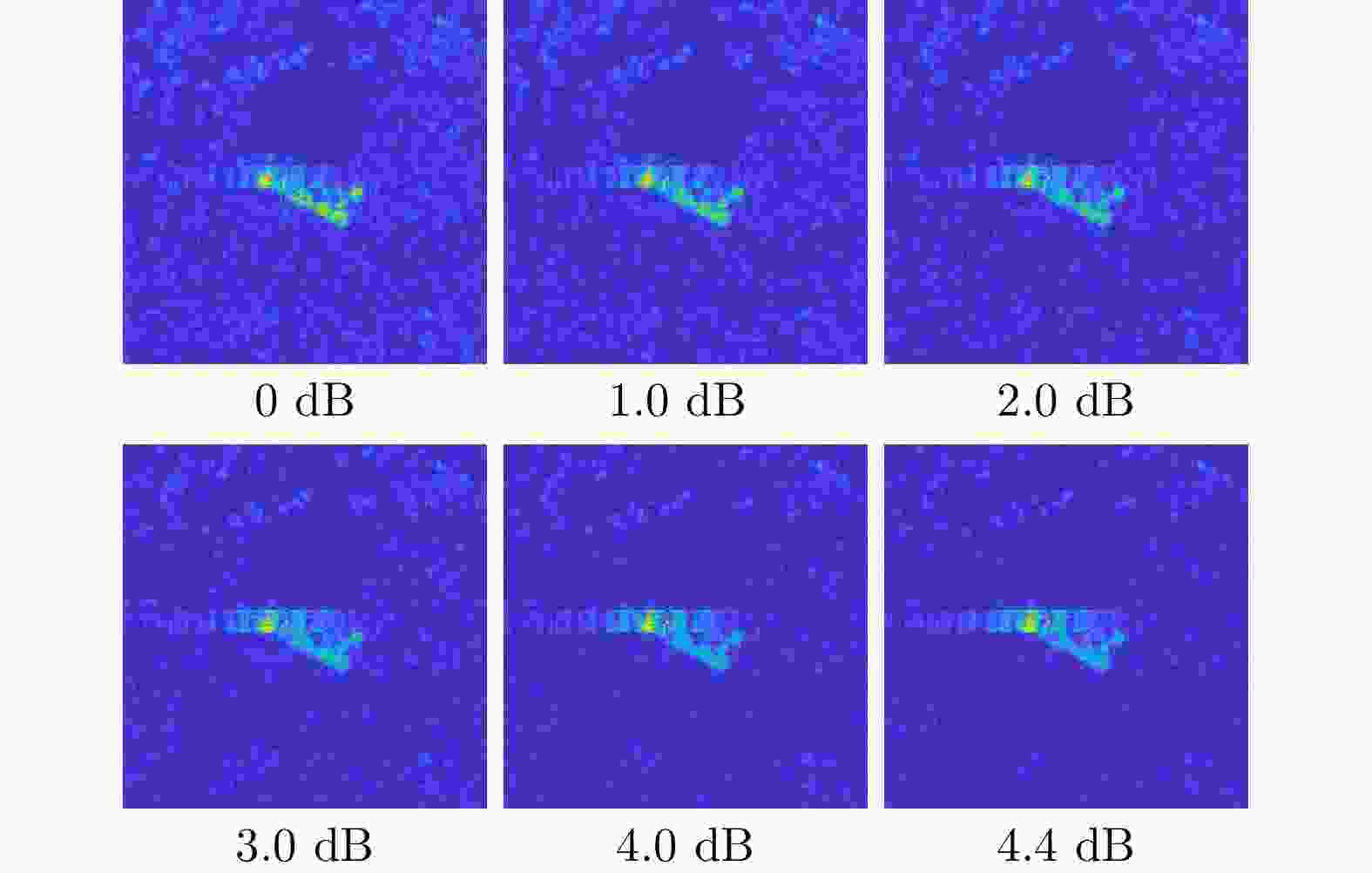

图 15 不同能量缩放因子下的2S1对抗样本
Figure 15. 2S1 adversarial examples under different energy scaling factor

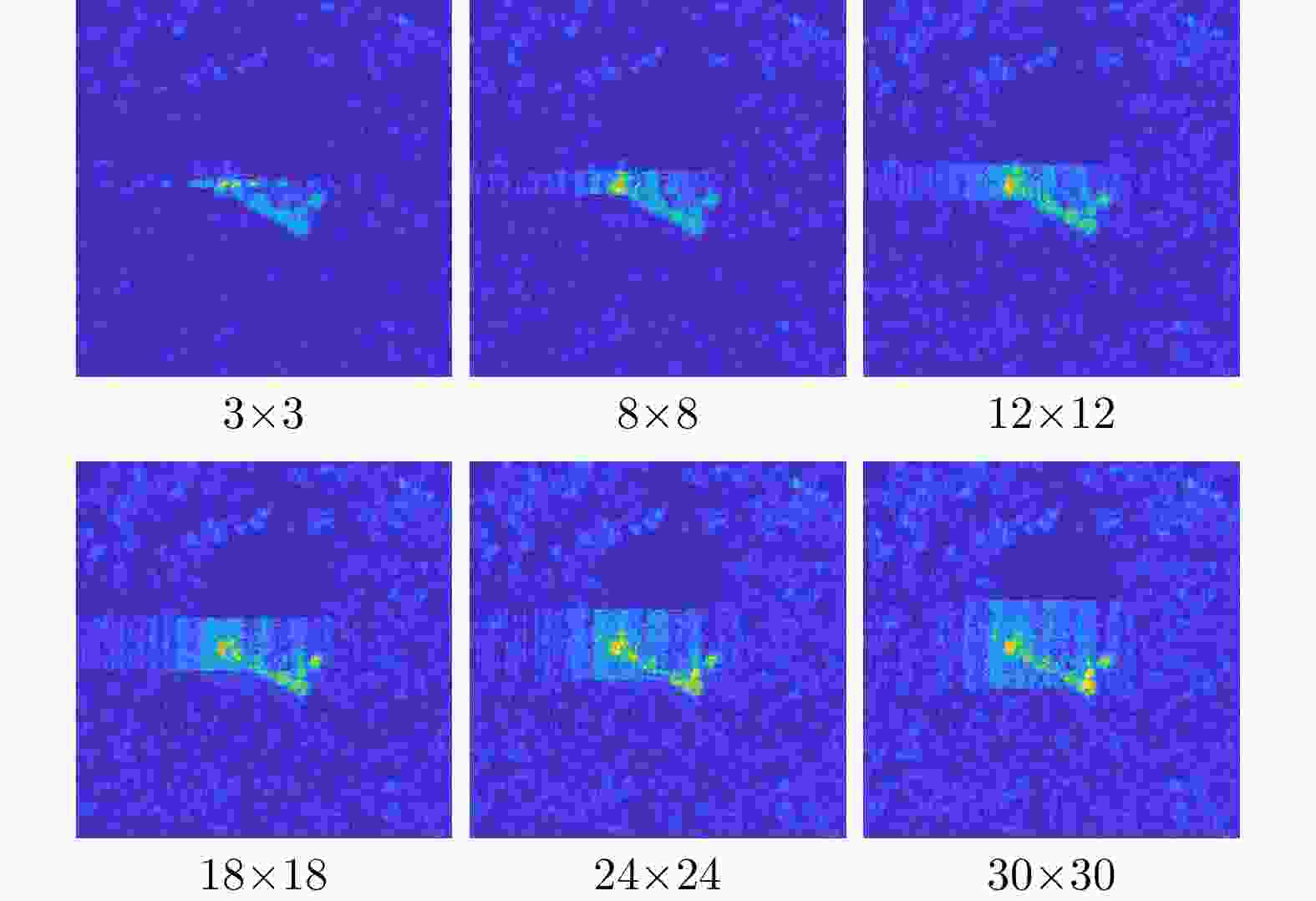

图 16 不同初始干扰范围下的2S1对抗样本
Figure 16. 2S1 adversarial examples under different initial jamming range

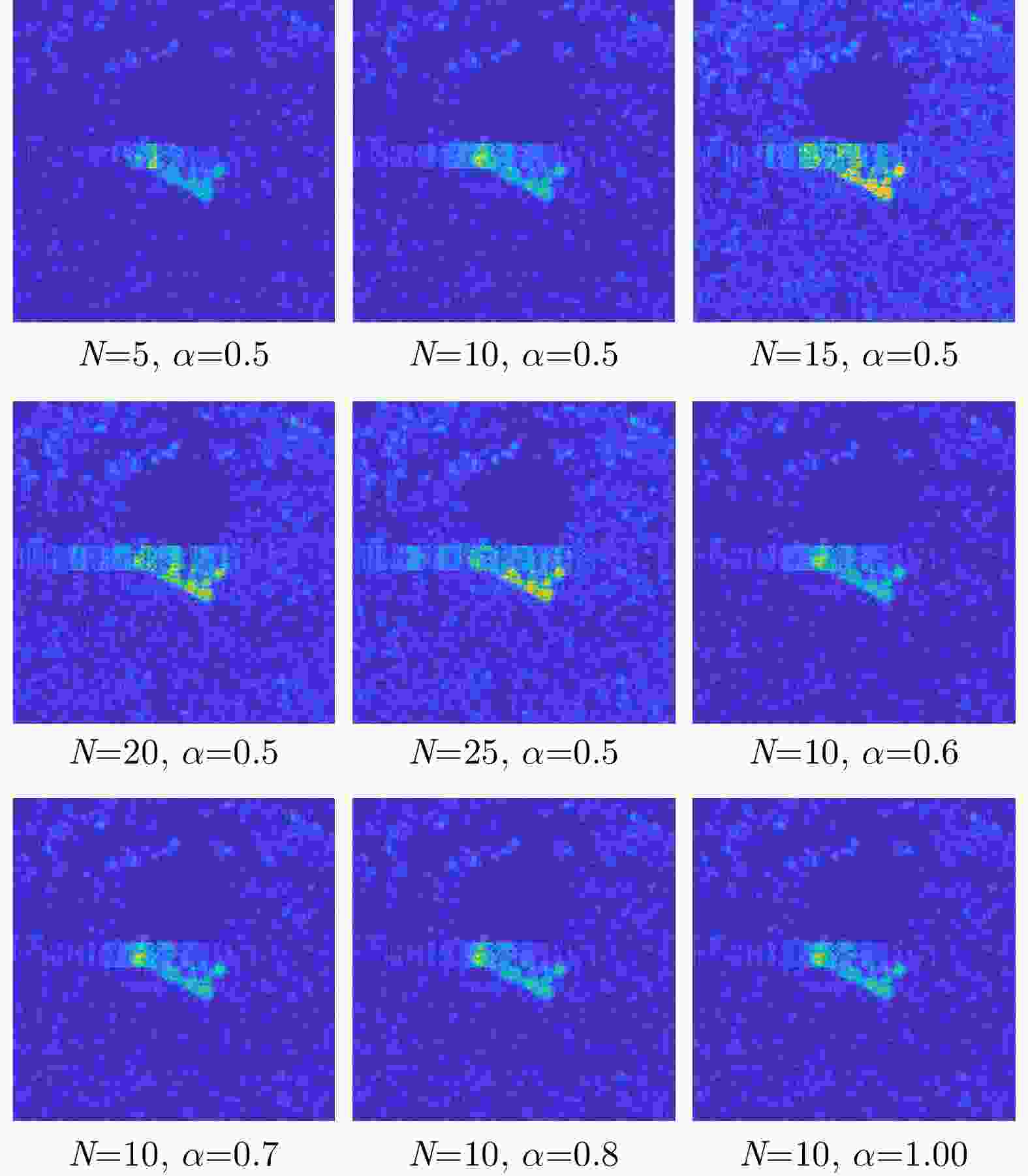

图 17 不同多分段相位向量下的2S1对抗样本
Figure 17. 2S1 adversarial examples under different multi-segment phase vectors

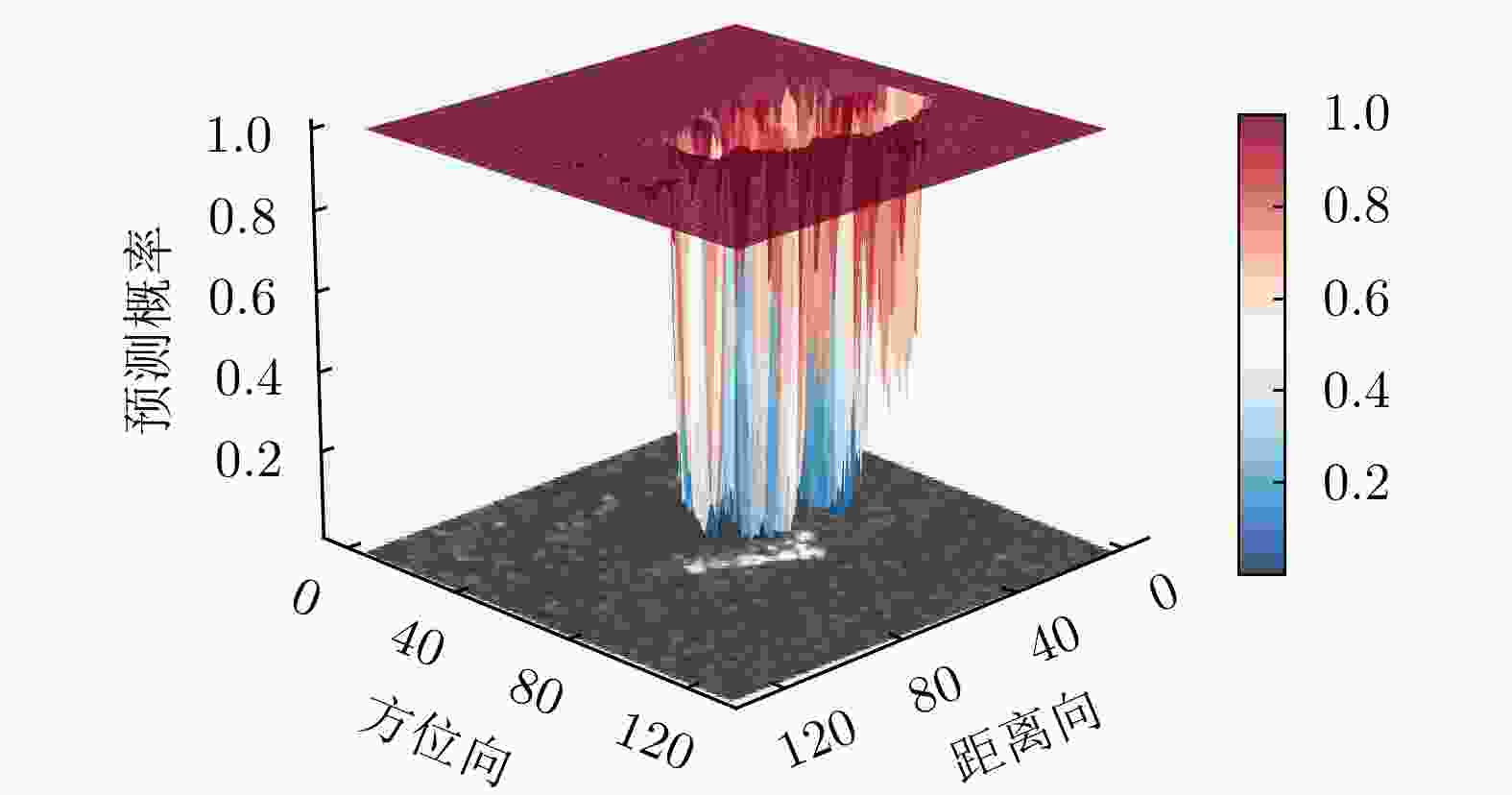

图 18 不同位置偏移向量下2S1的预测概率变化图
Figure 18. Plot of prediction probability variations for the 2S1 target under different positional offsets

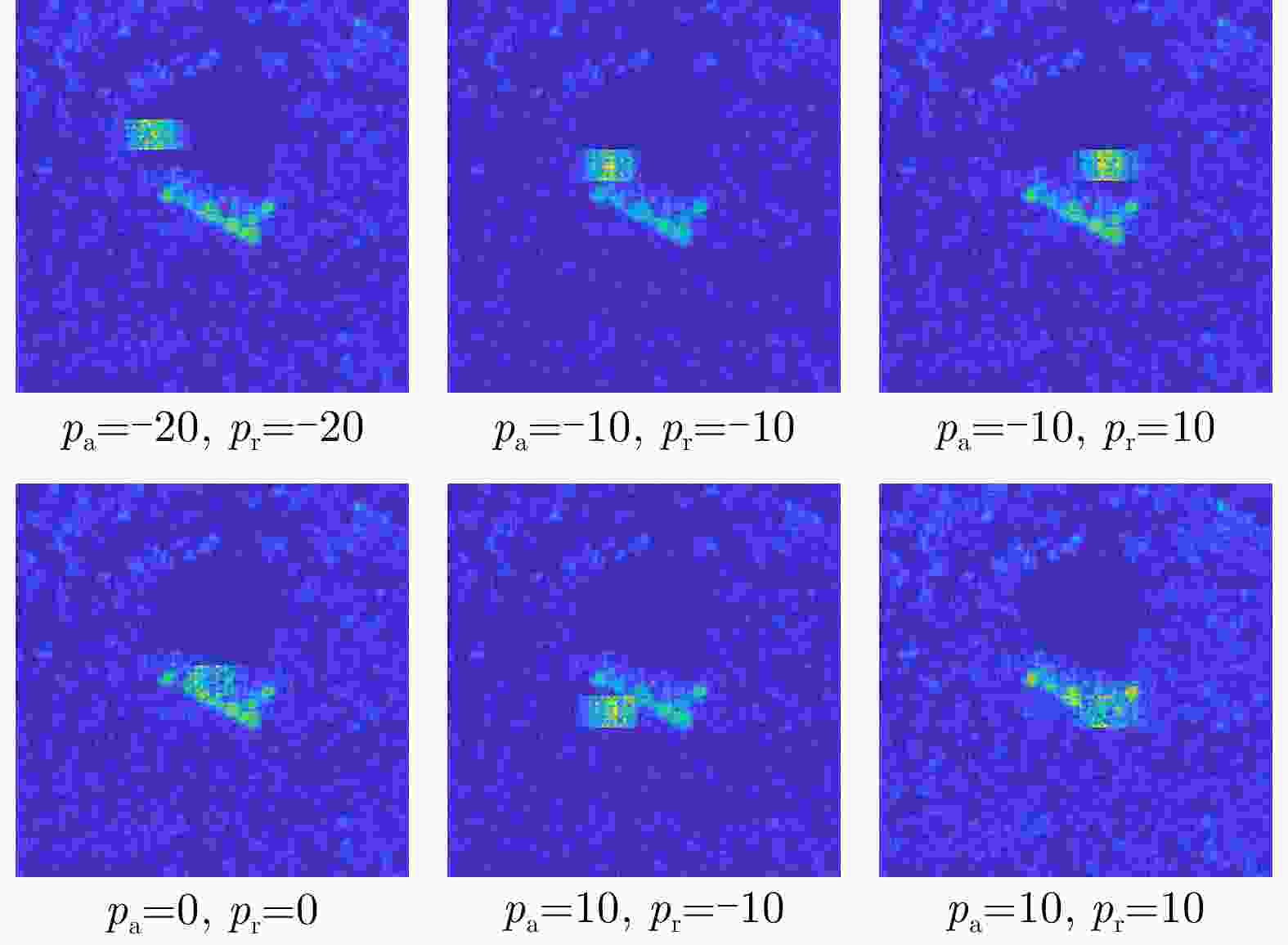

图 19 不同位置偏移参数下的2S1对抗样本
Figure 19. 2S1 adversarial examples under different positional offsets

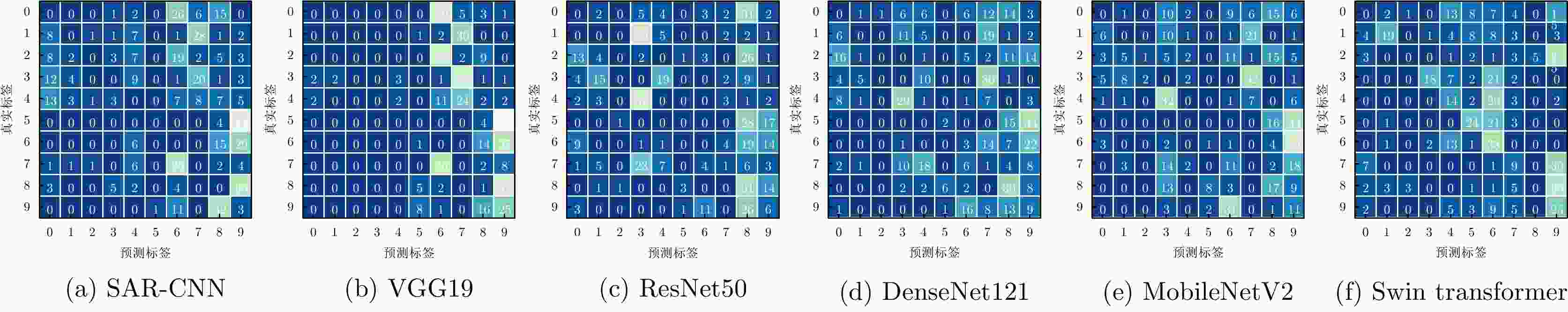

图 20 不同SAR ATR模型的分类混淆矩阵
Figure 20. Classification confusion matrices for different SAR ATR models
1 基于有源干扰机的SAR智能识别对抗方法算法
1. Jammer-based adversarial attack algorithm
输入：原始SAR图像样本x及其标签$ y^{\mathrm{gt}} $，目标SAR系统成像参数$ \varTheta $，分类网络F，扰动向量范围$ \left[{\boldsymbol{r}}_{\text {min }},{\boldsymbol{ r}}_{\text {max }}\right] $，DE算法的种群大小NP和最
大查询次数$ Q_{\max } $输出：对抗样本$ {\boldsymbol{x}}^{{\mathrm{adv}}} $ 1. 直接输入原始样本的回波信号$ s(t, \tau) $或通过式(20)计算原始SAR图像样本的回波信号$ s(t, \tau) $ 2. 设置当前代数G=1，初始化种群得到NP个候选解$ {\boldsymbol{r}}_{0}^{G}=\left[{\boldsymbol{r}}_{1}^{G}, {\boldsymbol{r}}_{2}^{G}, \cdots, {\boldsymbol{r}}_{\mathrm{NP}}^{G}\right] $ 3. WHILE G$* $NP<$ Q_{\max } $ 4. 通过式(18)计算候选解对应的对抗扰动信号$ \left[ \varepsilon _{1}^{G}, \varepsilon_{2}^{G}, \cdots, \varepsilon_{\mathbb{NP}}^{G}\right] $ 5. 通过式(19)计算对抗样本回波并成像得到候选对抗样本$ \left[{\boldsymbol{x}}_{1}^{G}, {\boldsymbol{x}}_{2}^{G}, \cdots, {\boldsymbol{x}}_{{\mathrm{NP}}}^{G}\right] $ 6. 计算每个候选对抗样本的预测标签$ \left[\hat{y}_{1}^{G}, \hat{y}_{2}^{G}, \cdots, \hat{y}_{\mathrm{NP}}^{G}\right] $及目标函数值$ \left[\mathcal{L}_{1}^{G}, \mathcal{L}_{2}^{G}, \cdots, \mathcal{L}_{\mathrm{NP}}^{G}\right] $ 7. FOR j=1：NP 8. IF $ \hat{y}_{j}^{G}\ne y^{{\mathrm{gt}}} $ 9. 攻击成功，算法终止，输出最优解 10. ELSE 执行选择操作，返回当前最优解，进入步骤12作为新的个体 11. END 12. G=G+1 13. 对种群中个体执行变异和交叉操作得到候选解$ {\boldsymbol{r}}^{G} $ 14. END 15. 输出结果
下载: 导出CSV
表 1 MSTAR详细信息
Table 1. MSTAR dataset details
标签 类别名 训练集 测试集 0 2S1 299 274 1 BRDM2 298 274 2 BTR60 256 195 3 D7 299 274 4 T62 299 273 5 ZIL131 299 274 6 ZSU234 299 274 7 BMP2 233 195 8 BTR70 233 196 9 T72 232 196 总数 — 2747 2425
下载: 导出CSV
表 2 SAR ATR模型的训练结果(%)
Table 2. Training and testing accuracy of six SAR ATR models (%)
SAR目标识别网络 训练精度 测试精度 SAR-CNN 100 97.60 VGG19 99.64 93.60 DenseNet121 100 97.60 ResNet50 100 97.40 MobileNetV2 100 96.60 Swin transformer 100 97.20
下载: 导出CSV
表 3 不同对抗攻击方法对识别模型的攻击成功率(%)
Table 3. Fooling rate of different adversarial attack methods on SAR ATR Models (%)
对抗攻击方法 SAR-CNN VGG19 ResNet50 DenseNet121 MobileNetV2 Swin Transformer 平均 Adversarial Patch 11.75 14.10 7.91 7.91 5.77 6.42 8.98 Deepfool 97.44 93.16 96.37 95.30 93.80 93.53 94.93 Square Attack 83.76 91.67 81.62 86.75 89.96 89.09 84.14 AutoAttack 77.56 90.81 96.37 95.51 97.25 99.19 92.78 PR-SSAttack[13] 99.59 94.44 96.51 91.19 88.20 67.07 89.50 所提方法 99.39 94.01 92.20 90.57 93.79 71.31 90.88
下载: 导出CSV
表 4 飞机全极化数据集详细信息
Table 4. Aircraft dataset details
标签 类别名 HH HV VH VV 训练集 测试集 训练集 测试集 训练集 测试集 训练集 测试集 0 Cessna_208 699 174 700 174 678 169 700 174 1 King_Air_350i 162 40 163 40 154 38 163 40 2 Kodiak_100 699 174 700 174 678 169 700 174 3 Pilatus_PC_12 162 40 163 40 154 38 163 40 4 T504 1397 349 1399 349 1356 338 1399 349 总数 — 3119 777 3125 777 3020 752 3125 777
下载: 导出CSV
表 5 不同极化下MobileNetV2模型的分类精度和攻击成功率(%)
Table 5. Accuracy and fooling rate of MobileNetV2 under different polarizations (%)
极化方式 训练精度 测试精度 攻击成功率 HH 100 96.78 100 HV 100 94.47 99.50 VH 100 89.17 99.50 VV 100 96.53 99.00
下载: 导出CSV
-
