LT-1A卫星全极化SAR辐射与极化系统误差稳定性分析：以热带雨林场景为例

史磊; 孙维东; 杨乐; 杨杰; 赵伶俐; 李平湘; 刘亚波

doi:10.12000/JR24102

LT-1A卫星全极化SAR辐射与极化系统误差稳定性分析：以热带雨林场景为例

doi: 10.12000/JR24102

史磊¹,
孙维东^1, ,,
杨乐²,
杨杰¹,
赵伶俐³,
李平湘¹,
刘亚波⁴

1.
武汉大学测绘遥感信息工程国家重点实验室武汉 430072
2.
郑州大学地球科学与技术学院郑州 450001
3.
武汉大学遥感信息工程学院武汉 430072
4.
中国科学院空天信息创新研究院北京 100094

基金项目: 国家自然科学基金(U22A2010, 42071295, 61971318, 42171442, U2033216)，深圳科技创新重点项目(JCYJ20200109150833977)，自然资源部国土卫星遥感应用重点实验室经费资助(KLSMNR-202110)，国家重点研发计划(2022YFB3903605)，中央高校基本科研业务费专项资金资助，资源与环境信息系统国家重点实验室开放基金

详细信息

作者简介:
史　磊，博士，副教授，主要研究方向为合成孔径雷达定标及信息智能提取

孙维东，博士，副研究员，主要研究方向为极化雷达影像分类、灾害监测和评估

杨　乐，博士，讲师，主要研究方向为极化雷达影像定标

杨　杰，博士，教授，主要研究方向为极化SAR图像解译

赵伶俐，博士，副教授，主要研究方向为极化雷达影像滤波、农业监测

李平湘，博士，教授，主要研究方向为摄影测量与遥感、遥感图像处理等

刘亚波，博士，副研究员，主要研究方向为微波成像理论、雷达目标识别

通讯作者:
孙维东 widensun2012@whu.edu.cn

责任主编：陈思伟 Corresponding Editor: CHEN Siwei
中图分类号: TN957.51
计量
- 文章访问数: 75
- HTML全文浏览量: 38
- PDF下载量: 140
- 被引次数: 0
出版历程
- 收稿日期: 2024-05-28
- 修回日期: 2024-08-11

Evaluation of Radiometric and Polarimetric Errors in the LT-1A Satellite Data Based on Tropical Forests in the Amazon

1.
State Key Laboratory of Surveying, Mapping and Remote Sensing Information Engineering, Wuhan University, Wuhan 430072, China
2.
The school of Geo-Science and Technology, Zhengzhou University, Zhengzhou 450001, China
3.
School of Remote Sensing Information Engineering, Wuhan University, Wuhan 430072, China
4.
Aerospace Information Research Institute, Chinese Academy of Sciences, Beijing 100094, China

Funds: The National Natural Science Foundation of China (U22A2010, 42071295, 61971318, 42171442, U2033216), The Shenzhen Fundamental Research Program (JCYJ20200109150833977), The Key Laboratory of Land Satellite Remote Sensing Application of the Ministry of Natural Resources of the People Republic of China (KLSMNR-202110), The National Key Research and Development Program of China (2022YFB3903605), The Fundamental Research Funds for the Central Universities, and a Grant from the State Key Laboratory of Resources and Environmental Information System

More Information

Corresponding author: SUN Weidong, widensun2012@whu.edu.cn

摘要

摘要: 作为中国新一代天基长波SAR的代表，陆地探测1号01卫星(LT-1A)于2022年1月发射进入太阳同步轨道。LT-1A搭载的长波合成孔径雷达(SAR)工作在L波段，具备单极化、线性双极化、紧缩双极化、全极化等对地观测能力。现有研究主要侧重于LT-1A重轨干涉数据获取能力以及数字高程模型、沉降产品的生产精度评价，对LT-1A的辐射精度、地物极化信息保持能力的研究较为缺乏。该文以热带雨林植被为观测对象，通过不依赖人工定标器的自主定标方法对LT-1A全极化数据辐射误差、极化误差的稳定性进行评价与分析。实验表明：LT-1A传感器的辐射稳定性较好、极化精度优于国际对地观测组织(CEOS)推荐指标。持续对地观测1000 km内归一化雷达截面(NRCS)误差波动小于1 dB (3倍标准差)、5天内重返观测时辐射误差波动小于0.5 dB (3倍标准差)；全极化观测模式下系统串扰低于–35 dB甚至达到–40 dB，交叉极化通道不平衡优于0.2 dB与2°，同通道不平衡优于0.5 dB与10°；系统噪声介于–42～–22 dB，平均系统等效热噪声优于–25 dB，热噪声水平随持续对地观测时长的增加有升高。此外，该研究验证了电离层对LT-1A极化数据质量的影响：5°法拉第旋转角造成的图像退化与–20 dB系统串扰带来的影响相当，而3°～20°法拉第旋转角在中、低纬度较为常见，这将带来–21.16～–8.78 dB的极化通道间扰动，即电离层对全极化数据质量的退化相较传感器–40 dB的串扰更为严重。
- 陆地探测1号卫星 /
- 辐射误差 /
- 极化误差 /
- 热带雨林 /
- 合成孔径雷达
Abstract: As a representative of China’s new generation of space-borne long-wavelength Synthetic Aperture Radar (SAR), the LuTan-1A (LT-1A) satellite was launched into a solar synchronous orbit in January 2022. The SAR onboard the LT-1A satellite operates in the L band and exhibits various earth observation capabilities, including single-polarization, linear dual-polarization, compressed dual-polarization, and quad-polarization observation capabilities. Existing research has mainly focused on LT-1A interferometric data acquisition capabilities and the accuracy evaluation of digital elevation models and displacement measurements. Research on the radiometric and polarimetric accuracy of the LT-1A satellite is limited. This article uses tropical rainforest vegetation as a reference to evaluate and analyze the radiometric error and polarimetricstability of the LT-1A satellite in the full polarization observation mode through a self-calibration method that does not rely on artificial calibrators. The experiment demonstrates that the LT-1A satellite has good radiometric stability and polarimetric accuracy, exceeding the recommended specifications of the International Organization for Earth Observations (Committee on Earth Observation Satellites, CEOS). Fluctuations in the Normalized Radar Cross-Section (NRCS) error within 1,000 km of continuous observation are less than 1 dB (3σ), and there are no significant changes in system radiometric errors of less than 0.5 dB (3σ) when observation is resumed within five days. In the full polarization observation mode, the system crosstalk is less than −35 dB, reaching as low as −45 dB. Further, the cross-polarization channel imbalance is better than 0.2 dB and 2°, whilethe co-polarization channel imbalance is better than 0.5 dB and 10°. The equivalent thermal noise ranges from −42～−22 dB, and the average equivalent thermal noise of the system is better than −25 dB. The level of thermal noise may increase to some extent with increasing continuous observation duration. Additionally, this study found that the ionosphere significantly affects the quality of the LT-1A satellite polarization data, with a Faraday rotation angle of approximately 5°, causing a crosstalk of nearly −20 dB. In middle- and low-latitude regions, the Faraday rotation angle commonly ranges from 3° to 20°. The Faraday rotation angle can cause polarimetric distortion errors between channels ranging from −21.16～−8.78 dB. The interference from the atmospheric observation environment is considerably greater than the influence of about −40 dB system crosstalk errors. This research carefully assesses the radiomatric and polarimetric quality of the LT-1A satellite data considering dense vegetation in the Amazon rainforest and provides valuable information to industrial users. Thus, this research holds significant scientific importanceand reference value.
- LuTan-1A satellite (LT-1A) /
- Radiometric error /
- Polarimetric error /
- Tropical rainforest /
- Synthetic Aperture Radar (SAR)

HTML全文

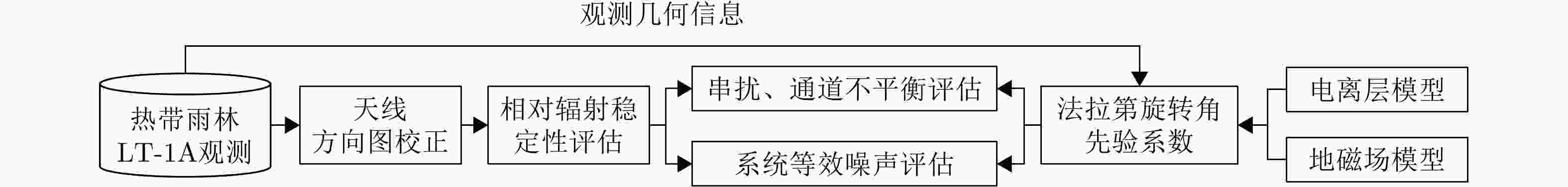

图 1 基于热带雨林观测的LT-1A数据评估流程

Figure 1. The quality evaluation of LT-1A based on tropical rainforest vegetation

下载: 全尺寸图片幻灯片

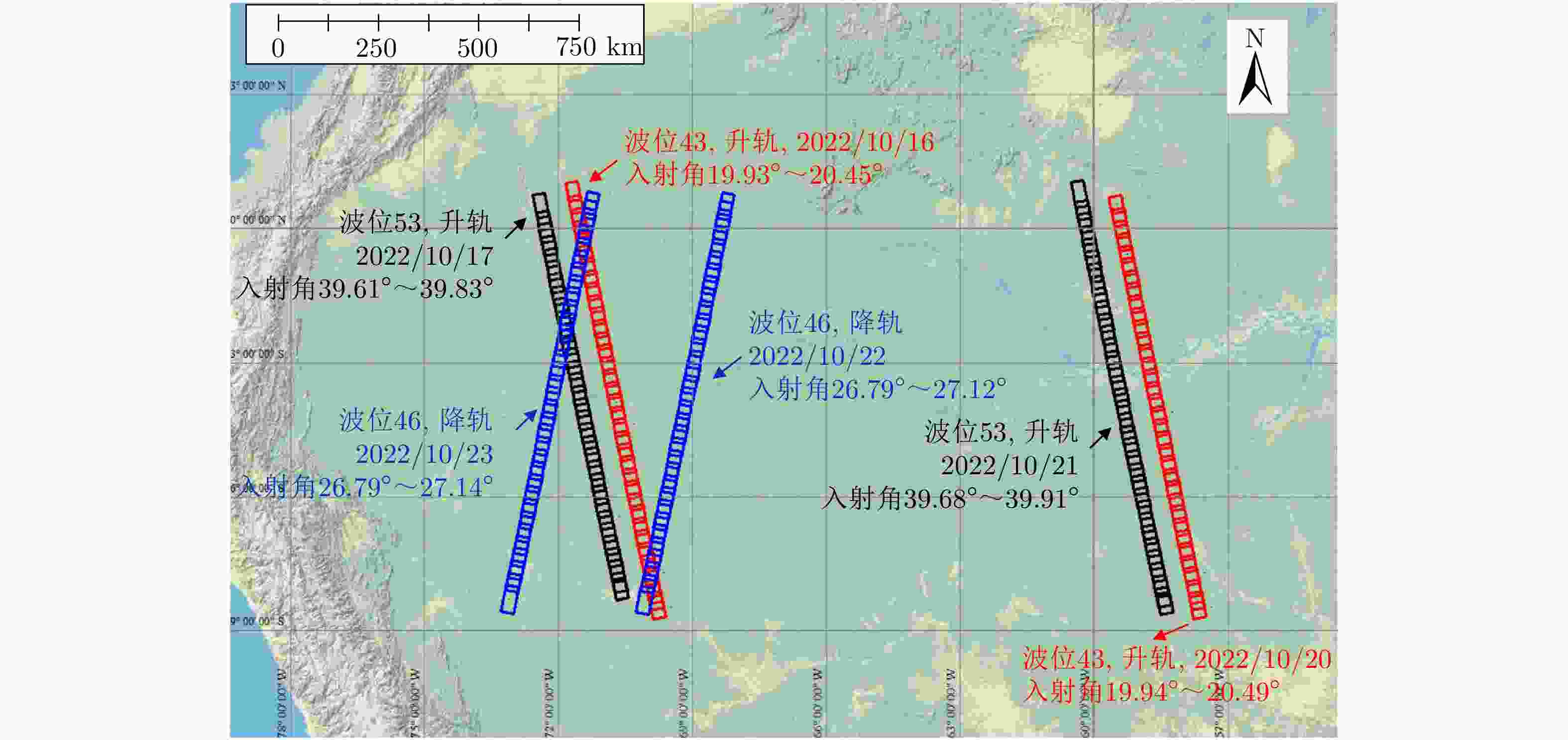

图 2 本文LT-1A热带雨林观测范围(共包含201景升轨、降轨全极化数据)

Figure 2. The LT-1A observation areas in the Amazon rainforest (including 201 images with full polarization of ascending and descending orbits)

下载: 全尺寸图片幻灯片

图 3 LT-1A热带雨林观测数据示例(a)—(d)为Pauli假彩色合成影像

Figure 3. The LT-1A observations in the Amazon rainforest (a)—(d) present the PauliRGB images

下载: 全尺寸图片幻灯片

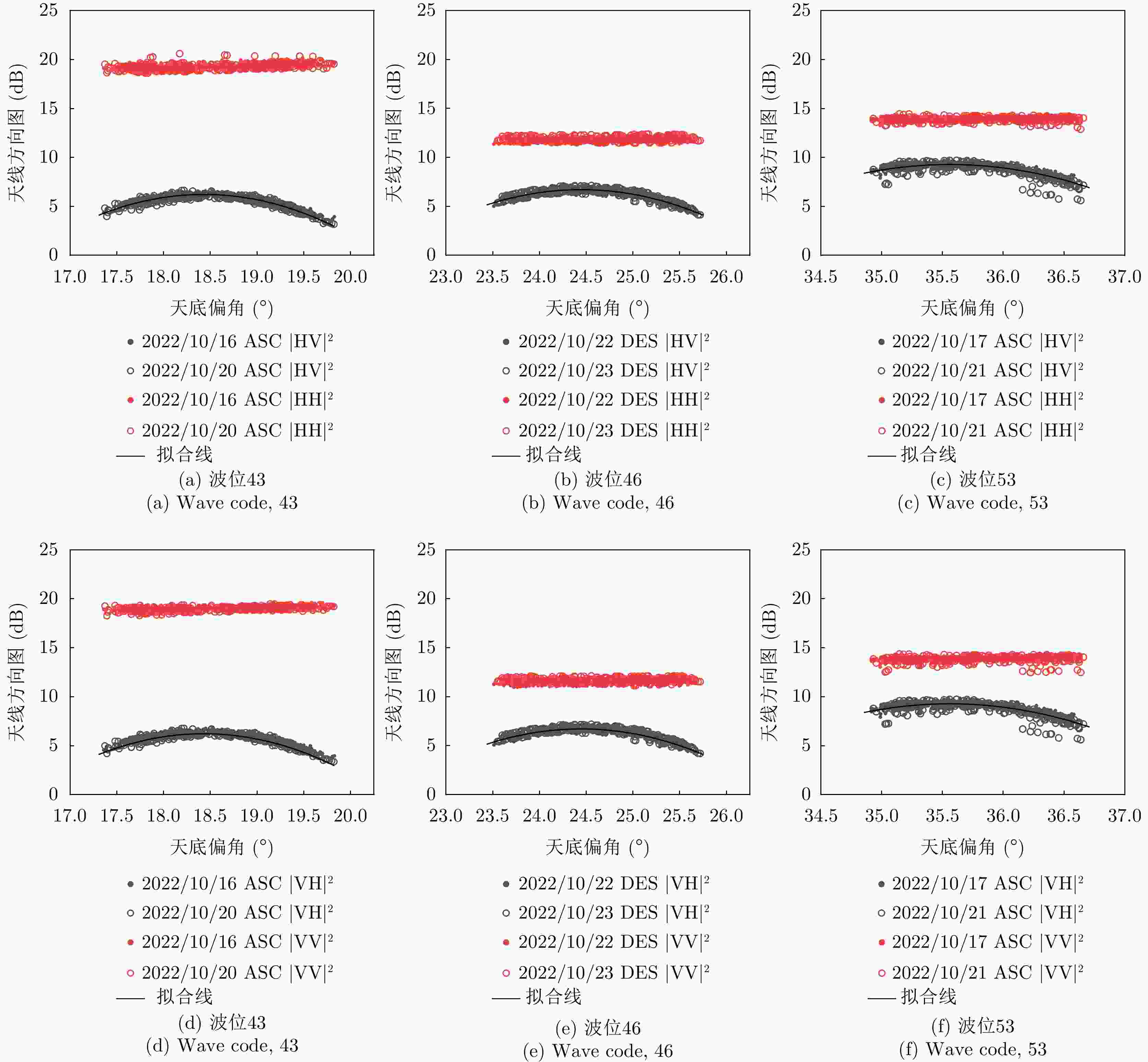

图 4 基于热带雨林的LT-1A天线方向图估计结果

Figure 4. The antenna pattern estimation results based on the Amazon rainforest observations

下载: 全尺寸图片幻灯片

图 5 天线方向图校准后LT-1A数据示例

Figure 5. The LT-1A samples after calibrating the antenna pattern

下载: 全尺寸图片幻灯片

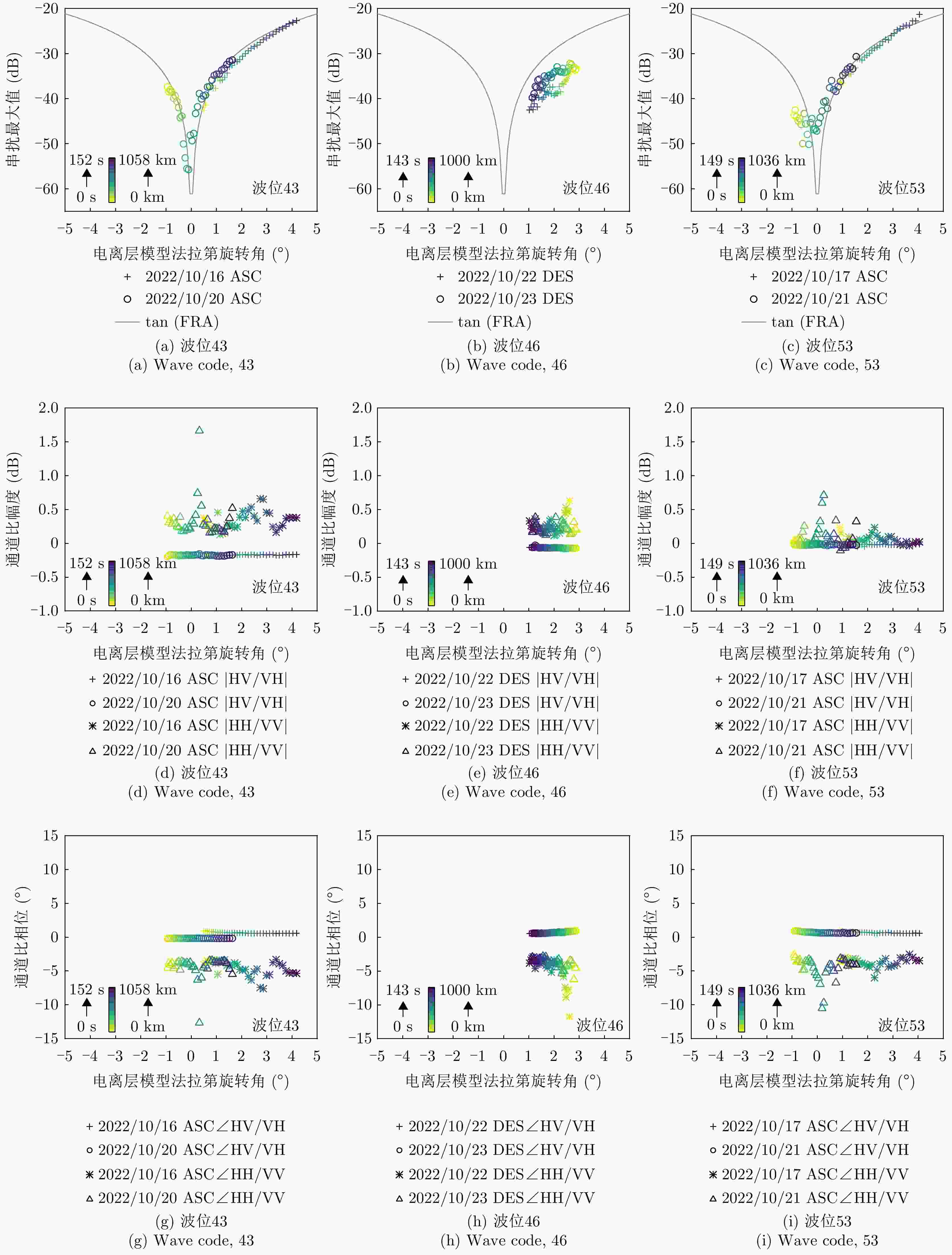

图 6 雨林地区LT-1A影像“总体极化畸变”与电离层模型获取的法拉第旋转角先验(横轴)。ASC表示升轨、DES表示降轨

Figure 6. The contrast between the theoretical faraday rotation angle determined by the Ion. Model and the polarimetric distortions of the LT-1A data in the Amazon rainforest. The scatters in (a)—(c) present max polarimetric crosstalk levels estimated by the Ainsworth0 method and the gray lines represent the tangent values ($ {\tan}\omega $) of the theoretical faraday rotation angle. The scatters in (d)—(f) present the amplitude levels of channel ratio estimated by the Ainsworth0 in Eq. (10) and the scatters in (g)—(i) present the phase levels of channel ratio. ASC and DES represent the ascending and descending orbits, respectively

下载: 全尺寸图片幻灯片

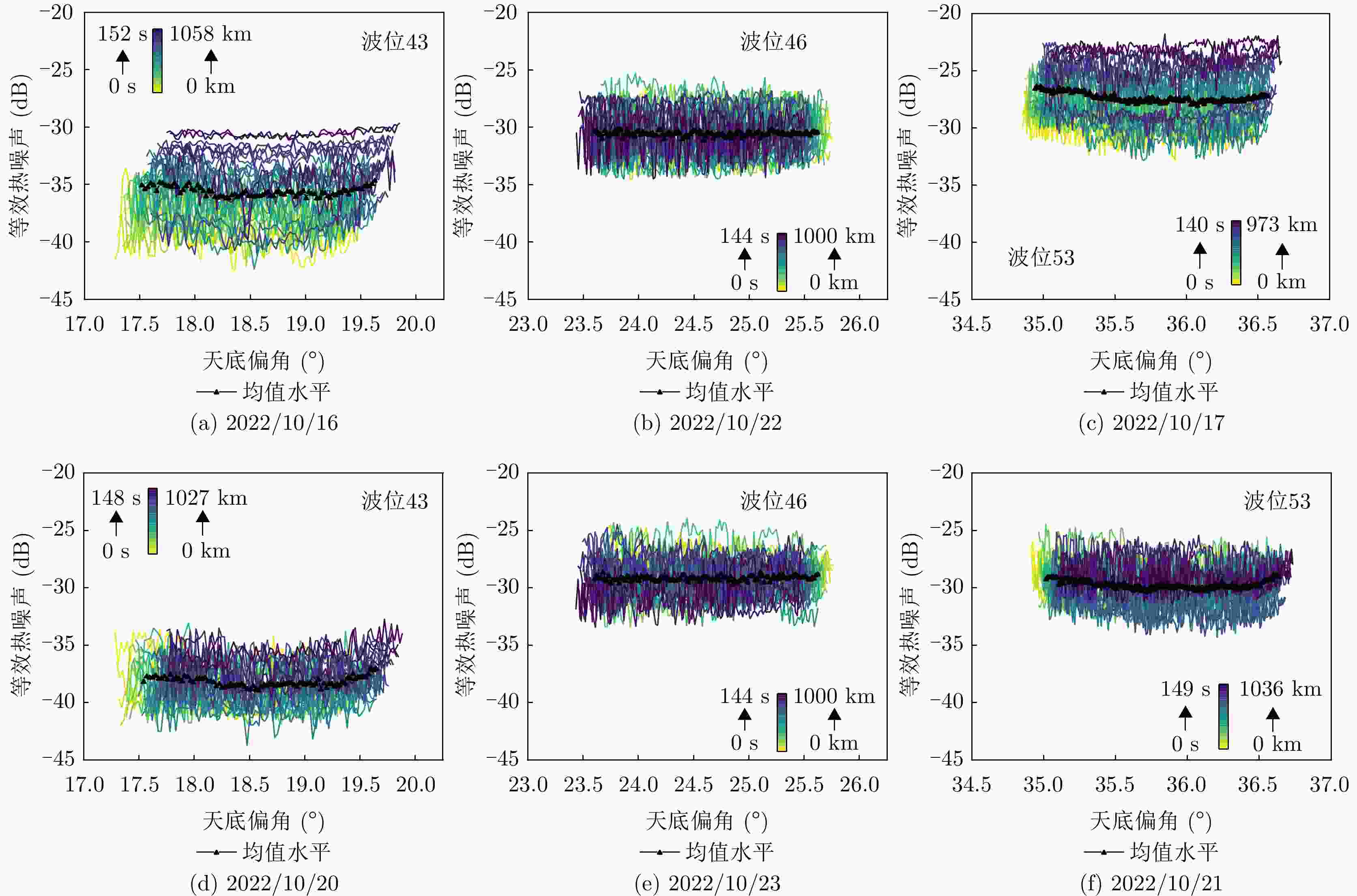

图 7 基于雨林地区的系统等效热噪声估计

Figure 7. The equivalent thermal noise estimation based on the rainforest observations

下载: 全尺寸图片幻灯片

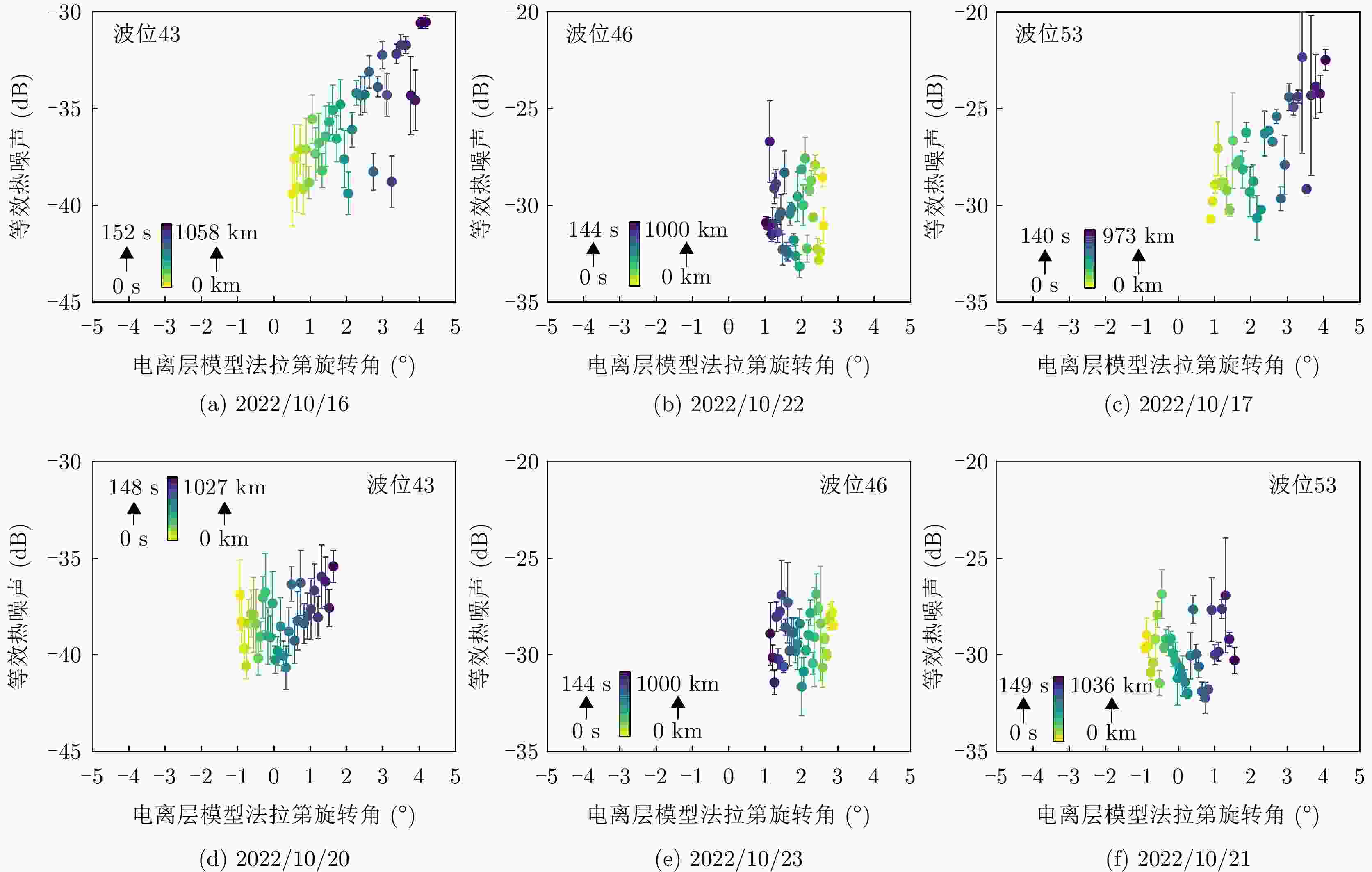

图 8 基于雨林地区的LT-1A影像系统等效热噪声均值与1倍标准差

Figure 8. The statistical levels of LT-1A equivalent thermal noise estimated by the rainforest observations

下载: 全尺寸图片幻灯片

表 1 天线方向图校准后不同极化影像雨林像素均值(Mean)与三倍标准差(Std)

Table 1. The Mean and 3 times Std level of the Amazon rainforest observations after calibrating the antenna pattern

极化通道	波位43 (dB) Mean±3$* $Std		波位 46 (dB) Mean±3$* $Std		波位53 (dB) Mean±3$* $Std
极化通道	2022/10/16	2022/10/20	2022/10/22	2022/10/23	2022/10/17	2022/10/21
HH	19.43±0.80	19.26±0.95	11.70±0.61	11.91±0.63	13.96±0.56	13.87±0.69
HV	6.34±0.72	6.13±0.63	6.63±0.67	6.80±0.62	9.36±0.77	9.18±1.20
VH	6.51±0.72	6.30±0.63	6.69±0.68	6.86±0.63	9.38±0.76	9.20±1.23
VV	19.15±0.61	18.95±0.62	11.47±0.70	11.71±0.61	13.92±0.60	13.81±0.98

下载: 导出CSV
