基于脉内频率编码联合调频斜率捷变波形的ISRJ对抗方法

王晓戈; 李槟槟; 陈辉; 刘维建; 朱永哲; 倪萌钰

doi:10.12000/JR24046

基于脉内频率编码联合调频斜率捷变波形的ISRJ对抗方法

doi: 10.12000/JR24046

1.
空军预警学院武汉 430019
2.
中国人民解放军93209部队北京 100094

基金项目: 国家自然科学基金(62001510, 62101593)

详细信息

作者简介:
王晓戈，博士生，主要研究方向为雷达抗干扰技术和雷达信号处理

李槟槟，博士，副教授，主要研究方向为极化敏感阵列信号处理浩和雷达抗干扰技术

陈　辉，博士，教授，主要研究方向为阵列信号处理、雷达抗干扰技术和新体制雷达

刘维建，博士，副教授，主要研究方向为雷达目标检测、目标检测和新体制雷达

朱永哲，博士生，主要研究方向为雷达抗干扰技术和雷达信号处理

倪萌钰，博士，工程师，主要研究方向为雷达抗干扰技术和星载雷达信号处理

通讯作者:
李槟槟 binbinli_1025@163.com

陈辉 574667385@qq.com

责任主编：全英汇 Corresponding Editor: QUAN Yinghui
中图分类号: TN972
计量
- 文章访问数: 36
- HTML全文浏览量: 17
- PDF下载量: 4
- 被引次数: 0
出版历程
- 收稿日期: 2024-03-24
- 修回日期: 2024-07-08

Anti-ISRJ Method Based on Intrapulse Frequency-Coded Joint Frequency Modulation Slope Agile Radar Waveform

1.
Air Force Early Warning Academy, Wuhan 430019, China
2.
The People's Liberation Army Unit 93209, Beijing 100094, China

Funds: The National Natural Science Foundation of China (62001510, 62101593)

More Information

Corresponding author: LI Binbin, binbinli_1025@163.com; CHEN Hui, 574667385@qq.com

摘要

摘要: 间歇采样转发干扰(ISRJ)是一种脉内相参干扰，能在目标斜距前后形成多个逼真假目标来严重影响雷达检测，是当前电子反对抗的热点之一。针对这一问题，该文提出了一种基于脉内频率编码联合调频斜率捷变波形的抗ISRJ方法。首先，雷达发射脉内频率编码联合调频斜率捷变信号，通过子脉冲中心频率、调频斜率捷变提高子脉冲间相互掩护能力。之后依据发射信号子脉冲斜率变化时序将回波信号划分为多个切片。然后利用模糊C均值(FCM)算法对回波切片进行干扰识别。最后在分数阶域和时域对回波信号进行级联滤波。仿真结果表明，FCM方法在信噪比(SNR)大于－2.5 dB和干信比(JSR)大于5 dB时，能100%识别干扰机同步采样场景下回波中的受干扰回波切片。在较高JSR和低SNR下，所提方法能有效减少目标能量损失并抑制剩余干扰产生的距离旁瓣。在JSR为50 dB时，干扰抑制后的目标检测概率可达90%以上。
- 间歇采样转发干扰 (ISRJ) /
- 频率编码联合调频斜率捷变 /
- 分数阶傅里叶变换 /
- 时域滤波 /
- 电子反对抗
Abstract: Interrupted Sampling Repeater Jamming (ISRJ) is a type of intrapulse coherent jamming that can form multiple realistic false targets that lead or lag behind the actual target, severely affecting radar detection. It is one of the hotspots of current research on electronic counter-countermeasures. To address this problem, an anti-ISRJ method based on an intrapulse frequency–coded joint Frequency Modulation (FM) slope agile waveform is proposed in this paper. In this method, the radar first transmits an intrapulse frequency-coded joint FM slope agile signal to improve the mutual coverability of subpulses by manipulating subpulse center frequency and FM slope agility. Next, the echo signal is divided into several slices according to the subpulse timing of the transmitted signal. Then, the Fuzzy C-Means (FCM) algorithm is used to classify the echo slices. Finally, the interference is suppressed via fractional-domain joint time domain filtering. Simulation results show that the FCM-based method can identify 100% of the interfered echo slices in a jammer synchronous sampling scenario when the Signal-to-Noise Ratio (SNR) is greater than −2.5 dB, and the Jamming-to-Signal Ratio (JSR) is greater than 5 dB. For high JSRs and low SNRs, the proposed method can effectively reduce the target energy loss and suppress the range sidelobes generated via residual interference. Moreover, the target detection probability after interference suppression exceeds 90% when JSR = 50 dB.

HTML全文

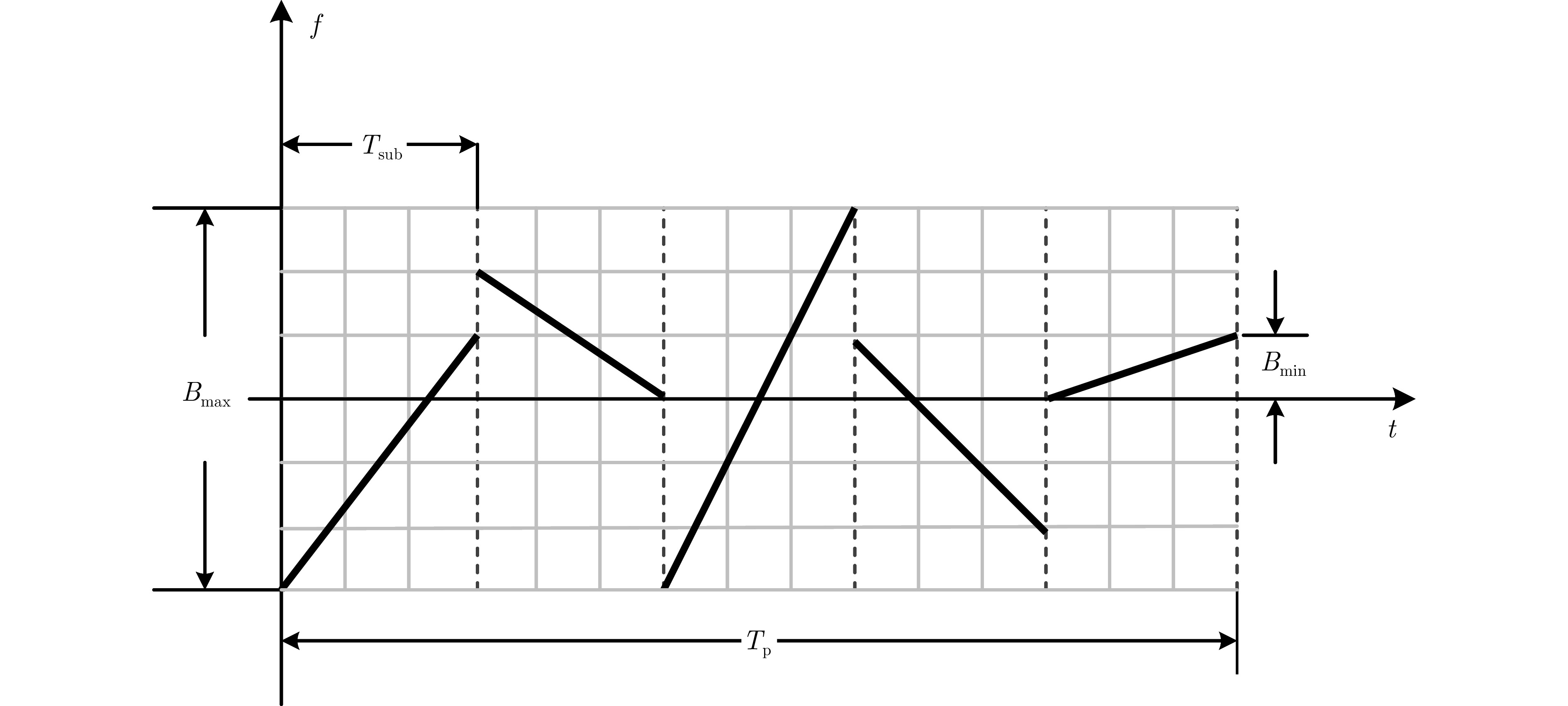

图 1 脉内频率编码联合调频斜率捷变信号时频图

Figure 1. Time-frequency diagram of intra-pulse frequency coded joint FM slope agile waveform.

下载: 全尺寸图片幻灯片

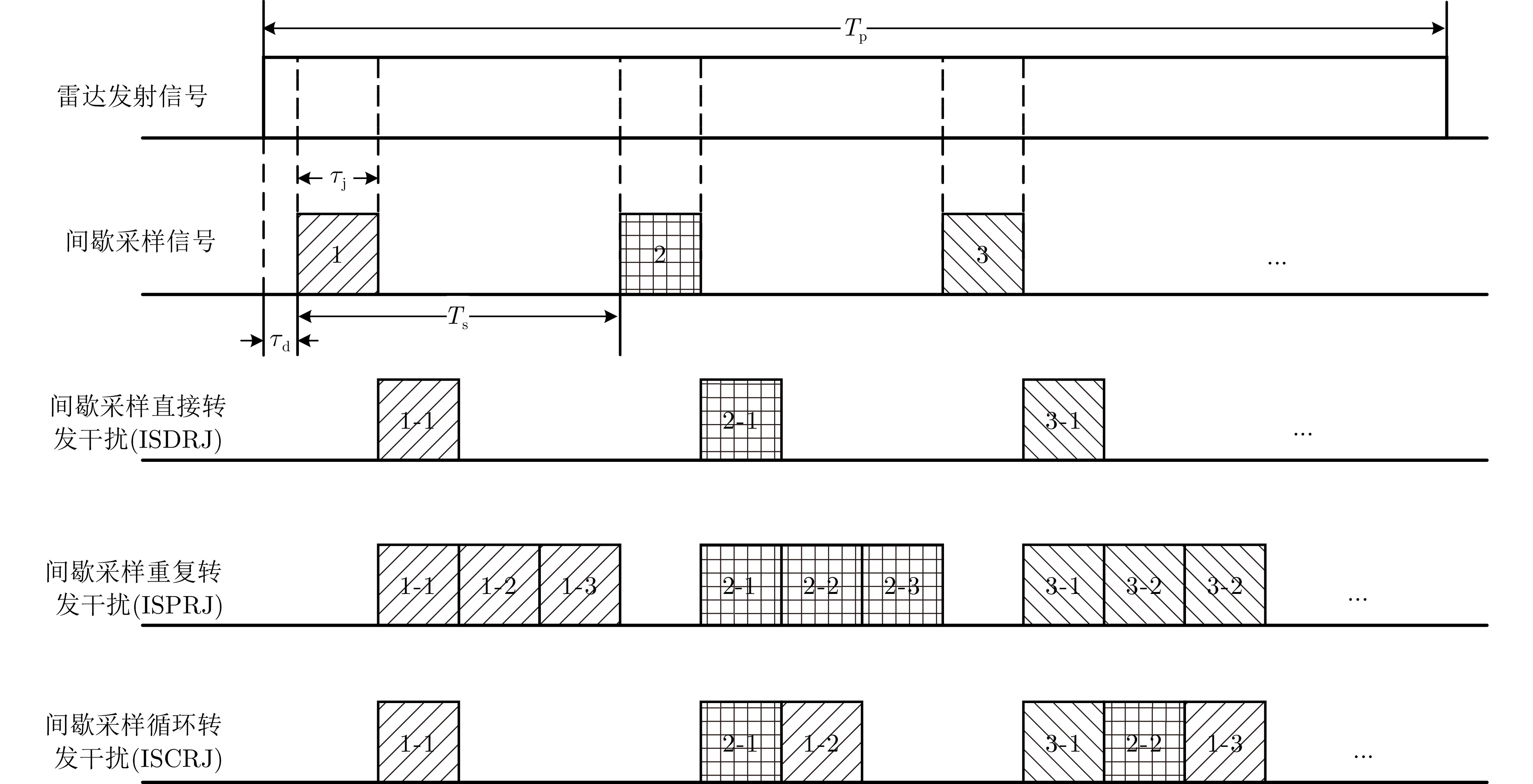

图 2 ISRJ机理

Figure 2. Mechanism of ISRJ.

下载: 全尺寸图片幻灯片

图 3 脉内频率编码回波信号时频分布。

Figure 3. Time-frequency distribution of the intra-pulse frequency coded echo signal

下载: 全尺寸图片幻灯片

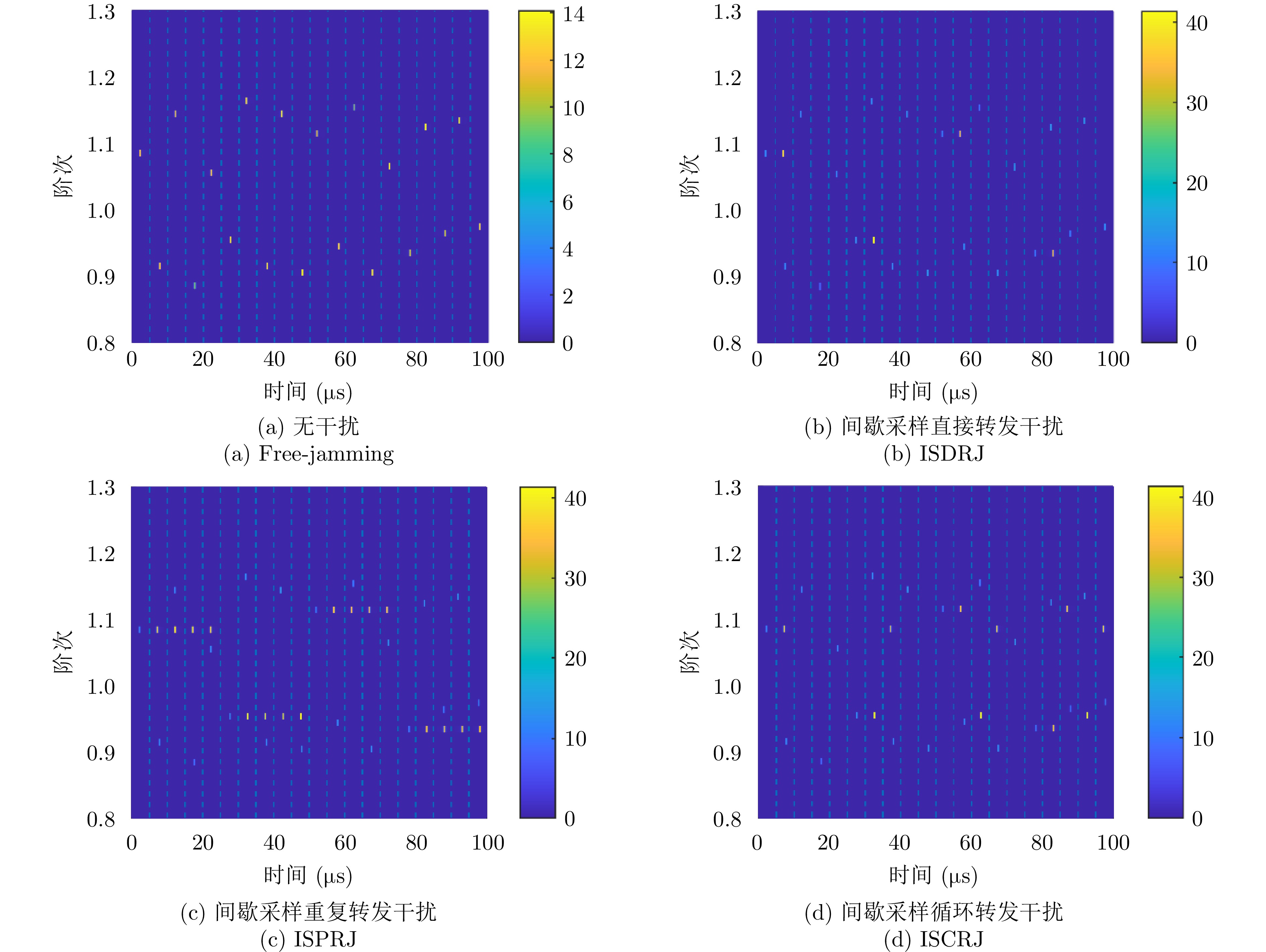

图 4 脉内调频斜率捷变信号的最优变换阶次分布

Figure 4. Optimal fractional order distribution of the intra-pulse FM slope agile signal

下载: 全尺寸图片幻灯片

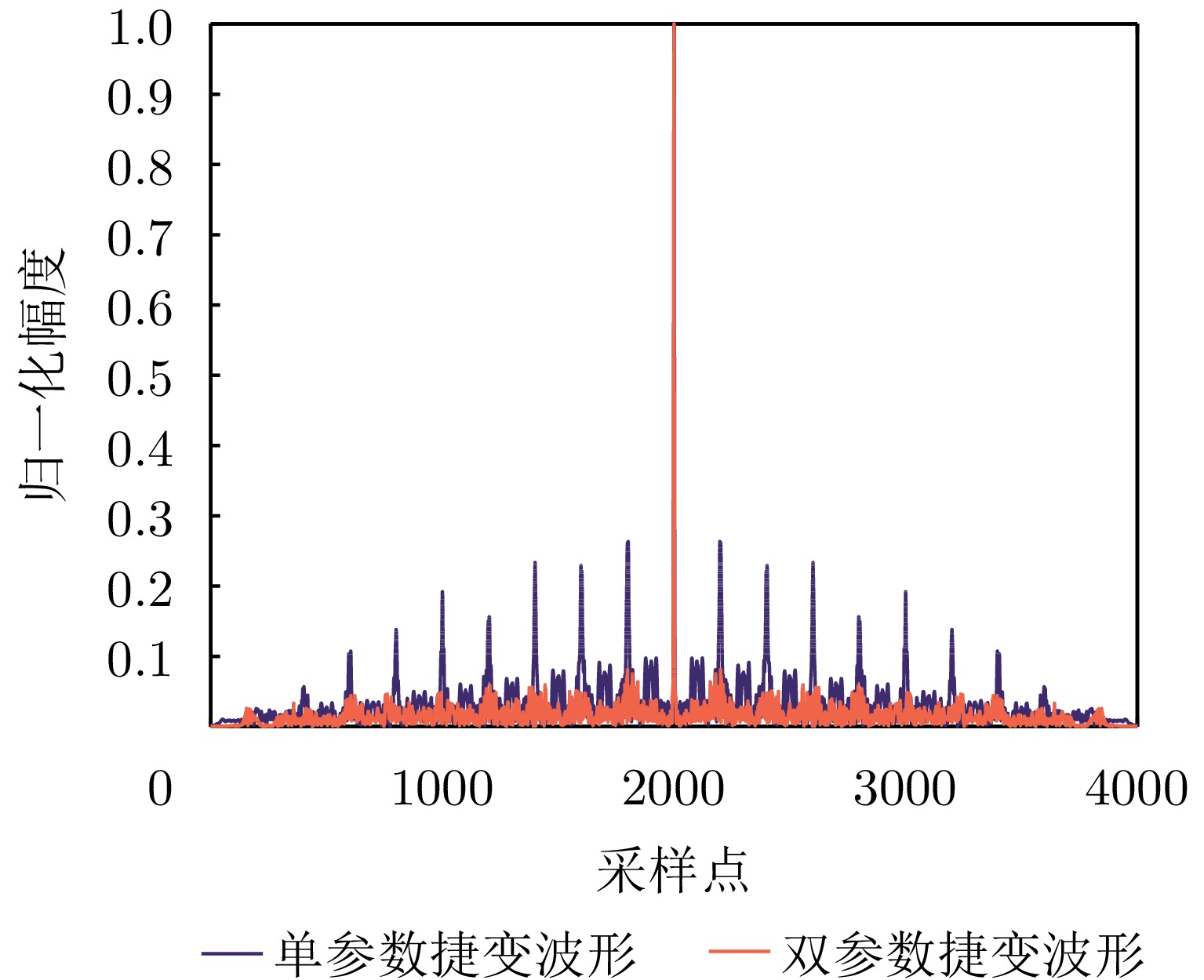

图 5 单参数捷变波形与双参数捷变波形的自相关结果对比

Figure 5. Comparison of autocorrelation results between single-parameter agile waveform and dual-parameter agile waveform

下载: 全尺寸图片幻灯片

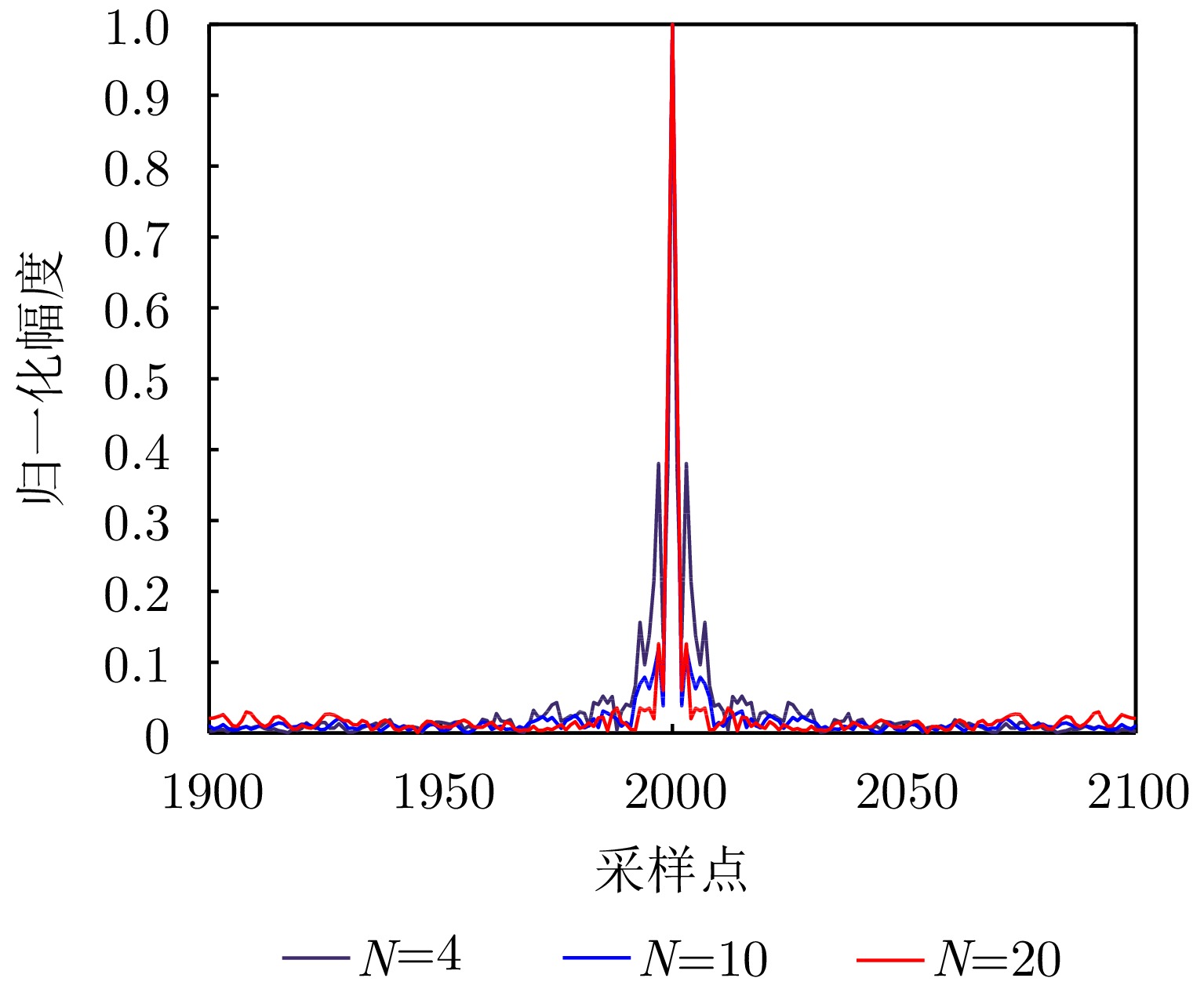

图 6 不同子脉冲数下的自相关结果

Figure 6. Autocorrelation results of different sub-pulse numbers

下载: 全尺寸图片幻灯片

图 7 ISRJ抑制方法流程图

Figure 7. Flow chart of the proposed ISRJ suppression method

下载: 全尺寸图片幻灯片

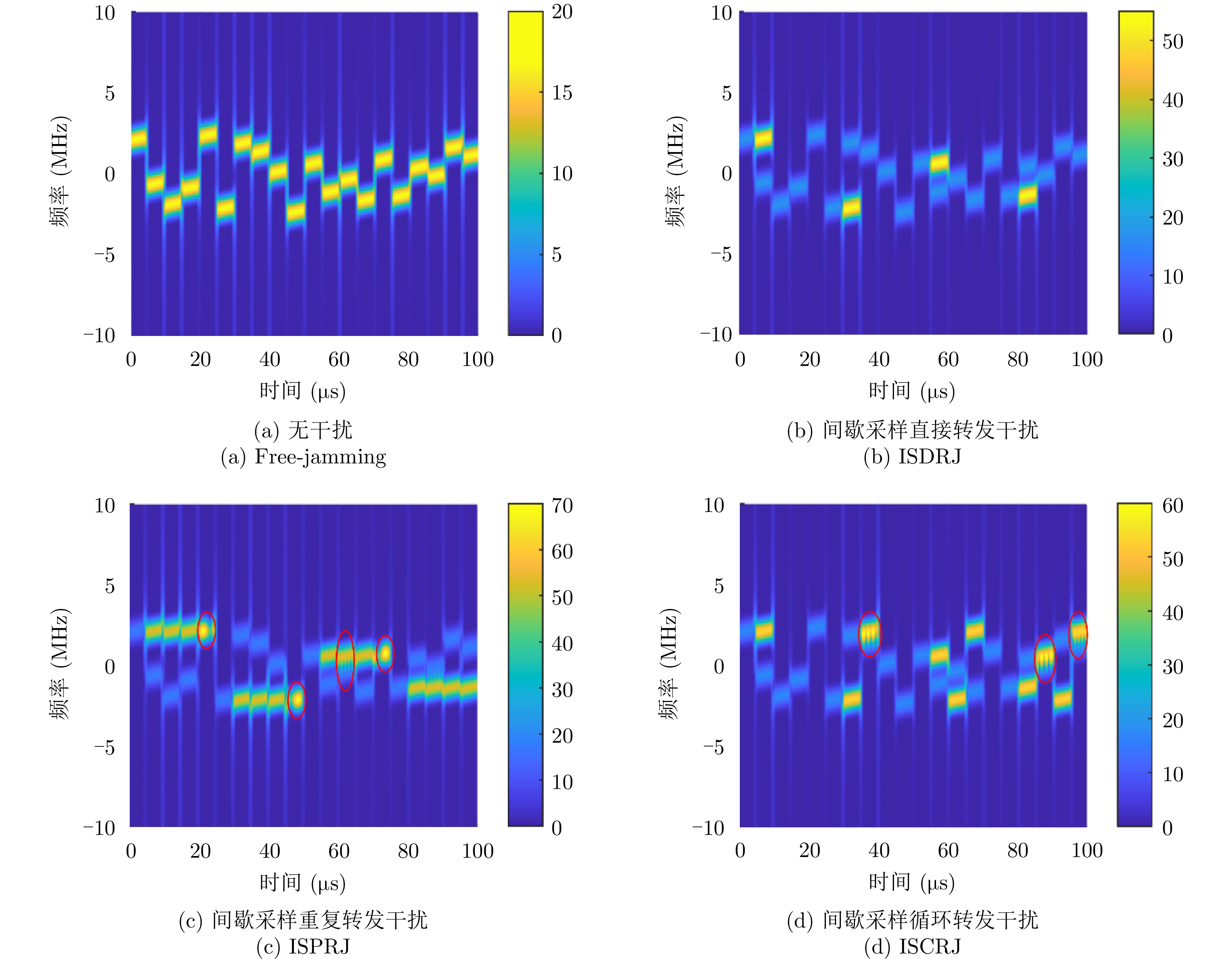

图 8 脉内频率编码联合调频斜率捷变信号的时频图

Figure 8. Time-frequency diagram of the intra-pulse frequency coded joint FM slope agile signal

下载: 全尺寸图片幻灯片

图 9 ISDRJ抑制

Figure 9. Interference suppression for ISDRJ

下载: 全尺寸图片幻灯片

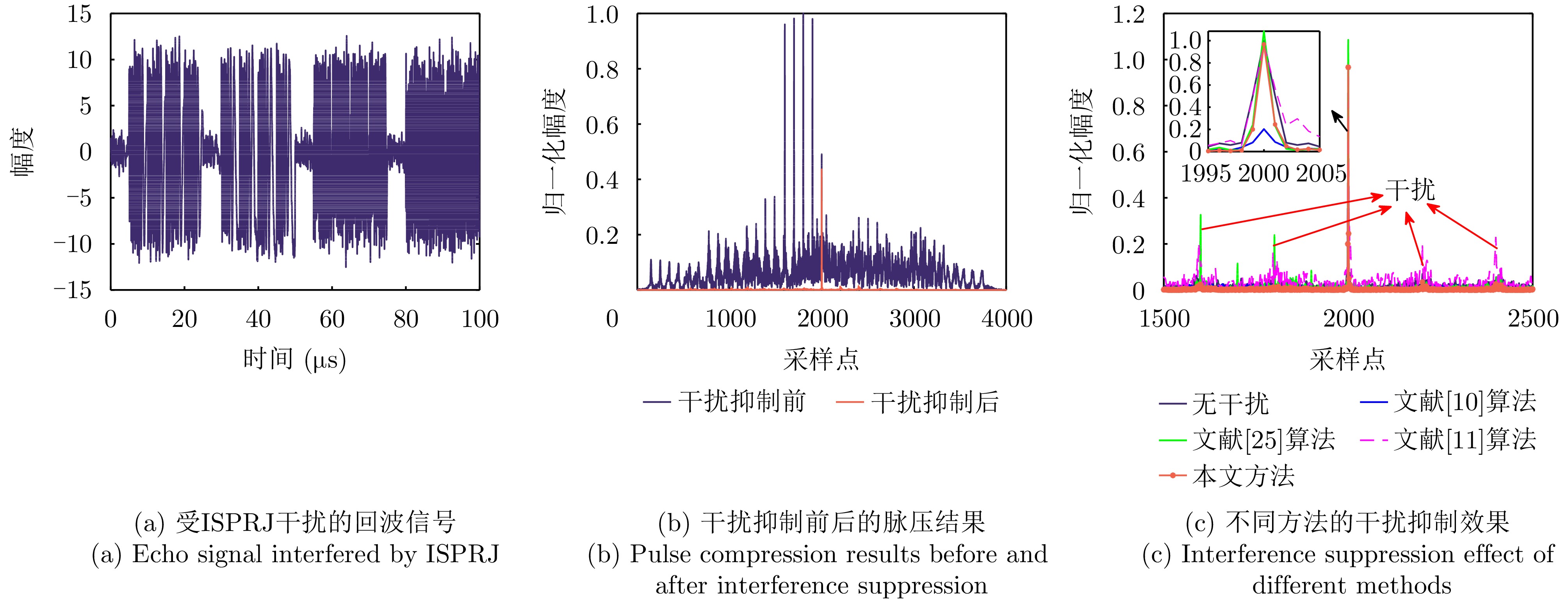

图 10 ISPRJ抑制

Figure 10. Interference suppression for ISPRJ

下载: 全尺寸图片幻灯片

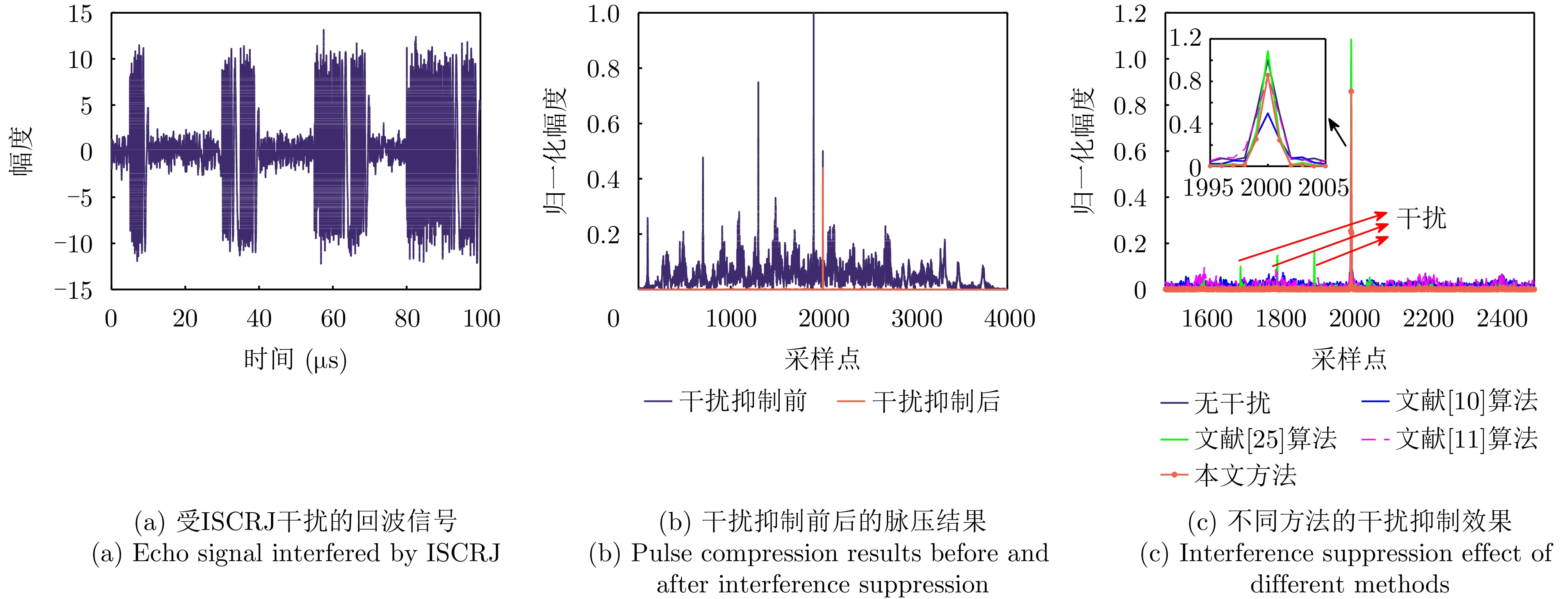

图 11 ISCRJ抑制

Figure 11. Interference suppression for ISCRJ

下载: 全尺寸图片幻灯片

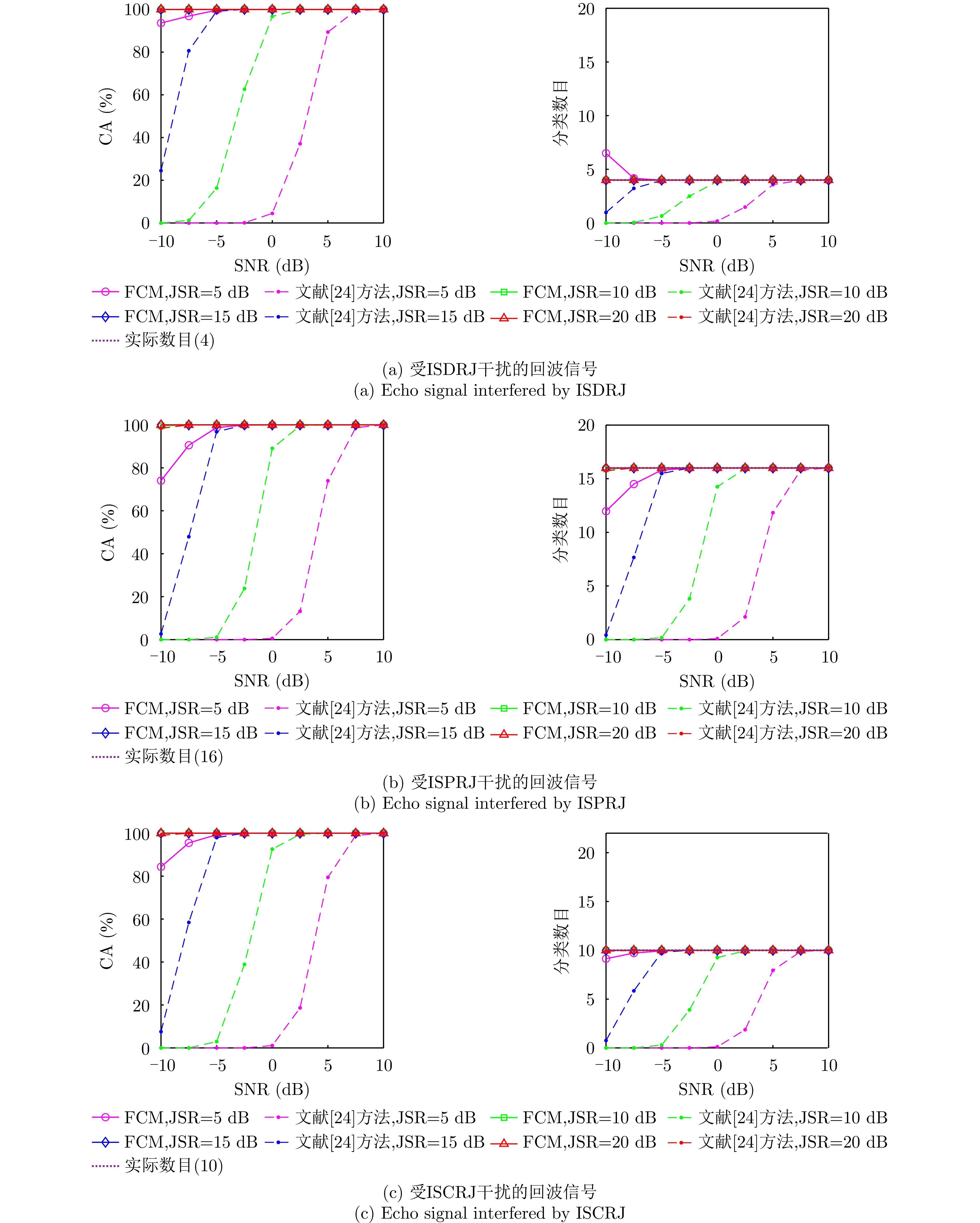

图 12 FCM方法和文献[24]方法在不同SNR和JSR下对受干扰回波切片的分类准确率和分类数目

Figure 12. CA and identification number of the FCM method and [24] method for the interfered echo slice at different JSRs and SNRs

下载: 全尺寸图片幻灯片

图 13 不同方法抗ISDRJ后的目标检测概率

Figure 13. The TDP of echo signal containing ISDRJ after interference suppression by different methods

下载: 全尺寸图片幻灯片

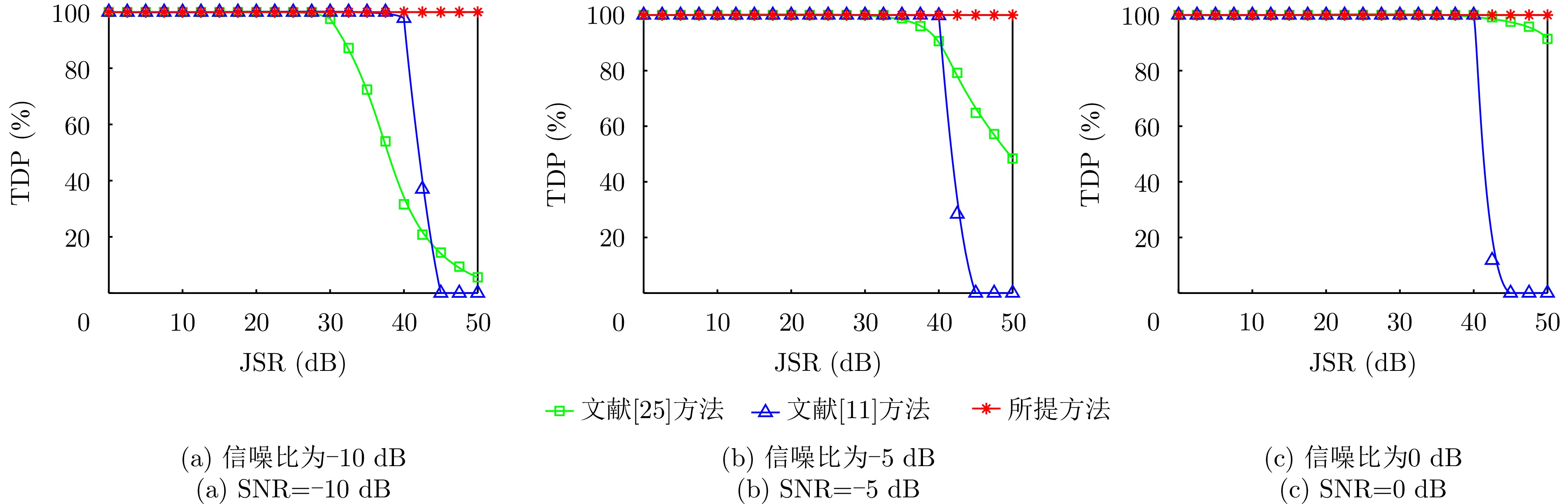

图 14 不同方法抗ISPRJ后的目标检测概率

Figure 14. The TDP of echo signal containing ISPRJ after interference suppression by different methods

下载: 全尺寸图片幻灯片

图 15 不同方法抗ISCRJ后的目标检测概率

Figure 15. The TDP of echo signal containing ISCRJ after interference suppression by different methods

下载: 全尺寸图片幻灯片

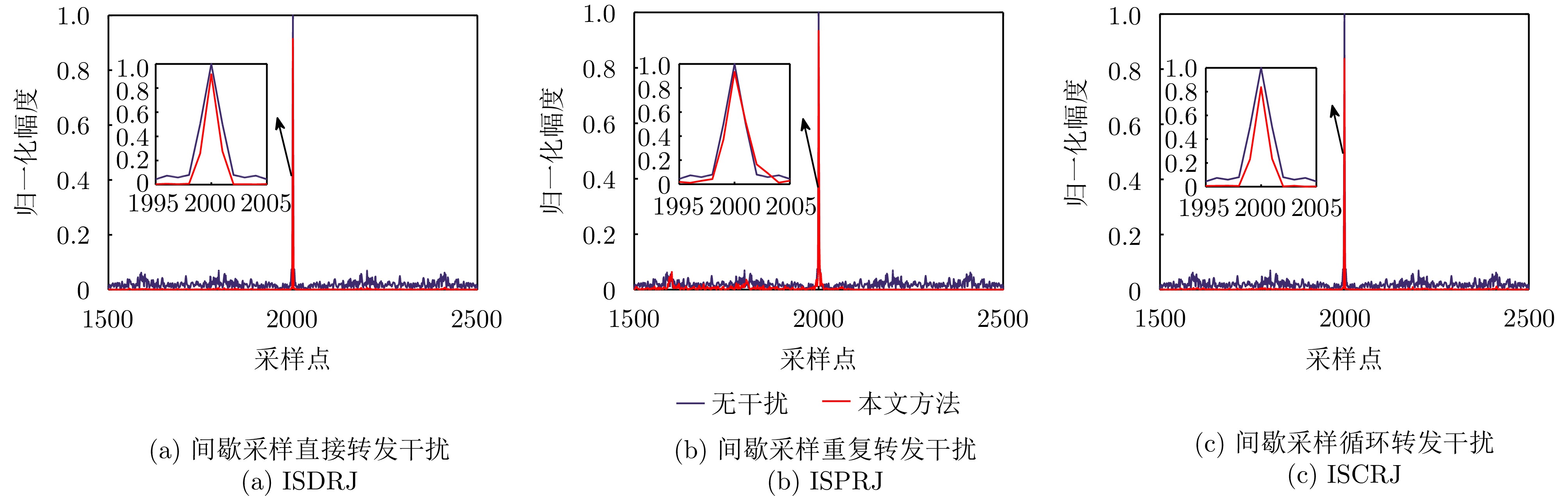

图 16 干扰抑制后脉压结果(${\tau _{\mathrm{d}}} = 1{\text{ }} {\text{μs}}$)

Figure 16. Pulse compression results after interference suppression (${\tau _{\mathrm{d}}} = 1{\text{ }} {\text{μs}}$)

下载: 全尺寸图片幻灯片

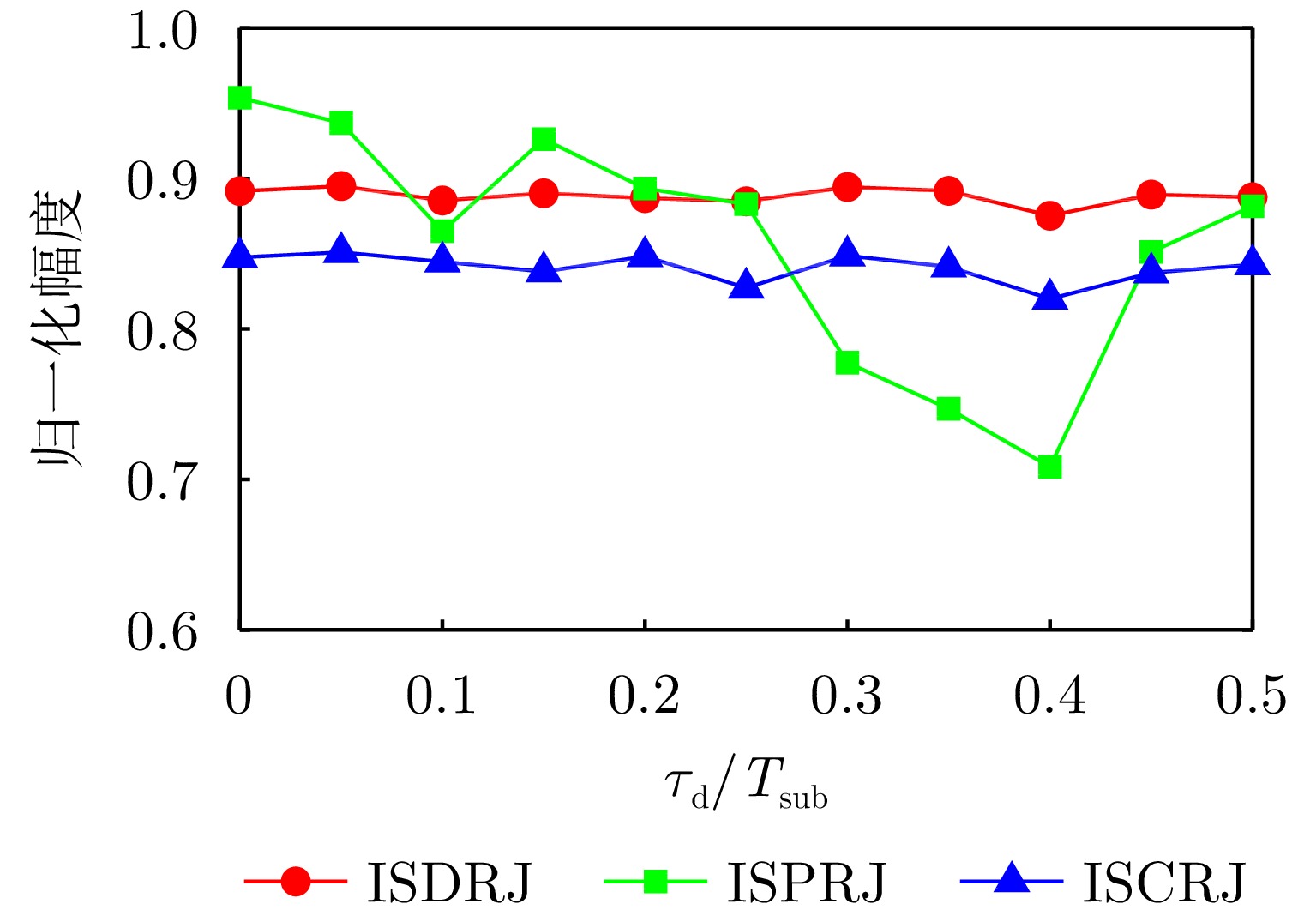

图 17 采样延时与干扰抑制后目标归一化幅度关系

Figure 17. Relationship curve between sampling delay and normalized amplitude of target after interference suppression

下载: 全尺寸图片幻灯片

图 18 干扰抑制后脉压结果(${\tau _{\mathrm{j}}}/{T_{{\mathrm{sub}}}} = 1.6$)

Figure 18. Pulse compression results after interference suppression (${\tau _{\mathrm{j}}}/{T_{{\mathrm{sub}}}} = 1.6$)

下载: 全尺寸图片幻灯片

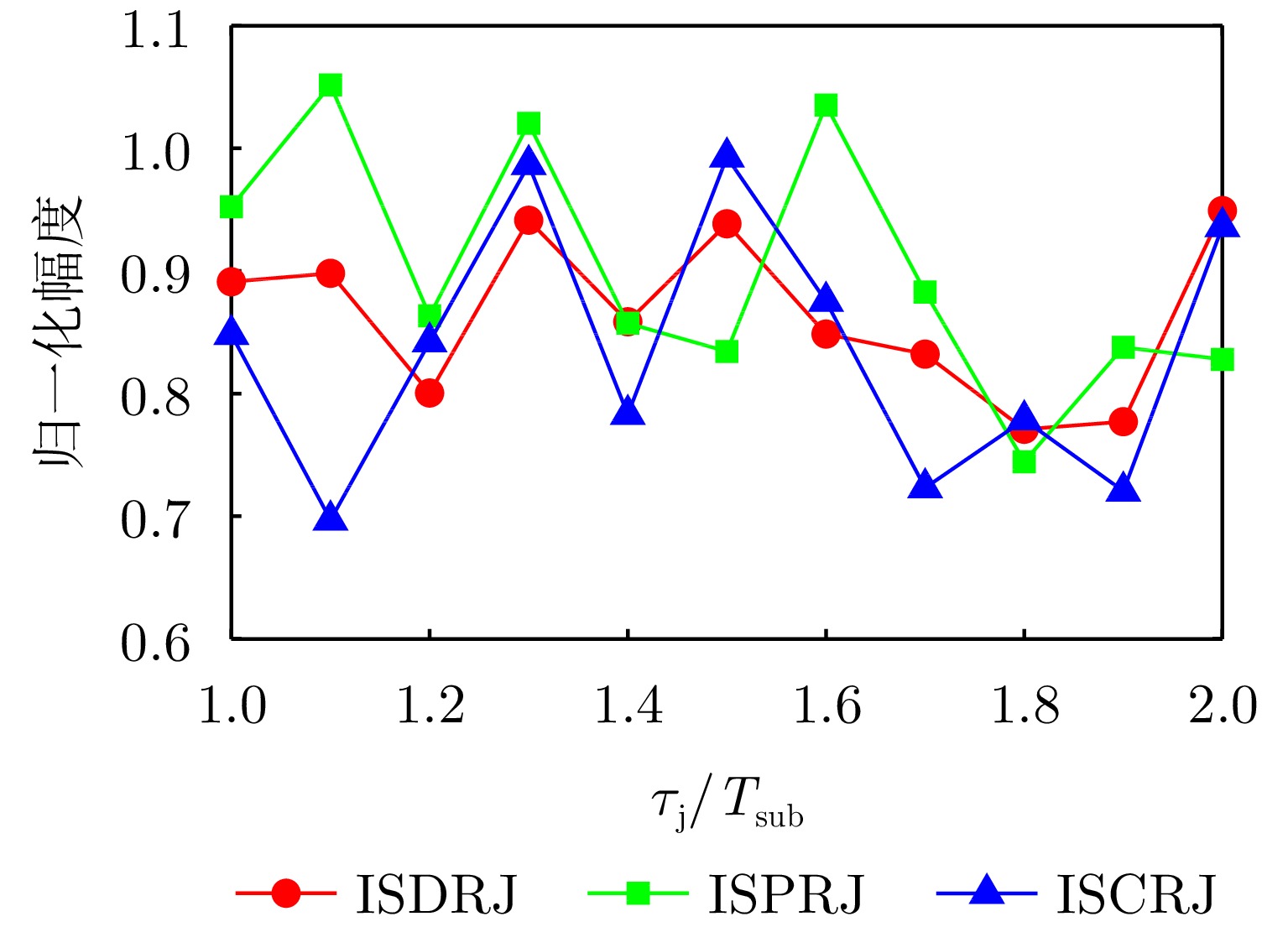

图 19 采样脉冲宽度与干扰抑制后目标归一化幅度关系

Figure 19. Relationship curve between sampling pulse duration and normalized amplitude of target after interference suppression

下载: 全尺寸图片幻灯片

A1 模糊C均值算法

A1. Fuzzy C-mean algorithm

输入：X：样本集；N：样本数；K：类别数；
输出：$ {\mathrm{Label}}\left( {{x_i}} \right),i = 1,2, \cdots ,N $：样本所属类别
初始化：U：隶属度矩阵;
$\ell = 2$：模糊加权指数；
$\varepsilon = {10^{ - 5}}$：阈值
$h = 1$：迭代次数
1: repeat
2: 根据式(12)计算各聚类中心
3: 根据式(11)更新隶属度矩阵U
4: until $\left\\| {{{\boldsymbol{U}}_h} - {{\boldsymbol{U}}_{h - 1}}} \right\\| \le \varepsilon $
5: else
6: $h = h + 1$
7: return $ {\mathrm{Label}}\left( {{x_i}} \right),i = 1,2, \cdots ,N $

下载: 导出CSV

表 1 仿真实验的参数设置

Table 1. Parameter settings for simulation experiments.

参数	数值
雷达发射信号脉宽(${T_{\rm p}}$)	100 μs
子脉冲脉宽(${T_{{\mathrm{sub}}}}$)	5 μs
子脉冲数(N)	20
子脉冲最小带宽(${B_{\min }}$)	2 MHz
子脉冲最大带宽(${B_{\max }}$)	10 MHz
子脉冲载频最大间隔(${B_0}$)	10 MHz
采样频率(${f_{\mathrm{s}}}$)	20 MHz
干扰机采样脉冲宽度(${\tau _{\mathrm{j}}}$)	5 μs
间歇采样重复周期(${T_{\mathrm{s}}}$)	25 μs
干信比(JSR)	20 dB
信噪比(SNR)	0 dB

下载: 导出CSV

表 2 不同方法在不同SNR下的JSR容限 (dB)

Table 2. The JSR tolerance of different methods at different SNRs (dB)

方法	－10 dB			－5 dB			0 dB
方法	ISDRJ	ISPRJ	ISCRJ	ISDRJ	ISPRJ	ISCRJ	ISDRJ	ISPRJ	ISCRJ
文献[11]方法	40	32.5	37.5	40	32.5	37.5	40	32.5	37.5
文献[25]方法	30	22.5	27.5	40	27.5	32.5	50	35	37.5
所提方法	50	50	50	50	50	50	50	50	50

下载: 导出CSV
