摘要

摘要: 极地冰盖特殊的热交换属性和庞大的含水量，使其成为全球气候变化的“指示器”和“放大器”。由于特殊的地理位置及严峻的气候环境，目前对极地冰盖的立体探测及认识仍旧匮乏。穿冰雷达具备强穿透性和高精度测距能力，成为冰盖立体层析探测的最佳选择，促进了极地科学的快速发展。受制于低频电磁波跨冰冻圈层传播的复杂性和雷达作用距离的大幅增加，迄今为止，利用天基平台实现穿冰探测依然是对地遥感的空白领域。该文针对天基穿冰雷达系统的科学需求和面临的特殊问题展开讨论，分析了天基穿冰系统面临的3大问题：传输衰减、积雪杂波干扰和垂直航迹向分辨率恶化；结合现有研究成果和技术发展趋势，分析了利用微小卫星平台进行分布式编队实现天基穿冰探测的可行性，论证了分布式穿冰雷达关键指标，指出了天基穿冰雷达未来发展亟需解决的关键技术难题，探索实现百米空间分辨率、季节尺度重访的天基穿冰雷达实施方案。
- 天基穿冰雷达 /
- 层析探测 /
- 分布式雷达 /
- 极地冰盖 /
- 全球气候变化
Abstract: Owing to the enormous amount of frozen water and the particularity of heat exchange, polar ice sheets act as an important indicator and amplifier of global climate change. However, the detection and cognition of the tomographic structure of polar ice sheets remain insufficient due to the special geographical location and harsh weather. Benefit from the advantage of strong penetrability and high-precision range measurement, the ice sounding radar is an optimal instrument for tomographic detection of polar ice sheets, which significantly promotes the development of polar science. Nevertheless, existing radar satellites still cannot detect ice beds in depth because of the complex low-frequency signal propagation in ice and an extremely long operating distance. This study focuses on the scientific objectives (spatial resolution: 100 m and revisit time: 3 months) and presents an in-depth analysis of the key problems of orbital ice sounding radar, including transmission attenuation, firn clutter, and cross-track resolution deterioration. With reference to the current state and trend of radar satellite technology, we proved the feasibility of the application of distributed Synthetic Aperture Radar (SAR) on the microsatellite platform for ice bed detection, identified the key parameters of distributed SAR and the technical challenges of orbital radar sounding system for polar ice sheet tomographic observation, and further explored the implementation scheme.
- Orbital ice sounding radar /
- Tomography /
- Distributed radar /
- Polar ice sheets /
- Global climate change

HTML全文

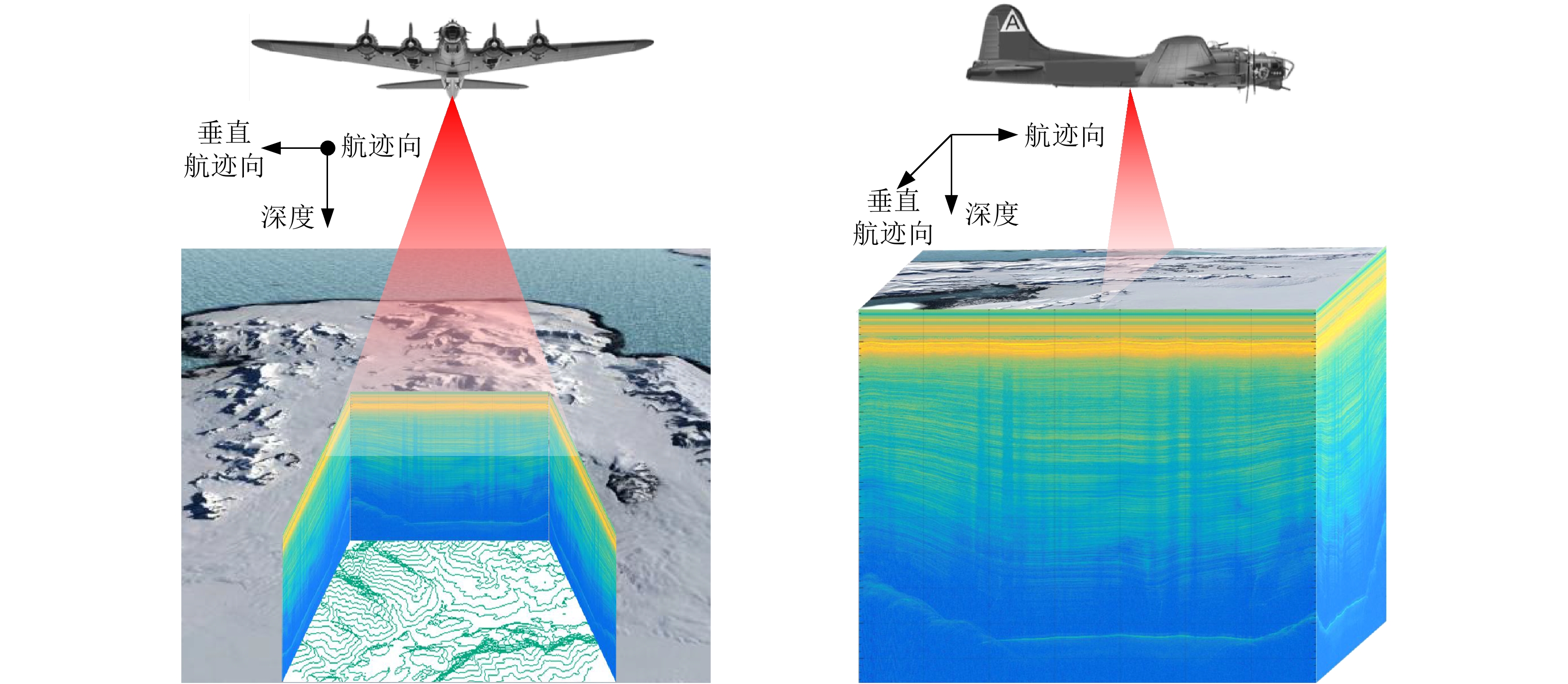

图 1 机载穿冰雷达观测示意图

Figure 1. Schematic diagram of airborne ice sounding radar observation

下载: 全尺寸图片幻灯片

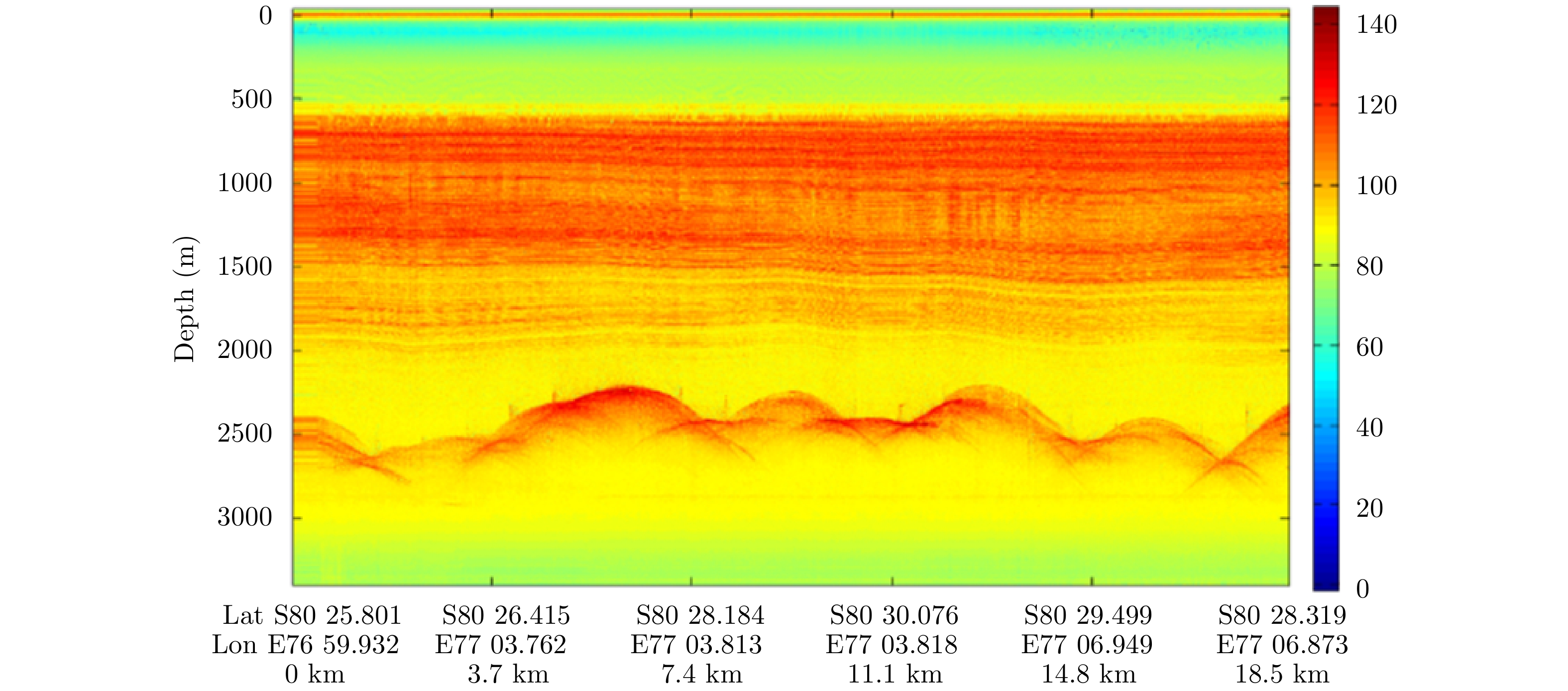

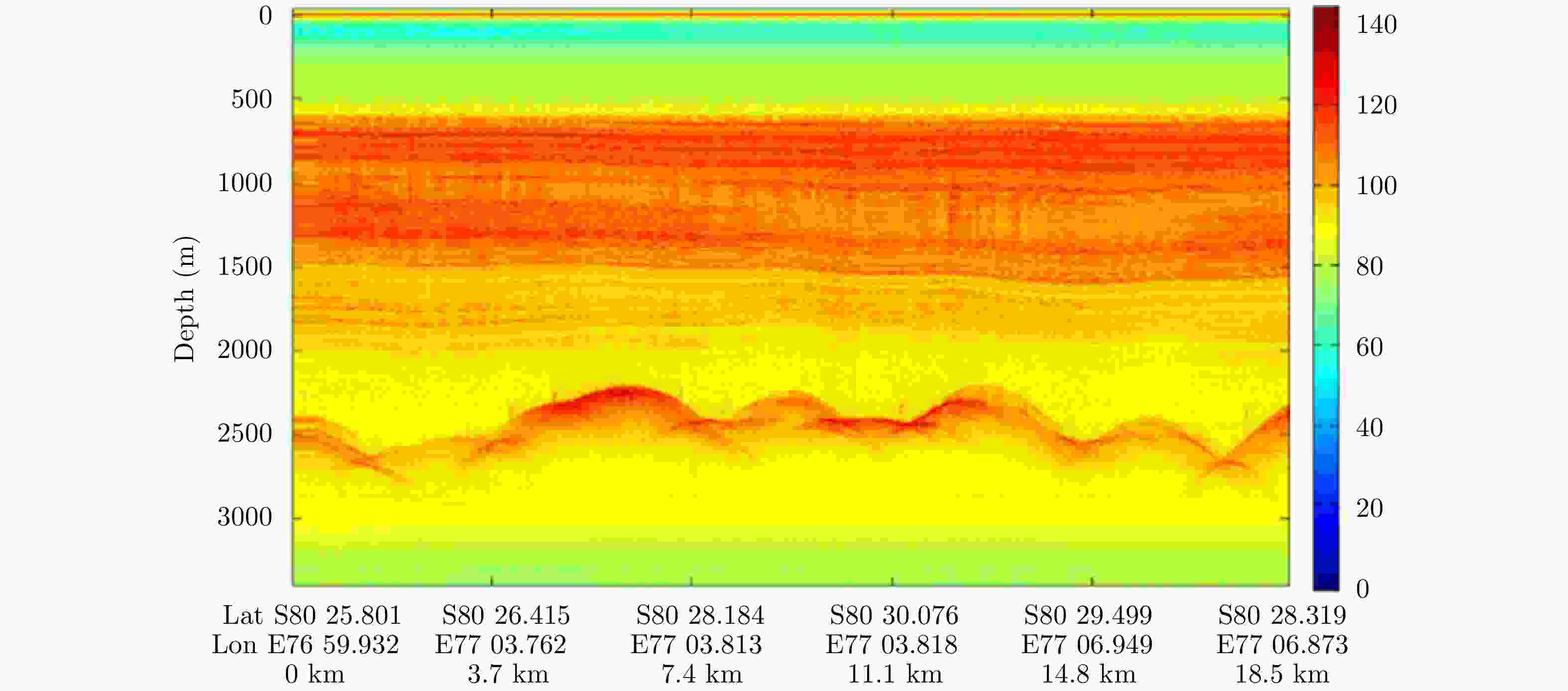

图 2 南极冰盖层析图像(中科院电子所穿冰雷达系统)

Figure 2. A tomographic image of the Antarctic ice sheet obtained by the ice sounding radar developed by the Chinese Academy of Sciences

下载: 全尺寸图片幻灯片

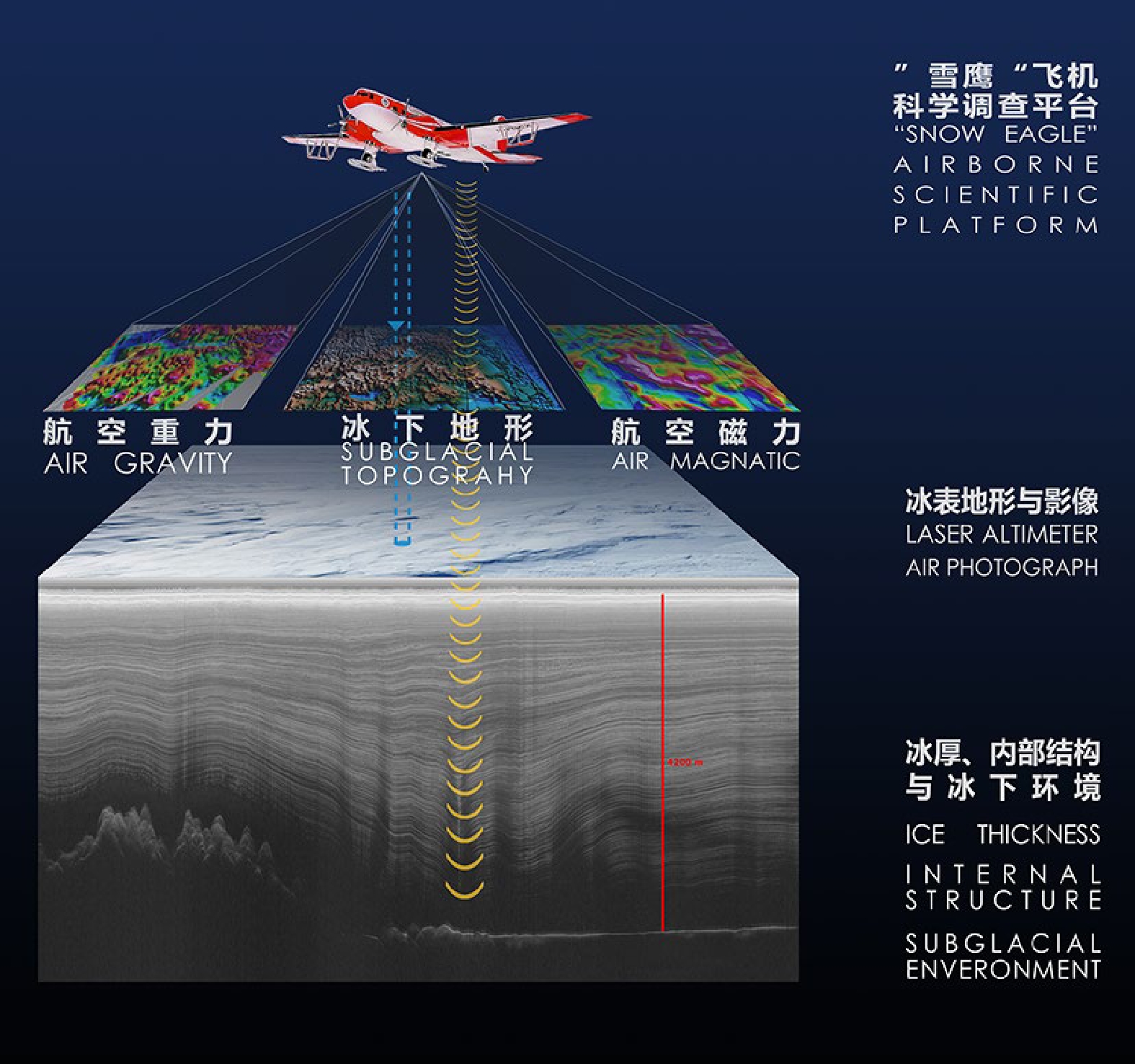

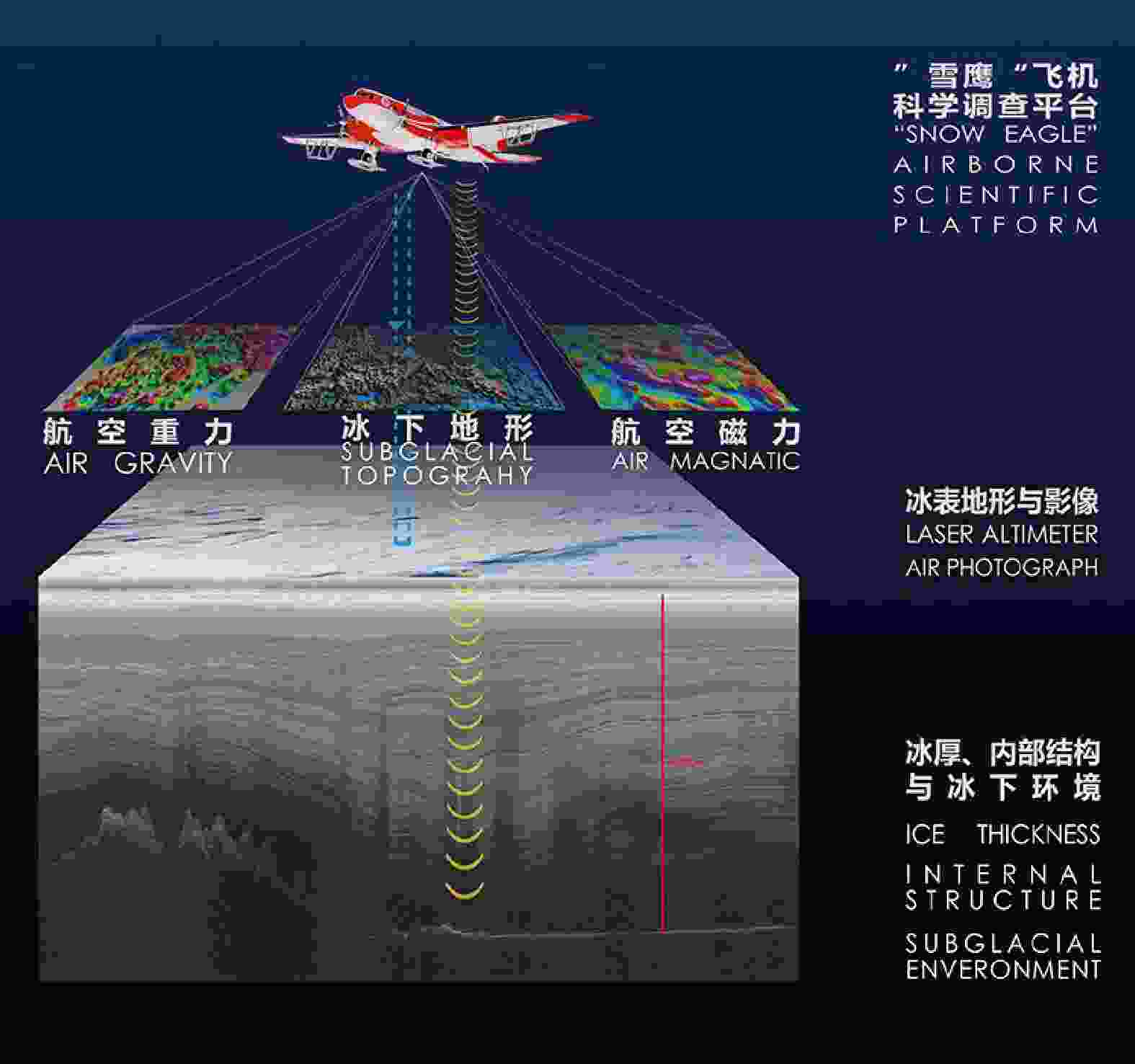

图 3 “雪鹰601”科学调查平台

Figure 3. “Snow Eagle 601” scientific investigation platform

下载: 全尺寸图片幻灯片

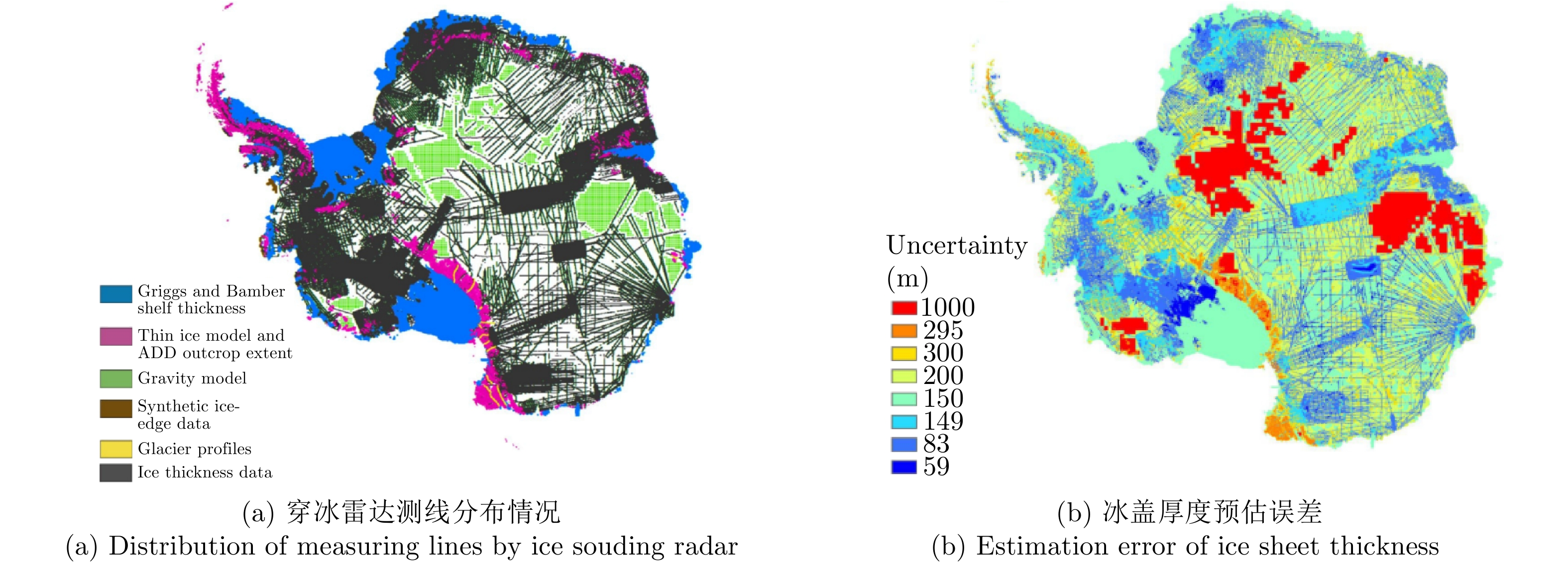

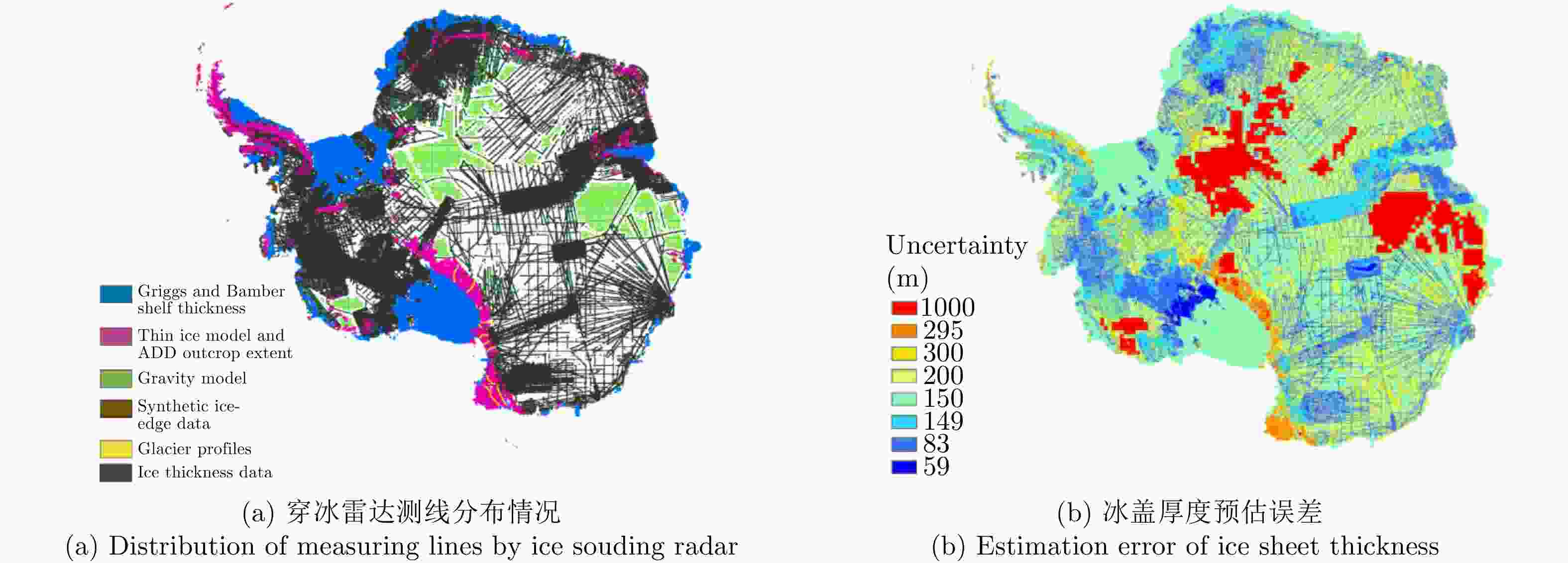

图 4 Bedmap2数据库示意图^[28]

Figure 4. Bedmap2 database diagram^[28]

下载: 全尺寸图片幻灯片

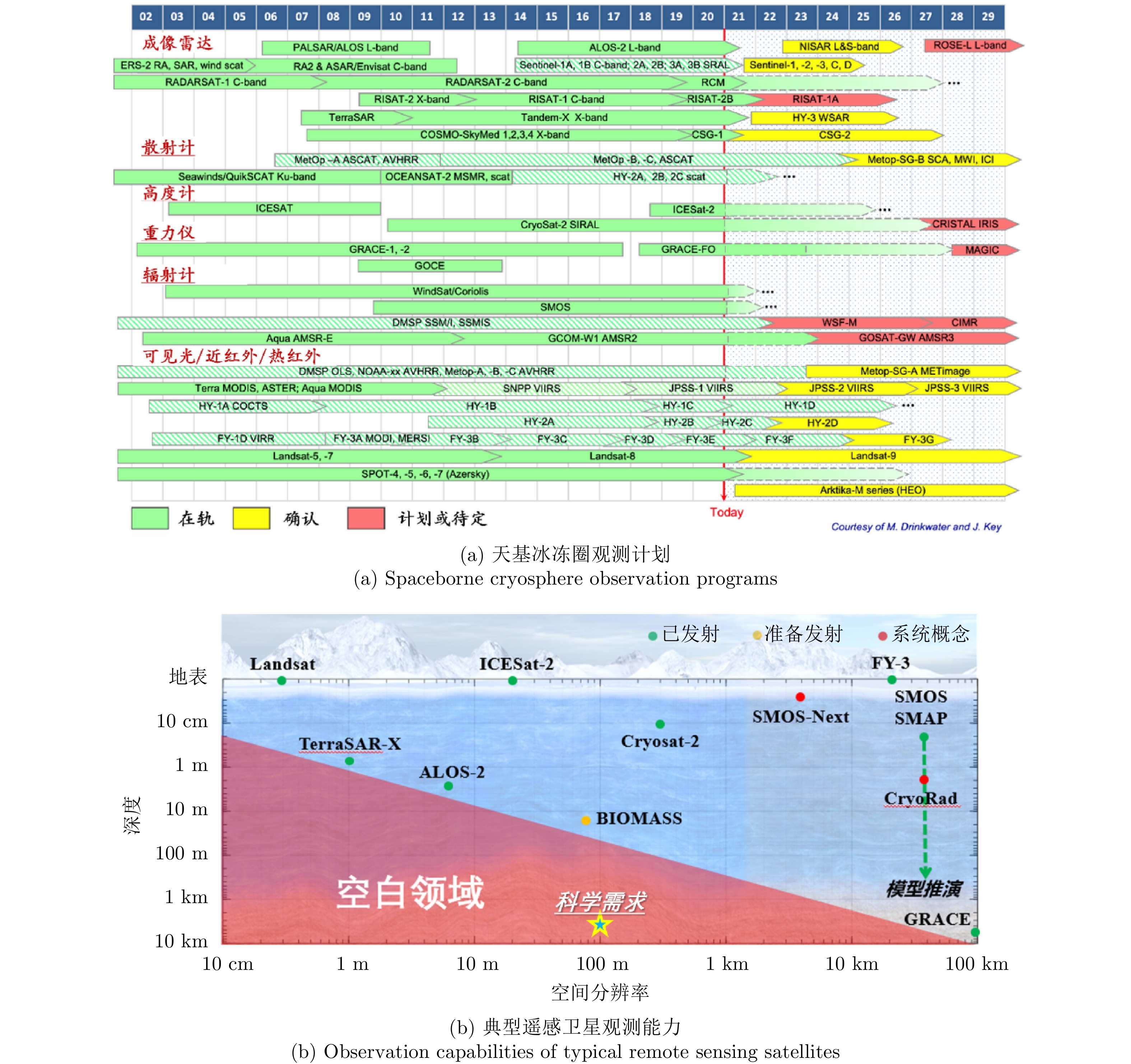

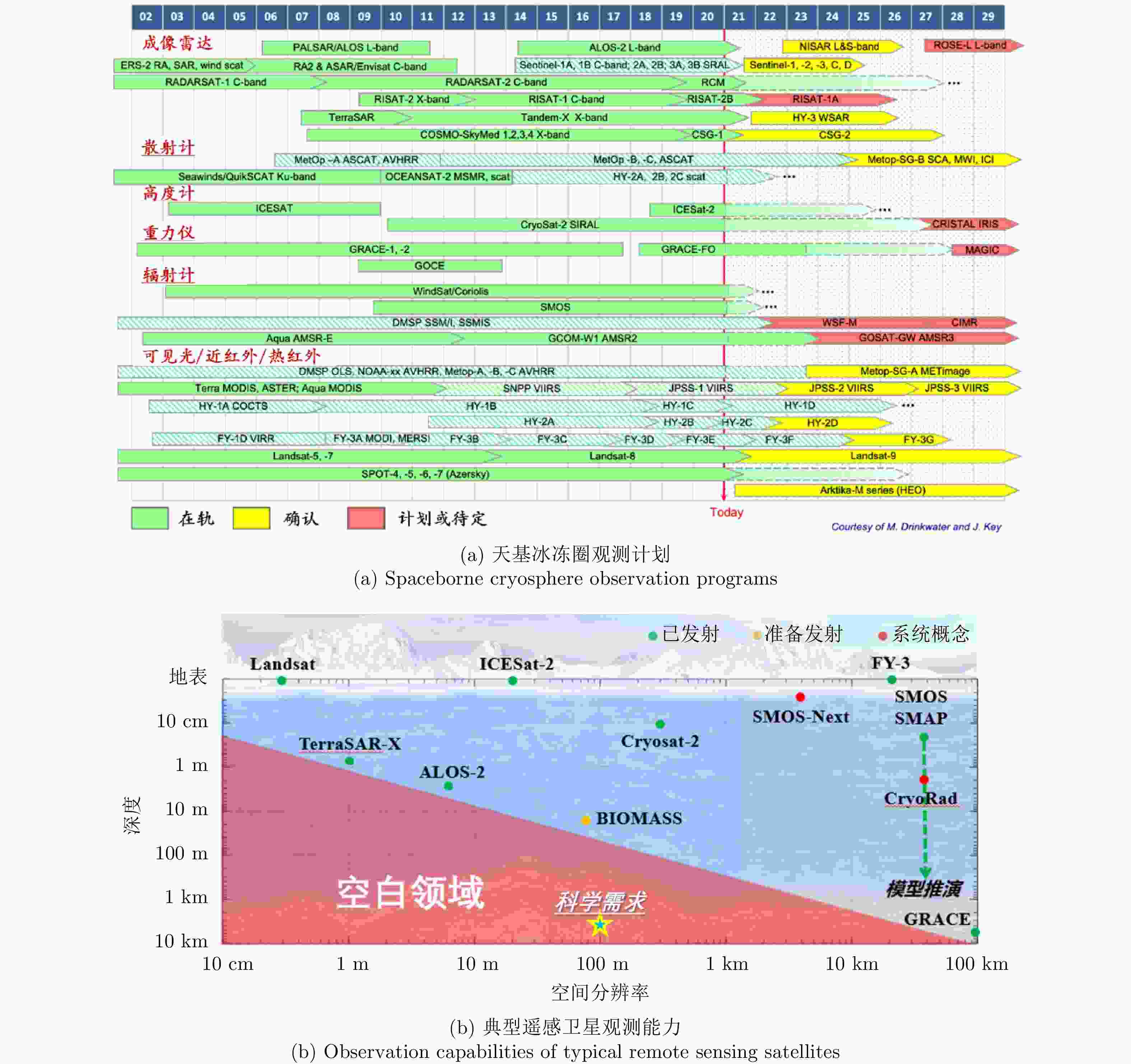

图 5 WMO-GCW天基冰冻圈观测计划及能力^[36]

Figure 5. WMO-GCW spaceborne cryosphere observation programs and capabilities^[36]

下载: 全尺寸图片幻灯片

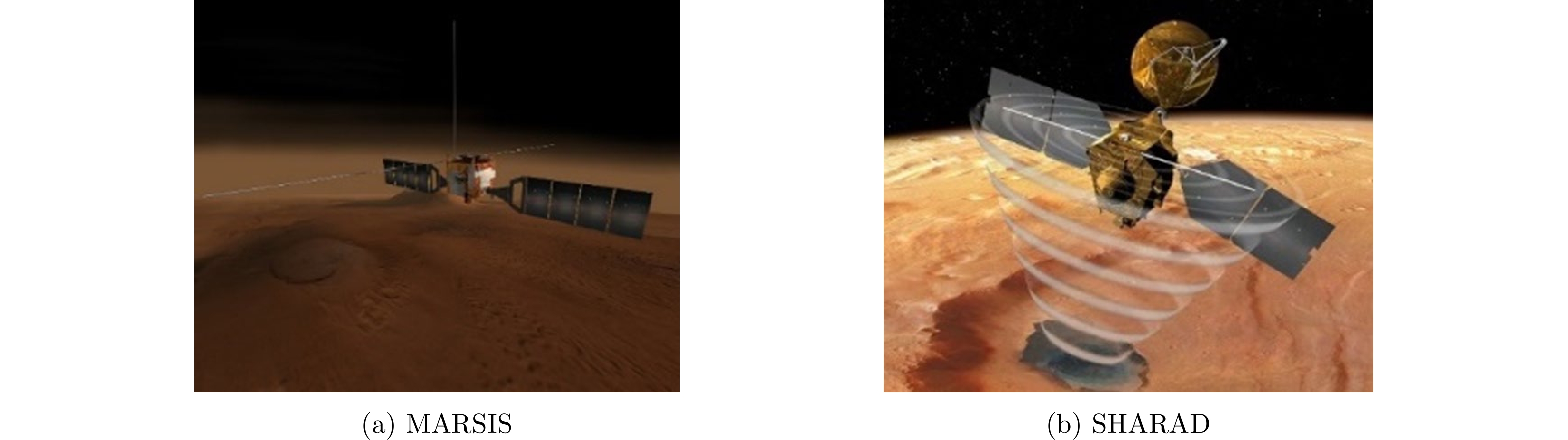

图 6 火星探测雷达

Figure 6. Mars sounding radars

下载: 全尺寸图片幻灯片

图 7 JPL OASIS计划

Figure 7. JPL’s OASIS program

下载: 全尺寸图片幻灯片

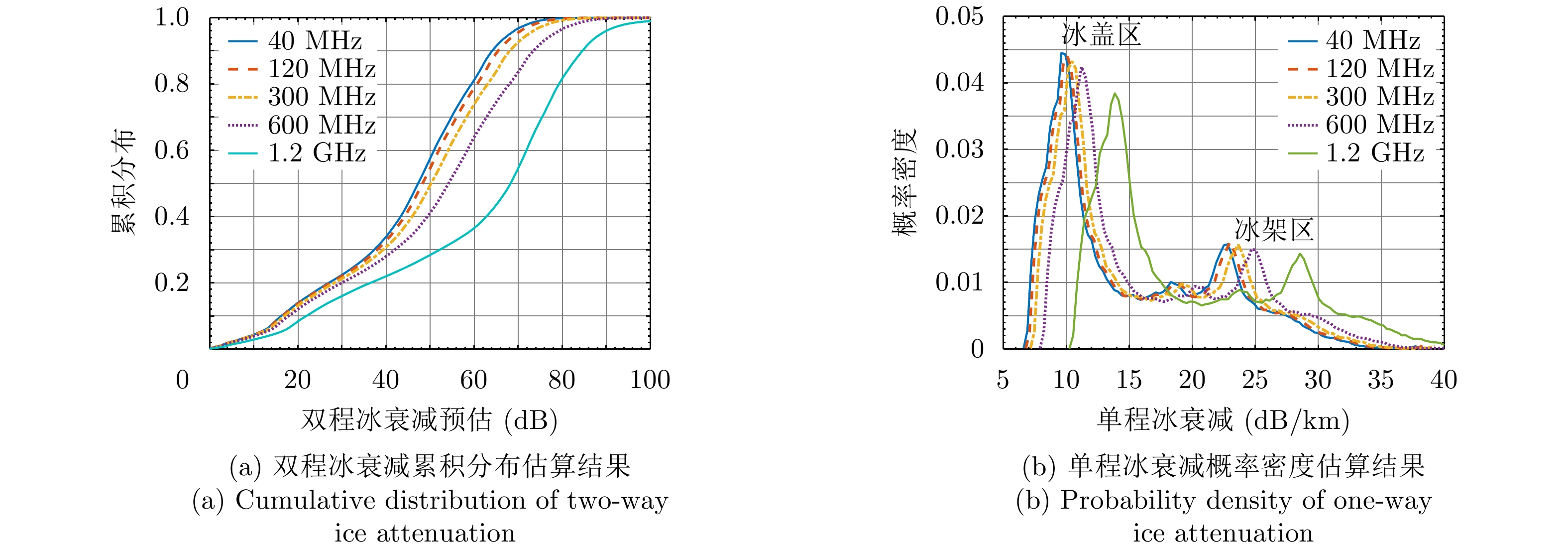

图 8 不同频率下南极冰盖冰衰减估算结果

Figure 8. Ice attenuation estimations of the Antarctic ice sheet with different frequencies

下载: 全尺寸图片幻灯片

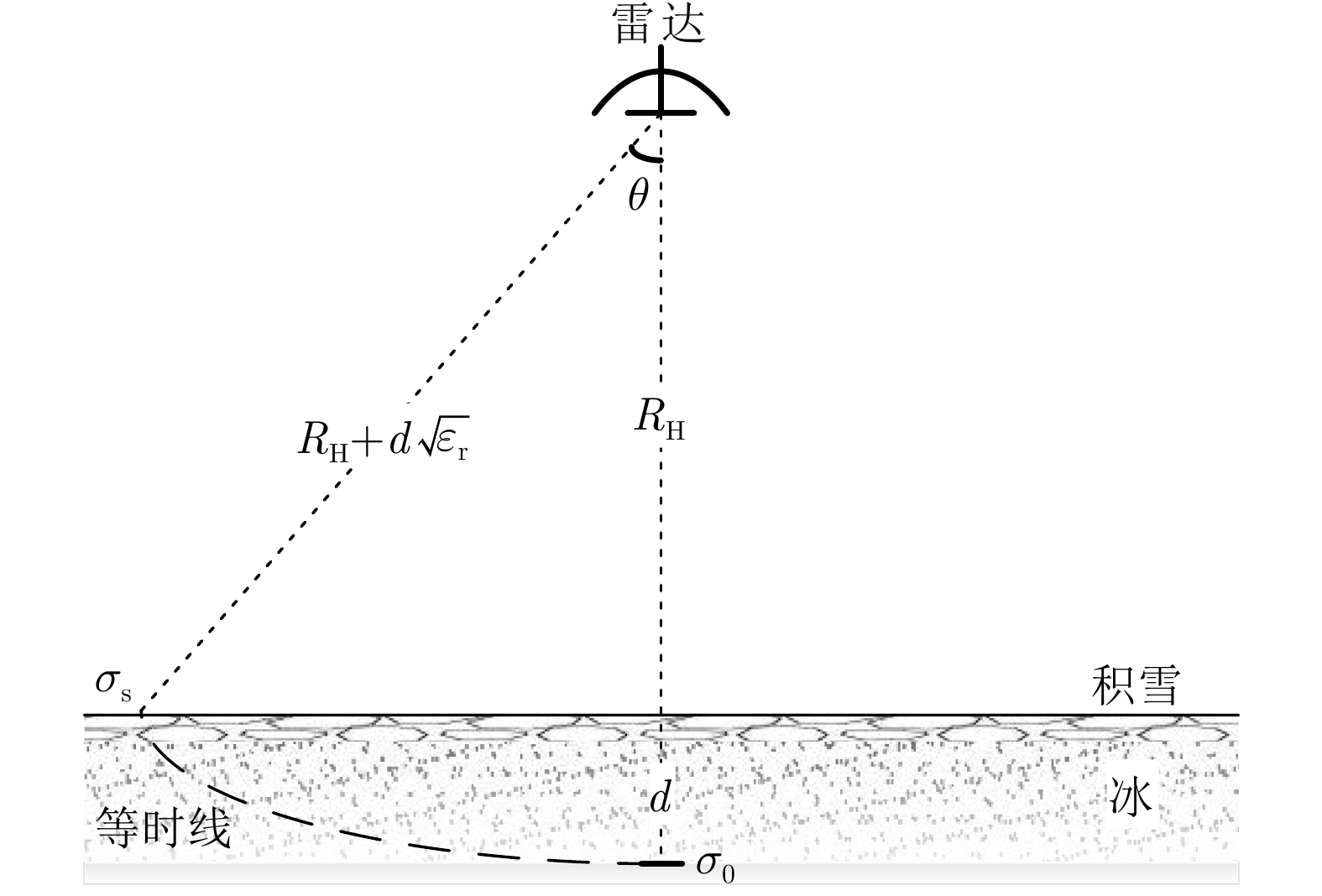

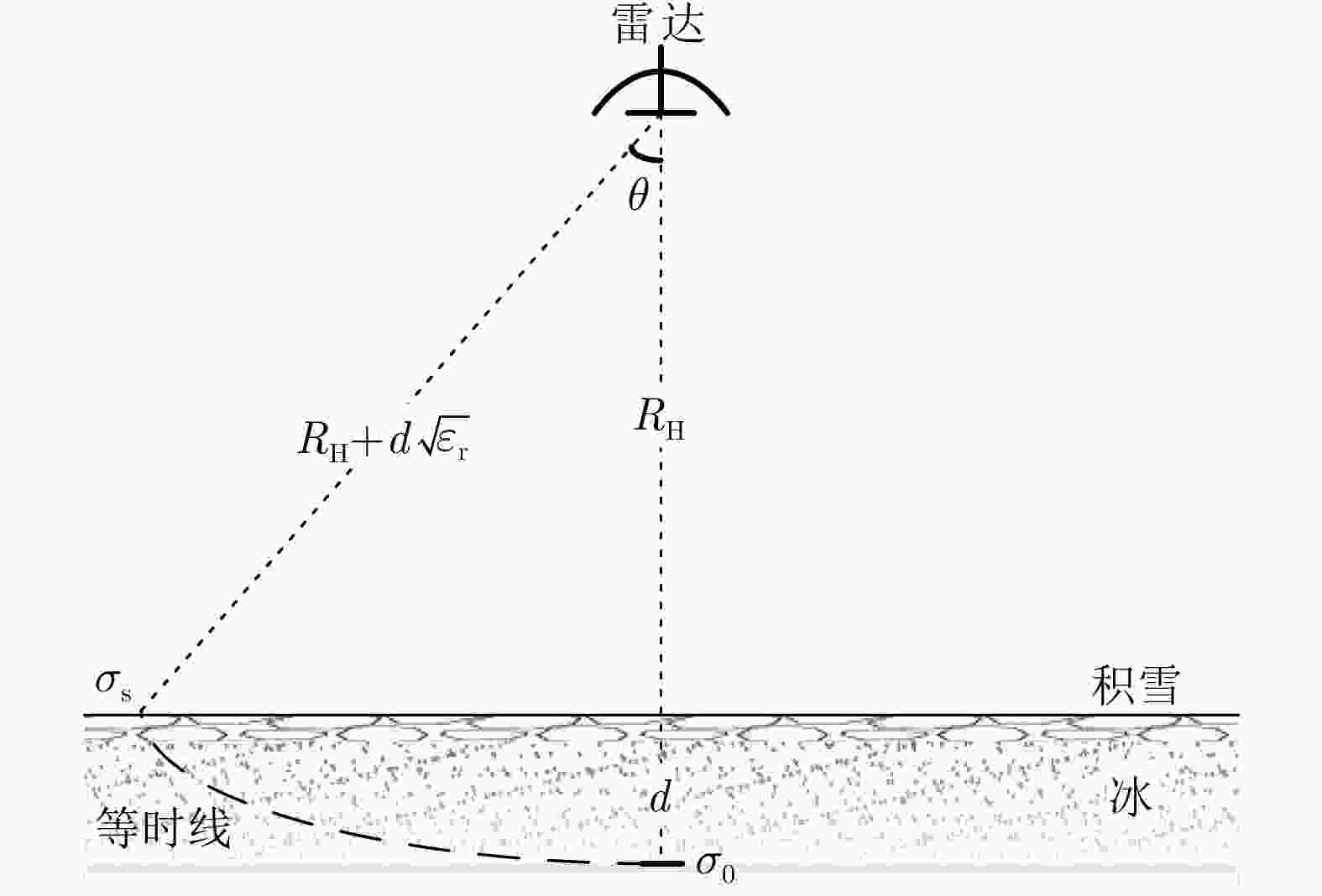

图 9 穿冰雷达积雪杂波干扰示意图

Figure 9. Schematic diagram of snow clutter jamming for ice sounding radar

下载: 全尺寸图片幻灯片

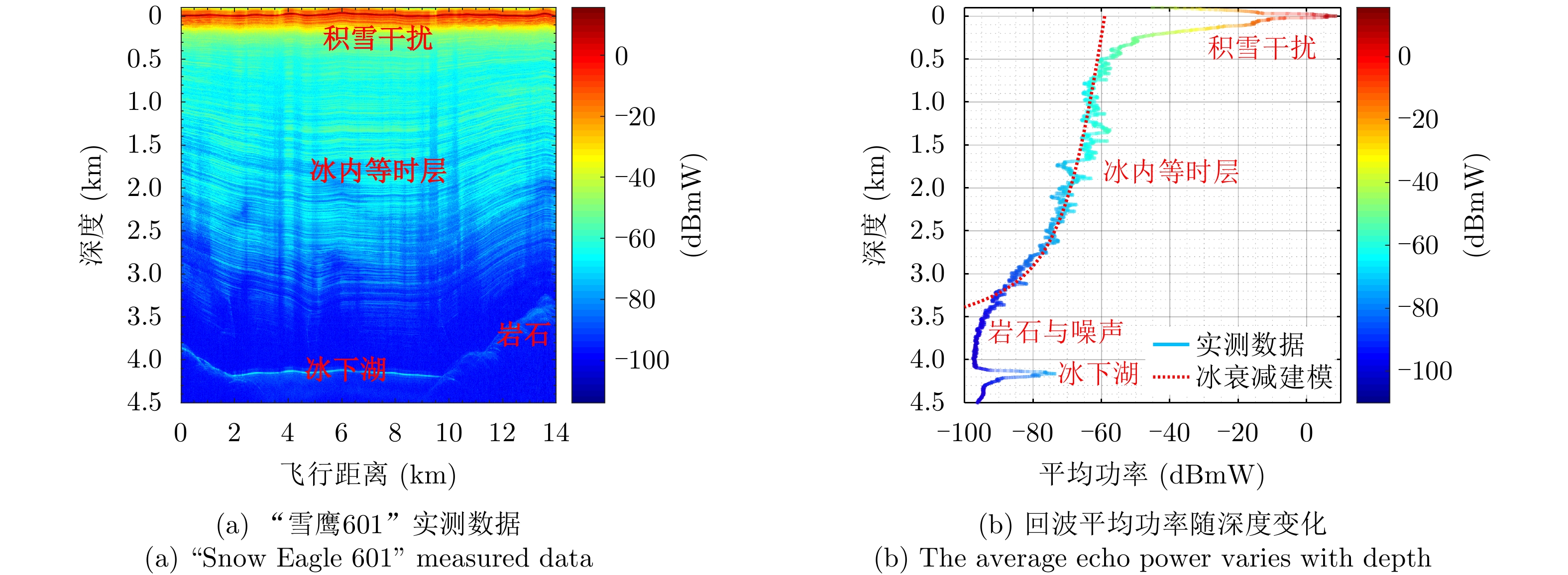

图 10 “雪鹰601”穿冰雷达积雪杂波干扰示意图

Figure 10. Snow clutter interference of “snow Eagle 601” ice sounding radar

下载: 全尺寸图片幻灯片

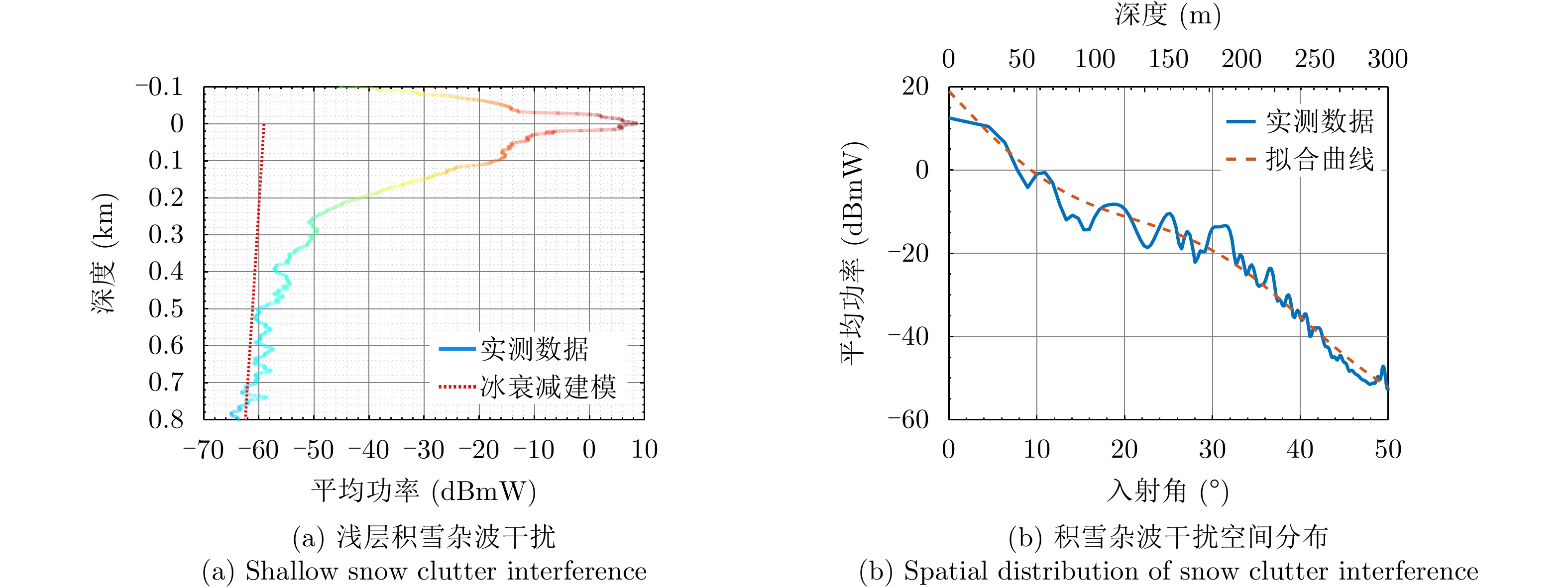

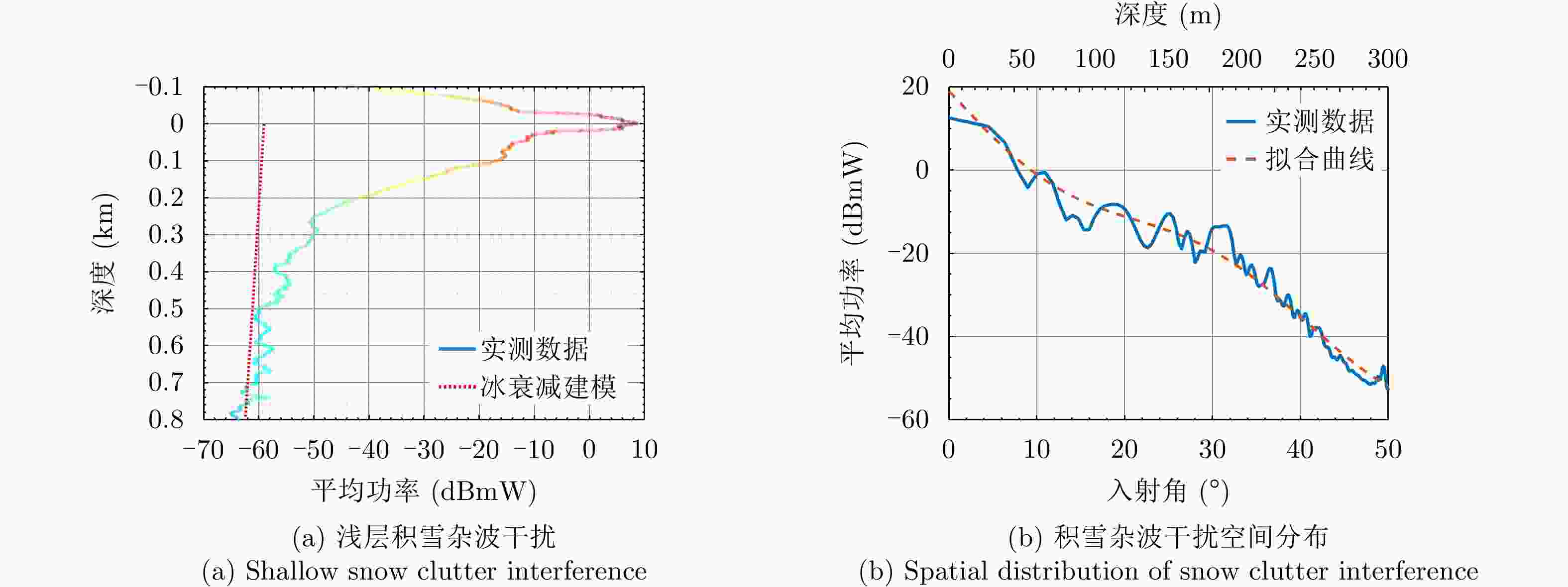

图 11 VHF频段积雪杂波强度空间分布特性(基于“雪鹰601”实测数据)

Figure 11. Spatial distribution characteristics of snow clutter intensity based on “snow Eagle 601” data

下载: 全尺寸图片幻灯片

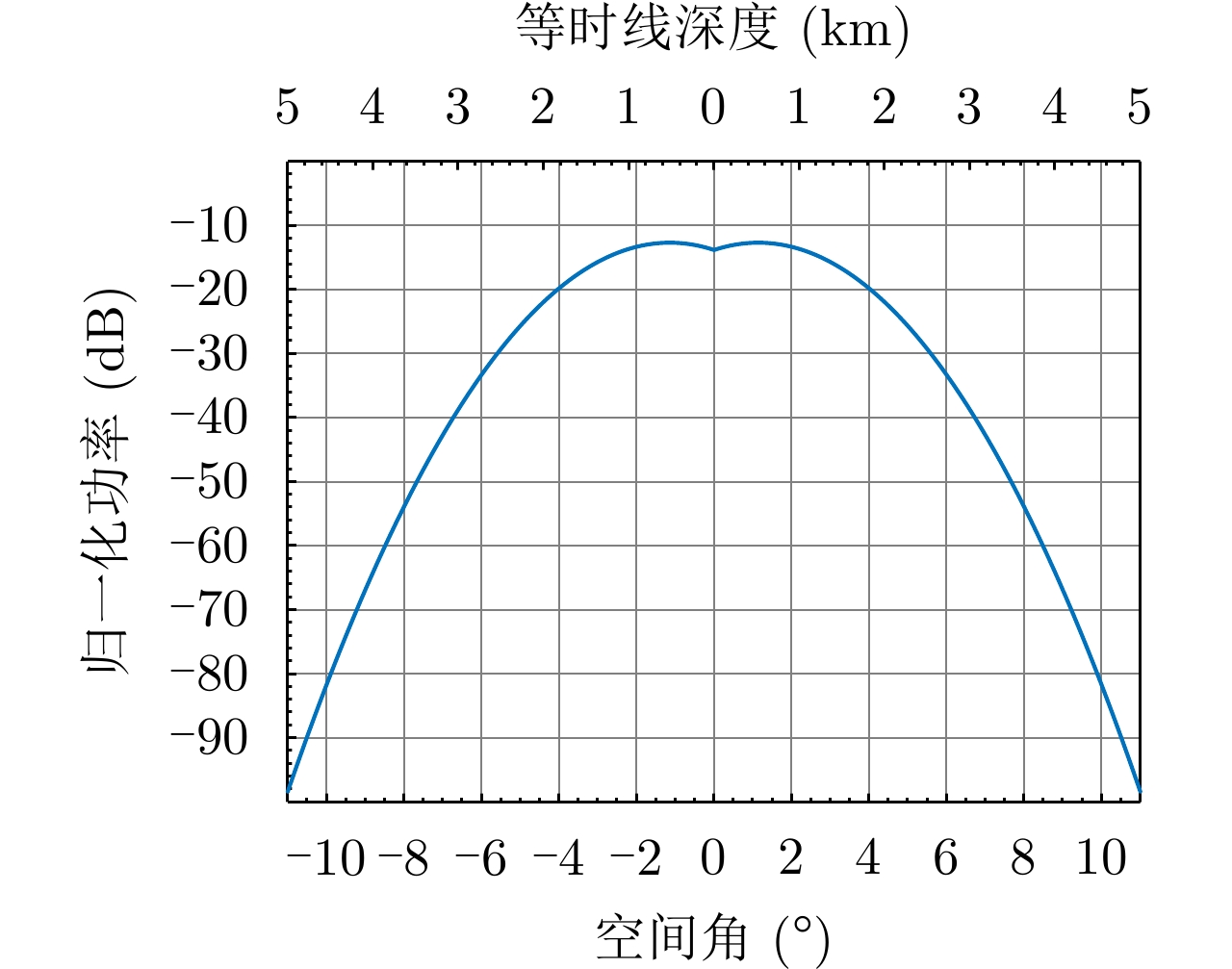

图 12 天基条件下杂波抑制需求曲线

Figure 12. Clutter suppression demand for spaceborne radar

下载: 全尺寸图片幻灯片

图 13 DEBRIS系统示意图^[59]

Figure 13. DEBRIS system schematic^[59]

下载: 全尺寸图片幻灯片

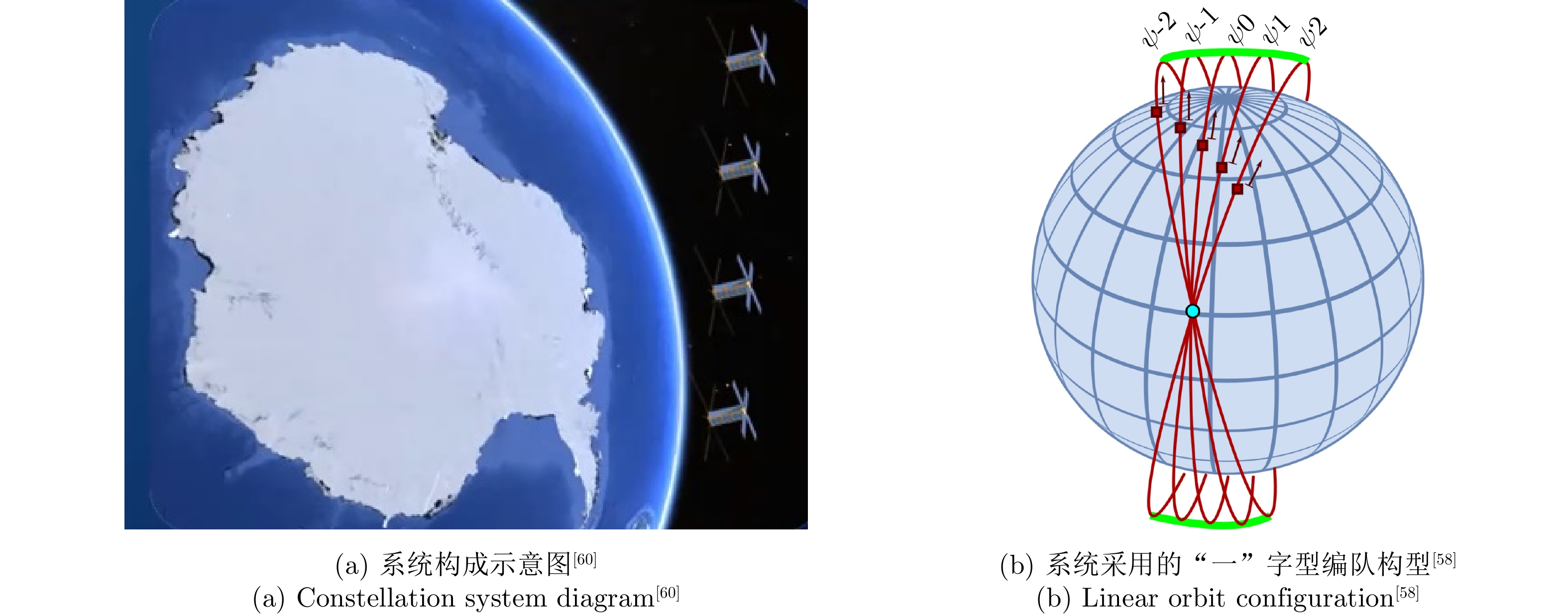

图 14 STRATUS系统

Figure 14. STRATUS system

下载: 全尺寸图片幻灯片

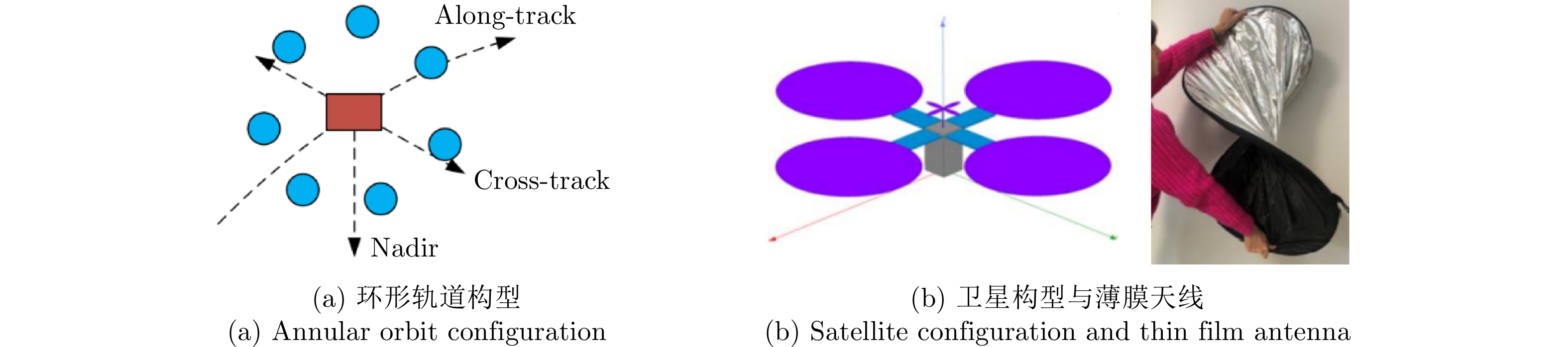

图 15 CubeSat Train系统^[61]

Figure 15. CubeSat Train system^[61]

下载: 全尺寸图片幻灯片

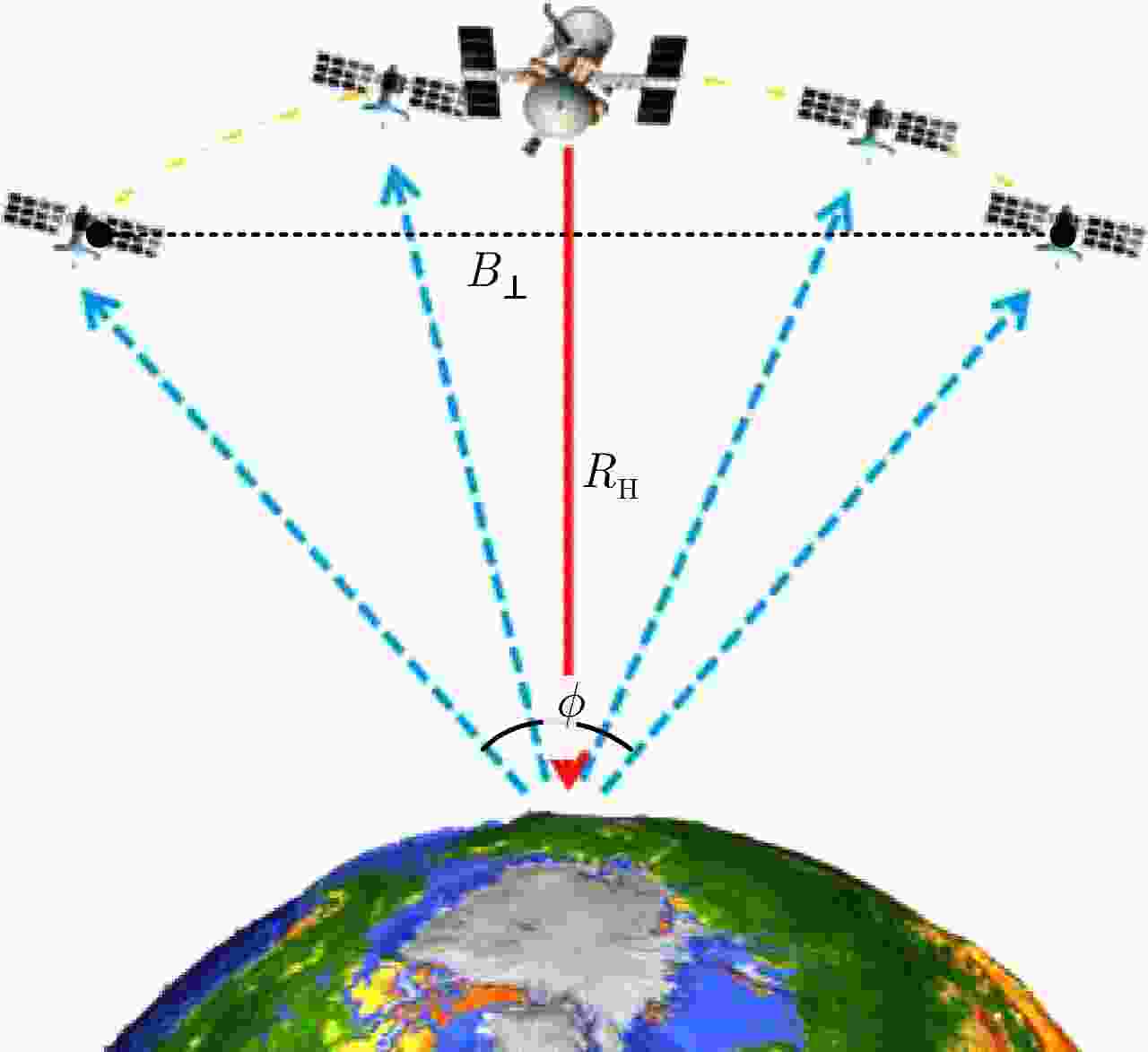

图 16 空间收发角度示意图

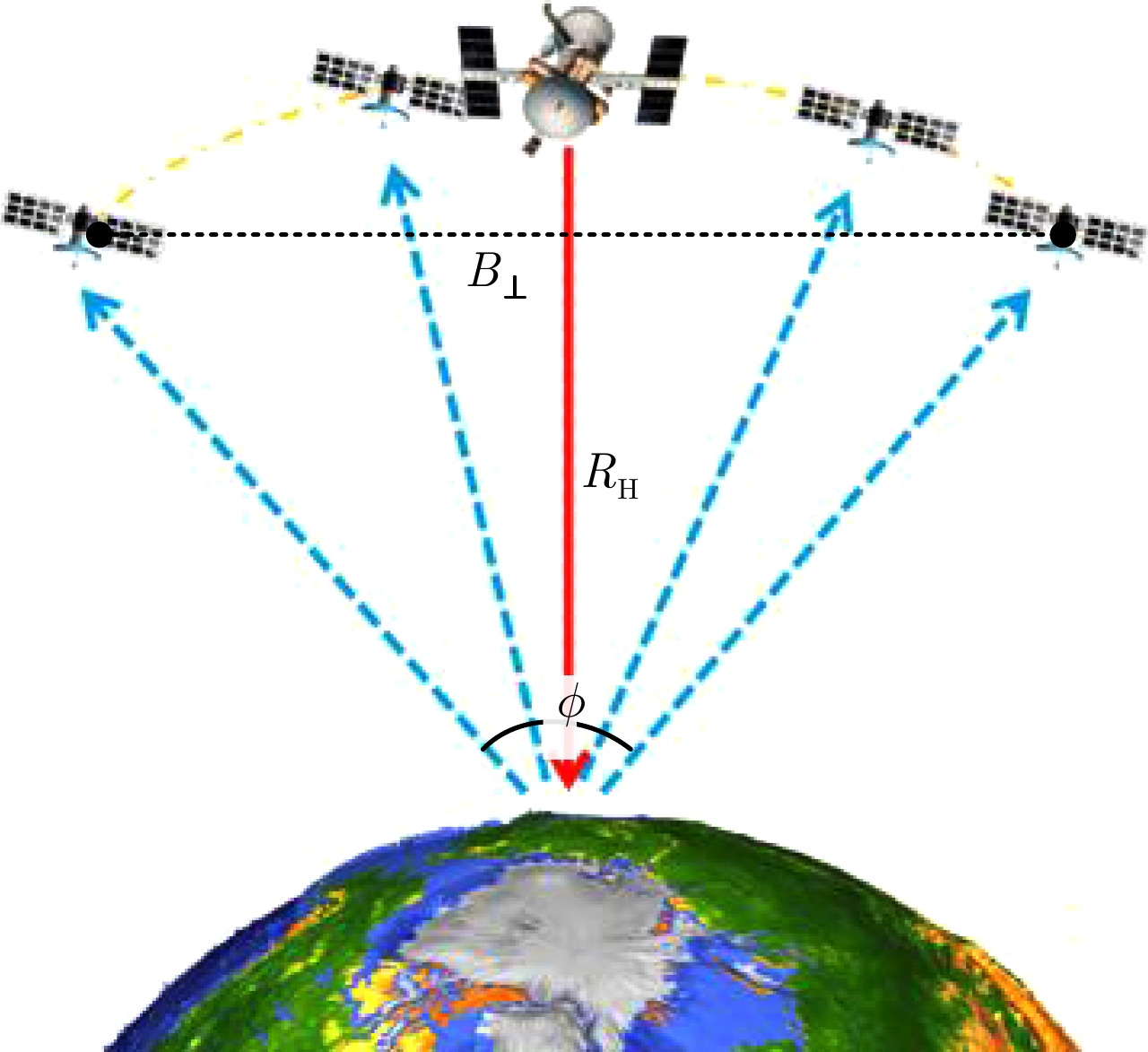

Figure 16. Spatial transmitting and receiving angles diagram

下载: 全尺寸图片幻灯片

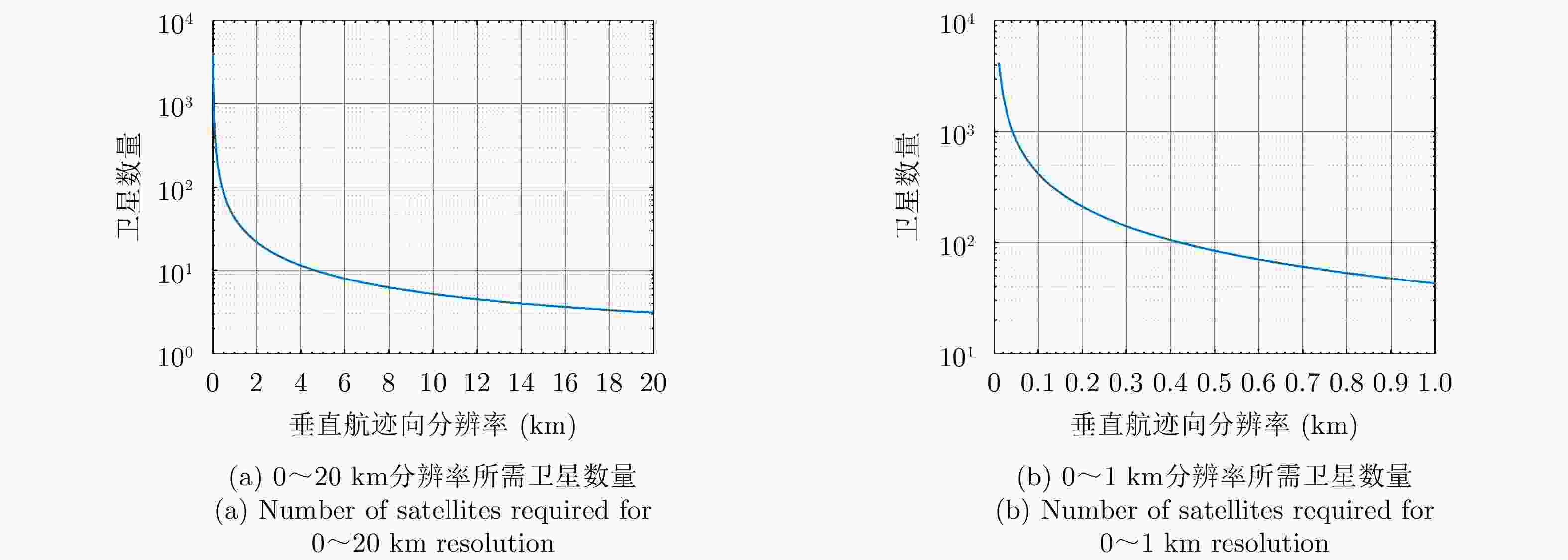

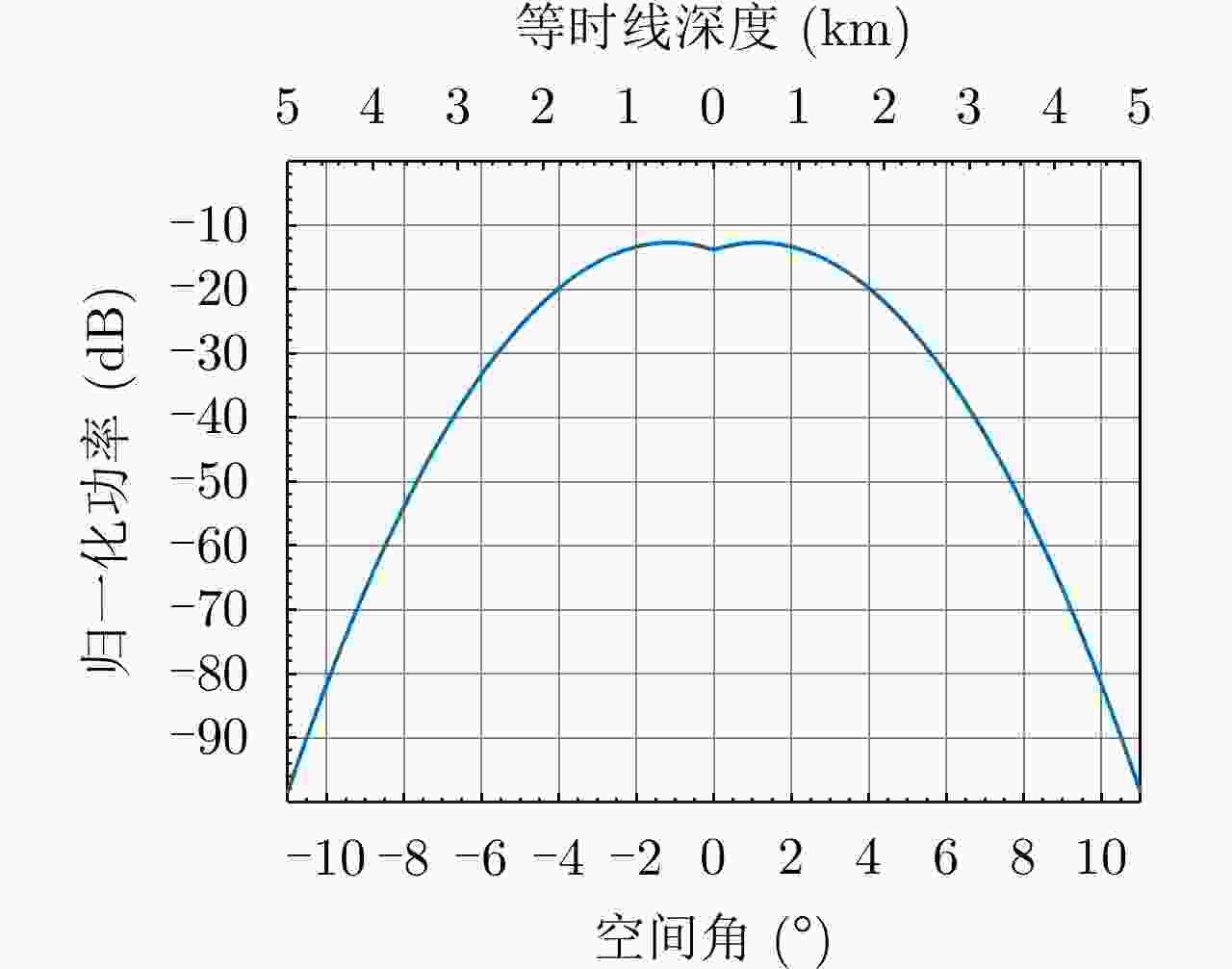

图 17 垂直航迹向分辨率与卫星数量

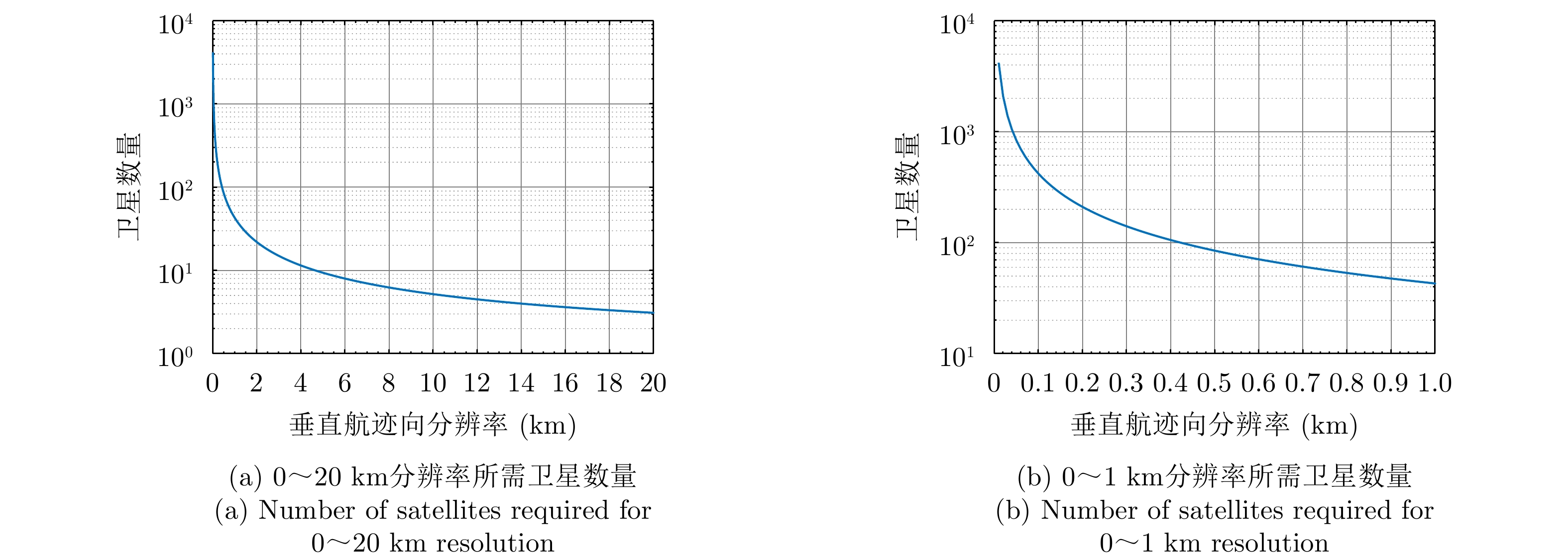

Figure 17. Cross-track direction resolution with the number of satellites

下载: 全尺寸图片幻灯片

表 1 PRISM科学测量体系^[35]

Table 1. PRISM scientific measurement system^[35]

测量参数	相关科学目标	要求精度	空间分辨率(m)	传感器
冰厚	1, 2	5 m	100(普查)、10(详查)	宽带穿冰雷达
冰底消融/冻结	3	95%可信度	100	单基/双基SAR
底部水层及厚度	3, 4	50%以上准确度、4 mm～0.5 m	100(普查)、10(详查)	单基/双基SAR
内部层	5, 2, 6	10 cm(浅部)、5 m(深部)	100(普查)、10(详查)	宽带穿冰雷达
冰下地形	2	5 m	100(普查)、10(详查)	宽带穿冰雷达
冰面地形	2	0.5 m	100(普查)、10(详查)	InSAR，雷达/激光高度计，GPS
冰流速度	1, 2, 6	5%(速度)、5°(方向)	500	InSAR
注：科学目标：1. 物质通量；2. 应力估计；3. 底部边界条件；4. 底部剪应力；5. 积累率；6. 冰流历史

下载: 导出CSV

表 2 次表层探测雷达卫星参数

Table 2. The paramenters of sounding radar satellites

参数	MARSIS^[40]	SHARAD^[41]	OASIS^[44]
频率范围(MHz)	2.5～3.5(较多使用)	15～25	40～50
地下垂直分辨率(m) (相对介电常数为3时)	～100	～10	～10
航迹向分辨率(km)	5～15	0.3～3.0	～1
垂直航迹向分辨率(km)	9～30	1～7	/
预期穿透能力(km)	0.5～5.0	0.1～1.0	0.1(沙漠)～5.0(冰)
发射功率(W)	5	10	100
天线长度(m)	40(偶极子天线)	10(偶极子天线)	10(八木天线)

下载: 导出CSV

表 3 Fujita参数表1^[47]

Table 3. Fujita parameters table 1^[47]

温度(K)	$A (\times {10^4})$	$B (\times {10^5})$	$C$
190	0.005	1.537	1.175
200	0.010	1.747	1.168
220	0.031	2.469	1.129
240	0.268	3.495	1.088
248	0.635	4.006	1.073
253	1.059	4.380	1.062
258	1.728	4.696	1.056
263	2.769	5.277	1.038
265	3.326	5.646	1.024

下载: 导出CSV

表 4 Fujita参数表2^[47]

Table 4. Fujita parameters table 2^[47]

温度(K)	$a$	$b$
263	4.283	–0.337
253	4.875	–0.423
243	5.279	–0.480
233	4.996	–0.456

下载: 导出CSV

表 5 天基与机载穿冰雷达相关参数对比

Table 5. The paramenters of spaceborne and airborne ice sounding radars

参数	天基系统	机载系统	差异
飞行高度	500 km	500 m	/
载频波长	5 m	5 m	/
传播衰减	/	/	90 dB
积雪杂波干扰深度	冰底以下	280 m
垂直航迹向分辨率	2.2 km	180 m

下载: 导出CSV

表 6 分布式穿冰雷达系统

Table 6. Distributed orbital ice sounding radar systems

参数	DEBRIS^[59]	STRATUS^[60]	CubeSat Train^[61]
载频(MHz)	45, 435	45	144
星群数量	11颗(多发多收)	1+4颗(一发多收)	50颗(多发多收)
发射功率(W)	未知	800	50
天线尺寸(m)	3.3×3.3 四组柔性反射天线	10 八木天线阵	15 多通道十字天线
飞行高度(km)	400	500	400
预期穿冰深度(km)	<5	4.7	3～4
冰内垂直分辨率(m)	10	10	20
水平分辨率(航迹向×垂直航迹向)	1 km×20 km	1.3 km×7.5 km	200 m×200 m

下载: 导出CSV
