极化SAR图像舰船目标检测研究综述

刘涛; 杨子渊; 蒋燕妮; 高贵

doi:10.12000/JR20155

极化SAR图像舰船目标检测研究综述

doi: 10.12000/JR20155

刘涛^1, ,,
杨子渊^1,,
蒋燕妮^1,,
高贵^2, ,

1.
海军工程大学电子工程学院武汉 430033
2.
西南交通大学地球科学与环境工程学院成都 611756

基金项目: 国家自然科学基金(61771483)

详细信息

作者简介:
刘　涛(1978–)，男，山东人，博士，海军工程大学教授，博士生导师。主要研究方向为雷达极化统计理论、极化信息处理、雷达极化检测与识别、电子战系统建模与仿真等。E-mail: liutao1018@sina.com

杨子渊(1997–)，男，湖北人，海军工程大学博士研究生。主要研究方向为雷达极化信息处理、合成孔径雷达运动目标检测、新体制雷达等。E-mail: yzy_199702@sina.com

蒋燕妮(1987–)，女，湖北人，海军工程大学博士研究生。主要研究方向为雷达极化信息处理、合成孔径雷达舰船目标尾迹检测、高频雷达海态信息反演等。E-mail: asiajiang2005@163.com

高　贵(1981–)，内蒙古人，博士，西南交通大学地球科学与环境工程学院副院长，教授，博士生导师。主要研究方向为遥感信息处理、人工智能、新体制雷达系统工程研制。E-mail: dellar@126.com

通讯作者:
刘涛 liutao1018@sina.com

高贵 dellar@126.com

责任主编：陈思伟 Corresponding Editor: CHEN Siwei
中图分类号: TN95
计量
- 文章访问数: 4665
- HTML全文浏览量: 2016
- PDF下载量: 666
- 被引次数: 0
出版历程
- 收稿日期: 2020-12-31
- 修回日期: 2021-02-02
- 网络出版日期: 2021-02-08

Review of Ship Detection in Polarimetric Synthetic Aperture Imagery （in English）

LIU Tao^{1
, ,},
YANG Ziyuan^1
,,
JIANG Yanni^1
,,
GAO Gui^{2
, ,}

1.
School of Electronic Engineering, Naval University of Engineering, Wuhan 430033, China
2.
Faculty of Geosciences and Environmental Engineering, Southwest Jiaotong University, Chengdu 611756, China

Funds: The National Natural Science Foundation of China (61771483)

More Information

Corresponding author: LIU Tao, liutao1018@sina.com; GAO Gui, dellar@126.com

摘要

摘要: 极化合成孔径雷达(PolSAR)使用二维脉冲压缩技术获取高分辨力极化信息图像，目前已广泛应用在军事侦察、地形测绘、环境与自然灾害监视、海上舰船目标检测等领域。如何解决复杂海杂波的建模与参数估计、慢小目标检测、密集目标检测等问题仍然是当前PolSAR图像舰船目标检测的难点。该文归纳梳理了PolSAR图像舰船目标检测的4类主流方法：极化特征目标检测方法、慢速运动目标检测方法、舰船目标尾迹检测方法以及基于深度学习的目标检测方法等，同时给出了各类方法所存在的问题以及可能的解决方法，并预测了其未来研究重点和发展趋势。
- 极化SAR /
- 舰船目标检测 /
- 性能对比 /
- 发展历程 /
- 未来趋势
Abstract: Polarimetric Synthetic Aperture Radar (PolSAR) uses two-dimensional pulse compression to obtain high-resolution images containing polarimetric information. PolSAR has been widely used in military reconnaissance, topographic mapping, environmental and natural disaster monitoring, marine ship detection, and related fields. Addressing the problems associated with sea-clutter modelling and parameter estimation, slow and small target detection, dense target detection, as well as other issues, still remains a challenge in PolSAR ship detection. In this paper, four main classes for PolSAR ship detection are summarized: target polarimetric feature detection, slow and small target detection, ship wake detection, and deep learning detection. In addition, the possible solutions to existing problems in each class are given, and their future development trends are predicted, which can provide some valuable suggestions for interested researchers.
- Polarimetric SAR /
- Ship detection /
- Performance comparison /
- Development history /
- Future trend

HTML全文

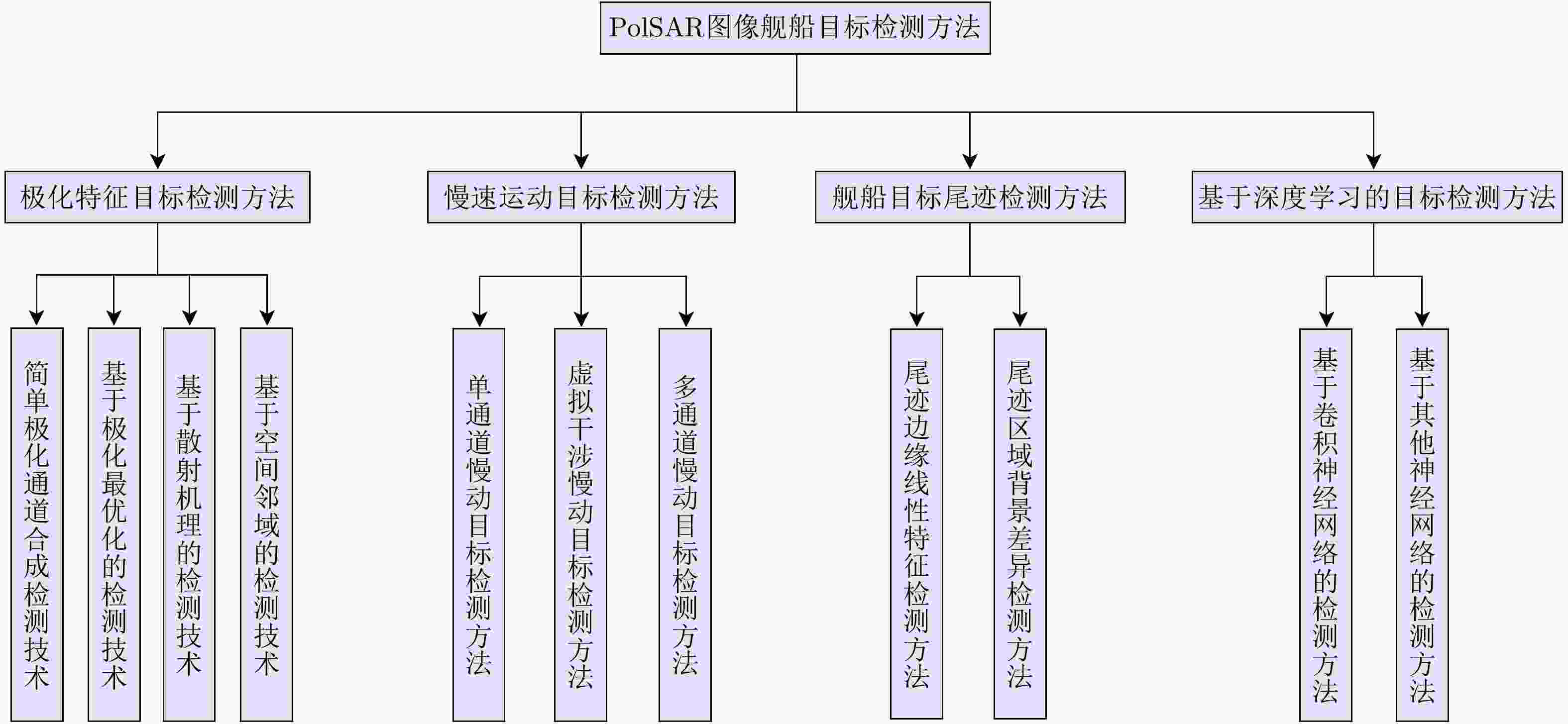

图 1 PolSAR舰船目标检测方法分类

Figure 1. Classification of PolSAR ship detection methods

下载: 全尺寸图片幻灯片

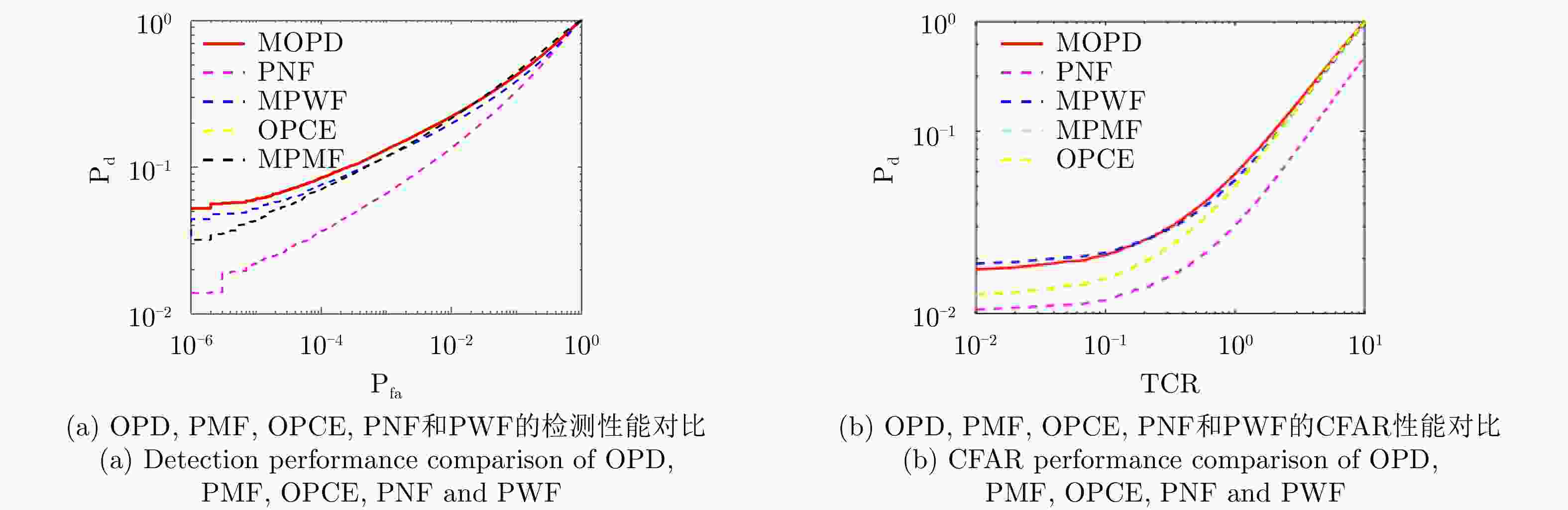

图 2 常用极化优化检测方法的性能对比^[18]

Figure 2. Performance comparison of common polarimetric optimization detection methods^[18]

下载: 全尺寸图片幻灯片

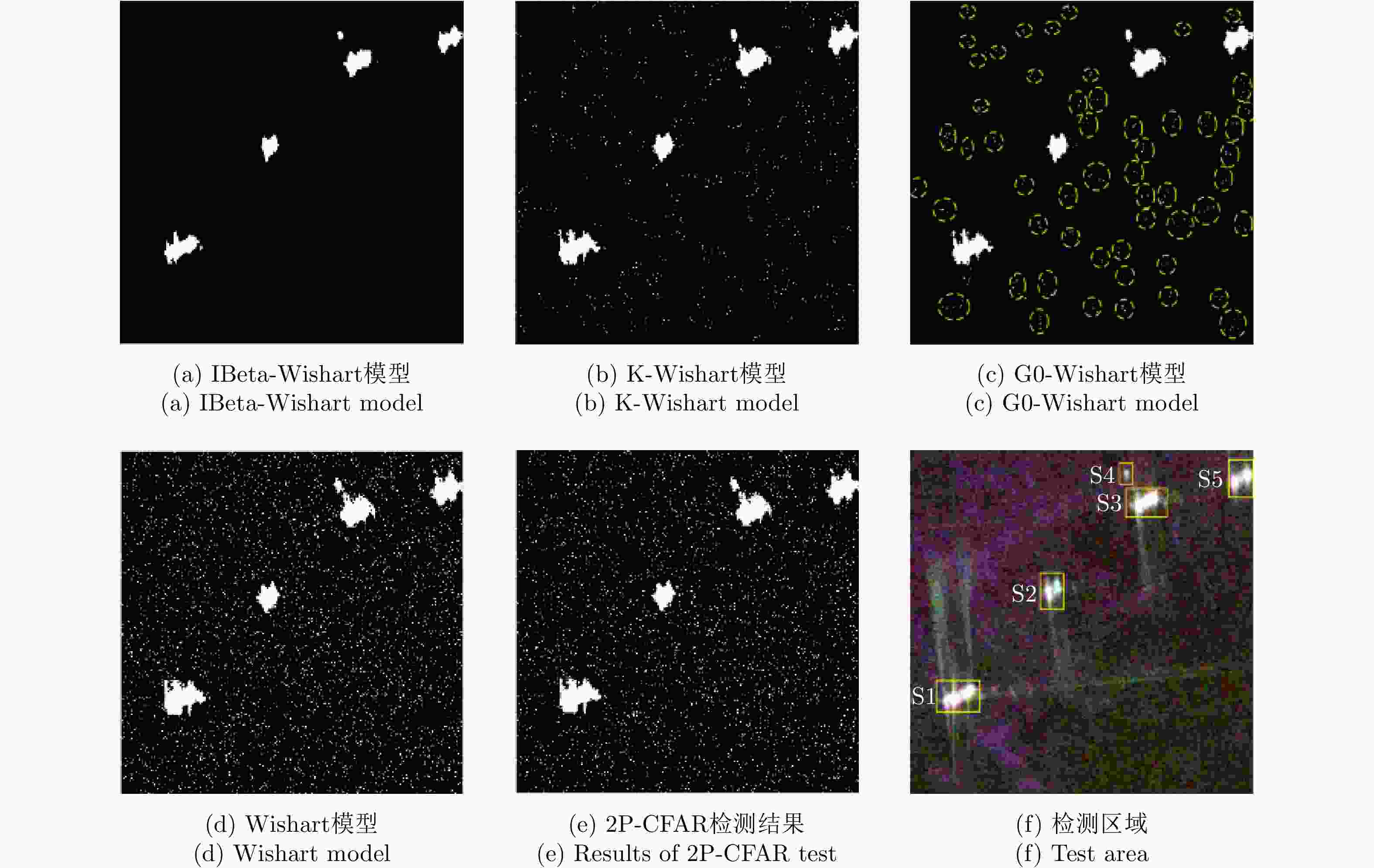

图 3 各类纹理分布PWF处理结果^[21]

Figure 3. PWF processing results with different textural distributions^[21]

下载: 全尺寸图片幻灯片

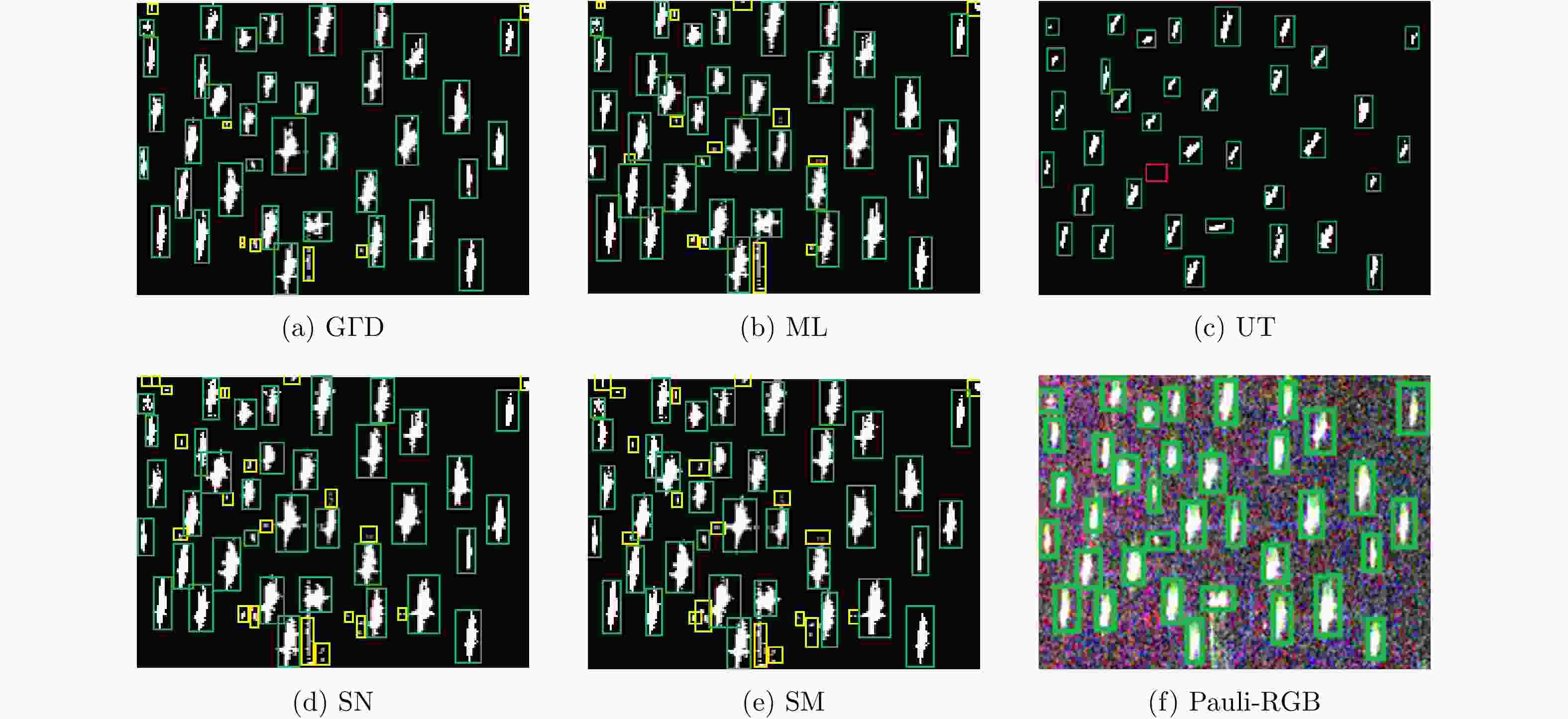

图 4 基于自适应截断法的PolSAR图像密集目标检测^[28]

Figure 4. Dense ship detection in PolSAR images based on the adaptive truncation method^[28]

下载: 全尺寸图片幻灯片

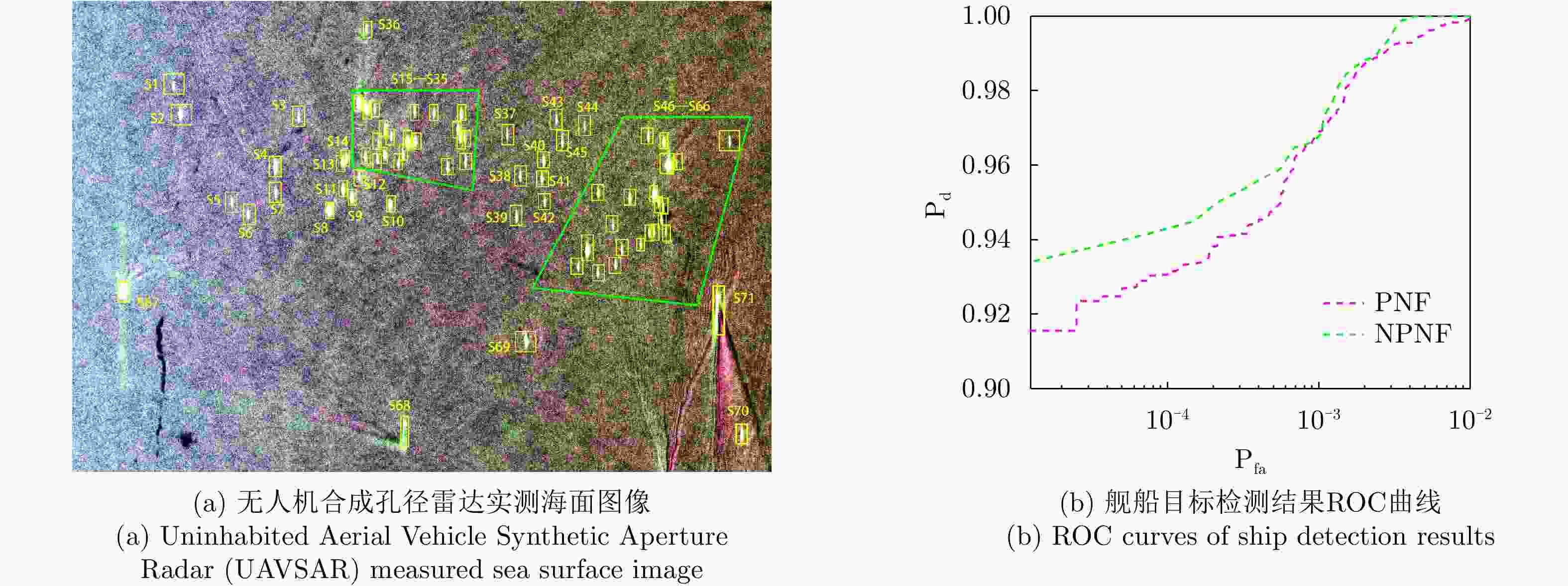

图 5 PNF与NPNF性能对比^[8]

Figure 5. Performance comparison of PNF and NPNF^[8]

下载: 全尺寸图片幻灯片

图 6 不同检测方法的小目标检测效果对比^[36]

Figure 6. Comparison of detection results among different methods for small targets^[36]

下载: 全尺寸图片幻灯片

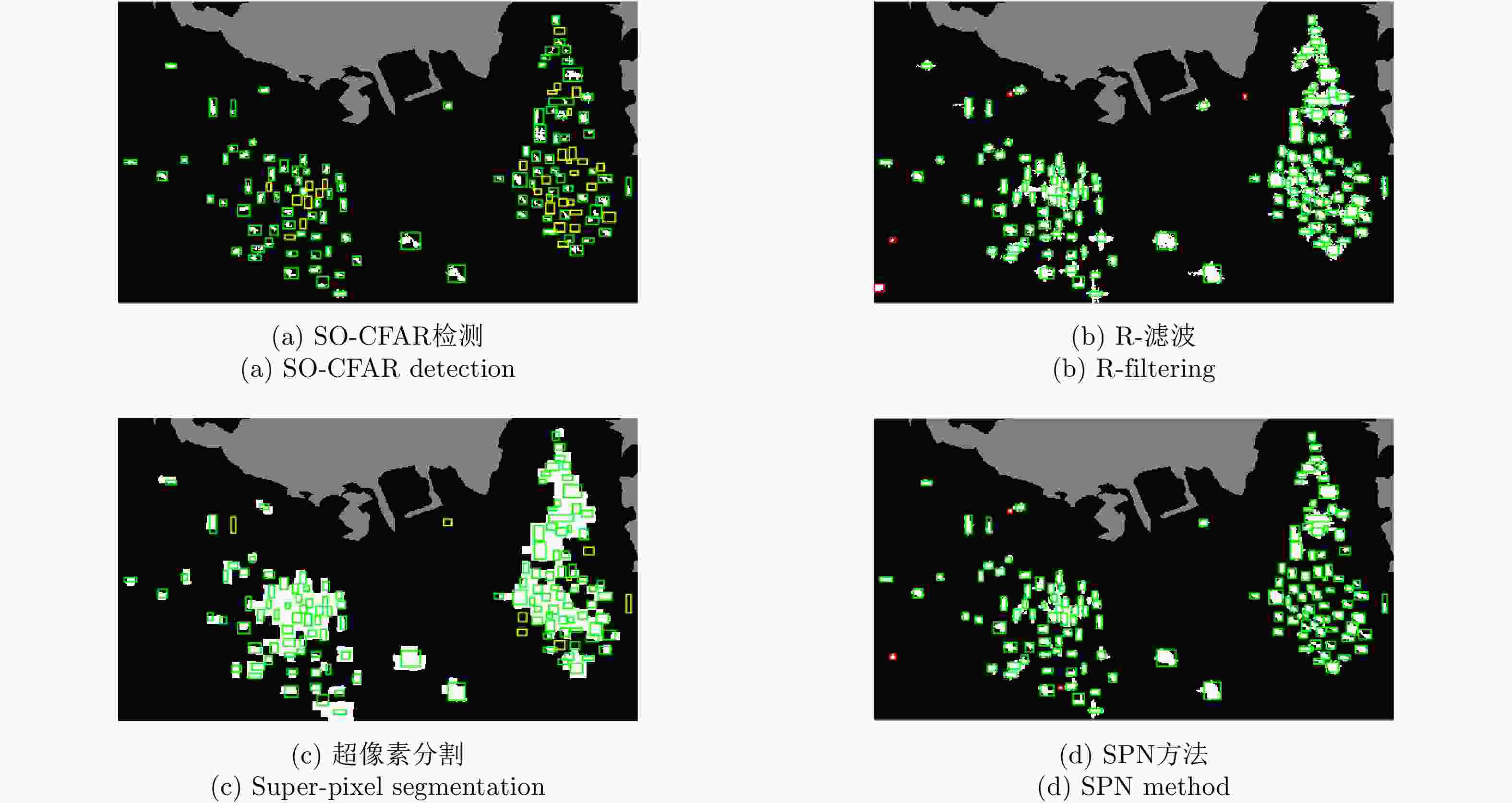

图 7 不同舰船目标检测方法与SPN的对比结果^[51]

Figure 7. Comparison results among different ship detectors with SPN^[51]

下载: 全尺寸图片幻灯片

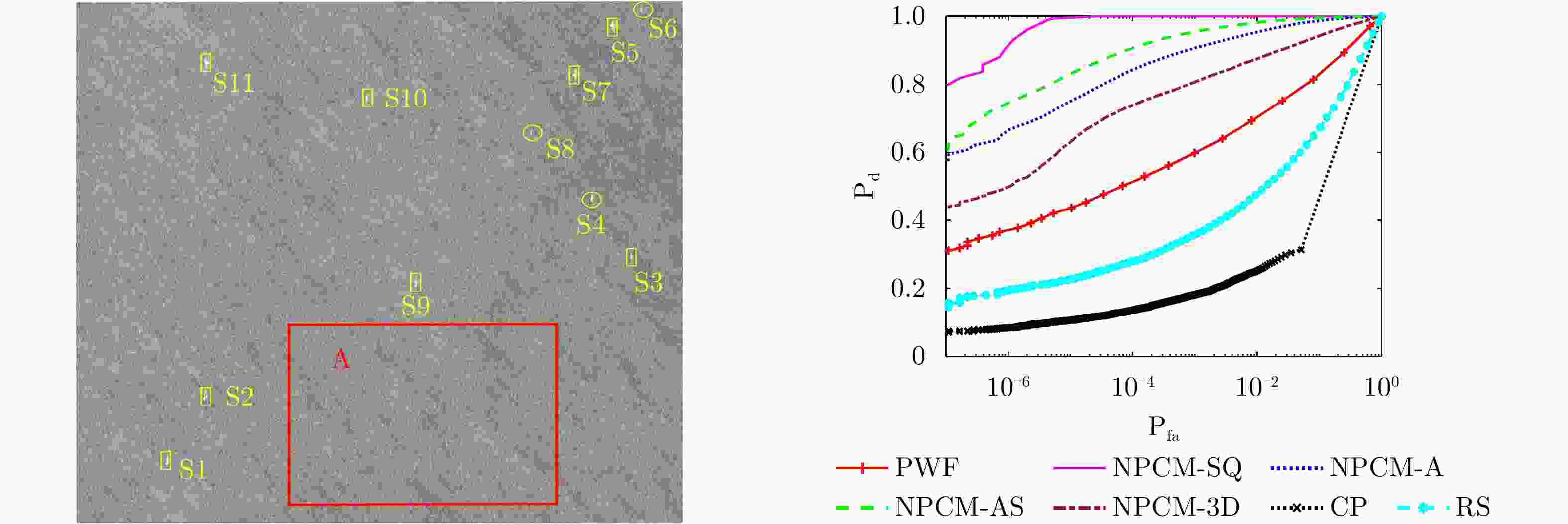

图 8 不同舰船目标检测方法与NPCM的对比^[6]

Figure 8. Performance comparision among different ship detection methods with NPCM^[6]

下载: 全尺寸图片幻灯片

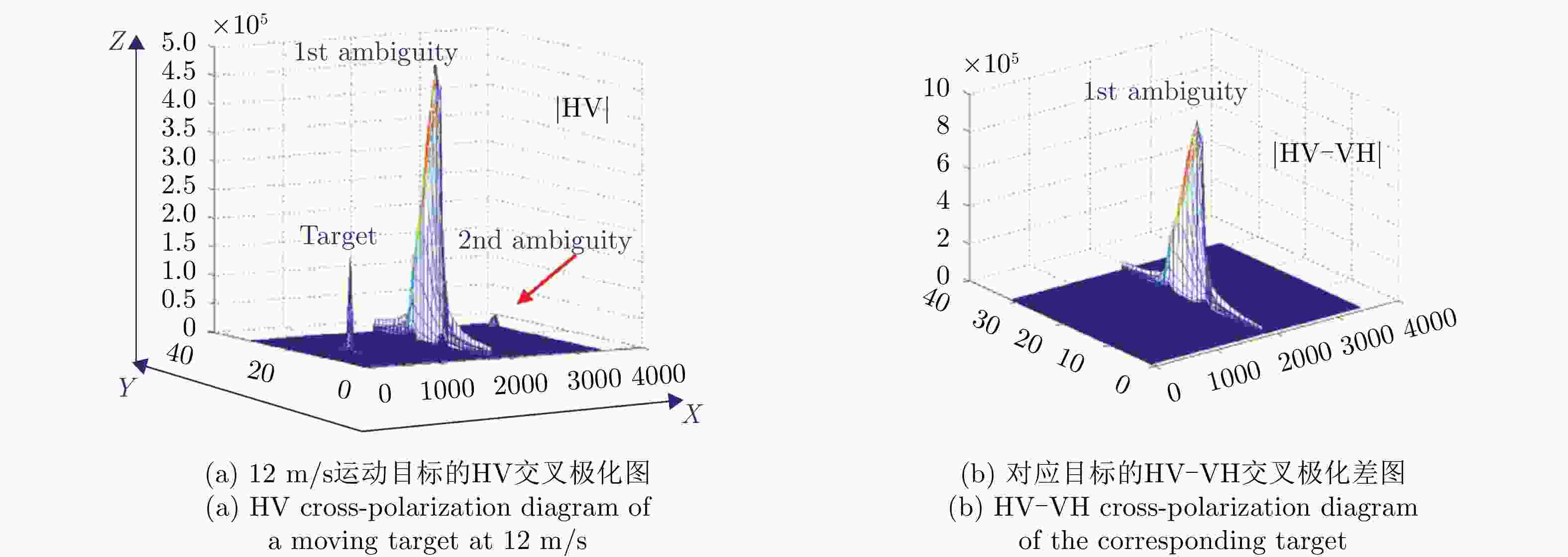

图 9 PolSAR图像不同极化通道动目标检测效果图^[69]

Figure 9. Moving target detection results in different polarimetric channels in PolSAR images^[69]

下载: 全尺寸图片幻灯片

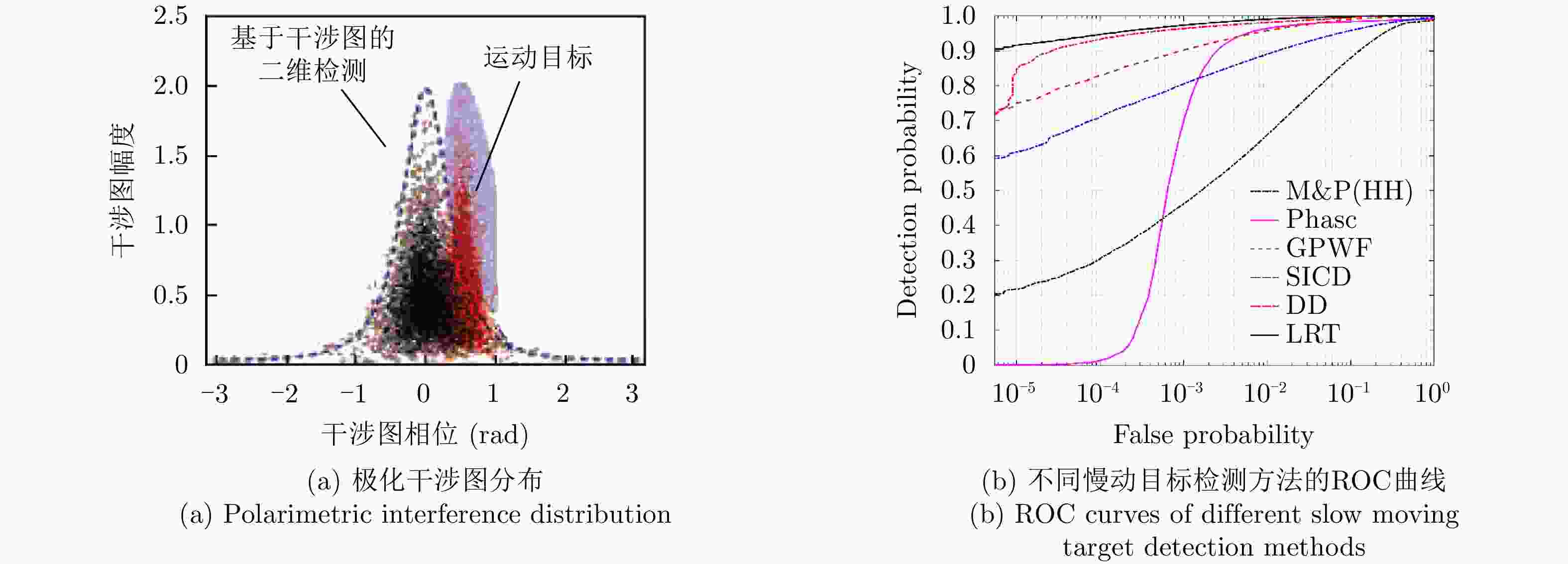

图 10 极化顺轨干涉动目标检测仿真结果^[76]

Figure 10. Simulation results of polarimetric along-track interferometry moving target detection^[76]

下载: 全尺寸图片幻灯片

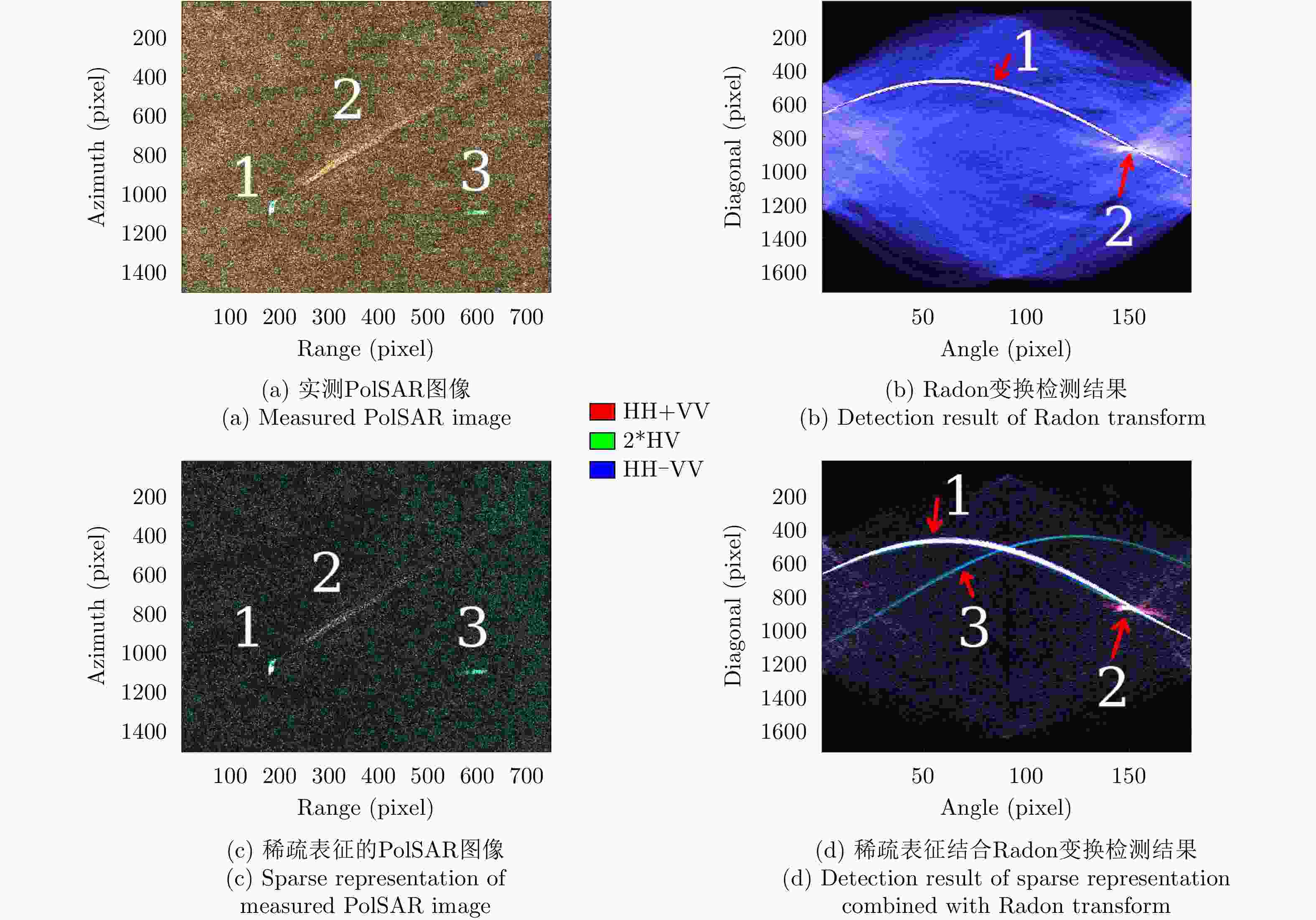

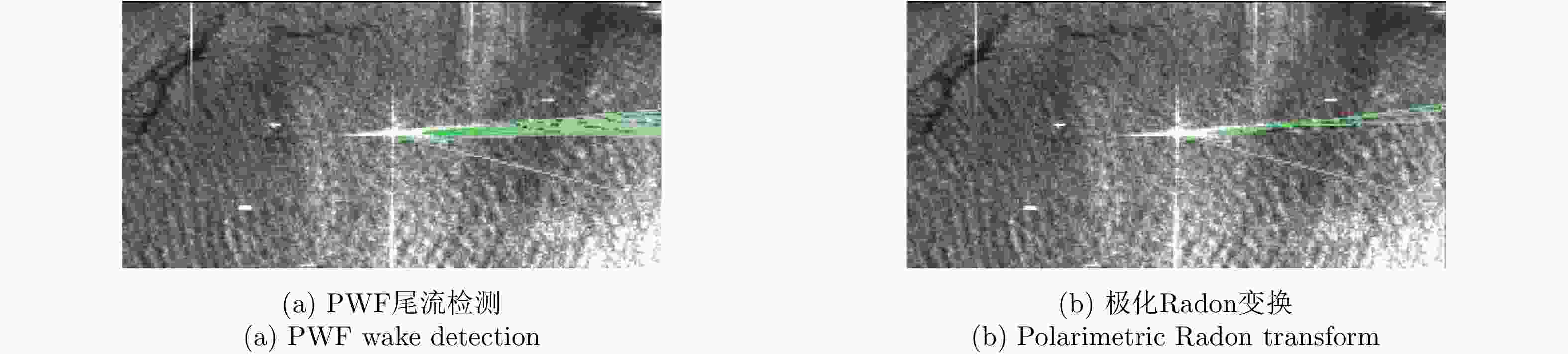

图 11 PWF与Radon变换实现尾流检测^[90]

Figure 11. Wake detection results by PWF and Radon transform^[90]

下载: 全尺寸图片幻灯片

图 12 低秩稀疏分解与极化结合的舰船尾流检测结果^[98]

Figure 12. Ship wake detection results of low-rank and sparse decomposition combined with polarization^[98]

下载: 全尺寸图片幻灯片

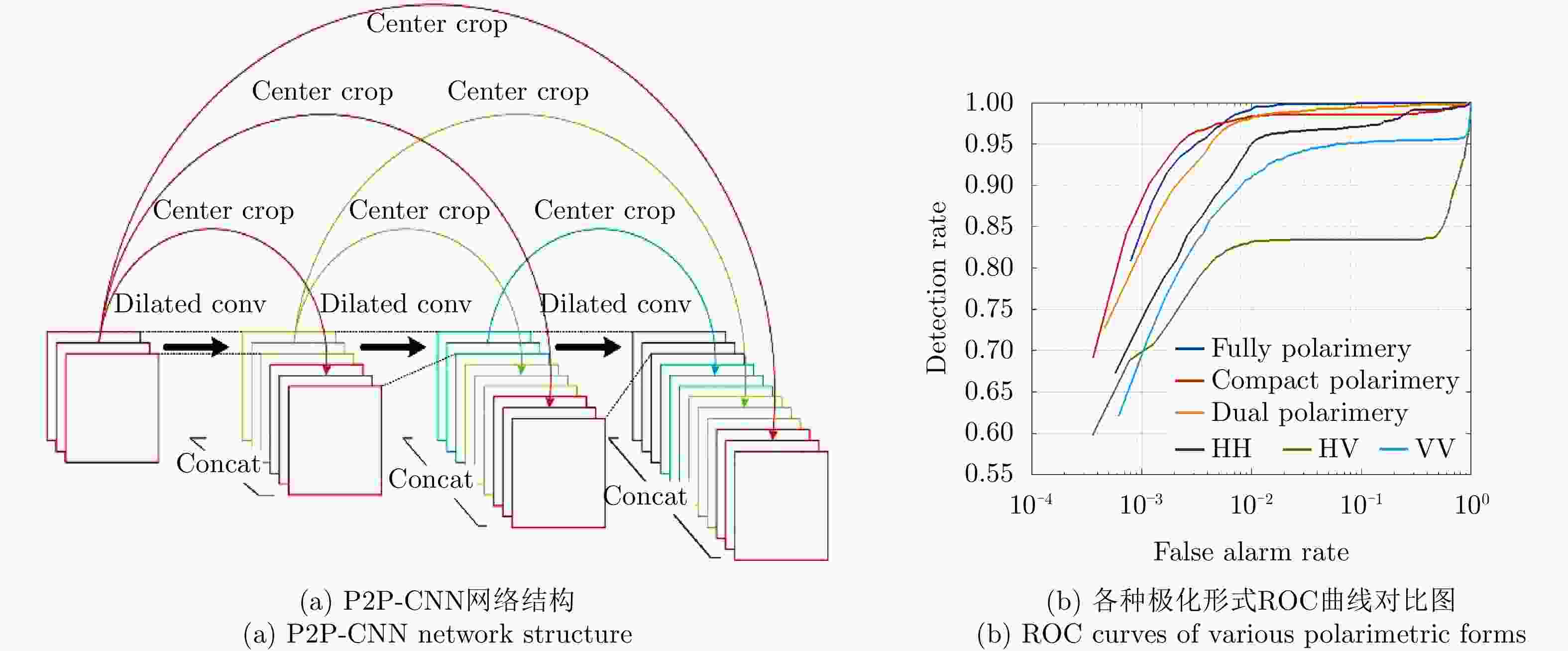

图 13 P2P-CNN网络结构及其检测性能^[107]

Figure 13. P2P-CNN network structure and detection performance^[107]

下载: 全尺寸图片幻灯片

图 1 Classification of PolSAR ship detection methods

下载: 全尺寸图片幻灯片

图 2 Performance comparison of common polarimetric optimization detection methods^[18]

下载: 全尺寸图片幻灯片

图 3 PWF processing results with different textural distributions^[21]

下载: 全尺寸图片幻灯片

图 4 Dense ship detection in PolSAR images based on the adaptive truncation method^[28]

下载: 全尺寸图片幻灯片

图 5 Performance comparison of PNF and NPNF^[8]

下载: 全尺寸图片幻灯片

图 6 Comparison of detection results among different methods for small targets^[36]

下载: 全尺寸图片幻灯片

图 7 Comparison results among different ship detectors with SPN^[51]

下载: 全尺寸图片幻灯片

图 8 Performance comparision among different ship detection methods with NPCM^[6]

下载: 全尺寸图片幻灯片

图 9 Moving target detection results in different polarimetric channels in PolSAR images^[69]

下载: 全尺寸图片幻灯片

图 10 Simulation results of polarimetric along-track interferometry moving target detection^[76]

下载: 全尺寸图片幻灯片

图 11 Wake detection results by PWF and Radon transform^[90]

下载: 全尺寸图片幻灯片

图 12 Ship wake detection results of low-rank and sparse decomposition combined with polarization^[98]

下载: 全尺寸图片幻灯片

图 13 P2P-CNN network structure and detection performance^[107]

下载: 全尺寸图片幻灯片

表 1 PolSAR图像舰船目标检测方法适用场景和优缺点总结

Table 1. Applicable scenarios and pros & cons summary of PolSAR ship detection methods

检测分类	适用场景	具体检测方法	优点	缺点
目标极化特征检测	主要适用于舰船目标本体极化特征和杂波特征有一定差异情形下的检测	简单极化合成检测技术	早期PolSAR目标检测方法，简单易实现且效果优于单极化SAR图像目标检测方法	一定程度上利用了幅度或相位信息，对极化信息的利用不够充分
		基于极化最优化的检测技术	1. 充分利用了各极化通道相关信息 2. 通过对PolSAR图像进行优化，达到最佳对比效果	要根据实际情况选择不同的极化优化准则，同时滑窗的选择也对性能影响较大
		基于散射机理的检测技术	具有较强的物理可解释性	对目标类型和海况状态的适应性需要提高
		基于空间邻域的检测技术	融合空域与极化信息，大幅增强目标检测能力	后期数据处理需要降维以避免维数灾难
慢速运动目标检测	主要适用于目标杂波极化特征差异较小但有一定速度差异的情形，同时也能提取目标运动信息以获取实时海面态势	单通道慢动目标检测	利用交叉极化信息增强慢动目标的检测效果	静止目标模糊抑制和慢动目标检测难以同时实现
		虚拟干涉慢动目标检测	解决了实际干涉数据来源缺乏的问题	子孔径分解的个数与重叠度的选择较为困难
		多通道慢动目标检测	融合多平台和极化信息的优势，极大增强运动目标检测能力	复杂结构和成本限制工程应用
舰船目标尾迹检测	不是检测舰船目标本体，而是检测运动产生的尾迹，主要针对小目标和隐身目标	尾迹边缘线性特征检测	检测问题抽象成线形特征检测问题，方法相对简单	杂波背景下不同类型弱尾迹的检测困难
舰船目标尾迹检测	不是检测舰船目标本体，而是检测运动产生的尾迹，主要针对小目标和隐身目标	尾迹区域背景差异检测	尾迹区域和背景海面由于散射机理不同，在频谱特性、统计特征、极化特性等方面均存在较大差异，效果好	理论分析和方法实现更加复杂
基于深度学习的目标检测	不需要人工提取目标特征，在PolSAR图像智能解译中取得了巨大成功	基于卷积神经网络的检测方法	结构灵活、能够自动提取结构化特征，不仅能提取图像的低维特征，而且能提取图像的高维特征	1. 需要大量样本进行训练 2. 可解释性有待研究

下载: 导出CSV

表 1 Applicable scenarios and pros & cons summary of PolSAR ship detection methods

Detection method		Advantage	Disadvantage
Target polarimetric characteristic detection method (mainly applied to the detection of ship and clutter when the polarimetric characteri stics are different)	Simple polarimetric channel synthesis technology	The early PolSAR target dete ction method is simple and easy to realize, and the effect is better than the single PolSAR image target detection method	To some extent, the amplitude or phase information is used, but the polarimetric information is not fully utilized
	Polarimetric optimization detection technology	1. The information of each polari metric channel is fully utilized 2. PolSAR images are optimized to achieve the best contrast effect	Different optimization criteria should be selected according to the actual situation, and the selection of a sliding window also has a significant influence on the performance
	Detection technology based on the scattering mechanism	It has strong physical interpre tability	Adaptability to target types and sea state needs to be improved
	Spatial neighborhood detection method	The fusion of spatial and polarime tric information considerably enhances the target detection capability	Dimensions need to be reduced to avoid a dimensional disaster
Slow-moving target detection method (mainly applied to the situation where the polarimetric characteristic difference between target and clutter is small but thesre is a certain velocity diffe rence; simultaneously, it can also extract the target motion informa tion to obtain the real-time sea surface situation)	Single-channel PolSAR-GMTI	Cross-polarimetric information is used to enhance the detection effect of slow-moving targets	Suppression of stationary targets and detection of slow-moving targets are difficult to achieve simultaneously
	Virtual interferometric slow-moving target detection	The problem of the lack of actual interference data source is solved	It is difficult to choose the number of subaperture decompo sition and overlap degree
	Multichannel PolSAR-GMTI	Integrating the advantages of multi-platform and polarization information considerably enhan ces the ability to move target detection	Complex structure and cost limit engineering applications
Ship wake detection method (it is used not to detect the ship target body but to detect the wake gene rated by the movement, mainly for small targets and stealth targets)	Linear feature detection of wake edge	The detection problem is abstrac ted into the linear feature detec tion problem, and the method is relatively simple	It is difficult to detect different types of weak wakes in the cluttered background
	Background difference detection in the wake region	Due to the different scattering mechanisms of the wake region and background sea surface, there are considerable differences in spectrum characteristics, statisti cal characteristics, polarimetric characteristics, and other aspects, and the effect is good	The theoretical analysis and method implementation are more complex
Target detection algorithm based on deep learning (it has achieved great success in intelligent PolSAR image interpretation without extracting target features man ually)	Detection method based on CNN	Flexible structure can automa tically extract structured features, including both low-dimensional and high-dimensional features of images	1. It needs a large number of samples to train with 2. Interpretability needs to be investigated

下载: 导出CSV
