基于光学和SAR遥感图像融合的洪灾区域检测方法

王志豪; 李刚; 蒋骁

doi:10.12000/JR19095

基于光学和SAR遥感图像融合的洪灾区域检测方法

DOI: 10.12000/JR19095

清华大学电子工程系北京 100084

基金项目: 国家自然科学基金(61790551, 61925106)，民用航天十三五预研项目(D010305)

详细信息

作者简介:
王志豪(1994–)，男，清华大学电子工程系在读硕士生，目前研究方向雷达遥感图像处理

李　刚(1979–)，男，2002年和2007年于清华大学电子系分别获得学士、博士学位，现为清华大学电子系教授、博士生导师，研究方向包括雷达成像、目标识别、稀疏信号处理、分布式信号处理等、信息融合等

蒋　骁(1989–)，男，2010年和2013年分别于北京邮电大学通信工程系和清华大学电子工程系获得学士、硕士学位。现为清华大学电子工程系在读博士研究生。研究方向包括遥感图像融合与变化检测

通讯作者:
李刚 gangli@tsinghua.edu.cn

责任主编：杨文 Corresponding Editor: YANG Wen
中图分类号: TN959.3
计量
- 文章访问数: 5265
- HTML全文浏览量: 2526
- PDF下载量: 699
- 被引次数: 0
出版历程
- 收稿日期: 2019-11-05
- 修回日期: 2020-02-18
- 网络出版日期: 2020-06-01

Flooded Area Detection Method Based on Fusion of Optical and SAR Remote Sensing Images

Department of Electronic Engineering, Tsinghua University, Beijing 100084, China

Funds: The National Natural Science Foundation of China (61790551 and 61925106), Civil Space Advance Research Program of China (D010305)

More Information

Corresponding author: LI Gang, gangli@tsinghua.edu.cn

摘要

摘要: 基于光学和合成孔径雷达(SAR)图像融合的洪灾区域检测方法可以全天候、高时效地检测洪灾区域。由于SAR图像中存在大量随机分布的相干斑噪声，传统洪灾区域检测方法的检测结果存在较高的虚警率。该文在模糊C均值聚类方法(FCM)的基础上提出了分级聚类算法(H-FCM)，该方法将洪灾后的SAR图像与洪灾前的光学图像融合。基于融合图像，该方法利用提出的分级聚类模型获得洪灾区域的初步检测结果。此外，该算法在利用所提出的区域生长算法获得洪灾前河流位置后，将其作为初步检测结果的空间约束，进一步筛除疑似洪灾区域，并显著地提升了检测性能。该文的实验数据包括1999年英国格洛斯特洪灾前后的遥感图像和2019年中国南昌洪灾前后的遥感图像。通过对比实验，H-FCM算法的有效性得到验证。
- 遥感图像融合 /
- 光学 /
- 合成孔径雷达 /
- 分级C均值聚类算法 /
- 分级聚类 /
- 区域生长 /
- 空间约束
Abstract: The flooded area detection method based on the fusion of optical and Synthetic Aperture Radar (SAR) images is applicable for all weather conditions and times. However, due to the large number of randomly distributed intensive speckle noise in SAR images, the conventional methods of detection often trigger high false alarm rates at flood-stricken zones. Inspired by the Fuzzy C-Means (FCM) clustering method, a hierarchical clustering algorithm (Hierarchical Fuzzy C-Means, H-FCM) is proposed in this paper. This method fuses the SAR image captured after the flood with the optical image captured before the flood. Based on the fused image, this method uses the proposed hierarchical clustering model to obtain the preliminary detection results of the flooded area. Additionally, the algorithm uses the proposed region-growing algorithm to obtain the river location before the flood and uses it as a spatial constraint for the preliminary detection results to further screen out suspected flooded areas and significantly improve detection performance. The experimental data used in this paper include the remote sensing images captured before and after the Gloucester floods in the United Kingdom in 1999, as well as the remote sensing images captured before and after the Nanchang floods in China in 2019. The effectiveness and validity of the H-FCM algorithm are also supported by comparison experiments.
- Remote sensing images fusion /
- Optical /
- Synthetic Aperture Radar (SAR) /
- Hierarchical Fuzzy C-Means (H-FCM) /
- Hierarchical clustering /
- Region-growing /
- Spatial constraint

HTML全文

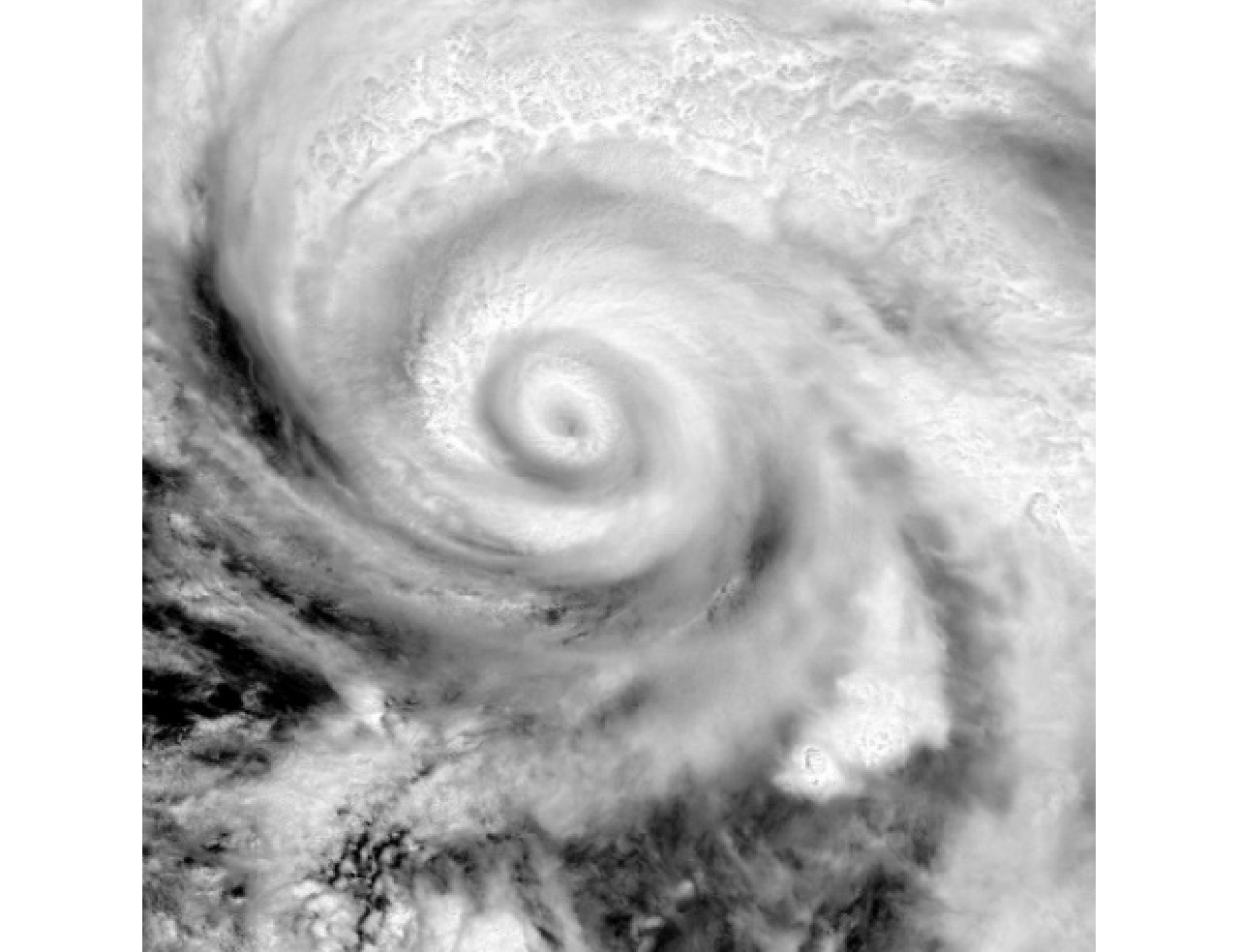

图 1 利奇马台风的GF4图像(资源卫星中心)

Figure 1. The GF4 image of Typhoon Lekima (Resource Satellite Centre)

下载: 全尺寸图片幻灯片

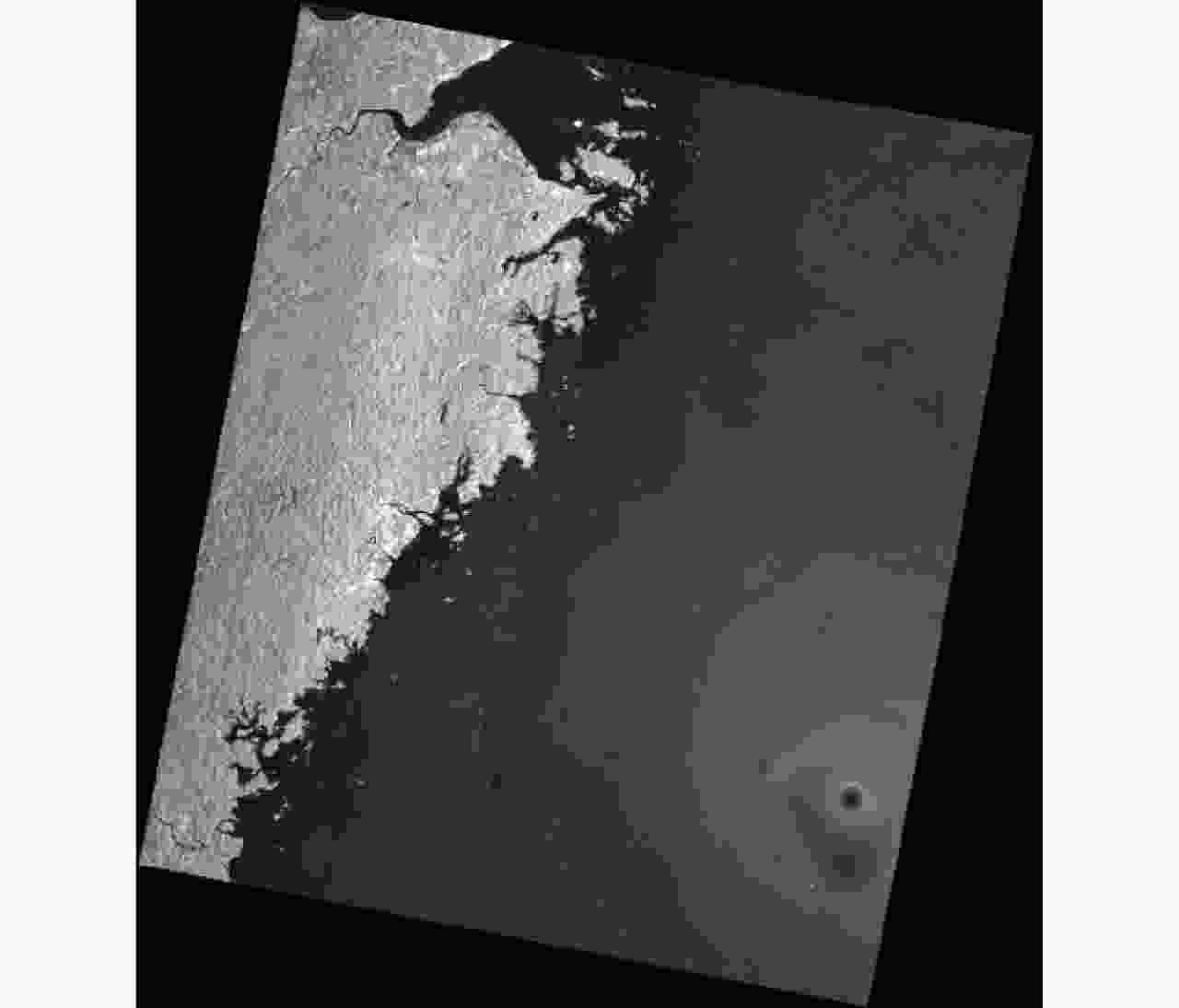

图 2 利奇马台风的GF3图像(资源卫星中心)

Figure 2. The GF3 image of Typhoon Lekima (Resource Satellite Centre)

下载: 全尺寸图片幻灯片

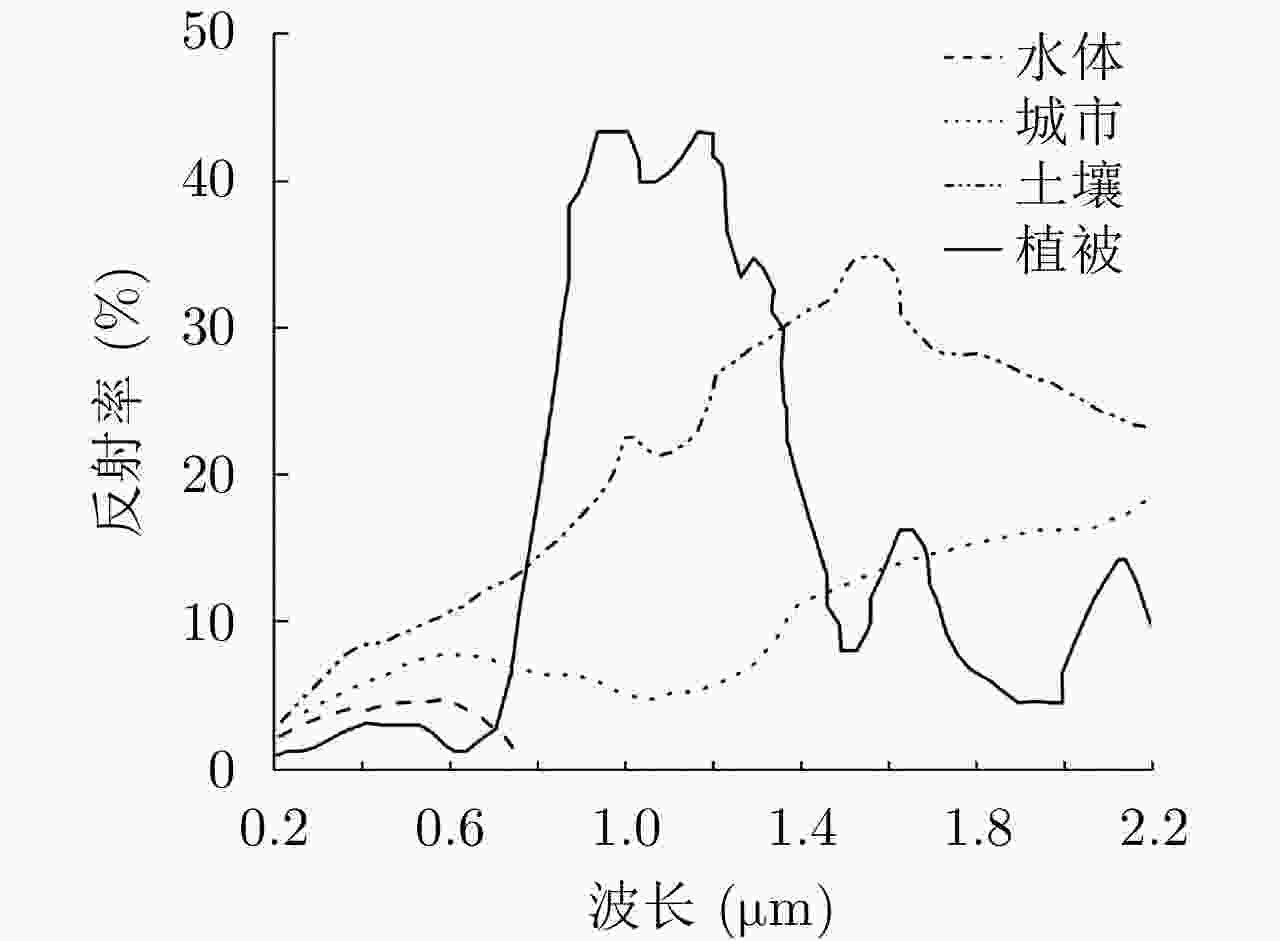

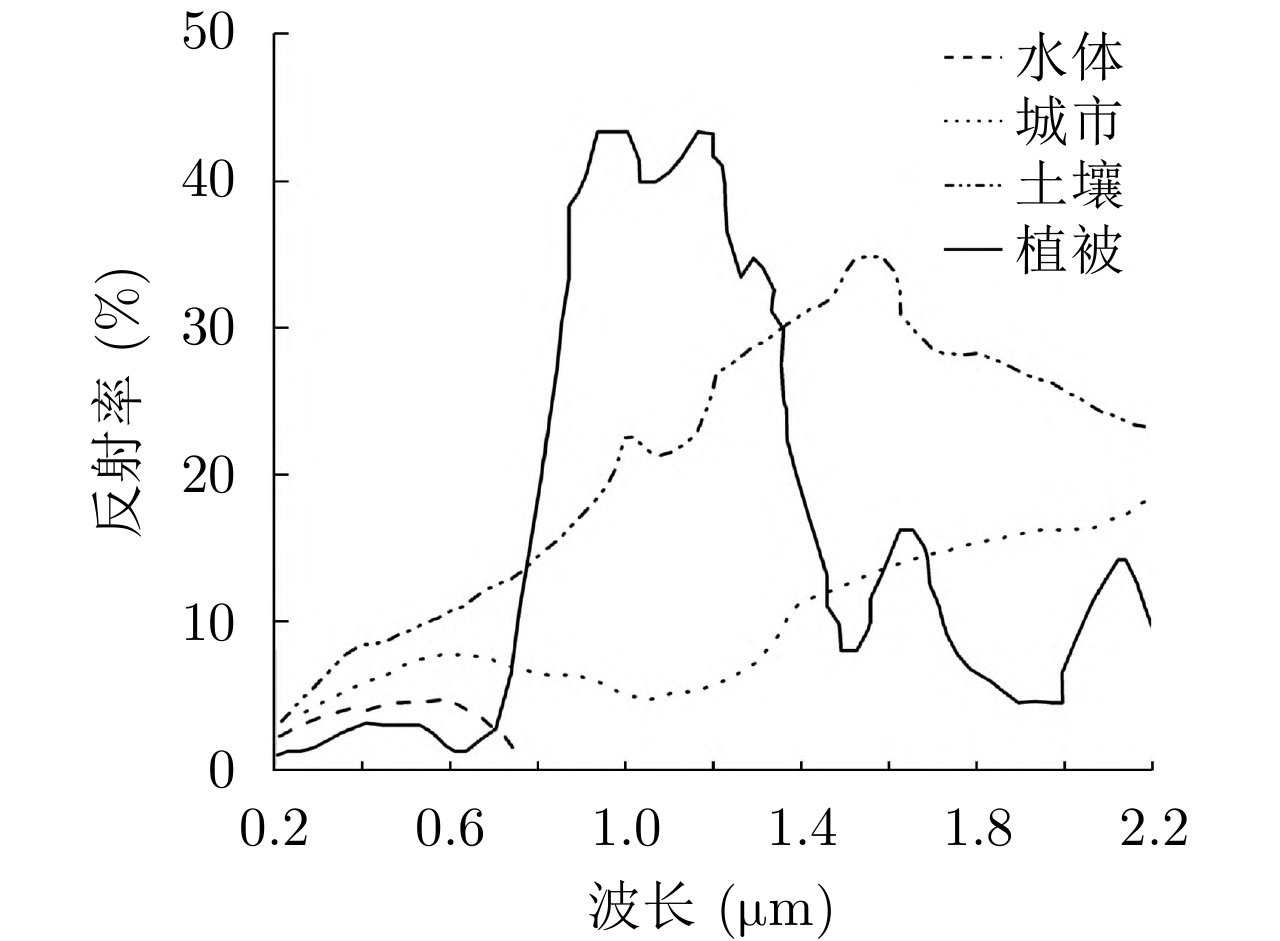

图 3 典型地物的光谱特征曲线^[23]

Figure 3. Spectral characteristic curves of typical features^[23]

下载: 全尺寸图片幻灯片

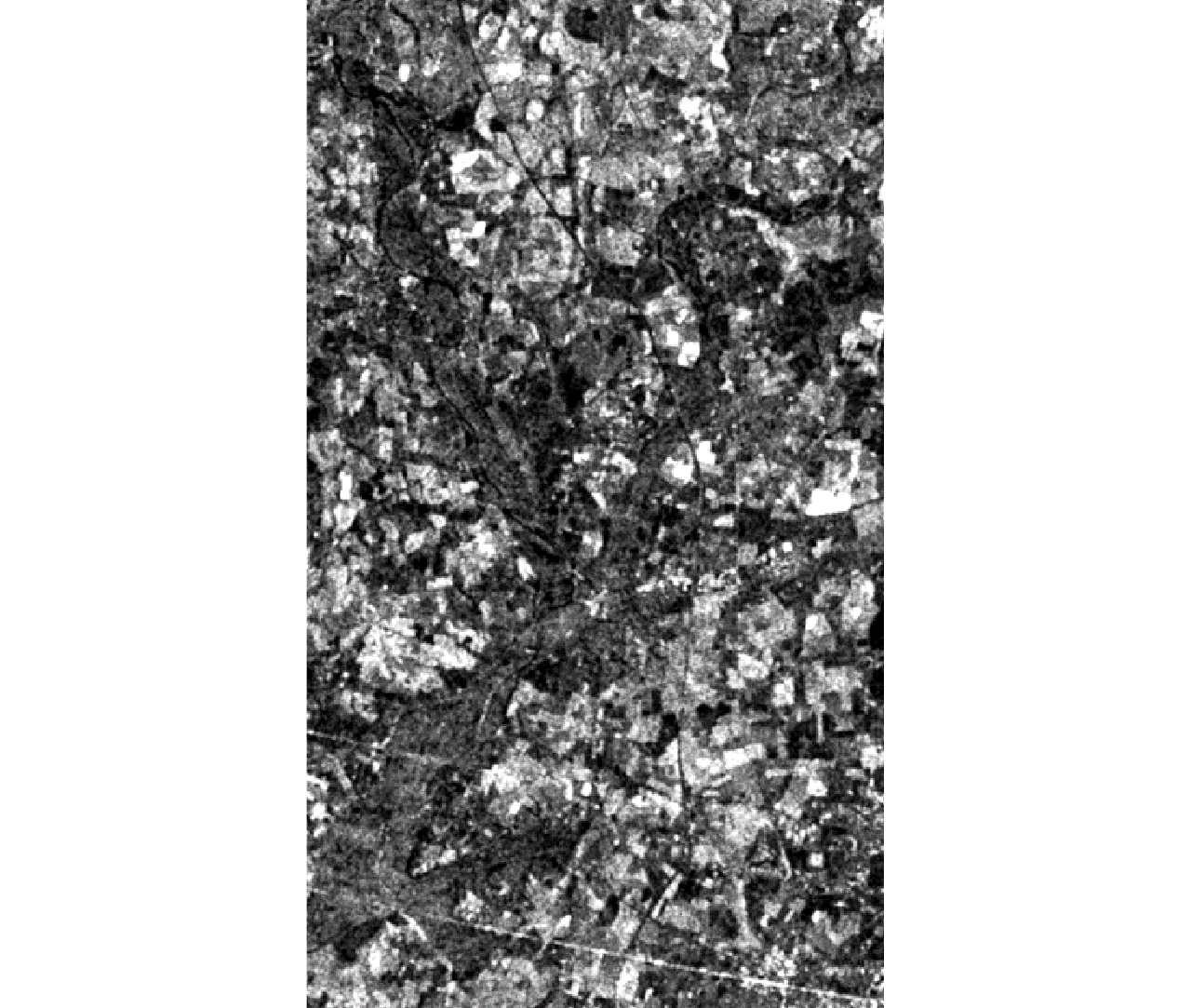

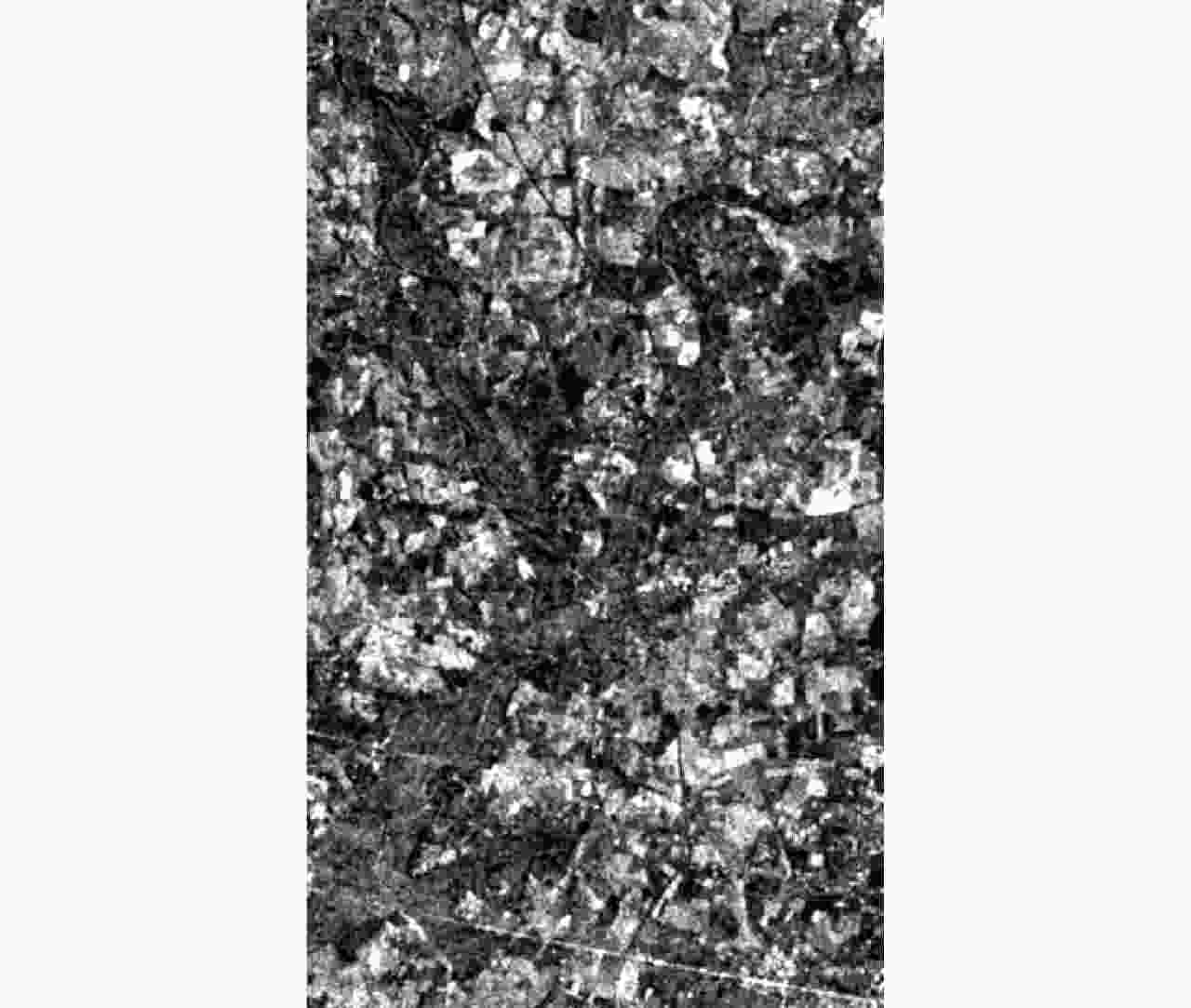

图 4 洪灾后的SAR图像E_a^[10]

Figure 4. SAR image E_a after the flood^[10]

下载: 全尺寸图片幻灯片

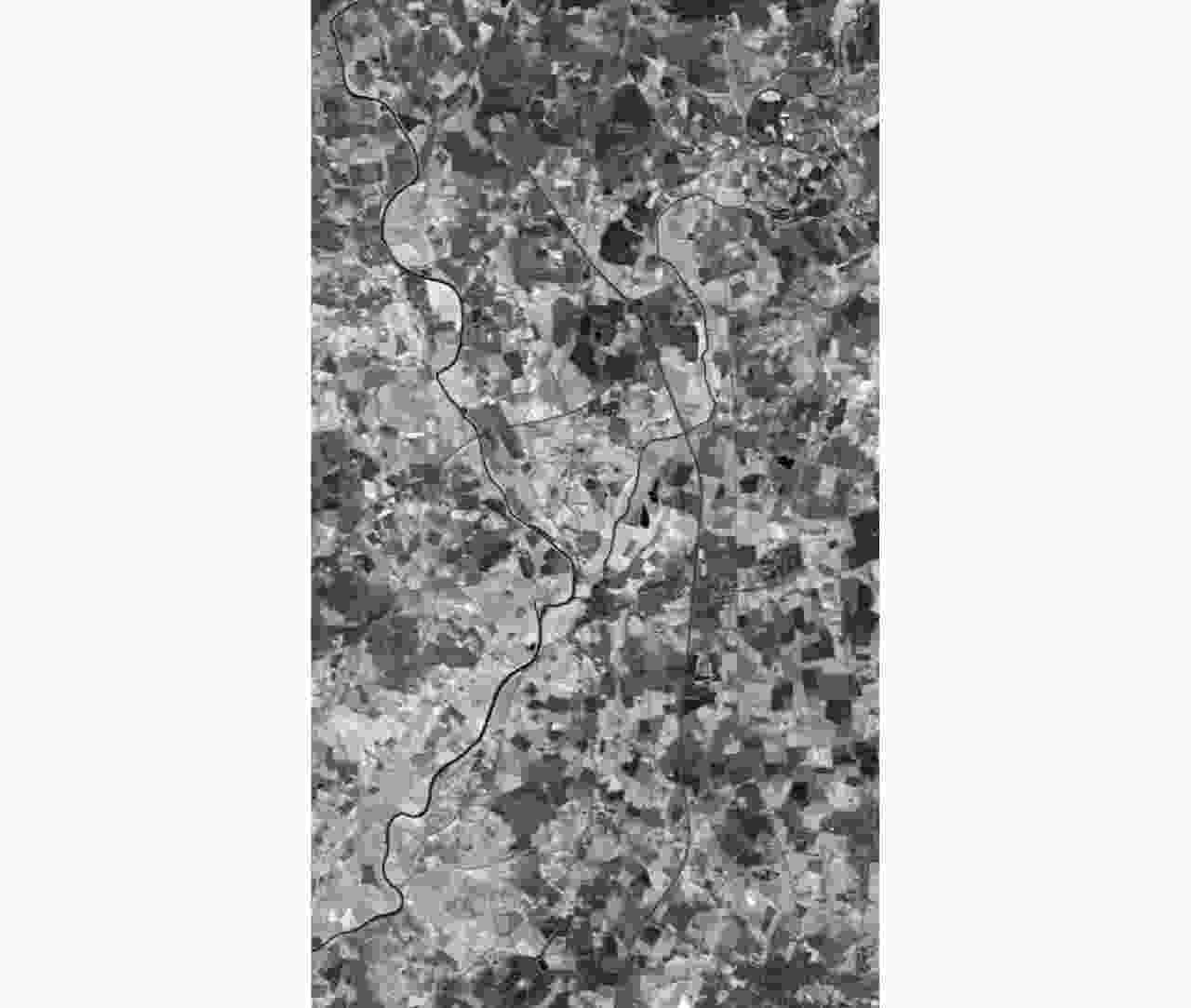

图 5 洪灾前的近红外波段影像E_i^[10]

Figure 5. Near-infrared image E_i before the flood^[10]

下载: 全尺寸图片幻灯片

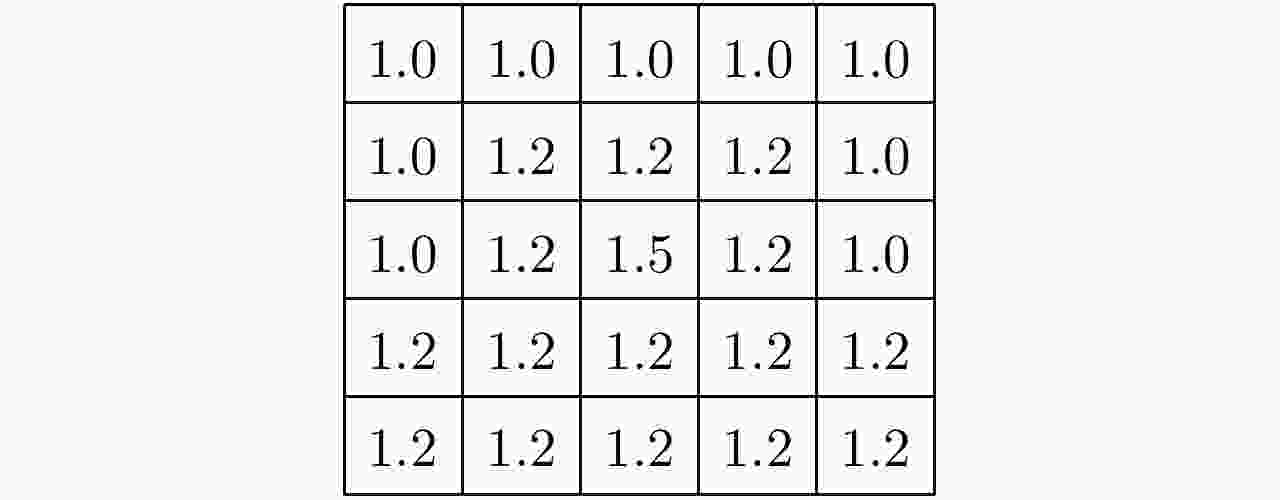

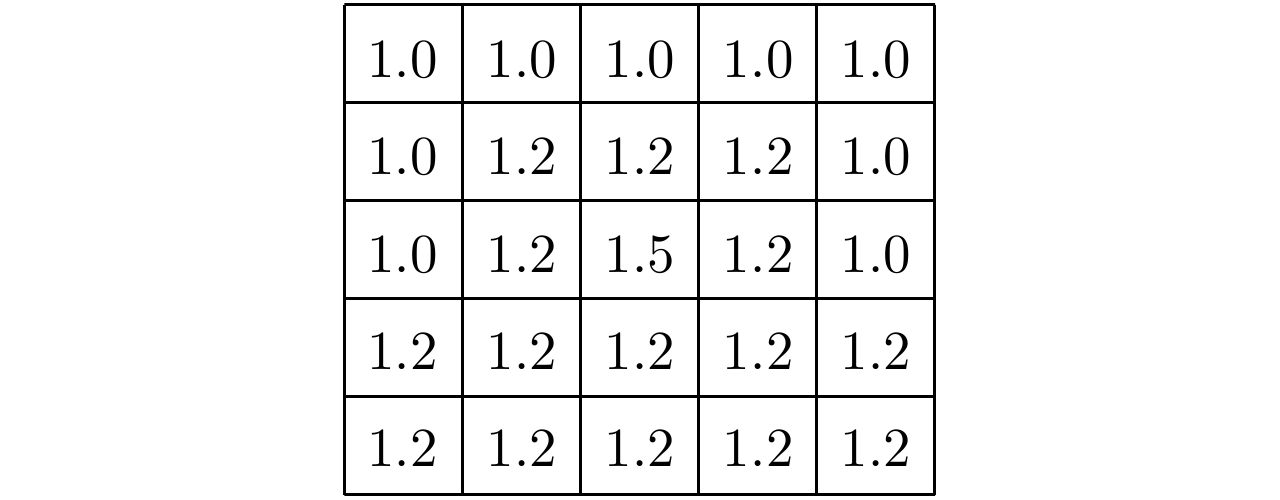

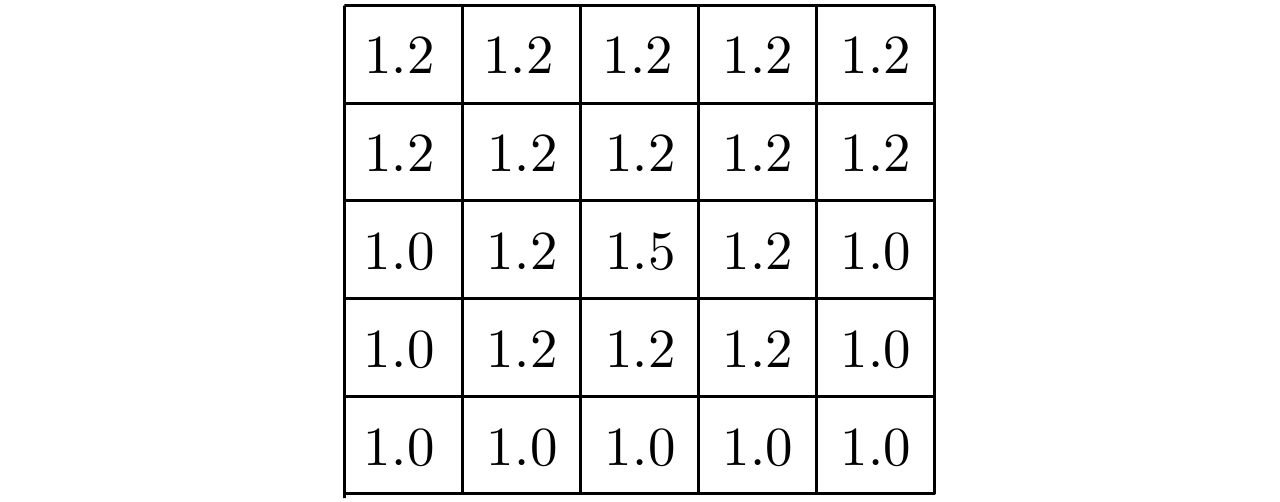

图 6 方向矩阵Jd₁(向下)

Figure 6. Direction matrix Jd₁(down)

下载: 全尺寸图片幻灯片

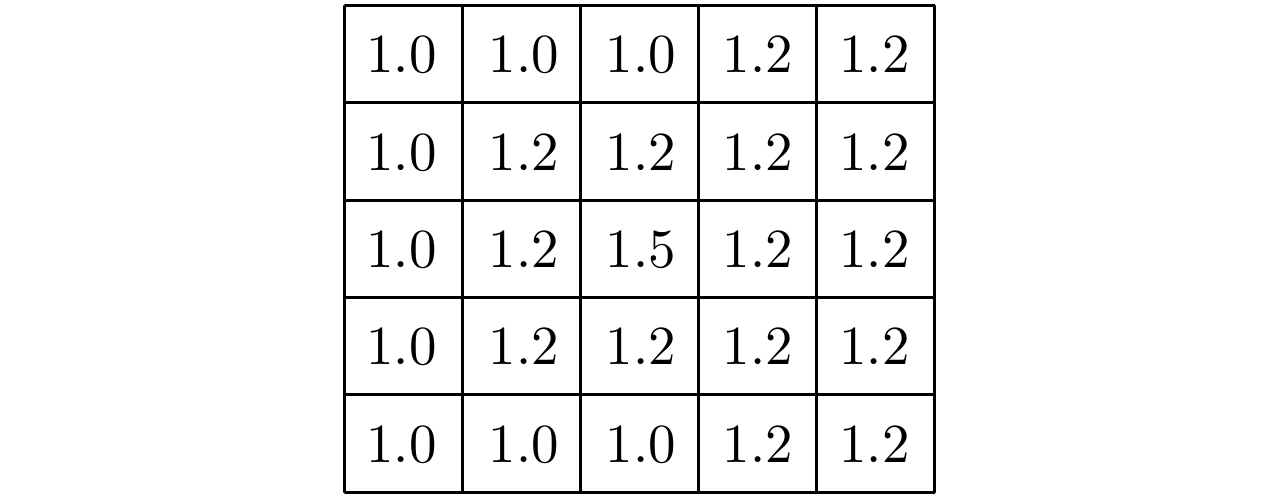

图 7 方向矩阵Jd₂(向上)

Figure 7. Direction matrix Jd₂(up)

下载: 全尺寸图片幻灯片

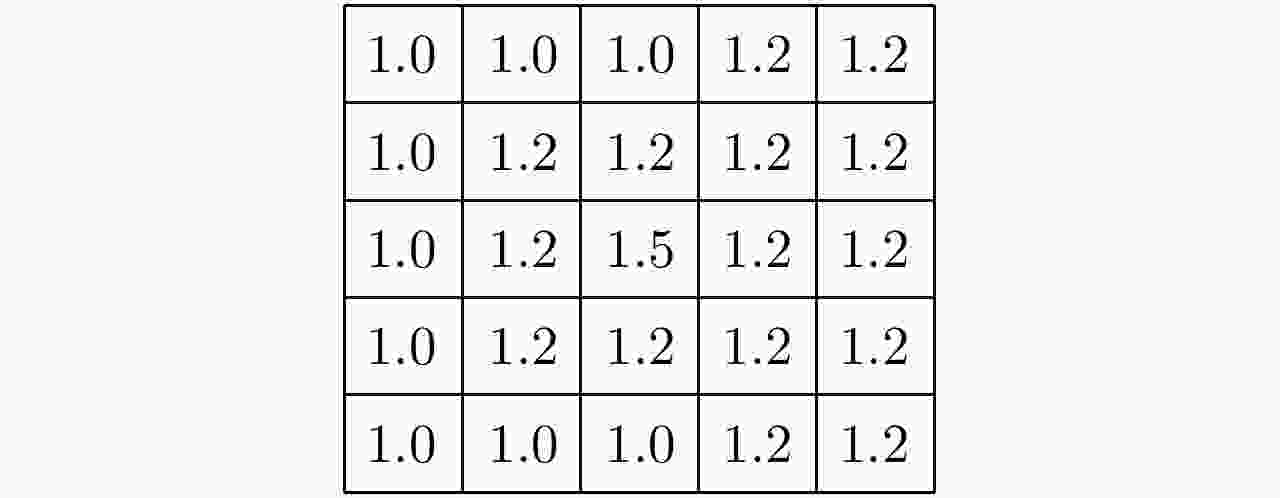

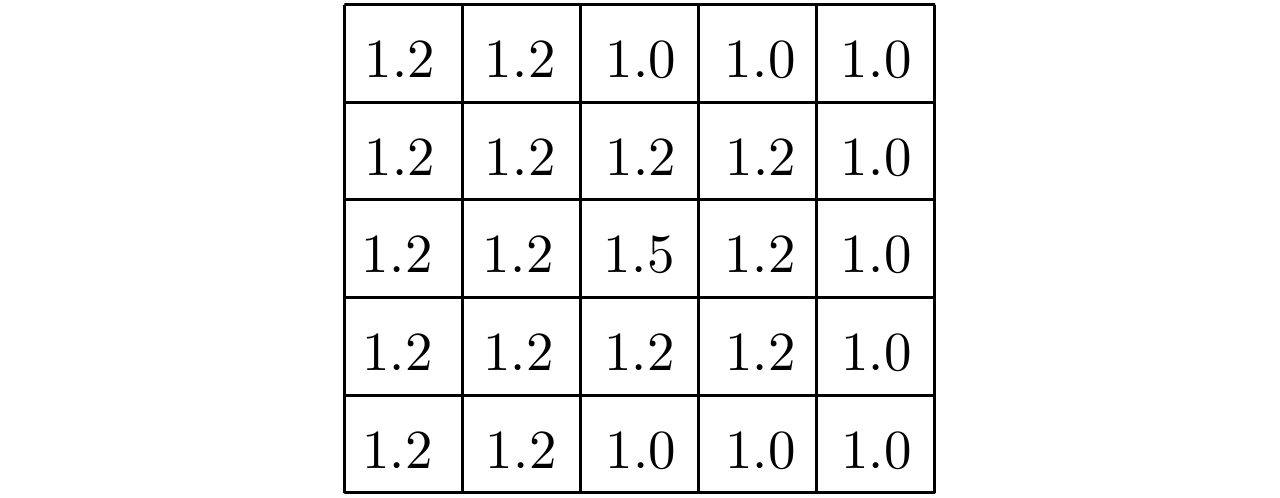

图 8 方向矩阵Jd₃(向左)

Figure 8. Direction matrix Jd₃(left)

下载: 全尺寸图片幻灯片

图 9 方向矩阵Jd₄(向右)

Figure 9. Direction matrix Jd₄(right)

下载: 全尺寸图片幻灯片

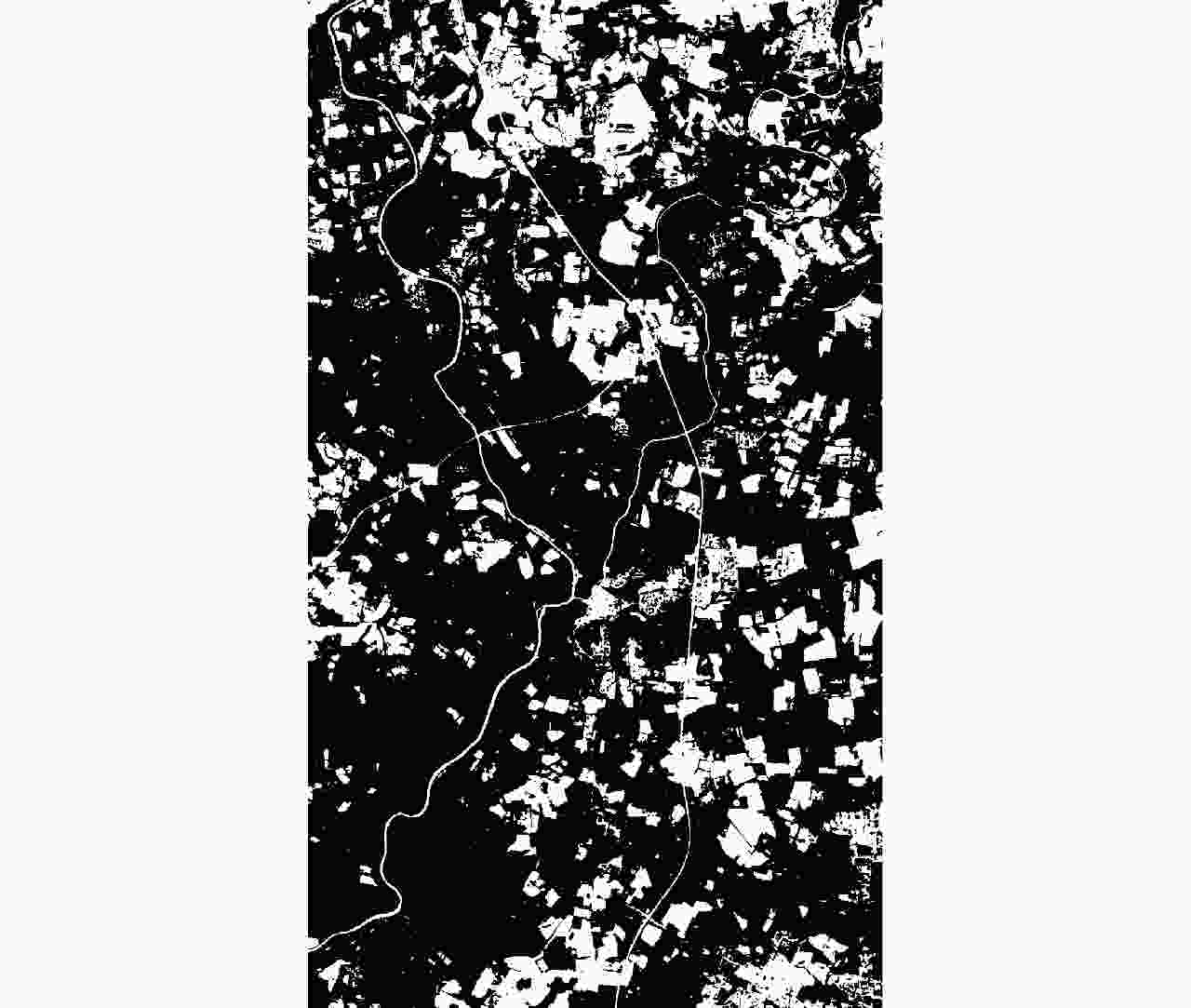

图 10 第2类阈值图P_t

Figure 10. Threshold graph P_t

下载: 全尺寸图片幻灯片

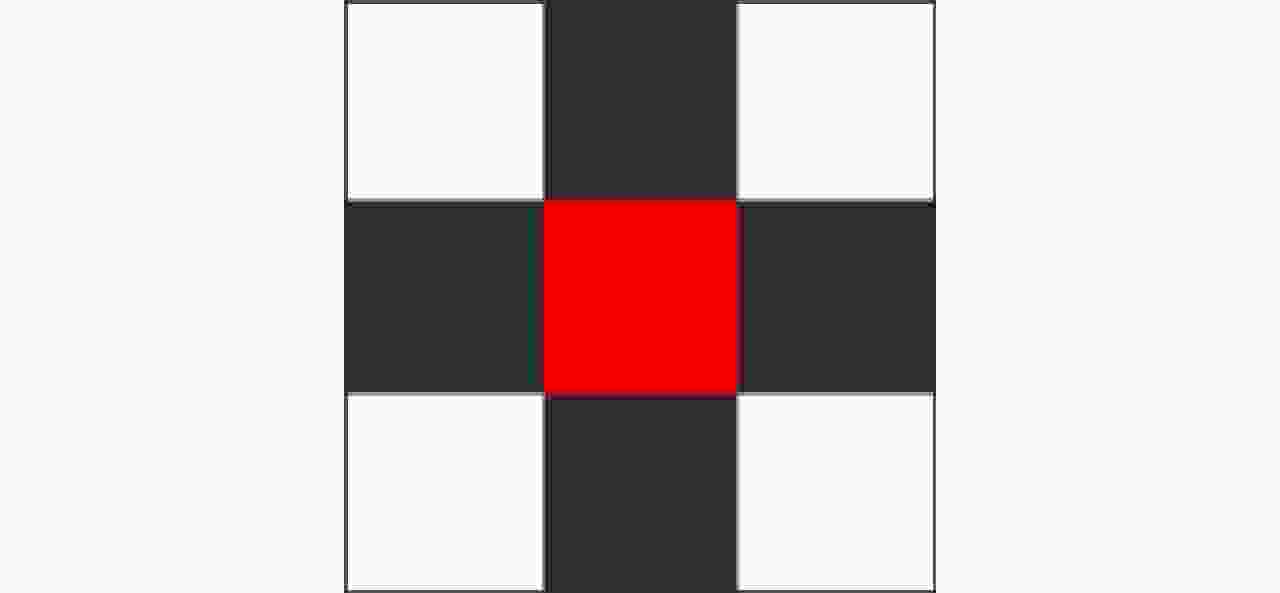

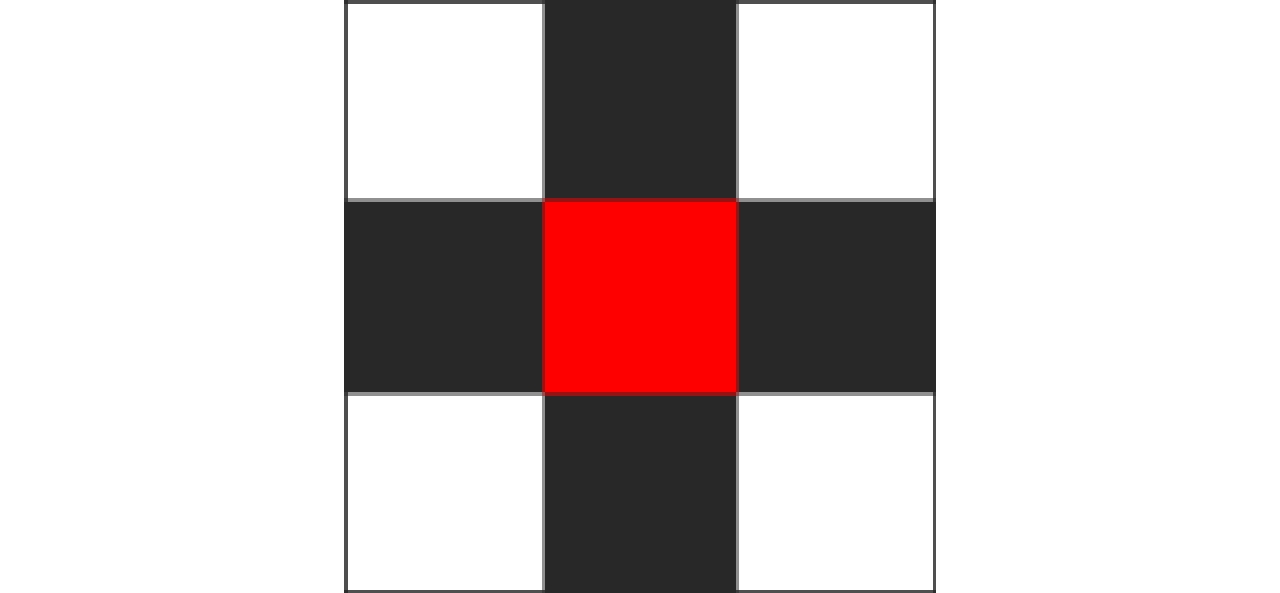

图 11 4连通区域的定义

Figure 11. Definition of four-connected regions

下载: 全尺寸图片幻灯片

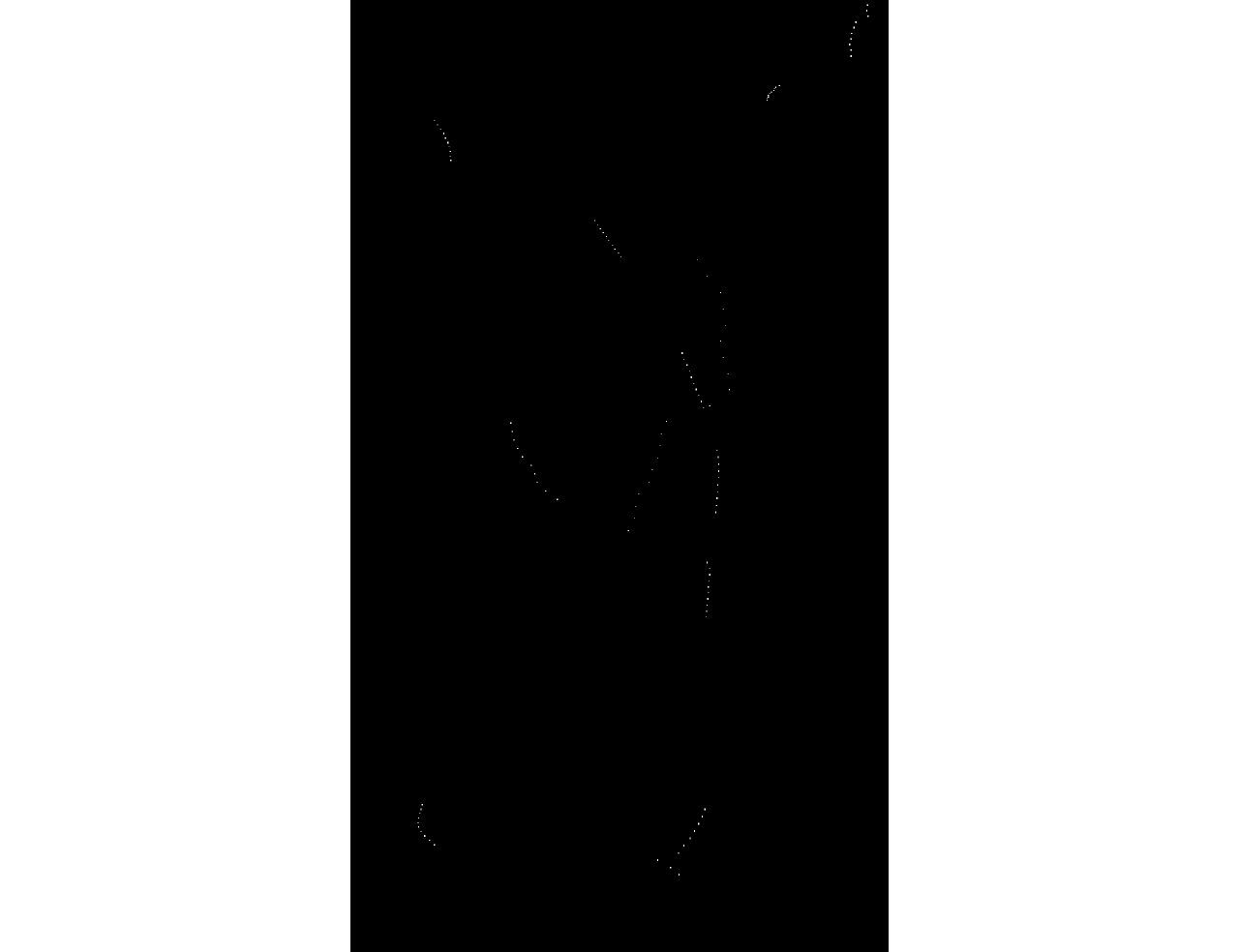

图 12 初始生长点位置

Figure 12. Initial growth point location

下载: 全尺寸图片幻灯片

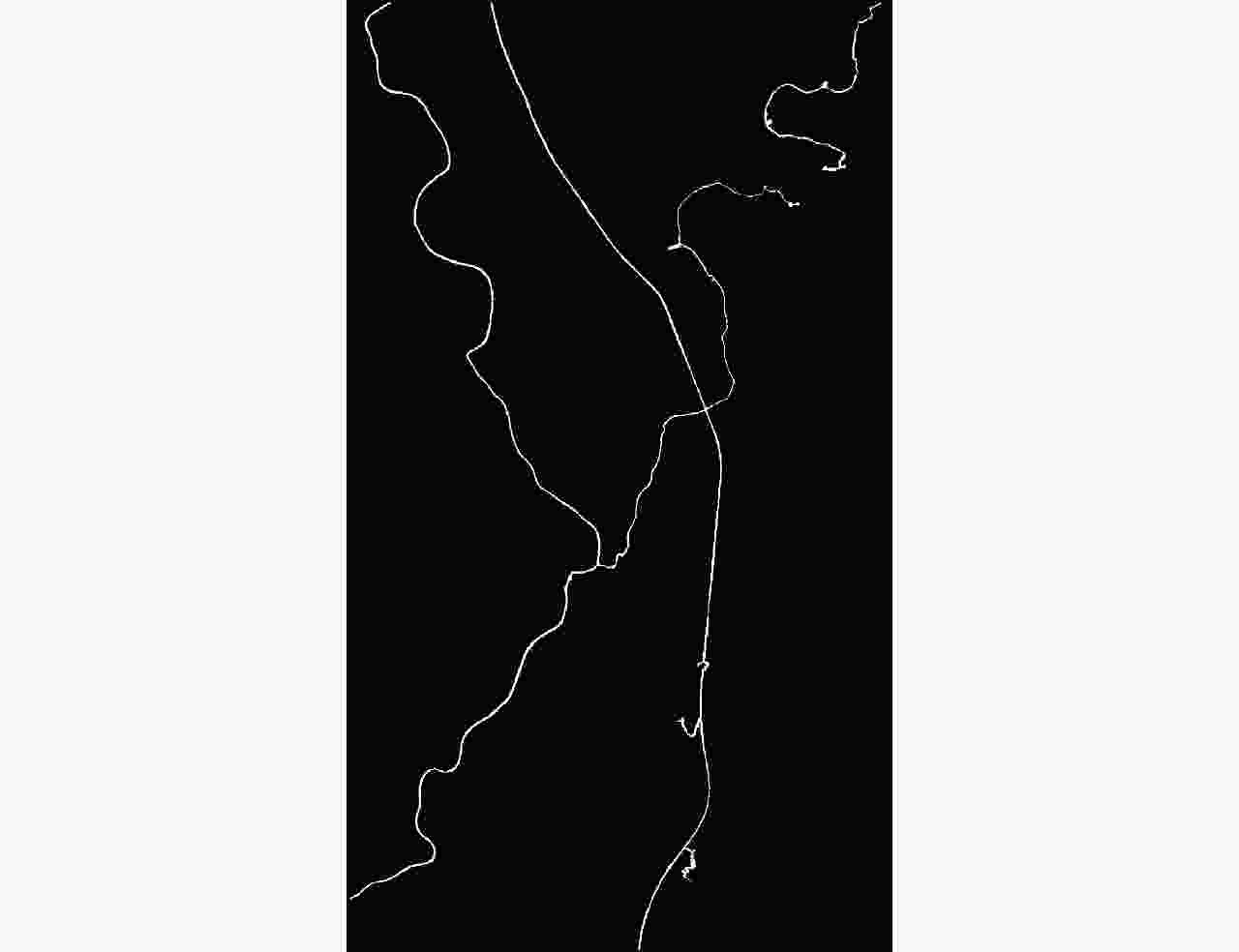

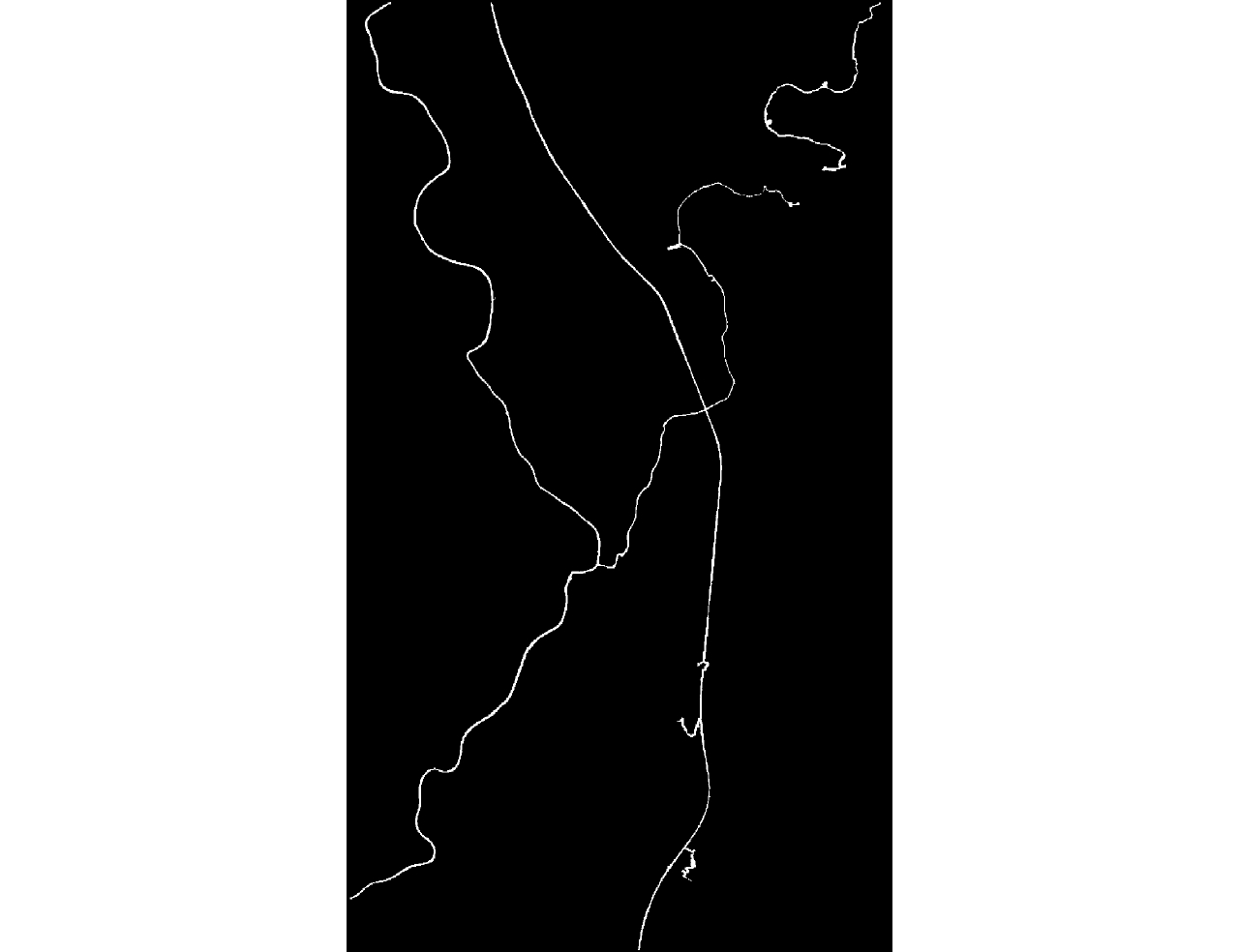

图 13 初步生长结果

Figure 13. Preliminary growth results

下载: 全尺寸图片幻灯片

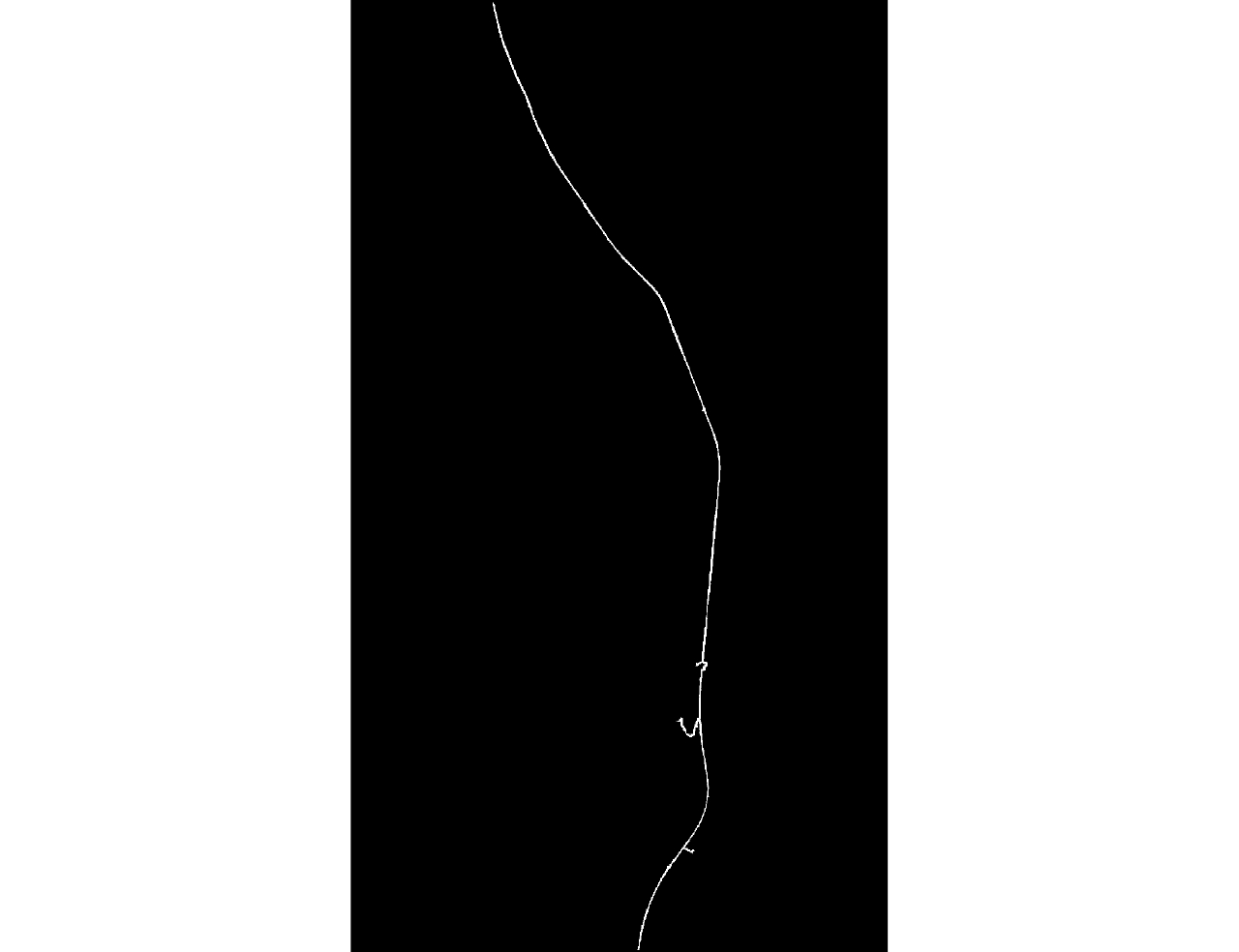

图 14 道路的识别结果

Figure 14. Road recognition results

下载: 全尺寸图片幻灯片

图 15 洪灾前的河流位置E_b

Figure 15. River location E_b before the flood

下载: 全尺寸图片幻灯片

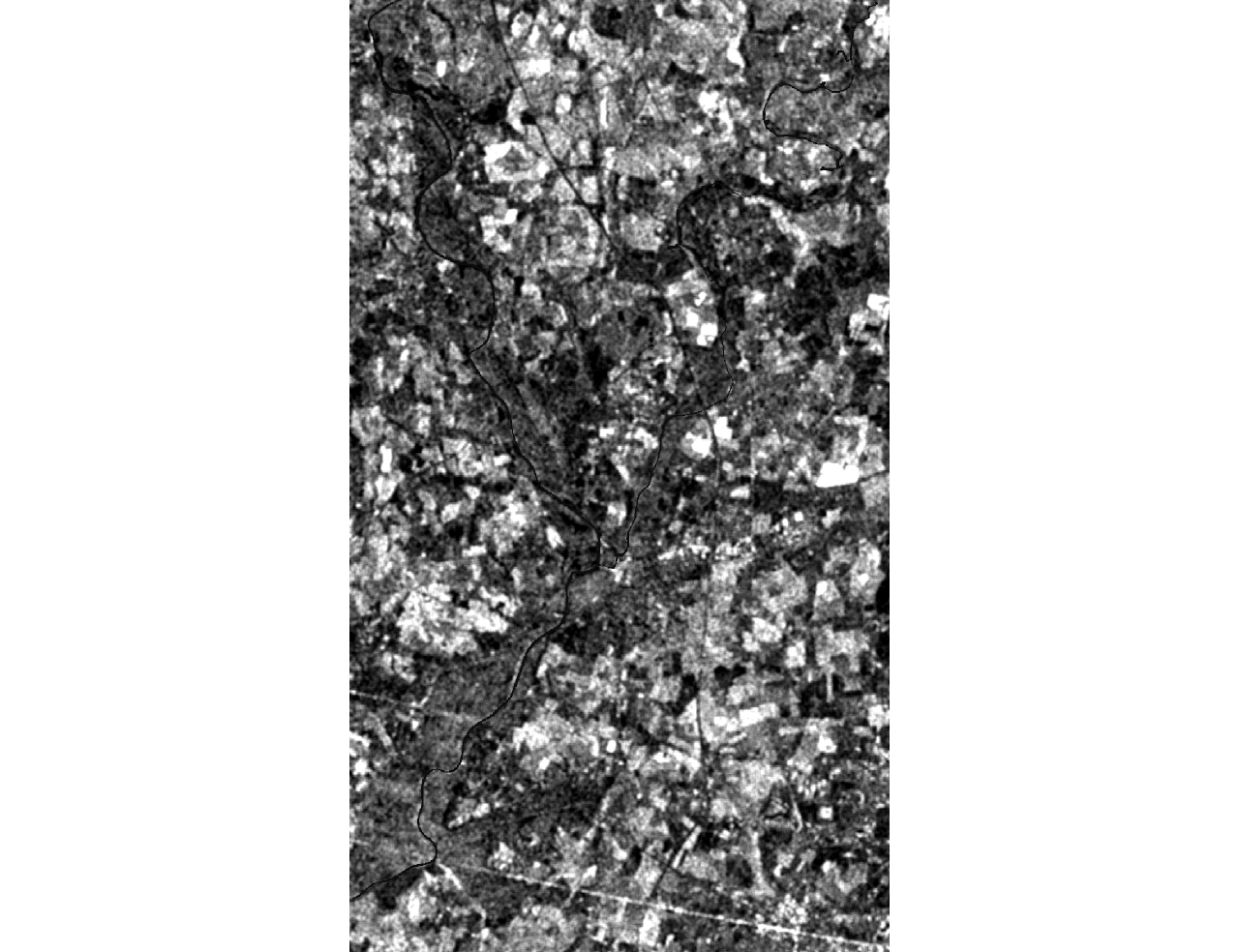

图 16 融合后的灾后SAR图像Fu

Figure 16. Fusion post-disaster SAR image Fu

下载: 全尺寸图片幻灯片

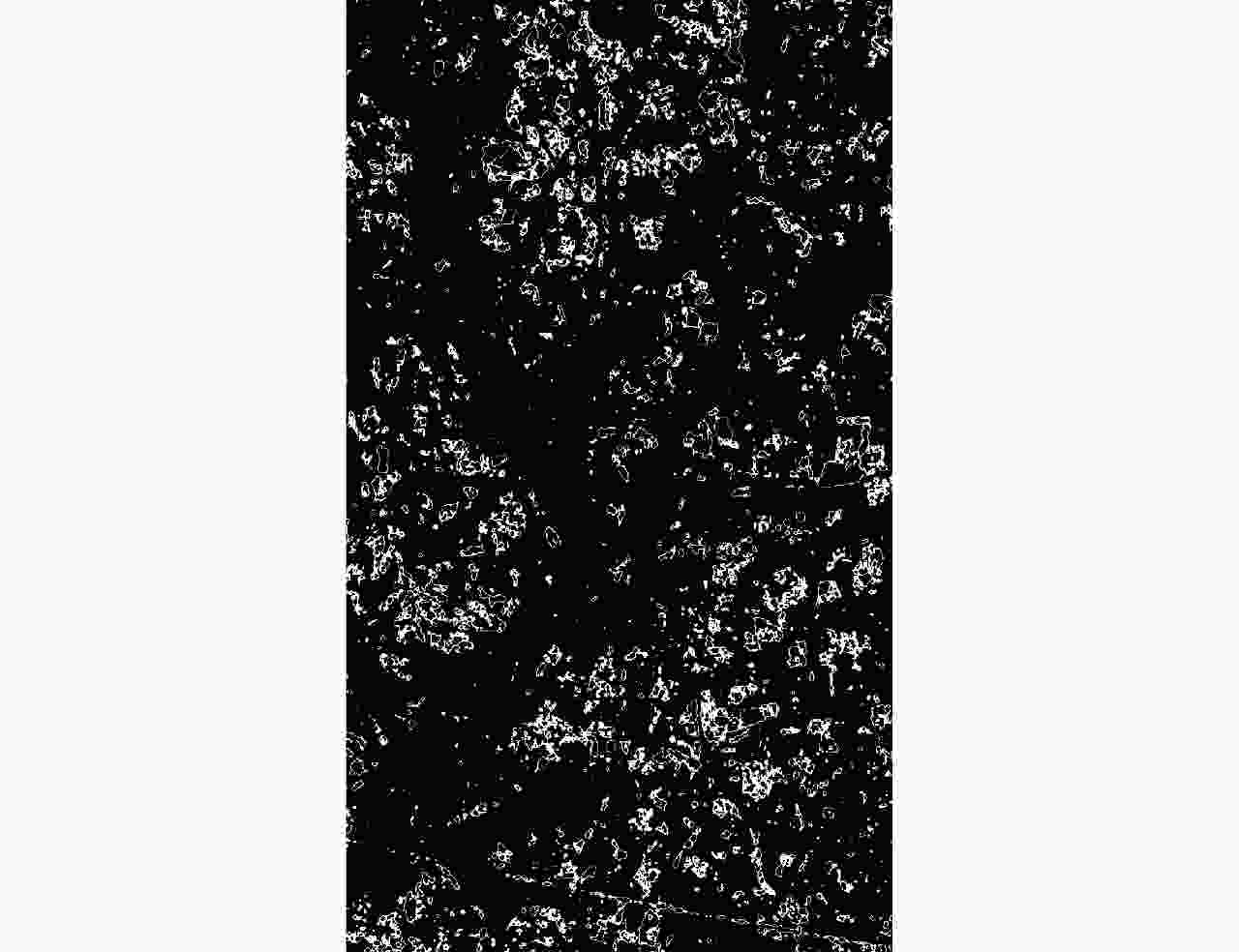

图 17 聚类模型Gm₇

Figure 17. Clustering model Gm₇

下载: 全尺寸图片幻灯片

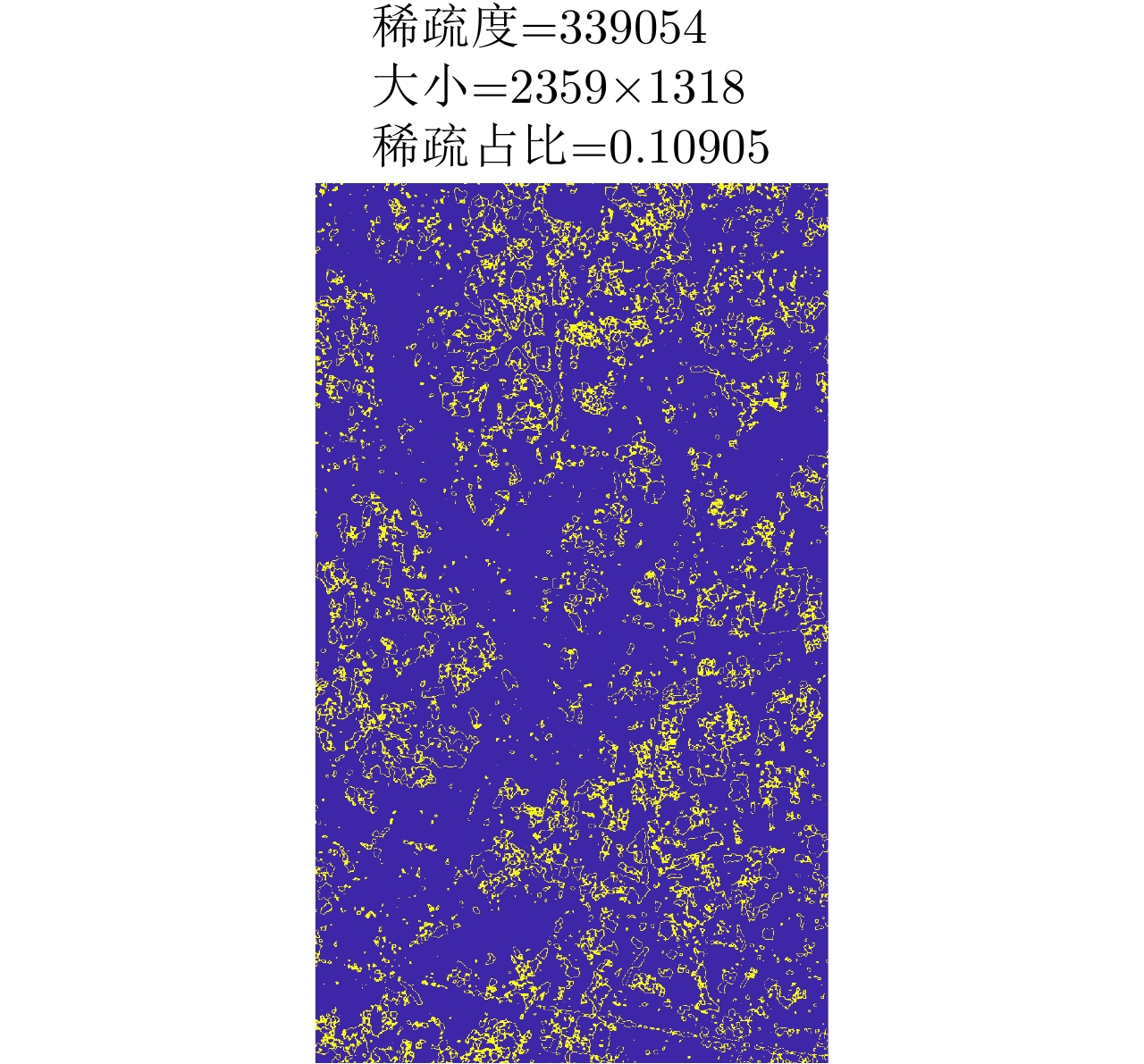

图 18 聚类模型的稀疏度分析

Figure 18. Analysis of sparsity of clustering model

下载: 全尺寸图片幻灯片

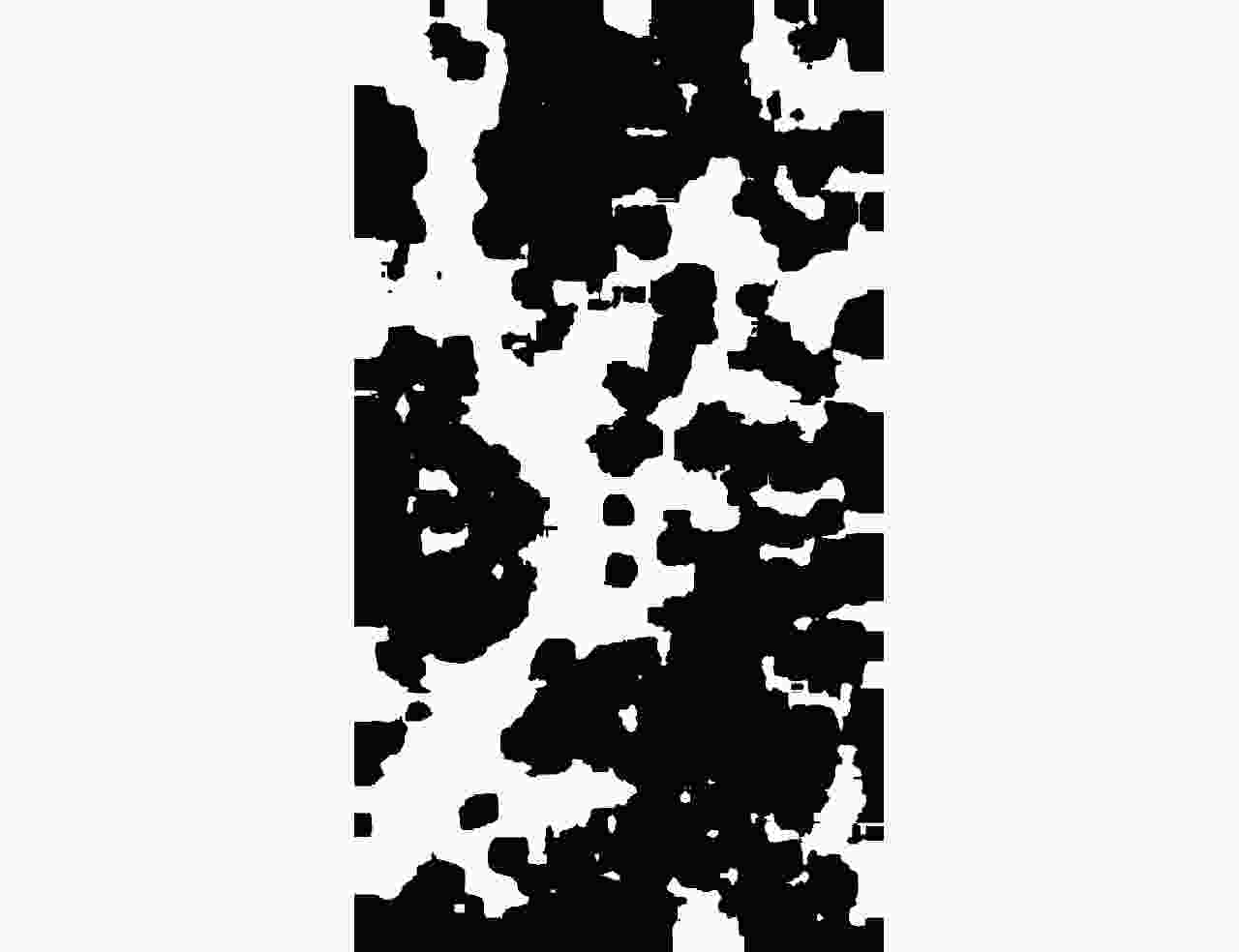

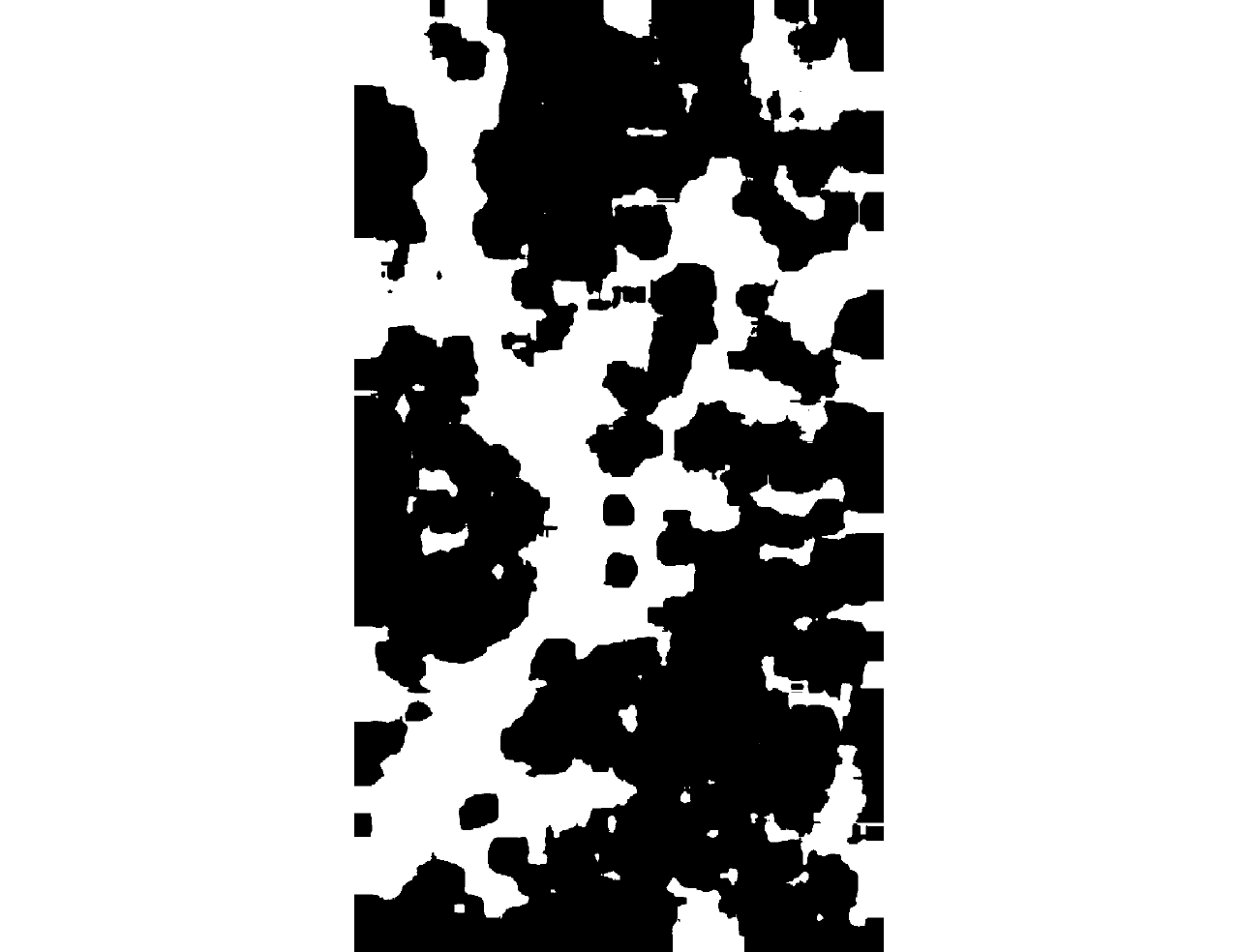

图 19 初步聚类结果Gr₇

Figure 19. Preliminary clustering results Gr₇

下载: 全尺寸图片幻灯片

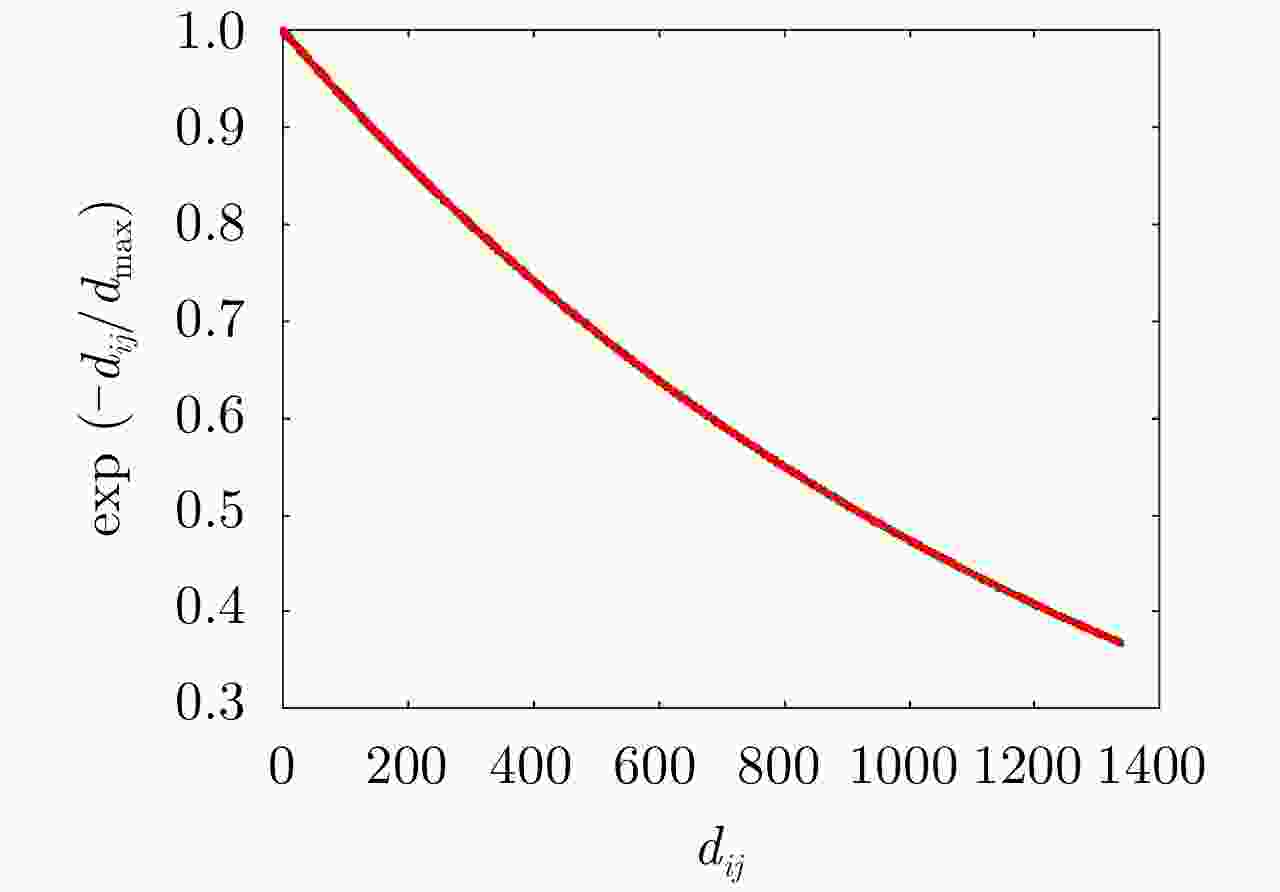

图 20 洪灾区域空间约束曲线

Figure 20. Spatial constraint curve of flooded area

下载: 全尺寸图片幻灯片

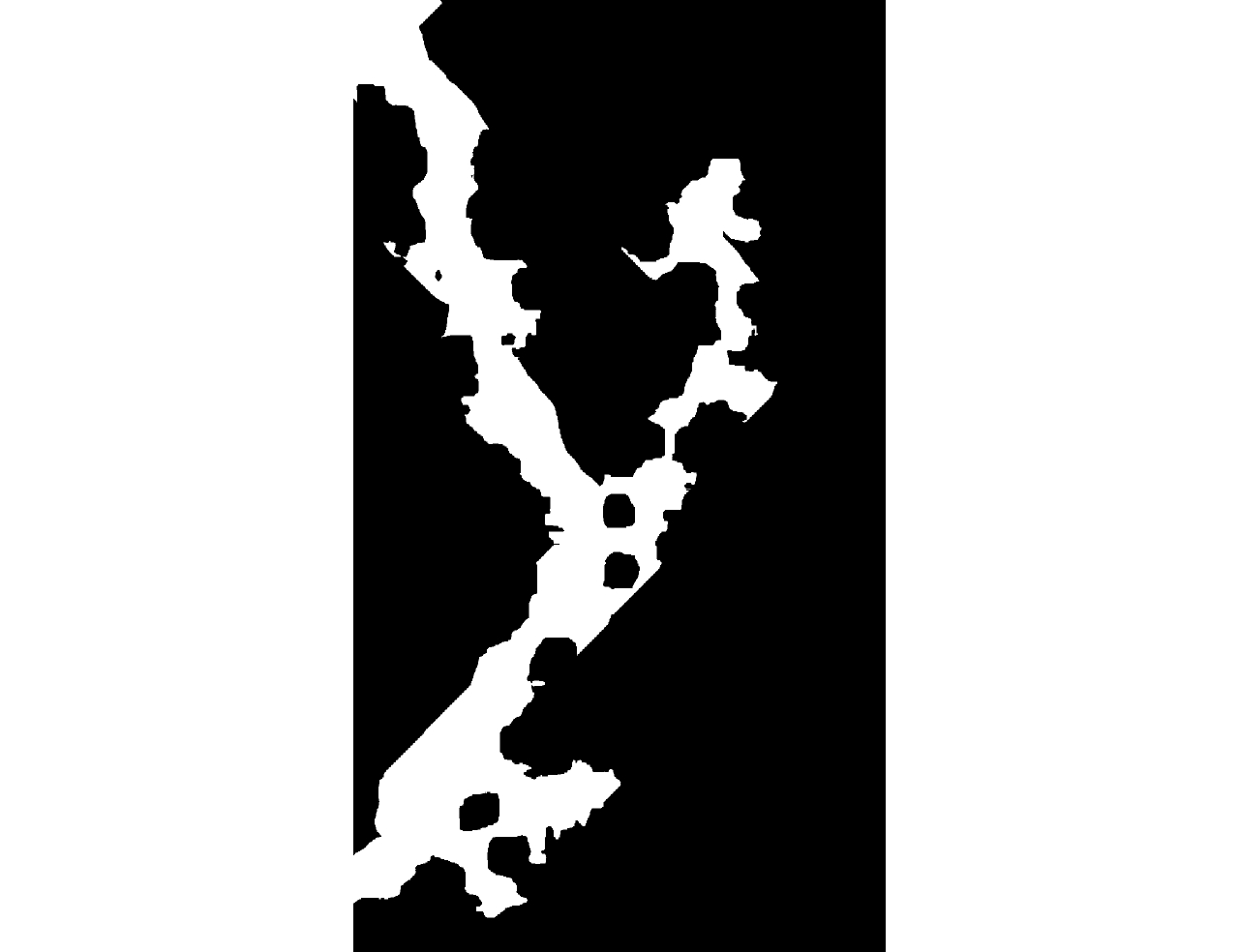

图 21 最终检测结果FF

Figure 21. Final experimental result FF

下载: 全尺寸图片幻灯片

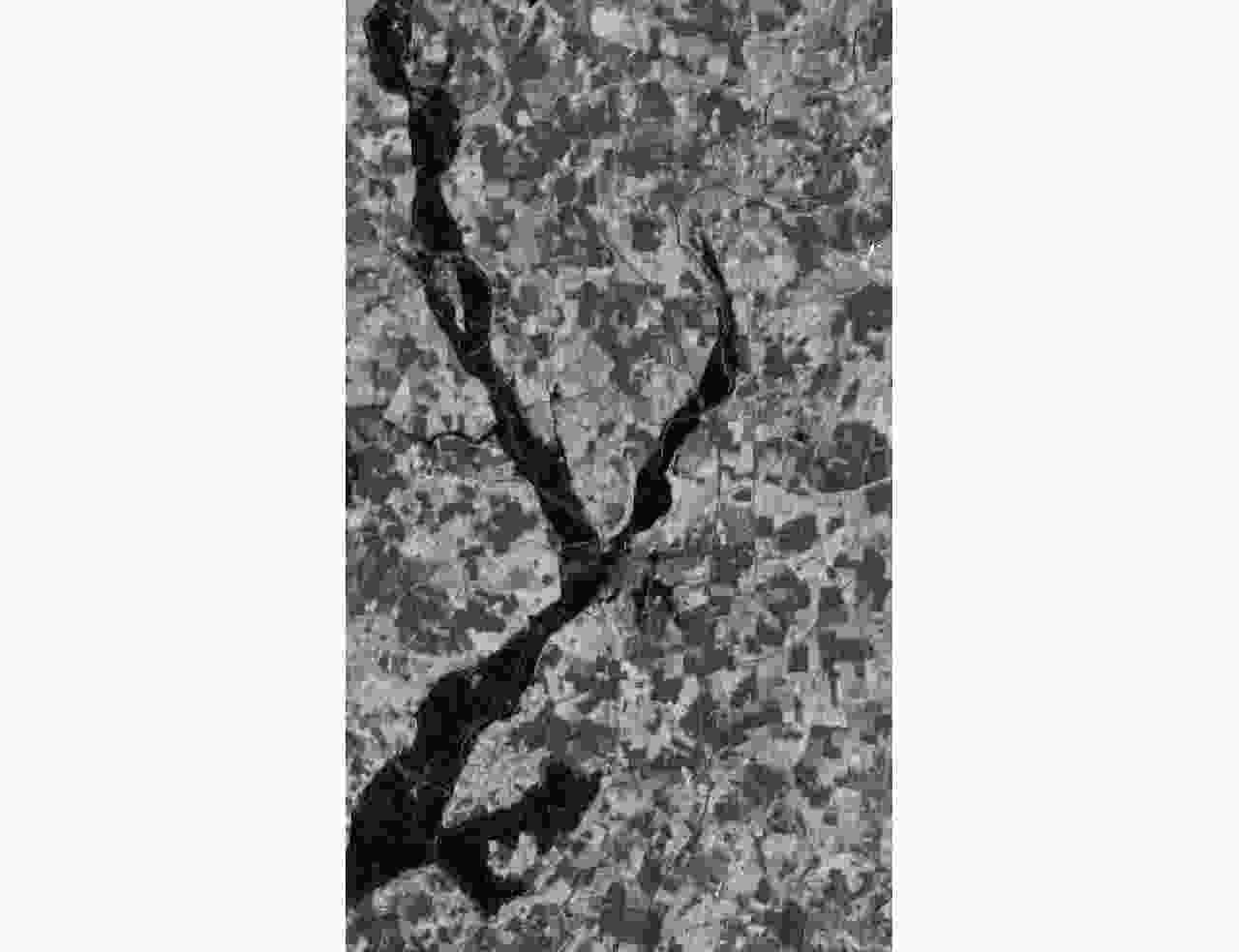

图 22 洪灾后的NDVI图像^[10]

Figure 22. NDVI images after the flood^[10]

下载: 全尺寸图片幻灯片

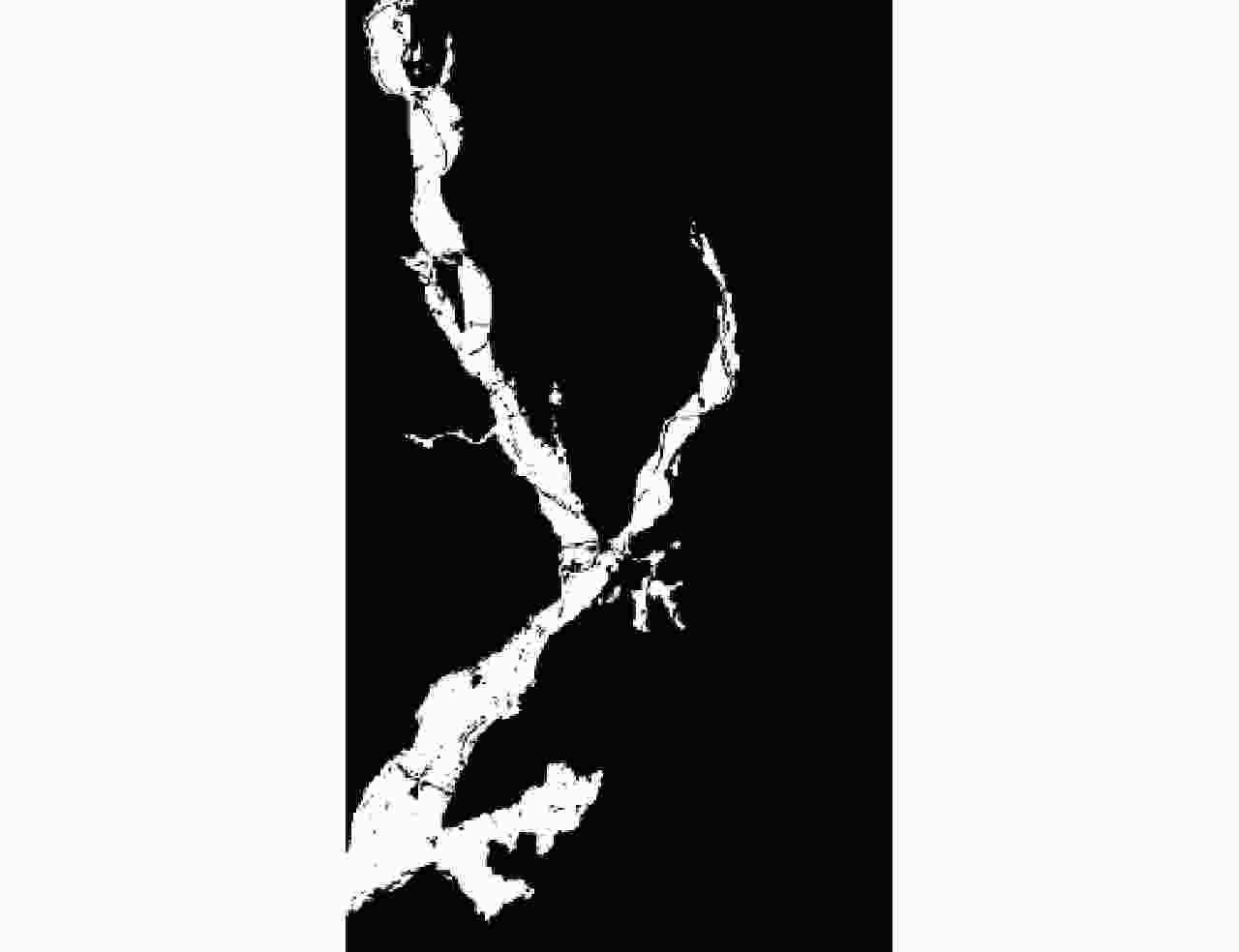

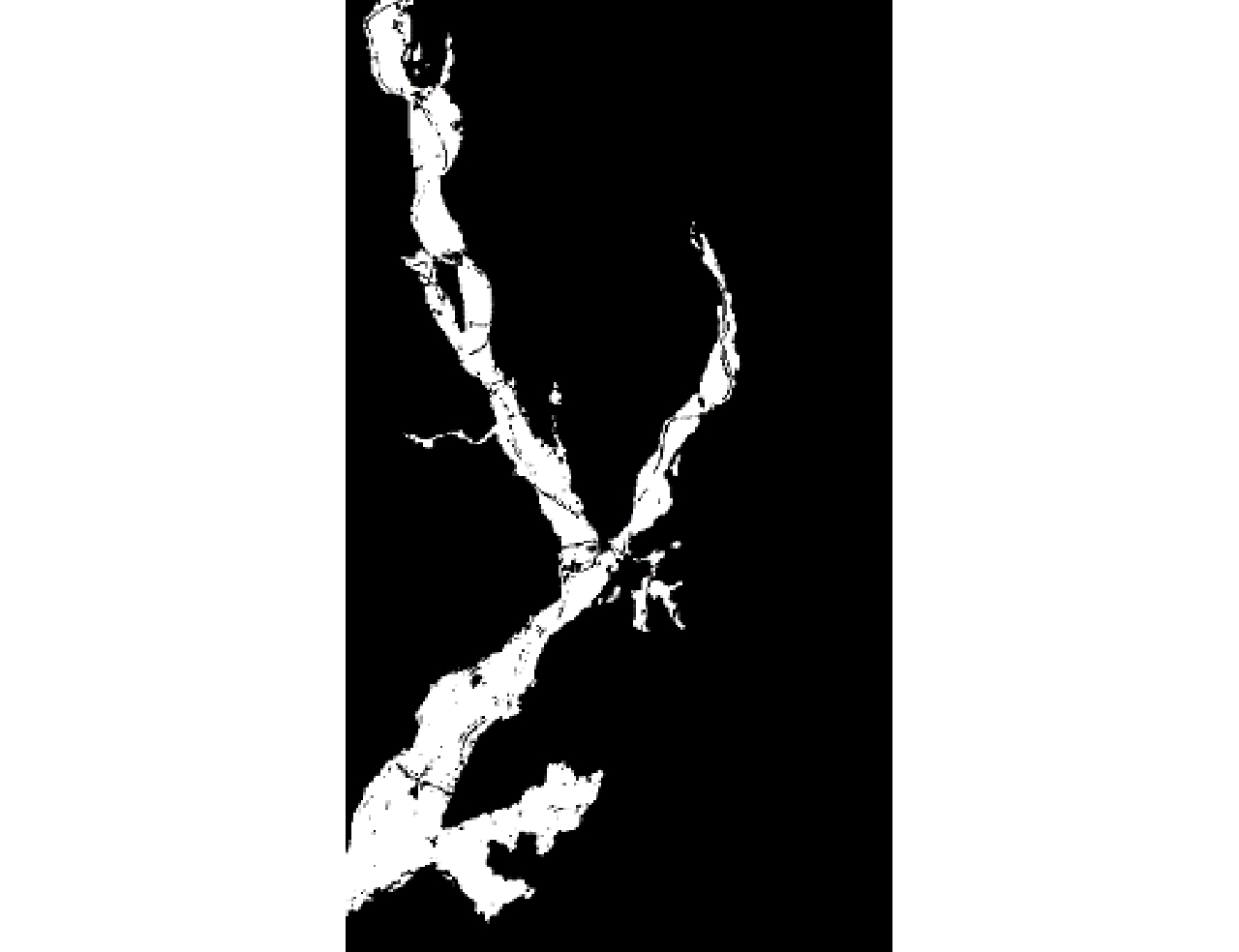

图 23 人工标注的真值图

Figure 23. Manually labeled truth map

下载: 全尺寸图片幻灯片

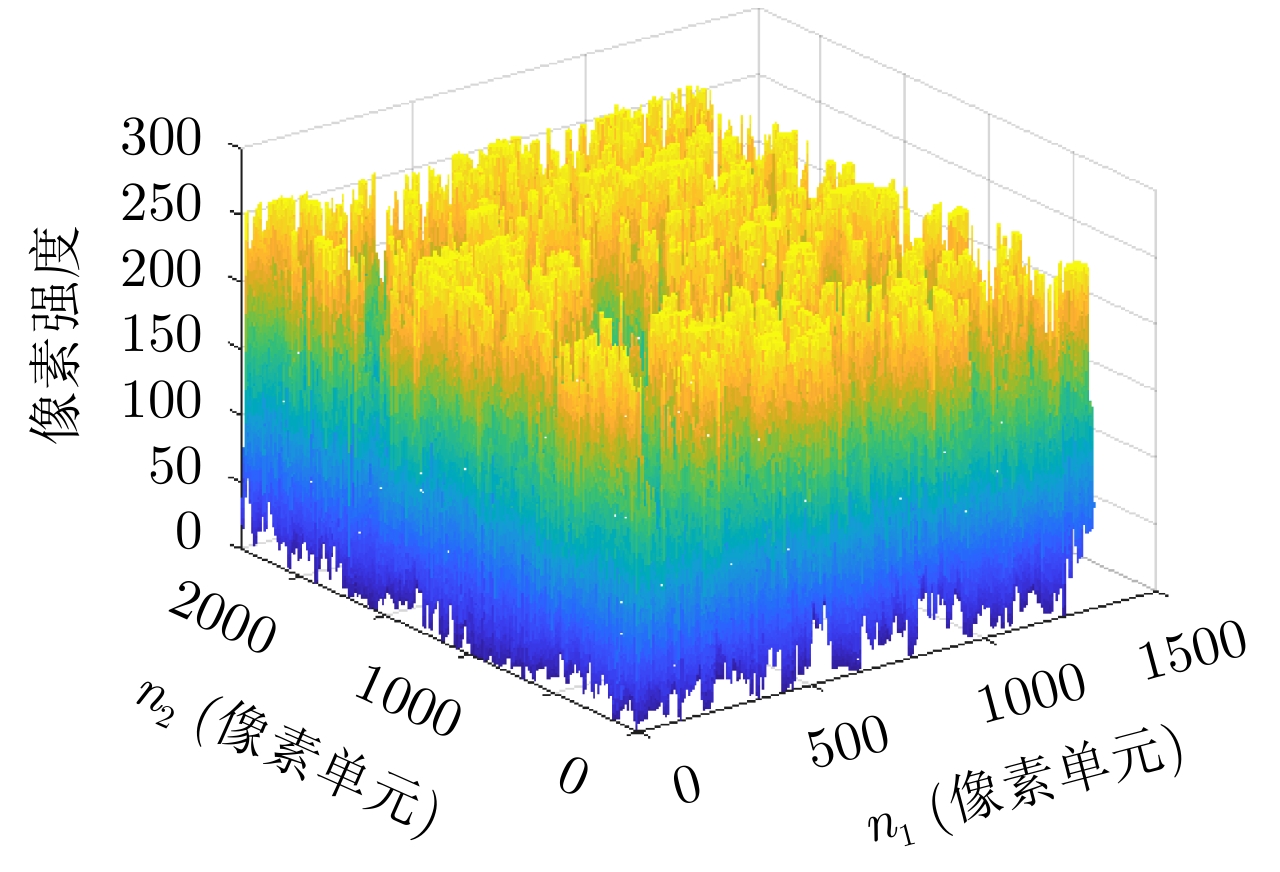

图 24 像素值分布三维图

Figure 24. 3-D map of the distribution of pixel values

下载: 全尺寸图片幻灯片

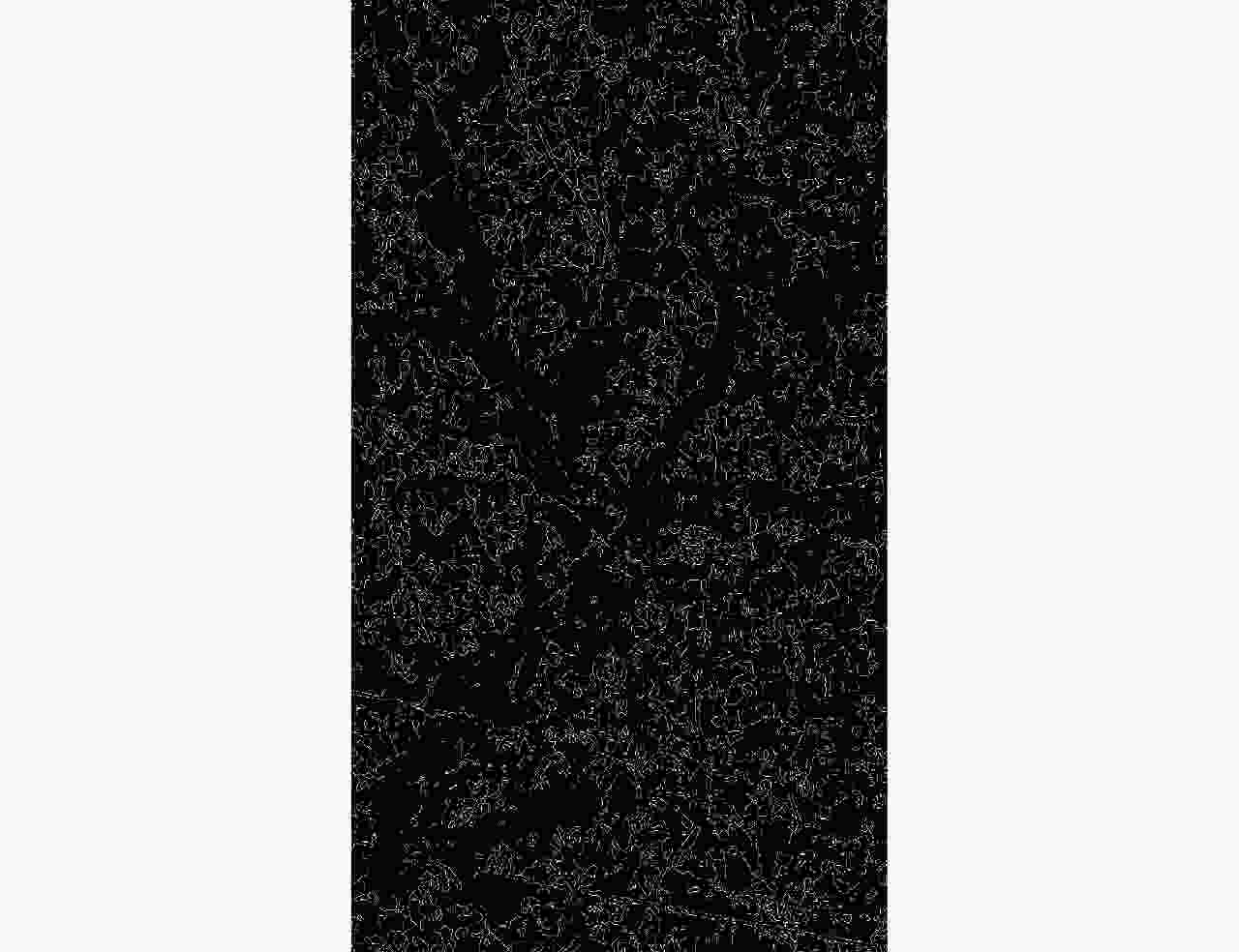

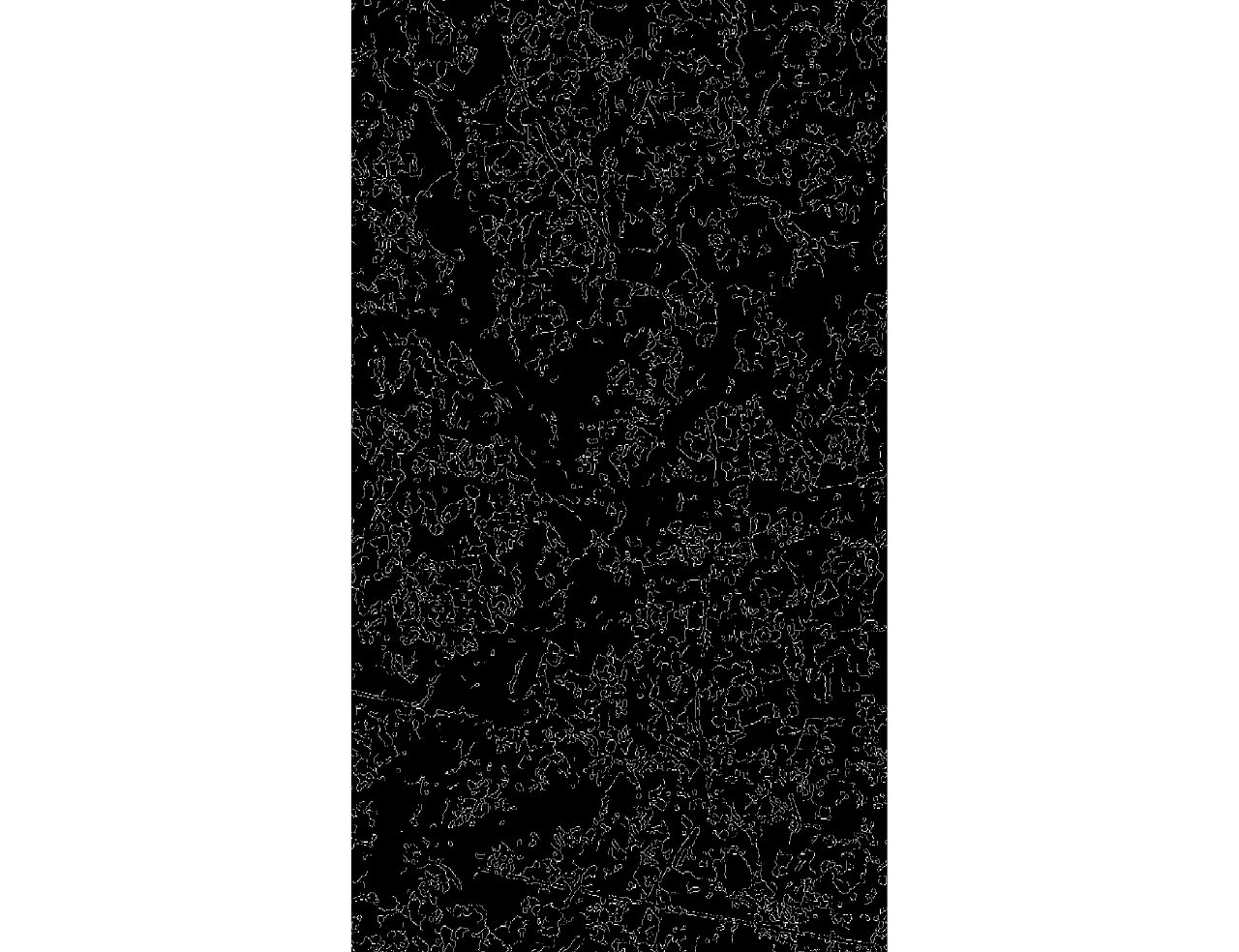

图 25 E_a的边缘轮廓

Figure 25. Edge profile of E_a

下载: 全尺寸图片幻灯片

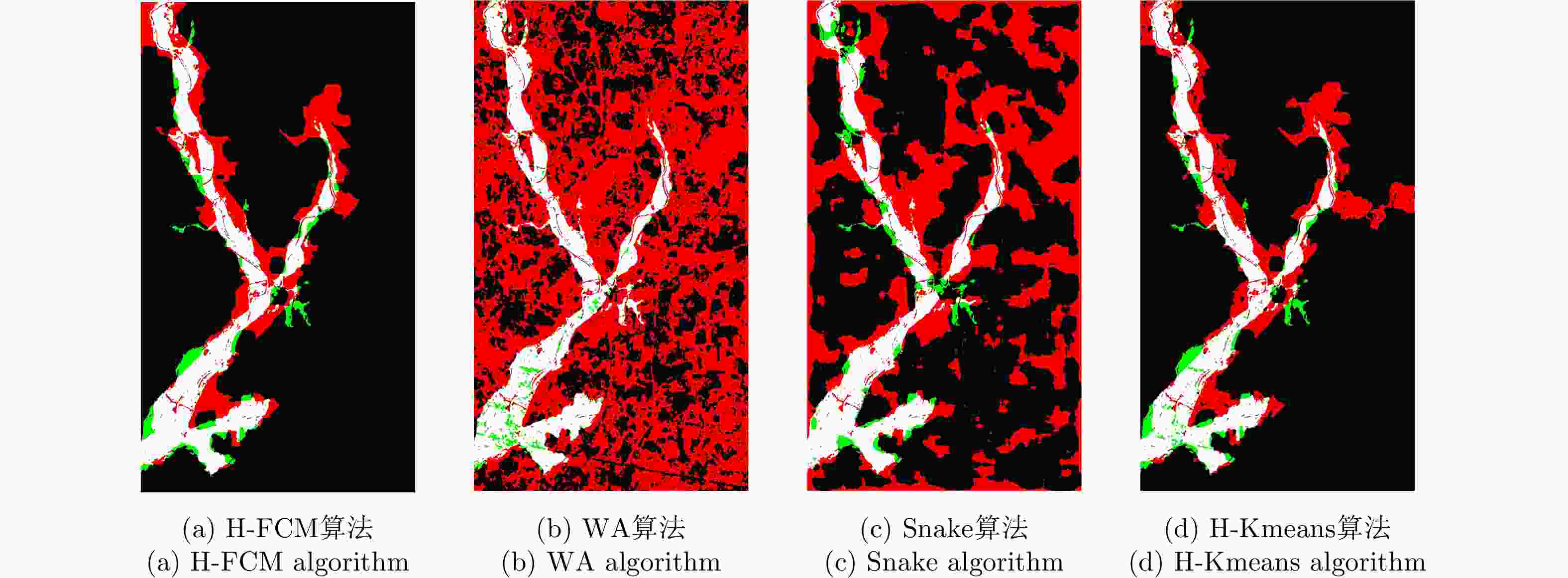

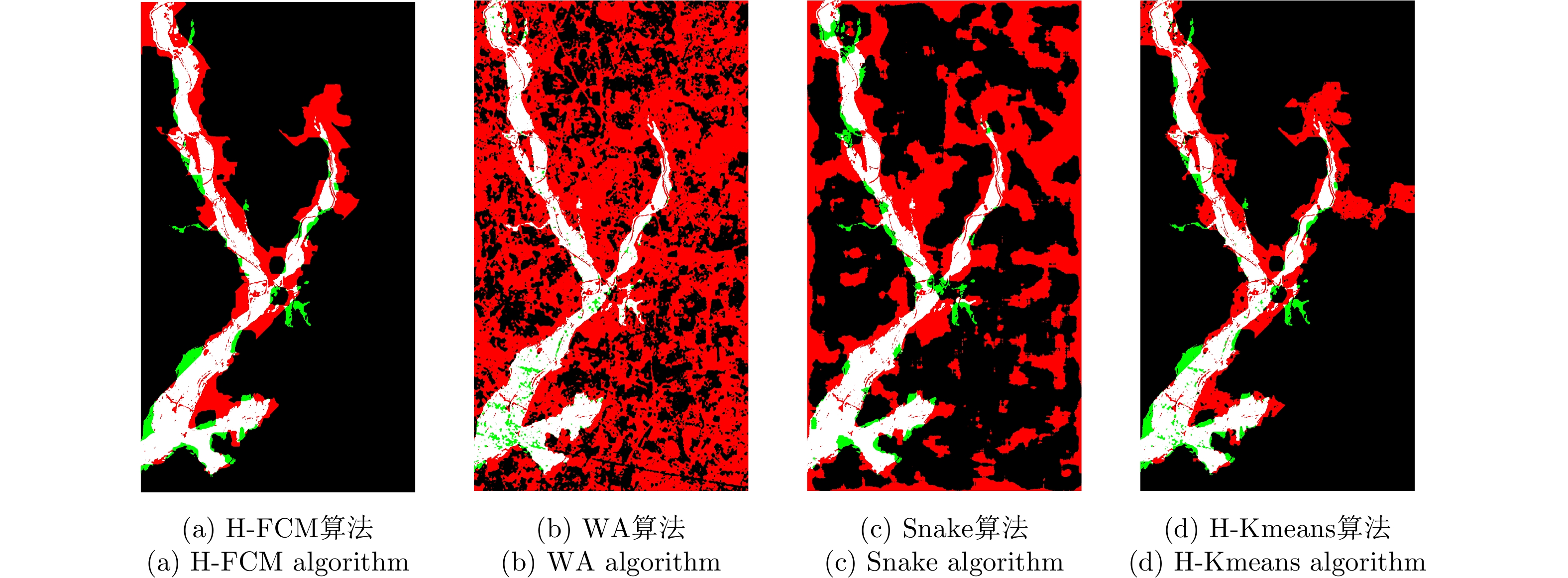

图 26 4种算法的洪灾区域检测结果

Figure 26. Detection results of flooded area based on four algorithms

下载: 全尺寸图片幻灯片

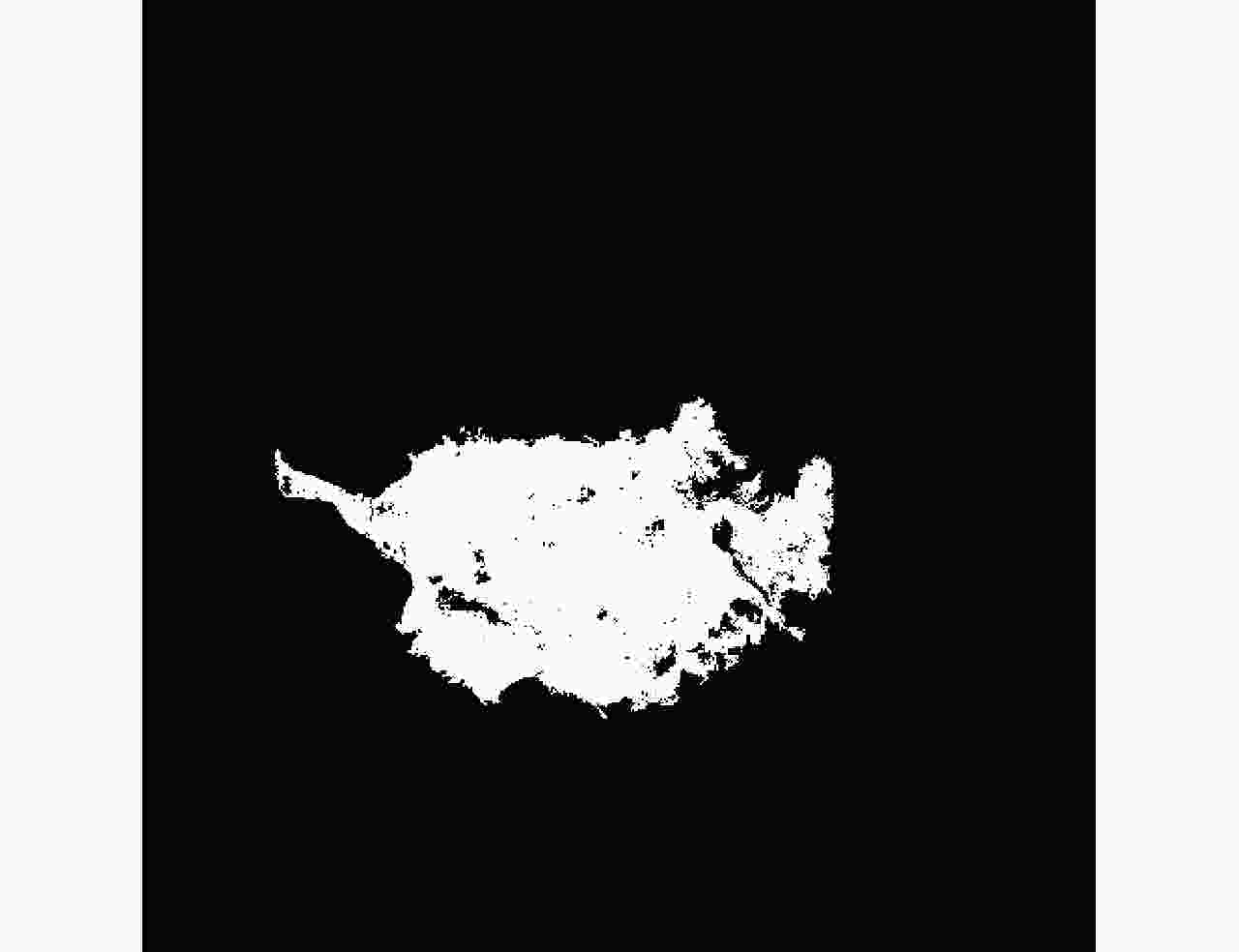

图 27 人工标注的洪灾区域

Figure 27. Manually labeled flooded areas

下载: 全尺寸图片幻灯片

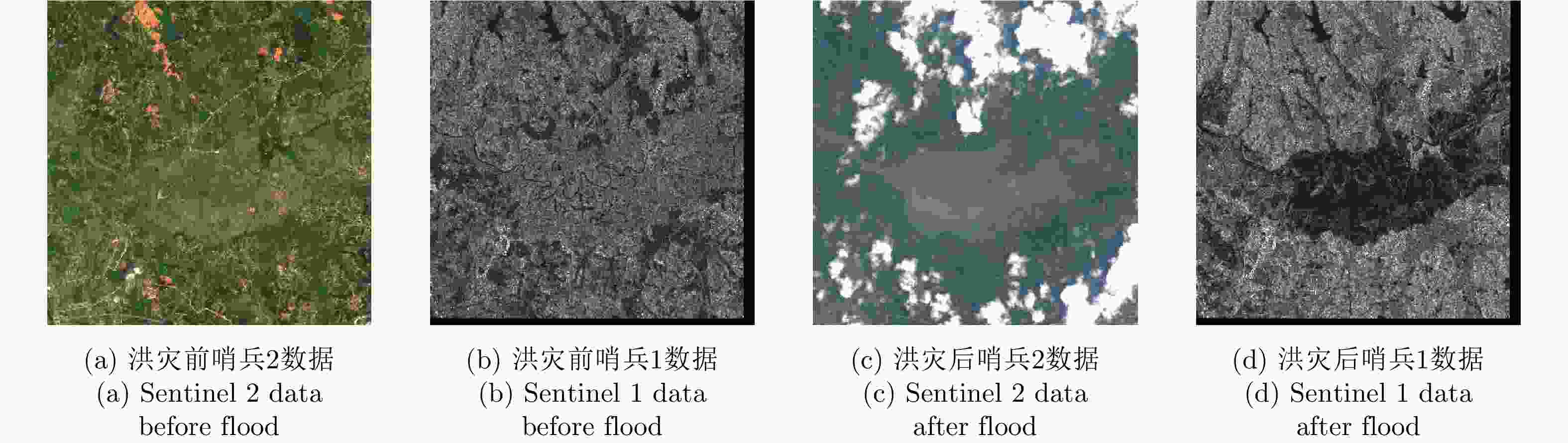

图 28 洪灾前后哨兵1，哨兵2数据

Figure 28. Sentinel 1, 2 data before and after flood

下载: 全尺寸图片幻灯片

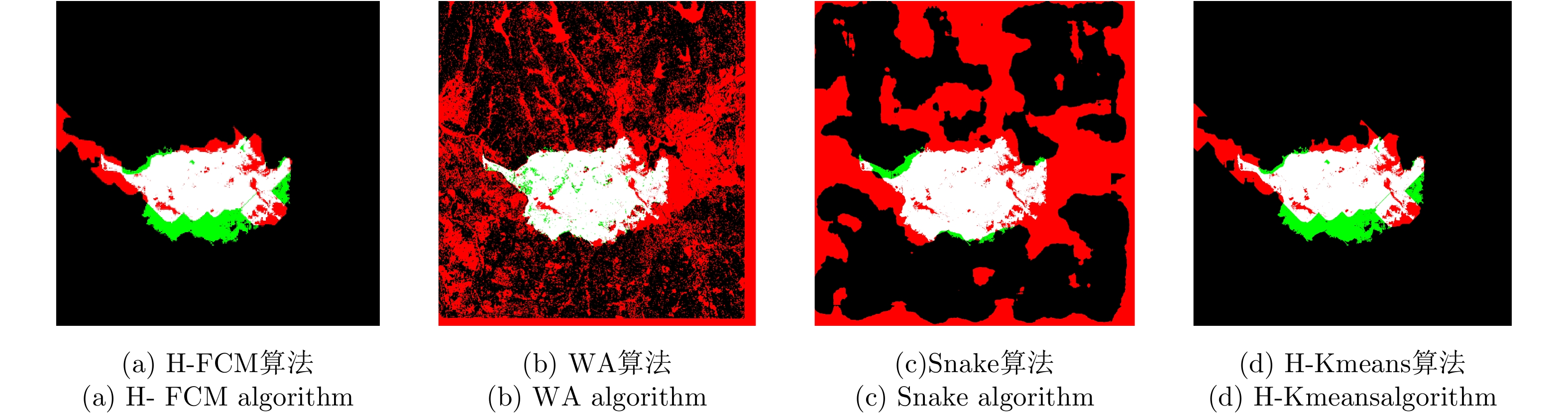

图 29 4种算法的洪灾区域检测结果

Figure 29. Detection results of flooded area based on four algorithms

下载: 全尺寸图片幻灯片

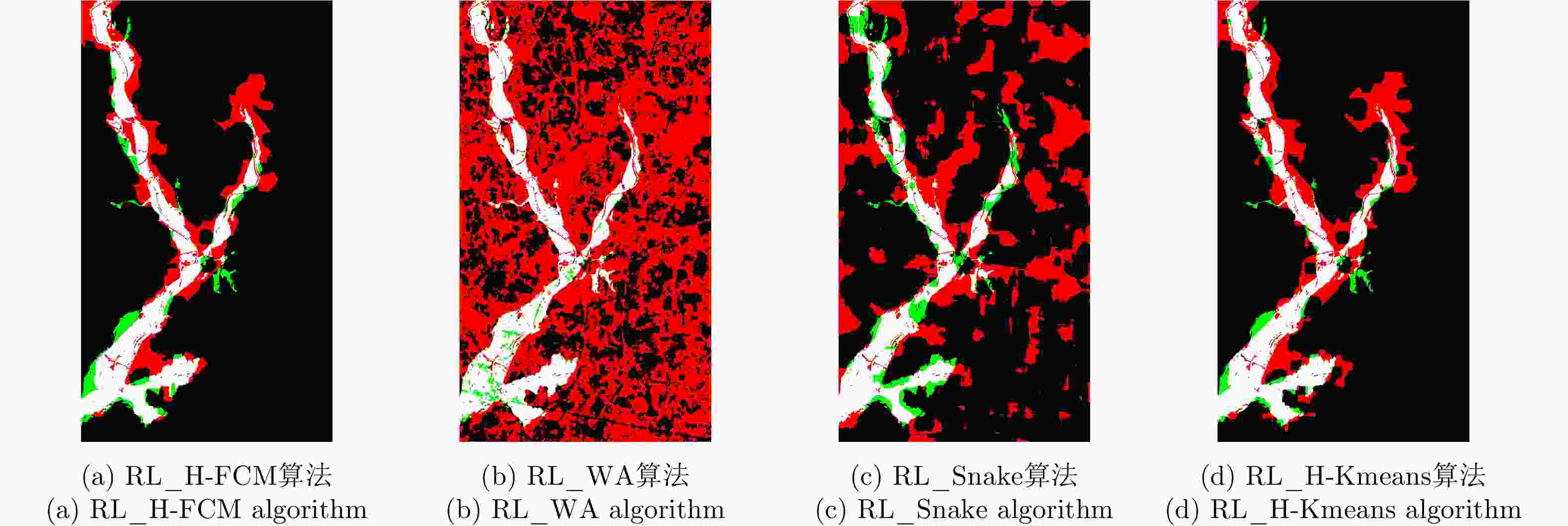

图 30 RL滤波后4种算法的洪灾区域检测结果

Figure 30. Detection results of flooded area based on four algorithms after RL filtering

下载: 全尺寸图片幻灯片

表 1 FCM算法

Table 1. FCM algorithm

(1) 给定聚类中心数目c，隶属度因子m，迭代次数t；
(2) 初始化和为1的隶属度矩阵U；
(3) 由式(4)确定c个聚类中心C_i；
(4) 计算目标函数J的值；
(5) 将C_i代入式(3)，更新隶属度矩阵U；
(6)重复步骤(3)—步骤(5)，迭代次数为t。

下载: 导出CSV

表 2 区分河流和道路的区域生长算法

Table 2. Region growing algorithm to distinguish rivers and roads

(1) 应用FCM算法获得图像的八分类聚类中心C；
(2) 获得阈值矩阵T，并获得小于T₂的二值图P_t；
(3) 通过卷积消除P_t中的区块噪声，并确定初始生长点；
(4) 设定初始生长方向矩阵$ {\bf{J}}{{\bf{d}}_i},i = 1,2,3,4$，如图6—图9；
(5) 每次迭代都以初始生长点为中心，取5×5区域中的最小值点　　作为下一个生长点，按同一方向迭代直至生长到全图边界；
(6) 将每个方向的生长结果累加，得到初步生长结果；
(7) 利用霍夫变换^[26]提取初步生长结果中的道路；
(8) 将初步生长结果去除道路部分，获得河流位置。

下载: 导出CSV

表 3 融合后SAR图像洪灾区域的检测结果

Table 3. Detection results of flooded area in fusioned SAR image

方法	H-FCM	WA	Snake	H-Kmeans
Right_a	0.8946	0.4346	0.6757	0.8837
Miss_a	0.1523	0.0680	0.1607	0.1519
Wr_a	0.2513	0.7001	0.5070	0.2634
Kappa	0.6092	0.1840	0.2964	0.5837
Time(s)	51.98	2.72	2.53	73.27
Iter(次)	25	1	1	25

下载: 导出CSV

表 4 融合后SAR图像洪灾区域的检测结果

Table 4. Detection results of flooded area in the fusioned SAR image

方法	H-FCM	WA	Snake	H-Kmeans
Right_a	0.9414	0.6230	0.6426	0.9391
Miss_a	0.2520	0.0555	0.0608	0.2434
Wr_a	0.2886	0.4690	0.4518	0.2836
Kappa	0.6911	0.2629	0.2749	0.6848
Time(s)	30.59	2.82	3.14	79.13
Iter(次)	25	1	1	25

下载: 导出CSV

表 5 RL滤波后SAR图像的洪灾区域检测结果

Table 5. Detection results of flooded area in the SAR image after RL filtering

方法	RL_H-FCM	RL_WA	RL_Snake	RL_H-Kmeans
Right_a	0.8996	0.4391	0.7615	0.8899
Miss_a	0.1750	0.0660	0.2598	0.1351
Wr_a	0.2653	0.6933	0.4954	0.2418
Kappa	0.6147	0.1863	0.3460	0.6032
Time(s)	646.04	593.72	593.59	745.62
Iter(次)	25	1	1	25

下载: 导出CSV
